XO-2 N b

View target in exoplanet catalog
chart

Total Reductions to Date: 22

Date Processed: 09/18/2023 at 00:07:19 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 2.615859709447949 8.659033966289543e-08
Ephemeris (BJD_TDB) 2460051.745595148 0.0001485848942473664
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 117.0267691 decimal
DEC 50.2251472 decimal
Host Star Metallicity 0.43 0.05 Bonomo et al. 2017
Host Star log(g) 4.32 0.1 Log10(cgs) ExoFOP-TESS TOI
Host Star Radius [R_Sun] 1.08 0.08 Sol ExoFOP-TESS TOI
Host Star Effective Temperature [K] 5340.0 80.0 K Kokori et al. 2022
a/Rs 7.986 0.074 Zellem et al. 2015
eccentricity 0.006 0.038 Bonomo et al. 2017
inclination [degrees] 87.96 0.42 deg Bonomo et al. 2017
omega [degrees] 261.0 11.0 deg Knutson et al. 2014
orbital period [days] 2.61585906 2.5e-07 day Ivshina & Winn 2022
Rp 13.13 0.94 R_Earth ExoFOP-TESS TOI
Rp/Rs 0.1156 0 ExoFOP-TESS TOI
ephemeris [JD] 2456737.45107 0.0002 BJD-TDB Ivshina & Winn 2022

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2454466.88467 0.00012 HJD Fernandez et al. 2009
2454508.73829 0.00014 HJD Crouzet et al. 2012
2455139.16092 0.00013 BJD-TDB Baluev et al. 2015
2455565.54648 5.4e-05 BJD-TDB Bonomo et al. 2017, Damasso et al. 2015
2456737.45107 0.0002 BJD-TDB Ivshina & Winn 2022
2456923.17711 0.00015 BJD-TDB Kokori et al. 2022
2459957.574412 0.000204 BJD ExoFOP-TESS TOI

Observations

Light curve chart for 0000570
Parameter Value Uncertainty
Am1 0.978 0.004
Am2 0.021 0.012
a/Rs 8.04 0.15
Rp/Rs 0.0998 0.0033
ephemeris [JD] 2458908.6156 0.001
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 1.8814850390311888
u1 -3.235061950537781
u2 3.5971567904126998
u3 -1.2435798253042942
duration 0.111 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO MWAA (collaborate/publish)

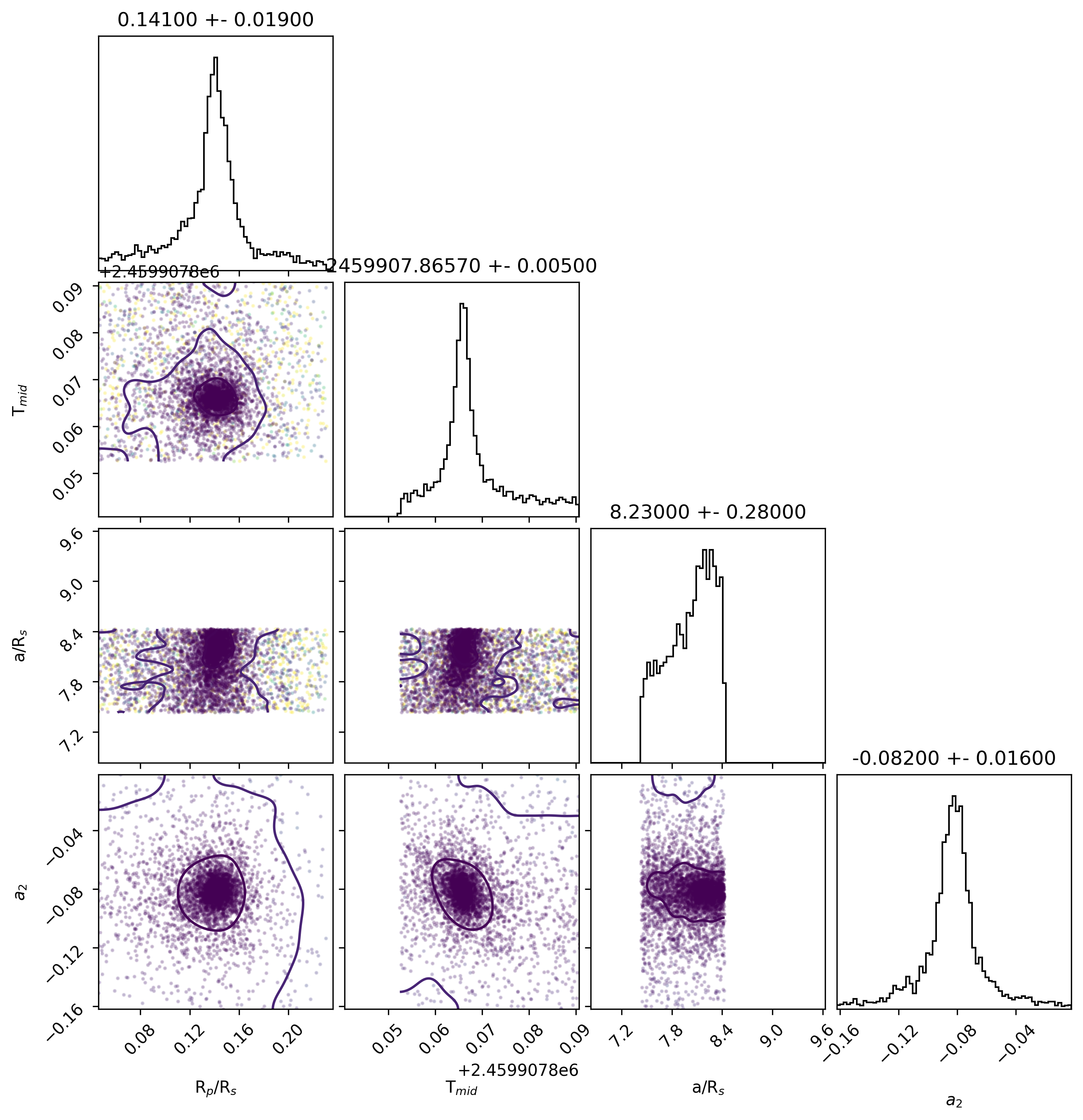

Light curve chart for 0002165
Parameter Value Uncertainty
Am1 1.097 0.014
Am2 -0.085 0.016
a/Rs 8.26 0.21
Rp/Rs 0.142 0.019
ephemeris [JD] 2459907.866 0.0049
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.468907202079324
u1 -4.286163656401252
u2 4.282499491851441
u3 -1.465242973715298
duration 0.1124 0.0036
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
AAVSO LPAC (collaborate/publish)

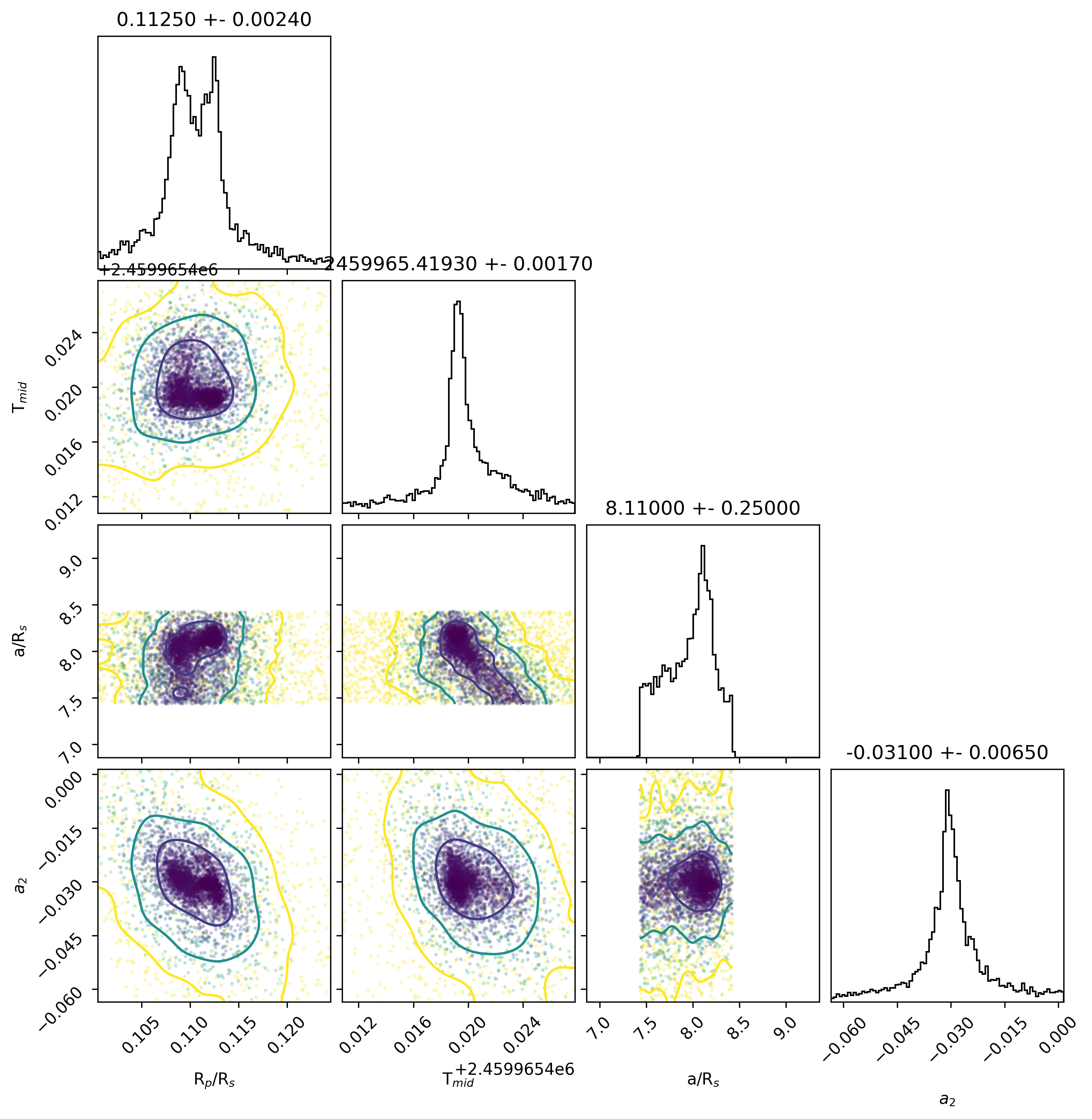

Light curve chart for 0002474
Parameter Value Uncertainty
Am1 1.034 0.0034
Am2 -0.0311 0.0065
a/Rs 8.1 0.18
Rp/Rs 0.1126 0.0023
ephemeris [JD] 2459965.4192 0.0013
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 1.8817430499487782
u1 -3.23586611145645
u2 3.598373166879669
u3 -1.2442500517520587
duration 0.1114 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO HMAK (collaborate/publish)
Light curve chart for 0003306
Parameter Value Uncertainty
Am1 1.0087 0.0054
Am2 -0.0053 0.0014
a/Rs 7.62 0.14
Rp/Rs 0.1042 0.0039
ephemeris [JD] 2460051.7463 0.0018
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 1.880745580981322
u1 -3.231241163322678
u2 3.591525699601176
u3 -1.2410300637419165
duration 0.118 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 520f83fa882f47a4cb53939bef9b17c3
Parameter Value Uncertainty
Am1 0.9997 0.003
Am2 0
a/Rs 7.99 0.16
Rp/Rs 0.0975 0.0025
ephemeris [JD] 2458866.7615 0.0011
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.4689326804556844
u1 -4.286029760513515
u2 4.282200600870293
u3 -1.4651034570026997
duration 0.1115 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 851b207a4c1b1377f0ce24285c46339c
Parameter Value Uncertainty
Am1 1.0006 0.0024
Am2 0
a/Rs 8.01 0.16
Rp/Rs 0.0975 0.0022
ephemeris [JD] 2458845.8341 0.0011
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.468516817458904
u1 -4.285401356919738
u2 4.282005892160886
u3 -1.4651212888931924
duration 0.111 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9ffdadcb77eaac2835292e94d31a3c62
Parameter Value Uncertainty
Am1 1.0001 0.0022
Am2 0
a/Rs 7.96 0.15
Rp/Rs 0.093 0.002
ephemeris [JD] 2459588.7375 0.001
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.4690999822598245
u1 -4.287231434036325
u2 4.284015132012574
u3 -1.4658836163992737
duration 0.1114 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for aa77e654b5acf5d63b630356cb3c0cae
Parameter Value Uncertainty
Am1 0.9996 0.0025
Am2 0
a/Rs 7.82 0.16
Rp/Rs 0.0929 0.0022
ephemeris [JD] 2459586.1219 0.0012
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.4688301686528917
u1 -4.286052533922165
u2 4.2824145729431065
u3 -1.4651921438608828
duration 0.1135 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c4dc3c1d8c07dec4d53bb37390effc7a
Parameter Value Uncertainty
Am1 1.0004 0.0031
Am2 0
a/Rs 8.24 0.14
Rp/Rs 0.0977 0.0026
ephemeris [JD] 2458851.0672 0.0012
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.4698235336509695
u1 -4.2889015529835115
u2 4.285527253242567
u3 -1.4664491700506916
duration 0.1077 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

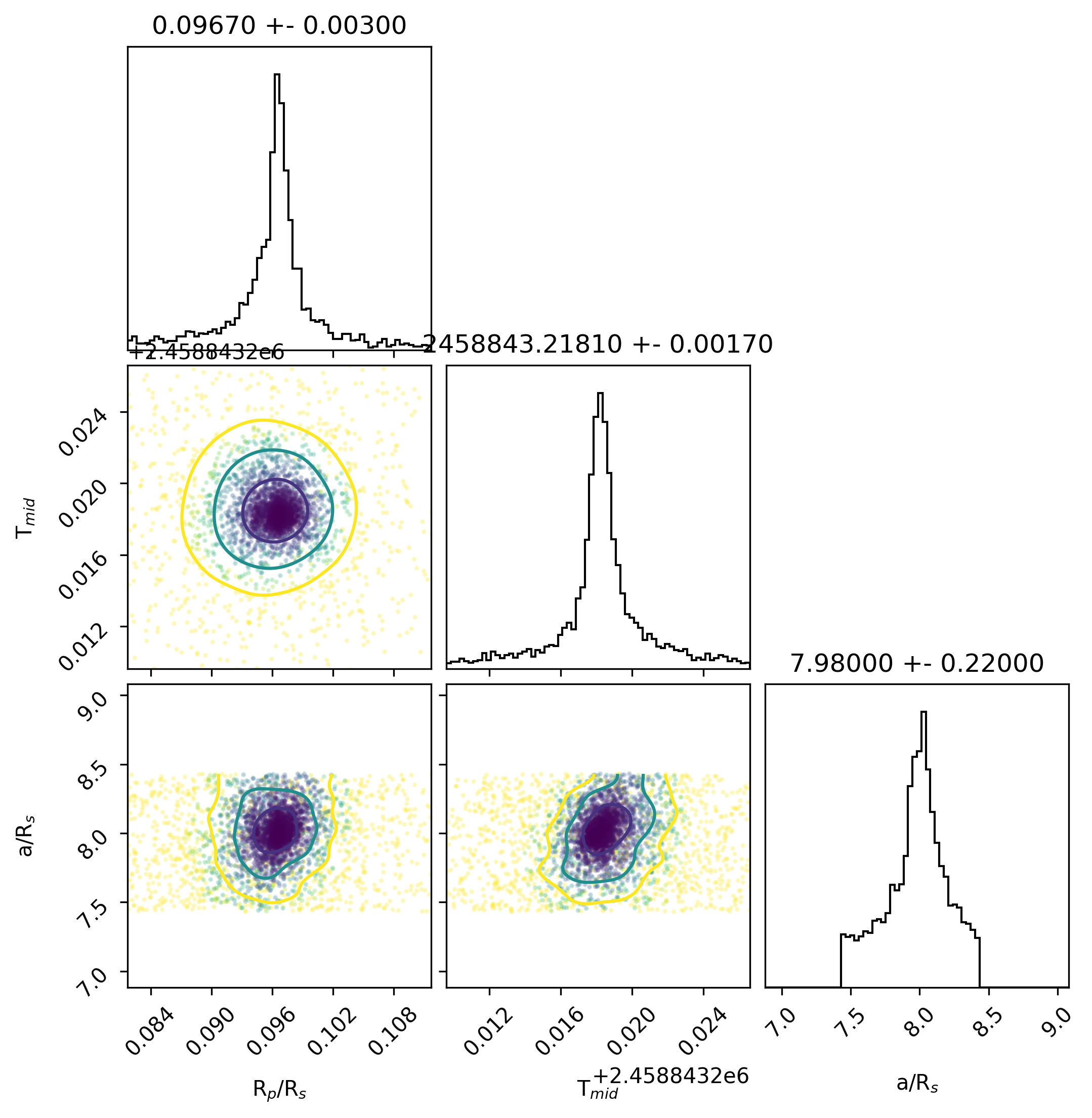

Light curve chart for d0e060769d1461705a11c127d7882363
Parameter Value Uncertainty
Am1 1.0011 0.0038
Am2 0
a/Rs 7.99 0.19
Rp/Rs 0.0968 0.003
ephemeris [JD] 2458843.2181 0.0016
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.46904405274263
u1 -4.287349327920576
u2 4.284386693951876
u3 -1.4660813549315934
duration 0.111 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

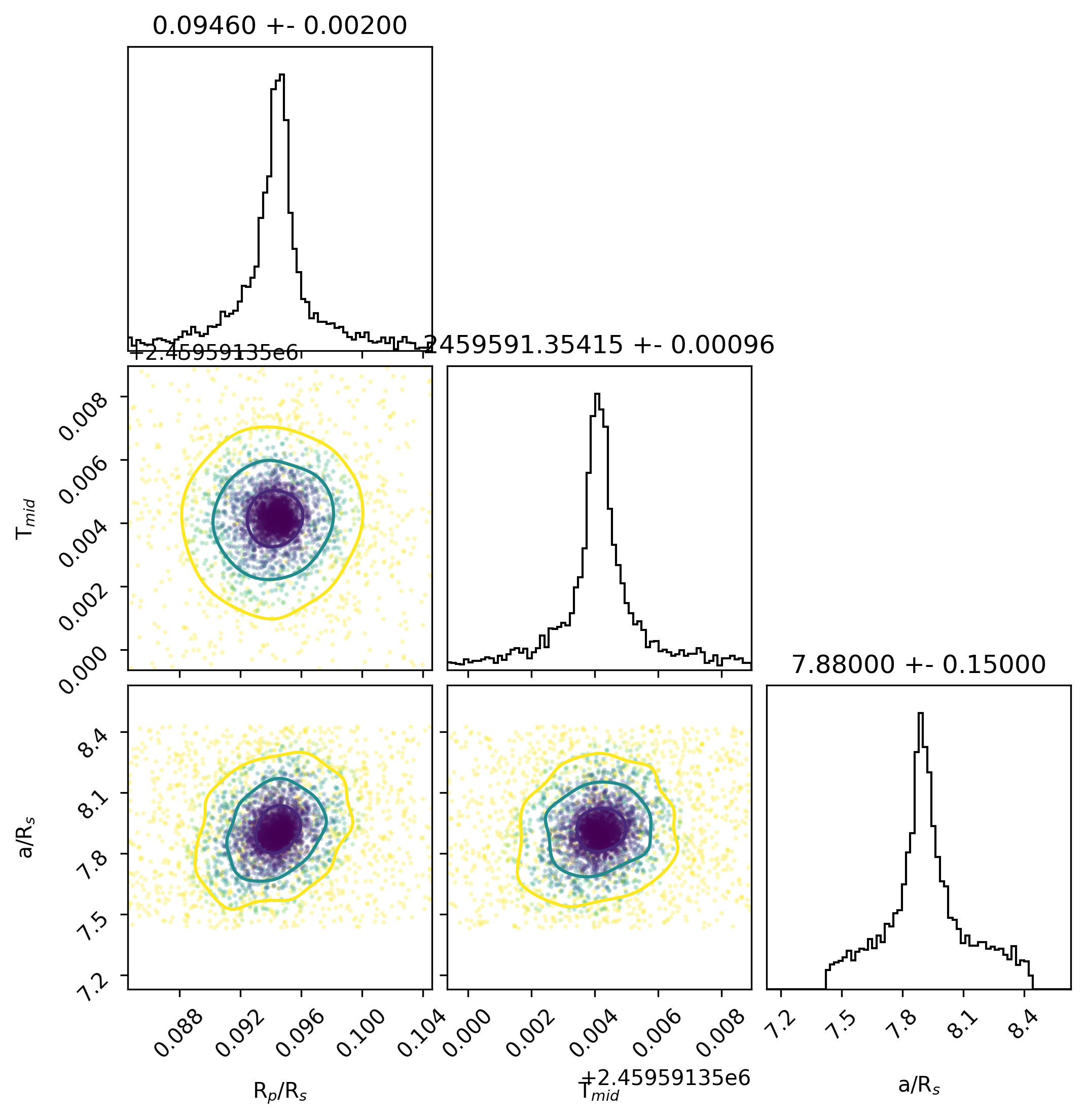

Light curve chart for 3869ba247d61acbf064d69cfc8c1d4a4
Parameter Value Uncertainty
Am1 1.0003 0.002
Am2 0
a/Rs 7.88 0.14
Rp/Rs 0.0947 0.0019
ephemeris [JD] 2459591.35421 0.00099
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.468869855305938
u1 -4.28711879100342
u2 4.284468914359063
u3 -1.4662199148180184
duration 0.1127 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 98ad5c1da37e715eb71a814bd699b7c9
Parameter Value Uncertainty
Am1 0.9995 0.0039
Am2 0
a/Rs 8.26 0.17
Rp/Rs 0.0963 0.003
ephemeris [JD] 2458853.6809 0.0018
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.46858019212709
u1 -4.285811920176363
u2 4.282548828503588
u3 -1.4653170366393646
duration 0.1073 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for acef8416a41d2d49e40e7433bfb6c6a7
Parameter Value Uncertainty
Am1 1.0056 0.0026
Am2 0
a/Rs 8.06 0.17
Rp/Rs 0.0931 0.0024
ephemeris [JD] 2459596.5855 0.0012
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.468556992782567
u1 -4.285064962735737
u2 4.281205930065454
u3 -1.464697896317345
duration 0.1098 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4926fd7174e089ae59508782430618a4
Parameter Value Uncertainty
Am1 1.0034 0.0028
Am2 0
a/Rs 7.92 0.16
Rp/Rs 0.0951 0.0023
ephemeris [JD] 2459580.8913 0.0012
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.469108407837359
u1 -4.287475115577721
u2 4.28447711070475
u3 -1.4661103391207035
duration 0.1123 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for e28dcccbe3d78082e9360bcc88be04eb
Parameter Value Uncertainty
Am1 0.9999 0.0018
Am2 0
a/Rs 7.94 0.14
Rp/Rs 0.0926 0.0019
ephemeris [JD] 2459583.5066 0.00095
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.4686435923428616
u1 -4.285781288301874
u2 4.282262286352818
u3 -1.4651245265831245
duration 0.1119 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b860ee5b00c2de77bb232db6f1774889
Parameter Value Uncertainty
Am1 1.0017 0.0032
Am2 0
a/Rs 8.0 0.17
Rp/Rs 0.0968 0.0026
ephemeris [JD] 2458858.912 0.0013
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.4683292382947273
u1 -4.284426365938804
u2 4.280493323484125
u3 -1.4643961320557266
duration 0.1114 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 2b19f46d6fb065d3b1dba5dd03e729cc
Parameter Value Uncertainty
Am1 1.0005 0.0018
Am2 0
a/Rs 7.95 0.13
Rp/Rs 0.095 0.0019
ephemeris [JD] 2459604.43272 0.00092
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.468439880872626
u1 -4.285756864176201
u2 4.282777822818963
u3 -1.4654607756970255
duration 0.1119 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f9cef661ab993543e0870149ceb53846
Parameter Value Uncertainty
Am1 1.0003 0.002
Am2 0
a/Rs 7.98 0.14
Rp/Rs 0.094 0.002
ephemeris [JD] 2459601.81744 0.00094
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.468444820613255
u1 -4.284459269534604
u2 4.280343769433787
u3 -1.4643292567303452
duration 0.1114 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 790ce73601f6a8f2dc4b11d9d67ed04b
Parameter Value Uncertainty
Am1 0.9997 0.0041
Am2 0
a/Rs 8.35 0.17
Rp/Rs 0.0945 0.0033
ephemeris [JD] 2458848.4515 0.002
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.468269946594047
u1 -4.2842194968951475
u2 4.280341216393552
u3 -1.4643916023103971
duration 0.1061 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 683b42744df83d240638ea26775412b5
Parameter Value Uncertainty
Am1 1.0004 0.0032
Am2 0
a/Rs 7.91 0.17
Rp/Rs 0.0947 0.0025
ephemeris [JD] 2458864.1457 0.0013
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.4687646306611395
u1 -4.286583391196731
u2 4.28353952945236
u3 -1.4657207050870555
duration 0.1123 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c8204725207d003a41a793bcee0ae74c
Parameter Value Uncertainty
Am1 0.9998 0.0029
Am2 0
a/Rs 8.2 0.15
Rp/Rs 0.0956 0.0023
ephemeris [JD] 2458861.5292 0.0012
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.4686101117139976
u1 -4.286697067586955
u2 4.284100387294608
u3 -1.4660133675835811
duration 0.1082 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fd0ad627ebe11a582f27097da12b9281
Parameter Value Uncertainty
Am1 1.0 0.0018
Am2 0
a/Rs 7.84 0.14
Rp/Rs 0.0935 0.0019
ephemeris [JD] 2459599.2012 0.0011
eccentricity 0.006
inclination [degrees] 87.96
omega [degrees] 261.0
orbital period [days] 2.61585906
u0 2.4686033511398007
u1 -4.2858571066737445
u2 4.282570508104605
u3 -1.4653166887553875
duration 0.1131 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
