WASP-98 b

View target in exoplanet catalog
chart

Total Reductions to Date: 18

Date Processed: 09/18/2023 at 00:07:19 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 2.9626414837733974 1.6786463695334032e-07
Ephemeris (BJD_TDB) 2459168.6397549002 0.0001266124394918067
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 58.4290113 decimal
DEC -34.3282716 decimal
Host Star Metallicity -0.6 0.19 Kokori et al. 2022
Host Star log(g) 4.58 0.01 Log10(cgs) Kokori et al. 2022
Host Star Radius [R_Sun] 0.7 0.02 Sol Kokori et al. 2022
Host Star Effective Temperature [K] 5525.0 130.0 K Kokori et al. 2022
a/Rs 10.92 0.08 Mancini et al. 2016
eccentricity 0.07 Bonomo et al. 2017
inclination [degrees] 86.3 0.1 deg Bonomo et al. 2017
omega [degrees] 0.0 deg Ivshina & Winn 2022
orbital period [days] 2.96264133 2.9e-07 day Ivshina & Winn 2022
Rp 12.65 0.64 R_Earth ExoFOP-TESS TOI
Rp/Rs 0.1647 0 ExoFOP-TESS TOI
ephemeris [JD] 2458413.16611 0.00013 BJD-TDB Ivshina & Winn 2022

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2456333.391751667 9.400000000000001e-05 BJD-TDB, HJD-UTC Bonomo et al. 2017, Mancini et al. 2016, Hellier et al. 2014
2456840.00365 8e-05 BJD-TDB Kokori et al. 2022
2458413.16611 0.00013 BJD-TDB Ivshina & Winn 2022
2459168.63923 0.000311 BJD ExoFOP-TESS TOI

Observations

Light curve chart for 0002893
Parameter Value Uncertainty
Am1 0.87 0.026
Am2 0.047 0.037
a/Rs 10.53 0.23
Rp/Rs 0.275 0.054
ephemeris [JD] 2458534.652 0.01
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 1.736203176366593
u1 -2.8075938283092343
u2 3.338575441924191
u3 -1.2671847402328993
duration 0.0587 0.0092
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

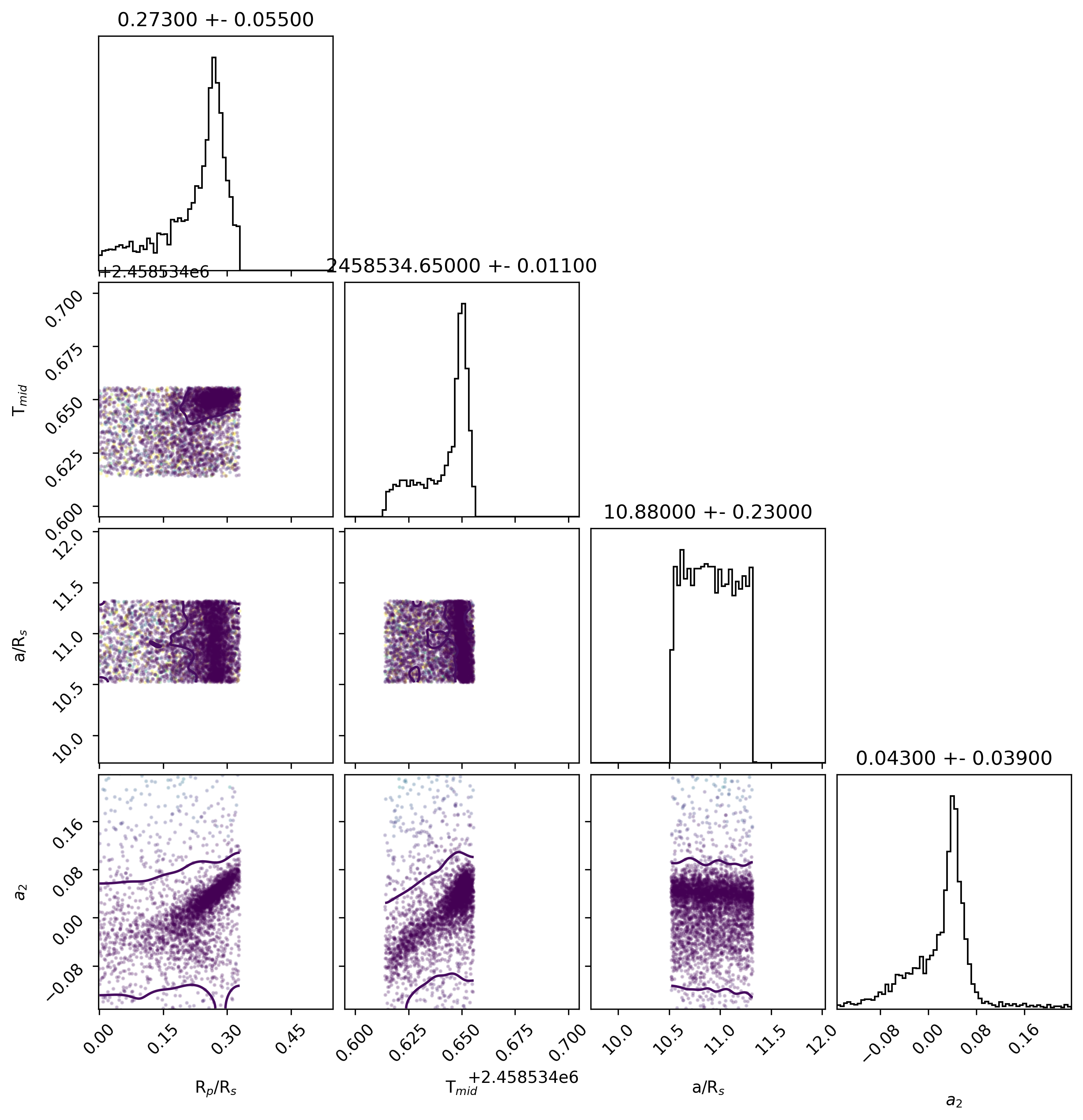

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO YLUA (collaborate/publish) MOBS
Light curve chart for 0000526
Parameter Value Uncertainty
Am1 1.0224 0.0055
Am2 0.07 0.15
a/Rs 10.7 0.22
Rp/Rs 0.182 0.011
ephemeris [JD] 2459156.7907 0.0035
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 1.425658744137796
u1 -2.281051617150378
u2 3.0571232149929384
u3 -1.2017302964256704
duration 0.0668 0.0034
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

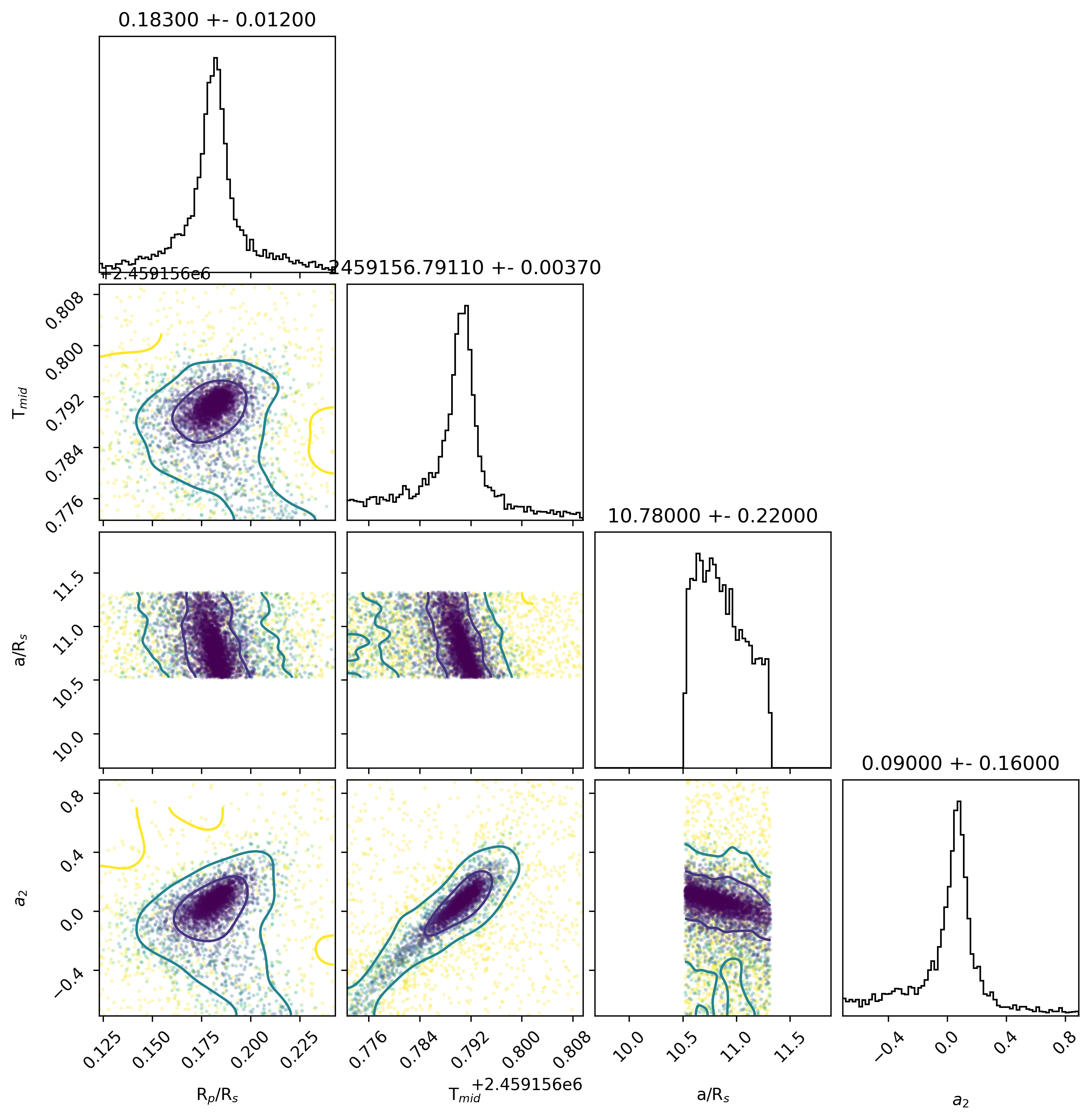

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
SG Sloan g 402.5 nm 551.5 nm
Organization Observer Code Secondary Observers
AAVSO HCHB (collaborate/publish)
Light curve chart for 0002335
Parameter Value Uncertainty
Am1 0.785 0.021
Am2 0.09 0.034
a/Rs 10.58 0.23
Rp/Rs 0.153 0.033
ephemeris [JD] 2459962.6098 0.0077
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.0219058745618246
u1 -3.496100209709122
u2 3.9305118255675406
u3 -1.456317431851053
duration 0.0775 0.0068
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

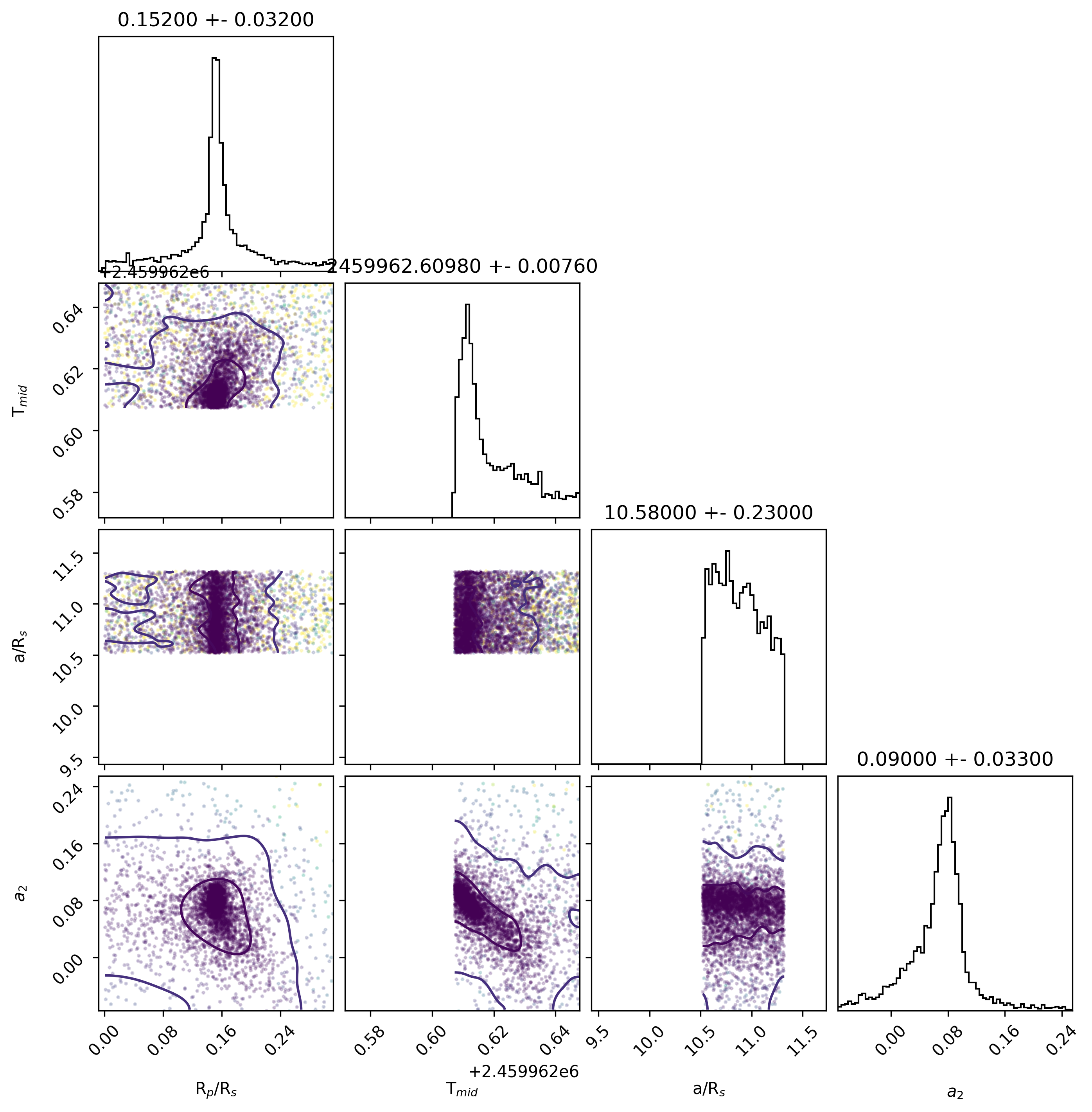

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for ab8135c2cbd25853cad9b967b2a9dfbb
Parameter Value Uncertainty
Am1 1.001 0.011
Am2 0
a/Rs 10.81 0.13
Rp/Rs 0.1586 0.0032
ephemeris [JD] 2459162.71487 0.00067
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.704014146489282
u1 -4.834559502503439
u2 4.828076186726795
u3 -1.6975307587686963
duration 0.081 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9577316ed0a0d6bb98901d37d436da5a
Parameter Value Uncertainty
Am1 1.0127 0.0045
Am2 0
a/Rs 10.93 0.18
Rp/Rs 0.1554 0.0039
ephemeris [JD] 2458422.05396 0.00092
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.7056860169010166
u1 -4.838060077993157
u2 4.831140479164119
u3 -1.6987663460823743
duration 0.079 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for dc95885c0ed2f0d0d01088f9fe379059
Parameter Value Uncertainty
Am1 1.0006 0.0042
Am2 0
a/Rs 10.91 0.18
Rp/Rs 0.1565 0.0038
ephemeris [JD] 2458433.90419 0.00089
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.7050403734910833
u1 -4.836462596871018
u2 4.829563121810485
u3 -1.6981408264644515
duration 0.0797 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

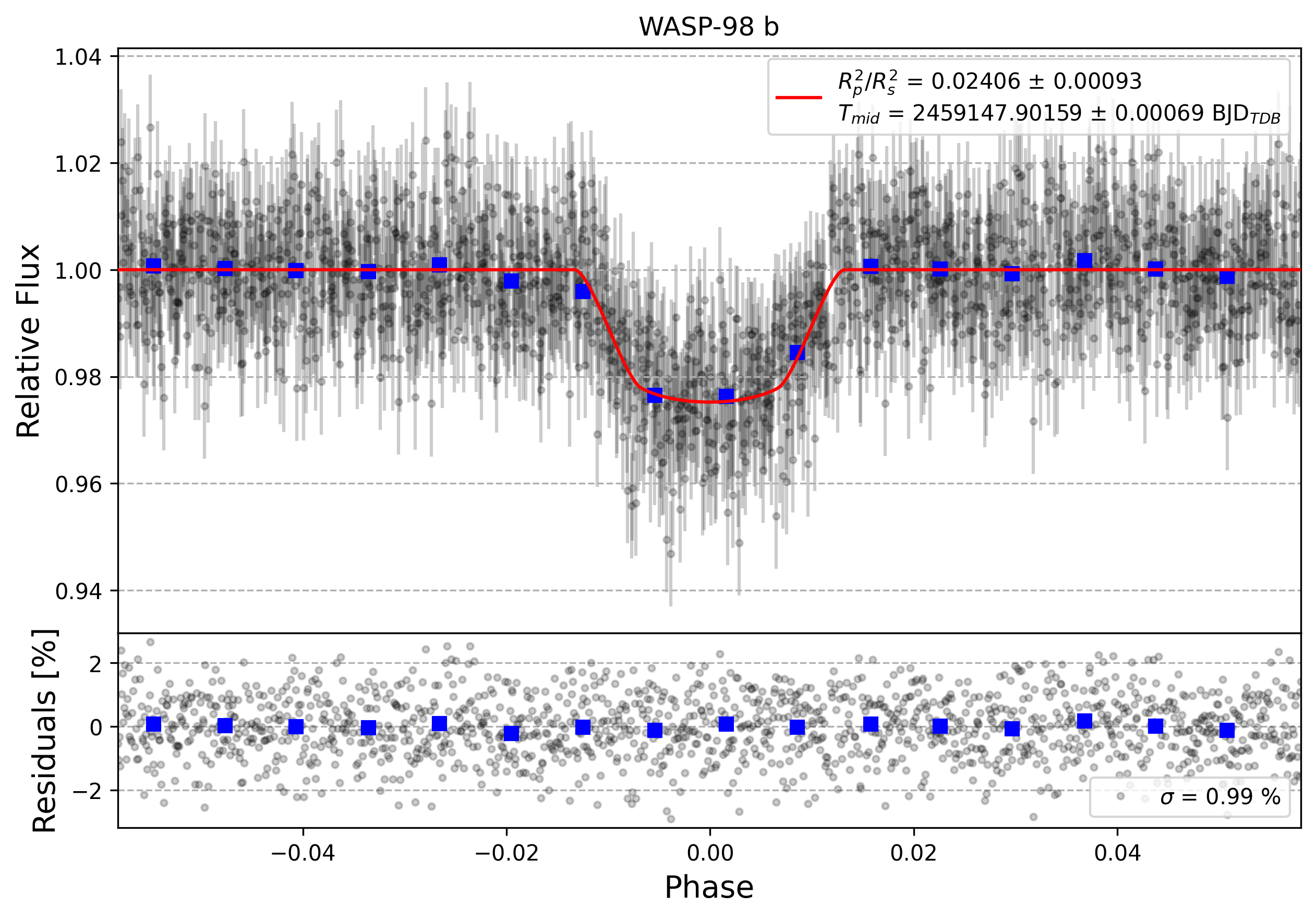

Light curve chart for 0aa86e2f95ee29c68c5cebdab4e091f0
Parameter Value Uncertainty
Am1 1.0 0.0099
Am2 0
a/Rs 10.97 0.14
Rp/Rs 0.1554 0.0032
ephemeris [JD] 2459147.9016 0.00067
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.7037883413201067
u1 -4.834336169432929
u2 4.828066530097014
u3 -1.6975186300403937
duration 0.0789 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4b89693287dc30174abb0b8d9dceb0fa
Parameter Value Uncertainty
Am1 0.9997 0.0039
Am2 0
a/Rs 10.98 0.17
Rp/Rs 0.1598 0.0039
ephemeris [JD] 2458425.01563 0.00086
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.704090709800598
u1 -4.834108833489424
u2 4.827330390015513
u3 -1.6973121943938598
duration 0.079 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 2de32da7c4ce26dbf795dee7939e81e3
Parameter Value Uncertainty
Am1 1.001 0.011
Am2 0
a/Rs 10.87 0.14
Rp/Rs 0.1522 0.0031
ephemeris [JD] 2459144.93841 0.00072
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.7056235666244364
u1 -4.838128674686723
u2 4.831209457927515
u3 -1.6987042778745982
duration 0.0796 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0f80ba6906817801e47f0dcce747dc24
Parameter Value Uncertainty
Am1 1.0004 0.004
Am2 0
a/Rs 10.78 0.17
Rp/Rs 0.155 0.0035
ephemeris [JD] 2458430.94206 0.00092
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.7054569170496743
u1 -4.8380496070432715
u2 4.831429625411621
u3 -1.6988368634241118
duration 0.081 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 1bd5f3e0cea61dab278787f76c9c7383
Parameter Value Uncertainty
Am1 1.001 0.011
Am2 0
a/Rs 10.84 0.15
Rp/Rs 0.1611 0.0032
ephemeris [JD] 2459168.64007 0.00076
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.7049121765979938
u1 -4.836144012492681
u2 4.829165611581774
u3 -1.6979337037269127
duration 0.081 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

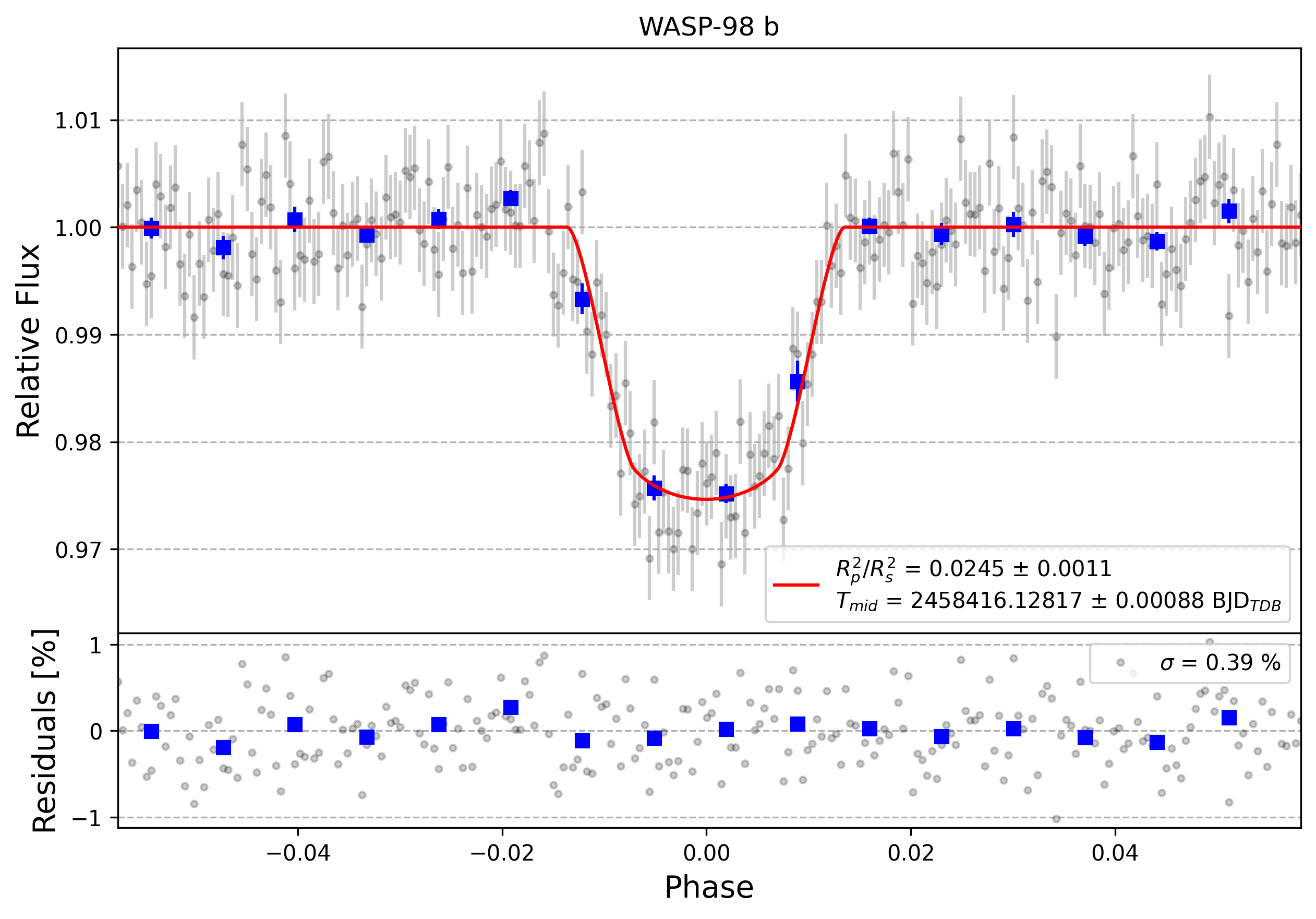

Light curve chart for 3a16e4b1f7fb5bd16ed122f93ed5fc15
Parameter Value Uncertainty
Am1 1.0001 0.0039
Am2 0
a/Rs 10.83 0.17
Rp/Rs 0.1574 0.0036
ephemeris [JD] 2458416.12815 0.00088
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.704099187388649
u1 -4.833879713141214
u2 4.826635697095774
u3 -1.6968550994207323
duration 0.0807 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 120fcbca572fcee39297f31532fe6068
Parameter Value Uncertainty
Am1 1.0002 0.0039
Am2 0
a/Rs 10.82 0.16
Rp/Rs 0.1536 0.0036
ephemeris [JD] 2458413.16743 0.00084
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.7051066902062555
u1 -4.837099573370547
u2 4.830324963748236
u3 -1.698332008606493
duration 0.08 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for aef0222ed9bd9188b0636b6a3ddd2ca4
Parameter Value Uncertainty
Am1 1.0 0.01
Am2 0
a/Rs 11.01 0.14
Rp/Rs 0.1563 0.0031
ephemeris [JD] 2459153.82759 0.00072
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.7048291125514936
u1 -4.836740755096265
u2 4.830409091163457
u3 -1.6984973766399811
duration 0.0786 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f7ce89be1919e336e99e8b60ff1ee2fd
Parameter Value Uncertainty
Am1 1.001 0.01
Am2 0
a/Rs 10.93 0.15
Rp/Rs 0.1589 0.0029
ephemeris [JD] 2459165.67848 0.00072
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.705074659381793
u1 -4.836330009460853
u2 4.829104125576111
u3 -1.6978487035377925
duration 0.0796 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 968580d8244b09036c1725c94b0c46cf
Parameter Value Uncertainty
Am1 1.001 0.01
Am2 0
a/Rs 11.09 0.14
Rp/Rs 0.1617 0.0028
ephemeris [JD] 2459159.75229 0.00065
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.70387722811279
u1 -4.833846662503891
u2 4.827115432460783
u3 -1.6971459261400557
duration 0.0782 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 43a8fb05f2439add9bad4418d46059cb
Parameter Value Uncertainty
Am1 1.0 0.01
Am2 0
a/Rs 11.02 0.15
Rp/Rs 0.1577 0.0031
ephemeris [JD] 2459150.86322 0.00074
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.703912807743221
u1 -4.834212557979684
u2 4.827536706791658
u3 -1.6972368846192931
duration 0.0786 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 38f0399c9bc69995f4c27b5df2f80533
Parameter Value Uncertainty
Am1 1.0 0.0038
Am2 0
a/Rs 10.83 0.17
Rp/Rs 0.1565 0.0037
ephemeris [JD] 2458427.97953 0.0009
eccentricity 0.07
inclination [degrees] 86.3
omega [degrees] 0.0
orbital period [days] 2.96264133
u0 2.705418218319628
u1 -4.837755739810607
u2 4.830885745433397
u3 -1.6985481519566115
duration 0.0807 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
