WASP-93 b

View target in exoplanet catalog
chart

Total Reductions to Date: 23

Date Processed: 09/18/2023 at 00:07:19 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 2.7325382985805975 4.4985554968700543e-07
Ephemeris (BJD_TDB) 2460183.836395652 0.0002725656877567613
Time saved (hours) 0.0003

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 9.4587443 decimal
DEC 51.288778 decimal
Host Star Metallicity 0.07 0.17 Patel & Espinoza 2022
Host Star log(g) 4.2 0.02 Log10(cgs) Patel & Espinoza 2022
Host Star Radius [R_Sun] 1.52 0.04 Sol Patel & Espinoza 2022
Host Star Effective Temperature [K] 6700.0 100.0 K Patel & Espinoza 2022
a/Rs 6.73 1.97 Patel & Espinoza 2022
eccentricity 0.0 Hay et al. 2016
inclination [degrees] 82.27 0.58 deg Gajdoš et al. 2019
omega [degrees] 0.0 deg Hay et al. 2016
orbital period [days] 2.7325321 1.7e-06 day Patel & Espinoza 2022
Rp 14.47 0.57 R_Earth Gajdoš et al. 2019
Rp/Rs 0.0873 0 Gajdoš et al. 2019
ephemeris [JD] 2458773.84697 0.00033 BJD Patel & Espinoza 2022

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2456079.5585000003 0.00251 HJD Gajdoš et al. 2019, Hay et al. 2016
2457492.286 0.0003 BJD-TDB Kokori et al. 2022
2458765.64929 0.00048 BJD-TDB Ivshina & Winn 2022
2458773.84697 0.00033 BJD Patel & Espinoza 2022
2459855.931978 0.000548 BJD ExoFOP-TESS TOI

Observations

Light curve chart for 0001543
Parameter Value Uncertainty
Am1 1.0077 0.0029
Am2 -0.0041 0.0022
a/Rs 6.594 0.087
Rp/Rs 0.0994 0.0043
ephemeris [JD] 2458060.6543 0.0012
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.973407555689385
u1 -5.3768281055776095
u2 5.177527644567436
u3 -1.7741070175280385
duration 0.0863 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

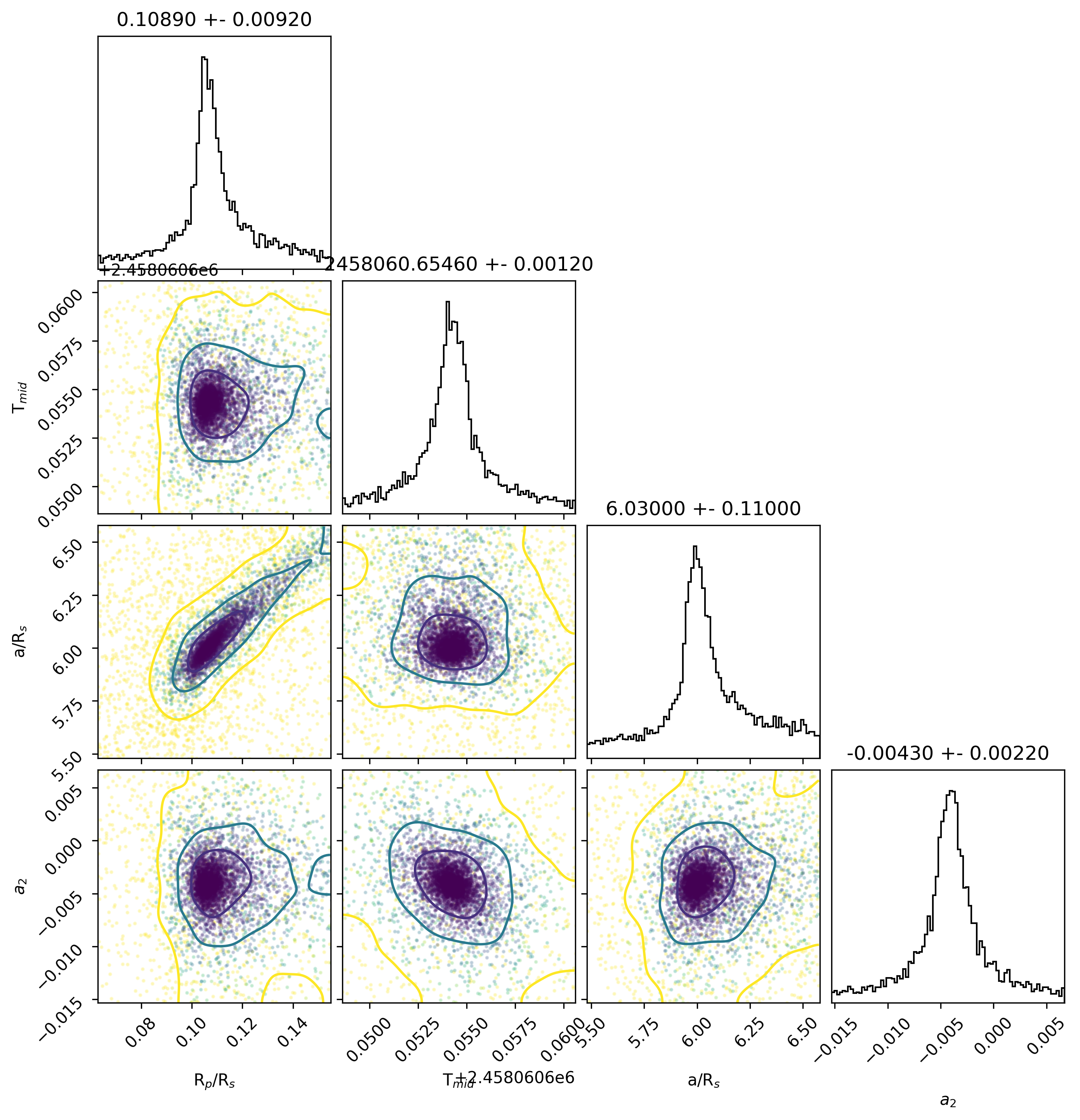

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
AAVSO AKV (collaborate/publish)
Light curve chart for 0000465
Parameter Value Uncertainty
Am1 17.82 0.22
Am2 -0.276 0.021
a/Rs 6.06 0.32
Rp/Rs 0.1739 0.0098
ephemeris [JD] 2459090.8415 0.0033
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.3542553559375157
u1 -4.154395251841834
u2 4.377433270737247
u3 -1.5772933096040904
duration 0.1134 0.0075
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
SR Sloan r 553.1 nm 693.1 nm
Organization Observer Code Secondary Observers
AAVSO JBEB (collaborate/publish)
Light curve chart for 0000479
Parameter Value Uncertainty
Am1 0.6632 0.0049
Am2 -0.0024 0.004
a/Rs 6.86 0.24
Rp/Rs 0.11 0.019
ephemeris [JD] 2459101.7552 0.0021
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.354566352646961
u1 -4.1550600618085465
u2 4.377917615558694
u3 -1.577423841161052
duration 0.0786 0.0098
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
SR Sloan r 553.1 nm 693.1 nm
Organization Observer Code Secondary Observers
AAVSO JBEB (collaborate/publish)
Light curve chart for 0000803
Parameter Value Uncertainty
Am1 1.008 0.01
Am2 -0.0057 0.0064
a/Rs 6.1 0.43
Rp/Rs 0.093 0.019
ephemeris [JD] 2459109.9477 0.0059
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.828399846147417
u1 -5.088795001536904
u2 4.982257387934187
u3 -1.7218621583032787
duration 0.105 0.018
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 690.0 nm 819.0 nm
Organization Observer Code Secondary Observers
AAVSO LWIA (collaborate/publish) BPAG
Light curve chart for 0000538
Parameter Value Uncertainty
Am1 0.9946 0.0018
Am2 0.005 0.0031
a/Rs 6.45 0.059
Rp/Rs 0.0961 0.003
ephemeris [JD] 2459164.5994 0.0011
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.41181325405511
u1 -4.266171011198854
u2 4.447094330435982
u3 -1.5927365070253678
duration 0.0913 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
R Cousins R 561.7 nm 719.7 nm
Organization Observer Code Secondary Observers
AAVSO KGAB (collaborate/publish)
Light curve chart for 0000847
Parameter Value Uncertainty
Am1 0.9962 0.0079
Am2 0.0035 0.0031
a/Rs 6.03 0.17
Rp/Rs 0.0966 0.0056
ephemeris [JD] 2459459.7092 0.0027
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.012080448977252
u1 -3.575934818835771
u2 4.115010907836372
u3 -1.5511564766594121
duration 0.1082 0.0071
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO HGOA (collaborate/publish)
Light curve chart for 0002040
Parameter Value Uncertainty
Am1 1.107 0.027
Am2 -0.117 0.033
a/Rs 4.77 0.29
Rp/Rs 0.1745 0.0033
ephemeris [JD] 2459866.8416 0.0079
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.1890178860691294
u1 -3.933848066268954
u2 4.360448766050396
u3 -1.6156185208748215
duration 0.1402 0.0052
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

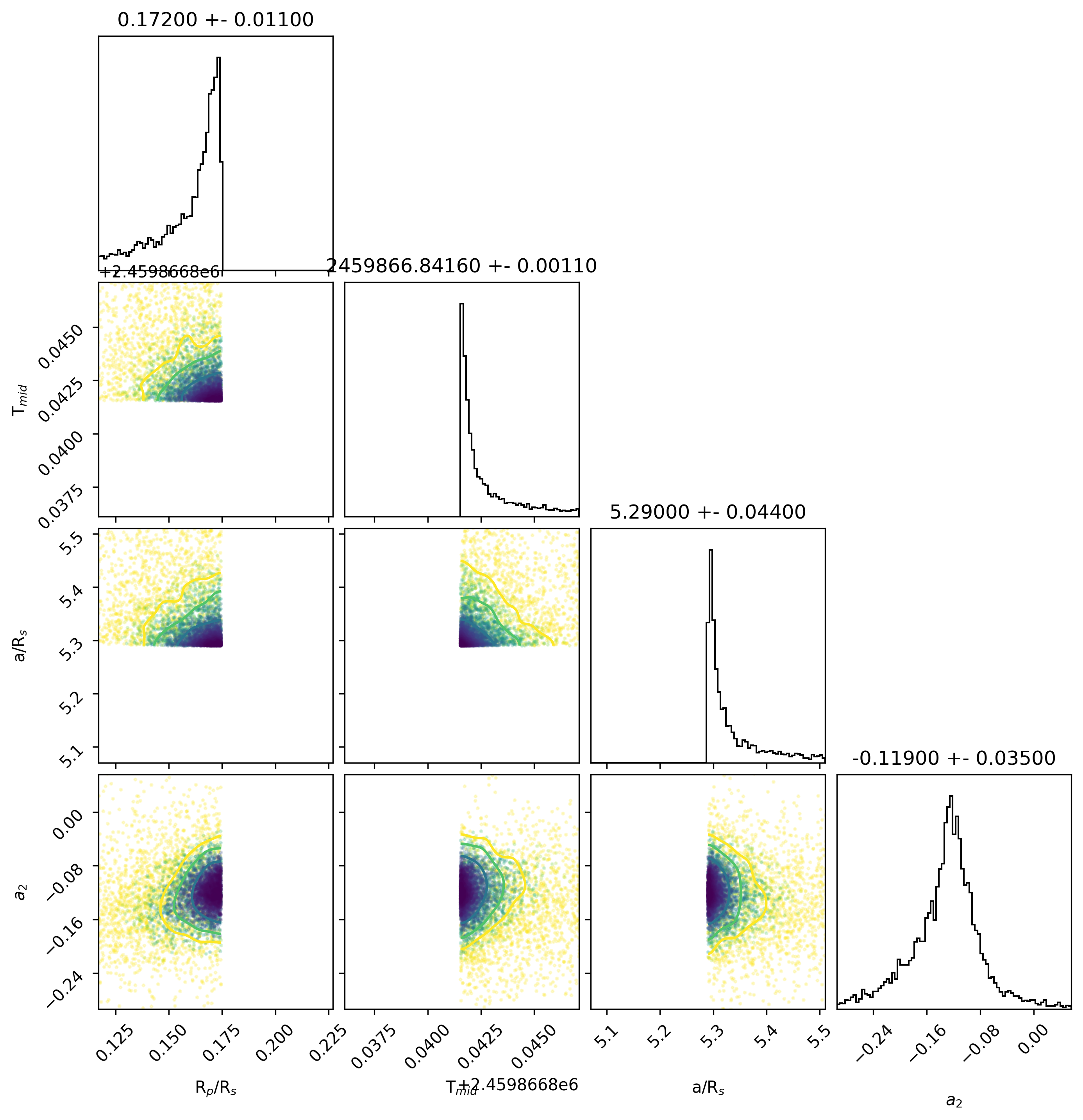

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO PJAE (collaborate/publish) JNUA
Light curve chart for 0004340
Parameter Value Uncertainty
Am1 1.0093 0.0037
Am2 -0.0076 0.0028
a/Rs 6.41 0.12
Rp/Rs 0.1066 0.0055
ephemeris [JD] 2460183.837 0.0017
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.622471185288293
u1 -4.673012110281585
u2 4.701164340606436
u3 -1.6506233455603372
duration 0.0952 0.0046
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

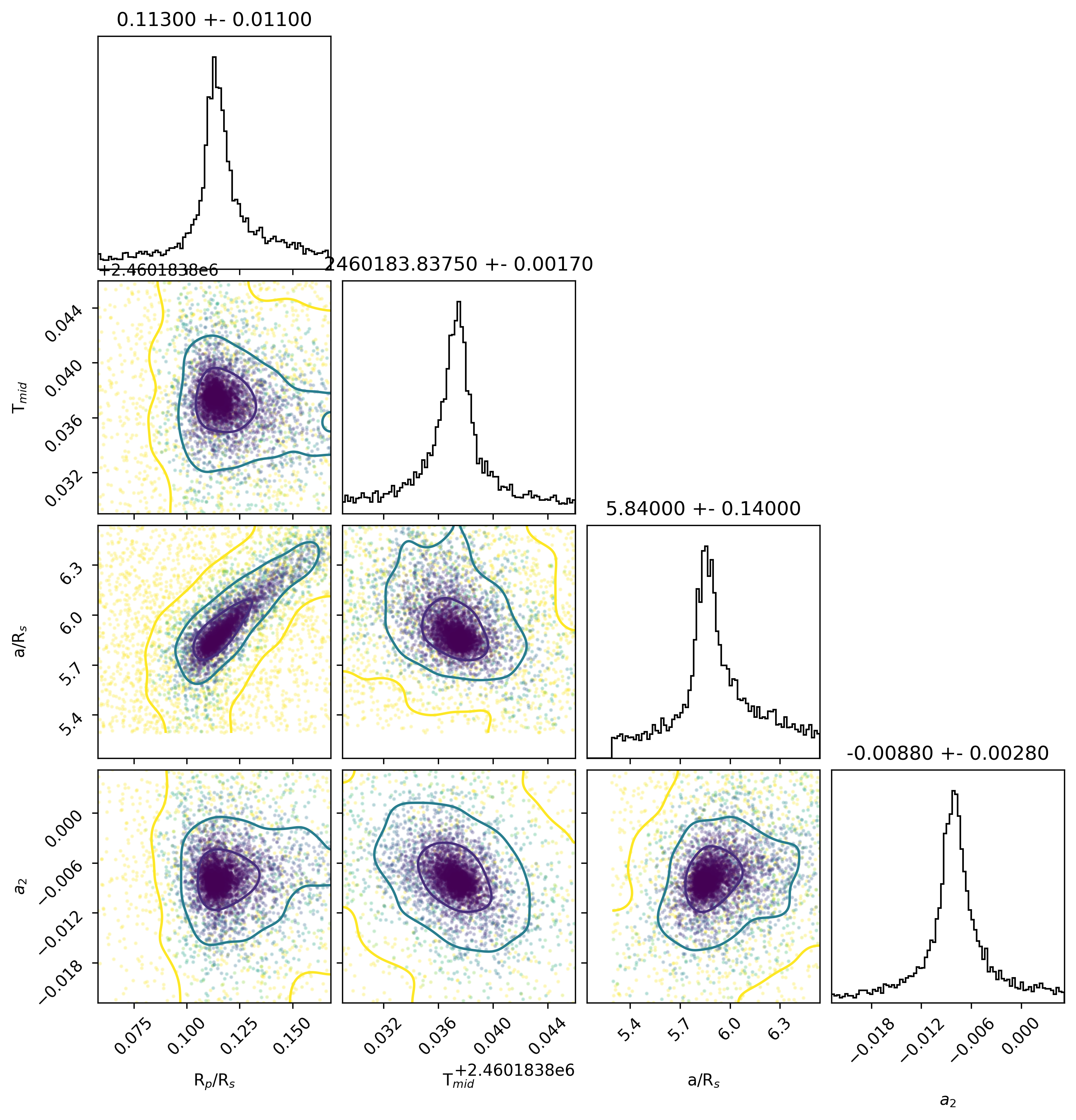

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
RJ Johnson R 590.0 nm 810.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for bbc6fd842d18afda8c1cea751b4b6e8e
Parameter Value Uncertainty
Am1 1.0 0.0049
Am2 0
a/Rs 6.579 0.077
Rp/Rs 0.0951 0.0036
ephemeris [JD] 2459858.6619 0.0012
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.9739634353028217
u1 -5.3794388771390445
u2 5.181090743716417
u3 -1.775615224675926
duration 0.0859 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

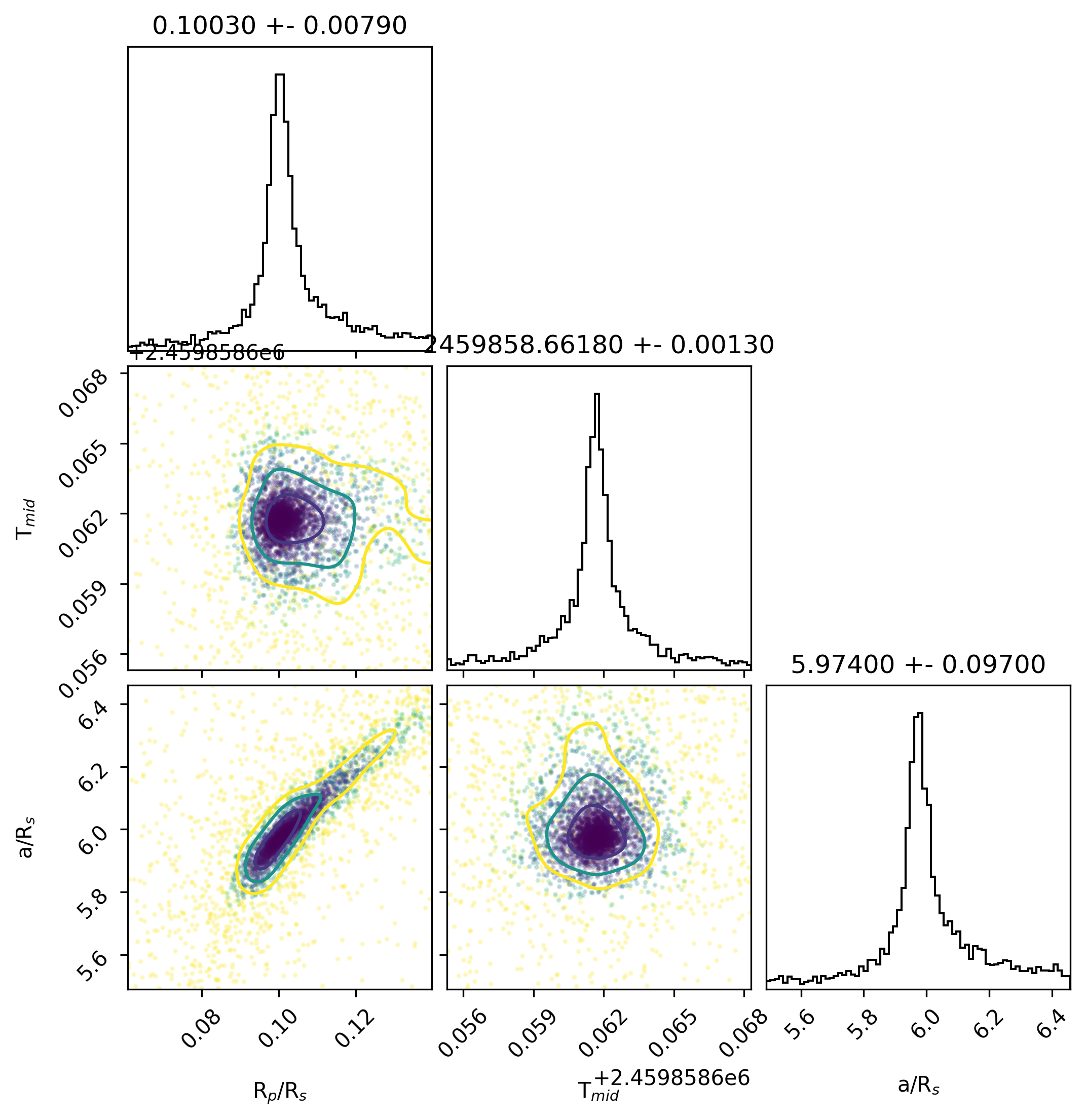

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ba29d0b521ed17c15e19a6860663e951
Parameter Value Uncertainty
Am1 1.0 0.0035
Am2 0
a/Rs 6.602 0.051
Rp/Rs 0.097 0.0025
ephemeris [JD] 2459855.93352 0.00077
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.9734801878331725
u1 -5.378264115637732
u2 5.180003679940131
u3 -1.7752196749475022
duration 0.0859 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d1e6ce401bb5261741f5abd7aa513144
Parameter Value Uncertainty
Am1 0.9999 0.0034
Am2 0
a/Rs 6.578 0.054
Rp/Rs 0.0978 0.0025
ephemeris [JD] 2459880.52373 0.00083
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.9748770021091633
u1 -5.383927320986701
u2 5.187343255560435
u3 -1.7782928593854588
duration 0.0871 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

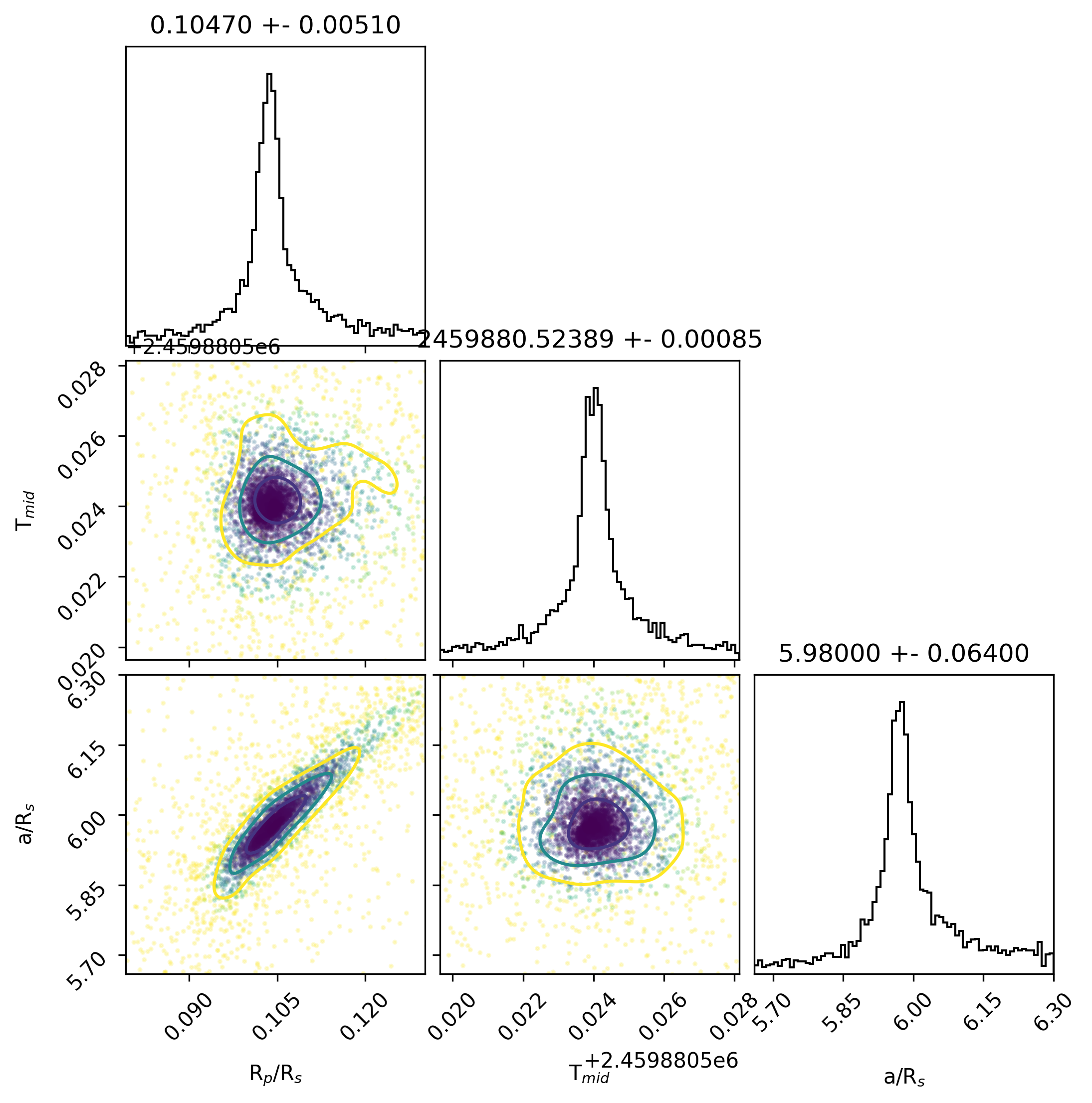

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 1d0e2bfed4fb0251b7f868b77330f5bf
Parameter Value Uncertainty
Am1 1.0001 0.0017
Am2 0
a/Rs 6.513 0.066
Rp/Rs 0.0935 0.0029
ephemeris [JD] 2458779.3118 0.001
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.974182547288773
u1 -5.3803693246060345
u2 5.182202422175107
u3 -1.7760155676370109
duration 0.0881 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ec4afccf6fd96c3dc1e8d536d1cb098b
Parameter Value Uncertainty
Am1 0.9999 0.0019
Am2 0
a/Rs 6.33 0.069
Rp/Rs 0.0891 0.0025
ephemeris [JD] 2458782.0418 0.0013
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.9737496846235554
u1 -5.379086128100173
u2 5.180865536035943
u3 -1.7755290153584125
duration 0.0945 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c809d32e562f78e70ed6f36506cca5f3
Parameter Value Uncertainty
Am1 1.0002 0.0014
Am2 0
a/Rs 6.491 0.059
Rp/Rs 0.092 0.0023
ephemeris [JD] 2458784.77816 0.00093
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.9738494570533076
u1 -5.37930254881116
u2 5.181160231328847
u3 -1.77570706236569
duration 0.0887 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f3fc3498a31b055b987ea8300f6dd774
Parameter Value Uncertainty
Am1 0.9992 0.0019
Am2 0
a/Rs 6.568 0.082
Rp/Rs 0.0974 0.0036
ephemeris [JD] 2458765.6483 0.0012
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.975246470075487
u1 -5.383322003117396
u2 5.185312177994958
u3 -1.777236567685876
duration 0.087 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8bb9c2262a4baa2abadf091771c66d42
Parameter Value Uncertainty
Am1 1.0006 0.0033
Am2 0
a/Rs 6.51 0.049
Rp/Rs 0.0925 0.002
ephemeris [JD] 2459875.06026 0.00083
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.9736860295120695
u1 -5.378637762925414
u2 5.180271997106961
u3 -1.7753201865015487
duration 0.0884 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f51f1508913147fa07b81699a6b6615f
Parameter Value Uncertainty
Am1 0.9998 0.0033
Am2 0
a/Rs 6.52 0.054
Rp/Rs 0.0954 0.0023
ephemeris [JD] 2459869.5944 0.0008
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.9746059454841807
u1 -5.3823016008125615
u2 5.184921565523546
u3 -1.7772258329338135
duration 0.0883 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 26756555c84fae580d6d09f4c28d61ac
Parameter Value Uncertainty
Am1 0.9999 0.0033
Am2 0
a/Rs 6.45 0.05
Rp/Rs 0.0888 0.0019
ephemeris [JD] 2459877.79087 0.00085
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.9748124513116703
u1 -5.382692104386953
u2 5.185135790487816
u3 -1.7772560601479896
duration 0.0894 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 72df1b17557f7986f058a8132bb28294
Parameter Value Uncertainty
Am1 1.0001 0.0018
Am2 0
a/Rs 6.49 0.063
Rp/Rs 0.0919 0.0028
ephemeris [JD] 2458771.1156 0.0011
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.974343946235129
u1 -5.380590243247883
u2 5.182245883974894
u3 -1.7759995097406596
duration 0.0887 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for e649884704a4972eca4ac015e7b2273e
Parameter Value Uncertainty
Am1 0.999 0.0025
Am2 0
a/Rs 6.56 0.14
Rp/Rs 0.0938 0.0067
ephemeris [JD] 2458768.3836 0.0017
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.9747476449280104
u1 -5.38120561075424
u2 5.18251794434462
u3 -1.7760599012928555
duration 0.087 0.0055
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3be9c7dbd153a993282cdc0094dbfca5
Parameter Value Uncertainty
Am1 1.0004 0.0032
Am2 0
a/Rs 6.48 0.049
Rp/Rs 0.0911 0.002
ephemeris [JD] 2459861.39461 0.00081
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.9743441486996836
u1 -5.381590272839613
u2 5.1840631914401465
u3 -1.7768169900516555
duration 0.0889 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 65c204ec19b9aa3fb3e5914ebecd8e50
Parameter Value Uncertainty
Am1 0.9999 0.0036
Am2 0
a/Rs 6.47 0.065
Rp/Rs 0.0915 0.0022
ephemeris [JD] 2459872.3266 0.001
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.974813212199848
u1 -5.383106814167153
u2 5.185842642984326
u3 -1.7775489637419444
duration 0.0894 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f92840e0e241fcadc0604bc4fb265bfd
Parameter Value Uncertainty
Am1 1.0004 0.0058
Am2 0
a/Rs 7.01 0.24
Rp/Rs 0.114 0.02
ephemeris [JD] 2459866.8607 0.0018
eccentricity 0.0
inclination [degrees] 82.27
omega [degrees] 0.0
orbital period [days] 2.7325321
u0 2.973641554279213
u1 -5.378668952907468
u2 5.18045706092631
u3 -1.7754295851032293
duration 0.075 0.01
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
