WASP-85 A b

View target in exoplanet catalog
chart

Total Reductions to Date: 20

Date Processed: 09/18/2023 at 00:07:19 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 2.6556743414999944 1.0332718917724591e-07
Ephemeris (BJD_TDB) 2459659.8319915244 0.0001090592626492791
Time saved (hours) 0.0003

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 175.9080328 decimal
DEC 6.5637842 decimal
Host Star Metallicity 0.118 0.019 Kokori et al. 2022
Host Star log(g) 4.5 0.18 Log10(cgs) Crossfield et al. 2016
Host Star Radius [R_Sun] 0.88 0.08 Sol Kruse et al. 2019
Host Star Effective Temperature [K] 5634.18 107.47 K Kokori et al. 2022
a/Rs 7.834 0.09 Kruse et al. 2019
eccentricity 0.0 Močnik et al. 2016
inclination [degrees] 89.69 0.11 deg Močnik et al. 2016
omega [degrees] 0.0 deg Kokori et al. 2022
orbital period [days] 2.6556765 4e-07 day Kokori et al. 2022
Rp 11.1 1.01 R_Earth Kruse et al. 2019
Rp/Rs 0.122 0 Kruse et al. 2019
ephemeris [JD] 2456847.472867 1e-05 BJD-TDB Kokori et al. 2022

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2456812.94911 2.7e-05 BJD Kruse et al. 2019
2456847.4728615 1.2e-05 BJD, BJD-TDB Kokori et al. 2022, Močnik et al. 2016
2459553.605072 0.000166 BJD ExoFOP-TESS TOI

Observations

Light curve chart for 0001295
Parameter Value Uncertainty
Am1 1.0465 0.0086
Am2 -0.0309 0.0059
a/Rs 7.38 0.14
Rp/Rs 0.1386 0.0055
ephemeris [JD] 2459659.8428 0.0019
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.171573502511842
u1 -3.725172066041451
u2 3.9711100417586866
u3 -1.4175114190549265
duration 0.1306 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

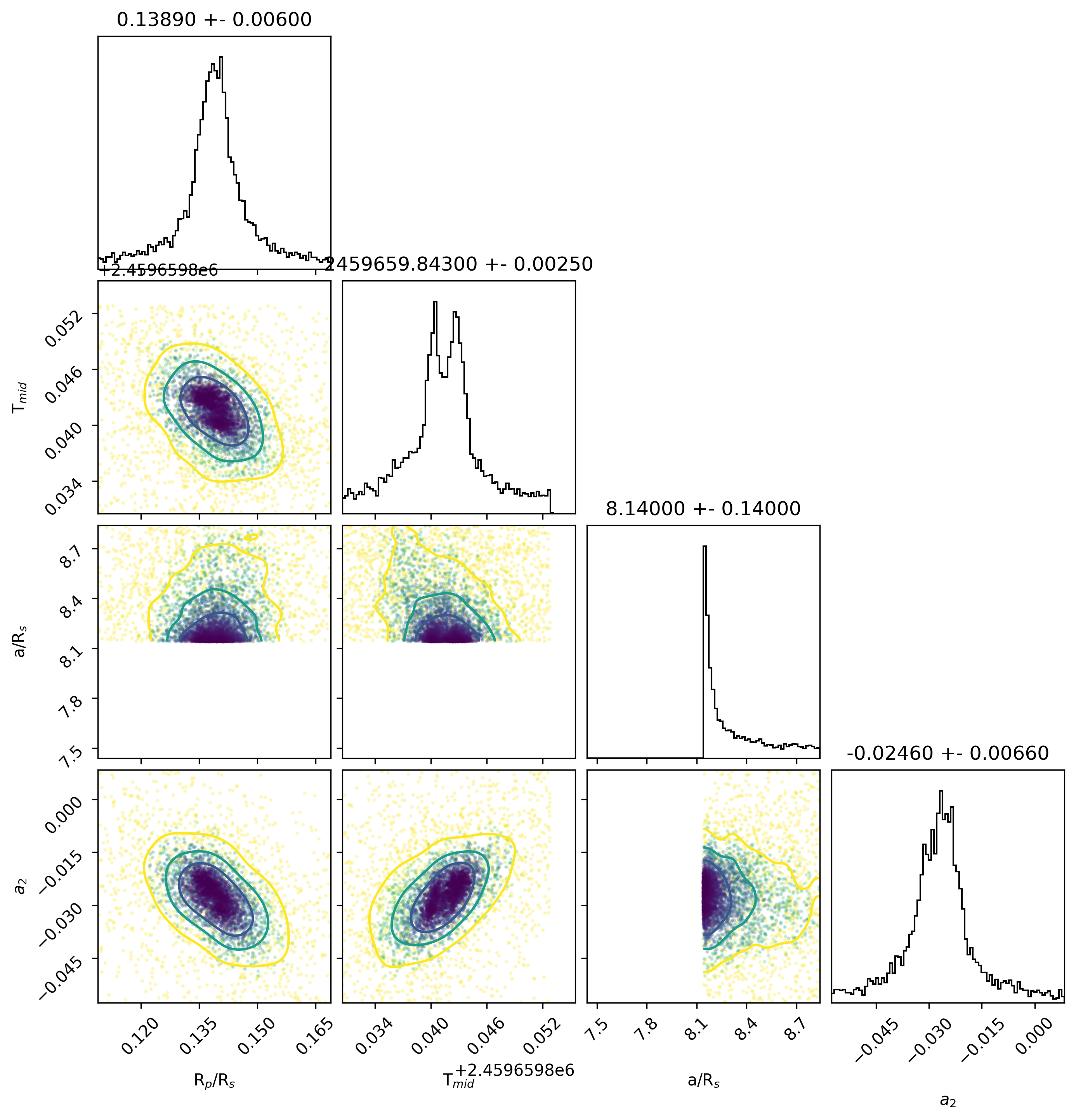

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
RJ Johnson R 590.0 nm 810.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 42f48988ed55c504bfcfec05a39a2b91
Parameter Value Uncertainty
Am1 1.0001 0.001
Am2 0
a/Rs 8.284 0.025
Rp/Rs 0.1063 0.0012
ephemeris [JD] 2459558.91639 0.00069
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.4944626878519793
u1 -4.357678705262165
u2 4.397034011921614
u3 -1.5338179289905147
duration 0.1133 0.00043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 53c65ae6aa85e330e5192d8983b8acbf
Parameter Value Uncertainty
Am1 0.99994 0.00099
Am2 0
a/Rs 8.284 0.021
Rp/Rs 0.1057 0.0011
ephemeris [JD] 2459569.53862 0.0006
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.494989045815859
u1 -4.359182790433397
u2 4.398319920888934
u3 -1.5341261107313215
duration 0.11306 0.00039
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

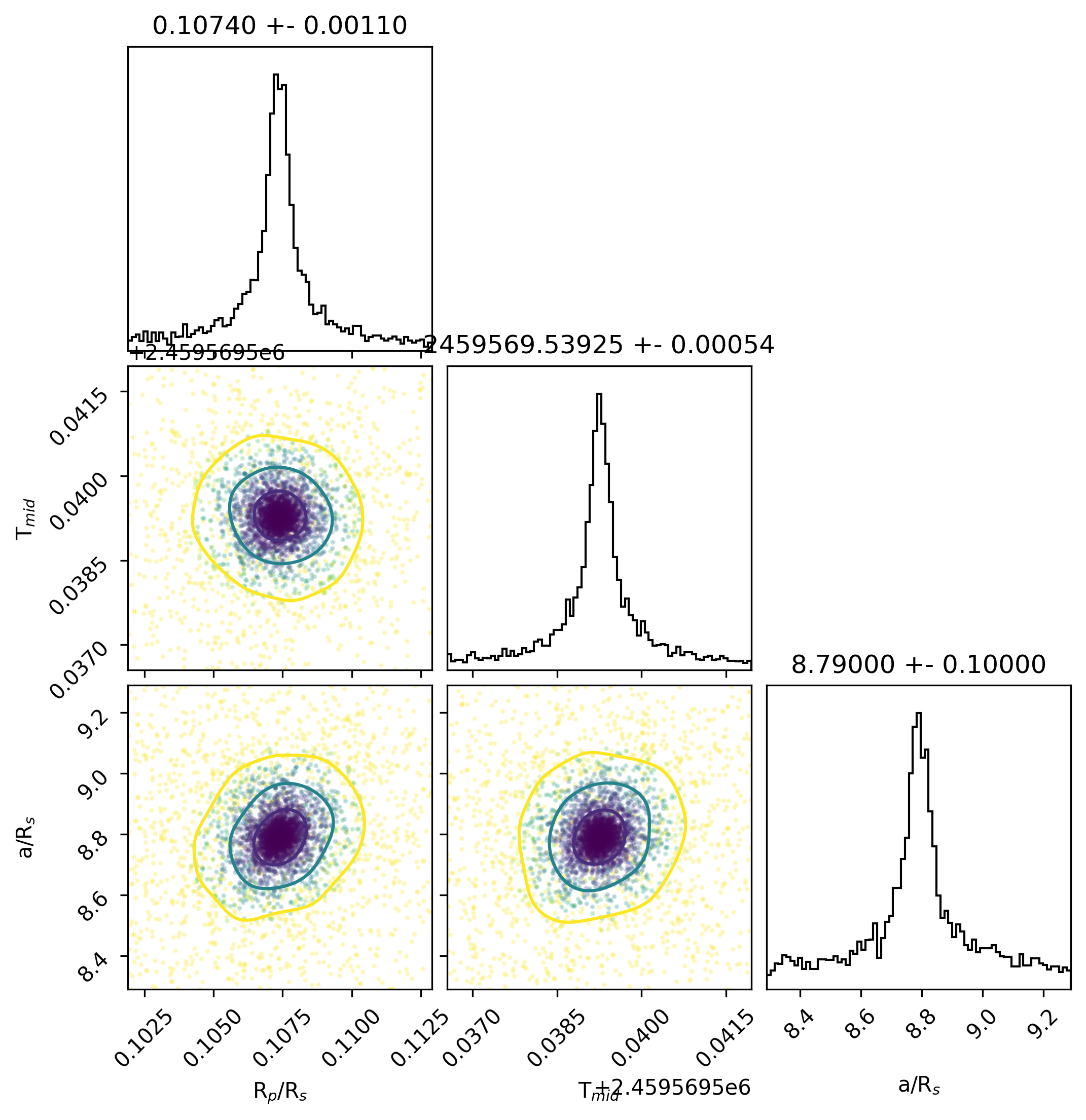

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 2a48404574fd2f134aa731c4cf15ea3d
Parameter Value Uncertainty
Am1 1.0 0.0011
Am2 0
a/Rs 8.284 0.022
Rp/Rs 0.1074 0.0012
ephemeris [JD] 2459540.32613 0.00065
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.494677372620621
u1 -4.3574616333386516
u2 4.396132453758146
u3 -1.533348127532638
duration 0.1133 0.00041
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 198aa0a63759c7724f8f7f754e7d7d51
Parameter Value Uncertainty
Am1 1.0 0.001
Am2 0
a/Rs 8.284 0.023
Rp/Rs 0.1063 0.0012
ephemeris [JD] 2459545.63836 0.00063
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.492978913056441
u1 -4.352326646095105
u2 4.390250363411353
u3 -1.5309025649528616
duration 0.11306 0.00043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c2d078c0d94c7e19dae32c1cb6998373
Parameter Value Uncertainty
Am1 1.00013 0.00099
Am2 0
a/Rs 8.284 0.026
Rp/Rs 0.1073 0.0012
ephemeris [JD] 2459542.98126 0.00064
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.494865520881817
u1 -4.358372832394235
u2 4.3975891013284025
u3 -1.5340817242868012
duration 0.11306 0.00048
Included in ephemeris calculations

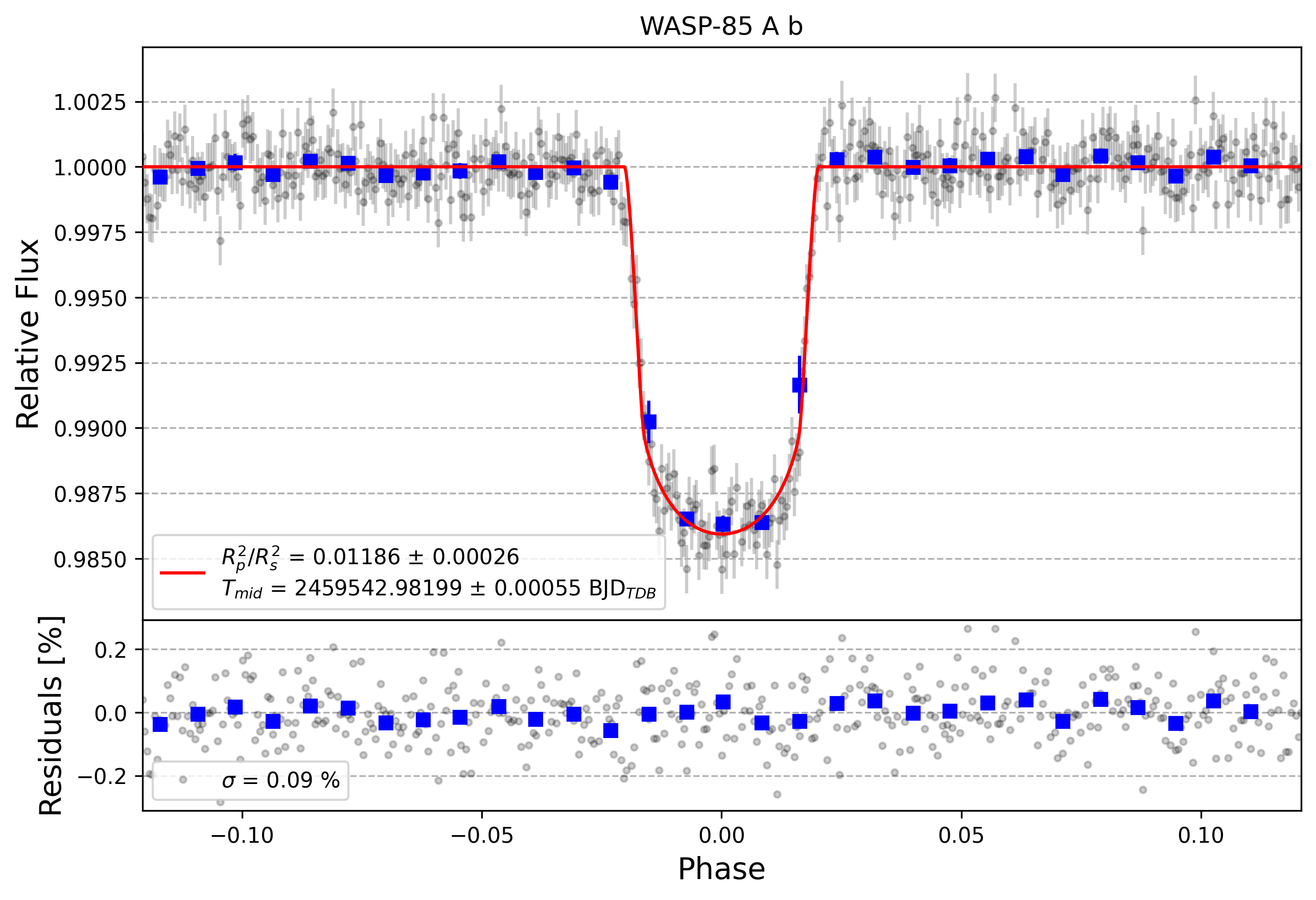

Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d8c13c57a4408dc9cd525f34af18d9ef
Parameter Value Uncertainty
Am1 0.99997 0.00099
Am2 0
a/Rs 8.284 0.023
Rp/Rs 0.1075 0.0011
ephemeris [JD] 2459556.26096 0.00061
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.494507639500632
u1 -4.357330622280488
u2 4.396112644806744
u3 -1.5332895965197042
duration 0.1133 0.00043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c5536594e3e74c64126b3806f0a83a70
Parameter Value Uncertainty
Am1 1.0001 0.001
Am2 0
a/Rs 8.284 0.022
Rp/Rs 0.1072 0.0012
ephemeris [JD] 2459553.60446 0.00067
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.4945714346970136
u1 -4.358722982494124
u2 4.3987562509938165
u3 -1.5346046376501303
duration 0.11306 0.00041
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

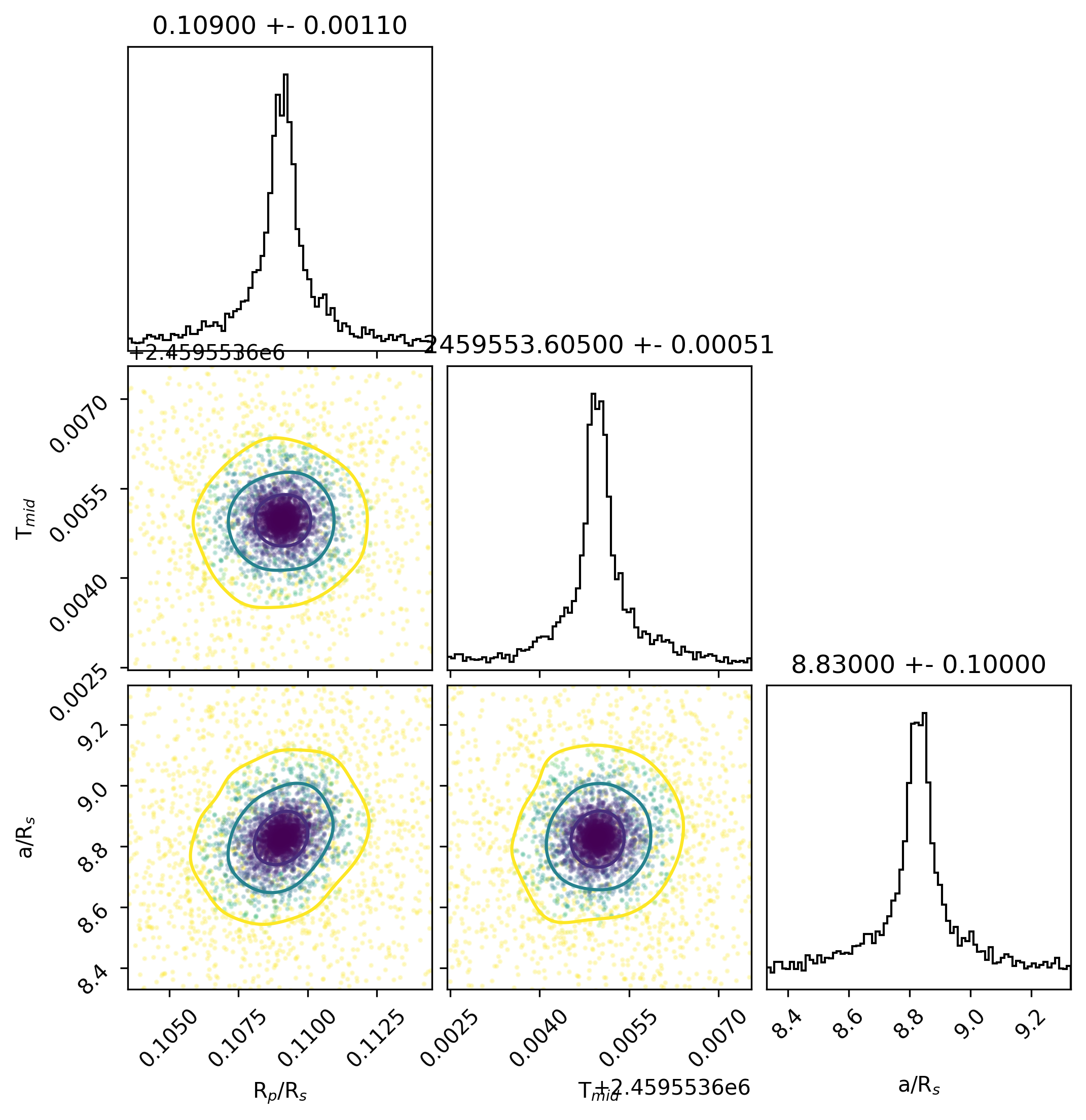

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f0bab7061f6cf5a492fd10e8b6acfcaa
Parameter Value Uncertainty
Am1 1.0003 0.001
Am2 0
a/Rs 8.284 0.022
Rp/Rs 0.1065 0.0012
ephemeris [JD] 2459564.22797 0.0006
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.494089172463069
u1 -4.355645243047589
u2 4.3940697854267645
u3 -1.532513649365502
duration 0.1133 0.00043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

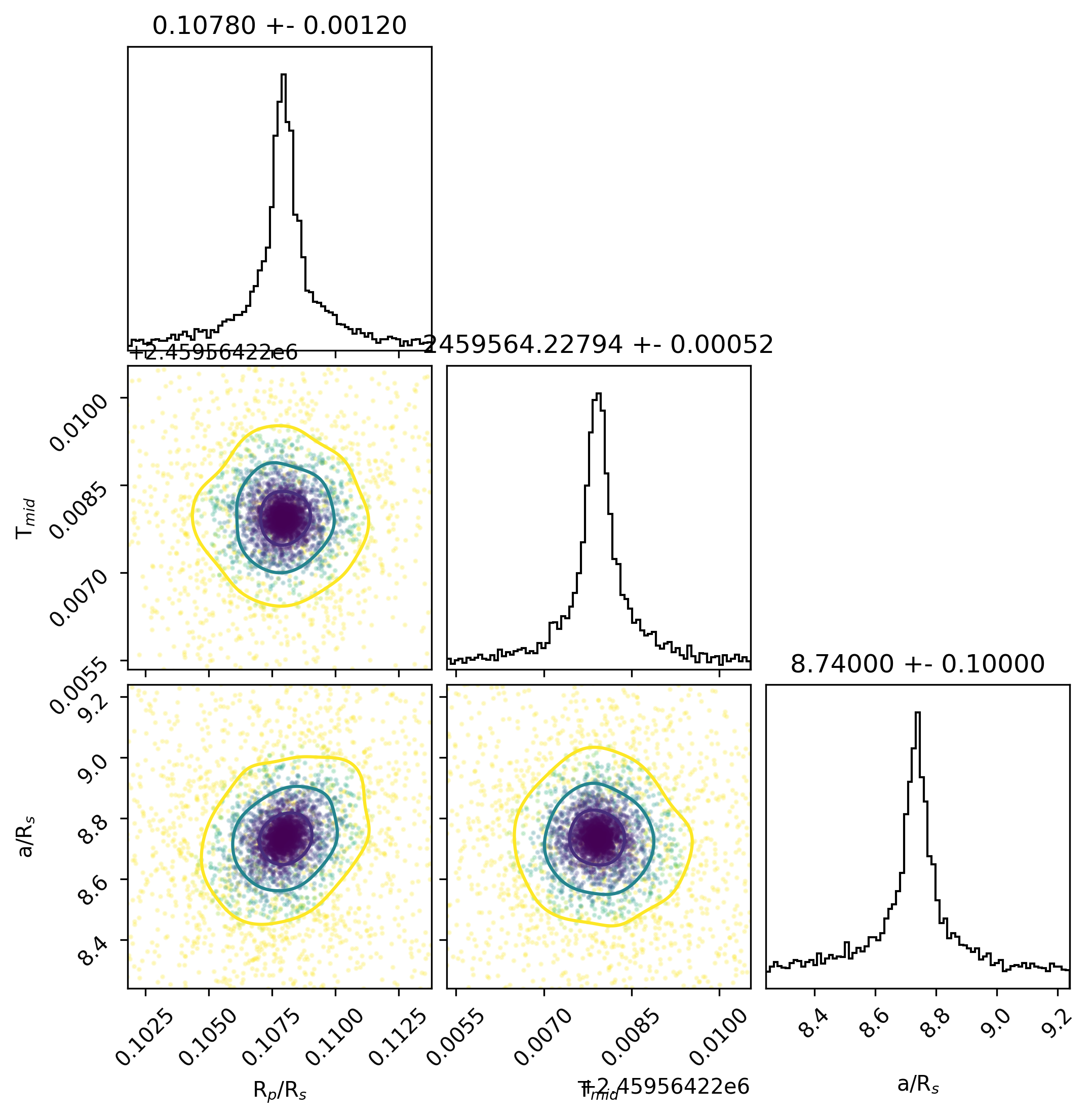

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 5386be7146e7fd95584b03fc5cba2d7f
Parameter Value Uncertainty
Am1 0.9999 0.0011
Am2 0
a/Rs 8.284 0.021
Rp/Rs 0.1058 0.0012
ephemeris [JD] 2459529.70438 0.00066
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.495000065561457
u1 -4.358462182050929
u2 4.397222949038057
u3 -1.533760767024857
duration 0.1133 0.00041
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 52100f37050c056836fcd468b3b5bfc3
Parameter Value Uncertainty
Am1 0.9999 0.0011
Am2 0
a/Rs 8.284 0.018
Rp/Rs 0.1065 0.0012
ephemeris [JD] 2459561.5718 0.00057
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.4939139351821633
u1 -4.355883400640655
u2 4.395008081002876
u3 -1.5330385500536603
duration 0.1133 0.00037
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d27d818ec9d28e57f3ed976130cb20ed
Parameter Value Uncertainty
Am1 1.0002 0.001
Am2 0
a/Rs 8.284 0.022
Rp/Rs 0.1065 0.0011
ephemeris [JD] 2459548.29364 0.00064
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.4951215277087253
u1 -4.359417731574188
u2 4.39888377778502
u3 -1.53458750837108
duration 0.11306 0.0004
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for db9d20754daae279382700b56f680640
Parameter Value Uncertainty
Am1 1.0 0.0011
Am2 0
a/Rs 8.284 0.02
Rp/Rs 0.1057 0.0011
ephemeris [JD] 2459532.3593 0.00058
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.494281647473521
u1 -4.357909981817097
u2 4.398007214464083
u3 -1.534378814585092
duration 0.1133 0.0004
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 49f4ab39fad8cf410840cae669d3aaa2
Parameter Value Uncertainty
Am1 1.0001 0.001
Am2 0
a/Rs 8.284 0.023
Rp/Rs 0.1066 0.0012
ephemeris [JD] 2459574.85064 0.00064
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.4948385687155907
u1 -4.358278307584068
u2 4.397525473019346
u3 -1.5340856686226338
duration 0.11306 0.00041
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 02fba386a2c38337697bc28e5b75e2db
Parameter Value Uncertainty
Am1 1.0003 0.0011
Am2 0
a/Rs 8.284 0.02
Rp/Rs 0.1069 0.0012
ephemeris [JD] 2459527.04818 0.00058
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.4955310228748373
u1 -4.360913024555597
u2 4.4006216899016
u3 -1.535239622646468
duration 0.1133 0.00041
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 324083474bc63ac483aafb6ee3a90d2e
Parameter Value Uncertainty
Am1 0.99993 0.001
Am2 0
a/Rs 8.284 0.024
Rp/Rs 0.1072 0.0012
ephemeris [JD] 2459577.50563 0.00072
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.493874128526594
u1 -4.355524621095726
u2 4.394265622692605
u3 -1.5326150646438133
duration 0.11306 0.00044
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f497c8abb2c36d4ca794e40a4d9bc48f
Parameter Value Uncertainty
Am1 1.0 0.0012
Am2 0
a/Rs 8.284 0.02
Rp/Rs 0.1067 0.0012
ephemeris [JD] 2459537.67103 0.00063
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.4946521077204324
u1 -4.357955615930681
u2 4.397182492235076
u3 -1.5338789185017014
duration 0.113 0.00039
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 63a83627289679a8727b526823037fed
Parameter Value Uncertainty
Am1 1.0001 0.0011
Am2 0
a/Rs 8.284 0.028
Rp/Rs 0.1072 0.0015
ephemeris [JD] 2459566.88368 0.00081
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.493873425173063
u1 -4.356002169635787
u2 4.395343805066858
u3 -1.5332149951084069
duration 0.11336 0.00045
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 5c60668d9b7db69b99e1d6e19ccb4d6c
Parameter Value Uncertainty
Am1 1.0001 0.001
Am2 0
a/Rs 8.284 0.02
Rp/Rs 0.1085 0.0012
ephemeris [JD] 2459572.1947 0.00062
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.4945011954253573
u1 -4.357922227567496
u2 4.397498422606846
u3 -1.5340773249368747
duration 0.11306 0.0004
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 092642732b83f4bbfedb4261dccb9cf7
Parameter Value Uncertainty
Am1 1.0003 0.0011
Am2 0
a/Rs 8.284 0.018
Rp/Rs 0.1076 0.0012
ephemeris [JD] 2459535.01525 0.00065
eccentricity 0.0
inclination [degrees] 89.69
omega [degrees] 0.0
orbital period [days] 2.6556765
u0 2.493705465076426
u1 -4.355564645108827
u2 4.394937394571661
u3 -1.5330781490495897
duration 0.1133 0.00038
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
