WASP-6 b

View target in exoplanet catalog
chart

Total Reductions to Date: 15

Date Processed: 09/18/2023 at 00:07:19 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 3.3610024319937843 8.777701804032842e-08
Ephemeris (BJD_TDB) 2459523.662424061 9.800232540018793e-05
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 348.1571282 decimal
DEC -22.6741248 decimal
Host Star Metallicity -0.2 0.09 Patel & Espinoza 2022
Host Star log(g) 4.6 0.2 Log10(cgs) Patel & Espinoza 2022
Host Star Radius [R_Sun] 0.73 0.07 Sol Patel & Espinoza 2022
Host Star Effective Temperature [K] 5450.0 100.0 K Patel & Espinoza 2022
a/Rs 10.81 0.21 Patel & Espinoza 2022
eccentricity 0.07 0.02 Bonomo et al. 2017
inclination [degrees] 88.47 0.65 deg Bonomo et al. 2017
omega [degrees] 1.7 0.12 deg Gillon et al. 2009
orbital period [days] 3.3610032 8e-07 day Patel & Espinoza 2022
Rp 12.72 0.64 R_Earth ExoFOP-TESS TOI
Rp/Rs 0.1551 0 ExoFOP-TESS TOI
ephemeris [JD] 2459110.25922 0.00015 BJD Patel & Espinoza 2022

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2459110.25922 0.00015 BJD Patel & Espinoza 2022
2456132.410973 7.5e-05 BJD-TDB Ivshina & Winn 2022
2455591.28967 7e-05 BJD-TDB Kokori et al. 2022
2458357.394514 0.000119 BJD ExoFOP-TESS TOI
2455278.71626 8.5e-05 BJD-TDB Bonomo et al. 2017
2454425.0218 0.00011 BJD/TDB Tregloan-Reed et al. 2015
2454596.43267 0.00015 HJD Gillon et al. 2009

Observations

Light curve chart for 0002753
Parameter Value Uncertainty
Am1 0.162 0.079
Am2 0.65 0.25
a/Rs 11.77 0.61
Rp/Rs 0.306 0.089
ephemeris [JD] 2459469.9 0.012
eccentricity 0.07
inclination [degrees] 88.47
omega [degrees] 1.7
orbital period [days] 3.3610032
u0 1.57716418175084
u1 -2.709550748266075
u2 3.443911706825419
u3 -1.3115250889919006
duration 0.1 0.01
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

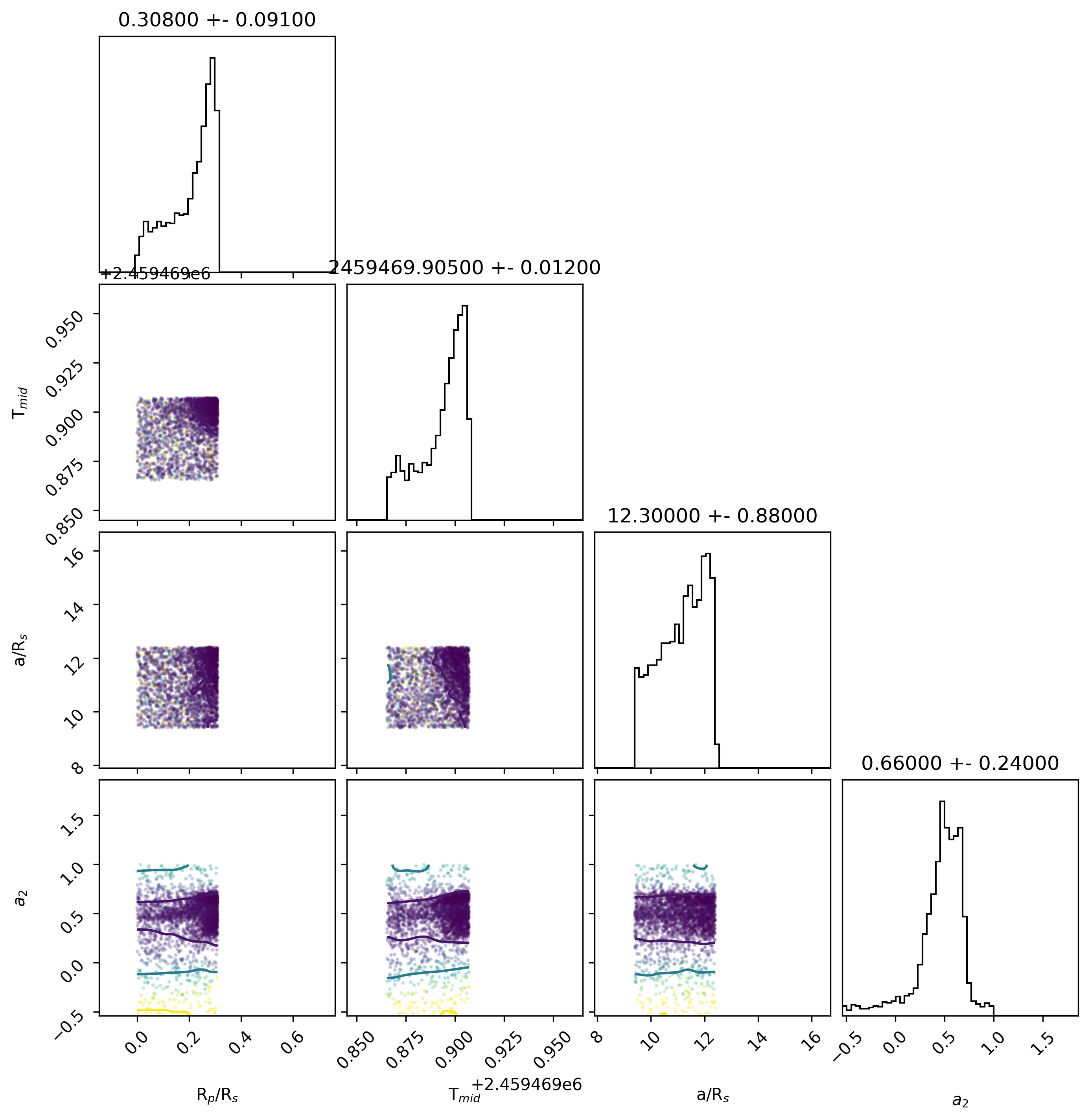

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MMOC (collaborate/publish) MOBS
Light curve chart for 0000971
Parameter Value Uncertainty
Am1 0.906 0.011
Am2 0.049 0.022
a/Rs 10.39 0.4
Rp/Rs 0.179 0.015
ephemeris [JD] 2459523.6597 0.0018
eccentricity 0.07
inclination [degrees] 88.47
omega [degrees] 1.7
orbital period [days] 3.3610032
u0 1.8550593855801345
u1 -3.295275411333259
u2 3.8749817862360767
u3 -1.434765702741224
duration 0.1181 0.0051
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

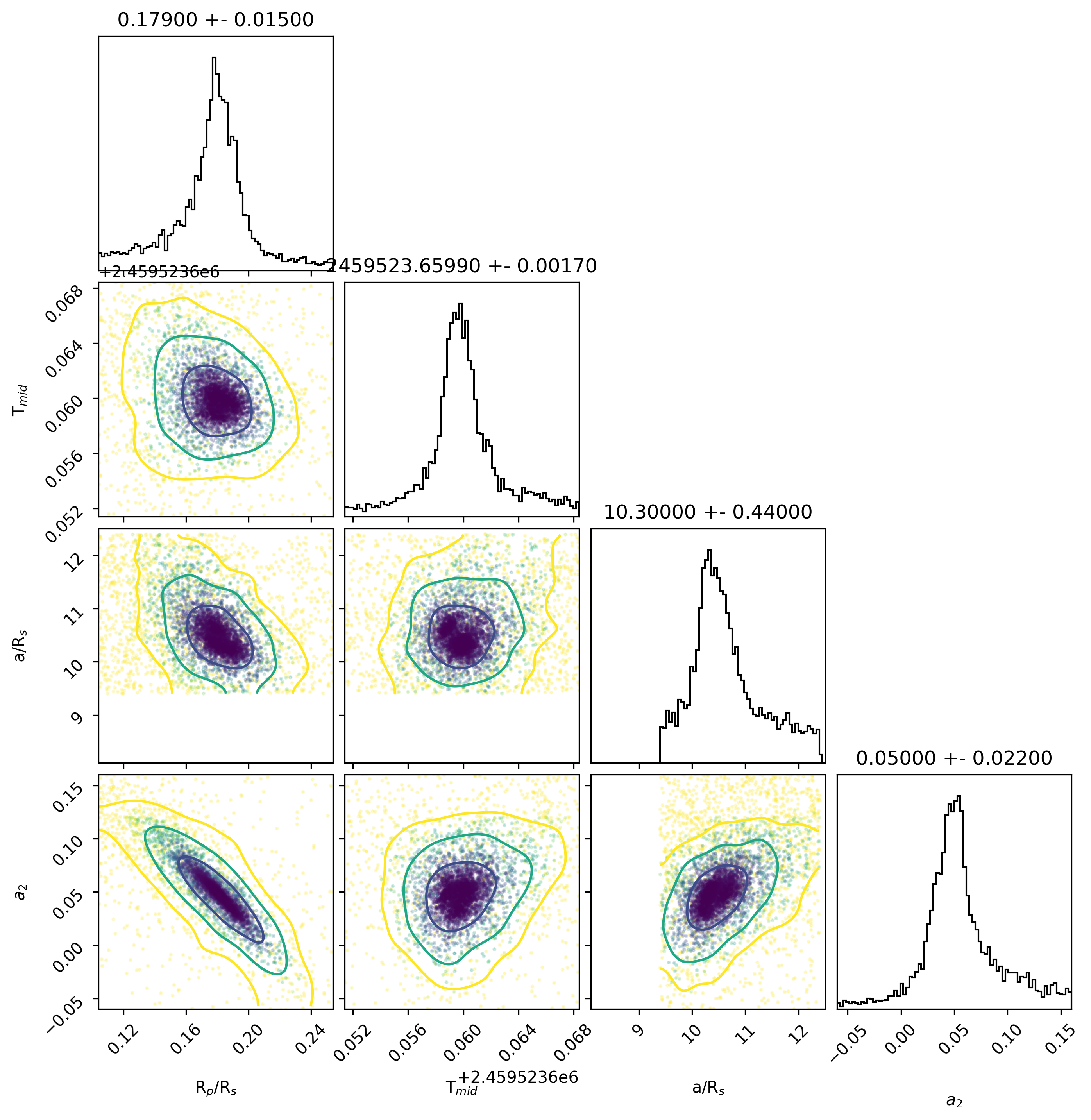

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 637c68439ce55eb526c492895e4d20d3
Parameter Value Uncertainty
Am1 0.9997 0.0022
Am2 0
a/Rs 10.88 0.19
Rp/Rs 0.1437 0.0023
ephemeris [JD] 2458377.56026 0.0008
eccentricity 0.07
inclination [degrees] 88.47
omega [degrees] 1.7
orbital period [days] 3.3610032
u0 2.463641081162117
u1 -4.316711441353743
u2 4.4029854913123545
u3 -1.549915065511133
duration 0.1085 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

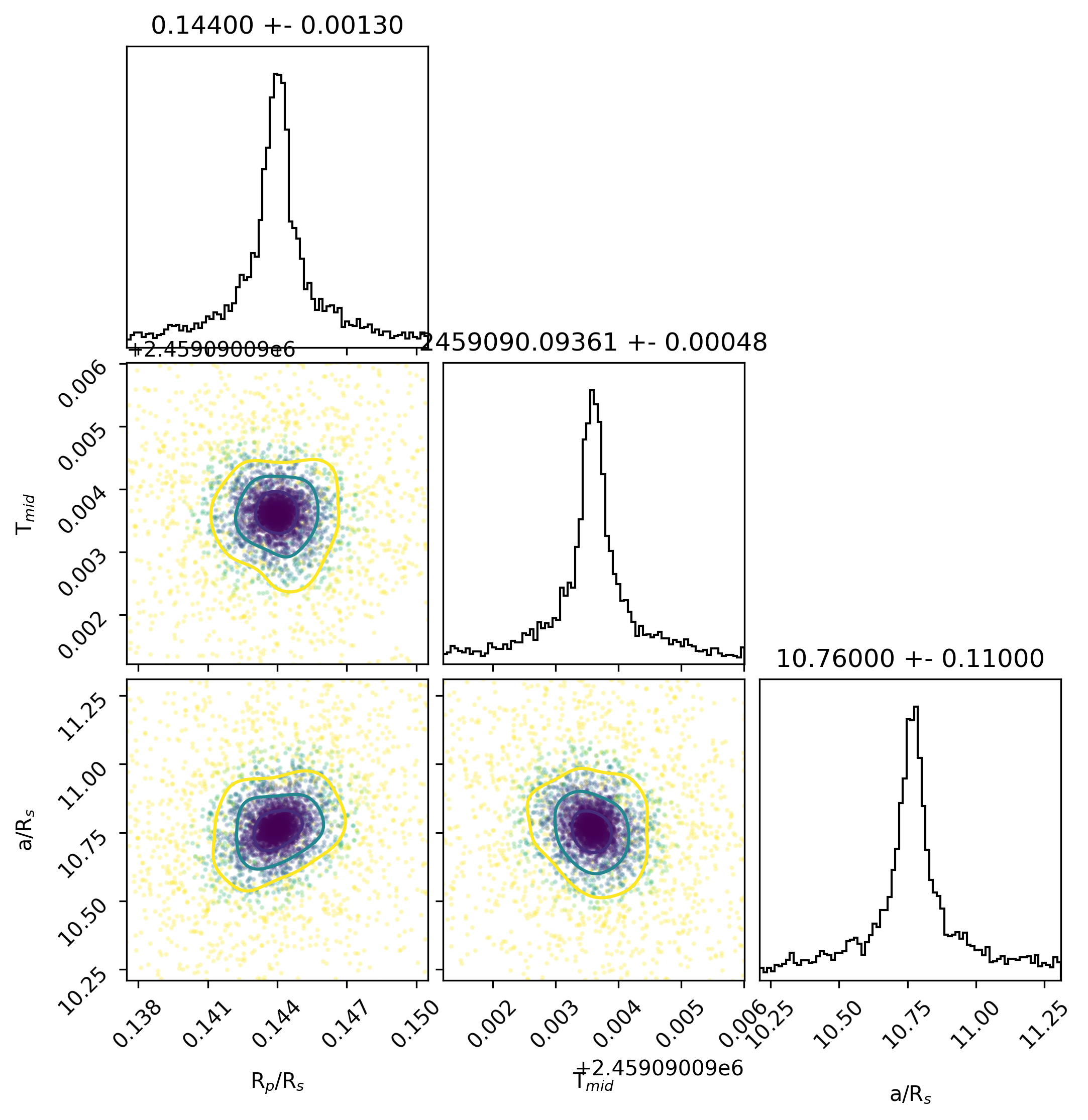

Light curve chart for de251d0d791d612ac996292a27ccbf42
Parameter Value Uncertainty
Am1 0.9997 0.005
Am2 0
a/Rs 10.74 0.11
Rp/Rs 0.144 0.0014
ephemeris [JD] 2459090.0936 0.00047
eccentricity 0.07
inclination [degrees] 88.47
omega [degrees] 1.7
orbital period [days] 3.3610032
u0 2.4630280516425014
u1 -4.3157738991999794
u2 4.402519705819415
u3 -1.5497737926592814
duration 0.1102 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

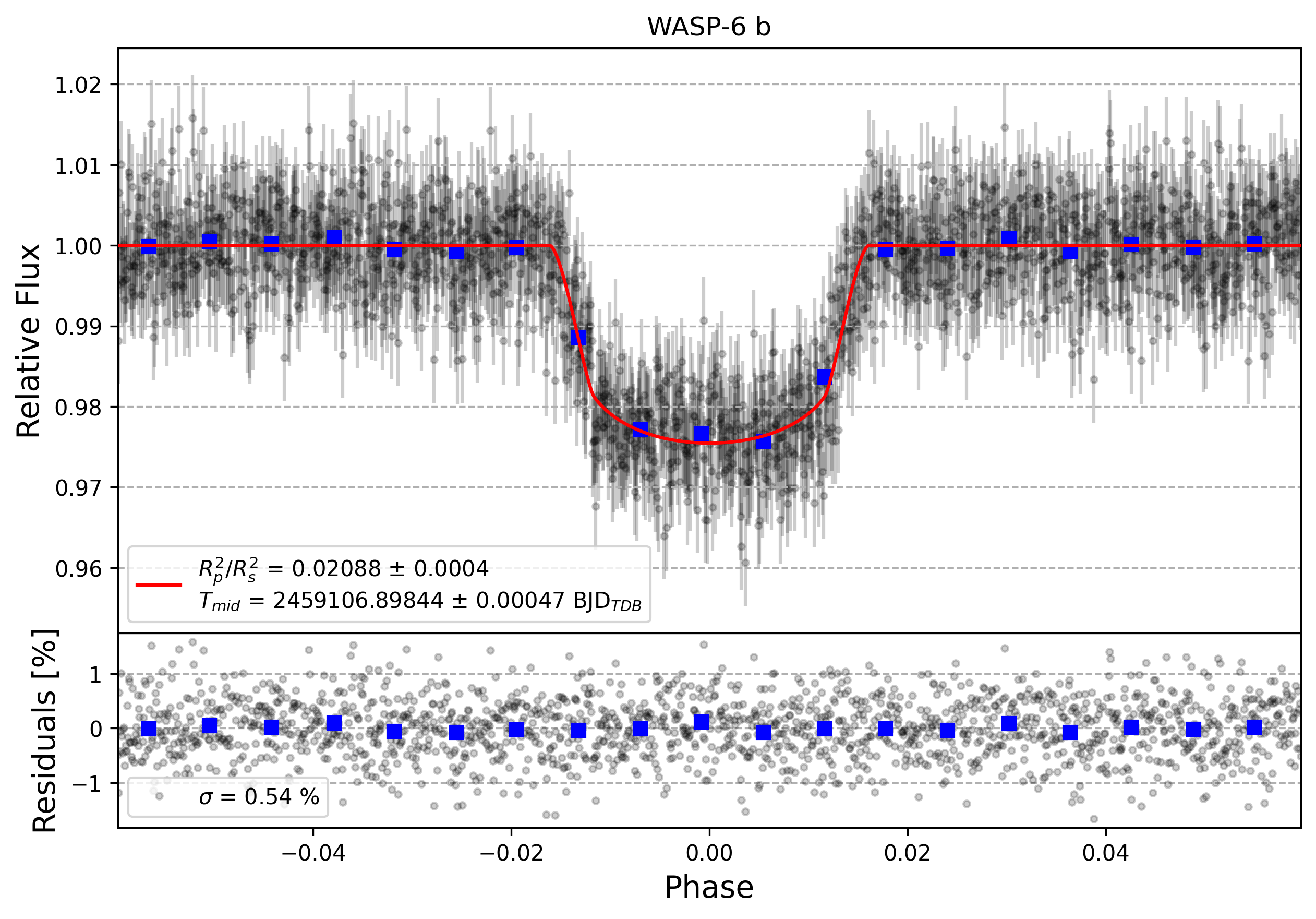

Light curve chart for 845c3e3c71821969269ace9c5188fb16
Parameter Value Uncertainty
Am1 1.0003 0.0054
Am2 0
a/Rs 10.9 0.11
Rp/Rs 0.1444 0.0014
ephemeris [JD] 2459106.89849 0.00046
eccentricity 0.07
inclination [degrees] 88.47
omega [degrees] 1.7
orbital period [days] 3.3610032
u0 2.463458737763772
u1 -4.317657478112549
u2 4.405182483231482
u3 -1.550983677240371
duration 0.1085 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f70f12247984add2ea7a162d53b187a0
Parameter Value Uncertainty
Am1 1.0003 0.0021
Am2 0
a/Rs 10.83 0.18
Rp/Rs 0.1419 0.0023
ephemeris [JD] 2458360.75583 0.0008
eccentricity 0.07
inclination [degrees] 88.47
omega [degrees] 1.7
orbital period [days] 3.3610032
u0 2.4617576929856058
u1 -4.311649783352238
u2 4.397769654617225
u3 -1.5478774987187172
duration 0.1089 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

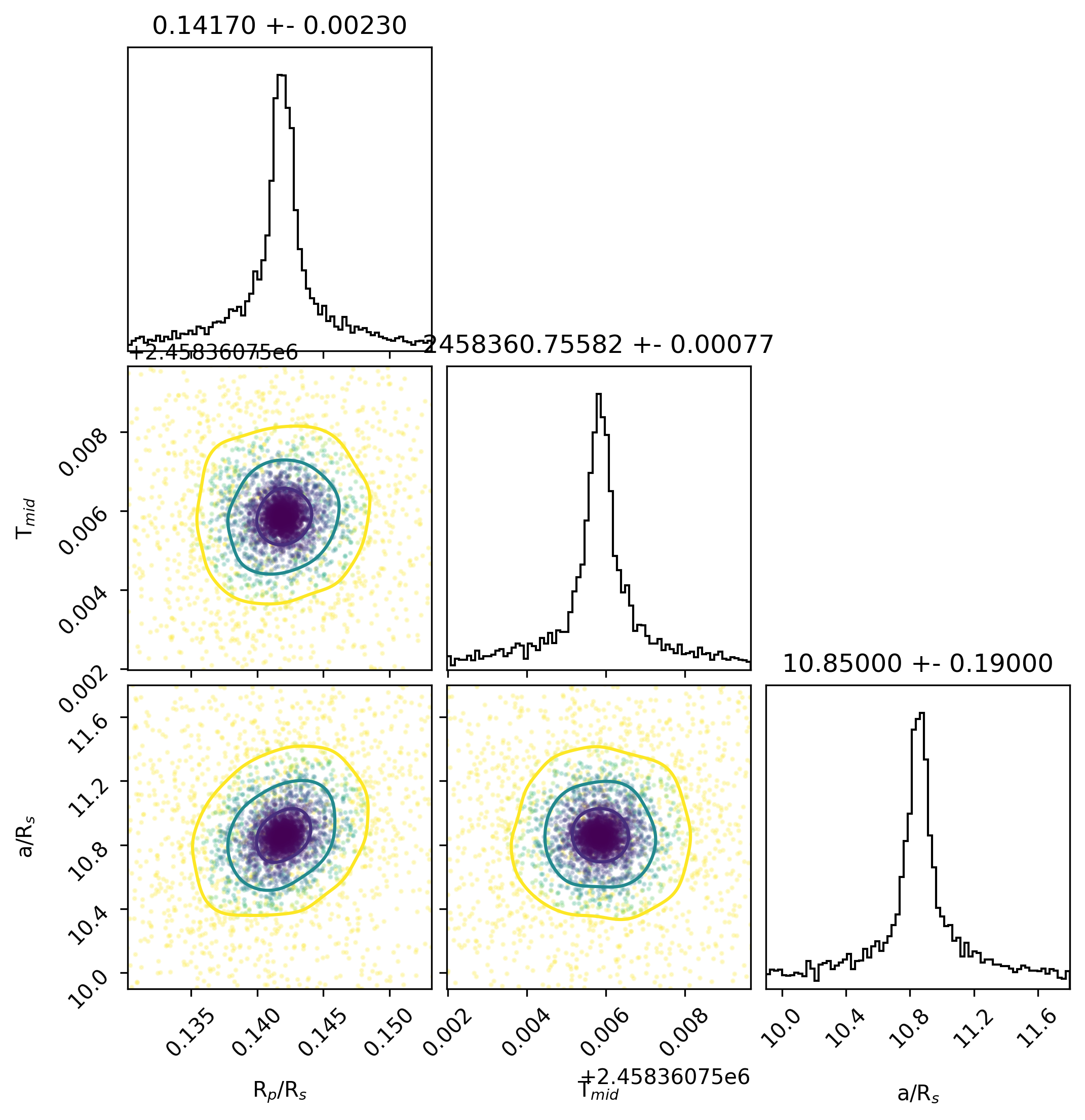

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

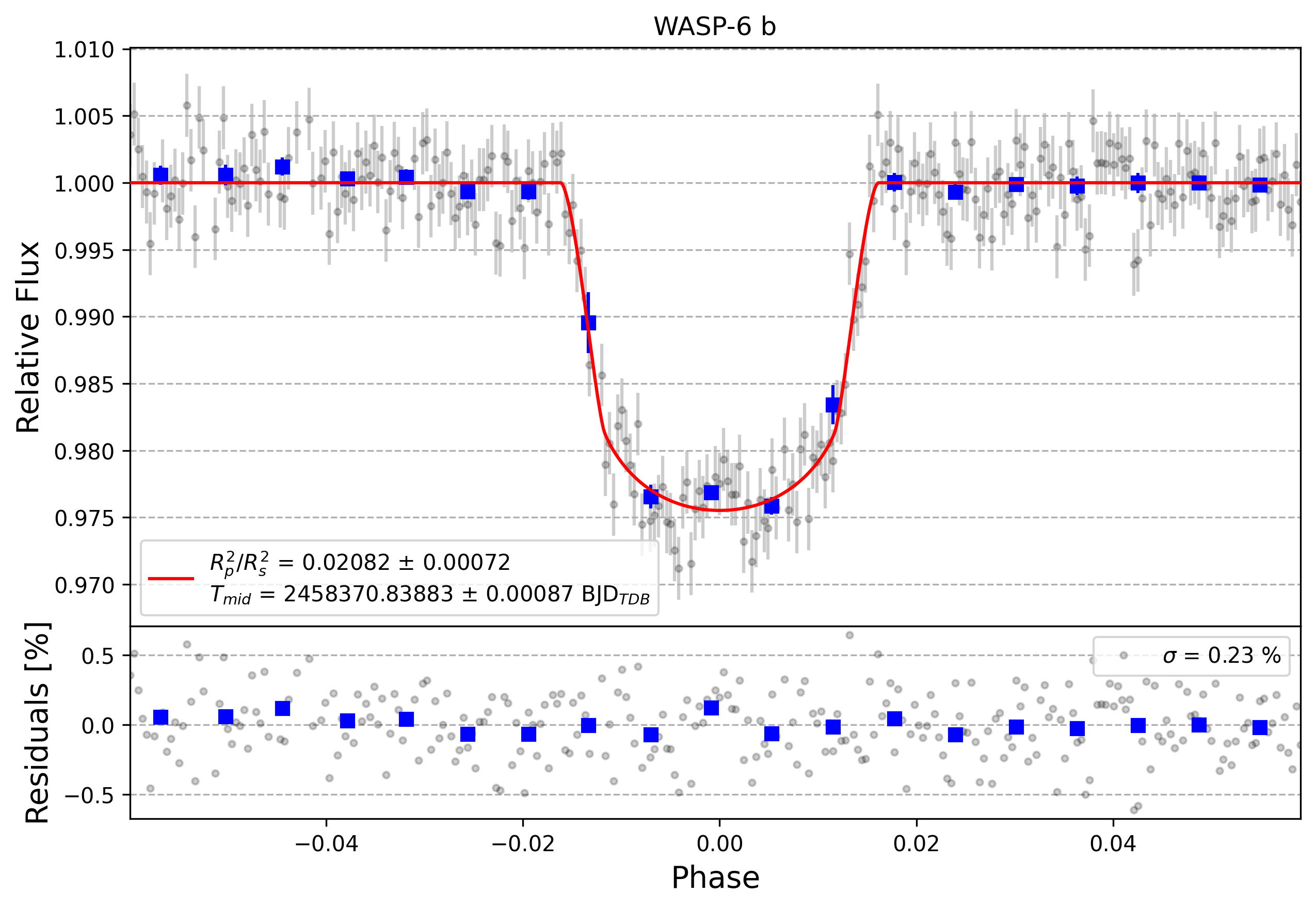

Light curve chart for 12c677840dface8dc32ee01201a8b18d
Parameter Value Uncertainty
Am1 0.9988 0.0023
Am2 0
a/Rs 10.9 0.21
Rp/Rs 0.1444 0.0025
ephemeris [JD] 2458370.83885 0.00086
eccentricity 0.07
inclination [degrees] 88.47
omega [degrees] 1.7
orbital period [days] 3.3610032
u0 2.4644687210042453
u1 -4.3203397554536656
u2 4.40783656849331
u3 -1.5519654683620066
duration 0.1081 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3cfdd55a7e465274fe9b58029ba36316
Parameter Value Uncertainty
Am1 1.0017 0.0025
Am2 0
a/Rs 10.93 0.24
Rp/Rs 0.1399 0.0025
ephemeris [JD] 2458380.92113 0.001
eccentricity 0.07
inclination [degrees] 88.47
omega [degrees] 1.7
orbital period [days] 3.3610032
u0 2.462655463444206
u1 -4.314469296577742
u2 4.400955409810561
u3 -1.5491415110976798
duration 0.1077 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

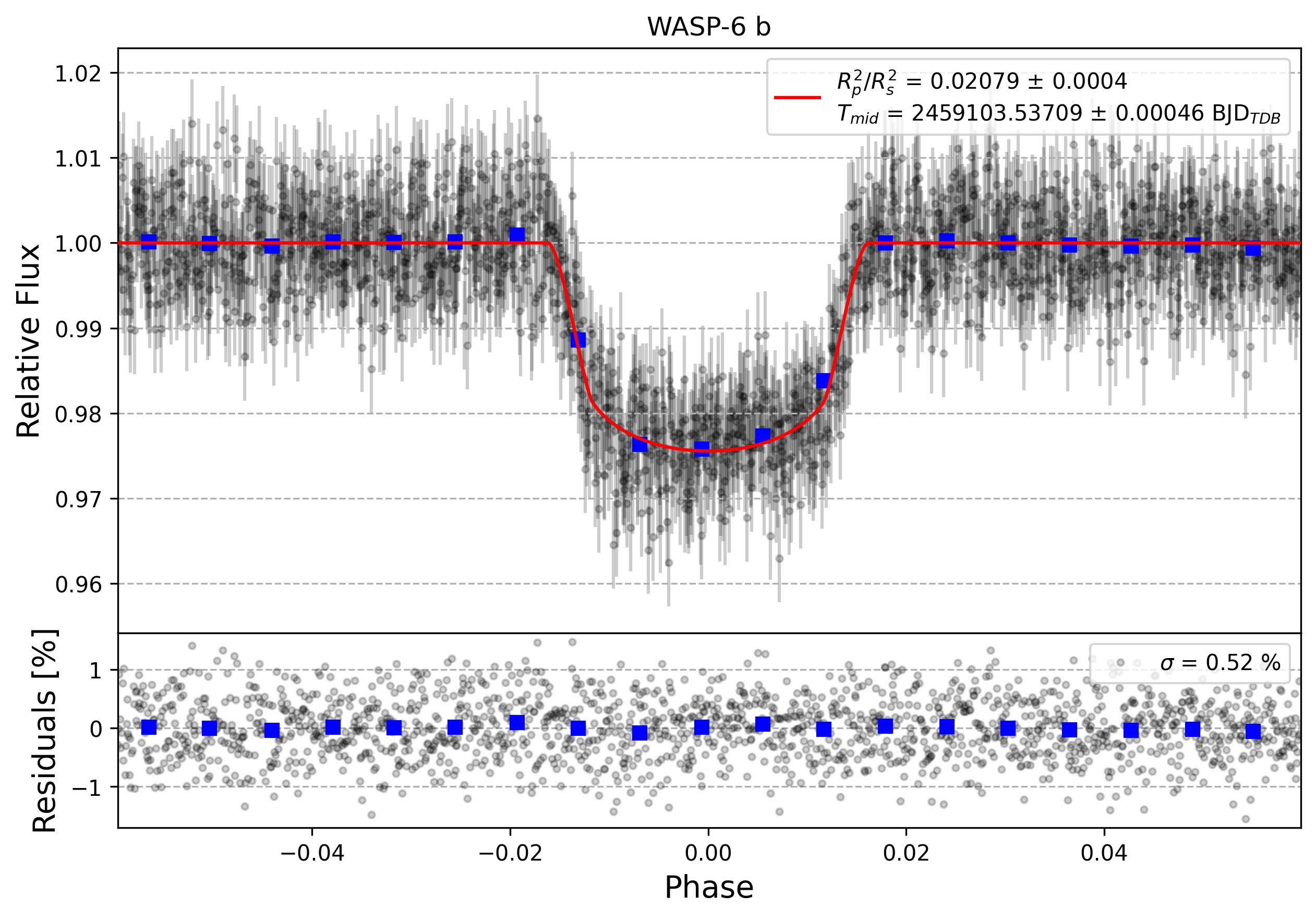

Light curve chart for 8da75812869b65efe8d374758a359d2d
Parameter Value Uncertainty
Am1 0.9999 0.0052
Am2 0
a/Rs 10.88 0.11
Rp/Rs 0.1441 0.0014
ephemeris [JD] 2459103.53711 0.00046
eccentricity 0.07
inclination [degrees] 88.47
omega [degrees] 1.7
orbital period [days] 3.3610032
u0 2.462998412686411
u1 -4.316083337682447
u2 4.403487406153437
u3 -1.5504024155403249
duration 0.1085 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3891f02b65a73e533186f378dd7c3351
Parameter Value Uncertainty
Am1 1.0001 0.0023
Am2 0
a/Rs 10.86 0.2
Rp/Rs 0.1423 0.0024
ephemeris [JD] 2458357.39372 0.00087
eccentricity 0.07
inclination [degrees] 88.47
omega [degrees] 1.7
orbital period [days] 3.3610032
u0 2.4638140828642103
u1 -4.318557355996922
u2 4.406386892297601
u3 -1.5516435535046083
duration 0.1085 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

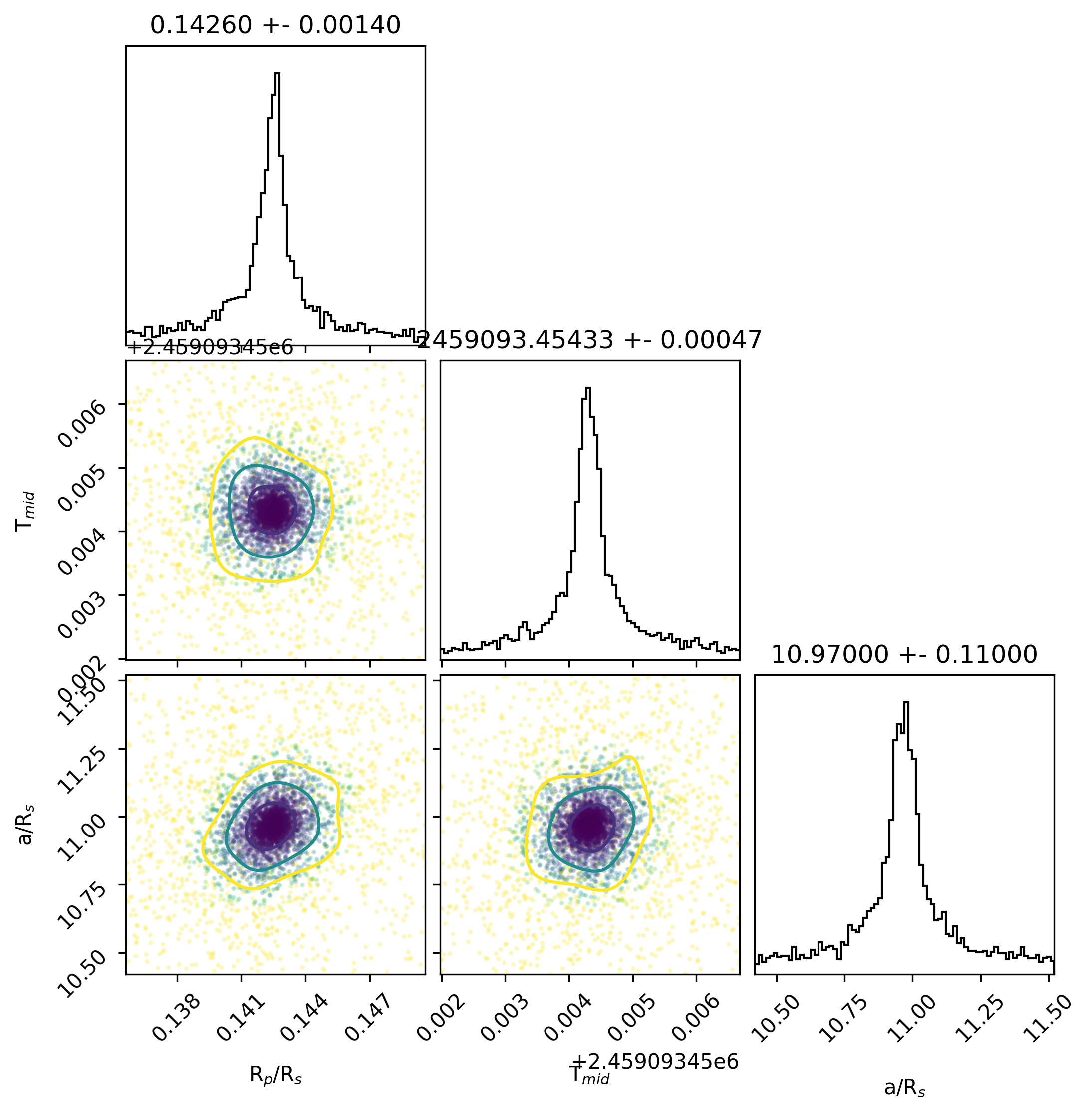

Light curve chart for e12047364460f07752615f5a3ab9d025
Parameter Value Uncertainty
Am1 1.0004 0.0054
Am2 0
a/Rs 10.94 0.11
Rp/Rs 0.1426 0.0014
ephemeris [JD] 2459093.45433 0.00046
eccentricity 0.07
inclination [degrees] 88.47
omega [degrees] 1.7
orbital period [days] 3.3610032
u0 2.4650529796874543
u1 -4.321852710497098
u2 4.409479956955013
u3 -1.5526801604389981
duration 0.1077 0.0011
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 31bb2a50cef868bd95e9373338a27a19
Parameter Value Uncertainty
Am1 1.0003 0.0053
Am2 0
a/Rs 10.84 0.12
Rp/Rs 0.1428 0.0015
ephemeris [JD] 2459096.81496 0.0005
eccentricity 0.07
inclination [degrees] 88.47
omega [degrees] 1.7
orbital period [days] 3.3610032
u0 2.463506937351514
u1 -4.317420530020373
u2 4.404677878084676
u3 -1.5507642197810019
duration 0.1089 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

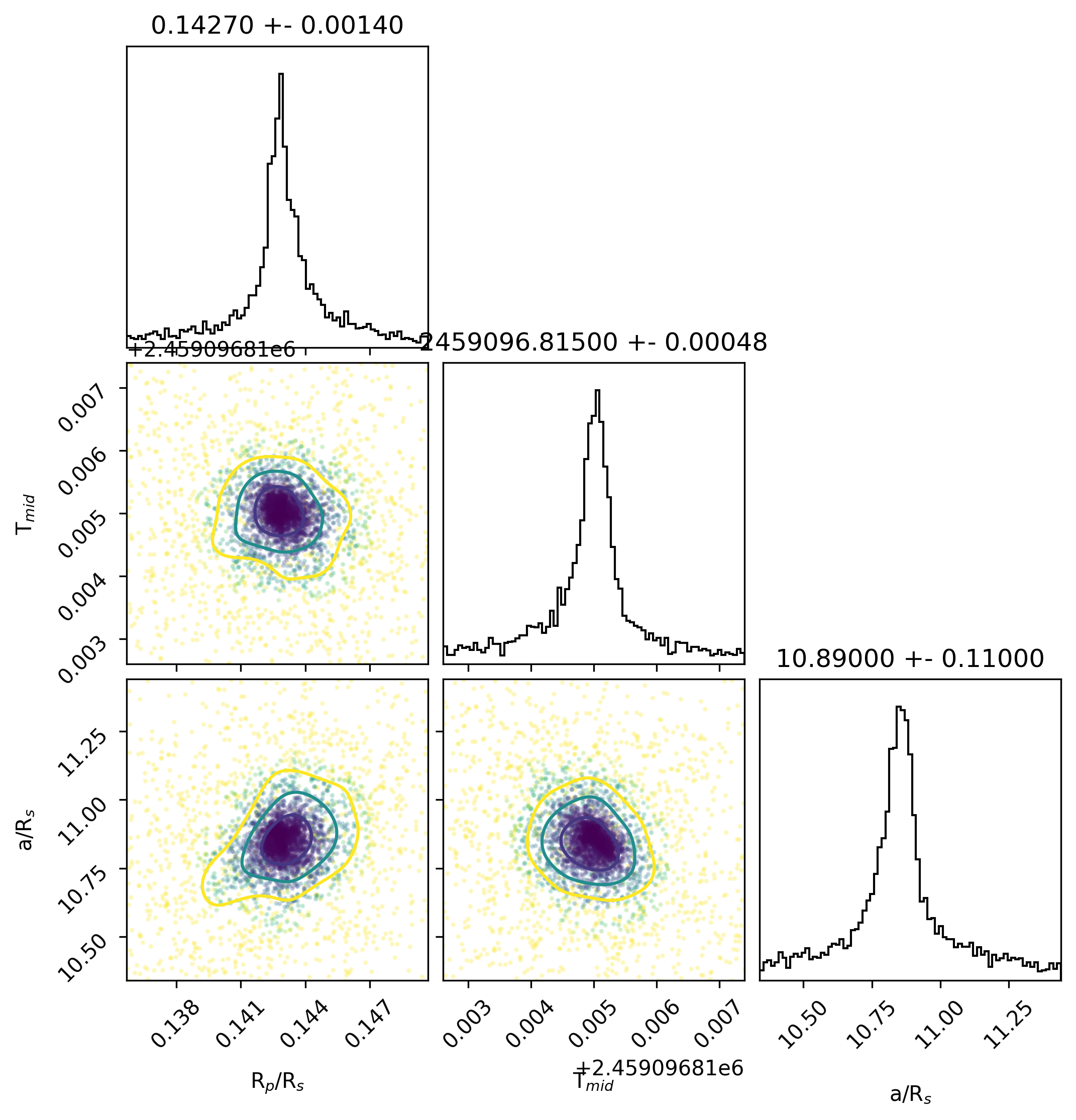

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9edfaefc1b681b30d00110c0aeca885e
Parameter Value Uncertainty
Am1 0.9993 0.0024
Am2 0
a/Rs 10.8 0.19
Rp/Rs 0.146 0.0026
ephemeris [JD] 2458364.11579 0.00079
eccentricity 0.07
inclination [degrees] 88.47
omega [degrees] 1.7
orbital period [days] 3.3610032
u0 2.463332356383668
u1 -4.317349650193495
u2 4.405011122502851
u3 -1.5509937630532442
duration 0.1097 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 792d638537a317cebbf62cb3a98efc7a
Parameter Value Uncertainty
Am1 1.0007 0.002
Am2 0
a/Rs 10.86 0.19
Rp/Rs 0.1421 0.0023
ephemeris [JD] 2458374.19921 0.0008
eccentricity 0.07
inclination [degrees] 88.47
omega [degrees] 1.7
orbital period [days] 3.3610032
u0 2.4644528465912234
u1 -4.320472071980031
u2 4.4082524373279
u3 -1.5522331462510115
duration 0.1085 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

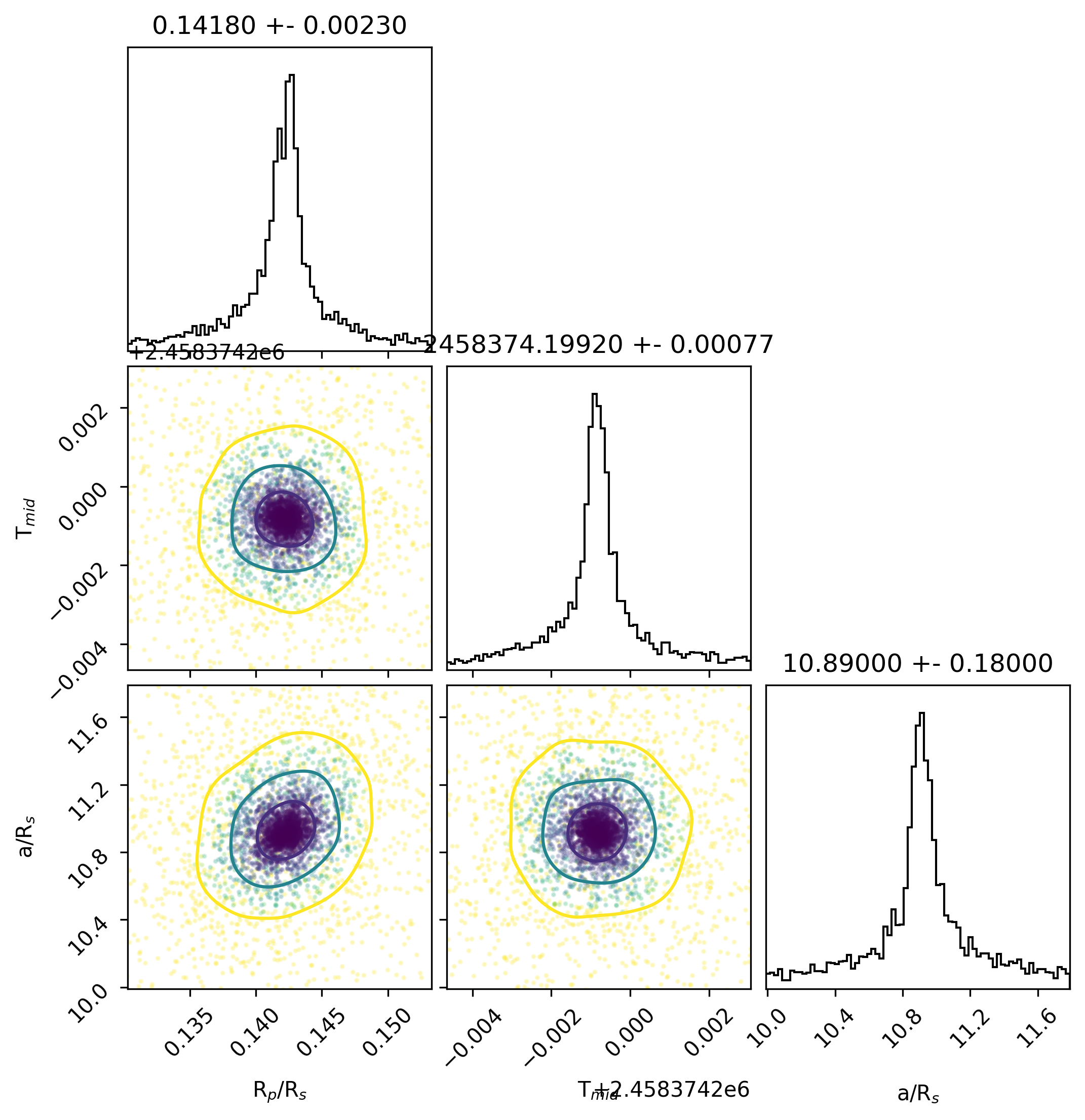

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ada1c7497be57307e5c11e93b87a4a10
Parameter Value Uncertainty
Am1 0.9999 0.0053
Am2 0
a/Rs 10.93 0.11
Rp/Rs 0.1427 0.0014
ephemeris [JD] 2459110.25848 0.00045
eccentricity 0.07
inclination [degrees] 88.47
omega [degrees] 1.7
orbital period [days] 3.3610032
u0 2.463376174343738
u1 -4.318425867922346
u2 4.407037251429211
u3 -1.55198749218063
duration 0.1081 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
