WASP-64 b

View target in exoplanet catalog
chart

Total Reductions to Date: 58

Date Processed: 09/18/2023 at 00:07:19 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 1.573290474293819 1.2913878033865e-07
Ephemeris (BJD_TDB) 2459253.0884065763 0.0001859585197354284
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 101.1149223 decimal
DEC -32.8583878 decimal
Host Star Metallicity -0.08 0.11 Kokori et al. 2022
Host Star log(g) 4.39 0.02 Log10(cgs) Kokori et al. 2022
Host Star Radius [R_Sun] 1.06 0.03 Sol Kokori et al. 2022
Host Star Effective Temperature [K] 5400.0 100.0 K Kokori et al. 2022
a/Rs 5.39 0.11 Gillon et al. 2013
eccentricity 0.054 Bonomo et al. 2017
inclination [degrees] 86.57 0.8 deg Bonomo et al. 2017
omega [degrees] 0.0 deg Ivshina & Winn 2022
orbital period [days] 1.57329028 9e-08 day Ivshina & Winn 2022
Rp 14.73 0.77 R_Earth ExoFOP-TESS TOI
Rp/Rs 0.1299 0 ExoFOP-TESS TOI
ephemeris [JD] 2457366.713065 9.2e-05 BJD-TDB Ivshina & Winn 2022

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2455582.60163 0.00027 BJD-TDB, HJD-TDB Bonomo et al. 2017, Gillon et al. 2013
2456444.76501 0.00012 BJD-TDB Kokori et al. 2022
2457366.713065 9.2e-05 BJD-TDB Ivshina & Winn 2022
2459229.48943 0.000558 BJD ExoFOP-TESS TOI

Observations

Light curve chart for 0001065
Parameter Value Uncertainty
Am1 1.232 0.011
Am2 -0.204 0.026
a/Rs 5.08 0.32
Rp/Rs 0.101 0.038
ephemeris [JD] 2459545.699 0.012
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.0090347835693985
u1 -3.4197249397625415
u2 3.7662804001832093
u3 -1.3555901878681151
duration 0.1049 0.0081
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

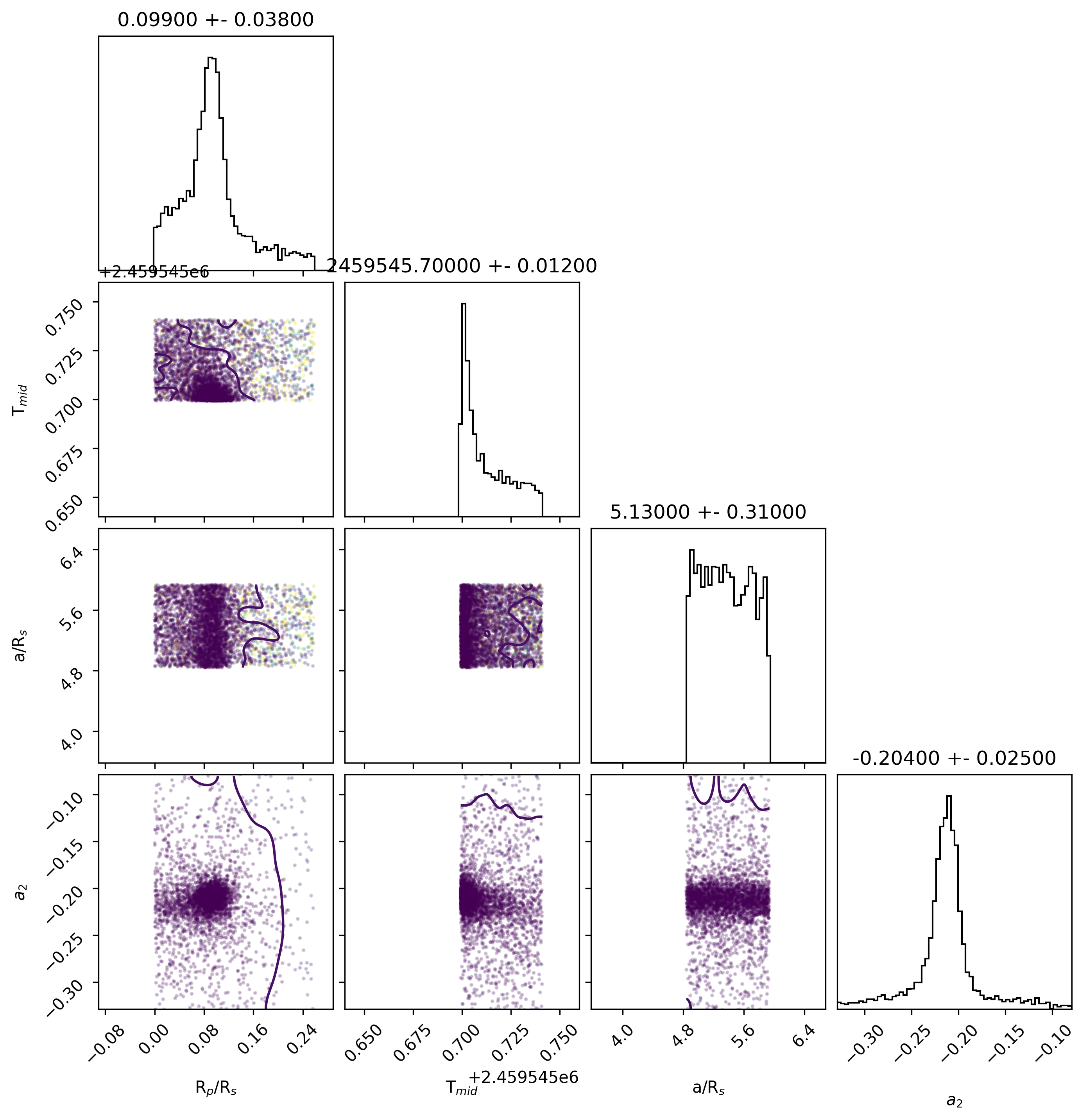

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
R Cousins R 561.7 nm 719.7 nm
Organization Observer Code Secondary Observers
AAVSO VJEB (collaborate/publish)
Light curve chart for 0002698
Parameter Value Uncertainty
Am1 1.135 0.018
Am2 -0.048 0.013
a/Rs 5.06 0.31
Rp/Rs 0.111 0.029
ephemeris [JD] 2459630.698 0.013
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 1.648748509976742
u1 -2.8272537972173106
u2 3.464318397494813
u3 -1.2858130586318777
duration 0.1019 0.0095
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO YLUA (collaborate/publish) MOBS
Light curve chart for 3d1bd22992dc720dc6d436b48646fd4a
Parameter Value Uncertainty
Am1 0.9999 0.0028
Am2 0
a/Rs 5.6 0.15
Rp/Rs 0.0846 0.0025
ephemeris [JD] 2458496.3344 0.0013
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.557618459664771
u1 -4.52861755908112
u2 4.554305528455165
u3 -1.583306361174376
duration 0.093 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 356160501f82c51ea2088c99f87e6da5
Parameter Value Uncertainty
Am1 1.0 0.0038
Am2 0
a/Rs 5.37 0.22
Rp/Rs 0.0553 0.0019
ephemeris [JD] 2459226.339 0.002
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5558448614987386
u1 -4.524593427103516
u2 4.550736297414021
u3 -1.581987663997988
duration 0.0943 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b701dd90f74ddd36a4a6da2245836383
Parameter Value Uncertainty
Am1 1.0 0.0036
Am2 0
a/Rs 5.85 0.22
Rp/Rs 0.0537 0.0019
ephemeris [JD] 2459223.1961 0.0021
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5565656557913017
u1 -4.525750795411309
u2 4.551200705426811
u3 -1.5820154979886278
duration 0.0855 0.0037
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

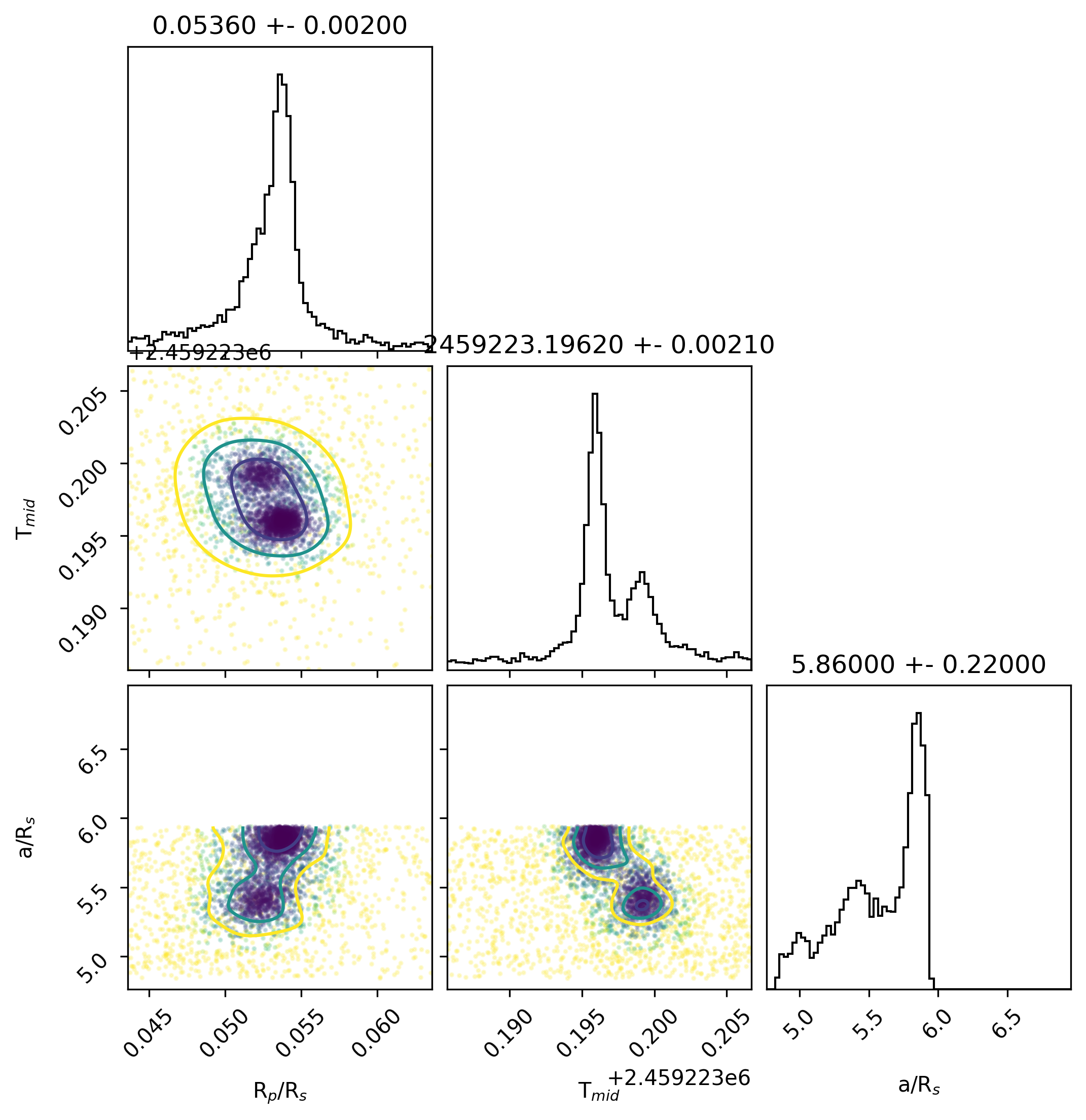

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 416018e1531328f3e4ddc87c57c01c79
Parameter Value Uncertainty
Am1 1.0002 0.0035
Am2 0
a/Rs 5.41 0.16
Rp/Rs 0.0586 0.0017
ephemeris [JD] 2459205.8883 0.0014
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5563688840164676
u1 -4.525588979855604
u2 4.551394953101141
u3 -1.5821747894409355
duration 0.0938 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 39779acd8f94e2be3510899d6d9286af
Parameter Value Uncertainty
Am1 0.9999 0.002
Am2 0
a/Rs 5.75 0.18
Rp/Rs 0.0681 0.0021
ephemeris [JD] 2458480.6023 0.0016
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5565270611767645
u1 -4.525959865476212
u2 4.551669297323474
u3 -1.5822364251988685
duration 0.089 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3140a213c187a8440d0afc1f0b7ea059
Parameter Value Uncertainty
Am1 0.9996 0.0029
Am2 0
a/Rs 5.28 0.17
Rp/Rs 0.0803 0.0025
ephemeris [JD] 2458507.3484 0.0015
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5570444830693826
u1 -4.528113438217082
u2 4.554634989368019
u3 -1.5835659663509696
duration 0.0985 0.0037
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 43ec000d81528849ee17e0591881d41c
Parameter Value Uncertainty
Am1 1.0 0.013
Am2 0
a/Rs 5.6 0.22
Rp/Rs 0.091 0.0047
ephemeris [JD] 2459246.7961 0.0022
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.557285812792831
u1 -4.527024586193392
u2 4.552134251626292
u3 -1.5823954103936448
duration 0.0937 0.0042
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

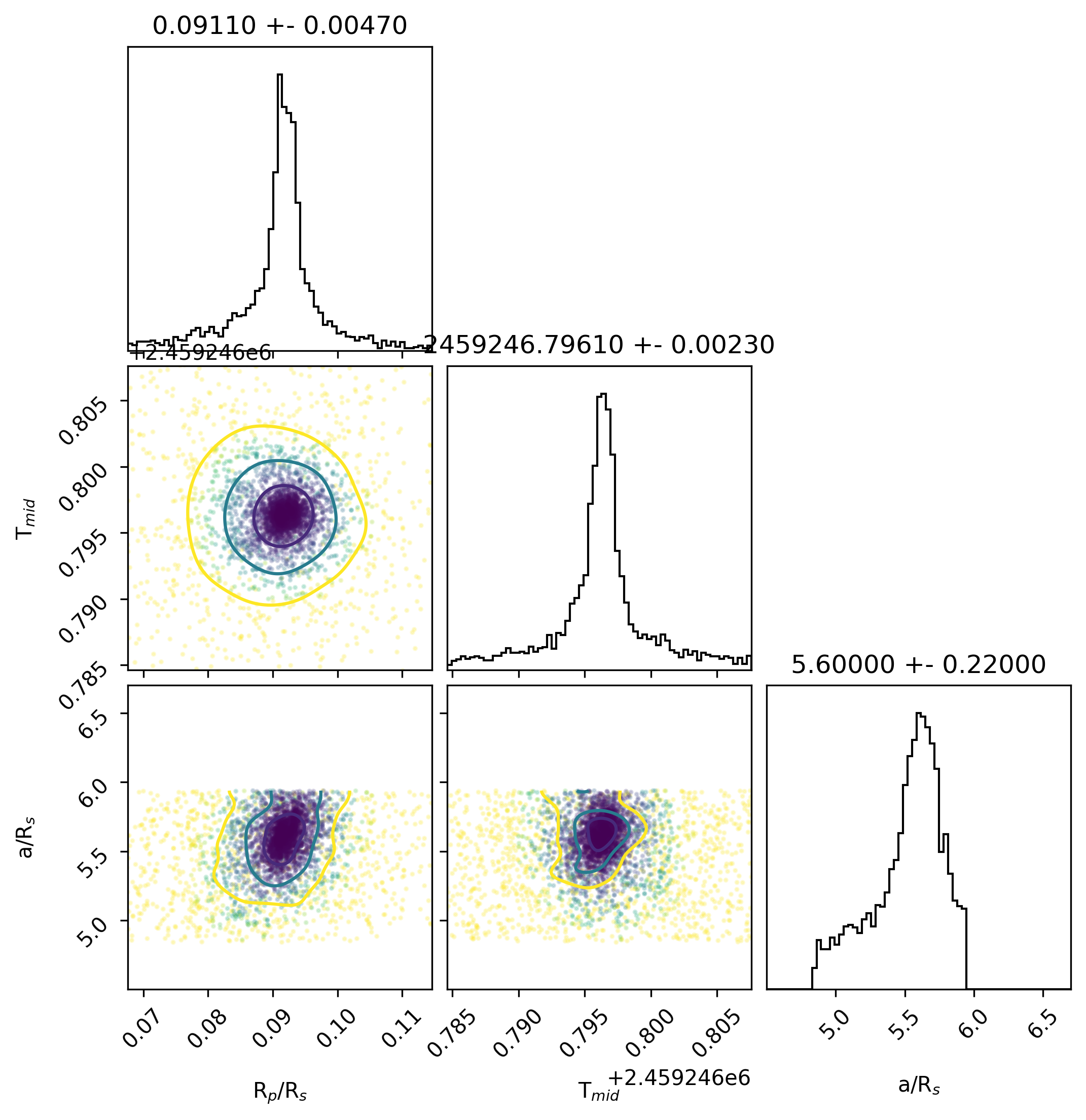

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 389b172d559369dd46f27a98b74b8fd5
Parameter Value Uncertainty
Am1 1.0001 0.0019
Am2 0
a/Rs 5.74 0.13
Rp/Rs 0.0722 0.0021
ephemeris [JD] 2458485.3249 0.0013
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5574337164656975
u1 -4.528398075852961
u2 4.554331966654889
u3 -1.5833675394027904
duration 0.0892 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ac07bf9a85d95e5d55dff62b247c40e5
Parameter Value Uncertainty
Am1 1.0 0.0029
Am2 0
a/Rs 5.39 0.15
Rp/Rs 0.0827 0.0026
ephemeris [JD] 2458513.6421 0.0013
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5564265877097343
u1 -4.525718308221081
u2 4.551451577811115
u3 -1.5821597894778545
duration 0.0969 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 15a4668c5f7858e55183d22b5b1236c5
Parameter Value Uncertainty
Am1 1.0001 0.0019
Am2 0
a/Rs 5.2 0.14
Rp/Rs 0.0686 0.0019
ephemeris [JD] 2458474.3094 0.0013
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.557109153650098
u1 -4.5270677285008
u2 4.552596474324949
u3 -1.5826378316352732
duration 0.0991 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3808163a0110bc22f88fd782caf9170a
Parameter Value Uncertainty
Am1 1.0001 0.0022
Am2 0
a/Rs 5.49 0.23
Rp/Rs 0.0701 0.0023
ephemeris [JD] 2458488.4673 0.002
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5574029119641675
u1 -4.528298712522086
u2 4.554271179092772
u3 -1.5833753106709234
duration 0.0936 0.0044
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b80383d4cf114384872ea9e290df5371
Parameter Value Uncertainty
Am1 1.0 0.0035
Am2 0
a/Rs 5.75 0.15
Rp/Rs 0.0545 0.002
ephemeris [JD] 2459212.1856 0.0014
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.556832785894172
u1 -4.526257395073281
u2 4.551730838168572
u3 -1.5823061611633875
duration 0.0877 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 153a1fa6aeed54f959d41b7c72666636

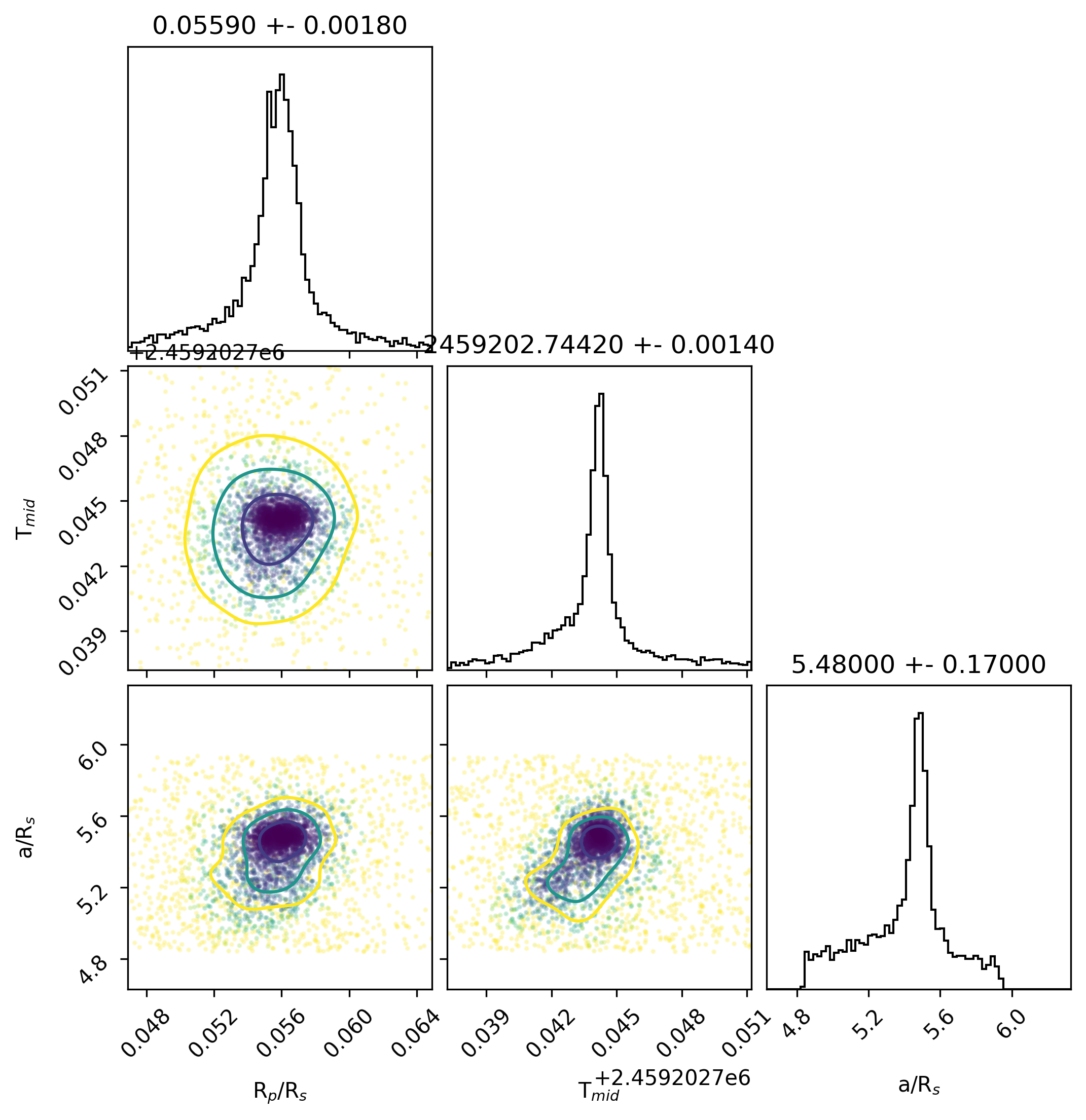

Parameter Value Uncertainty
Am1 1.0001 0.0036
Am2 0
a/Rs 5.48 0.17
Rp/Rs 0.0559 0.0018
ephemeris [JD] 2459202.7442 0.0015
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5566304927165038
u1 -4.526310698219079
u2 4.552239292919063
u3 -1.582559019582837
duration 0.0927 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 208aef9f967711635642564b9000aa2f
Parameter Value Uncertainty
Am1 1.0001 0.0036
Am2 0
a/Rs 5.52 0.2
Rp/Rs 0.0532 0.002
ephemeris [JD] 2459224.771 0.002
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.55731672169005
u1 -4.527712980892647
u2 4.553278082000205
u3 -1.5828817549484766
duration 0.091 0.0036
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 1bb5fdc3a7c33da1b8447ff383500f19
Parameter Value Uncertainty
Am1 0.999 0.014
Am2 0
a/Rs 5.56 0.28
Rp/Rs 0.0834 0.0055
ephemeris [JD] 2459253.0874 0.0035
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5567190073941637
u1 -4.526617496963024
u2 4.552632773867526
u3 -1.5827342164591496
duration 0.0937 0.0054
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0db408129f1d0ce3a8a0942e6dab29ad
Parameter Value Uncertainty
Am1 1.0 0.011
Am2 0
a/Rs 5.22 0.22
Rp/Rs 0.0915 0.0034
ephemeris [JD] 2459237.3525 0.002
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.556896043053978
u1 -4.52673811253922
u2 4.552398240476888
u3 -1.5825561031556274
duration 0.1015 0.0047
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ed715074b7c2e9c663cc72c03bf73076
Parameter Value Uncertainty
Am1 1.002 0.003
Am2 0
a/Rs 5.4 0.18
Rp/Rs 0.0819 0.0026
ephemeris [JD] 2458502.6296 0.0016
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5566636043556477
u1 -4.5265142660211435
u2 4.552638926323113
u3 -1.5827881968180115
duration 0.0969 0.0036
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 45fdefaa338f59c84fd207979e37befa
Parameter Value Uncertainty
Am1 1.0 0.012
Am2 0
a/Rs 5.6 0.22
Rp/Rs 0.0932 0.0044
ephemeris [JD] 2459251.5175 0.002
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.556924505180798
u1 -4.527111924086353
u2 4.5529952344110205
u3 -1.5828077476605493
duration 0.0937 0.0044
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 54585e85e88c7f0880bab816f7823956
Parameter Value Uncertainty
Am1 1.0002 0.0037
Am2 0
a/Rs 5.58 0.15
Rp/Rs 0.0554 0.002
ephemeris [JD] 2459207.4636 0.0013
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.556408326558603
u1 -4.526243705736777
u2 4.552581263640106
u3 -1.5827458166231856
duration 0.0904 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c30af970e7bc1e7477644fd09c3f3577
Parameter Value Uncertainty
Am1 1.0001 0.0037
Am2 0
a/Rs 5.33 0.16
Rp/Rs 0.0558 0.0018
ephemeris [JD] 2459220.0484 0.0014
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5567765802056184
u1 -4.526867808127286
u2 4.552920654216406
u3 -1.5828293584509336
duration 0.0954 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 2711c03799fc495398d132689b92da8a
Parameter Value Uncertainty
Am1 1.0078 0.01
Am2 0
a/Rs 5.29 0.2
Rp/Rs 0.0885 0.0031
ephemeris [JD] 2459229.4918 0.0018
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5559163390125246
u1 -4.524605312452919
u2 4.550617806489392
u3 -1.5819287652395078
duration 0.0993 0.0041
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a64c86bf7ff6aaadb6703713bfd43ec5
Parameter Value Uncertainty
Am1 1.0006 0.0093
Am2 0
a/Rs 5.32 0.2
Rp/Rs 0.0866 0.0031
ephemeris [JD] 2459235.7809 0.0018
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5569192990302367
u1 -4.526447294792246
u2 4.5518403075293605
u3 -1.5823122439396453
duration 0.0988 0.0041
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3e00b6082de5a5d9685a248743bc5b06
Parameter Value Uncertainty
Am1 1.0001 0.0036
Am2 0
a/Rs 5.57 0.17
Rp/Rs 0.0526 0.0019
ephemeris [JD] 2459204.3152 0.0016
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.556809072217456
u1 -4.526181602629695
u2 4.551653592455177
u3 -1.582280994218014
duration 0.0904 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 293dbfd88c04b35f9dfc087376913c36
Parameter Value Uncertainty
Am1 0.9994 0.0096
Am2 0
a/Rs 5.38 0.21
Rp/Rs 0.0901 0.0031
ephemeris [JD] 2459231.0625 0.0018
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5572115949792034
u1 -4.527545147094062
u2 4.553206324369621
u3 -1.582872704406701
duration 0.0977 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ceebb429b8a7a62547e5a5c41616aed3
Parameter Value Uncertainty
Am1 1.0001 0.0035
Am2 0
a/Rs 5.41 0.17
Rp/Rs 0.0537 0.0018
ephemeris [JD] 2459209.0351 0.0014
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.556102089517398
u1 -4.524606495018438
u2 4.550178207192007
u3 -1.581673733888029
duration 0.0938 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0ca70b08f687442a70cc6b18c1070cd7
Parameter Value Uncertainty
Am1 0.9996 0.0024
Am2 0
a/Rs 5.28 0.18
Rp/Rs 0.0677 0.0027
ephemeris [JD] 2458469.5902 0.0016
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5563057455012257
u1 -4.525687969348667
u2 4.551713499060273
u3 -1.5823312073870155
duration 0.0974 0.0037
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f944b17dd6d894cfb8f1d1bd30ee1ef3
Parameter Value Uncertainty
Am1 0.9994 0.0028
Am2 0
a/Rs 5.51 0.16
Rp/Rs 0.0806 0.0025
ephemeris [JD] 2458493.19 0.0014
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.556522792852951
u1 -4.52531889255755
u2 4.55055458074577
u3 -1.5817584132326235
duration 0.0939 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d1d5dfda2ee816b616f3d70df9d38d4a
Parameter Value Uncertainty
Am1 1.0 0.0027
Am2 0
a/Rs 5.71 0.15
Rp/Rs 0.0837 0.0025
ephemeris [JD] 2458497.9079 0.0012
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5560602796065326
u1 -4.524254692406337
u2 4.549548236055157
u3 -1.5813537554618011
duration 0.0908 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fba65c0a69b41dabb9e07705b18723ba
Parameter Value Uncertainty
Am1 0.9999 0.0031
Am2 0
a/Rs 5.38 0.2
Rp/Rs 0.0818 0.003
ephemeris [JD] 2458510.4951 0.0019
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.55676410405262
u1 -4.526401978762966
u2 4.552109813536865
u3 -1.582471870994798
duration 0.0969 0.004
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b3a0a001b0994b37f18b53b937d87ea6
Parameter Value Uncertainty
Am1 0.9997 0.002
Am2 0
a/Rs 5.45 0.16
Rp/Rs 0.0682 0.0022
ephemeris [JD] 2458475.8835 0.0013
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5575112124911583
u1 -4.528498738815354
u2 4.554418857665809
u3 -1.5834312634754837
duration 0.0941 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for bd417069a51a08c57de1dfd9905cf47a
Parameter Value Uncertainty
Am1 0.9998 0.0026
Am2 0
a/Rs 5.25 0.15
Rp/Rs 0.0819 0.0025
ephemeris [JD] 2458501.0562 0.0013
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5570853870354977
u1 -4.5268404453796505
u2 4.552222574550164
u3 -1.5824674483726087
duration 0.0994 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 578982326c2161a46595a938f81b3825
Parameter Value Uncertainty
Am1 1.0002 0.0036
Am2 0
a/Rs 5.39 0.12
Rp/Rs 0.0541 0.0019
ephemeris [JD] 2459210.6112 0.001
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.557210500944997
u1 -4.527492900779312
u2 4.553189750555437
u3 -1.5829072828733075
duration 0.0938 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 360e553550c3a884bd6aed2960f61fee
Parameter Value Uncertainty
Am1 1.0002 0.0026
Am2 0
a/Rs 5.4 0.13
Rp/Rs 0.0866 0.002
ephemeris [JD] 2458505.7757 0.0011
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.556367946516972
u1 -4.525371184267943
u2 4.551006471800246
u3 -1.5820031662339948
duration 0.0969 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 5bd132f3a42a0c5288b89914196df99e
Parameter Value Uncertainty
Am1 1.0001 0.0027
Am2 0
a/Rs 5.51 0.14
Rp/Rs 0.0831 0.0024
ephemeris [JD] 2458499.4823 0.0012
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.556489992921878
u1 -4.5261007749228614
u2 4.55215680873259
u3 -1.5825459588991846
duration 0.0947 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6c8e48311ec1a4cdb30d4312996bbf2b
Parameter Value Uncertainty
Am1 0.9999 0.0019
Am2 0
a/Rs 5.53 0.17
Rp/Rs 0.0707 0.002
ephemeris [JD] 2458486.8959 0.0014
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.555889546270276
u1 -4.524798838139037
u2 4.551056098825763
u3 -1.5821467391409816
duration 0.0928 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f891f9bbd4a52ec84557a272daa9fb8a
Parameter Value Uncertainty
Am1 1.0 0.011
Am2 0
a/Rs 5.59 0.19
Rp/Rs 0.0906 0.0034
ephemeris [JD] 2459232.6373 0.0018
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.556581632623582
u1 -4.526271234292357
u2 4.5523171939946145
u3 -1.5826275244910275
duration 0.0938 0.0036
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b58bd6e780473b274a415a84a6a9ee8e
Parameter Value Uncertainty
Am1 1.0001 0.0036
Am2 0
a/Rs 5.49 0.18
Rp/Rs 0.0556 0.0018
ephemeris [JD] 2459218.4761 0.0015
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5567067197151525
u1 -4.526378161698464
u2 4.552128379048987
u3 -1.5824568692336767
duration 0.0921 0.0034
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3a6ee70fda97969a84fb64ff928afa6b
Parameter Value Uncertainty
Am1 1.0003 0.0025
Am2 0
a/Rs 5.4 0.12
Rp/Rs 0.085 0.0021
ephemeris [JD] 2458515.2132 0.001
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5574939168172515
u1 -4.5279019023547
u2 4.553281323260529
u3 -1.5828732698739003
duration 0.0966 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

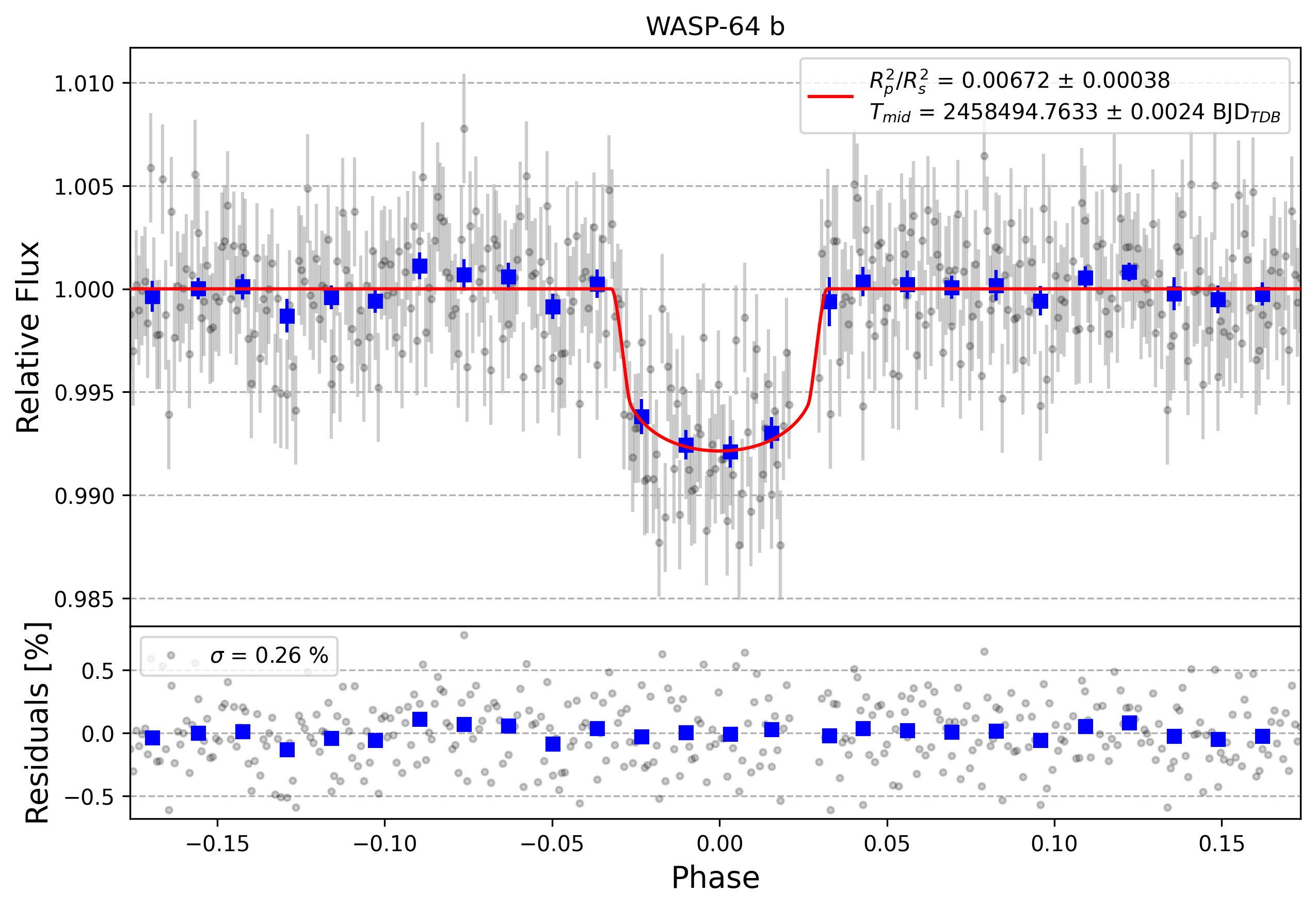

Light curve chart for ead03042b0d6de8c51db8798e450bfd2
Parameter Value Uncertainty
Am1 0.9998 0.0027
Am2 0
a/Rs 5.18 0.26
Rp/Rs 0.0821 0.0023
ephemeris [JD] 2458494.7633 0.0024
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.556598481684659
u1 -4.5258021175529155
u2 4.55135954503182
u3 -1.5821558413430217
duration 0.1013 0.0053
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

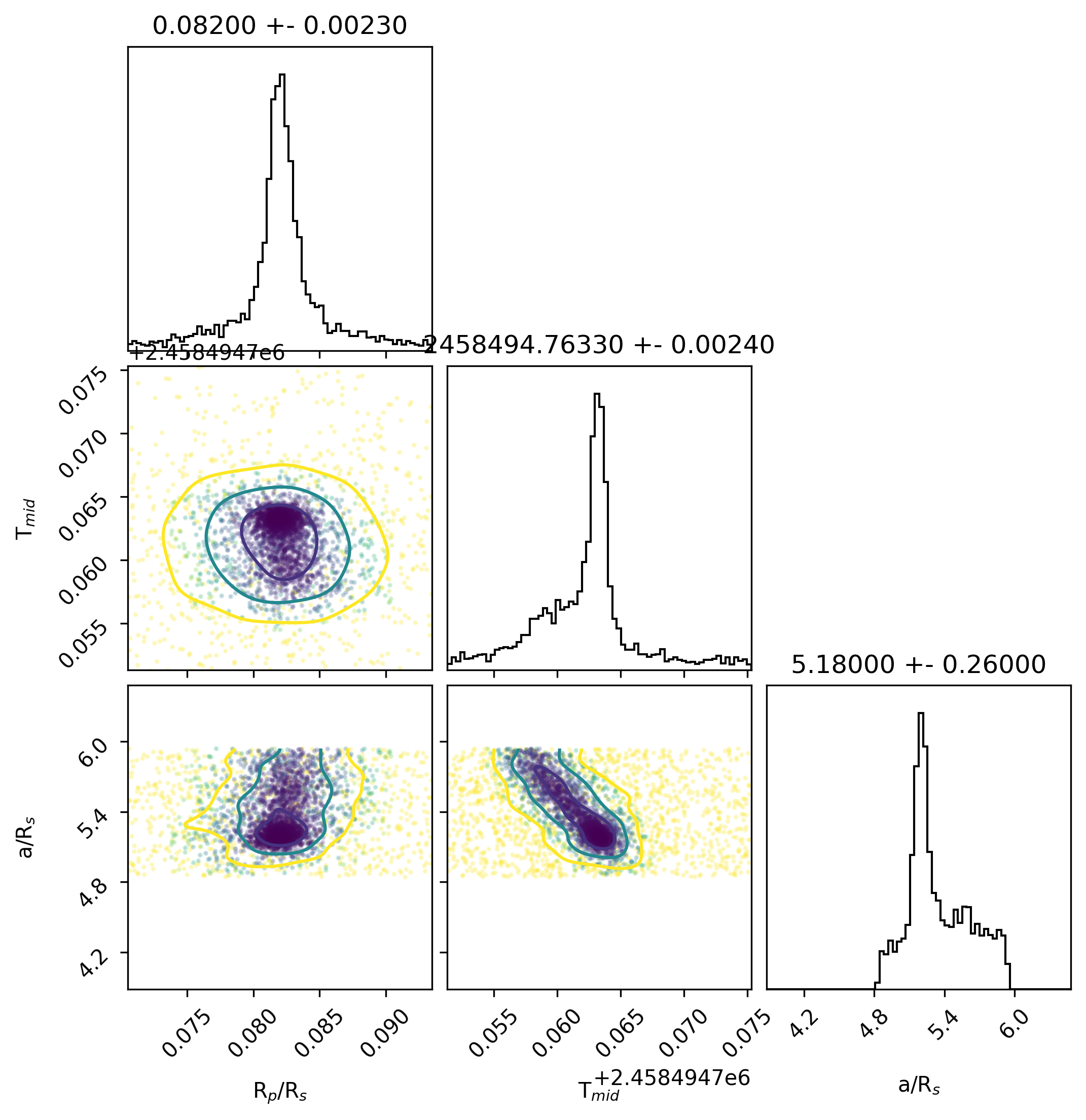

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 5fd215b1965e2d8406f8d38210669d29
Parameter Value Uncertainty
Am1 0.998 0.011
Am2 0
a/Rs 5.46 0.22
Rp/Rs 0.0877 0.0037
ephemeris [JD] 2459243.6491 0.002
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5569909003364235
u1 -4.5270736909508695
u2 4.552890987699257
u3 -1.582808129241449
duration 0.096 0.0042
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3943dbb0a7eb1cdb2062a8e1c2ae4808
Parameter Value Uncertainty
Am1 1.0002 0.0037
Am2 0
a/Rs 5.39 0.17
Rp/Rs 0.0574 0.002
ephemeris [JD] 2459213.7557 0.0015
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.55703003427186
u1 -4.527330403184135
u2 4.553182486624497
u3 -1.5828820498645157
duration 0.0941 0.0034
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 70fc0bddbc0f2de31c7a6db3c19ffb7a
Parameter Value Uncertainty
Am1 1.0 0.0022
Am2 0
a/Rs 5.25 0.18
Rp/Rs 0.068 0.0023
ephemeris [JD] 2458482.1755 0.0016
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5568207229283972
u1 -4.526279004386033
u2 4.551688118615251
u3 -1.5822297693321783
duration 0.098 0.0038
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 5b25337a15c20735d5e023c13b4164c9
Parameter Value Uncertainty
Am1 1.0004 0.0027
Am2 0
a/Rs 5.77 0.16
Rp/Rs 0.0694 0.0029
ephemeris [JD] 2458479.0302 0.0018
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5570392540567175
u1 -4.527459085103511
u2 4.553369475384397
u3 -1.5829495764871107
duration 0.0881 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

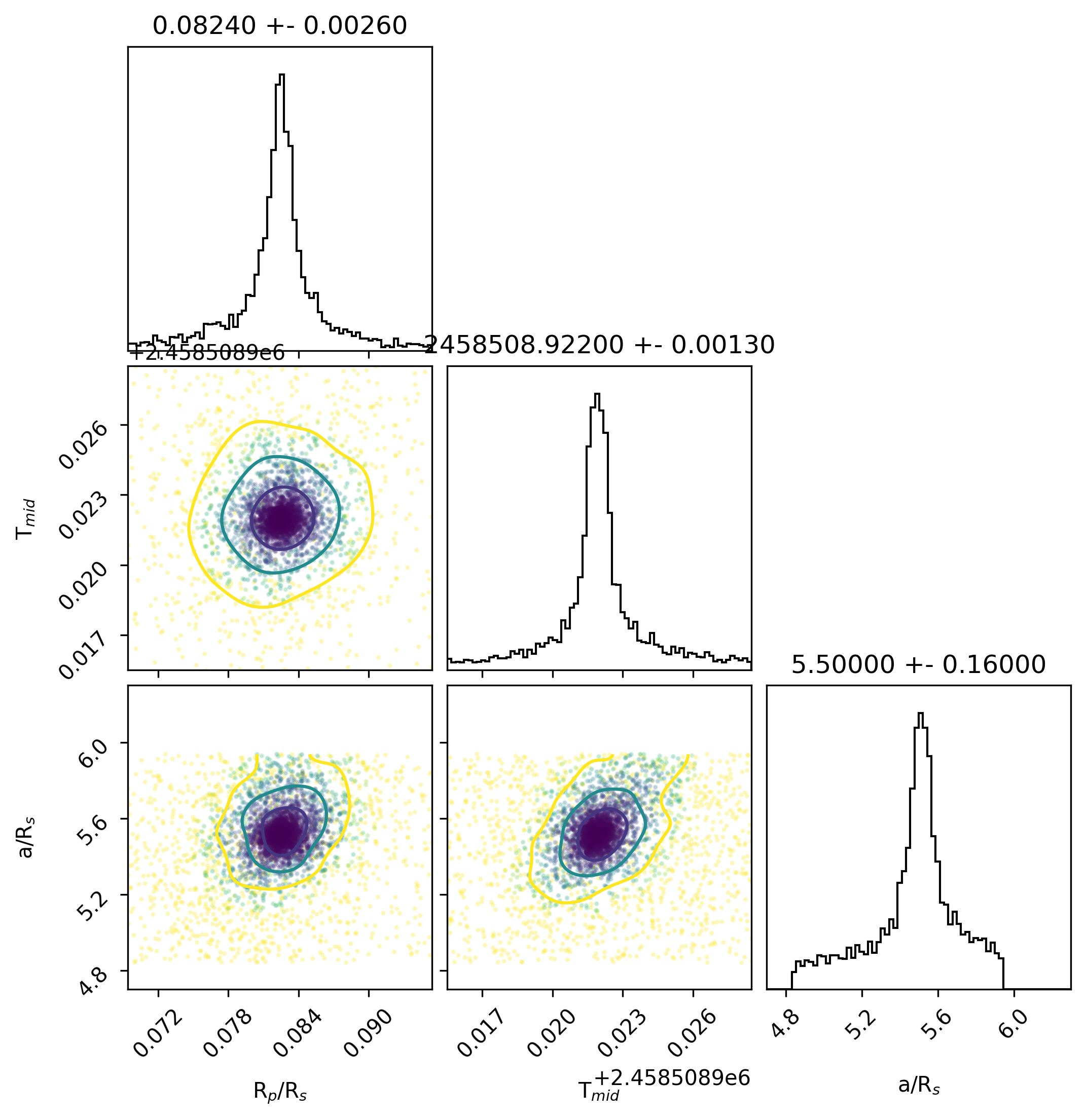

Light curve chart for a0fc814beff295e78de055d73791f540
Parameter Value Uncertainty
Am1 0.9997 0.0031
Am2 0
a/Rs 5.51 0.16
Rp/Rs 0.0811 0.0026
ephemeris [JD] 2458508.9218 0.0014
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.556384067224287
u1 -4.525634141022492
u2 4.551429310047609
u3 -1.5821791684278228
duration 0.0941 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

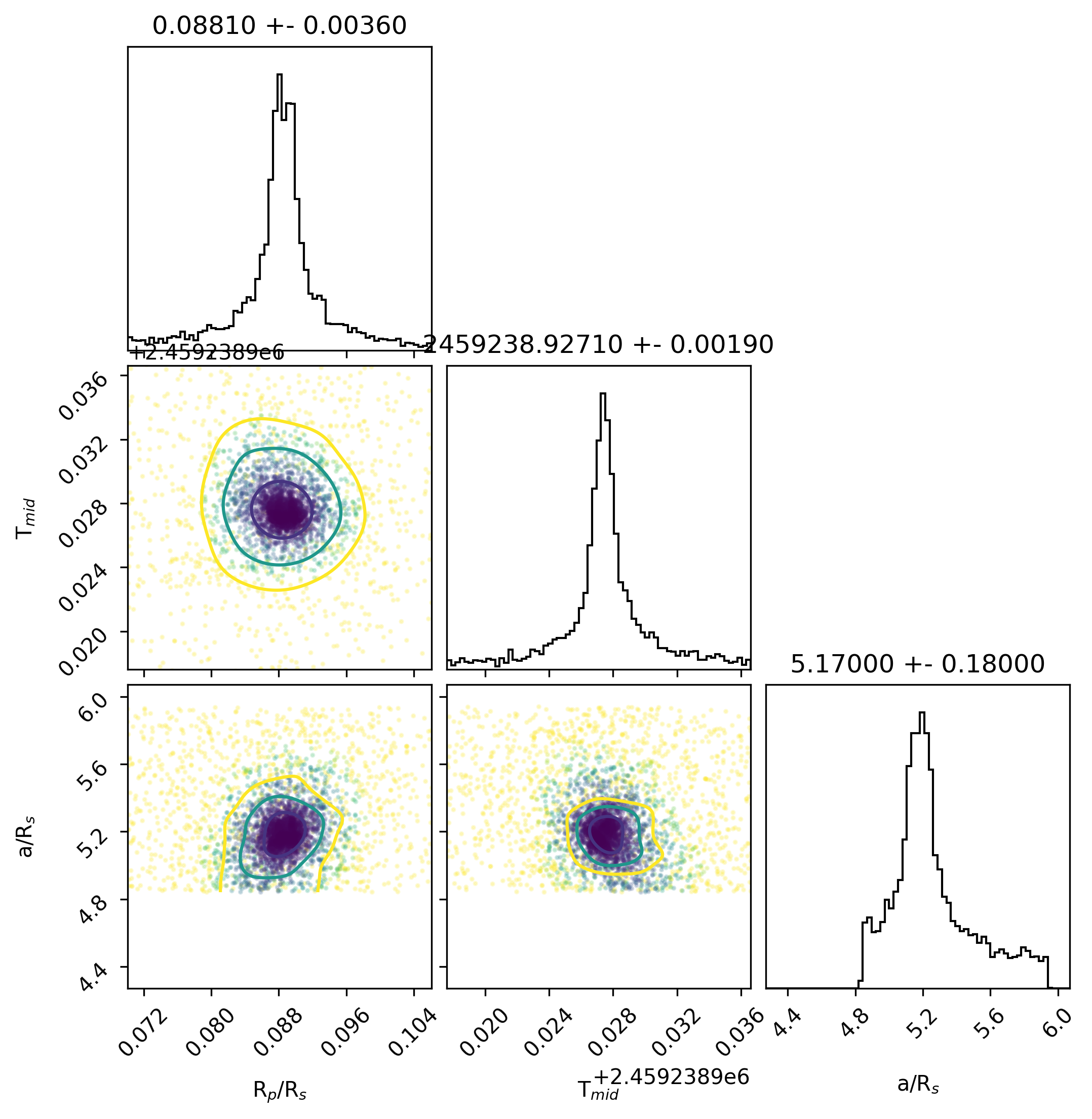

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 50e65ce2caf6eb1ac8abed834dd2dd17
Parameter Value Uncertainty
Am1 1.0 0.011
Am2 0
a/Rs 5.15 0.18
Rp/Rs 0.0881 0.0035
ephemeris [JD] 2459238.9272 0.0018
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5569080585408845
u1 -4.526828821992295
u2 4.552549042891327
u3 -1.5826282116016501
duration 0.102 0.0039
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3188cdf0ad3a3769d93367861c6bb8b3
Parameter Value Uncertainty
Am1 1.001 0.012
Am2 0
a/Rs 5.42 0.2
Rp/Rs 0.087 0.0044
ephemeris [JD] 2459248.3693 0.0019
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5572877564675482
u1 -4.528081091675036
u2 4.553964476089203
u3 -1.5831710730223576
duration 0.0965 0.0041
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

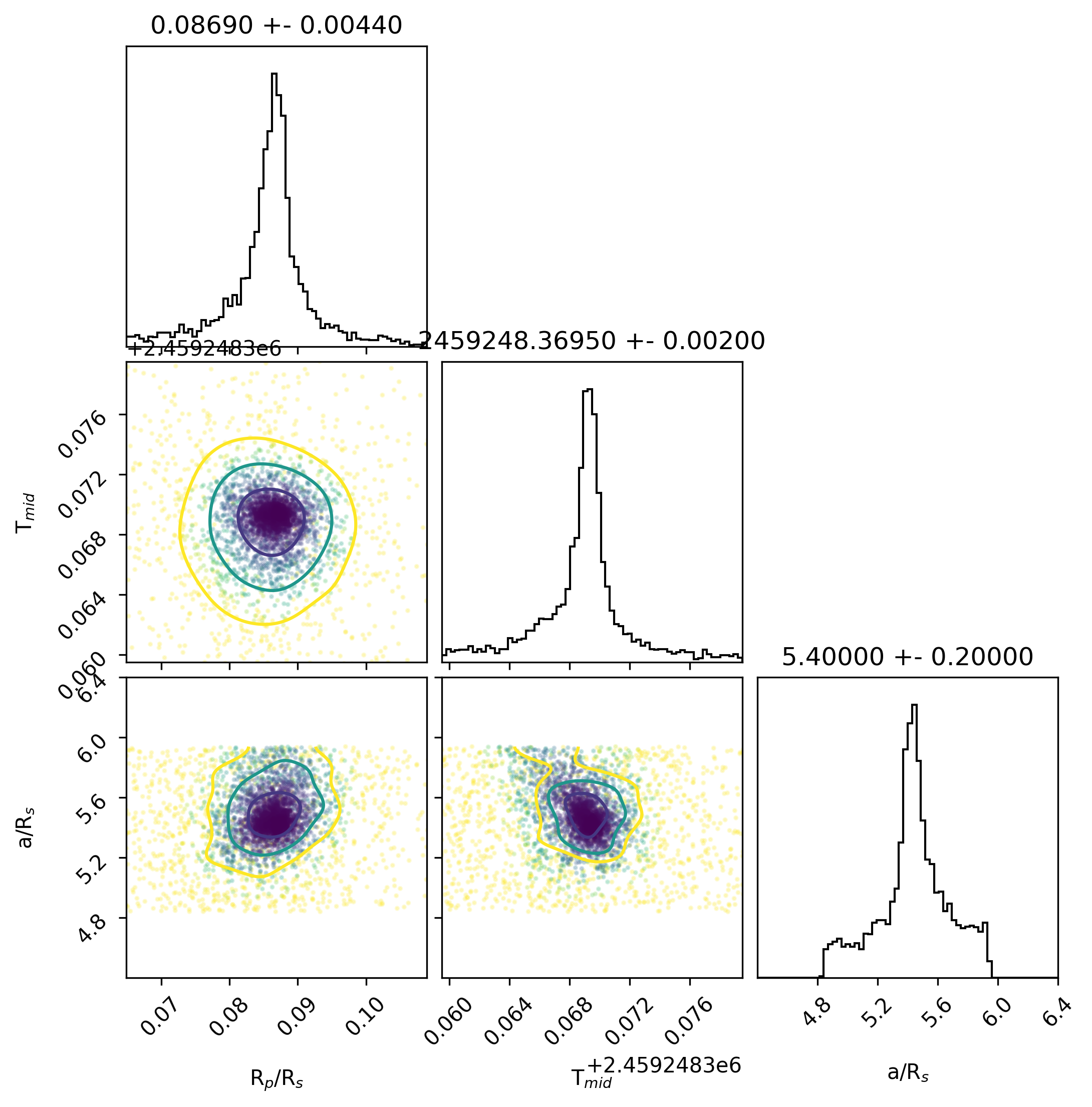

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

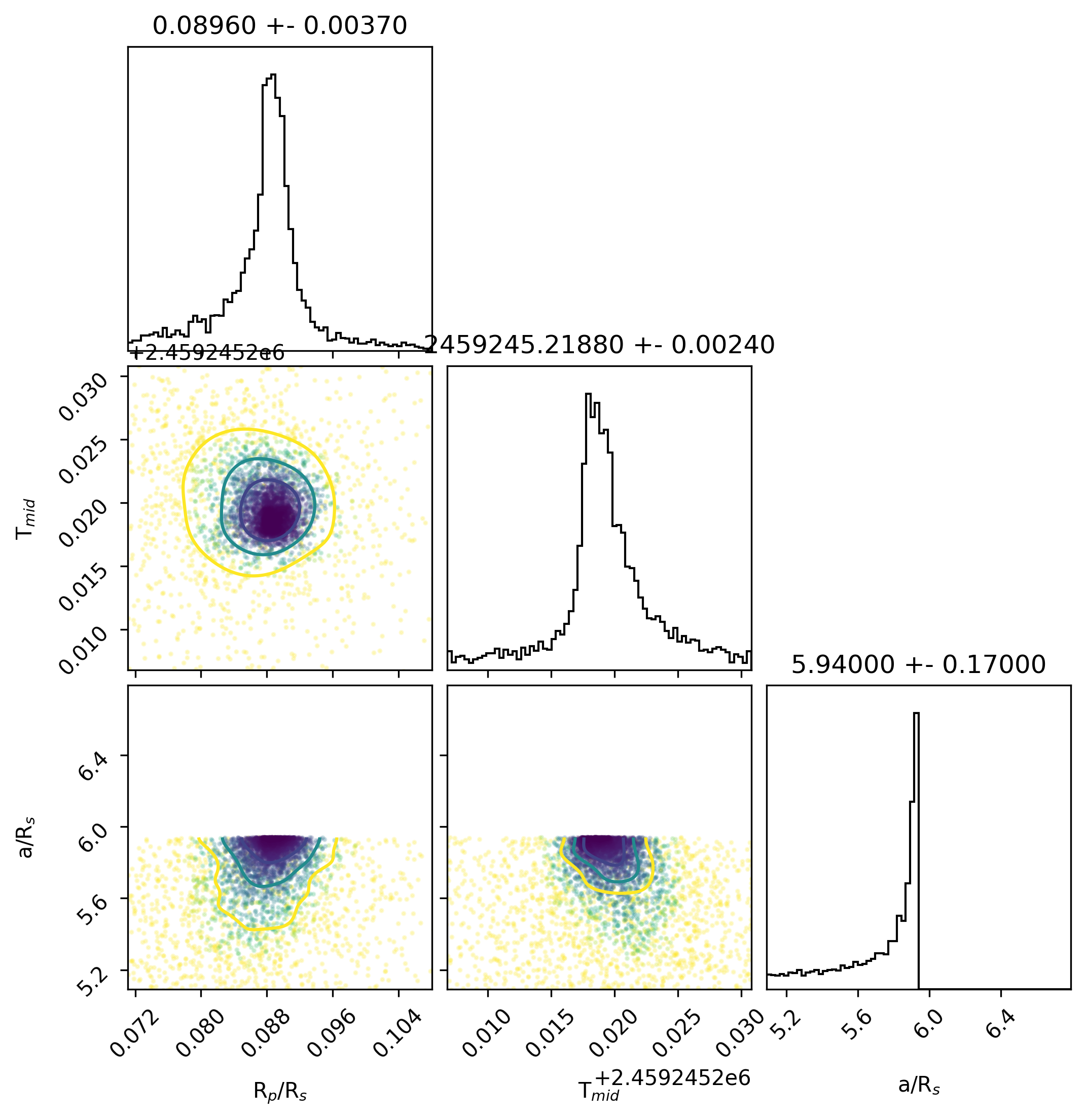

Light curve chart for 592c2a7d2fac4aba9194a87e236a6733
Parameter Value Uncertainty
Am1 1.0 0.012
Am2 0
a/Rs 5.94 0.16
Rp/Rs 0.0891 0.0039
ephemeris [JD] 2459245.219 0.0024
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5566655570182917
u1 -4.526328223965924
u2 4.552226644526734
u3 -1.5825639097456392
duration 0.0871 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 717b3abd9c4164f7944a9ff430f479ca
Parameter Value Uncertainty
Am1 1.0002 0.0036
Am2 0
a/Rs 5.72 0.19
Rp/Rs 0.0558 0.0019
ephemeris [JD] 2459221.622 0.0017
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.556484813967487
u1 -4.52629788358501
u2 4.552470637241854
u3 -1.5826574997872327
duration 0.0883 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9409f2abaa114d8c37826fdbe5bae0d4
Parameter Value Uncertainty
Am1 0.9999 0.002
Am2 0
a/Rs 5.03 0.13
Rp/Rs 0.0664 0.002
ephemeris [JD] 2458483.75 0.0014
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5570338237437236
u1 -4.526769326891186
u2 4.552156907369945
u3 -1.582421336390059
duration 0.103 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

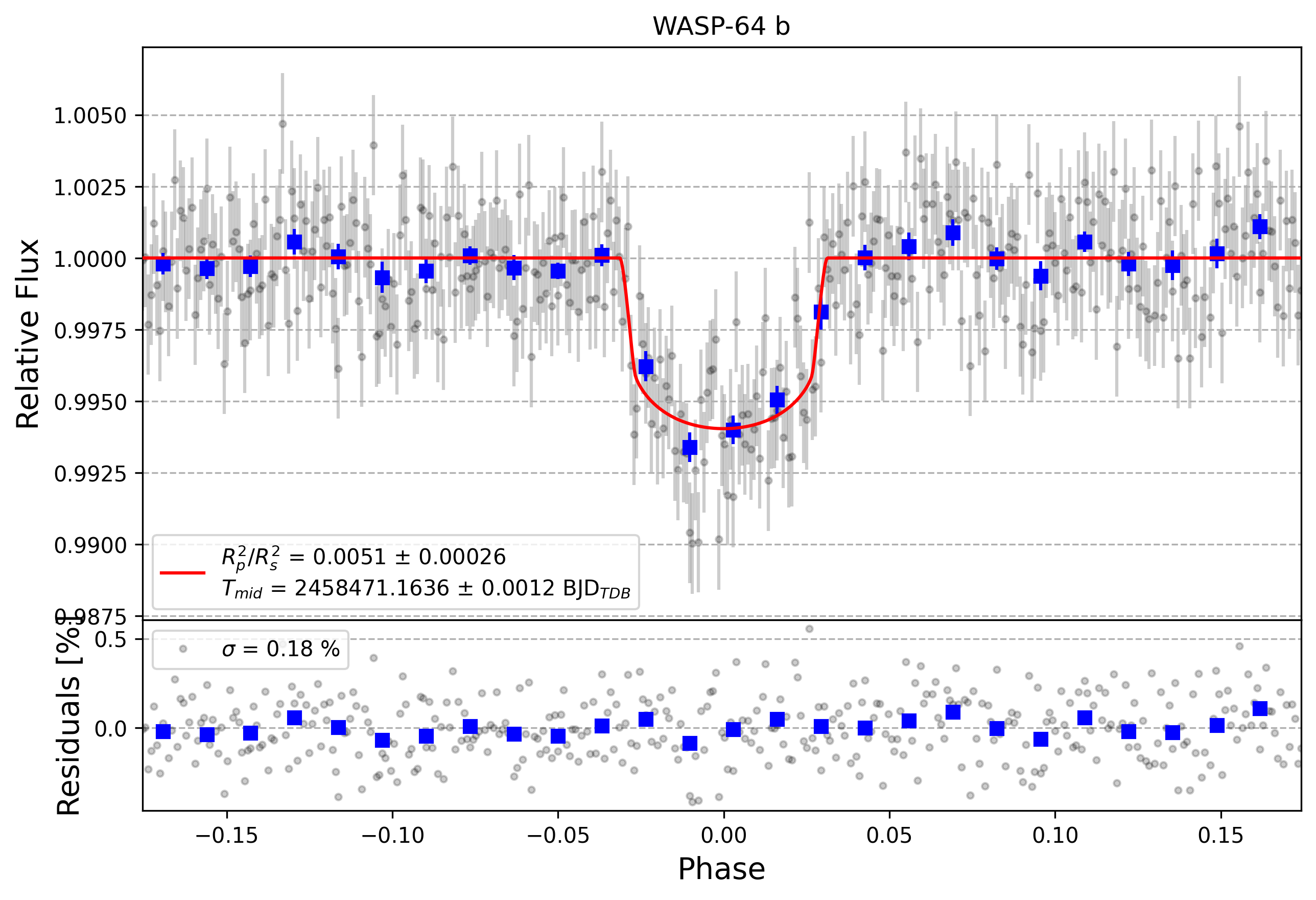

Light curve chart for d1e566d92a963eae719b3124e4ea2f98
Parameter Value Uncertainty
Am1 0.9999 0.0018
Am2 0
a/Rs 5.25 0.13
Rp/Rs 0.0714 0.0018
ephemeris [JD] 2458471.1636 0.0012
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5572898236457444
u1 -4.528020268567379
u2 4.553939217463605
u3 -1.5832087046829884
duration 0.0986 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 281b7bbc5f1944be3778e7e59ff00fb6
Parameter Value Uncertainty
Am1 1.0 0.011
Am2 0
a/Rs 5.47 0.24
Rp/Rs 0.0876 0.0036
ephemeris [JD] 2459234.2109 0.0023
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.556698676374528
u1 -4.526490623616308
u2 4.552391723856184
u3 -1.5825997087784804
duration 0.096 0.0047
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

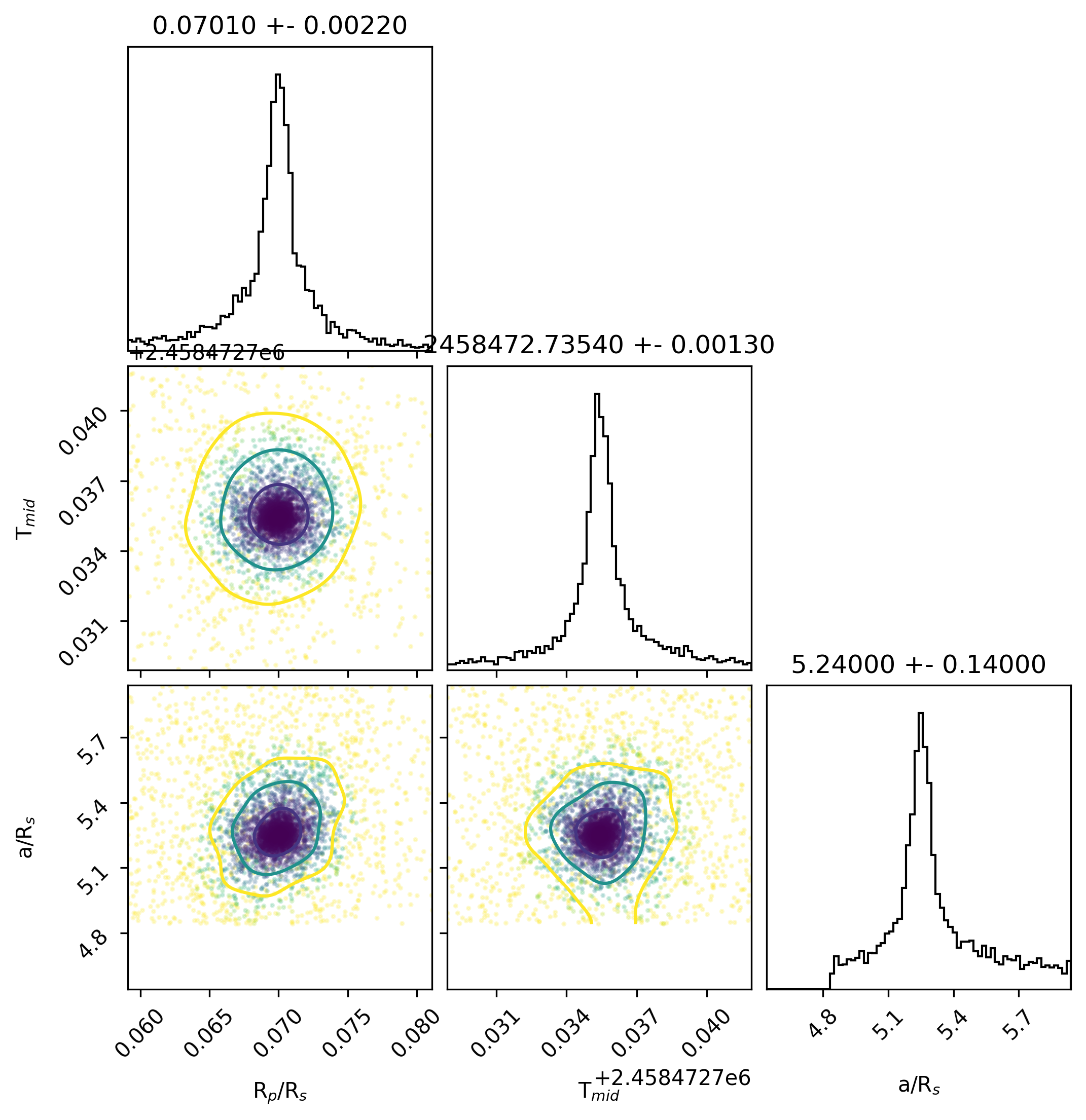

Light curve chart for c6577bc343580dad5af3cceb0845e534
Parameter Value Uncertainty
Am1 1.0003 0.0022
Am2 0
a/Rs 5.24 0.14
Rp/Rs 0.0701 0.0022
ephemeris [JD] 2458472.7354 0.0013
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.556356147179729
u1 -4.525576335947956
u2 4.551342096128733
u3 -1.582121839540224
duration 0.0986 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f9030ac1785670a4e6b900910d08ab1e
Parameter Value Uncertainty
Am1 1.0002 0.0029
Am2 0
a/Rs 5.61 0.16
Rp/Rs 0.0832 0.0025
ephemeris [JD] 2458512.0683 0.0013
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5575389175054544
u1 -4.528553865341398
u2 4.5544039907281775
u3 -1.5833889750263261
duration 0.0925 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 969584ef473e1424da564f5fbf1973d4
Parameter Value Uncertainty
Am1 1.002 0.012
Am2 0
a/Rs 5.61 0.2
Rp/Rs 0.0903 0.0041
ephemeris [JD] 2459240.5017 0.0022
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.557606055365846
u1 -4.528394351200198
u2 4.553952353033375
u3 -1.5831639893398437
duration 0.0932 0.0038
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6c6520efd59ee8c115548b0b727a5268
Parameter Value Uncertainty
Am1 1.0 0.012
Am2 0
a/Rs 5.27 0.21
Rp/Rs 0.0833 0.0041
ephemeris [JD] 2459249.9395 0.0023
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.5563798159827096
u1 -4.525417523531958
u2 4.551041341246277
u3 -1.5820035658812284
duration 0.0993 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 74d19d2cea64caefbbf0b8c5b59c0ef2
Parameter Value Uncertainty
Am1 1.0001 0.0036
Am2 0
a/Rs 5.24 0.22
Rp/Rs 0.0549 0.0019
ephemeris [JD] 2459216.9052 0.0019
eccentricity 0.054
inclination [degrees] 86.57
omega [degrees] 0.0
orbital period [days] 1.57329028
u0 2.557334941776496
u1 -4.527938677568784
u2 4.553606958815969
u3 -1.5830031551696502
duration 0.0971 0.0045
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
