WASP-5 b

View target in exoplanet catalog
chart

Total Reductions to Date: 28

Date Processed: 09/18/2023 at 00:07:19 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 1.6284299765743298 4.086914133681843e-08
Ephemeris (BJD_TDB) 2459161.5810015416 7.66295673304481e-05
Time saved (hours) 0.0001

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 359.3490277 decimal
DEC -41.2772202 decimal
Host Star Metallicity 0.09 0.09 Patel & Espinoza 2022
Host Star log(g) 4.39 0.04 Log10(cgs) Patel & Espinoza 2022
Host Star Radius [R_Sun] 1.03 0.06 Sol Patel & Espinoza 2022
Host Star Effective Temperature [K] 5700.0 100.0 K Patel & Espinoza 2022
a/Rs 5.4 0.15 Patel & Espinoza 2022
eccentricity 0.012 0.026 Bonomo et al. 2017
inclination [degrees] 85.8 1.1 deg Bonomo et al. 2017
omega [degrees] 34.38 26.93 deg Gillon et al. 2009
orbital period [days] 1.62843 5e-07 day Patel & Espinoza 2022
Rp 12.95 0.65 R_Earth ExoFOP-TESS TOI
Rp/Rs 0.1174 0 ExoFOP-TESS TOI
ephemeris [JD] 2459111.09959 0.00015 BJD Patel & Espinoza 2022

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2454373.995995 0.000195 BJD, HJD Triaud et al. 2010, Gillon et al. 2009
2454375.6249 0.00023000000000000003 BJD-TDB, HJD Fukui et al. 2011, Southworth et al. 2009, Anderson et al. 2008
2455017.22682 7e-05 BJD-TDB Kokori et al. 2022
2456446.98868 0.00017 BJD-TDB Bonomo et al. 2017, Baluev et al. 2015
2456876.893812 8.8e-05 BJD-TDB Ivshina & Winn 2022
2458355.508072 0.000122 BJD ExoFOP-TESS TOI
2459111.09959 0.00015 BJD Patel & Espinoza 2022

Observations

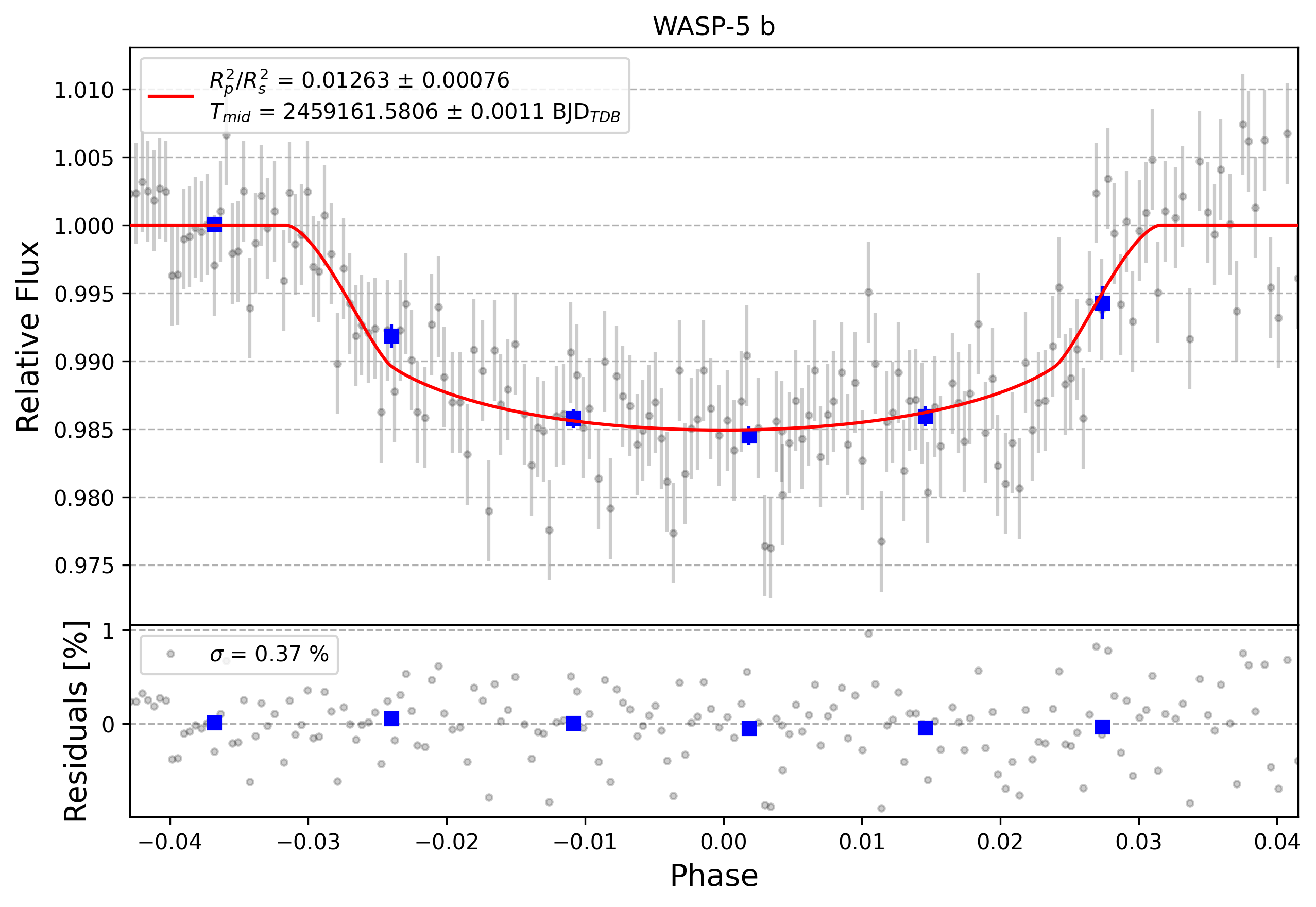

Light curve chart for 0000612
Parameter Value Uncertainty
Am1 0.999 0.0037
Am2 0.0007 0.004
a/Rs 5.26 0.12
Rp/Rs 0.1128 0.0035
ephemeris [JD] 2459161.5807 0.0012
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.0136539654638703
u1 -3.6687239433506953
u2 4.192933253744613
u3 -1.5378632133782135
duration 0.1032 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

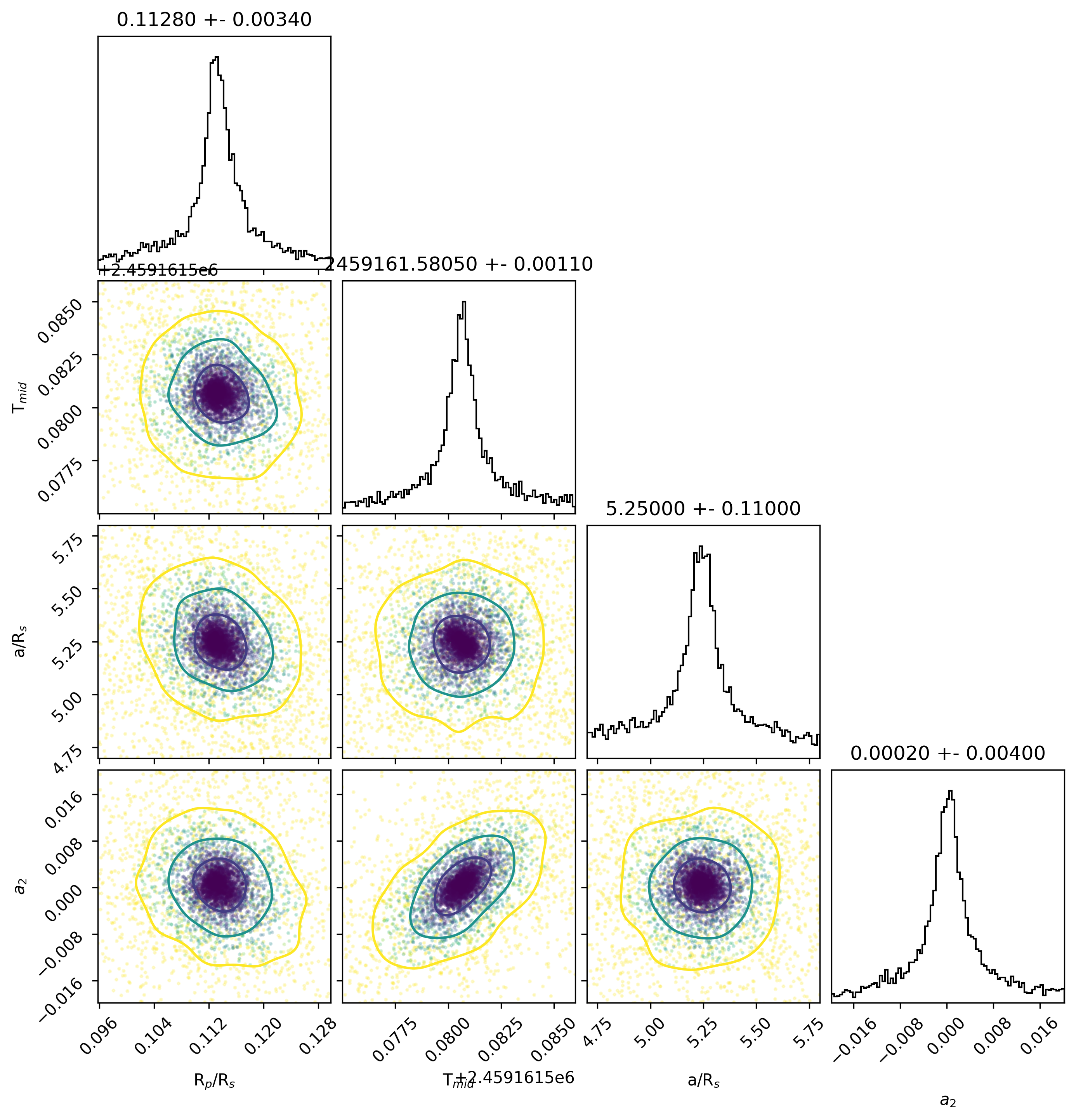

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO SSJB (collaborate/publish) KDHA , OESA , RMDA , DPMA , TREA
Light curve chart for b95d56167fe00bdc20fd395428b337cb
Parameter Value Uncertainty
Am1 1.0002 0.0051
Am2 0
a/Rs 5.335 0.06
Rp/Rs 0.1093 0.0014
ephemeris [JD] 2459111.09951 0.00055
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.658079553482173
u1 -4.794330456476839
u2 4.821897057455363
u3 -1.685646082608831
duration 0.1015 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0b49564af53732d67186992de0544637
Parameter Value Uncertainty
Am1 1.0001 0.0052
Am2 0
a/Rs 5.471 0.07
Rp/Rs 0.1076 0.0015
ephemeris [JD] 2459106.21392 0.0006
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6578070692321996
u1 -4.793639369343575
u2 4.821202778254913
u3 -1.6853704063020176
duration 0.098 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

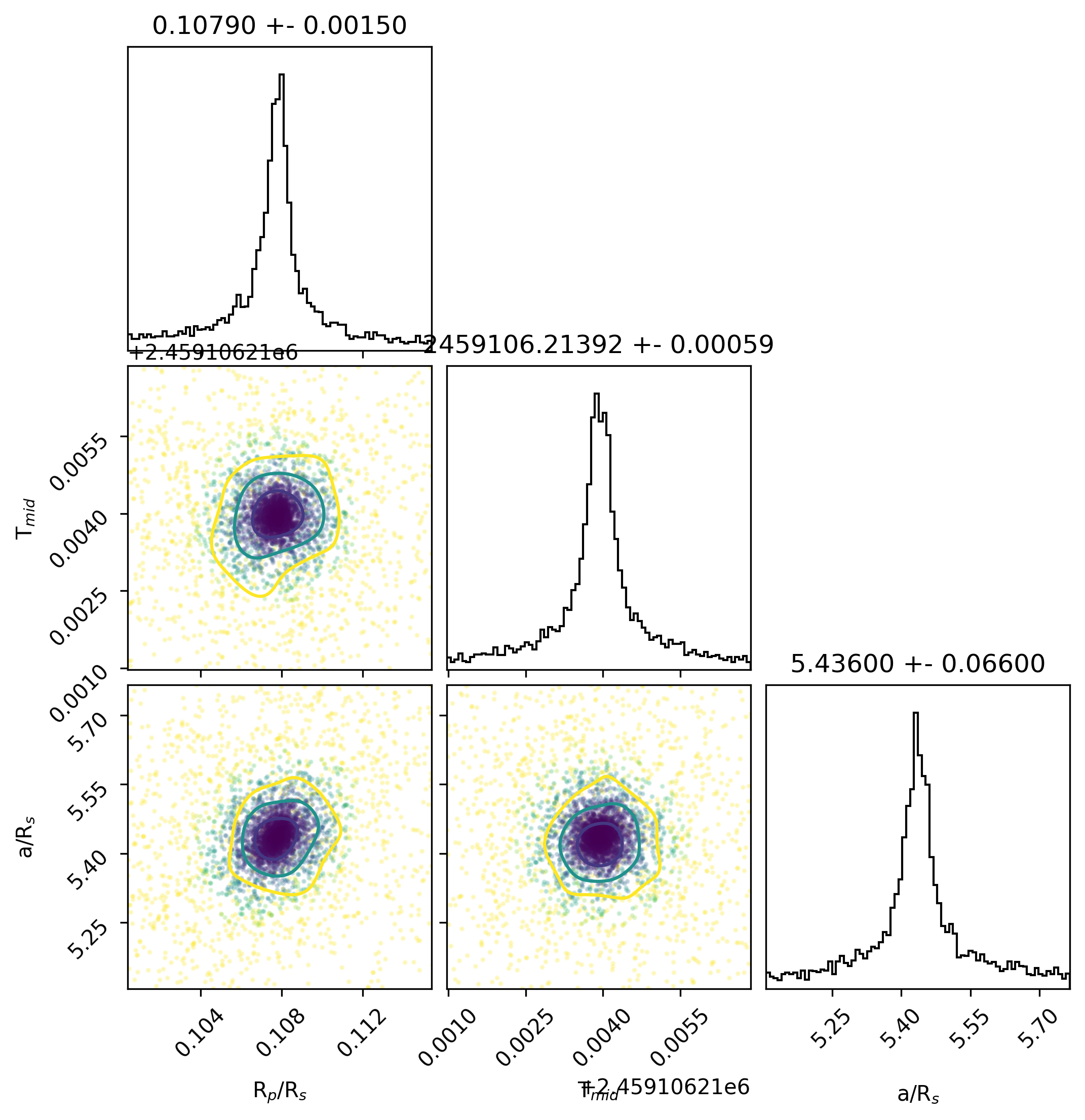

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9894156cbc63e349e26c530eaa259bc9
Parameter Value Uncertainty
Am1 1.0 0.0024
Am2 0
a/Rs 5.365 0.082
Rp/Rs 0.109 0.0019
ephemeris [JD] 2458365.2784 0.00075
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.657156723991185
u1 -4.792317812493047
u2 4.820159783704676
u3 -1.6849986233768357
duration 0.1006 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c8041efe41d3895bba70c104f7972132
Parameter Value Uncertainty
Am1 1.0002 0.0052
Am2 0
a/Rs 5.301 0.058
Rp/Rs 0.1096 0.0014
ephemeris [JD] 2459089.9306 0.00052
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6570183435347454
u1 -4.791368820034132
u2 4.818646633690699
u3 -1.6842960853878823
duration 0.102 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

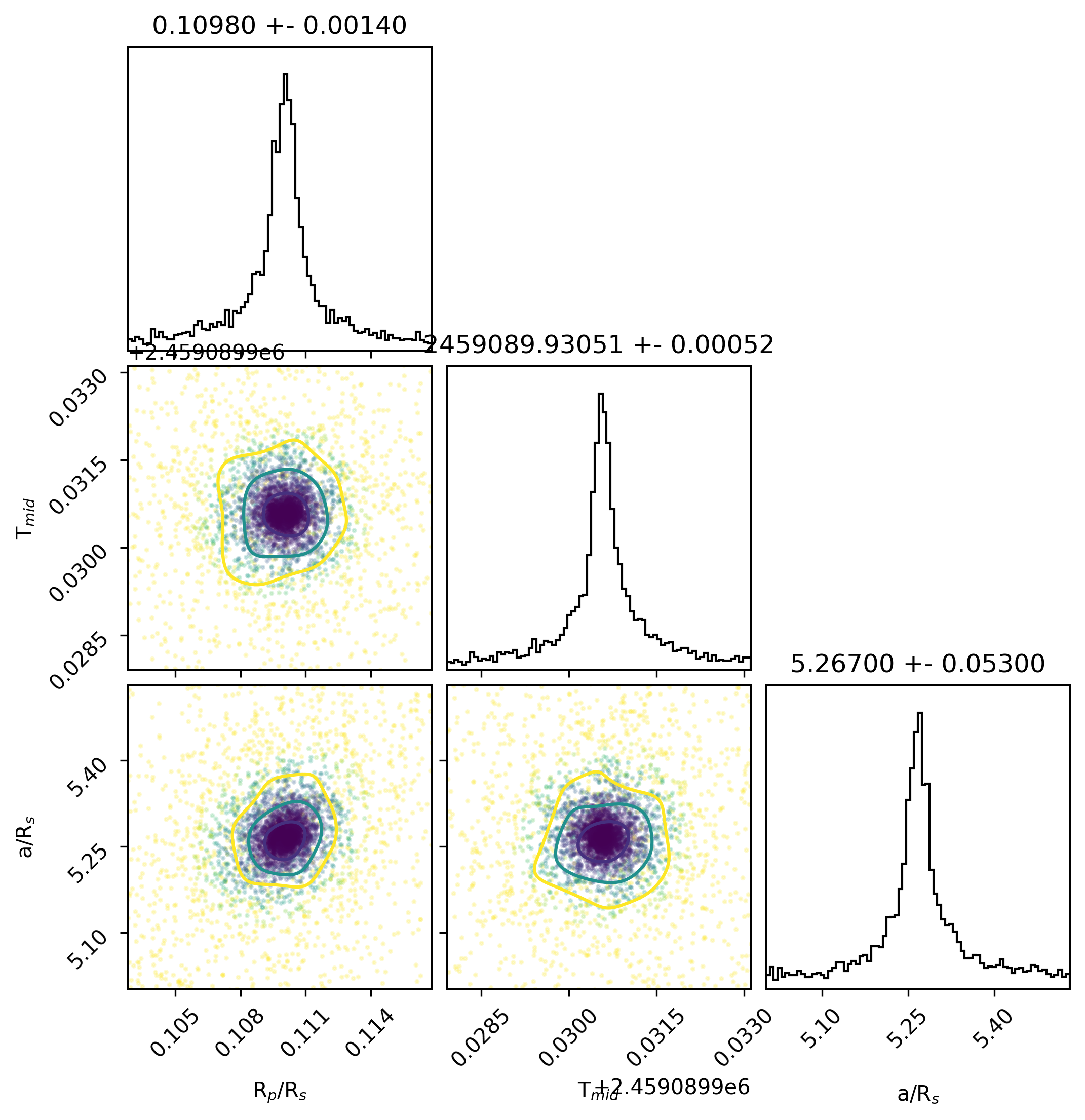

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3871b3bcc6f6812c01abc6abb6099cb4
Parameter Value Uncertainty
Am1 0.9998 0.0054
Am2 0
a/Rs 5.428 0.067
Rp/Rs 0.1125 0.0015
ephemeris [JD] 2459094.81536 0.00059
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6573373903385136
u1 -4.792329345010743
u2 4.819813943574183
u3 -1.6848219170811296
duration 0.0998 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

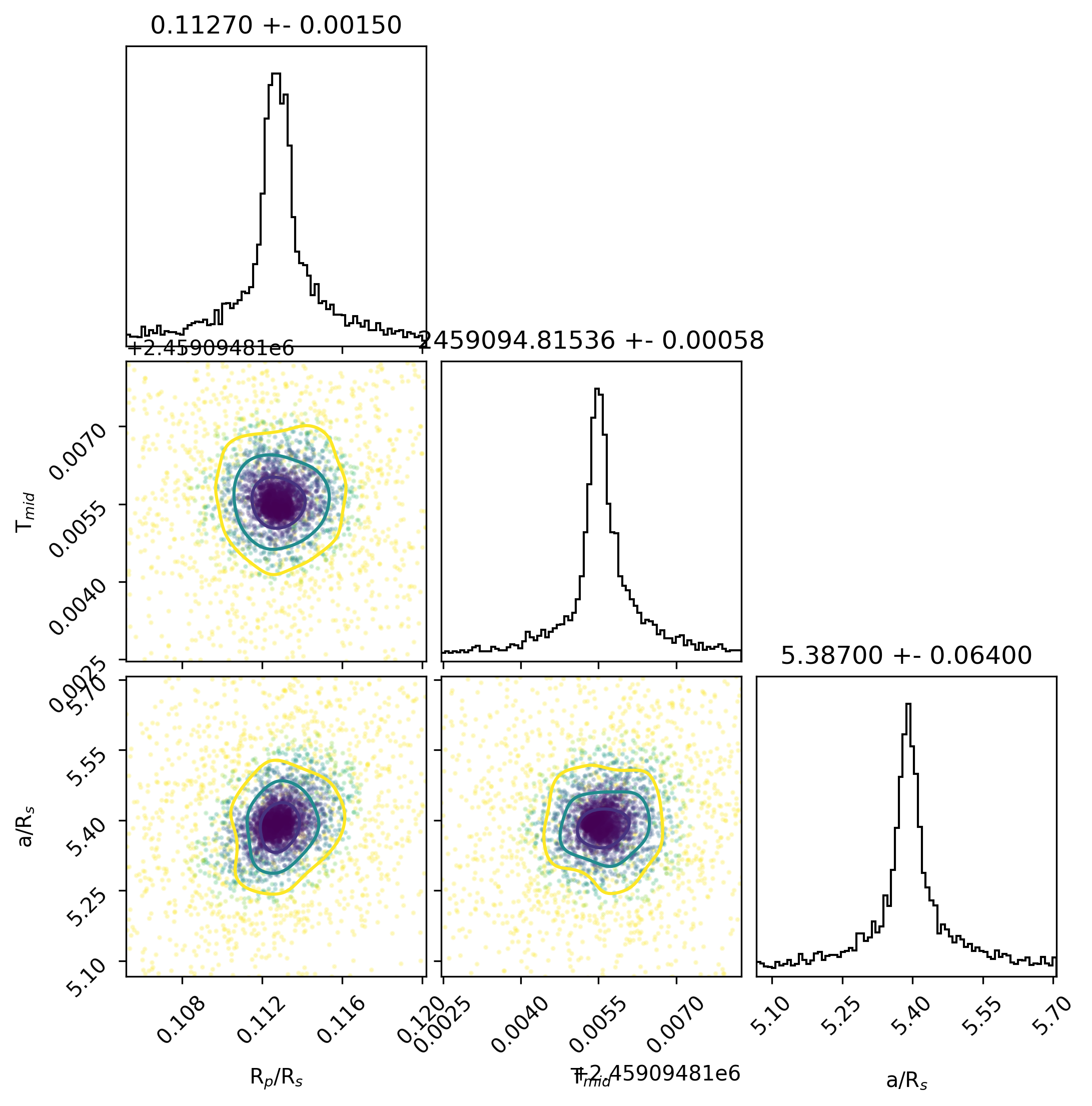

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

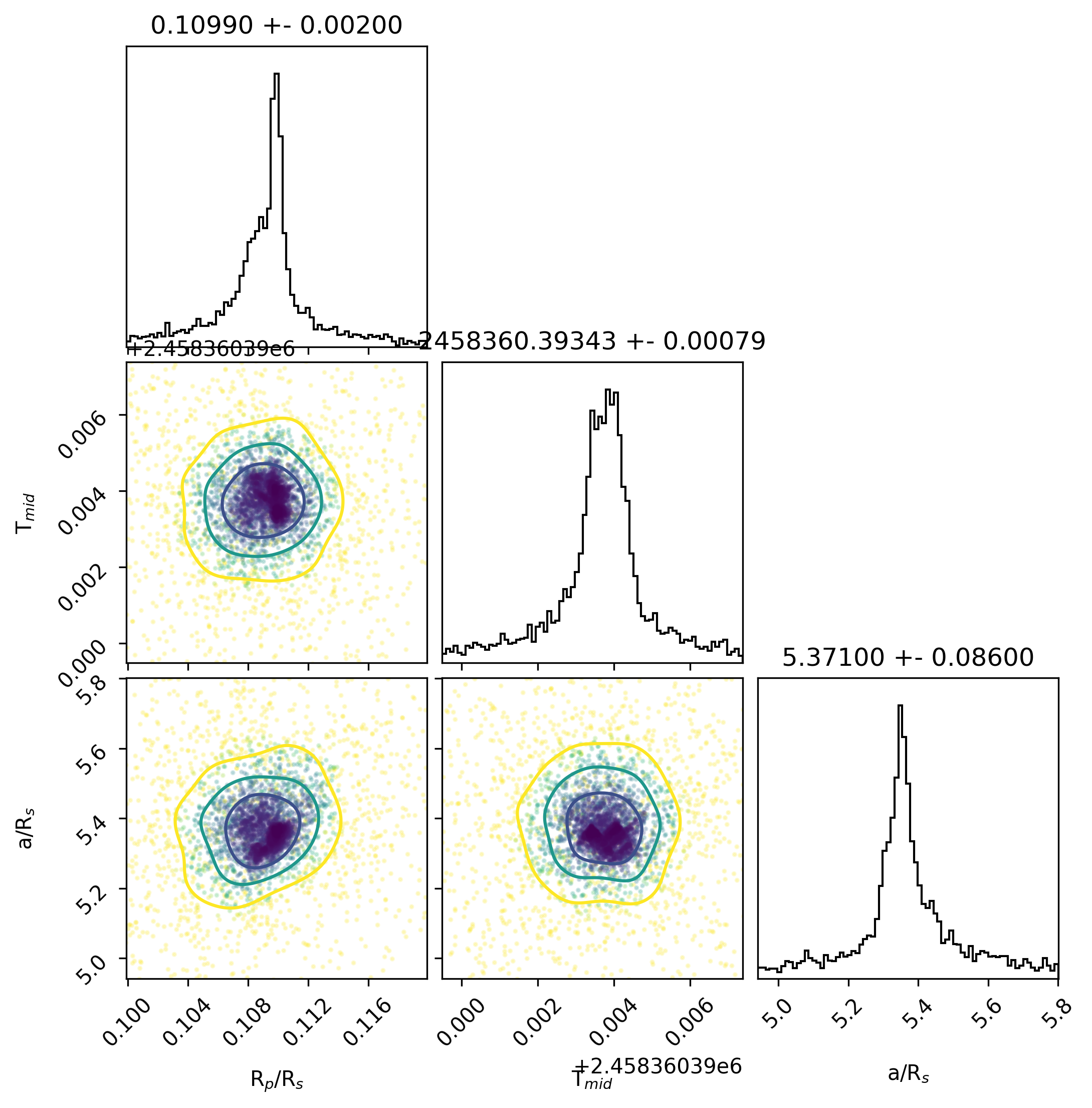

Light curve chart for 487e4795c28739d931ac65f54ea41eb8
Parameter Value Uncertainty
Am1 1.0005 0.0022
Am2 0
a/Rs 5.406 0.085
Rp/Rs 0.1096 0.0019
ephemeris [JD] 2458360.39341 0.00079
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.657726366572171
u1 -4.793190691240083
u2 4.8205507451650975
u3 -1.685086348665382
duration 0.0995 0.0018
Included in ephemeris calculations

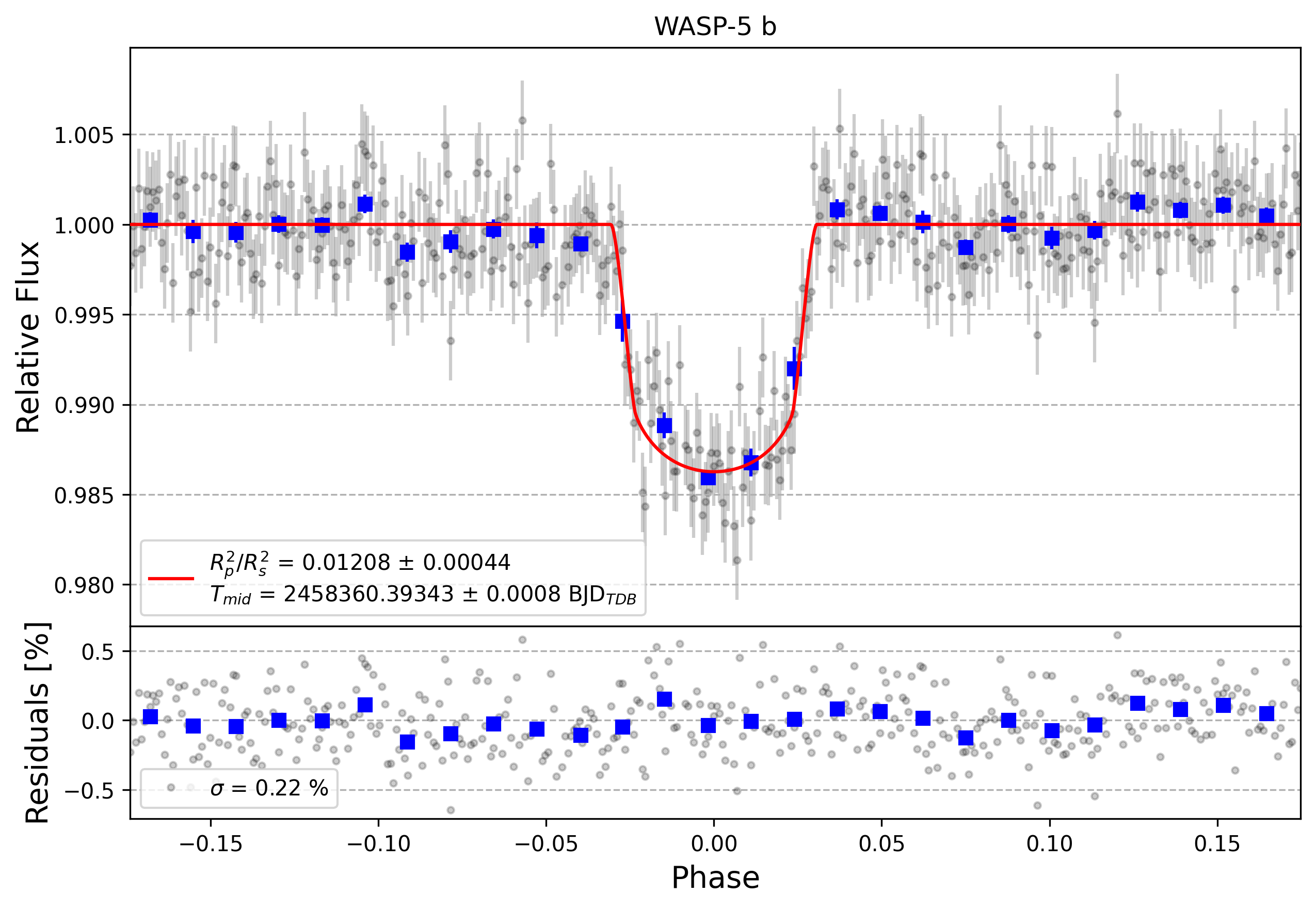

Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4964f77af1853f94593a89570a89a0d9
Parameter Value Uncertainty
Am1 1.0001 0.0055
Am2 0
a/Rs 5.463 0.072
Rp/Rs 0.113 0.0015
ephemeris [JD] 2459098.07259 0.00061
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6574026080228643
u1 -4.792656504504906
u2 4.820241245745683
u3 -1.6849872774364494
duration 0.0991 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b5b1290f578710a625e6c715882abb33
Parameter Value Uncertainty
Am1 1.0008 0.0022
Am2 0
a/Rs 5.447 0.088
Rp/Rs 0.1101 0.0018
ephemeris [JD] 2458366.90579 0.00076
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6580048572615227
u1 -4.794356467901572
u2 4.822161178211301
u3 -1.6858094957154512
duration 0.0991 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 823a852d5a9bce03585bc367b1920f69
Parameter Value Uncertainty
Am1 0.9995 0.0022
Am2 0
a/Rs 5.282 0.08
Rp/Rs 0.1091 0.0019
ephemeris [JD] 2458358.76413 0.00077
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.658052213106305
u1 -4.794697882955977
u2 4.822673701707237
u3 -1.6860279599941266
duration 0.1024 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6425ea420f2ceeaa61e2ca9c4151d899
Parameter Value Uncertainty
Am1 1.0002 0.0023
Am2 0
a/Rs 5.349 0.081
Rp/Rs 0.1089 0.0018
ephemeris [JD] 2458357.1373 0.00075
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.657649905680537
u1 -4.7940373548345985
u2 4.8222489449473045
u3 -1.6858614239361343
duration 0.1006 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

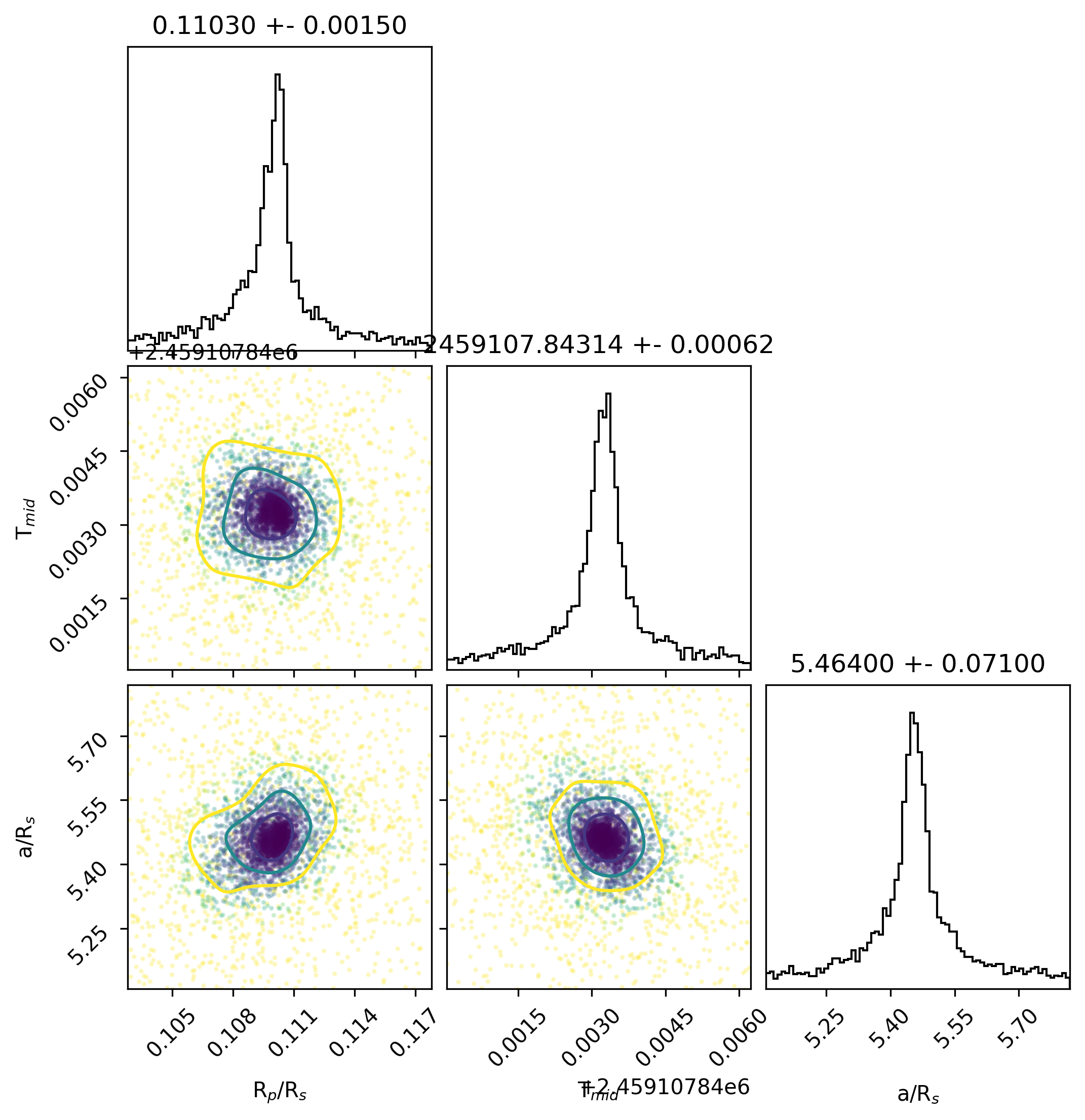

Light curve chart for 494894d534a13bbe07ed20166f67b448
Parameter Value Uncertainty
Am1 1.0 0.0054
Am2 0
a/Rs 5.48 0.072
Rp/Rs 0.1094 0.0015
ephemeris [JD] 2459107.8433 0.00063
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6568261270822937
u1 -4.7915761287355565
u2 4.819475395548353
u3 -1.684725322079311
duration 0.098 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fb3adc86919221d470e037c9dfc5e493
Parameter Value Uncertainty
Am1 1.0002 0.0054
Am2 0
a/Rs 5.395 0.066
Rp/Rs 0.1114 0.0014
ephemeris [JD] 2459093.18692 0.00058
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6582224257788747
u1 -4.795289345804777
u2 4.823324062465267
u3 -1.6862570705662359
duration 0.1003 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

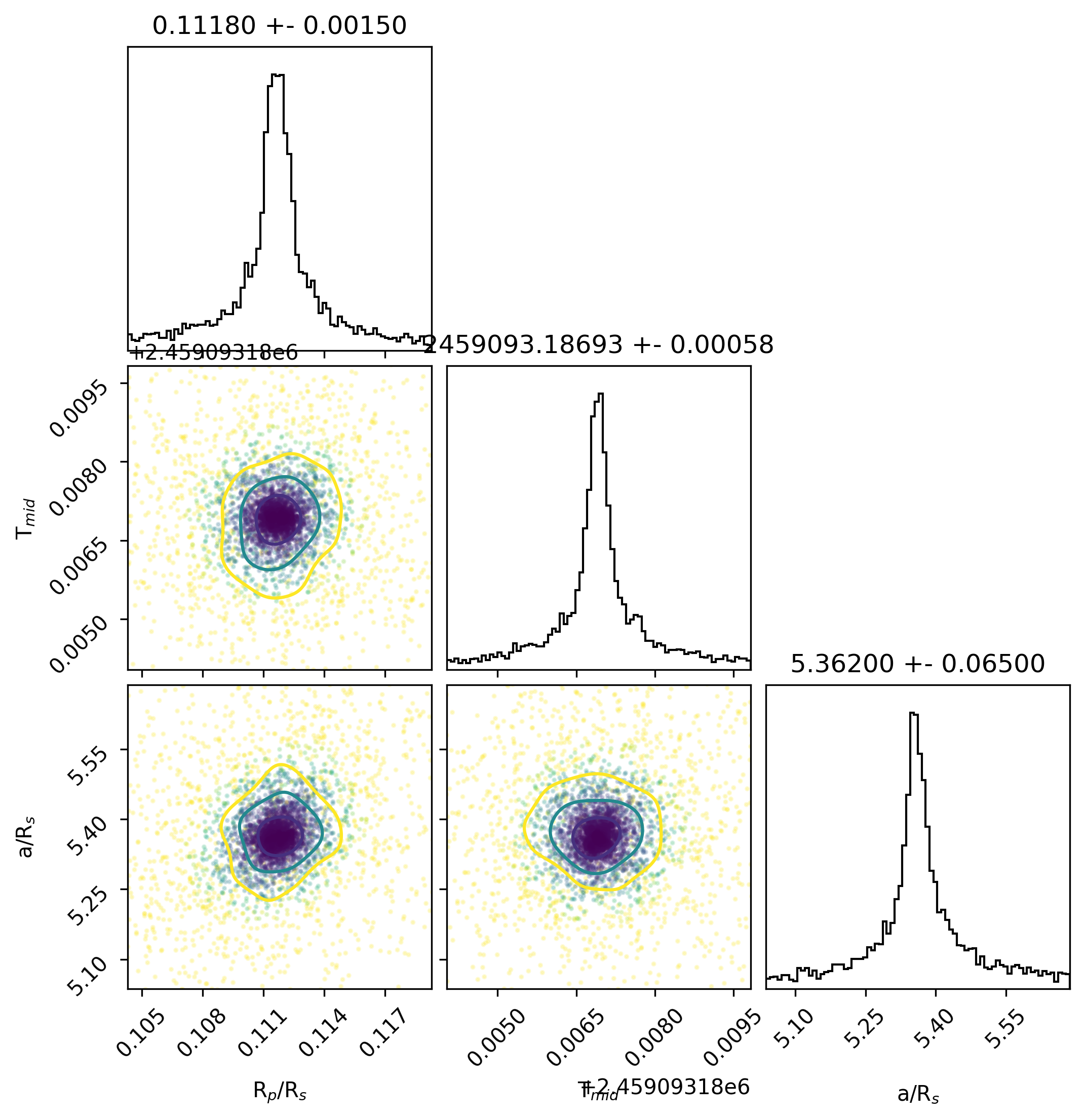

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

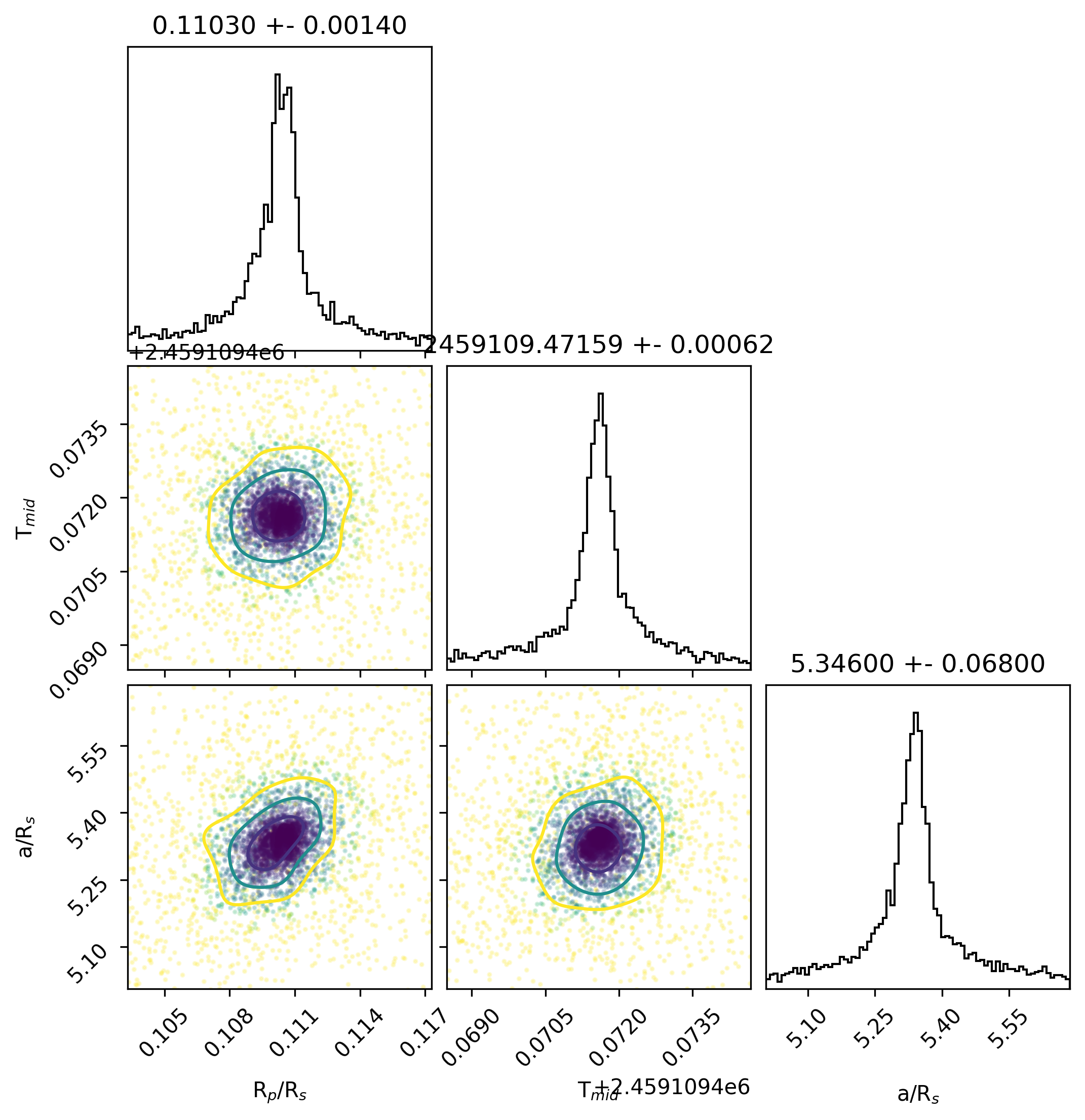

Light curve chart for eed81f2c676e18cbeb62f171825fa453
Parameter Value Uncertainty
Am1 1.0003 0.0051
Am2 0
a/Rs 5.382 0.066
Rp/Rs 0.1102 0.0014
ephemeris [JD] 2459109.47167 0.0006
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.657667747746832
u1 -4.79363363145507
u2 4.821500045585471
u3 -1.6855340900312838
duration 0.1003 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a8a813a3c6b7ca6df4241ae79c53d03d
Parameter Value Uncertainty
Am1 1.0006 0.0023
Am2 0
a/Rs 5.378 0.082
Rp/Rs 0.1107 0.0018
ephemeris [JD] 2458376.67864 0.00074
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6574506131228066
u1 -4.792645040029858
u2 4.820188903267125
u3 -1.6849944045336613
duration 0.1001 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 427176e492626168cc40080f0f8d3f62
Parameter Value Uncertainty
Am1 1.0004 0.0022
Am2 0
a/Rs 5.405 0.079
Rp/Rs 0.1122 0.0018
ephemeris [JD] 2458371.79142 0.00071
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6572575184788865
u1 -4.79213569762575
u2 4.819593754203063
u3 -1.6847155032386554
duration 0.1001 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

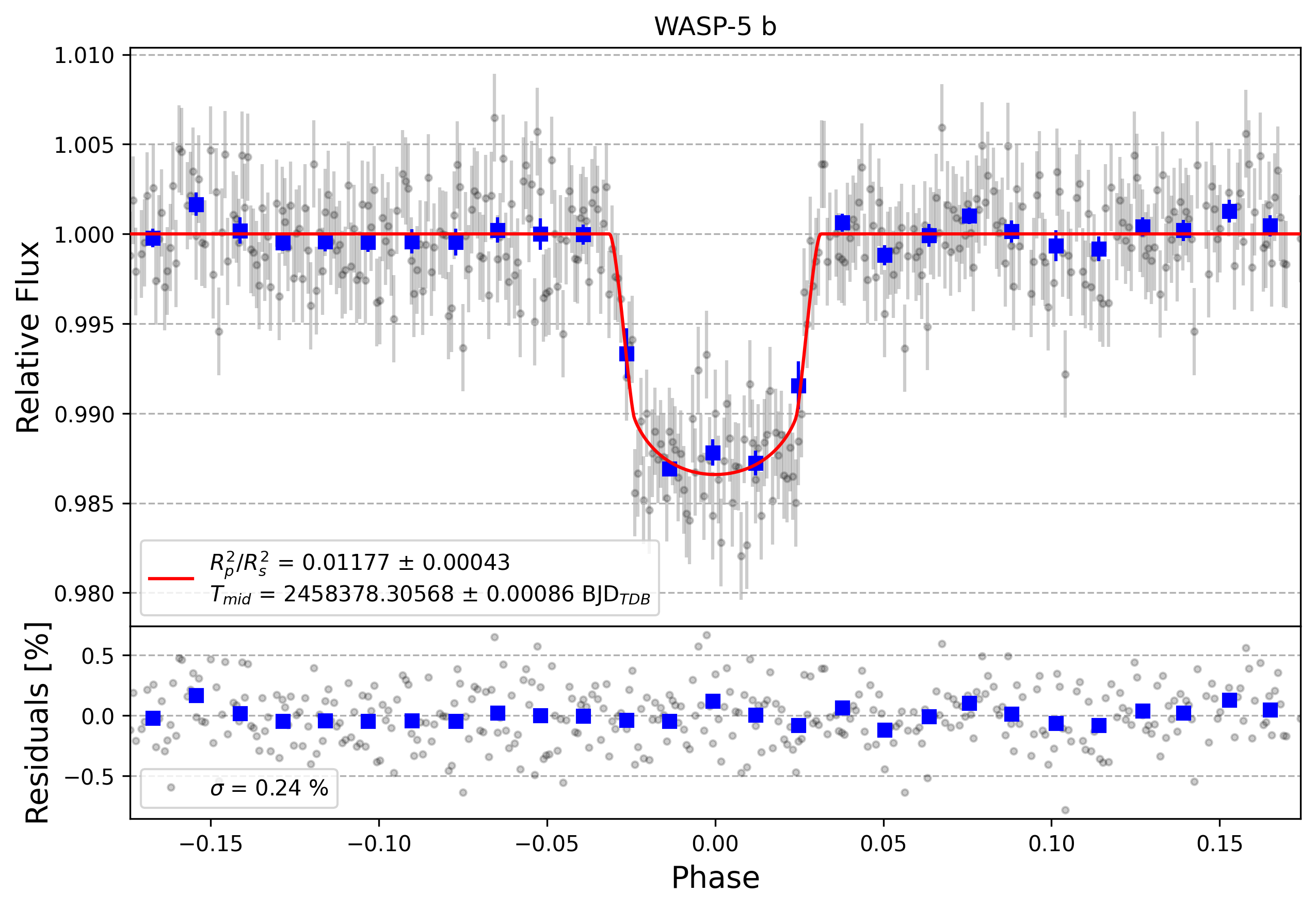

Light curve chart for 01dfcf5e543abe89fd494a942ec26cb9
Parameter Value Uncertainty
Am1 0.9995 0.0024
Am2 0
a/Rs 5.289 0.091
Rp/Rs 0.1084 0.0019
ephemeris [JD] 2458378.30567 0.00086
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6569187887609216
u1 -4.7912962461314
u2 4.8187374022741745
u3 -1.6843598730989138
duration 0.1021 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

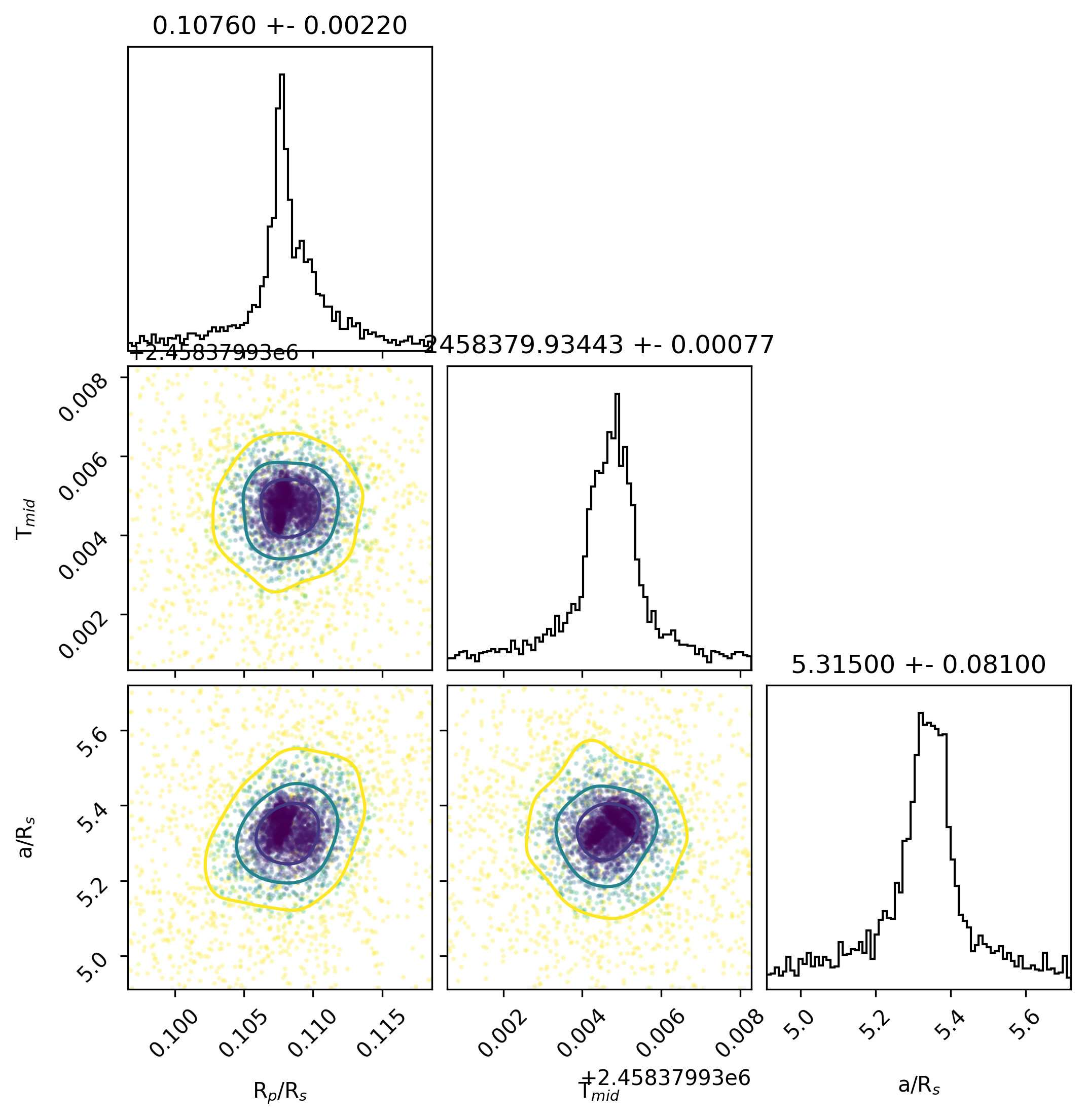

Light curve chart for 96df1a669b54c6e27ad247011e304b38
Parameter Value Uncertainty
Am1 0.9998 0.0024
Am2 0
a/Rs 5.358 0.085
Rp/Rs 0.1076 0.002
ephemeris [JD] 2458379.93452 0.00077
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6584351093319287
u1 -4.795734207943253
u2 4.823726560423626
u3 -1.6864273899331743
duration 0.1006 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ab3a0af2dfb2f3e2be6d43181bdf4136
Parameter Value Uncertainty
Am1 1.0001 0.0052
Am2 0
a/Rs 5.376 0.066
Rp/Rs 0.1099 0.0015
ephemeris [JD] 2459102.95715 0.00059
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6568978228117333
u1 -4.790956375188004
u2 4.818168796385447
u3 -1.6841101722128675
duration 0.1003 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

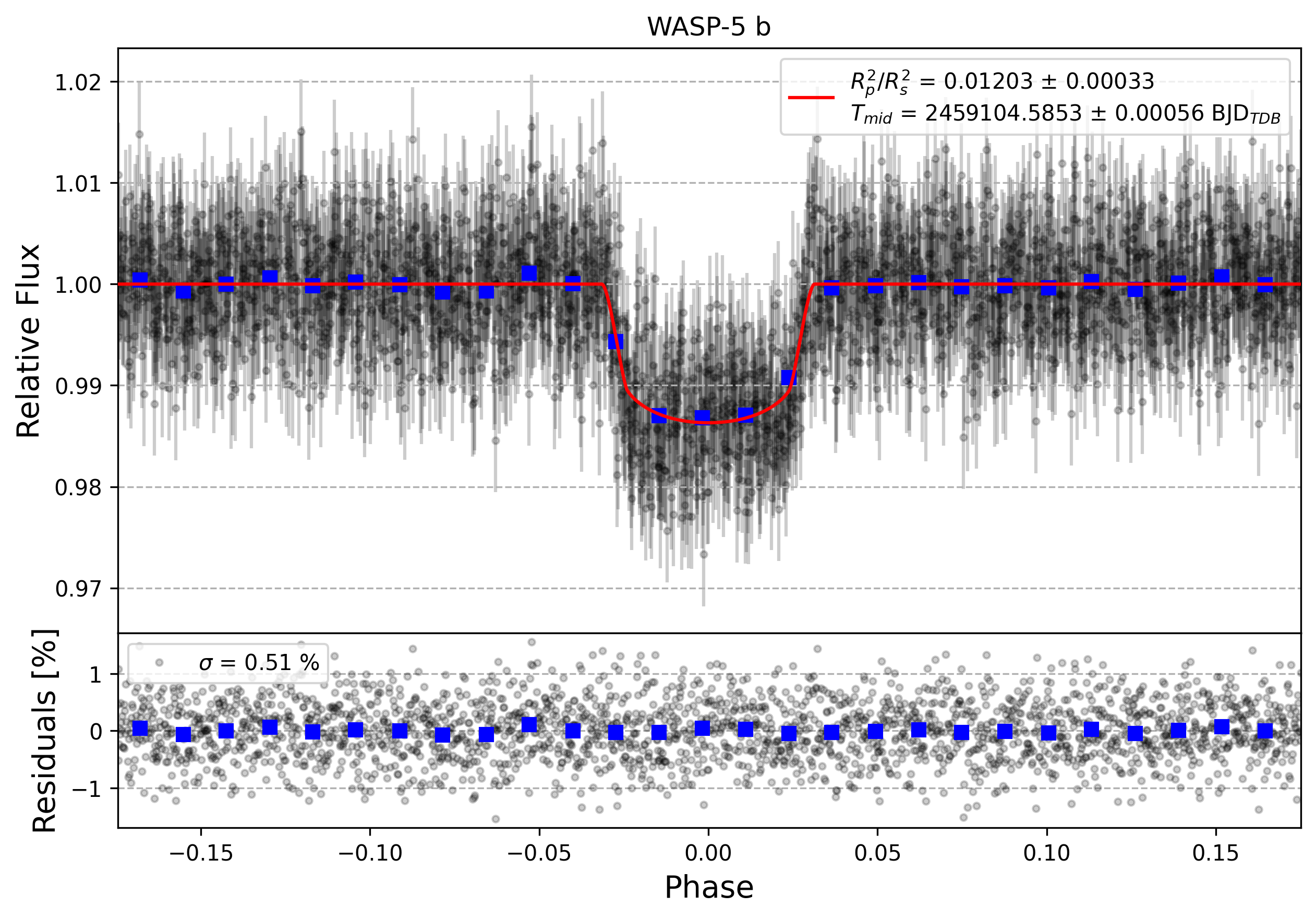

Light curve chart for 289bd271d3d7eae2601b6bc57cbaf9a5
Parameter Value Uncertainty
Am1 1.0003 0.0051
Am2 0
a/Rs 5.295 0.059
Rp/Rs 0.1094 0.0014
ephemeris [JD] 2459104.58526 0.00054
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6584121958813145
u1 -4.7956255252772095
u2 4.823534927776498
u3 -1.6863215265043308
duration 0.102 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d35af4f3339f928e2bbccca2d10f2a50
Parameter Value Uncertainty
Am1 1.0003 0.0052
Am2 0
a/Rs 5.316 0.069
Rp/Rs 0.1085 0.0014
ephemeris [JD] 2459096.44326 0.00064
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.657562848835035
u1 -4.793065650889039
u2 4.82065106478113
u3 -1.6851481908938273
duration 0.1014 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b4391855023348eadadfca4a993f6f6a
Parameter Value Uncertainty
Am1 0.9997 0.0023
Am2 0
a/Rs 5.332 0.099
Rp/Rs 0.1087 0.0019
ephemeris [JD] 2458373.4215 0.00084
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6572237624013026
u1 -4.791864992541962
u2 4.819150725407453
u3 -1.6845094234558524
duration 0.1012 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 23ef849c10fcd8e7ade78417f2272afe
Parameter Value Uncertainty
Am1 1.0001 0.0024
Am2 0
a/Rs 5.317 0.094
Rp/Rs 0.1114 0.0019
ephemeris [JD] 2458370.16403 0.00086
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6582370216115696
u1 -4.795408823729233
u2 4.823485195053856
u3 -1.6863133210606622
duration 0.1018 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8aed7cf4a53dc2928579e213a598e645
Parameter Value Uncertainty
Am1 0.9998 0.0022
Am2 0
a/Rs 5.381 0.088
Rp/Rs 0.109 0.0018
ephemeris [JD] 2458363.64998 0.00076
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6571345342528367
u1 -4.791949167897444
u2 4.81952296071377
u3 -1.6847082552526746
duration 0.1001 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 41c5e309f64be531c7b8acc76e3c6060
Parameter Value Uncertainty
Am1 1.0 0.0023
Am2 0
a/Rs 5.411 0.094
Rp/Rs 0.1103 0.0018
ephemeris [JD] 2458355.50801 0.00081
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6588413181028323
u1 -4.796900897395744
u2 4.825009070200038
u3 -1.6869494190088878
duration 0.0995 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 686d6751fb5336a5117e95677cbe049a
Parameter Value Uncertainty
Am1 1.0004 0.0022
Am2 0
a/Rs 5.337 0.083
Rp/Rs 0.1081 0.0018
ephemeris [JD] 2458362.02291 0.00075
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.6577411864561706
u1 -4.793504286831973
u2 4.820960656614479
u3 -1.685197484400764
duration 0.1012 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

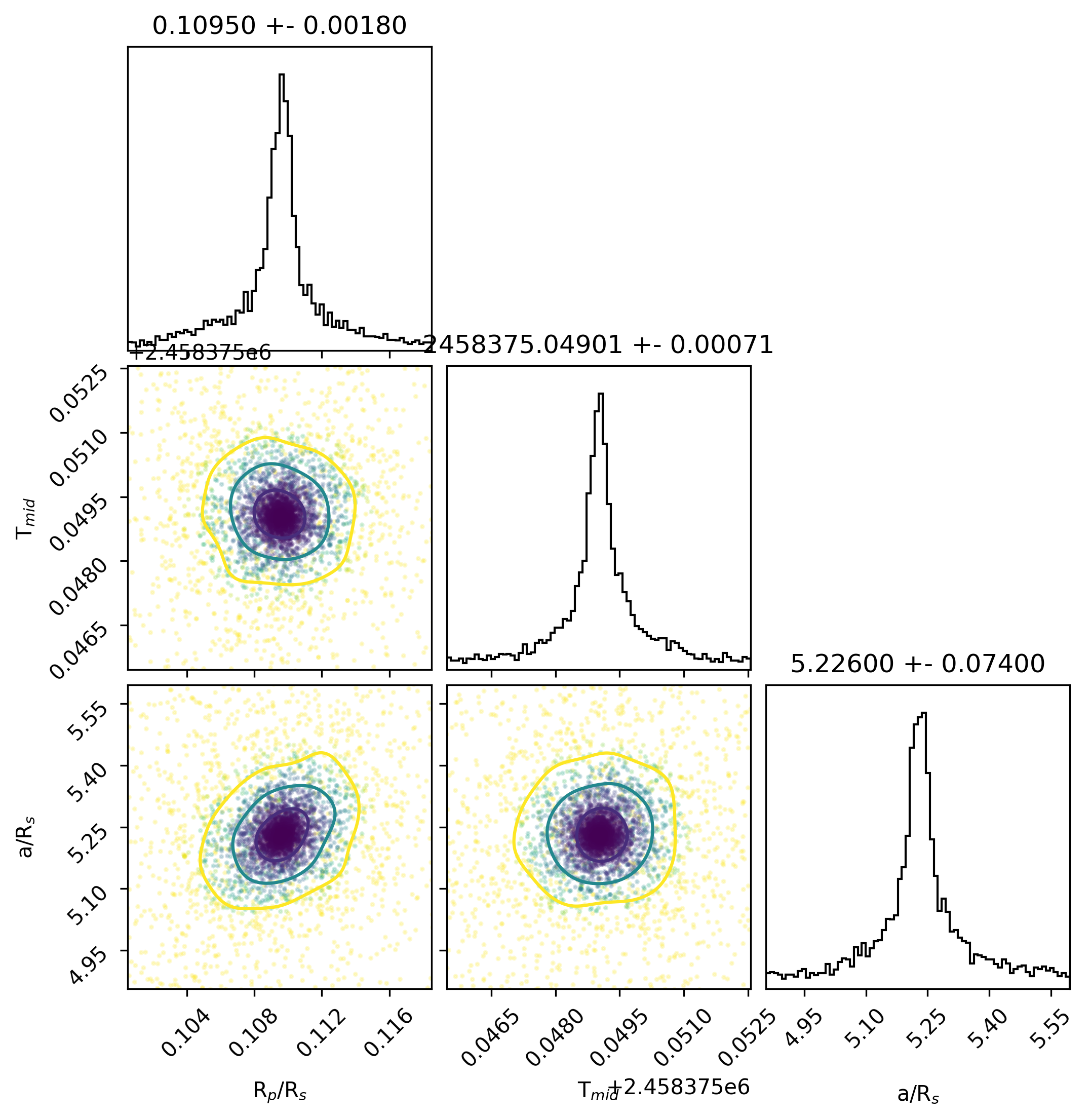

Light curve chart for ea99ec352a82e0ee6be6ba19aa3c37b1
Parameter Value Uncertainty
Am1 0.9997 0.0022
Am2 0
a/Rs 5.258 0.075
Rp/Rs 0.1092 0.0018
ephemeris [JD] 2458375.04901 0.0007
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.65798230550812
u1 -4.79427316955891
u2 4.82197971524882
u3 -1.6856887793449338
duration 0.1029 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 1b2c1a3bd0aa6e44dfe6eedbce7f3dba
Parameter Value Uncertainty
Am1 1.0002 0.0052
Am2 0
a/Rs 5.373 0.064
Rp/Rs 0.1094 0.0015
ephemeris [JD] 2459091.55812 0.00059
eccentricity 0.012
inclination [degrees] 85.8
omega [degrees] 34.38
orbital period [days] 1.62843
u0 2.657683752728506
u1 -4.793407931294102
u2 4.820958486531766
u3 -1.685234236128291
duration 0.1003 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
