Timing Plot
Global Light Curve

Total Reductions to Date: 2

Date Processed: 07/09/2024 at 00:07:26 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 4.46563041107219 4.953506740367556e-07
Ephemeris (BJD_TDB) 2460069.6013159095 0.00035454561215720356
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 203.7581951 decimal
DEC -17.5034961 decimal
Host Star Metallicity -0.2 0.08 Bonomo et al. 2017
Host Star log(g) 4.42 0.1 Log10(cgs) ExoFOP-TESS TOI
Host Star Radius [R_Sun] 1.06 0.03 Sol Kokori et al. 2023
Host Star Effective Temperature [K] 5960.0 100.0 K Kokori et al. 2023
a/Rs 10.66 0.07 Kokori et al. 2023
eccentricity 0.056 Bonomo et al. 2017
inclination [degrees] 89.0 0.6 deg Kokori et al. 2023
omega [degrees] 0.0 deg Kokori et al. 2023
orbital period [days] 4.46563013 4.2e-07 day Kokori et al. 2023
Rp 14.73 0.96 R_Earth Kruse et al. 2019
Rp/Rs 0.1355 0 Kruse et al. 2019
ephemeris [JD] 2457207.132185 8e-05 BJD-TDB Kokori et al. 2023

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2455737.93992 0.0003 BJD-TDB, HJD-UTC Bonomo et al. 2017, Hellier et al. 2012
2456416.71565 0.00013 BJD-TDB Southworth et al. 2016
2456720.37845 0.0001 BJD-TDB Kokori et al. 2022
2456778.43182 0.00013 BJD-TDB Ivshina & Winn 2022
2457207.132185 8e-05 BJD-TDB Kokori et al. 2023
2457224.99482 0.000201 BJD Petigura et al. 2018
2459310.444439 0.000474 BJD ExoFOP-TESS TOI

Observations

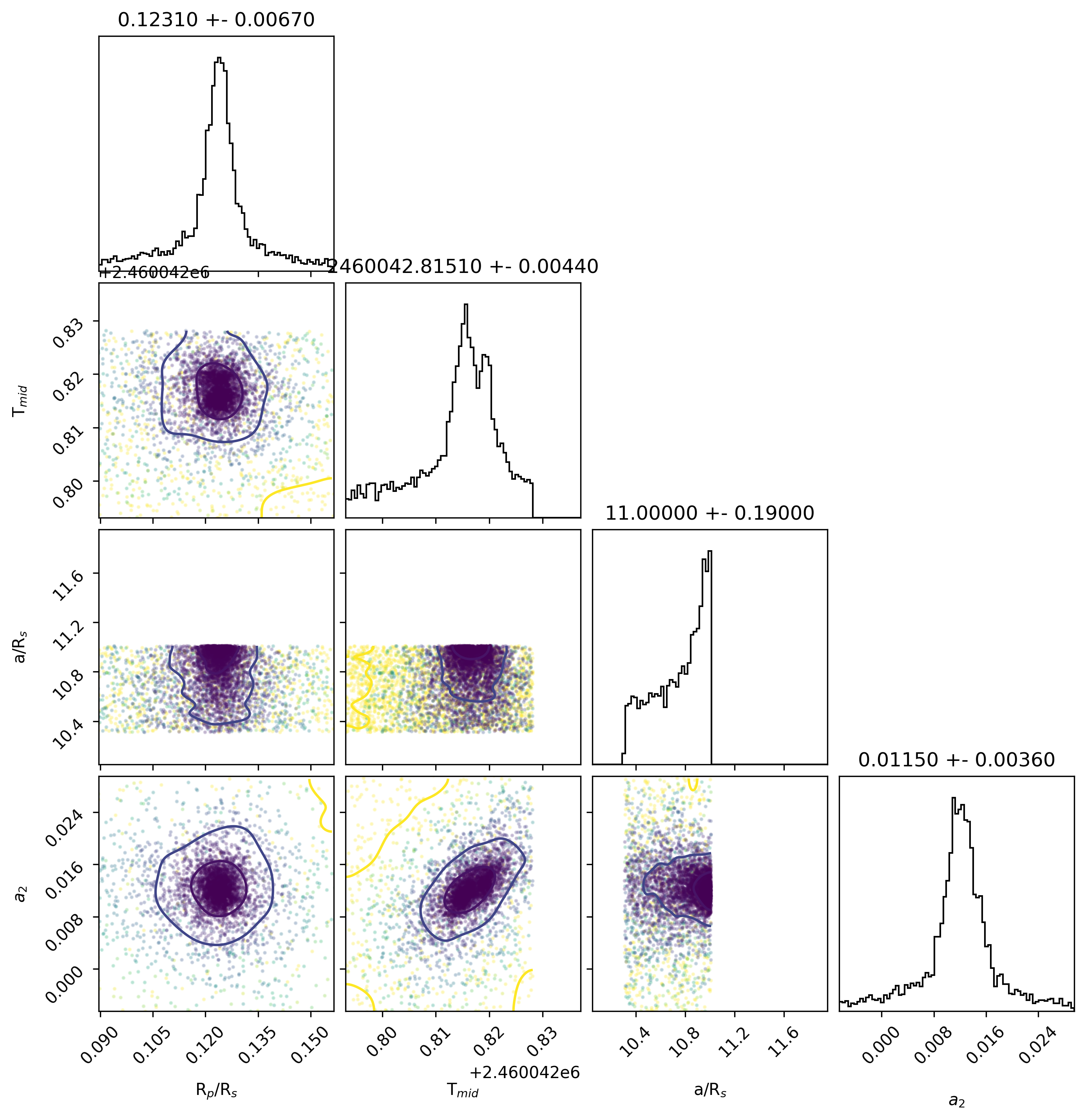

Light curve chart for 0003322
Parameter Value Uncertainty
Am1 0.989 0.01
Am2 0.0095 0.0035
a/Rs 11.01 0.19
Rp/Rs 0.1228 0.0072
ephemeris [JD] 2460042.8145 0.0043
eccentricity 0.056
inclination [degrees] 89.0
omega [degrees] 0.0
orbital period [days] 4.46563013
u0 2.2102954119075013
u1 -3.8266329902749074
u2 4.114749736864106
u3 -1.4984120971821513
duration 0.1427 0.0028

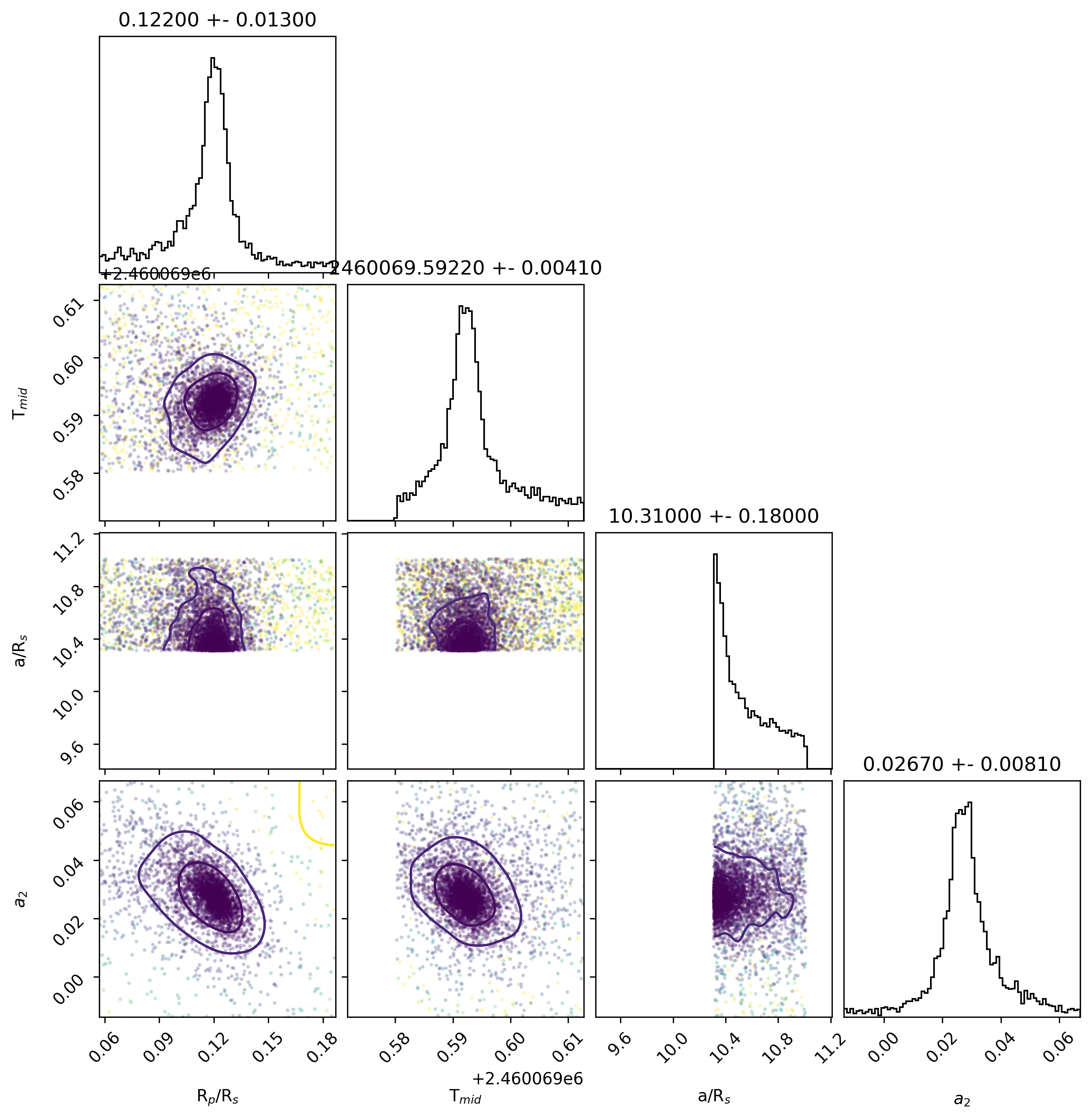

Light curve chart for 0004793
Parameter Value Uncertainty
Am1 0.966 0.014
Am2 0.0257 0.008
a/Rs 10.31 0.18
Rp/Rs 0.122 0.013
ephemeris [JD] 2460069.5919 0.0042
eccentricity 0.056
inclination [degrees] 89.0
omega [degrees] 0.0
orbital period [days] 4.46563013
u0 2.4232460445585615
u1 -4.263798075839559
u2 4.42237982503568
u3 -1.5818277278560884
duration 0.1527 0.0032
