WASP-50 b

View target in exoplanet catalog
chart

Total Reductions to Date: 69

Date Processed: 09/18/2023 at 00:07:19 (PDT)

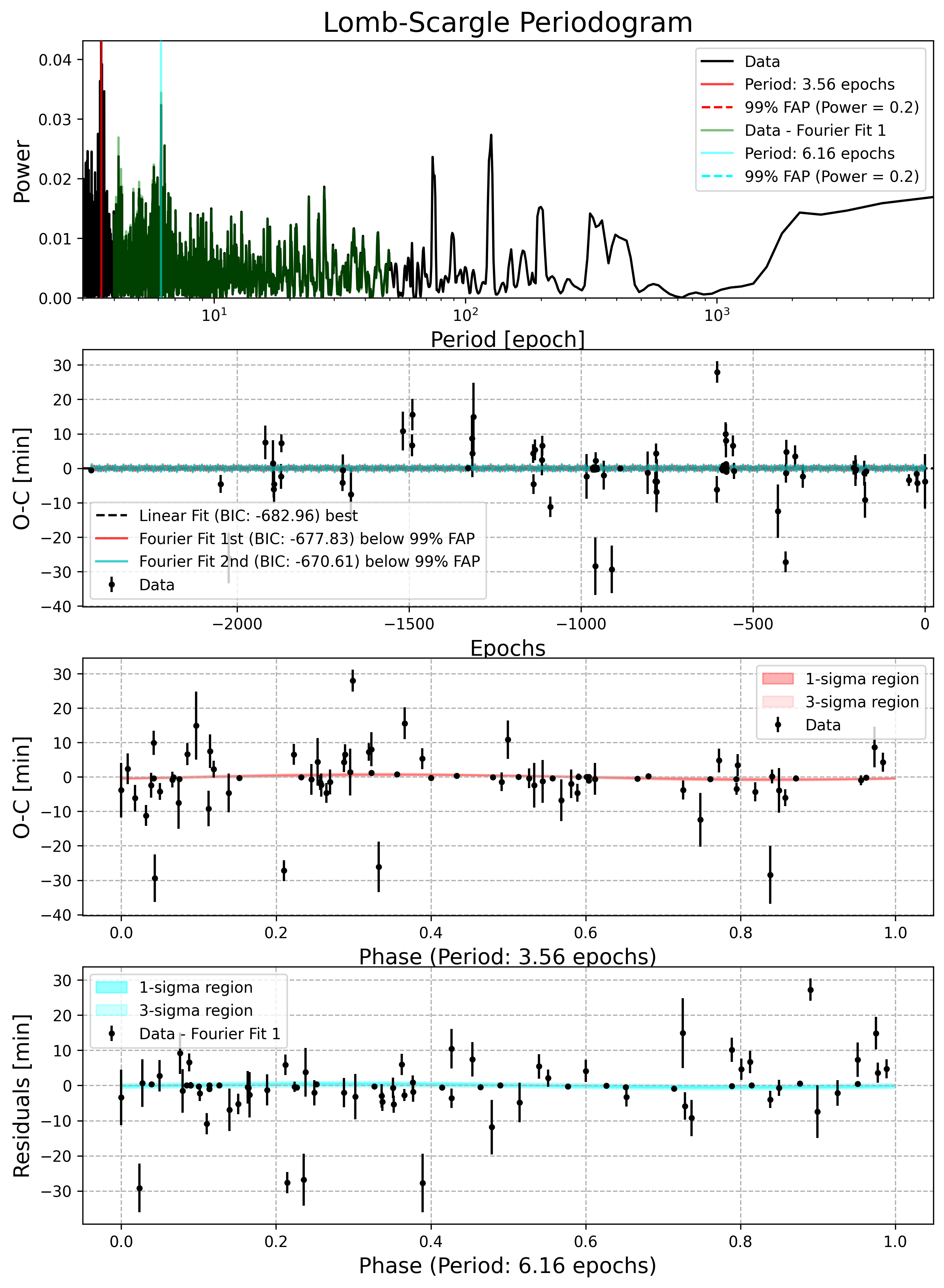

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 1.9550931442856176 1.1190982974861053e-07
Ephemeris (BJD_TDB) 2459965.392192957 9.593863460565422e-05
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 43.6880738 decimal
DEC -10.8980242 decimal
Host Star Metallicity -0.12 0.08 Bonomo et al. 2017
Host Star log(g) 4.54 0.02 Log10(cgs) ExoFOP-TESS TOI
Host Star Radius [R_Sun] 0.84 0.03 Sol Patel & Espinoza 2022
Host Star Effective Temperature [K] 5400.0 100.0 K Patel & Espinoza 2022
a/Rs 7.36 0.11 Patel & Espinoza 2022
eccentricity 0.022 0.01 Bonomo et al. 2017
inclination [degrees] 84.88 0.27 deg Chakrabarty & Sengupta 2019
omega [degrees] 44.0 62.0 deg Gillon et al. 2011
orbital period [days] 1.9550931 4e-07 day Patel & Espinoza 2022
Rp 13.07 0.48 R_Earth Chakrabarty & Sengupta 2019
Rp/Rs 0.1401 0 ExoFOP-TESS TOI
ephemeris [JD] 2459169.66923 0.00011 BJD Patel & Espinoza 2022

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2455558.61217 0.000205 BJD-TDB, HJD-UTC Bonomo et al. 2017, Gillon et al. 2011
2457701.39451 0.00023 BJD-TDB Kokori et al. 2022
2458411.093103 7.4e-05 BJD-TDB Ivshina & Winn 2022
2459169.6693455 0.00012100000000000001 BJD Patel & Espinoza 2022, ExoFOP-TESS TOI

Observations

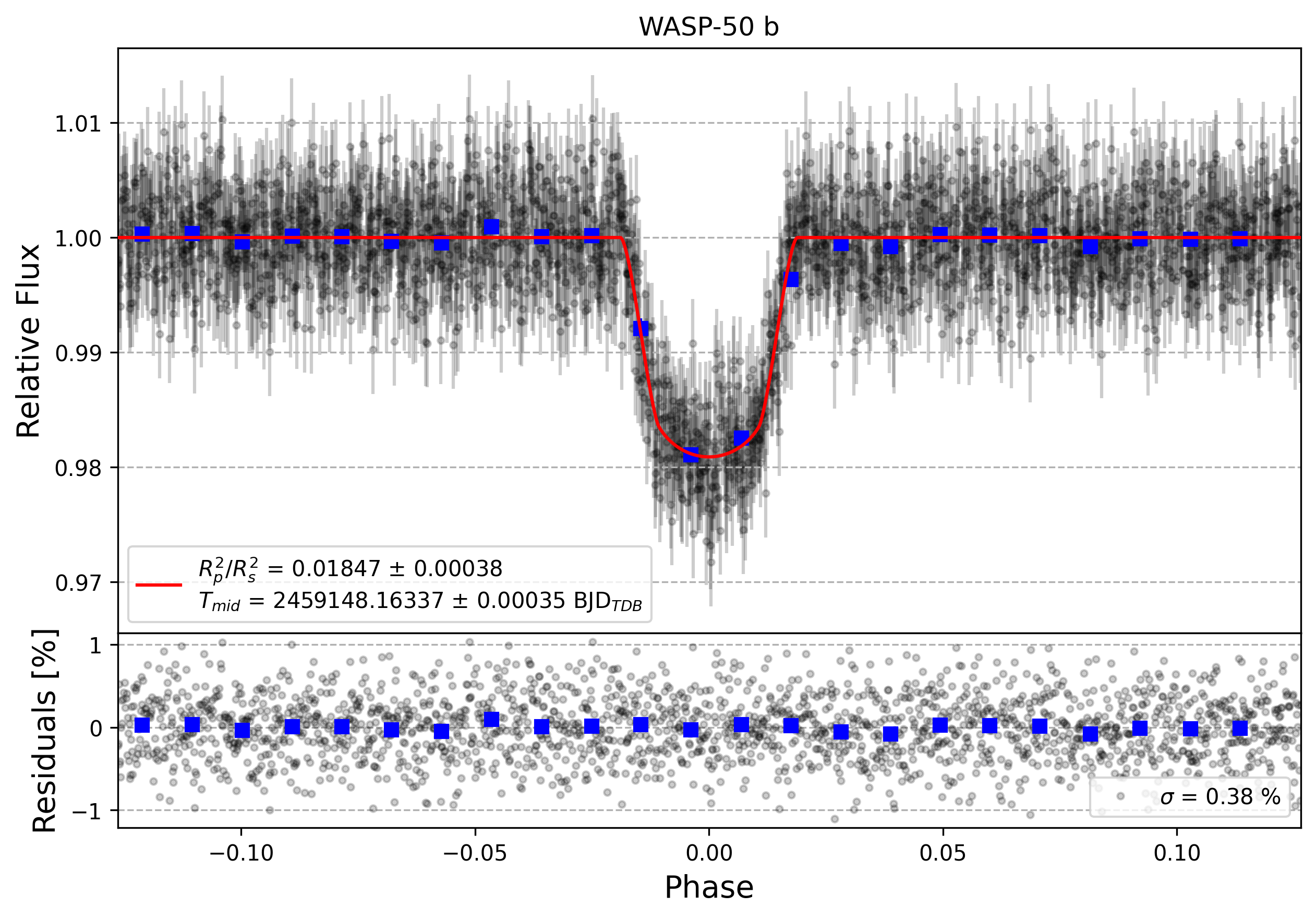

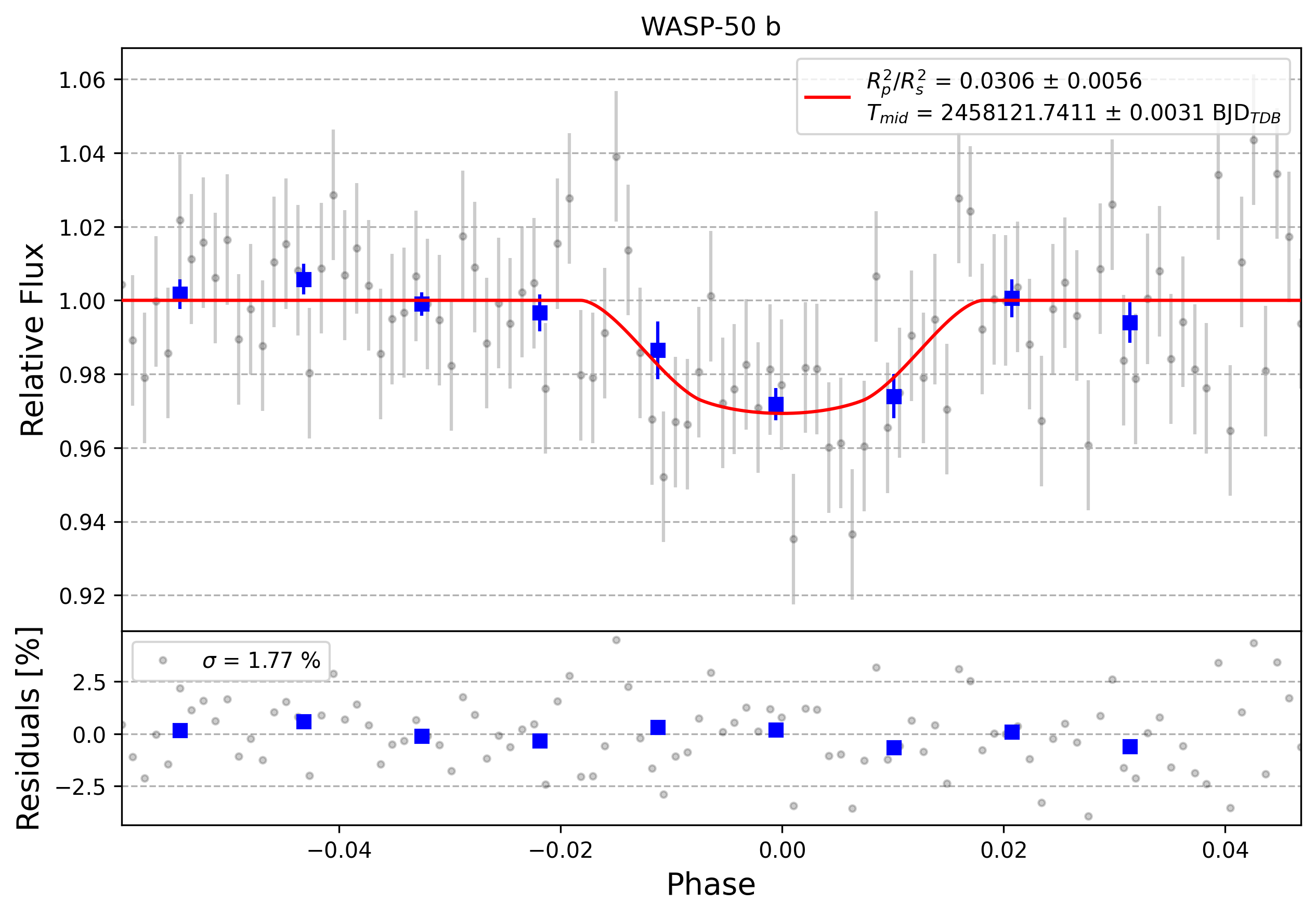

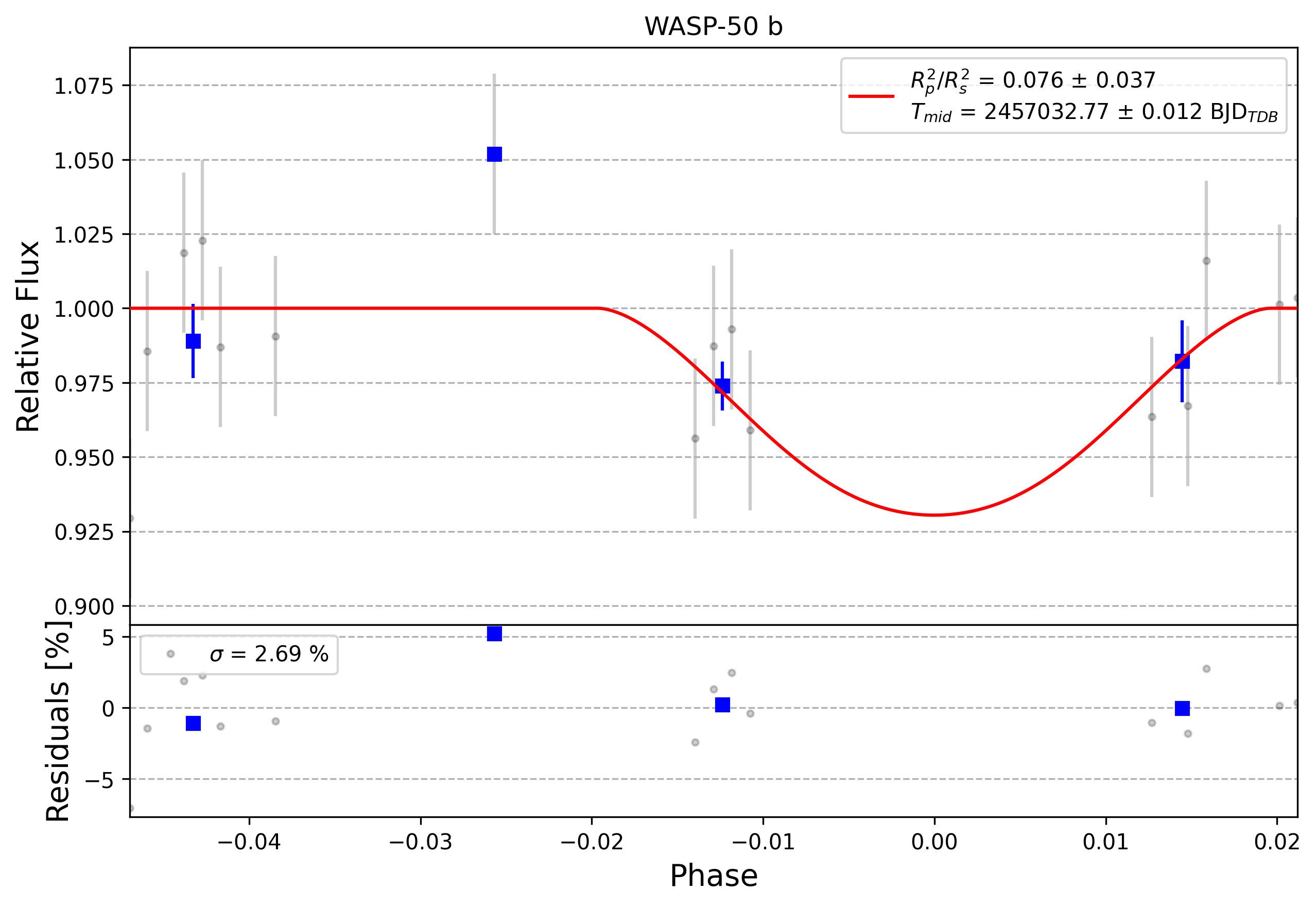

Light curve chart for 0000811
Parameter Value Uncertainty
Am1 1.0363 0.0088
Am2 -0.0214 0.0076
a/Rs 7.89 0.21
Rp/Rs 0.1683 0.0093
ephemeris [JD] 2456295.6792 0.0018
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.625082480568975
u1 -2.7571384221083908
u2 3.40132708421647
u3 -1.269271091993331
duration 0.0734 0.0031
Included in ephemeris calculations

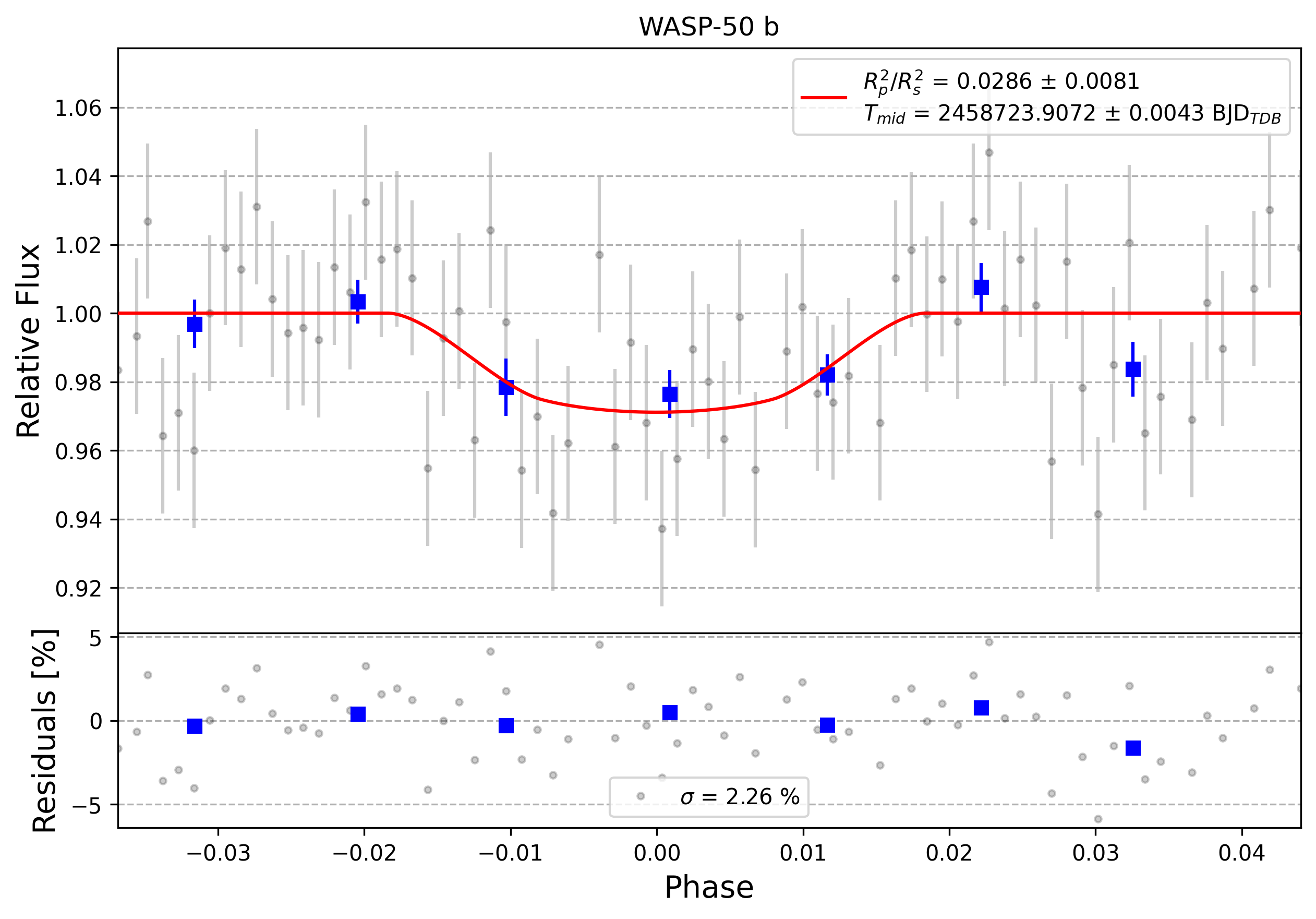

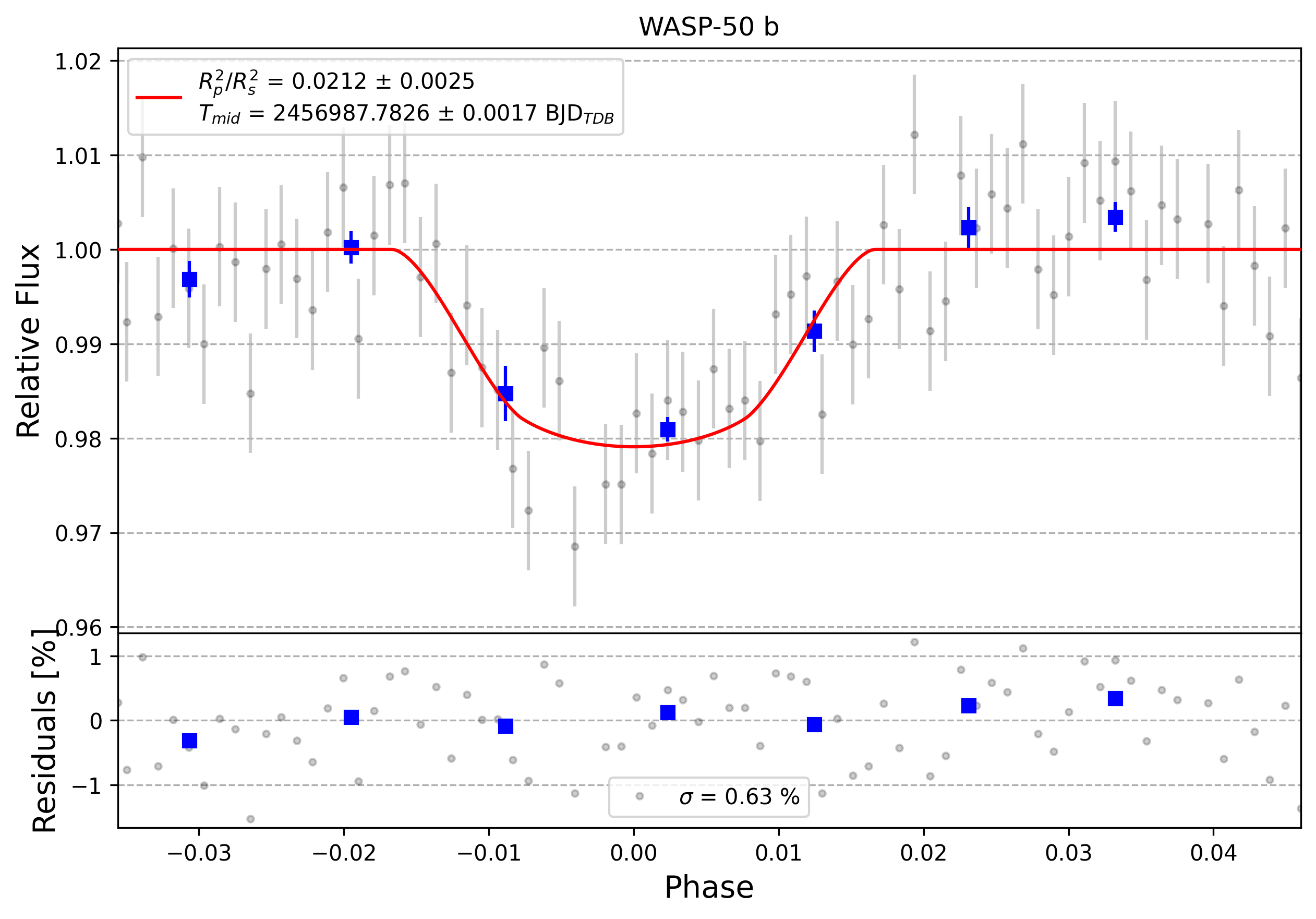

Light Curve ( PNG, PDF - high resolution )

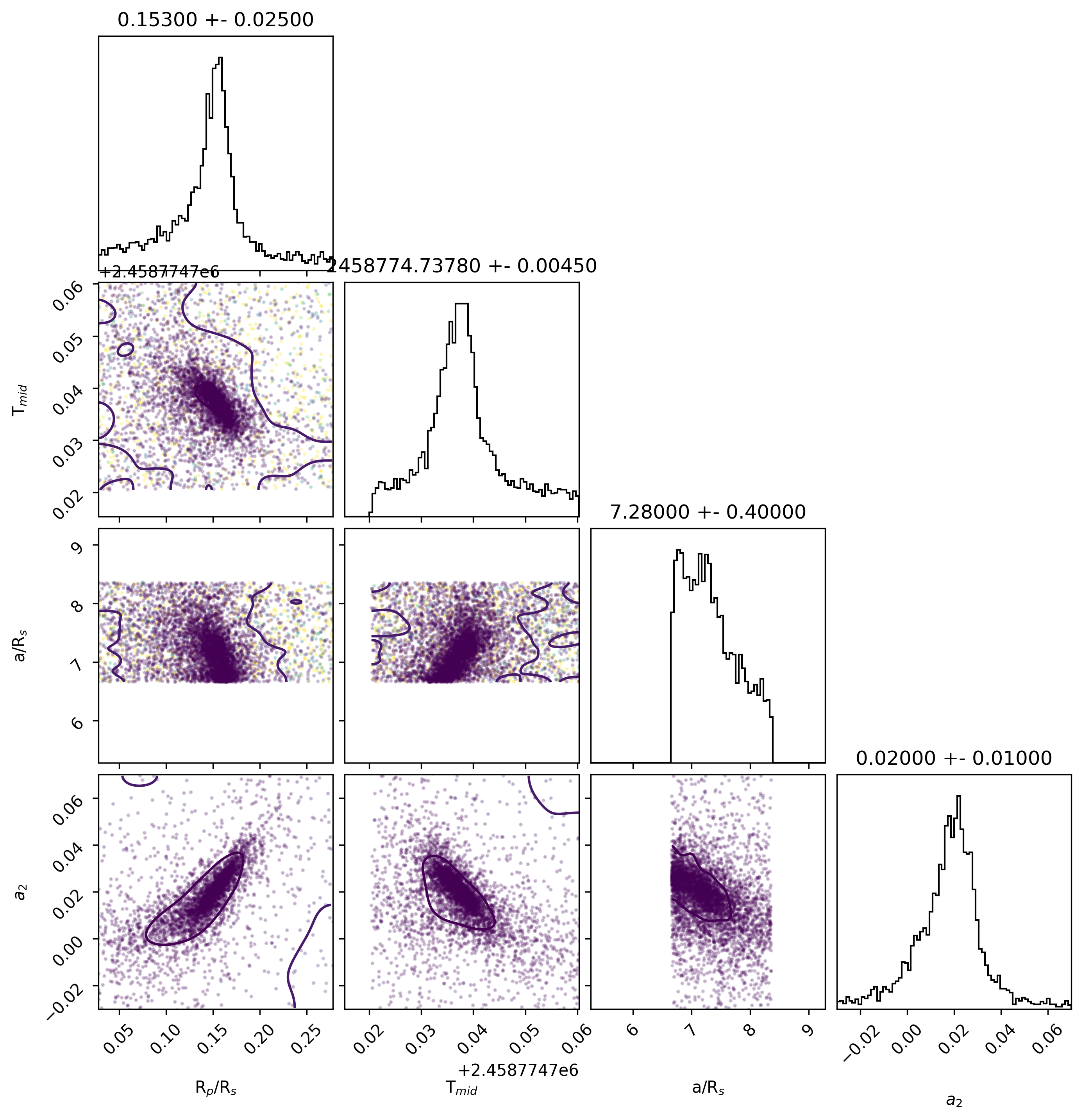

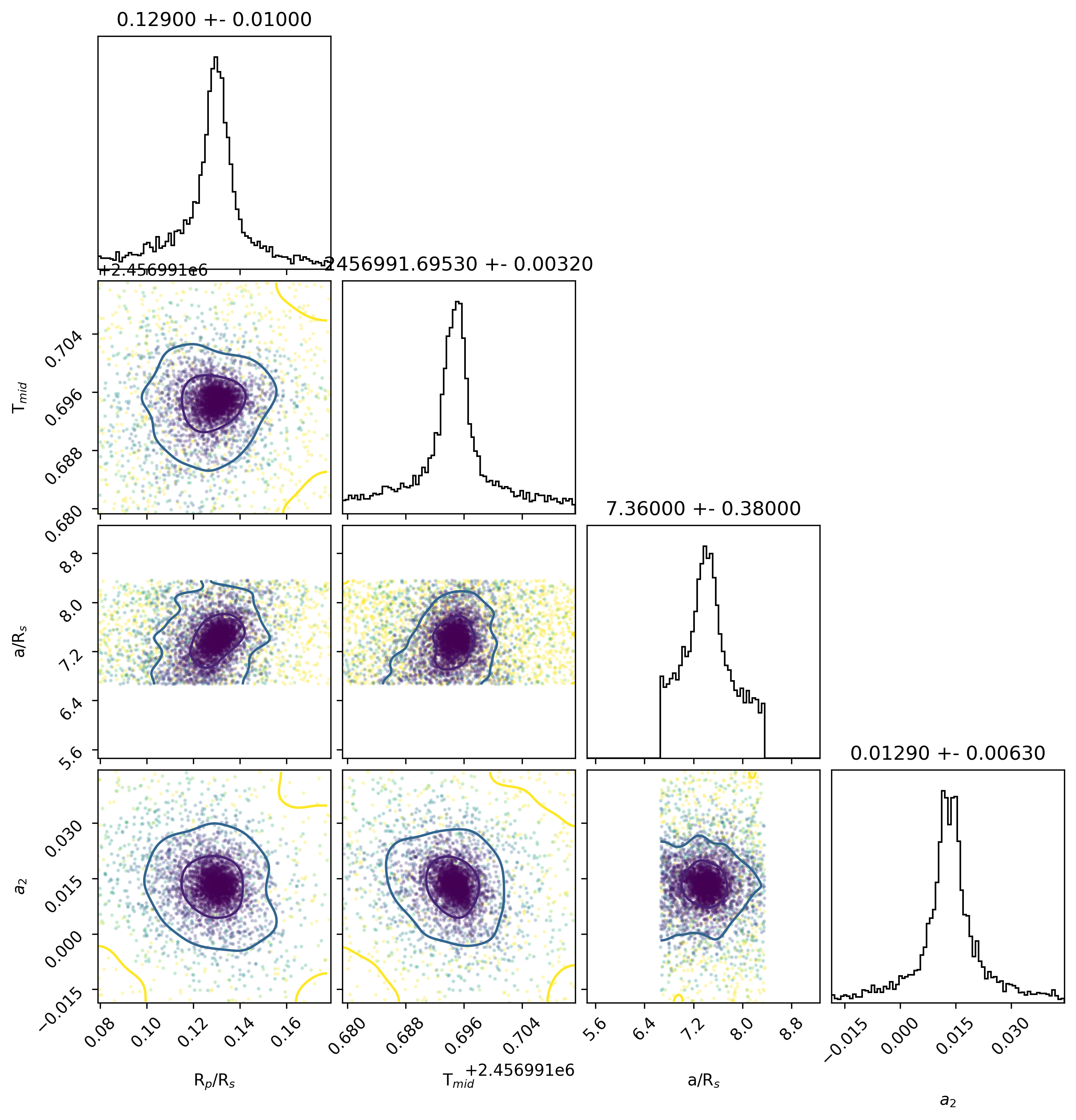

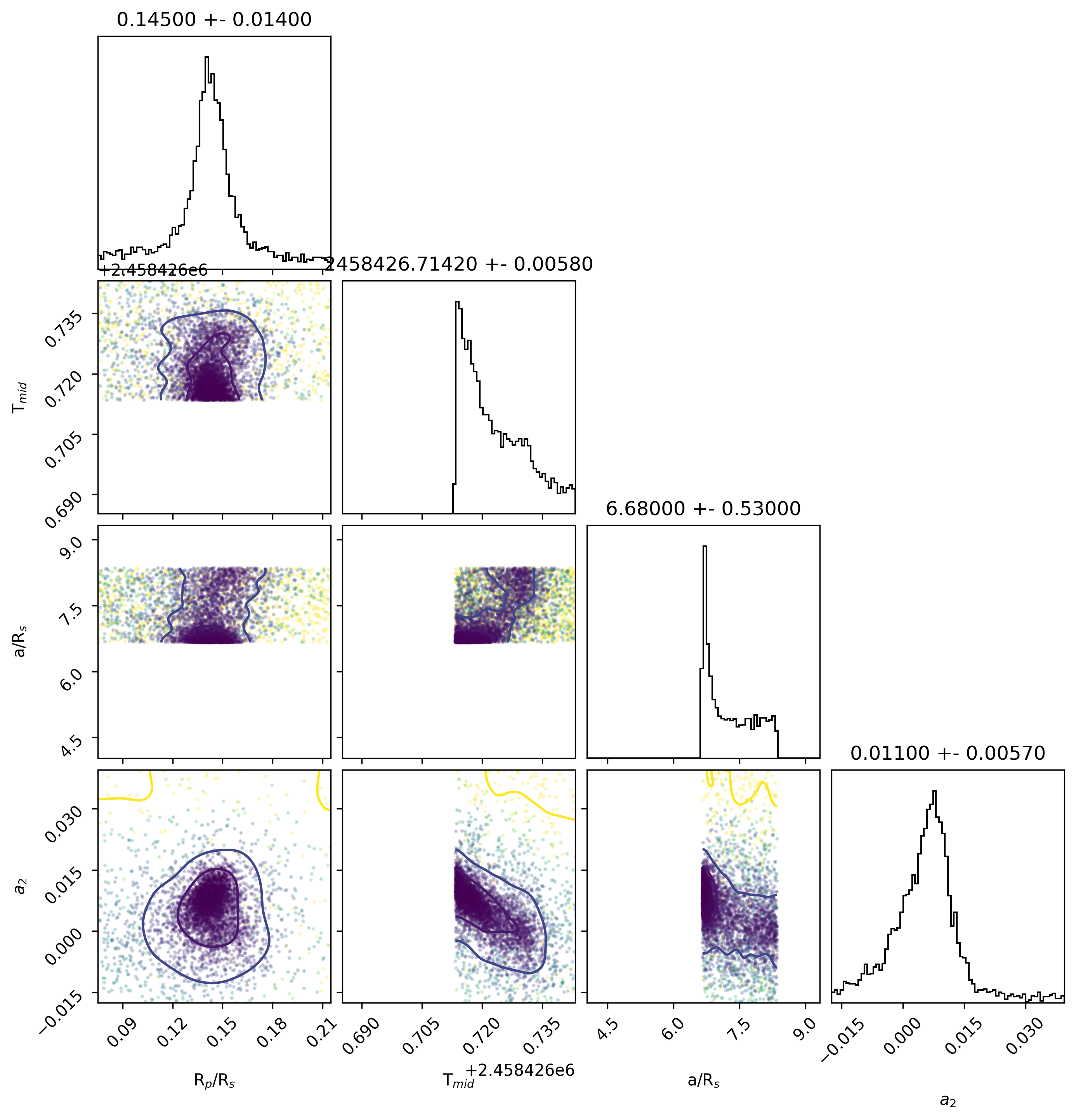

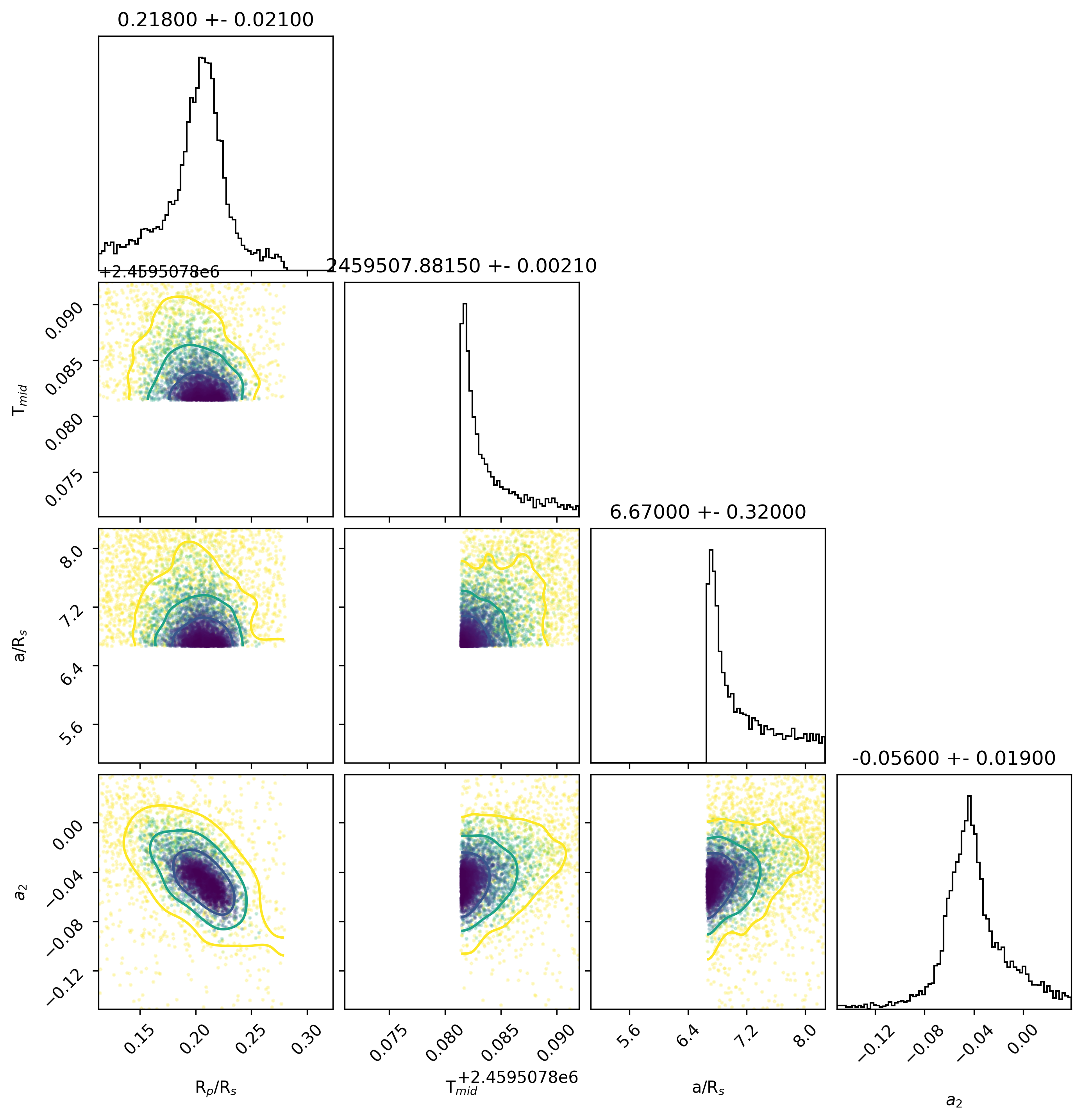

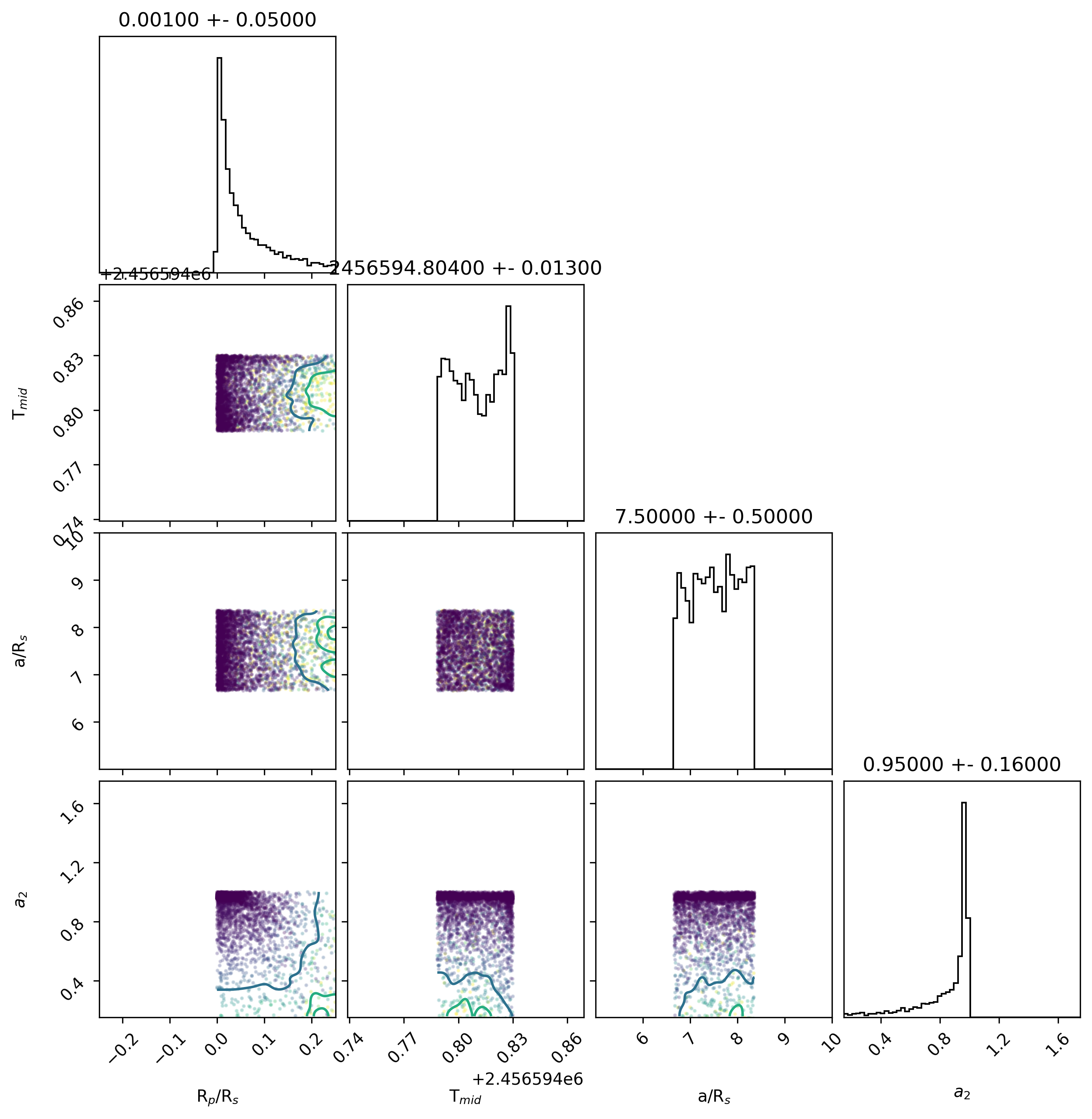

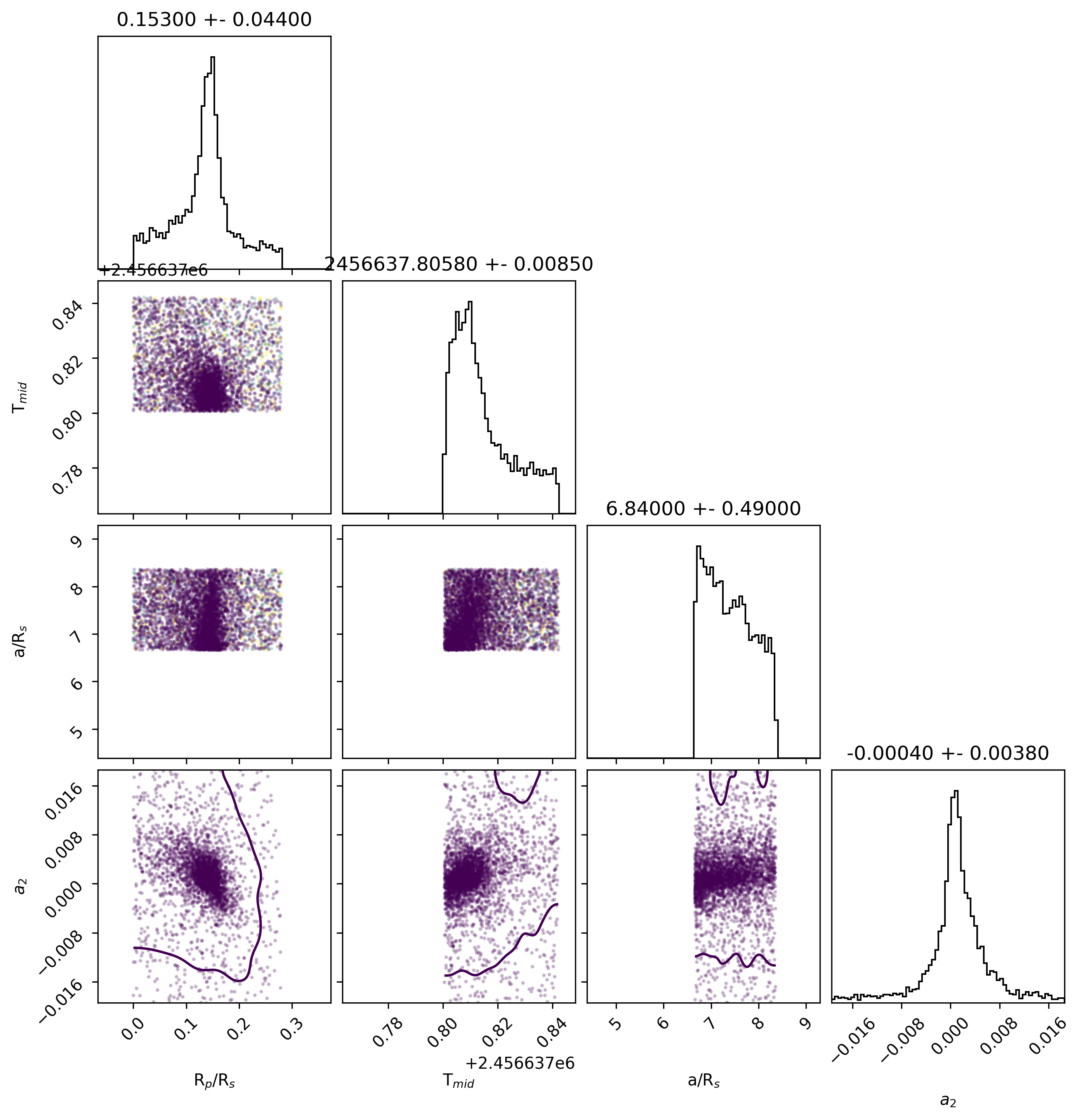

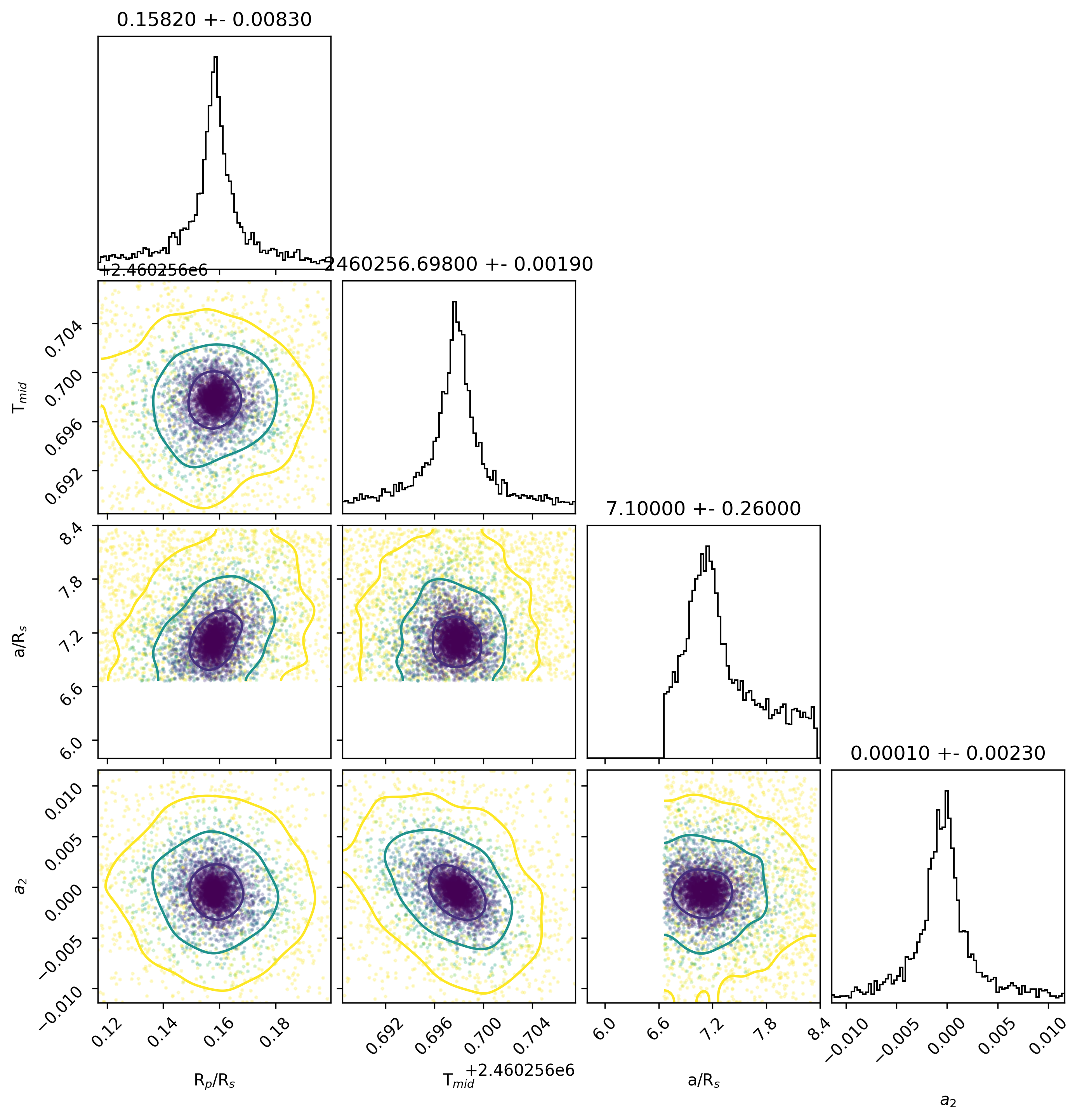

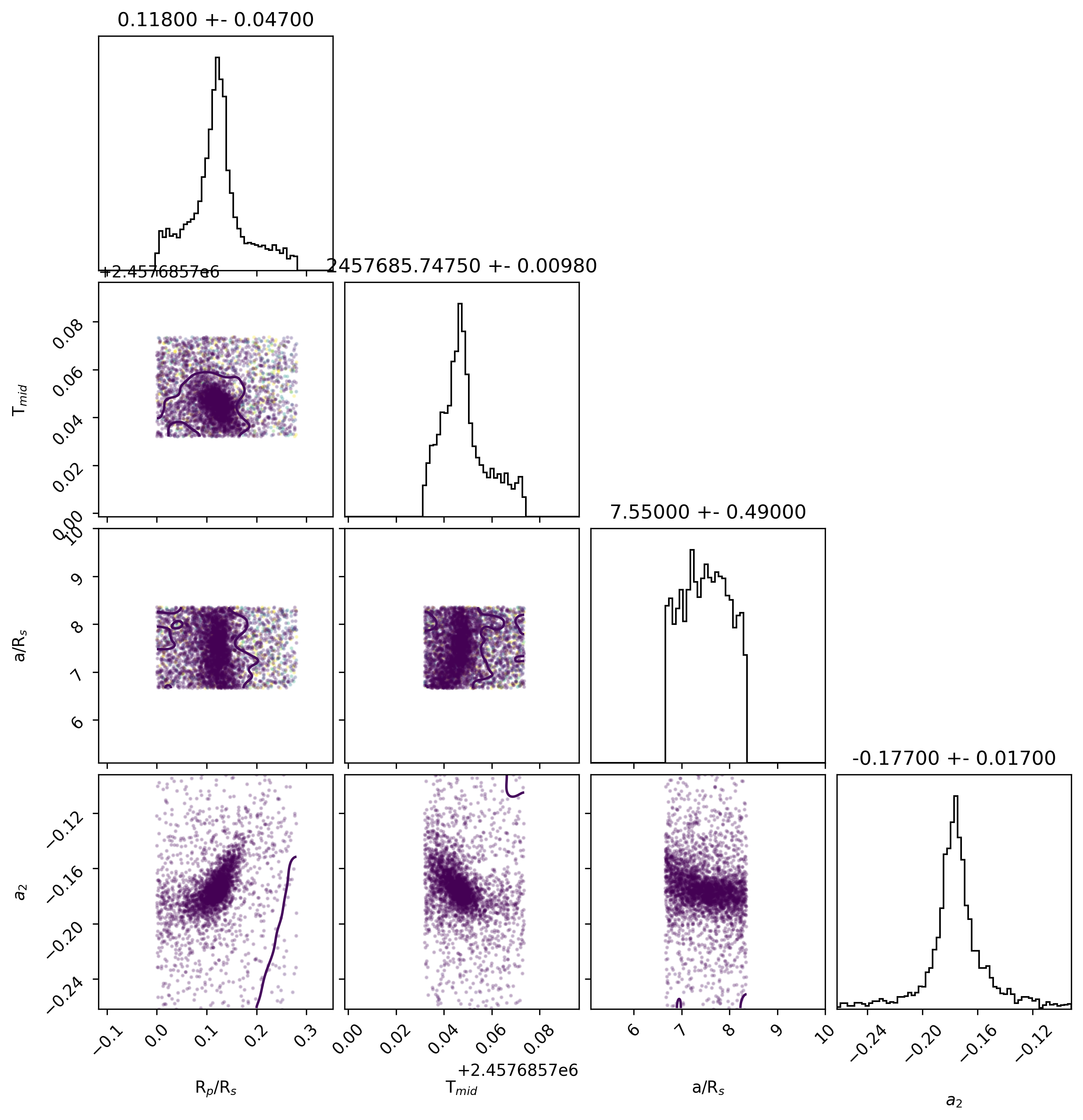

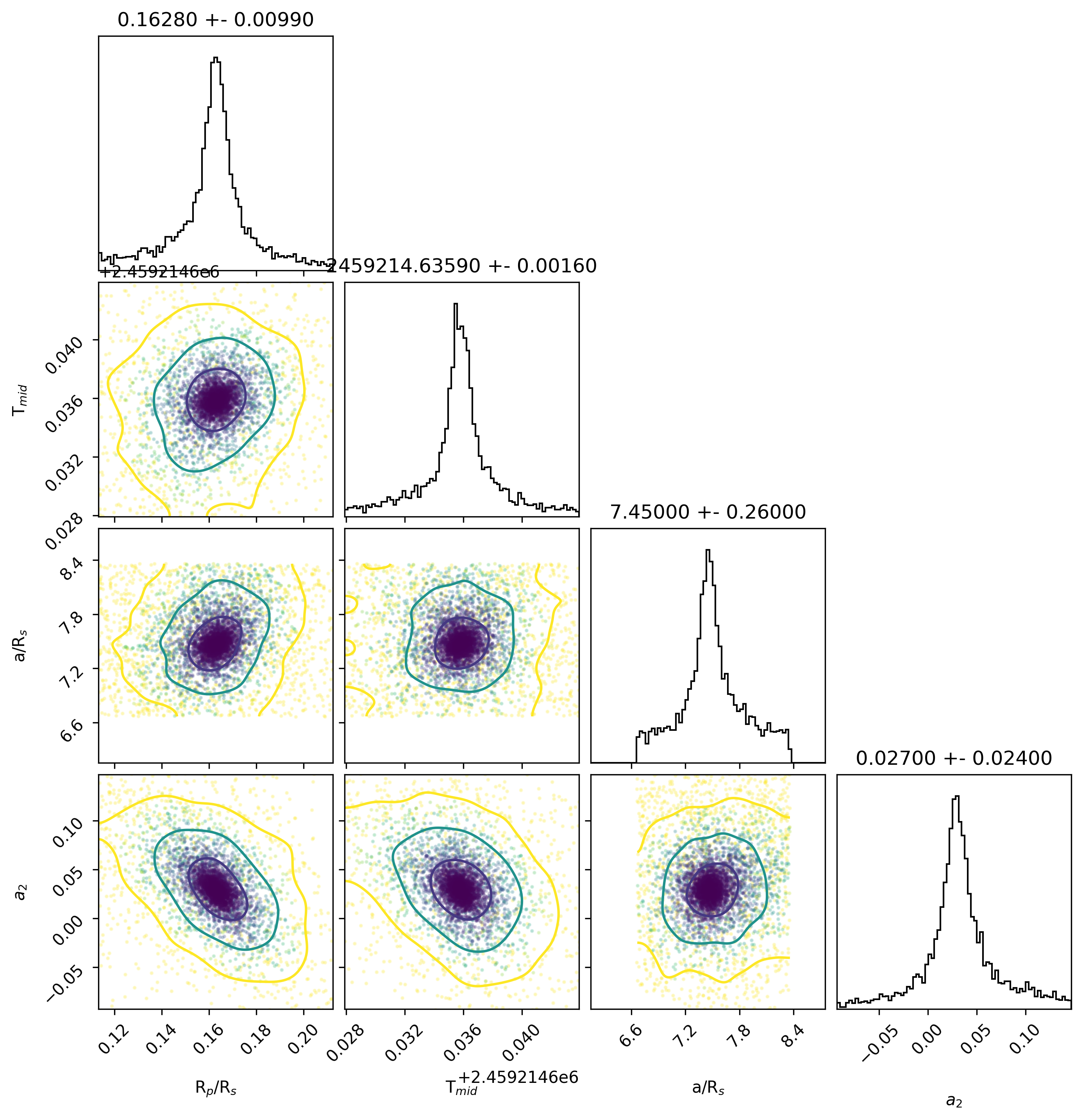

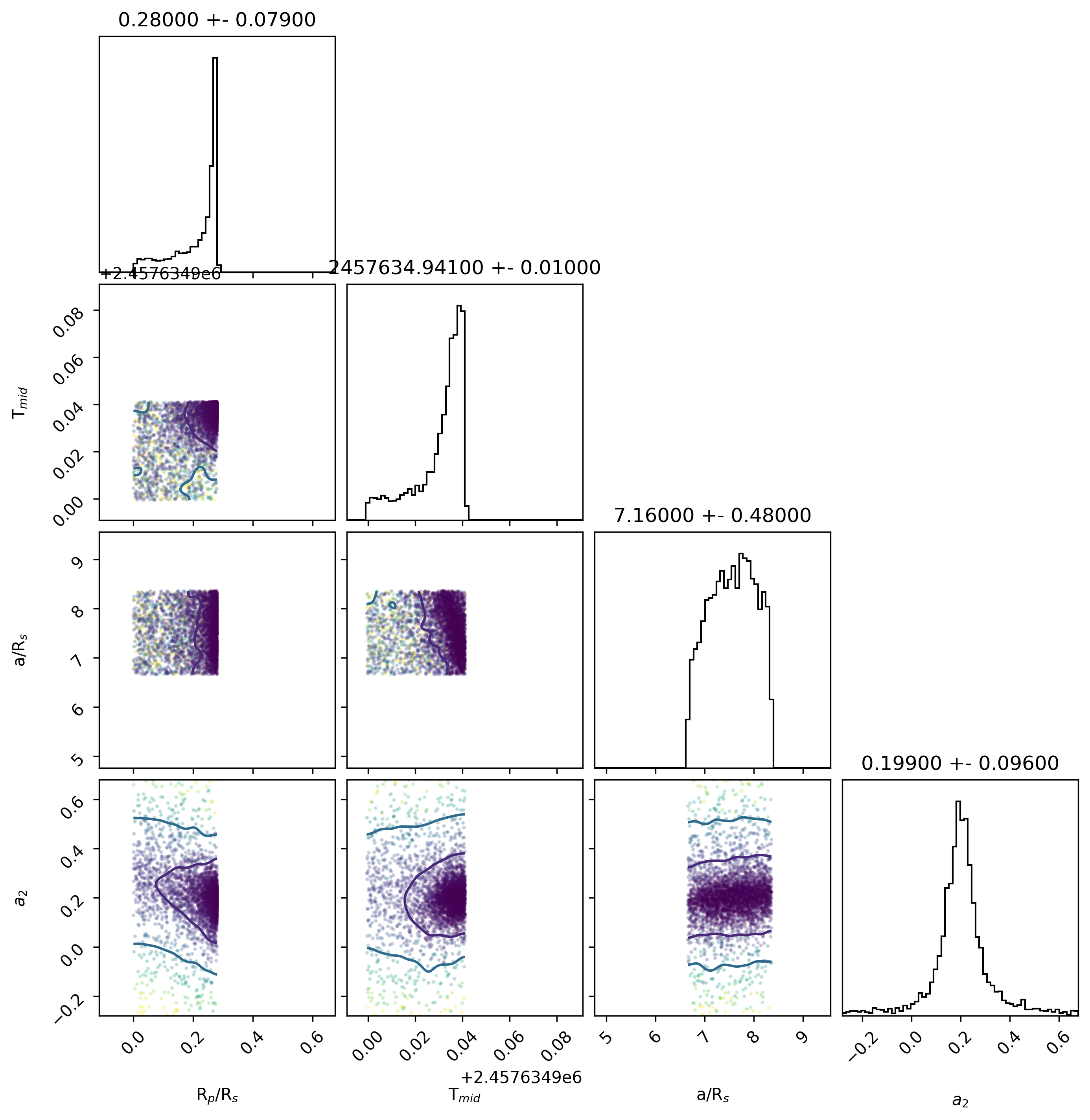

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS
Light curve chart for 0000812
Parameter Value Uncertainty
Am1 1.022 0.011
Am2 -0.0103 0.0023
a/Rs 7.87 0.29
Rp/Rs 0.149 0.014
ephemeris [JD] 2456549.85 0.0037
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.625984496298724
u1 -2.7595531124672457
u2 3.40385149055941
u3 -1.270282823669548
duration 0.0717 0.0042
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS
Light curve chart for 0000813
Parameter Value Uncertainty
Am1 0.9588 0.0066
Am2 0.029 0.075
a/Rs 7.91 0.3
Rp/Rs 0.126 0.014
ephemeris [JD] 2456592.8584 0.0055
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6250812644208805
u1 -2.757439314385765
u2 3.401827364752903
u3 -1.2694692640968404
duration 0.0621 0.0055
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS
Light curve chart for 0002529
Parameter Value Uncertainty
Am1 1.0057 0.0063
Am2 -0.0034 0.0036
a/Rs 7.43 0.24
Rp/Rs 0.1328 0.0066
ephemeris [JD] 2456596.7626 0.0017
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.624553920240543
u1 -2.7566891738398565
u2 3.401487207185616
u3 -1.2693519029001936
duration 0.0769 0.0038
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PDEB (collaborate/publish) MOBS
Light curve chart for 0000815
Parameter Value Uncertainty
Am1 1.1812 0.009
Am2 -0.108 0.012
a/Rs 7.63 0.32
Rp/Rs 0.125 0.053
ephemeris [JD] 2456598.722 0.011
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6265267491246693
u1 -2.7598006679769544
u2 3.4034954905761614
u3 -1.2702215210078416
duration 0.0728 0.0072
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS
Light curve chart for 0000816
Parameter Value Uncertainty
Am1 0.985 0.0082
Am2 0.009 0.0029
a/Rs 7.66 0.26
Rp/Rs 0.147 0.01
ephemeris [JD] 2456639.7812 0.0025
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6261433976473125
u1 -2.759086576656337
u2 3.4030546025423503
u3 -1.2701113728238602
duration 0.0748 0.0041
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS , BLEW
Light curve chart for 0000817
Parameter Value Uncertainty
Am1 1.026 0.011
Am2 -0.0163 0.0088
a/Rs 7.9 0.17
Rp/Rs 0.166 0.011
ephemeris [JD] 2456641.739 0.0019
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6262084205728615
u1 -2.758722152830456
u2 3.4023522373082073
u3 -1.2698384543516137
duration 0.073 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS , BLEW
Light curve chart for 0003679
Parameter Value Uncertainty
Am1 2.71 0.23
Am2 -0.68 0.24
a/Rs 6.89 0.31
Rp/Rs 0.279 0.069
ephemeris [JD] 2456643.7042 0.0083
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6255013443675848
u1 -2.7584099247539995
u2 3.4027322856209947
u3 -1.2698236545299175
duration 0.1008 0.0089
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PAIB (collaborate/publish) MOBS
Light curve chart for 0000818
Parameter Value Uncertainty
Am1 1.273 0.011
Am2 -0.12 0.013
a/Rs 7.23 0.32
Rp/Rs 0.118 0.063
ephemeris [JD] 2456983.875 0.012
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.625699671191334
u1 -2.7593250977200987
u2 3.403870948103355
u3 -1.2702454708529602
duration 0.0786 0.0082
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS , BLEW
Light curve chart for 0000819
Parameter Value Uncertainty
Am1 0.9776 0.0074
Am2 0.0149 0.0064
a/Rs 7.15 0.27
Rp/Rs 0.1511 0.0076
ephemeris [JD] 2456987.7861 0.0019
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.625294270840917
u1 -2.7573512811770007
u2 3.4016710814383226
u3 -1.2696140204133899
duration 0.0835 0.0046
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS , BLEW
Light curve chart for 0000873
Parameter Value Uncertainty
Am1 0.985 0.0077
Am2 0.0101 0.0058
a/Rs 7.01 0.22
Rp/Rs 0.1365 0.0072
ephemeris [JD] 2456991.6954 0.002
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6258840652542055
u1 -2.759015720112481
u2 3.4032921769008566
u3 -1.2701604713295755
duration 0.0842 0.0037
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS
Light curve chart for 0003562
Parameter Value Uncertainty
Am1 0.995 0.032
Am2 -0.0 0.022
a/Rs 6.82 0.31
Rp/Rs 0.167 0.043
ephemeris [JD] 2456993.6648 0.0068
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6263246017023716
u1 -2.7600831913375665
u2 3.4042705121466406
u3 -1.2705118717838615
duration 0.0903 0.007
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO NASA (collaborate/publish) MOBS
Light curve chart for 0003744
Parameter Value Uncertainty
Am1 2.51 1.28
Am2 -0.68 0.29
a/Rs 7.8 0.32
Rp/Rs 0.279 0.081
ephemeris [JD] 2457288.865 0.012
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.625657608687775
u1 -2.7584874449291332
u2 3.4027059994994913
u3 -1.2698761125538627
duration 0.0854 0.009
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO ASJB (collaborate/publish) MOBS
Light curve chart for 0003501
Parameter Value Uncertainty
Am1 0.9574 0.0091
Am2 0.031 0.011
a/Rs 7.84 0.31
Rp/Rs 0.212 0.021
ephemeris [JD] 2457331.8931 0.0035
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6257193721824785
u1 -2.758831778333261
u2 3.4032079943736147
u3 -1.270095537511081
duration 0.0784 0.005
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO AIMA (collaborate/publish) MOBS
Light curve chart for 0000874
Parameter Value Uncertainty
Am1 1.0278 0.0098
Am2 -0.018 0.023
a/Rs 7.04 0.28
Rp/Rs 0.155 0.011
ephemeris [JD] 2457384.6734 0.0022
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6257442814230685
u1 -2.7584369381340825
u2 3.4027245294005417
u3 -1.2700318219849809
duration 0.0855 0.0049
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS
Light curve chart for 0000875
Parameter Value Uncertainty
Am1 0.989 0.012
Am2 0.0063 0.002
a/Rs 6.82 0.3
Rp/Rs 0.118 0.016
ephemeris [JD] 2457726.8136 0.0047
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6255276315542517
u1 -2.7588131514682668
u2 3.403460818669141
u3 -1.270175248039608
duration 0.0853 0.0056
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS , LDYA , BLEW
Light curve chart for 0000876
Parameter Value Uncertainty
Am1 1.0007 0.0079
Am2 0.0004 0.0021
a/Rs 6.94 0.28
Rp/Rs 0.1443 0.0081
ephemeris [JD] 2458072.8625 0.0023
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6253742189509308
u1 -2.757790733019457
u2 3.4021351325527713
u3 -1.2697185677884808
duration 0.086 0.0049
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS , LDYA , BLEW
Light curve chart for 0000877
Parameter Value Uncertainty
Am1 1.0019 0.0069
Am2 -0.0008 0.0036
a/Rs 7.34 0.27
Rp/Rs 0.1368 0.0075
ephemeris [JD] 2458074.814 0.002
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6252767683572082
u1 -2.7582467407326425
u2 3.4030318114776597
u3 -1.2700617883930998
duration 0.0787 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS , LDYA , BLEW
Light curve chart for 0000470
Parameter Value Uncertainty
Am1 0.9127 0.0092
Am2 0.0012 0.0015
a/Rs 7.15 0.25
Rp/Rs 0.17 0.0084
ephemeris [JD] 2458082.6415 0.002
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.9091774062992108
u1 -3.361379195577264
u2 3.8547746229456825
u3 -1.4025727762270113
duration 0.0851 0.0045
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0000878
Parameter Value Uncertainty
Am1 1.022 0.013
Am2 -0.0115 0.0021
a/Rs 6.83 0.29
Rp/Rs 0.14 0.014
ephemeris [JD] 2458121.7324 0.0041
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.625479026252699
u1 -2.7586984246573265
u2 3.40335818242347
u3 -1.270138733304854
duration 0.0878 0.0052
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS , LDYA , BLEW
Light curve chart for 0000879
Parameter Value Uncertainty
Am1 0.9882 0.0071
Am2 0.0077 0.0028
a/Rs 6.81 0.21
Rp/Rs 0.1374 0.0066
ephemeris [JD] 2458123.6993 0.002
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6258870880583018
u1 -2.758939511501432
u2 3.4031371754539053
u3 -1.270084701300079
duration 0.0876 0.0039
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS , BLEW , LDYA
Light curve chart for 0000880
Parameter Value Uncertainty
Am1 0.994 0.011
Am2 0.0041 0.0071
a/Rs 7.33 0.3
Rp/Rs 0.115 0.014
ephemeris [JD] 2458375.9003 0.0041
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6258977432704247
u1 -2.7592119518027722
u2 3.403518573298845
u3 -1.270204314050119
duration 0.0761 0.0049
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS , LDYA , BLEW
Light curve chart for 0000881
Parameter Value Uncertainty
Am1 0.981 0.012
Am2 0.0104 0.0045
a/Rs 6.84 0.32
Rp/Rs 0.079 0.027
ephemeris [JD] 2458426.754 0.011
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6248797003256172
u1 -2.757282249002829
u2 3.402201959526818
u3 -1.2697993601528457
duration 0.0808 0.006
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS , TKAA , LDYA , BLEW
Light curve chart for 0000392
Parameter Value Uncertainty
Am1 0.8903 0.0094
Am2 0.0052 0.0015
a/Rs 7.91 0.15
Rp/Rs 0.1694 0.0088
ephemeris [JD] 2458428.6897 0.0017
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.909444376036868
u1 -3.361165742074358
u2 3.853954456750563
u3 -1.4022330332846762
duration 0.0735 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0000883
Parameter Value Uncertainty
Am1 0.97 0.014
Am2 0.024 0.019
a/Rs 7.9 0.25
Rp/Rs 0.176 0.014
ephemeris [JD] 2458473.655 0.003
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6253185384209168
u1 -2.757851764161647
u2 3.4021338860181496
u3 -1.269600609581674
duration 0.0743 0.0039
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS , TKAA , BLEW , LDYA
Light curve chart for 0000375
Parameter Value Uncertainty
Am1 0.9101 0.0058
Am2 -0.0036 0.0054
a/Rs 6.87 0.23
Rp/Rs 0.1379 0.0074
ephemeris [JD] 2458766.9174 0.002
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.9099916894609785
u1 -3.362643272319504
u2 3.8557699978269193
u3 -1.4031183575129438
duration 0.0864 0.0041
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0000378
Parameter Value Uncertainty
Am1 0.8935 0.0085
Am2 0.0088 0.0088
a/Rs 7.89 0.19
Rp/Rs 0.1489 0.0092
ephemeris [JD] 2458770.8341 0.002
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.9092117519646357
u1 -3.3614536572699065
u2 3.854860621258126
u3 -1.402618658510956
duration 0.0718 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0003263
Parameter Value Uncertainty
Am1 1.027 0.012
Am2 -0.0157 0.0074
a/Rs 7.89 0.32
Rp/Rs 0.091 0.033
ephemeris [JD] 2458774.7605 0.0098
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6257601720301709
u1 -2.759035734440296
u2 3.4034773239189318
u3 -1.2702017107930423
duration 0.0655 0.0056
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GMAI (collaborate/publish) MOBS
Light curve chart for 0002618
Parameter Value Uncertainty
Am1 0.2638 0.0093
Am2 0.94 0.19
a/Rs 6.86 0.32
Rp/Rs 0.241 0.071
ephemeris [JD] 2458817.7609 0.0087
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6248892420896004
u1 -2.7573423639100767
u2 3.402104608199871
u3 -1.2696514356840858
duration 0.0729 0.0037
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO NROC (collaborate/publish) MOBS
Light curve chart for 0000884
Parameter Value Uncertainty
Am1 0.947 0.01
Am2 0.0365 0.0093
a/Rs 7.91 0.21
Rp/Rs 0.161 0.011
ephemeris [JD] 2459116.8784 0.0023
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6257346830418995
u1 -2.758123210387524
u2 3.4018851426554826
u3 -1.2694965646178193
duration 0.0725 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS , TKAA , BLEW , LDYA
Light curve chart for 0000885
Parameter Value Uncertainty
Am1 1.019 0.011
Am2 -0.008 0.0038
a/Rs 6.81 0.26
Rp/Rs 0.153 0.012
ephemeris [JD] 2459118.8565 0.002
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6250060939638622
u1 -2.75736996855685
u2 3.401932349848185
u3 -1.269568424562455
duration 0.0893 0.0047
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS , TKAA , BLEW , LDYA
Light curve chart for 0003426
Parameter Value Uncertainty
Am1 2.2 0.31
Am2 -0.53 0.21
a/Rs 7.4 0.31
Rp/Rs 0.278 0.081
ephemeris [JD] 2459159.887 0.011
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.625754301454501
u1 -2.758250377105468
u2 3.4021598748439397
u3 -1.26966374849684
duration 0.076 0.011
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WJEC (collaborate/publish) MOBS
Light curve chart for 0000886
Parameter Value Uncertainty
Am1 0.9871 0.0086
Am2 0.01 0.0096
a/Rs 7.35 0.28
Rp/Rs 0.126 0.012
ephemeris [JD] 2459165.766 0.0024
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6247534725670756
u1 -2.7566709322422196
u2 3.40111593766534
u3 -1.269198427309619
duration 0.0773 0.0044
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRJB (collaborate/publish) MOBS , TKAA , LDYA , BLEW
Light curve chart for 0003835
Parameter Value Uncertainty
Am1 1.11 0.012
Am2 -0.056 0.035
a/Rs 7.2 0.3
Rp/Rs 0.216 0.031
ephemeris [JD] 2459167.7193 0.0034
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.626016341468704
u1 -2.759097825649691
u2 3.4031442834968653
u3 -1.2700627486050768
duration 0.0777 0.0046
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WJEC (collaborate/publish) MOBS
Light curve chart for 0000620
Parameter Value Uncertainty
Am1 0.993 0.011
Am2 0.0051 0.002
a/Rs 6.95 0.27
Rp/Rs 0.1683 0.0088
ephemeris [JD] 2459208.7768 0.0022
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.625172840265942
u1 -2.7576225471387357
u2 3.4021042349117305
u3 -1.2696544773436336
duration 0.0883 0.0048
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO TKAA (collaborate/publish) MOBS
Light curve chart for 0000892
Parameter Value Uncertainty
Am1 1.015 0.012
Am2 -0.007 0.02
a/Rs 6.89 0.25
Rp/Rs 0.156 0.012
ephemeris [JD] 2459214.6357 0.0024
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.909074436476688
u1 -3.3607291627956664
u2 3.8540341009412087
u3 -1.402379317192647
duration 0.0882 0.0046
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0002695
Parameter Value Uncertainty
Am1 1.108 0.015
Am2 -0.068 0.039
a/Rs 7.91 0.15
Rp/Rs 0.189 0.017
ephemeris [JD] 2459509.8551 0.0022
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.909534228760328
u1 -3.362460334239813
u2 3.8561687462097156
u3 -1.4032425832688382
duration 0.0753 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0002696
Parameter Value Uncertainty
Am1 0.99 0.011
Am2 0.013 0.013
a/Rs 7.91 0.1
Rp/Rs 0.1895 0.0092
ephemeris [JD] 2459511.8117 0.0016
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.909081788177807
u1 -3.360675406284244
u2 3.8537796065459617
u3 -1.4021859310137335
duration 0.0753 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0001153
Parameter Value Uncertainty
Am1 1.045 0.012
Am2 -0.028 0.018
a/Rs 7.08 0.27
Rp/Rs 0.168 0.012
ephemeris [JD] 2459560.69 0.0021
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.9093199585638063
u1 -3.3611710087342463
u2 3.854250333248642
u3 -1.402399225645397
duration 0.0865 0.0048
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0002701
Parameter Value Uncertainty
Am1 1.231 0.013
Am2 -0.111 0.014
a/Rs 6.87 0.31
Rp/Rs 0.145 0.048
ephemeris [JD] 2459605.6488 0.0097
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6257417907245864
u1 -2.758241915085472
u2 3.4022294810615494
u3 -1.269729306003494
duration 0.0871 0.0077
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO YLUA (collaborate/publish) MOBS
Light curve chart for 0002703
Parameter Value Uncertainty
Am1 1.0008 0.006
Am2 -0.0 0.0034
a/Rs 6.84 0.21
Rp/Rs 0.1318 0.0059
ephemeris [JD] 2459605.6535 0.0022
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.909534640146501
u1 -3.3614752619472674
u2 3.854500691010352
u3 -1.402560011773049
duration 0.0865 0.0039
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0003618
Parameter Value Uncertainty
Am1 1.0148 0.0056
Am2 -0.0121 0.0045
a/Rs 7.59 0.22
Rp/Rs 0.1429 0.0048
ephemeris [JD] 2459895.0086 0.0014
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6255724594462697
u1 -2.758591446830702
u2 3.4030673892605736
u3 -1.2700483511664857
duration 0.0754 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO HDOB (collaborate/publish)
Light curve chart for 0002790
Parameter Value Uncertainty
Am1 1.098 0.013
Am2 -0.062 0.023
a/Rs 6.96 0.29
Rp/Rs 0.147 0.016
ephemeris [JD] 2459904.7766 0.0031
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.909082340747898
u1 -3.3607709106859476
u2 3.8539771994414536
u3 -1.4022885720746685
duration 0.0862 0.0053
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KMUA (collaborate/publish) MOBS
Light curve chart for 0003268
Parameter Value Uncertainty
Am1 0.988 0.011
Am2 0.008 0.013
a/Rs 7.22 0.28
Rp/Rs 0.154 0.01
ephemeris [JD] 2459906.7339 0.0023
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6259535266355722
u1 -2.758743717891814
u2 3.402799511221
u3 -1.270009269259094
duration 0.0826 0.0049
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO BPIA (collaborate/publish) MOBS
Light curve chart for 0002173
Parameter Value Uncertainty
Am1 1.196 0.011
Am2 -0.112 0.016
a/Rs 7.9 0.32
Rp/Rs 0.133 0.038
ephemeris [JD] 2459908.7096 0.0085
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.9094658136333538
u1 -3.361519692916955
u2 3.8545798839126686
u3 -1.4025259471913518
duration 0.0695 0.006
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0002367
Parameter Value Uncertainty
Am1 0.988 0.01
Am2 0.008 0.01
a/Rs 7.62 0.26
Rp/Rs 0.146 0.012
ephemeris [JD] 2459953.6605 0.0024
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6248720314917005
u1 -2.756674358811009
u2 3.400947548862958
u3 -1.2691451708655812
duration 0.0752 0.0041
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CGIA (collaborate/publish) MOBS
Light curve chart for 0003174
Parameter Value Uncertainty
Am1 0.991 0.01
Am2 0.005 0.014
a/Rs 6.82 0.23
Rp/Rs 0.105 0.016
ephemeris [JD] 2459959.5209 0.0033
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.5373840604695945
u1 -4.475061120537128
u2 4.508747189478965
u3 -1.571070062225862
duration 0.0696 0.0039
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
AAVSO RWEA (collaborate/publish) DLMA
Light curve chart for 0002347
Parameter Value Uncertainty
Am1 0.999 0.01
Am2 0.0004 0.002
a/Rs 7.59 0.17
Rp/Rs 0.1519 0.0046
ephemeris [JD] 2459965.39145 0.00099
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6248241452091852
u1 -2.7568692092459544
u2 3.4013753306073826
u3 -1.2693302158861712
duration 0.0766 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO VJCA (collaborate/publish) RJLA
Light curve chart for 0004481
Parameter Value Uncertainty
Am1 1.2373 0.0093
Am2 -0.142 0.02
a/Rs 7.39 0.31
Rp/Rs 0.135 0.03
ephemeris [JD] 2460203.9186 0.0068
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 1.6260792179039227
u1 -2.7584769288814366
u2 3.402069604852186
u3 -1.2696718431798848
duration 0.0778 0.0058
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CPHB (collaborate/publish) MOBS
Light curve chart for 740ea3779150cf218248784a9c79e97e
Parameter Value Uncertainty
Am1 1.0003 0.004
Am2 0
a/Rs 7.6 0.057
Rp/Rs 0.1333 0.0014
ephemeris [JD] 2459161.84898 0.00034
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.5375002214753626
u1 -4.476052124210391
u2 4.510327819944774
u3 -1.5717758500006238
duration 0.07417 0.00091
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 13d6caa2d82ee2d02647e4a53b09125b
Parameter Value Uncertainty
Am1 1.0001 0.0039
Am2 0
a/Rs 7.675 0.063
Rp/Rs 0.132 0.0014
ephemeris [JD] 2459167.71517 0.00037
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.5363519127927825
u1 -4.472889589621164
u2 4.506850473765602
u3 -1.570312729779915
duration 0.07321 0.00096
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 12d41161db90c6e194e2c4b490be37d6
Parameter Value Uncertainty
Am1 0.9999 0.0039
Am2 0
a/Rs 7.587 0.057
Rp/Rs 0.1324 0.0014
ephemeris [JD] 2459146.20816 0.00034
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.5370572925562827
u1 -4.4750100527253185
u2 4.509322679206757
u3 -1.5713698518435772
duration 0.07467 0.00089
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fcb5e16d818059ad6cac1d3e527d1062
Parameter Value Uncertainty
Am1 1.0001 0.0016
Am2 0
a/Rs 7.713 0.084
Rp/Rs 0.1359 0.0019
ephemeris [JD] 2458434.55406 0.00052
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.5364607190846593
u1 -4.473172883562262
u2 4.507244641978618
u3 -1.5705324103378357
duration 0.073 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3ffdbcfb153097df1c8cd3a74cf795d6
Parameter Value Uncertainty
Am1 1.0001 0.0018
Am2 0
a/Rs 7.717 0.084
Rp/Rs 0.135 0.002
ephemeris [JD] 2458426.73392 0.00053
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.537000901682525
u1 -4.474773423620899
u2 4.509034417178227
u3 -1.5712618280500035
duration 0.0726 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 623beeded57e34425897e512ba6cfbfe
Parameter Value Uncertainty
Am1 0.9999 0.0039
Am2 0
a/Rs 7.516 0.061
Rp/Rs 0.1309 0.0014
ephemeris [JD] 2459154.02913 0.00039
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.5366851976587057
u1 -4.473939172843038
u2 4.508196007926767
u3 -1.570941965565079
duration 0.07516 0.00097
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 52dbd6b3f22fcfb0594b210af59479a1
Parameter Value Uncertainty
Am1 1.0007 0.0018
Am2 0
a/Rs 7.688 0.09
Rp/Rs 0.1356 0.0021
ephemeris [JD] 2458413.04802 0.00054
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.5363870402937954
u1 -4.473258235886713
u2 4.507529422920195
u3 -1.5706581601598542
duration 0.073 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 407b65671ec8819493e9c24cb2c008e9
Parameter Value Uncertainty
Am1 0.9995 0.0041
Am2 0
a/Rs 7.59 0.064
Rp/Rs 0.1329 0.0015
ephemeris [JD] 2459169.66863 0.00039
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.5367290298558993
u1 -4.474068998987039
u2 4.508213300710164
u3 -1.5708732644014107
duration 0.0742 0.001
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d9e7baeefe2cfe228c8fb4eb5073060d
Parameter Value Uncertainty
Am1 0.9996 0.0018
Am2 0
a/Rs 7.633 0.093
Rp/Rs 0.1331 0.0022
ephemeris [JD] 2458424.77867 0.00056
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.5370609314837314
u1 -4.474989180158808
u2 4.509293585751276
u3 -1.571365269882489
duration 0.0736 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 5a7535ecf4aa9481bc9738a63cca62e2
Parameter Value Uncertainty
Am1 1.0006 0.0019
Am2 0
a/Rs 7.59 0.1
Rp/Rs 0.132 0.0025
ephemeris [JD] 2458411.09333 0.00063
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.5370483259537338
u1 -4.474317322963024
u2 4.508140543565146
u3 -1.5708714793793268
duration 0.0742 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4ca098ad6f39f96abedfbe081ccfaabf
Parameter Value Uncertainty
Am1 1.0001 0.0016
Am2 0
a/Rs 7.708 0.084
Rp/Rs 0.1363 0.0022
ephemeris [JD] 2458416.95875 0.0005
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.5367534575174964
u1 -4.474337312711202
u2 4.508660720108662
u3 -1.5710767977306763
duration 0.0728 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for e8d2370860cfb5527c7e2db2eb715705
Parameter Value Uncertainty
Am1 1.0004 0.0018
Am2 0
a/Rs 7.626 0.079
Rp/Rs 0.1356 0.0019
ephemeris [JD] 2458432.59941 0.0005
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.536762395094338
u1 -4.4737574307680905
u2 4.507618143180064
u3 -1.5706230403375674
duration 0.074 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 06fb6f07d6c8f19c4dde34b6cf51bcbe
Parameter Value Uncertainty
Am1 0.9995 0.0018
Am2 0
a/Rs 7.706 0.084
Rp/Rs 0.1323 0.0019
ephemeris [JD] 2458430.64397 0.00052
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.5369690075784974
u1 -4.47467502774669
u2 4.508919913375565
u3 -1.5712138260192297
duration 0.0726 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9d7f0c89ea7b482aa7ce4e7540f7b692
Parameter Value Uncertainty
Am1 1.0001 0.0039
Am2 0
a/Rs 7.65 0.062
Rp/Rs 0.1307 0.0014
ephemeris [JD] 2459159.89344 0.00038
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.536794319147853
u1 -4.474182534345992
u2 4.508331367588514
u3 -1.570943085211003
duration 0.07318 0.00091
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for bb70f804b2a06a3b4a71341bf9062830
Parameter Value Uncertainty
Am1 1.0 0.0039
Am2 0
a/Rs 7.696 0.061
Rp/Rs 0.1338 0.0014
ephemeris [JD] 2459165.75889 0.00037
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.537203852888533
u1 -4.4745255814309095
u2 4.508132806774198
u3 -1.570811011055408
duration 0.07318 0.00093
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 11ea2652e95c05d3f9dcb5a69485b46f
Parameter Value Uncertainty
Am1 1.0001 0.0039
Am2 0
a/Rs 7.745 0.058
Rp/Rs 0.1339 0.0014
ephemeris [JD] 2459150.11789 0.00036
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.536588368902609
u1 -4.473507536704882
u2 4.507625559058252
u3 -1.5707063240871246
duration 0.07223 0.00086
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a5b5433a16f6ba93515cf52f18562514
Parameter Value Uncertainty
Am1 1.0002 0.0039
Am2 0
a/Rs 7.681 0.058
Rp/Rs 0.1345 0.0014
ephemeris [JD] 2459148.16333 0.00035
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.536715567592555
u1 -4.474181094385198
u2 4.508589841235009
u3 -1.5711242472591427
duration 0.07322 0.00089
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8e404682ca38f13bf0d6027ea31b67f8
Parameter Value Uncertainty
Am1 0.9999 0.0017
Am2 0
a/Rs 7.557 0.088
Rp/Rs 0.1355 0.0021
ephemeris [JD] 2458415.00315 0.00054
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.537157833894091
u1 -4.474979710559155
u2 4.509051377655722
u3 -1.571229433800557
duration 0.075 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 407774def7950ab35d3fb968e9b416de
Parameter Value Uncertainty
Am1 0.9999 0.0042
Am2 0
a/Rs 7.711 0.066
Rp/Rs 0.1333 0.0015
ephemeris [JD] 2459163.80355 0.0004
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.536511065545203
u1 -4.473756049030443
u2 4.508265206919307
u3 -1.5710201562556811
duration 0.07269 0.00099
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 41d52fe467029744092aa33fc08c090c
Parameter Value Uncertainty
Am1 0.9997 0.004
Am2 0
a/Rs 7.674 0.058
Rp/Rs 0.1341 0.0014
ephemeris [JD] 2459152.07305 0.00035
eccentricity 0.022
inclination [degrees] 84.88
omega [degrees] 44.0
orbital period [days] 1.9550931
u0 2.5375245904810266
u1 -4.475736264492806
u2 4.509662925672882
u3 -1.5714511844618886
duration 0.07322 0.00089
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
