WASP-39 b

View target in exoplanet catalog
Timing Plot
Global Light Curve
Lomb-Scargle Periodogram

Total Reductions to Date: 46

Date Processed: 05/06/2025 at 07:00:04 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 4.0552803396189585 8.425897317058824e-08
Ephemeris (BJD_TDB) 2460460.7333167554 1.6271322871317133e-05

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 217.3266477 decimal
DEC -3.4444994 decimal
Host Star Metallicity -0.03 0.1 Panek et al. 2023
Host Star log(g) 4.38933 0.089088 Log10(cgs) Panek et al. 2023
Host Star Radius [R_Sun] 1.01342 0.071232 Sol Panek et al. 2023
Host Star Effective Temperature [K] 5326.6 154.53 K Panek et al. 2023
a/Rs 11.39 0.012 Carter et al. 2024
eccentricity 0.0 Carter et al. 2024
inclination [degrees] 87.7369 0.0024 deg Carter et al. 2024
omega [degrees] 0.0 deg Ricci et al. 2015
orbital period [days] 4.0552842 3.5e-06 day Carter et al. 2024
Rp 15.24 0.45 R_Earth Panek et al. 2023
Rp/Rs 0.1522 0 ExoFOP-TESS TOI
ephemeris [JD] 2459783.5015 6.8e-06 BJD-TDB Carter et al. 2024

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2455342.9695471167 0.00031316666666666667 BJD-TDB, HJD Mancini et al. 2018, Bonomo et al. 2017, Fischer et al. 2016, Maciejewski et al. 2016, Ricci et al. 2015, Faedi et al. 2011
2456401.39763 0.00013 BJD-TDB Ivshina & Winn 2022
2456888.031364 8e-05 BJD-TDB Kokori et al. 2023
2459694.285977 0.00080364 BJD ExoFOP-TESS TOI
2459783.5015 6.8e-06 BJD-TDB Carter et al. 2024

Observations

Light curve chart for 0007704
Parameter Value Uncertainty
Am1 1.316 0.011
Am2 -0.146 0.019
a/Rs 11.373 0.034
Rp/Rs 0.163 0.041
ephemeris [JD] 2455630.8927 0.0091
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6121094645093361
u1 -2.7550882993056804
u2 3.392450127315308
u3 -1.2494712419675174
duration 0.1217 0.005
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO TABC (collaborate/publish) MOBS
Light curve chart for 0006738
Parameter Value Uncertainty
Am1 1.0822 0.0084
Am2 -0.057 0.081
a/Rs 11.449 0.034
Rp/Rs 0.174 0.026
ephemeris [JD] 2455634.9454 0.0026
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6111721874481335
u1 -2.753455857646958
u2 3.391254810827485
u3 -1.2489710900950262
duration 0.1223 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO OPAA (collaborate/publish) MOBS
Light curve chart for 0011283
Parameter Value Uncertainty
Am1 0.985 0.013
Am2 0.0114 0.0028
a/Rs 11.333 0.035
Rp/Rs 0.136 0.011
ephemeris [JD] 2455703.8855 0.0062
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6117669045944067
u1 -2.754270725846383
u2 3.3917688852389967
u3 -1.2492650134457253
duration 0.1191 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MJOU (collaborate/publish) MOBS
Light curve chart for 0010166
Parameter Value Uncertainty
Am1 1.504 0.082
Am2 -0.218 0.071
a/Rs 11.385 0.034
Rp/Rs 0.055 0.088
ephemeris [JD] 2455764.699 0.012
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6114574672532367
u1 -2.7536651691455916
u2 3.3910735272862755
u3 -1.2488657748629874
duration 0.0521 0.0057
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO TRIC (collaborate/publish) MOBS
Light curve chart for 0002944
Parameter Value Uncertainty
Am1 0.9745 0.0098
Am2 0.0173 0.0038
a/Rs 11.385 0.035
Rp/Rs 0.159 0.015
ephemeris [JD] 2455991.7979 0.0051
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6123717226155705
u1 -2.755249218822094
u2 3.392220864910689
u3 -1.2493433181561353
duration 0.0931 0.0051
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO HTAB (collaborate/publish) MOBS
Light curve chart for 0007545
Parameter Value Uncertainty
Am1 1.016 0.01
Am2 -0.013 0.016
a/Rs 11.332 0.035
Rp/Rs 0.169 0.012
ephemeris [JD] 2455999.9279 0.0023
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.610343962199927
u1 -2.751483211290577
u2 3.3893526842982644
u3 -1.2482133847023236
duration 0.1234 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DEDC (collaborate/publish) MOBS
Light curve chart for 0009246
Parameter Value Uncertainty
Am1 1.068 0.014
Am2 -0.053 0.044
a/Rs 11.348 0.034
Rp/Rs 0.133 0.026
ephemeris [JD] 2456056.716 0.0054
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6119022616290444
u1 -2.754683109028831
u2 3.3921679345626363
u3 -1.2493870366156083
duration 0.0851 0.0056
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WGAC (collaborate/publish) MOBS
Light curve chart for 0007487
Parameter Value Uncertainty
Am1 0.931 0.012
Am2 0.052 0.016
a/Rs 11.333 0.035
Rp/Rs 0.155 0.011
ephemeris [JD] 2456060.7557 0.0024
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6118807652310556
u1 -2.7545937129656726
u2 3.3917850429013714
u3 -1.249072044625219
duration 0.1215 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DJSA (collaborate/publish) MOBS
Light curve chart for 0008669
Parameter Value Uncertainty
Am1 1.597 0.02
Am2 -0.298 0.035
a/Rs 11.402 0.035
Rp/Rs 0.176 0.057
ephemeris [JD] 2456064.802 0.01
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6112088411958114
u1 -2.752735828607387
u2 3.3901549890332765
u3 -1.2486279511044551
duration 0.123 0.007
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

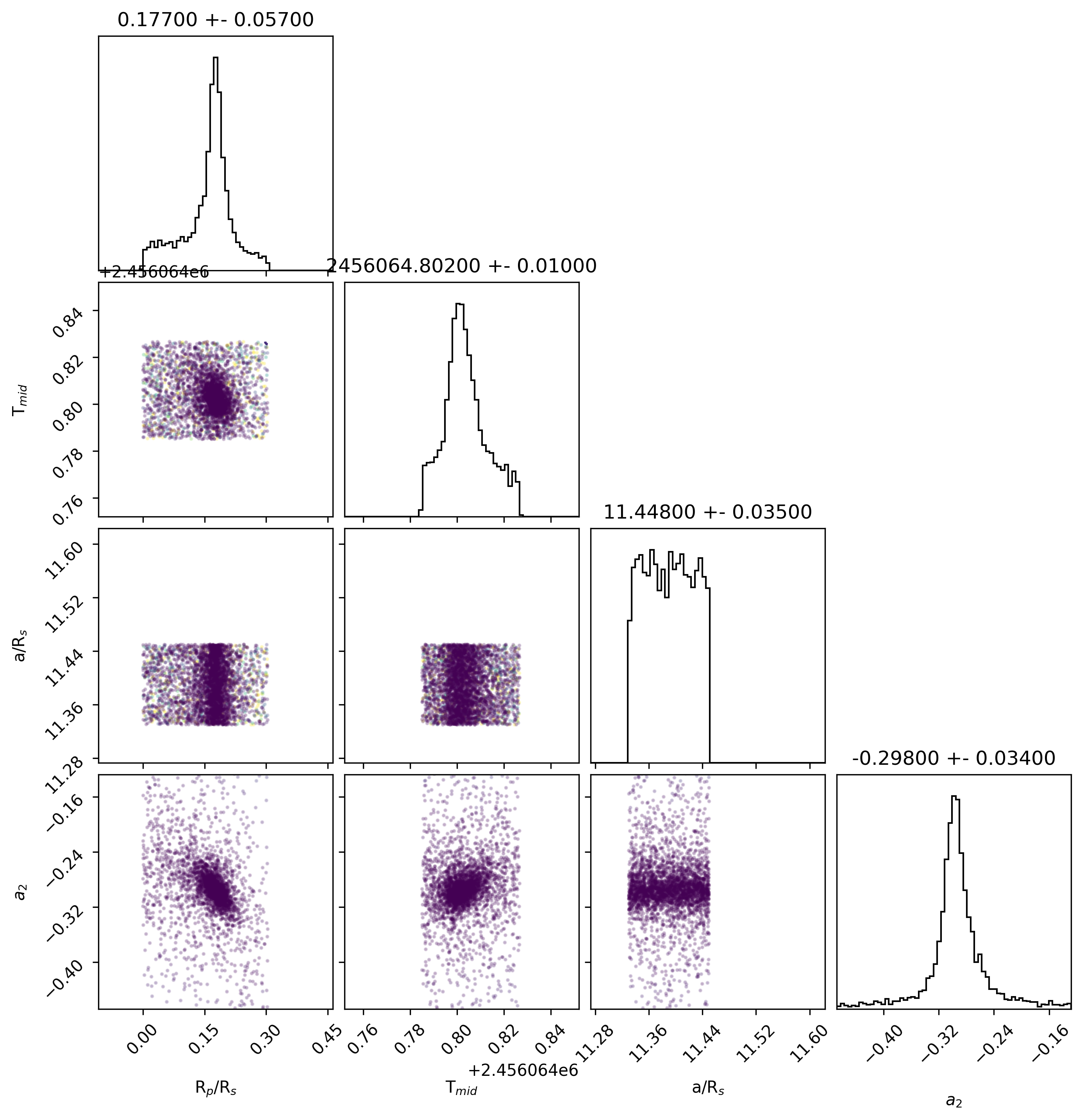

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SDAU (collaborate/publish) MOBS
Light curve chart for 0011289
Parameter Value Uncertainty
Am1 0.995 0.014
Am2 0.0029 0.0023
a/Rs 11.334 0.035
Rp/Rs 0.174 0.01
ephemeris [JD] 2456068.8531 0.0027
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6122541850815761
u1 -2.7554017262007298
u2 3.392785616230426
u3 -1.2496380245548266
duration 0.124 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

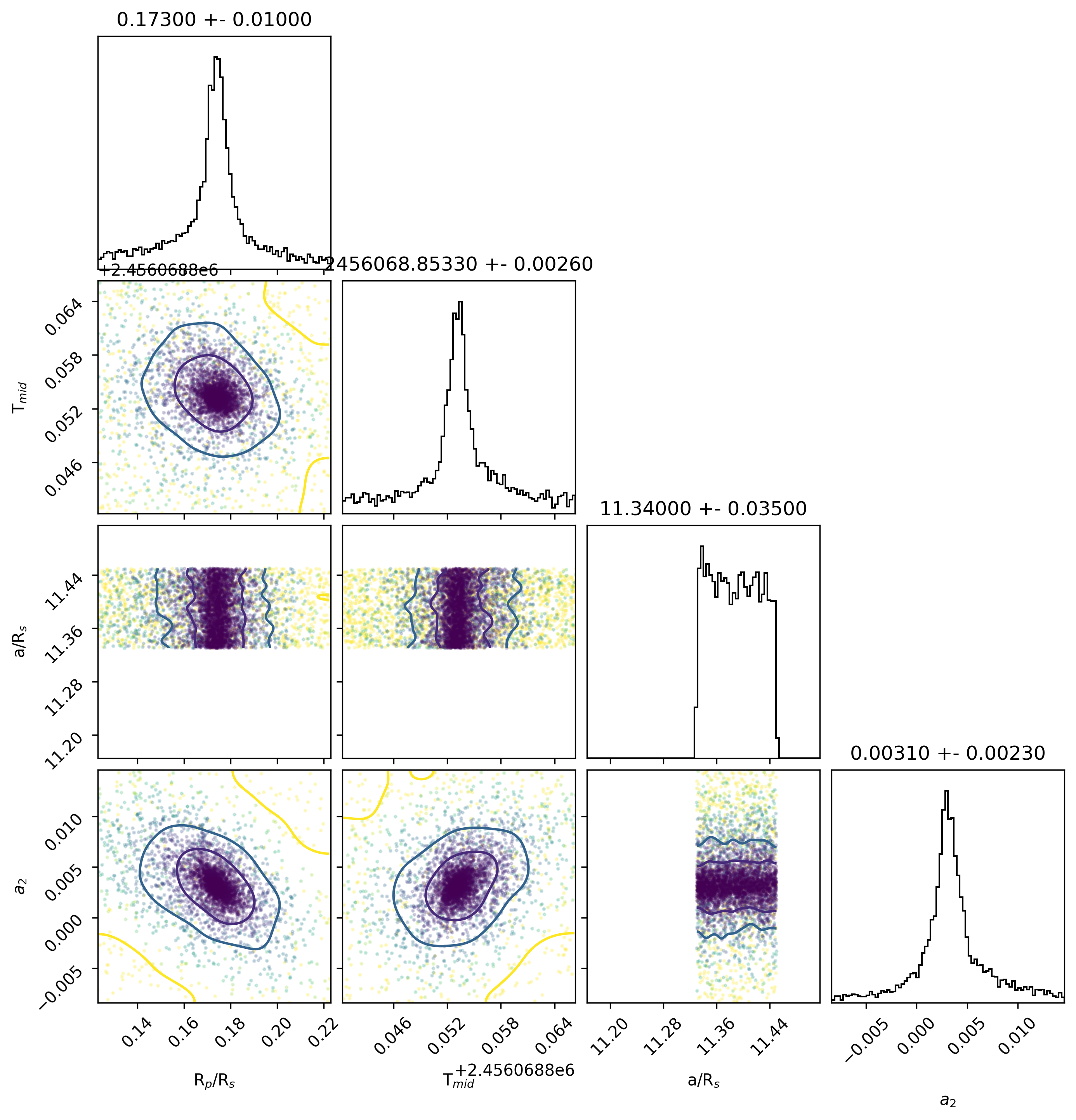

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FBIA (collaborate/publish) MOBS
Light curve chart for 0010929
Parameter Value Uncertainty
Am1 1.013 0.015
Am2 -0.0098 0.0058
a/Rs 11.332 0.034
Rp/Rs 0.132 0.026
ephemeris [JD] 2456360.8412 0.0076
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6099581181668035
u1 -2.751226502183606
u2 3.3894997552010206
u3 -1.248231320676736
duration 0.1186 0.0033
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SPIC (collaborate/publish) MOBS
Light curve chart for 0010846
Parameter Value Uncertainty
Am1 1.211 0.017
Am2 -0.127 0.016
a/Rs 11.363 0.035
Rp/Rs 0.158 0.025
ephemeris [JD] 2456364.9073 0.0083
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6117607015499402
u1 -2.754539803928052
u2 3.3922380549415854
u3 -1.2494589020151876
duration 0.1216 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KPRB (collaborate/publish) MOBS
Light curve chart for 0003721
Parameter Value Uncertainty
Am1 0.906 0.018
Am2 0.074 0.029
a/Rs 11.431 0.035
Rp/Rs 0.139 0.023
ephemeris [JD] 2456429.7923 0.0073
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6119101487429808
u1 -2.7545223681587263
u2 3.39202304753839
u3 -1.2494107775775625
duration 0.1182 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LIGA (collaborate/publish) MOBS
Light curve chart for 0011079
Parameter Value Uncertainty
Am1 1.02 0.014
Am2 -0.0092 0.0034
a/Rs 11.447 0.035
Rp/Rs 0.142 0.013
ephemeris [JD] 2456433.8358 0.0036
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6122381332539117
u1 -2.754961171014357
u2 3.3919025966985377
u3 -1.2491795083948047
duration 0.1186 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GBRG (collaborate/publish) MOBS
Light curve chart for 0003541
Parameter Value Uncertainty
Am1 1.12 0.68
Am2 -0.002 0.055
a/Rs 11.345 0.034
Rp/Rs 0.001 0.086
ephemeris [JD] 2456498.707 0.012
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.611494347643681
u1 -2.7542592418630854
u2 3.39207901550198
u3 -1.2493140707366597
duration 0.1079 0.0067
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MRAE (collaborate/publish) MOBS
Light curve chart for 0010558
Parameter Value Uncertainty
Am1 1.208 0.037
Am2 -0.154 0.042
a/Rs 11.349 0.035
Rp/Rs 0.216 0.039
ephemeris [JD] 2456790.681 0.011
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.611196107474279
u1 -2.752597776035551
u2 3.390031178039779
u3 -1.248629458963106
duration 0.108 0.011
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DJSA (collaborate/publish) MOBS
Light curve chart for 0008779
Parameter Value Uncertainty
Am1 1.37 0.58
Am2 -0.36 0.46
a/Rs 11.34 0.035
Rp/Rs 0.304 0.073
ephemeris [JD] 2456794.7778 0.0074
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6112887843640318
u1 -2.7533080211448526
u2 3.390664165144573
u3 -1.2486448778389185
duration 0.1395 0.0087
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DTEC (collaborate/publish) MOBS
Light curve chart for 0007506
Parameter Value Uncertainty
Am1 1.075 0.018
Am2 -0.051 0.014
a/Rs 11.338 0.034
Rp/Rs 0.168 0.013
ephemeris [JD] 2457163.7946 0.0036
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6107058257221023
u1 -2.7525156839334515
u2 3.390303696890526
u3 -1.2484937881597147
duration 0.1231 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SMAMA (collaborate/publish) MOBS
Light curve chart for 0002592
Parameter Value Uncertainty
Am1 1.0052 0.01
Am2 -0.0032 0.0019
a/Rs 11.333 0.034
Rp/Rs 0.1206 0.0097
ephemeris [JD] 2457459.8326 0.0032
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.610411713652898
u1 -2.7516087514177023
u2 3.3891687987463155
u3 -1.2479717104789603
duration 0.1173 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SGDA (collaborate/publish) MOBS
Light curve chart for 0007659
Parameter Value Uncertainty
Am1 0.981 0.015
Am2 0.0111 0.0023
a/Rs 11.445 0.035
Rp/Rs 0.162 0.0096
ephemeris [JD] 2457463.8837 0.0032
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6116382252068782
u1 -2.753857280521013
u2 3.391316360350127
u3 -1.2490972545014403
duration 0.121 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO HSHA (collaborate/publish) MOBS
Light curve chart for 0006270
Parameter Value Uncertainty
Am1 0.989 0.012
Am2 0.0094 0.0098
a/Rs 11.449 0.035
Rp/Rs 0.128 0.012
ephemeris [JD] 2457467.9542 0.0027
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6107753238367026
u1 -2.7521307662887295
u2 3.3896203185907168
u3 -1.2482648256294109
duration 0.1037 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MJOU (collaborate/publish) MOBS
Light curve chart for 0010877
Parameter Value Uncertainty
Am1 2.71 1.35
Am2 -0.7 0.22
a/Rs 11.394 0.035
Rp/Rs 0.003 0.082
ephemeris [JD] 2457528.784 0.012
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6106896291640238
u1 -2.7522707411640814
u2 3.3898984644812047
u3 -1.2483173019677238
duration 0.1084 0.0062
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MSPA (collaborate/publish) MOBS
Light curve chart for 0009211
Parameter Value Uncertainty
Am1 0.962 0.015
Am2 0.026 0.015
a/Rs 11.333 0.035
Rp/Rs 0.073 0.03
ephemeris [JD] 2457832.9013 0.0099
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6115498106354909
u1 -2.753590718253584
u2 3.3909949285919403
u3 -1.2489539704440853
duration 0.1113 0.004
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO ZLNA (collaborate/publish) MOBS
Light curve chart for 0006234
Parameter Value Uncertainty
Am1 1.276 0.013
Am2 -0.176 0.041
a/Rs 11.336 0.035
Rp/Rs 0.169 0.015
ephemeris [JD] 2457893.7404 0.0029
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6112236252137941
u1 -2.753200022106695
u2 3.3908684327429253
u3 -1.2488919853221478
duration 0.1229 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SPIC (collaborate/publish) MOBS
Light curve chart for 0008557
Parameter Value Uncertainty
Am1 1.173 0.016
Am2 -0.114 0.019
a/Rs 11.448 0.035
Rp/Rs 0.12 0.021
ephemeris [JD] 2458258.7156 0.0068
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6111383794707754
u1 -2.752661766345179
u2 3.3897488284217956
u3 -1.2482253910361982
duration 0.1157 0.0026
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CJOB (collaborate/publish) MOBS
Light curve chart for 0000290
Parameter Value Uncertainty
Am1 1.136 0.014
Am2 0.004 0.017
a/Rs 11.398 0.034
Rp/Rs 0.127 0.014
ephemeris [JD] 2458262.7714 0.0041
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.8995176570661758
u1 -3.3476702630570405
u2 3.823826075262837
u3 -1.3756734122925232
duration 0.1173 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0000291
Parameter Value Uncertainty
Am1 1.153 0.015
Am2 -0.003 0.027
a/Rs 11.447 0.035
Rp/Rs 0.141 0.018
ephemeris [JD] 2458627.7415 0.0034
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.8998398230383207
u1 -3.347845248196404
u2 3.8235382713585158
u3 -1.3755327892252724
duration 0.1184 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0007096
Parameter Value Uncertainty
Am1 0.98 0.028
Am2 0.0049 0.0049
a/Rs 11.336 0.035
Rp/Rs 0.177 0.017
ephemeris [JD] 2458635.8475 0.0081
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6120357005061832
u1 -2.7550111801929633
u2 3.3926024720024626
u3 -1.2496269417619663
duration 0.1241 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PMLA (collaborate/publish) MOBS
Light curve chart for 0000317
Parameter Value Uncertainty
Am1 1.1619 0.0096
Am2 -0.026 0.015
a/Rs 11.331 0.035
Rp/Rs 0.1727 0.0072
ephemeris [JD] 2458992.7232 0.0017
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.8996807877354607
u1 -3.3480873487965535
u2 3.824047559641346
u3 -1.3756409415975037
duration 0.12376 0.00098
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0011320
Parameter Value Uncertainty
Am1 0.9508 0.0089
Am2 0.0378 0.0085
a/Rs 11.449 0.034
Rp/Rs 0.1527 0.0071
ephemeris [JD] 2458996.7779 0.0023
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6098097952201817
u1 -2.750674063031716
u2 3.388964311568479
u3 -1.2480999932574415
duration 0.11992 0.001
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FSAF (collaborate/publish) MOBS
Light curve chart for 0011445
Parameter Value Uncertainty
Am1 0.45 0.2
Am2 0.74 0.23
a/Rs 11.434 0.034
Rp/Rs 0.303 0.086
ephemeris [JD] 2459000.818 0.012
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6116839957598097
u1 -2.75409157121037
u2 3.391415136802033
u3 -1.2490075108154493
duration 0.138 0.011
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO HDOD (collaborate/publish) MOBS
Light curve chart for 0007746
Parameter Value Uncertainty
Am1 1.0037 0.0091
Am2 -0.0028 0.0046
a/Rs 11.333 0.034
Rp/Rs 0.1482 0.0072
ephemeris [JD] 2459296.8674 0.0024
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6106764742326394
u1 -2.7521026644154327
u2 3.3897747713781534
u3 -1.24834853068378
duration 0.1208 0.001
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO EGRA (collaborate/publish) MOBS
Light curve chart for 0007175
Parameter Value Uncertainty
Am1 1.4 0.17
Am2 -0.21 0.33
a/Rs 11.444 0.034
Rp/Rs 0.298 0.084
ephemeris [JD] 2459361.74 0.012
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6106371844183958
u1 -2.7516572241604287
u2 3.3891987940632116
u3 -1.2481787038181809
duration 0.137 0.01
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GJAM (collaborate/publish) MOBS
Light curve chart for 0007895
Parameter Value Uncertainty
Am1 1.009 0.027
Am2 -0.0046 0.0091
a/Rs 11.333 0.034
Rp/Rs 0.225 0.014
ephemeris [JD] 2459661.8545 0.0028
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.611970573923418
u1 -2.7546767241731316
u2 3.392124612210327
u3 -1.2494184114140179
duration 0.1301 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CELD (collaborate/publish) MOBS
Light curve chart for 0005780
Parameter Value Uncertainty
Am1 0.95 0.014
Am2 0.033 0.028
a/Rs 11.361 0.034
Rp/Rs 0.181 0.014
ephemeris [JD] 2459665.8989 0.0023
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.610777855906858
u1 -2.7525101797863103
u2 3.3903973141913326
u3 -1.2486649397910234
duration 0.1245 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MJAT (collaborate/publish) MOBS
Light curve chart for 0006328
Parameter Value Uncertainty
Am1 0.971 0.014
Am2 0.021 0.015
a/Rs 11.334 0.034
Rp/Rs 0.137 0.014
ephemeris [JD] 2459669.9727 0.0062
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6115733058007606
u1 -2.753936366982082
u2 3.391353374105573
u3 -1.2489902623891482
duration 0.1169 0.0047
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO ETFA (collaborate/publish)
Light curve chart for 0010998
Parameter Value Uncertainty
Am1 1.304 0.011
Am2 -0.136 0.022
a/Rs 11.446 0.034
Rp/Rs 0.164 0.05
ephemeris [JD] 2459730.7837 0.0081
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.612123762987012
u1 -2.7554338180402613
u2 3.392854619765004
u3 -1.2495445141542811
duration 0.117 0.0067
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CVIH (collaborate/publish) MOBS
Light curve chart for 0003146
Parameter Value Uncertainty
Am1 0.9749 0.0088
Am2 0.0163 0.0071
a/Rs 11.337 0.034
Rp/Rs 0.1636 0.0069
ephemeris [JD] 2460030.8722 0.0018
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6108445276689318
u1 -2.75218489829198
u2 3.389588739384587
u3 -1.2482483182527306
duration 0.12263 0.00096
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PAIB (collaborate/publish) MOBS
Light curve chart for 0003692
Parameter Value Uncertainty
Am1 0.25582 0.00099
Am2 1.0 0.49
a/Rs 11.441 0.035
Rp/Rs 0.218 0.088
ephemeris [JD] 2460095.753 0.012
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.9001160964477557
u1 -3.3492621969393457
u2 3.8256783824241816
u3 -1.3765322249255414
duration 0.129 0.011
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO TKVA (collaborate/publish) MOBS
Light curve chart for 0003698
Parameter Value Uncertainty
Am1 0.973 0.016
Am2 0.018 0.028
a/Rs 11.434 0.035
Rp/Rs 0.151 0.021
ephemeris [JD] 2460095.7677 0.0086
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.9006084878279481
u1 -3.3499209328041624
u2 3.8258869946737373
u3 -1.3765744926873644
duration 0.1198 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KMUA (collaborate/publish) MOBS
Light curve chart for 0003715
Parameter Value Uncertainty
Am1 1.014 0.013
Am2 0.006 0.01
a/Rs 11.334 0.034
Rp/Rs 0.151 0.017
ephemeris [JD] 2460099.8182 0.0039
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.899000538573074
u1 -3.3462915602016063
u2 3.822243385437326
u3 -1.3749523068529284
duration 0.1168 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0005809
Parameter Value Uncertainty
Am1 0.872 0.038
Am2 0.104 0.038
a/Rs 11.332 0.034
Rp/Rs 0.077 0.047
ephemeris [JD] 2460395.859 0.012
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.6119127249145428
u1 -2.754297406171006
u2 3.3914187644355342
u3 -1.2490340326429932
duration 0.1118 0.0055
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MMCC (collaborate/publish) MOBS
Light curve chart for 0006365
Parameter Value Uncertainty
Am1 0.9907 0.0042
Am2 0.0044 0.0018
a/Rs 11.44 0.034
Rp/Rs 0.1474 0.0058
ephemeris [JD] 2460460.73 0.0018
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 1.8998031352456481
u1 -3.348053619633886
u2 3.824086128806595
u3 -1.3758355874350334
duration 0.11921 0.00082
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO AAMF (collaborate/publish)
Light curve chart for b6372e8c143b176e44a565275e3273ba
Parameter Value Uncertainty
Am1 1.0013 0.0026
Am2 0
a/Rs 11.33 0.034
Rp/Rs 0.1444 0.0023
ephemeris [JD] 2459706.45025 0.00088
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 2.5103877341515224
u1 -4.411565050867529
u2 4.439779485042786
u3 -1.538602102168909
duration 0.12012 0.00054
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6f4bc1876711898566e43b4f9675499c
Parameter Value Uncertainty
Am1 1.0013 0.0024
Am2 0
a/Rs 11.333 0.034
Rp/Rs 0.1445 0.0024
ephemeris [JD] 2459714.56058 0.00094
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 2.5096387100557553
u1 -4.409381807119963
u2 4.437507802737709
u3 -1.5377646395494828
duration 0.12012 0.00056
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 7393f4d0bcb311e34551746909c2a05d
Parameter Value Uncertainty
Am1 1.0003 0.0024
Am2 0
a/Rs 11.445 0.034
Rp/Rs 0.1439 0.0022
ephemeris [JD] 2459702.39603 0.00091
eccentricity 0.0
inclination [degrees] 87.7369
omega [degrees] 0.0
orbital period [days] 4.0552842
u0 2.5104974150566277
u1 -4.411744993593434
u2 4.439926367455617
u3 -1.5386787227587528
duration 0.11878 0.00055
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
