WASP-35 b

View target in exoplanet catalog

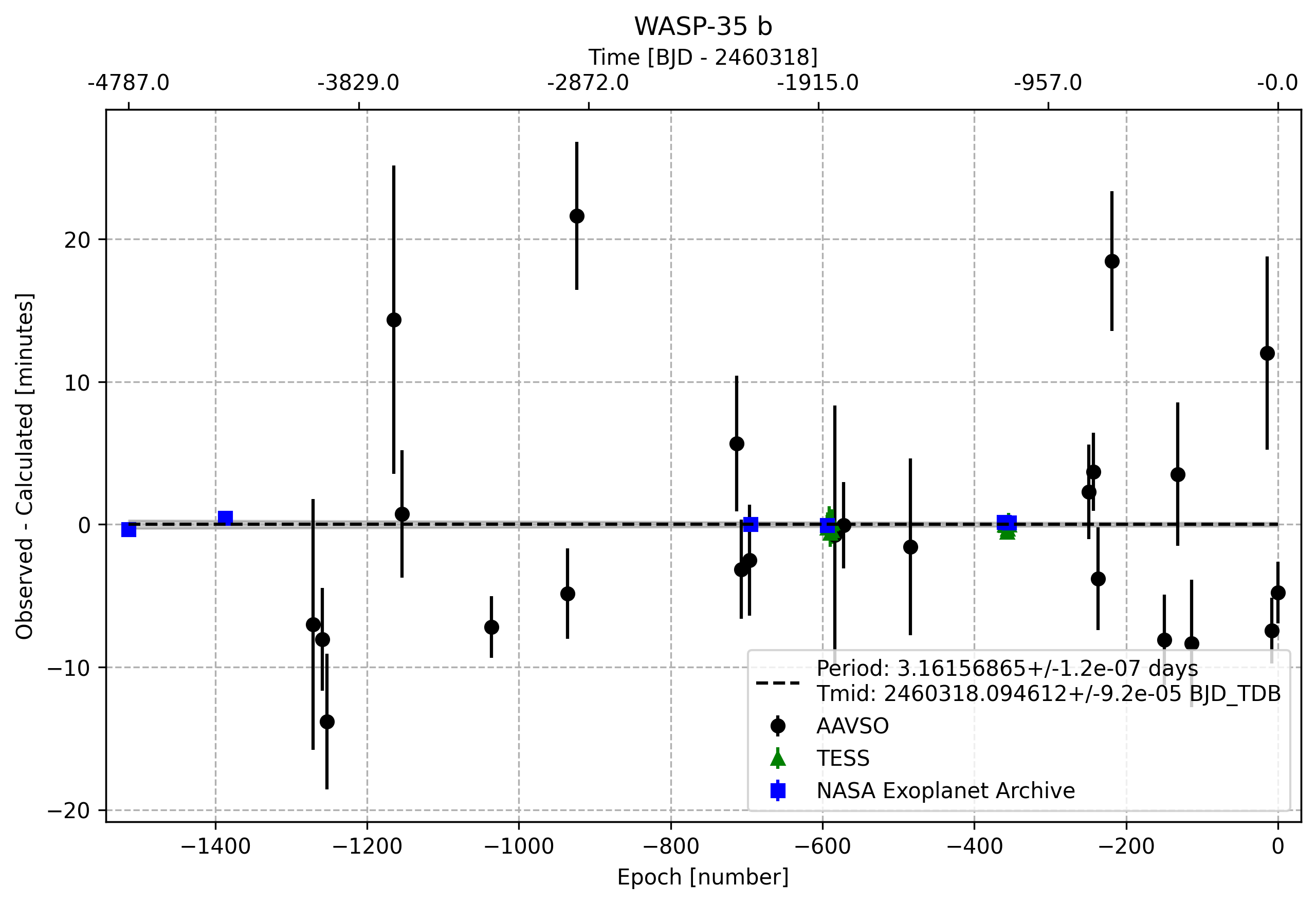

Timing Plot
Global Light Curve
Lomb-Scargle Periodogram

Total Reductions to Date: 43

Date Processed: 09/24/2023 at 00:07:22 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 3.1615686682645103 1.1491080012636364e-07
Ephemeris (BJD_TDB) 2459957.675799054 8.166301438268061e-05
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 76.0818912 decimal
DEC -6.2297801 decimal
Host Star Metallicity -0.15 0.09 Patel & Espinoza 2022
Host Star log(g) 4.4 0.01 Log10(cgs) Patel & Espinoza 2022
Host Star Radius [R_Sun] 1.08 0.06 Sol Patel & Espinoza 2022
Host Star Effective Temperature [K] 5990.0 80.0 K Patel & Espinoza 2022
a/Rs 8.37 0.13 Patel & Espinoza 2022
eccentricity 0.028 Bonomo et al. 2017
inclination [degrees] 87.96 0.31 deg Bonomo et al. 2017
omega [degrees] 0.0 deg Patel & Espinoza 2022
orbital period [days] 3.16157 6e-07 day Patel & Espinoza 2022
Rp 14.86 0.72 R_Earth ExoFOP-TESS TOI
Rp/Rs 0.1322 0 ExoFOP-TESS TOI
ephemeris [JD] 2459198.89939 0.0001 BJD Patel & Espinoza 2022

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2455531.479455 0.00015 BJD-TDB, HJD-UTC Bonomo et al. 2017, Enoch et al. 2011
2455932.9992 0.00015 BJD-TDB Kokori et al. 2022
2458440.122792 8.4e-05 BJD-TDB Ivshina & Winn 2022
2459176.768453 0.000197 BJD ExoFOP-TESS TOI
2459198.89939 0.0001 BJD Patel & Espinoza 2022

Observations

Light curve chart for 0000924
Parameter Value Uncertainty
Am1 0.9869 0.0073
Am2 0.0084 0.0092
a/Rs 7.74 0.31
Rp/Rs 0.097 0.014
ephemeris [JD] 2456299.7351 0.0057
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.05972024095347
u1 -3.6801048932160323
u2 4.172523214330106
u3 -1.5521384998921026
duration 0.1383 0.0064
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0000925
Parameter Value Uncertainty
Am1 1.2289 0.007
Am2 -0.118 0.013
a/Rs 8.98 0.37
Rp/Rs 0.105 0.047
ephemeris [JD] 2456337.671 0.011
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0599955750719943
u1 -3.680565527201417
u2 4.172834663719349
u3 -1.5522646494098438
duration 0.1188 0.0077
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

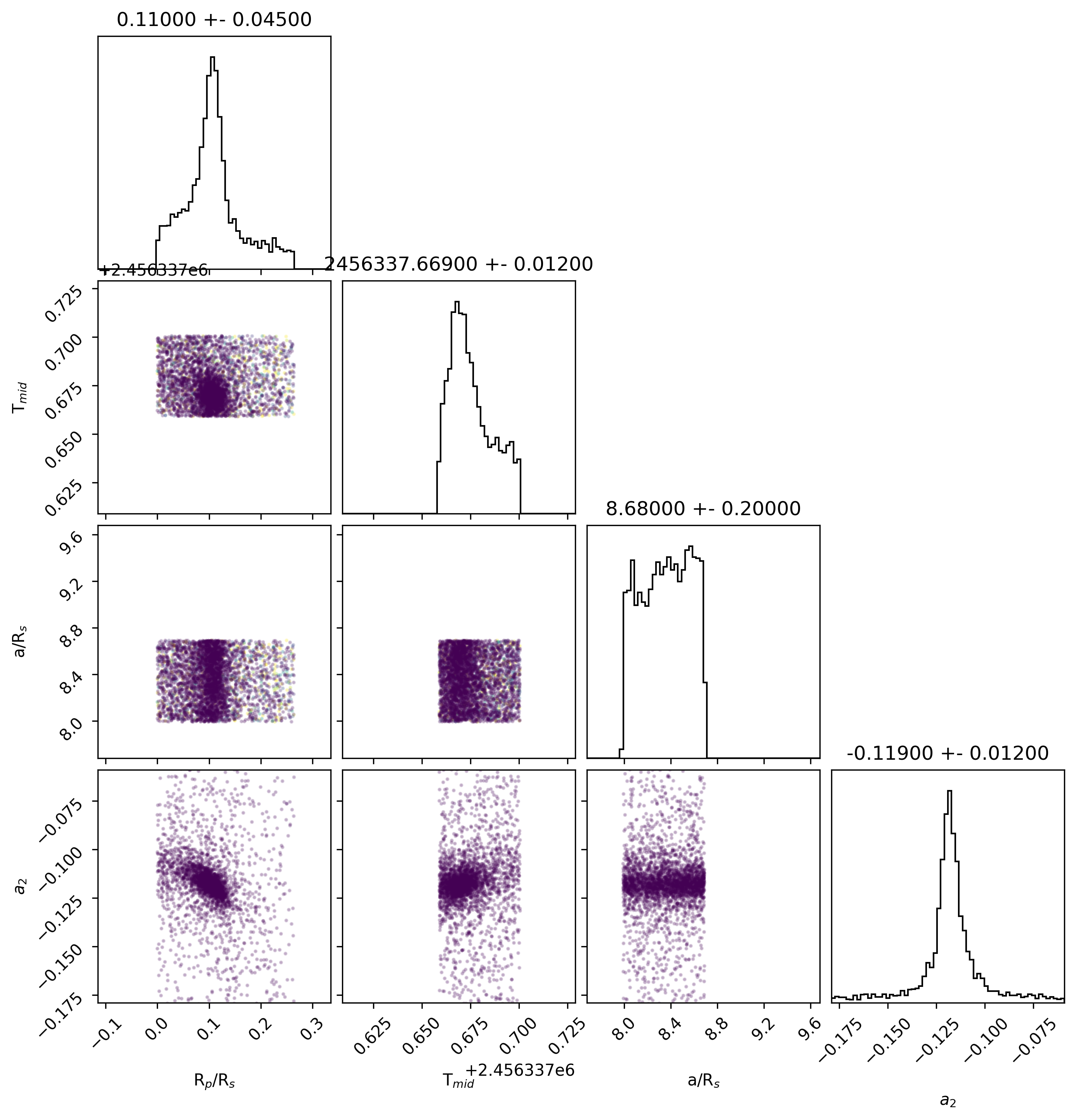

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0002341
Parameter Value Uncertainty
Am1 1.2187 0.0087
Am2 -0.126 0.015
a/Rs 8.3 0.37
Rp/Rs 0.133 0.022
ephemeris [JD] 2456615.8964 0.0065
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 1.8198136879653557
u1 -3.103008273836125
u2 3.6768881706712837
u3 -1.3936935300106112
duration 0.1328 0.0068
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GMAI (collaborate/publish) MOBS
Light curve chart for 0002654
Parameter Value Uncertainty
Am1 1.009 0.014
Am2 -0.0072 0.0049
a/Rs 7.72 0.37
Rp/Rs 0.126 0.017
ephemeris [JD] 2456634.8796 0.008
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 1.819716232976104
u1 -3.103127619810083
u2 3.677208020887712
u3 -1.393796579259063
duration 0.1432 0.0082
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MANE (collaborate/publish) MOBS
Light curve chart for 0000930
Parameter Value Uncertainty
Am1 0.9963 0.0074
Am2 0.0024 0.0043
a/Rs 8.43 0.33
Rp/Rs 0.1166 0.0064
ephemeris [JD] 2456669.6448 0.0032
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0597481663699106
u1 -3.6807972427527895
u2 4.173686955096899
u3 -1.552637816521239
duration 0.1288 0.0055
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

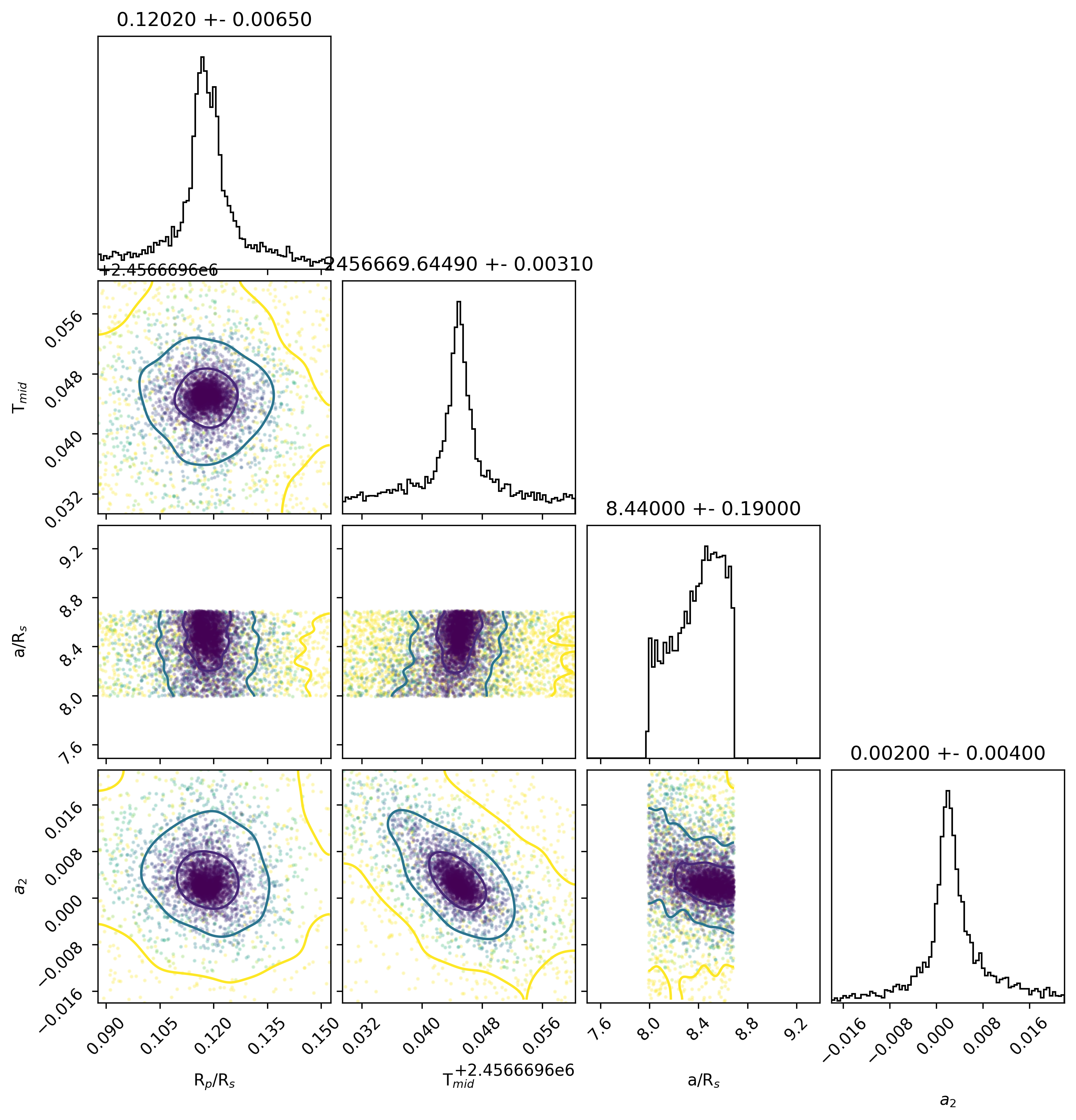

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0000934
Parameter Value Uncertainty
Am1 1.152 0.013
Am2 -0.104 0.01
a/Rs 8.53 0.37
Rp/Rs 0.122 0.058
ephemeris [JD] 2456672.813 0.012
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0600007998678764
u1 -3.680657164094516
u2 4.173093918414087
u3 -1.5524374920035022
duration 0.1282 0.0091
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

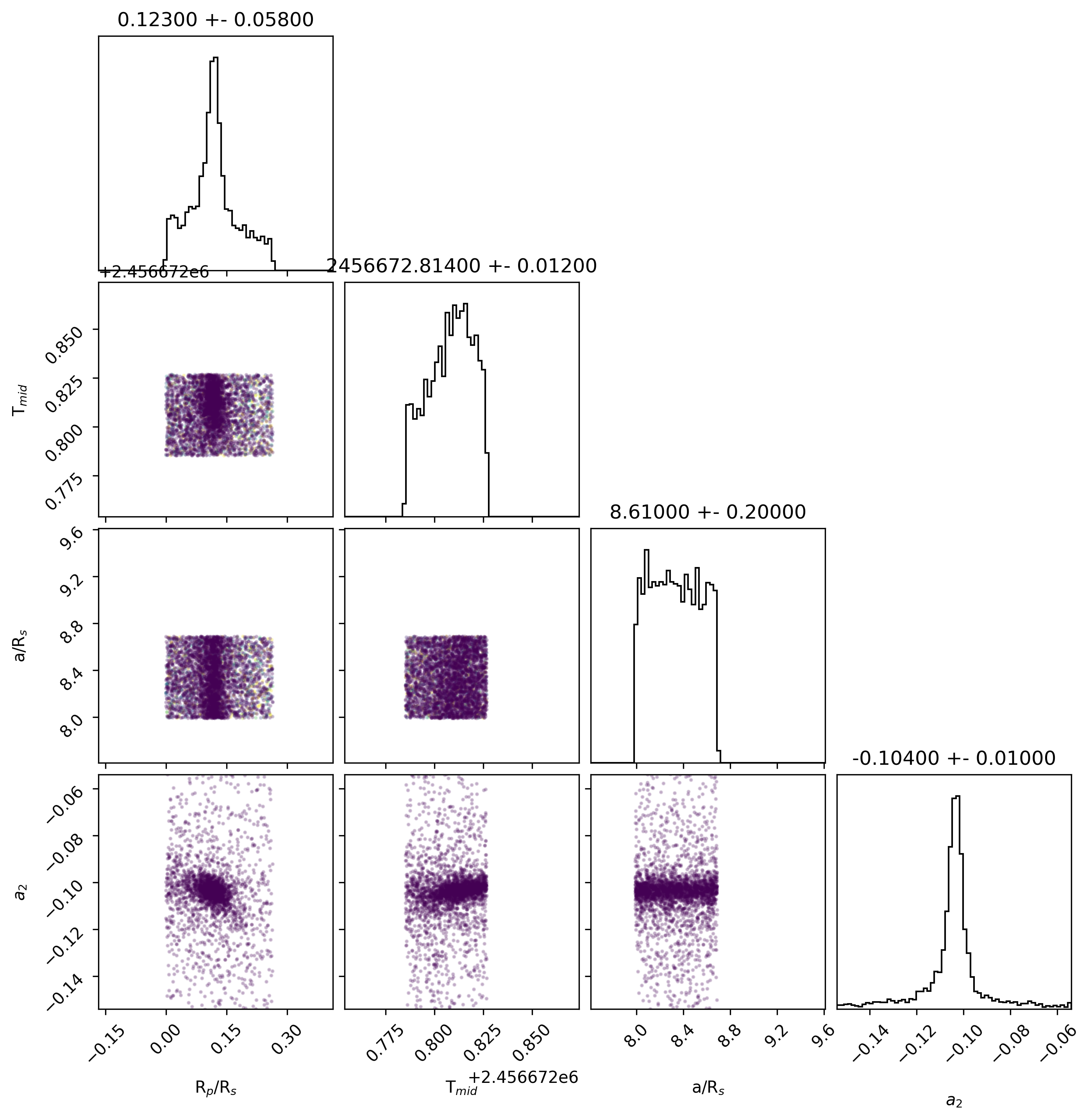

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0000935
Parameter Value Uncertainty
Am1 1.0073 0.0054
Am2 -0.0051 0.0052
a/Rs 8.54 0.21
Rp/Rs 0.136 0.0055
ephemeris [JD] 2457042.7047 0.0014
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.059925027729999
u1 -3.6802352675523893
u2 4.172416384211872
u3 -1.5521060822156327
duration 0.1295 0.0037
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0002756
Parameter Value Uncertainty
Am1 1.1552 0.0062
Am2 -0.097 0.014
a/Rs 8.87 0.37
Rp/Rs 0.1 0.022
ephemeris [JD] 2457339.8973 0.0073
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 1.8203368934522595
u1 -3.10364235583918
u2 3.677114770263345
u3 -1.3938092530831447
duration 0.12 0.0061
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

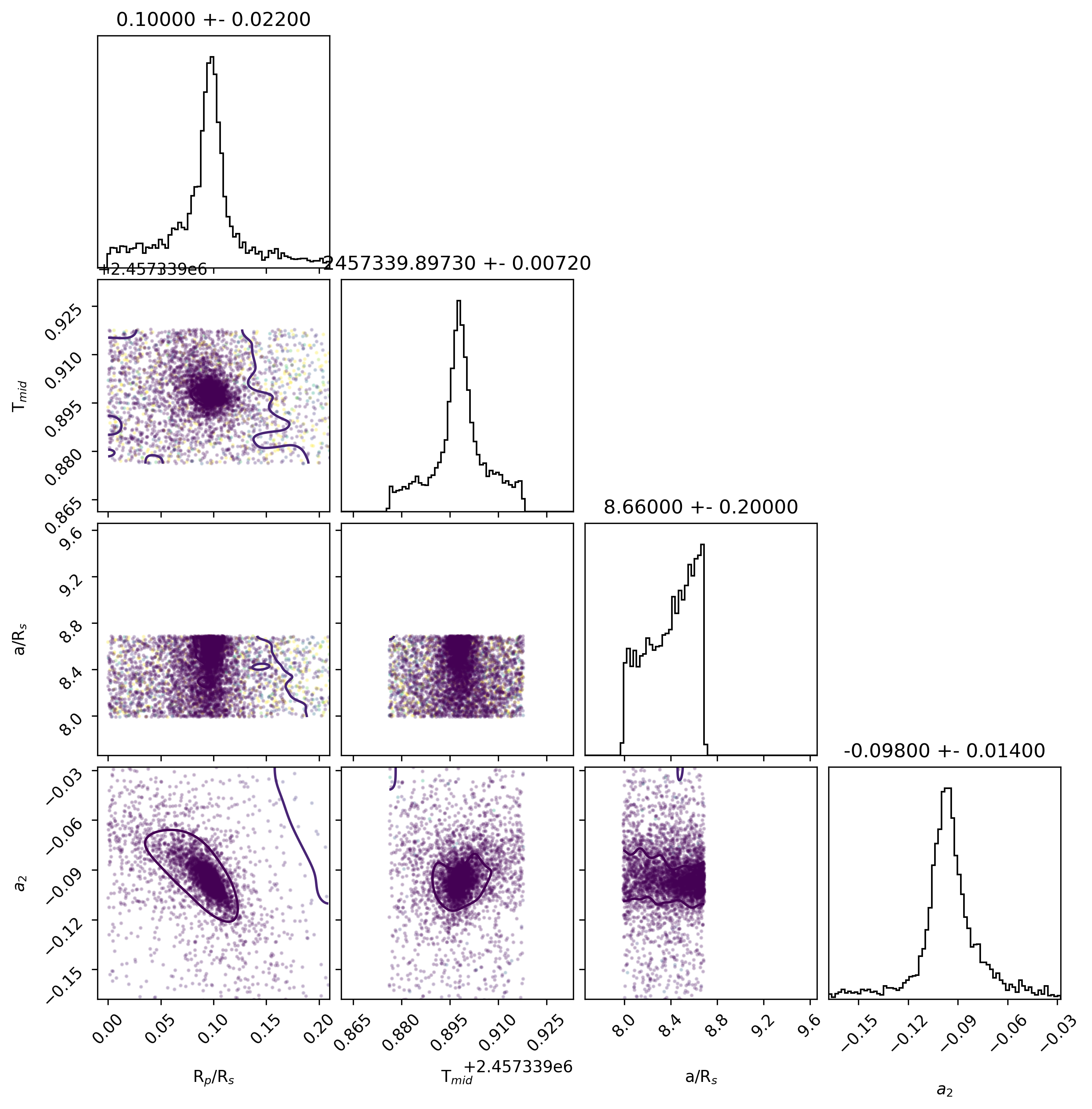

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WJEC (collaborate/publish) MOBS
Light curve chart for 0000990
Parameter Value Uncertainty
Am1 1.0042 0.0061
Am2 -0.003 0.0032
a/Rs 8.4 0.3
Rp/Rs 0.123 0.0067
ephemeris [JD] 2457358.8631 0.0023
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0598545857636603
u1 -3.680199475590003
u2 4.172495715624276
u3 -1.552150763622902
duration 0.1301 0.0052
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0000991
Parameter Value Uncertainty
Am1 1.061 0.013
Am2 -0.038 0.026
a/Rs 7.93 0.31
Rp/Rs 0.144 0.021
ephemeris [JD] 2458063.8994 0.0033
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0597787583175653
u1 -3.6801892748475478
u2 4.172519944153012
u3 -1.5521093654476368
duration 0.1415 0.0067
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0001027
Parameter Value Uncertainty
Am1 1.0117 0.0066
Am2 -0.0072 0.0037
a/Rs 8.77 0.31
Rp/Rs 0.1271 0.0065
ephemeris [JD] 2458082.8631 0.0024
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0601404311298674
u1 -3.681180454221602
u2 4.17366337830014
u3 -1.5526232930159747
duration 0.1246 0.0049
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

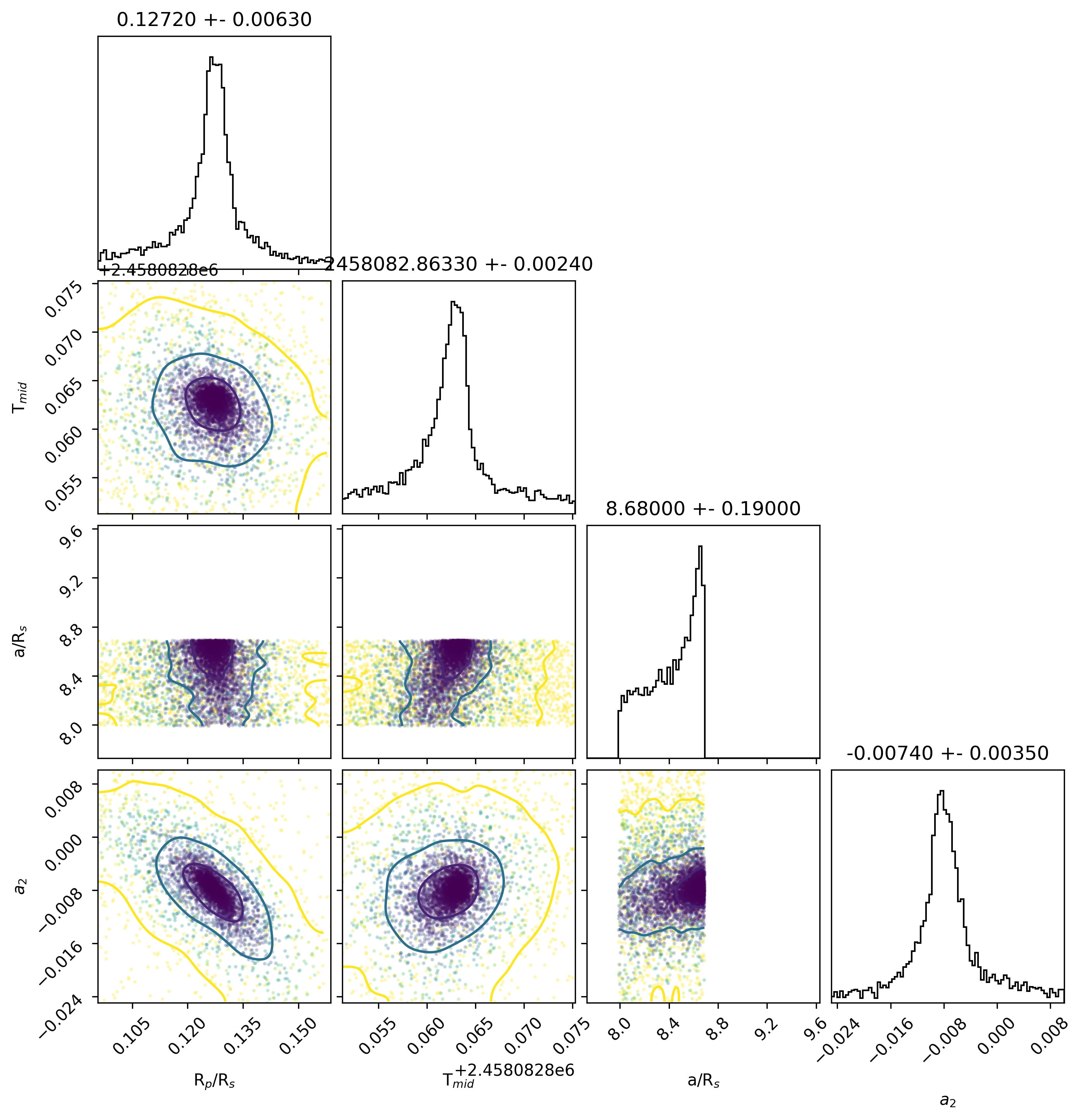

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0001028
Parameter Value Uncertainty
Am1 1.2113 0.0082
Am2 -0.116 0.012
a/Rs 8.99 0.38
Rp/Rs 0.106 0.043
ephemeris [JD] 2458101.833 0.011
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0598441131300214
u1 -3.6800269023560315
u2 4.1722785326981935
u3 -1.5520956813003886
duration 0.1184 0.0075
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0001029
Parameter Value Uncertainty
Am1 1.145 0.01
Am2 -0.105 0.012
a/Rs 7.92 0.38
Rp/Rs 0.135 0.058
ephemeris [JD] 2458117.639 0.012
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0598091355265225
u1 -3.6802554525588445
u2 4.1725269005879735
u3 -1.5520805213801556
duration 0.136 0.01
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0003747
Parameter Value Uncertainty
Am1 0.941 0.043
Am2 0.052 0.032
a/Rs 7.78 0.37
Rp/Rs 0.175 0.029
ephemeris [JD] 2458120.81 0.01
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 1.8199236083914077
u1 -3.1035608328583293
u2 3.6775959028888274
u3 -1.3939586236214567
duration 0.1431 0.0089
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FBIA (collaborate/publish) MOBS
Light curve chart for 0001034
Parameter Value Uncertainty
Am1 1.1884 0.0095
Am2 -0.122 0.015
a/Rs 8.4 0.36
Rp/Rs 0.146 0.019
ephemeris [JD] 2458471.739 0.0066
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.060002119687074
u1 -3.6804603339216806
u2 4.172697894629577
u3 -1.5522396182169262
duration 0.1333 0.0067
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0001035
Parameter Value Uncertainty
Am1 0.9789 0.0068
Am2 0.013 0.011
a/Rs 8.23 0.35
Rp/Rs 0.135 0.01
ephemeris [JD] 2458509.6777 0.0025
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0594934209734617
u1 -3.6791940394056146
u2 4.171447625849808
u3 -1.5517469452582415
duration 0.1342 0.0061
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0001043
Parameter Value Uncertainty
Am1 1.2506 0.0063
Am2 -0.153 0.022
a/Rs 7.92 0.35
Rp/Rs 0.14 0.017
ephemeris [JD] 2458787.8968 0.0048
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.059240666861242
u1 -3.678667274278502
u2 4.170896645330666
u3 -1.551469975762203
duration 0.1413 0.0072
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0003403
Parameter Value Uncertainty
Am1 1.2854 0.008
Am2 -0.171 0.075
a/Rs 8.98 0.38
Rp/Rs 0.145 0.05
ephemeris [JD] 2458806.8602 0.0073
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.060226800783116
u1 -3.681525180756263
u2 4.174113215659632
u3 -1.5528147734873508
duration 0.091 0.0085
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO YNEA (collaborate/publish) MOBS

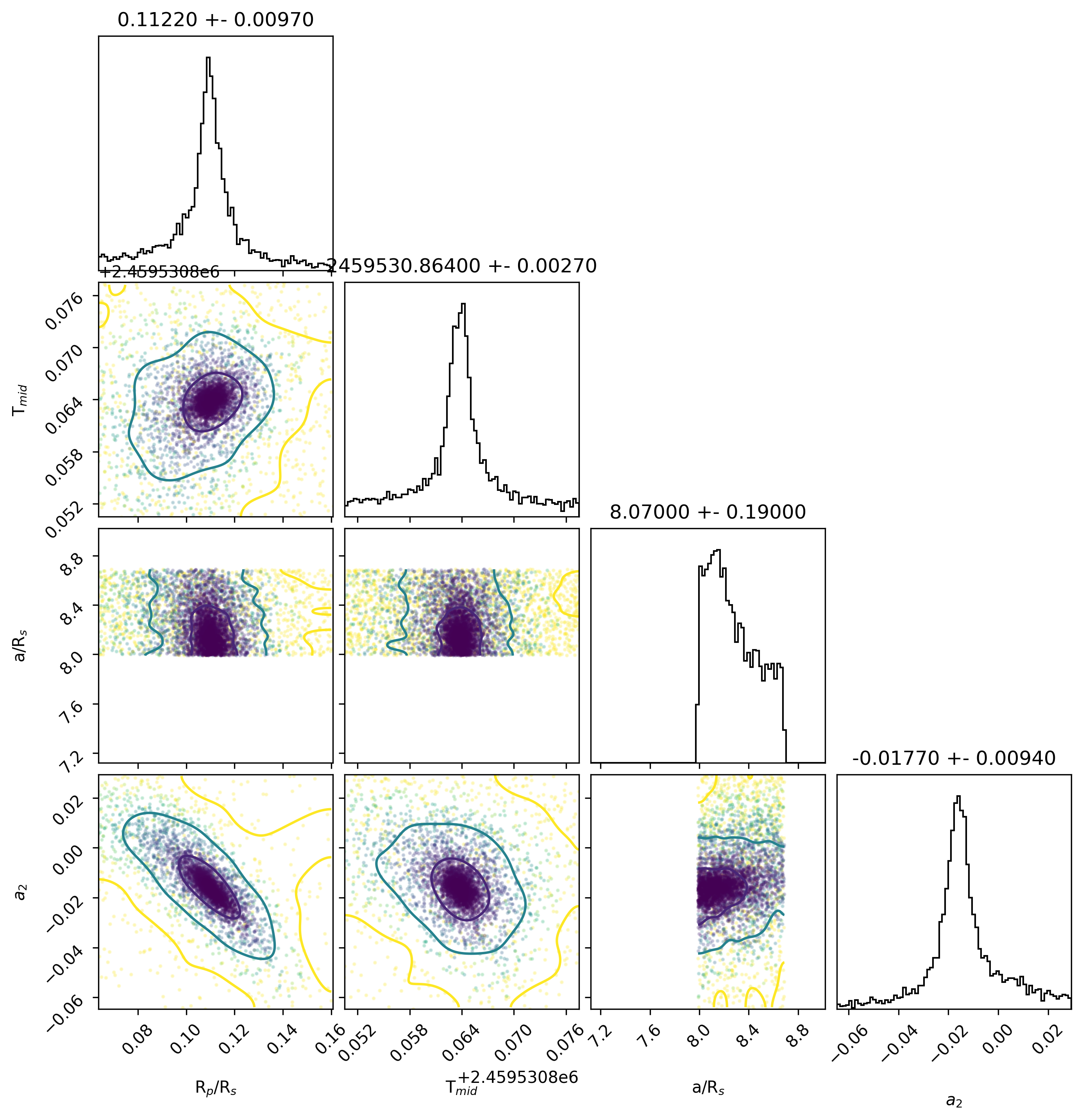

Light curve chart for 0001143
Parameter Value Uncertainty
Am1 1.0257 0.0056
Am2 -0.0166 0.0096
a/Rs 8.07 0.29
Rp/Rs 0.1108 0.0099
ephemeris [JD] 2459530.8638 0.0028
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.060083379557414
u1 -3.6812825822792203
u2 4.173949298688958
u3 -1.5527500337704607
duration 0.1343 0.0054
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0001004
Parameter Value Uncertainty
Am1 1.009 0.0079
Am2 -0.0058 0.0095
a/Rs 8.31 0.29
Rp/Rs 0.117 0.01
ephemeris [JD] 2459530.8656 0.0023
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0599294879955488
u1 -3.680847152576492
u2 4.173502107595631
u3 -1.5525843808246598
duration 0.131 0.0052
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0001073
Parameter Value Uncertainty
Am1 1.119 0.011
Am2 -0.072 0.018
a/Rs 7.72 0.35
Rp/Rs 0.146 0.016
ephemeris [JD] 2459549.8398 0.0047
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.059675549939467
u1 -3.679922544503998
u2 4.172312540572996
u3 -1.5520654838361643
duration 0.146 0.0074
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0002430
Parameter Value Uncertainty
Am1 1.007 0.0057
Am2 -0.005 0.01
a/Rs 8.29 0.27
Rp/Rs 0.1232 0.0095
ephemeris [JD] 2459549.8358 0.0019
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0597504901462984
u1 -3.680409370819473
u2 4.172968445975825
u3 -1.5523095031205751
duration 0.1322 0.005
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS

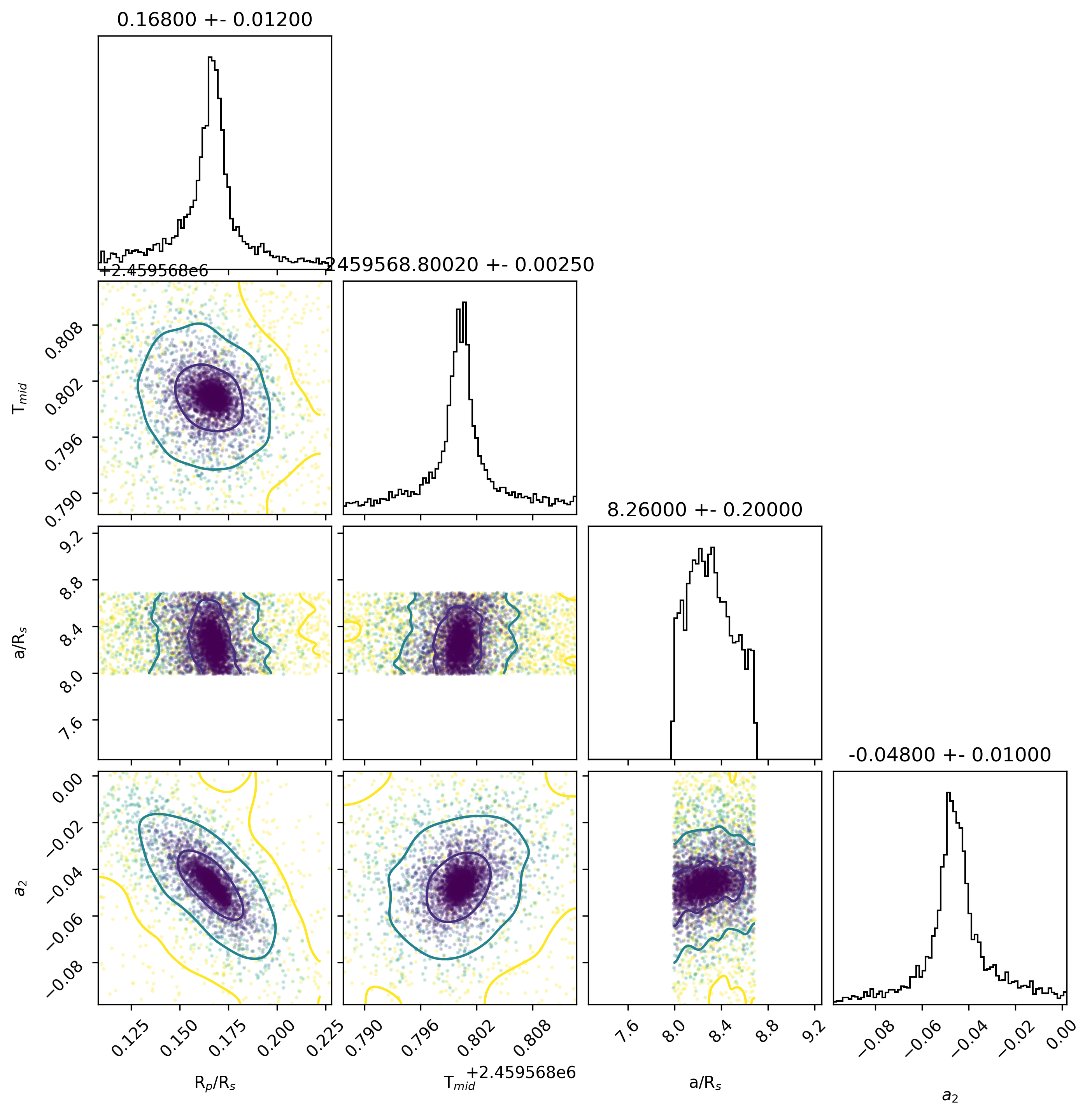

Light curve chart for 0001151
Parameter Value Uncertainty
Am1 1.077 0.014
Am2 -0.047 0.011
a/Rs 8.22 0.32
Rp/Rs 0.167 0.012
ephemeris [JD] 2459568.8004 0.0026
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0598125050053535
u1 -3.6804590789188074
u2 4.172914709380963
u3 -1.5522680732862342
duration 0.1384 0.006
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS

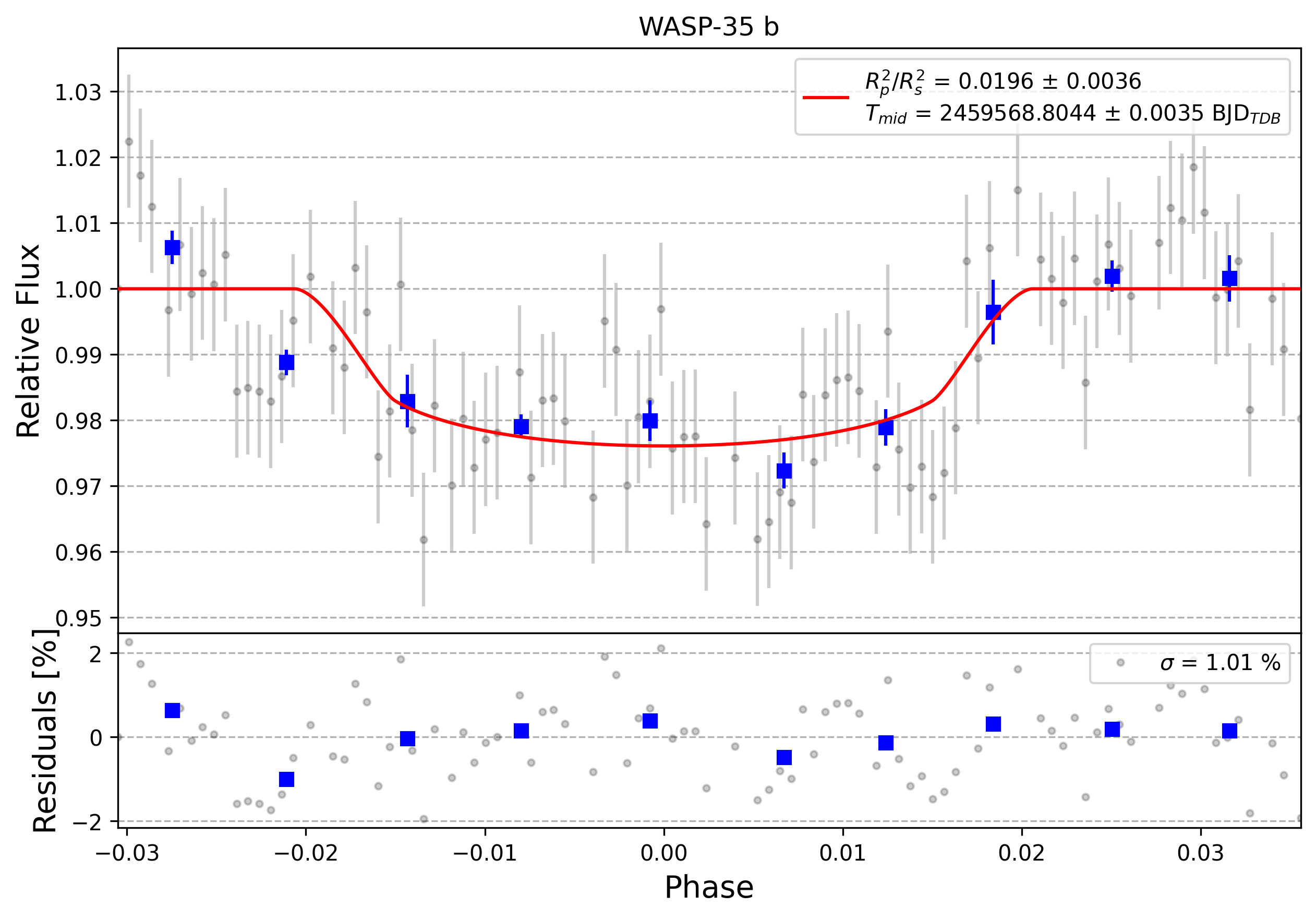

Light curve chart for 0002432
Parameter Value Uncertainty
Am1 1.112 0.011
Am2 -0.067 0.011
a/Rs 7.73 0.38
Rp/Rs 0.148 0.014
ephemeris [JD] 2459568.7978 0.0043
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0598465837794873
u1 -3.6800451588873893
u2 4.172196365368725
u3 -1.551997728090253
duration 0.1454 0.0077
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0002434
Parameter Value Uncertainty
Am1 1.0039 0.0073
Am2 -0.0013 0.002
a/Rs 7.73 0.22
Rp/Rs 0.1325 0.0073
ephemeris [JD] 2459625.7232 0.0032
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0596299680652708
u1 -3.679827654228025
u2 4.172247642680267
u3 -1.5520498943461778
duration 0.1433 0.0045
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0002103
Parameter Value Uncertainty
Am1 0.999 0.038
Am2 0.0021 0.0017
a/Rs 8.9 0.19
Rp/Rs 0.1041 0.0061
ephemeris [JD] 2459843.8542 0.0021
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0597229040266947
u1 -3.6791744777671407
u2 4.171054596492434
u3 -1.551602960598431
duration 0.1199 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO RJUB (collaborate/publish) UNIS
Light curve chart for 0002121
Parameter Value Uncertainty
Am1 1.081 0.023
Am2 -0.0514 0.0092
a/Rs 7.72 0.19
Rp/Rs 0.1684 0.0065
ephemeris [JD] 2459900.7703 0.0034
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.059334943820726
u1 -3.6790010385476846
u2 4.171247080881208
u3 -1.551580923997823
duration 0.1489 0.0041
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO NANF (collaborate/publish)

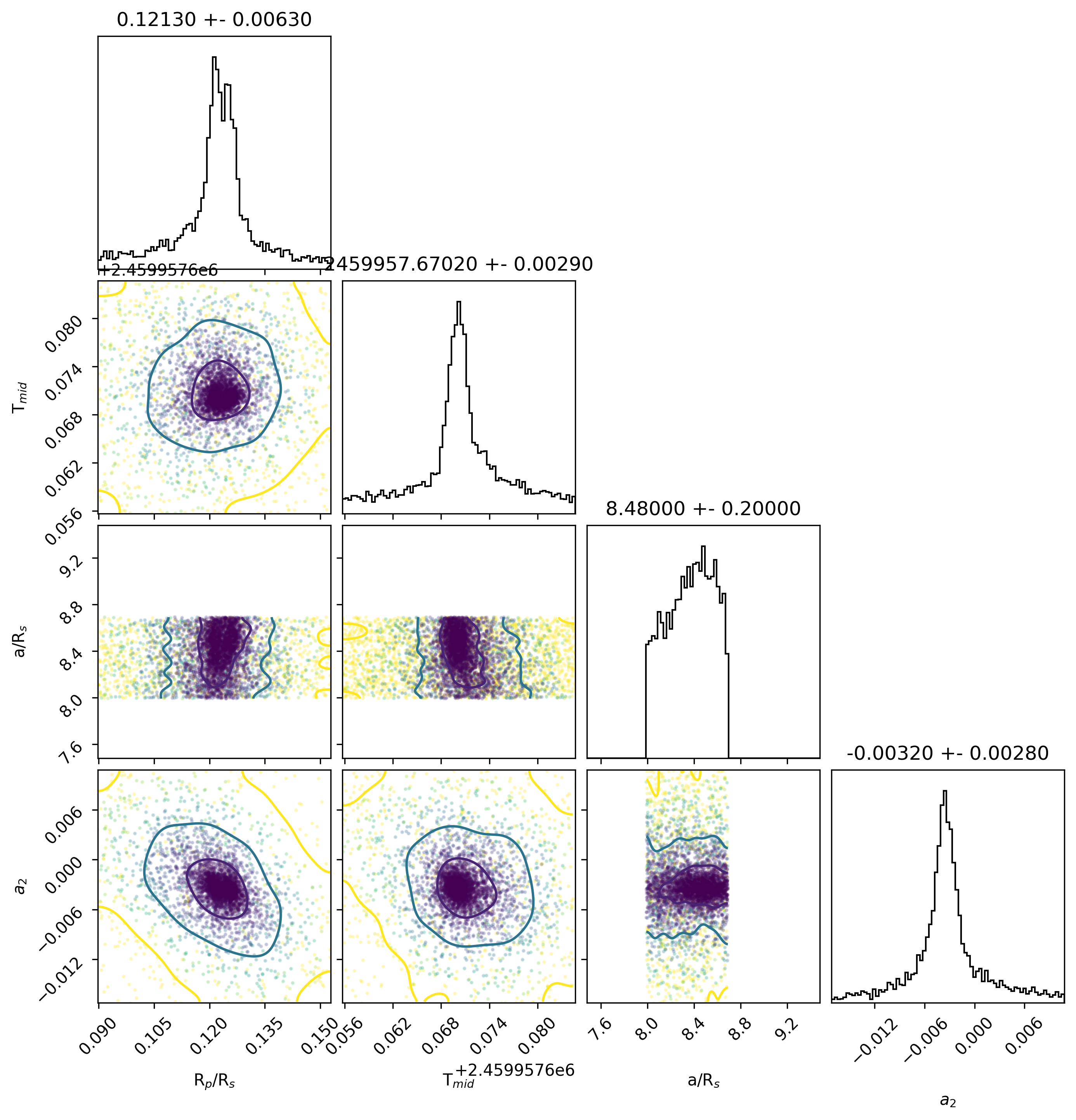

Light curve chart for 0002301
Parameter Value Uncertainty
Am1 1.0031 0.0066
Am2 -0.0032 0.0027
a/Rs 8.44 0.33
Rp/Rs 0.1211 0.0067
ephemeris [JD] 2459957.67 0.003
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.0592415836397797
u1 -3.6779754342462914
u2 4.169735153933797
u3 -1.5510012411933887
duration 0.1296 0.0056
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 5bfca8bfef47ed62c0dd3054de8e989e
Parameter Value Uncertainty
Am1 1.0001 0.0011
Am2 0
a/Rs 8.384 0.093
Rp/Rs 0.1226 0.0013
ephemeris [JD] 2458440.1227 0.00064
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.7572891037326617
u1 -4.958150256340223
u2 4.9173110479632705
u3 -1.7164498220820654
duration 0.1304 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

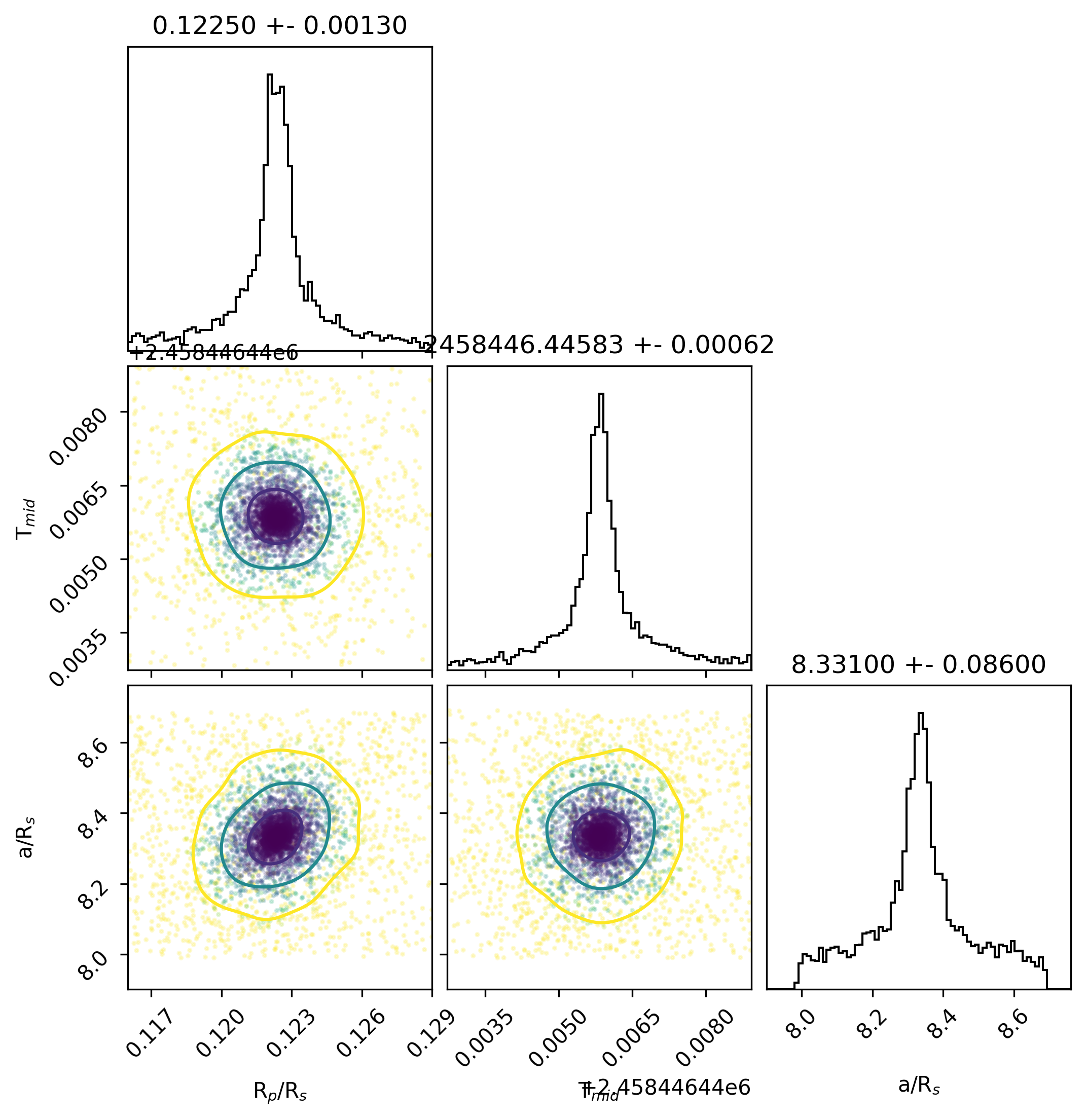

Light curve chart for 123d8cf3c87d1c959844a23dc43c3a58
Parameter Value Uncertainty
Am1 1.0 0.0011
Am2 0
a/Rs 8.312 0.087
Rp/Rs 0.1225 0.0013
ephemeris [JD] 2458446.44585 0.00062
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.7575161463030256
u1 -4.958860814400148
u2 4.918067996965691
u3 -1.716723255583645
duration 0.1316 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a5c1f627c7cb6ef270048ad880fc5d25
Parameter Value Uncertainty
Am1 0.9999 0.0034
Am2 0
a/Rs 8.331 0.061
Rp/Rs 0.12084 0.00087
ephemeris [JD] 2459198.89939 0.00043
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.7571645034447747
u1 -4.95793645860013
u2 4.917201722410955
u3 -1.7164296939835837
duration 0.1311 0.001
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 06b2e78431cbd6a4af8c0f9a9b5cf802
Parameter Value Uncertainty
Am1 0.9999 0.0013
Am2 0
a/Rs 8.288 0.091
Rp/Rs 0.1228 0.0014
ephemeris [JD] 2458449.60783 0.00061
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.757340438903455
u1 -4.958798714660255
u2 4.918358025131405
u3 -1.716899676085359
duration 0.1318 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 97494cb28ef35bc7ba93fb065b232d27
Parameter Value Uncertainty
Am1 0.9999 0.0032
Am2 0
a/Rs 8.362 0.057
Rp/Rs 0.1226 0.00081
ephemeris [JD] 2459192.57592 0.0004
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.7572924030725234
u1 -4.958388943952298
u2 4.917671249862312
u3 -1.716574635703525
duration 0.1304 0.0011
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8b6102714c945da2ccb43992a49e6388
Parameter Value Uncertainty
Am1 1.0003 0.0011
Am2 0
a/Rs 8.321 0.091
Rp/Rs 0.1233 0.0013
ephemeris [JD] 2458462.25396 0.00061
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.757611146270939
u1 -4.959347169212968
u2 4.918817169964058
u3 -1.7170810737259412
duration 0.1311 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3bde084b2aa7e2bebd163b85fca0e96e
Parameter Value Uncertainty
Am1 1.0 0.003
Am2 0
a/Rs 8.267 0.058
Rp/Rs 0.12356 0.00076
ephemeris [JD] 2459195.73789 0.0004
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.757979181181612
u1 -4.960292912538168
u2 4.91972453041908
u3 -1.717410725752916
duration 0.1326 0.0011
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6d29b52a5a88ca8bbb650b2fa7f7f826
Parameter Value Uncertainty
Am1 1.0 0.0029
Am2 0
a/Rs 8.349 0.054
Rp/Rs 0.12281 0.00079
ephemeris [JD] 2459189.41425 0.00037
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.757749456362461
u1 -4.9597012391784485
u2 4.9191667481799
u3 -1.717214892062616
duration 0.13115 0.00095
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8f36954294841bd4eedd31602dede293
Parameter Value Uncertainty
Am1 1.0 0.0012
Am2 0
a/Rs 8.301 0.09
Rp/Rs 0.1226 0.0013
ephemeris [JD] 2458443.28437 0.00062
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.7581045898579917
u1 -4.960046180210418
u2 4.918924110137043
u3 -1.7169824464869348
duration 0.1316 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4f4e03b2006855820d8b6b0451cbbdef
Parameter Value Uncertainty
Am1 1.0 0.0012
Am2 0
a/Rs 8.281 0.089
Rp/Rs 0.1228 0.0013
ephemeris [JD] 2458452.76872 0.00063
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.757477027411867
u1 -4.9581939990140995
u2 4.916959638388077
u3 -1.7162425935174364
duration 0.1318 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8c72d188f5fe16bebffcf88e1004ebdf
Parameter Value Uncertainty
Am1 1.0 0.0029
Am2 0
a/Rs 8.339 0.056
Rp/Rs 0.1234 0.00079
ephemeris [JD] 2459176.76837 0.00039
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.7572080051891645
u1 -4.957887131245191
u2 4.917001882743775
u3 -1.7163226834187113
duration 0.1312 0.001
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b90ae8f8c13972c0ea0d3c17845fe833
Parameter Value Uncertainty
Am1 1.0 0.0029
Am2 0
a/Rs 8.364 0.055
Rp/Rs 0.12305 0.00075
ephemeris [JD] 2459179.92982 0.00038
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.7573854936152156
u1 -4.958793859956007
u2 4.918283727871521
u3 -1.7168752882425906
duration 0.13045 0.00095
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a89ee16bc4bf118fddc89a78889905b8
Parameter Value Uncertainty
Am1 1.0001 0.0012
Am2 0
a/Rs 8.336 0.089
Rp/Rs 0.1231 0.0013
ephemeris [JD] 2458459.09198 0.00062
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.756894076695682
u1 -4.957010612051252
u2 4.916059076299014
u3 -1.7159424676884556
duration 0.1308 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f3dc73a25557810cb4404129fc5395ed
Parameter Value Uncertainty
Am1 1.0001 0.0012
Am2 0
a/Rs 8.368 0.093
Rp/Rs 0.1233 0.0013
ephemeris [JD] 2458455.93067 0.00065
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.756988683118855
u1 -4.9574199289097045
u2 4.916609917339169
u3 -1.7161785982851234
duration 0.1308 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9d721aa44cf1a6dc1274c11e818bc61a
Parameter Value Uncertainty
Am1 1.0002 0.0029
Am2 0
a/Rs 8.311 0.05
Rp/Rs 0.12339 0.00078
ephemeris [JD] 2459183.09138 0.00034
eccentricity 0.028
inclination [degrees] 87.96
omega [degrees] 0.0
orbital period [days] 3.16157
u0 2.7574144805423644
u1 -4.958584682742208
u2 4.917747675573576
u3 -1.7165774000935818
duration 0.13186 0.00094
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
