WASP-2 b

View target in exoplanet catalog
Timing Plot
Global Light Curve
Lomb-Scargle Periodogram

Total Reductions to Date: 126

Date Processed: 06/06/2025 at 07:00:04 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 2.1522218684027594 7.331607104789534e-08
Ephemeris (BJD_TDB) 2460215.7410479584 0.00016356693596986457

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 307.7255587 decimal
DEC 6.4293305 decimal
Host Star Metallicity 0.1 0.2 Kokori et al. 2023
Host Star log(g) 4.537 0.035 Log10(cgs) Kokori et al. 2023
Host Star Radius [R_Sun] 0.84 0.062 Sol Kokori et al. 2023
Host Star Effective Temperature [K] 5200.0 200.0 K Kokori et al. 2023
a/Rs 8.08 0.12 Kokori et al. 2023
eccentricity 0.013 0.009 Bonomo et al. 2017
inclination [degrees] 84.81 0.17 deg Kokori et al. 2023
omega [degrees] 267.0 11.0 deg Knutson et al. 2014
orbital period [days] 2.15222216 1.3e-07 day Kokori et al. 2023
Rp 12.12 0.46 R_Earth Addison et al. 2019
Rp/Rs 0.1283 0 Addison et al. 2019
ephemeris [JD] 2455229.043082 7.5e-05 BJD-TDB Kokori et al. 2023

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2453991.514476666 0.00159 BJD, HJD Triaud et al. 2010, Southworth et al. 2010, Collier Cameron et al. 2007
2454008.73205 0.00028 HJD Charbonneau et al. 2007
2455097.75755 7e-05 BJD-TDB Kokori et al. 2022
2455229.043082 7.5e-05 BJD-TDB Kokori et al. 2023
2455381.85015 0.00028 BJD-TDB Ivshina & Winn 2022
2455894.07919 0.00015 BJD-TDB Bonomo et al. 2017, Baluev et al. 2015
2458339.00342 0.00028 BJD-TDB Addison et al. 2019
2459770.231395 0.00028359 BJD ExoFOP-TESS TOI

Observations

Light curve chart for 0007675
Parameter Value Uncertainty
Am1 1.103 0.016
Am2 -0.075 0.018
a/Rs 7.54 0.34
Rp/Rs 0.203 0.027
ephemeris [JD] 2455366.7741 0.0056
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5404161700981767
u1 -2.6190017647530928
u2 3.262105728325067
u3 -1.1835200850609877
duration 0.0742 0.0067
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DJSA (collaborate/publish) MOBS
Light curve chart for 0010778
Parameter Value Uncertainty
Am1 1.141 0.012
Am2 -0.12 0.13
a/Rs 8.32 0.33
Rp/Rs 0.162 0.022
ephemeris [JD] 2455368.9399 0.0034
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5410957717010154
u1 -2.619761607814055
u2 3.2618607871808627
u3 -1.1831949024623096
duration 0.0725 0.0047
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO JAHB (collaborate/publish) MOBS
Light curve chart for 0007018
Parameter Value Uncertainty
Am1 0.9383 0.0091
Am2 0.055 0.036
a/Rs 8.44 0.35
Rp/Rs 0.253 0.074
ephemeris [JD] 2455368.922 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.540824842197813
u1 -2.6198415496595366
u2 3.261867525127515
u3 -1.1828507690601775
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO TABC (collaborate/publish) MOBS
Light curve chart for 0011409
Parameter Value Uncertainty
Am1 1.105 0.011
Am2 -0.088 0.055
a/Rs 7.69 0.34
Rp/Rs 0.112 0.021
ephemeris [JD] 2455463.6349 0.0058
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5405478026738024
u1 -2.618858145087082
u2 3.261548912848997
u3 -1.183238521834852
duration 0.0774 0.0062
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DCMA (collaborate/publish) MOBS
Light curve chart for 0006584
Parameter Value Uncertainty
Am1 1.204 0.013
Am2 -0.12 0.015
a/Rs 8.09 0.34
Rp/Rs 0.107 0.047
ephemeris [JD] 2455478.705 0.011
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5412435415877848
u1 -2.62049908601379
u2 3.262777386928097
u3 -1.1835217938829197
duration 0.071 0.0077
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MGID (collaborate/publish) MOBS
Light curve chart for 0004394
Parameter Value Uncertainty
Am1 1.482 0.03
Am2 -0.308 0.085
a/Rs 7.53 0.35
Rp/Rs 0.208 0.049
ephemeris [JD] 2455491.6025 0.0068
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.540448436890146
u1 -2.619060982806618
u2 3.2616666574076416
u3 -1.1830540628885493
duration 0.0444 0.0082
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FMAL (collaborate/publish) MOBS
Light curve chart for 0011337
Parameter Value Uncertainty
Am1 1.222 0.01
Am2 -0.114 0.016
a/Rs 7.85 0.34
Rp/Rs 0.119 0.05
ephemeris [JD] 2455519.594 0.011
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5403731786317727
u1 -2.6185732652778615
u2 3.260722887296729
u3 -1.1825227520620825
duration 0.0749 0.0081
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO JAHB (collaborate/publish) MOBS
Light curve chart for 0008574
Parameter Value Uncertainty
Am1 1.1372 0.0074
Am2 -0.109 0.016
a/Rs 8.68 0.33
Rp/Rs 0.125 0.026
ephemeris [JD] 2455721.9017 0.0067
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5410764298598094
u1 -2.619749940909627
u2 3.261616169421532
u3 -1.1829426097698459
duration 0.0641 0.0058
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GRYC (collaborate/publish) MOBS
Light curve chart for 0005615
Parameter Value Uncertainty
Am1 1.1484 0.0072
Am2 -0.114 0.015
a/Rs 8.68 0.34
Rp/Rs 0.116 0.027
ephemeris [JD] 2455721.9017 0.0073
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5405747217045422
u1 -2.619036523041141
u2 3.261601186216995
u3 -1.1831393362787512
duration 0.0628 0.006
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PMLA (collaborate/publish) MOBS
Light curve chart for 0011291
Parameter Value Uncertainty
Am1 0.8874 0.0048
Am2 0.11 0.12
a/Rs 8.68 0.36
Rp/Rs 0.157 0.022
ephemeris [JD] 2455736.9607 0.0048
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5410881224867317
u1 -2.6203313367347647
u2 3.2631667518312693
u3 -1.1839234889582624
duration 0.0558 0.0058
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SSTP (collaborate/publish) MOBS
Light curve chart for 0005968
Parameter Value Uncertainty
Am1 1.06 0.26
Am2 -0.04 0.16
a/Rs 8.48 0.34
Rp/Rs 0.255 0.074
ephemeris [JD] 2455805.837 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5415686235263688
u1 -2.6208848346769993
u2 3.2628654955679224
u3 -1.1835492357968067
duration 0.0811 0.0092
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WJEC (collaborate/publish) MOBS
Light curve chart for 0003473
Parameter Value Uncertainty
Am1 1.03 0.017
Am2 -0.021 0.011
a/Rs 7.64 0.33
Rp/Rs 0.144 0.021
ephemeris [JD] 2455859.6362 0.005
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5414049410729629
u1 -2.6201420385671135
u2 3.262168059173738
u3 -1.1834309130694947
duration 0.0831 0.0063
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO AJAG (collaborate/publish) MOBS
Light curve chart for 0007373
Parameter Value Uncertainty
Am1 0.757 0.011
Am2 0.225 0.065
a/Rs 7.48 0.35
Rp/Rs 0.168 0.023
ephemeris [JD] 2456089.9184 0.0054
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5421144531353392
u1 -2.621637999686645
u2 3.2634922077528326
u3 -1.1839686125717033
duration 0.0879 0.0067
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WGAC (collaborate/publish) MOBS
Light curve chart for 0007249
Parameter Value Uncertainty
Am1 0.978 0.014
Am2 0.0136 0.0045
a/Rs 7.87 0.34
Rp/Rs 0.138 0.03
ephemeris [JD] 2456115.7599 0.0057
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.541113163122985
u1 -2.619622699378596
u2 3.2612151922606123
u3 -1.1827056074091078
duration 0.0782 0.0064
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CJOB (collaborate/publish) MOBS
Light curve chart for 0004740
Parameter Value Uncertainty
Am1 1.03 0.019
Am2 -0.0162 0.0073
a/Rs 8.58 0.33
Rp/Rs 0.151 0.037
ephemeris [JD] 2456145.9104 0.0051
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.8298186372997578
u1 -3.181989666924187
u2 3.649737090191914
u3 -1.297566006182164
duration 0.0684 0.0067
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO YNEA (collaborate/publish) MOBS
Light curve chart for 0010183
Parameter Value Uncertainty
Am1 1.31 0.11
Am2 -0.2 0.53
a/Rs 8.61 0.35
Rp/Rs 0.254 0.073
ephemeris [JD] 2456156.652 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5428311777951327
u1 -2.623184972352421
u2 3.2649964885411493
u3 -1.1846426453316226
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SCMA (collaborate/publish) MOBS
Light curve chart for 0011774
Parameter Value Uncertainty
Am1 1.042 0.024
Am2 -0.032 0.093
a/Rs 7.72 0.34
Rp/Rs 0.164 0.044
ephemeris [JD] 2456171.7018 0.0067
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5406050699372849
u1 -2.6192334269735134
u2 3.2618626307450675
u3 -1.1832342251032983
duration 0.083 0.0074
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SSTP (collaborate/publish) MOBS
Light curve chart for 0008275
Parameter Value Uncertainty
Am1 0.326 0.049
Am2 0.98 0.34
a/Rs 8.65 0.35
Rp/Rs 0.255 0.067
ephemeris [JD] 2456184.61 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5418647329331452
u1 -2.6216544116806024
u2 3.2642750013839557
u3 -1.1844852739950107
duration 0.043 0.013
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MHAD (collaborate/publish) MOBS
Light curve chart for 0007664
Parameter Value Uncertainty
Am1 1.254 0.018
Am2 -0.164 0.026
a/Rs 7.53 0.35
Rp/Rs 0.126 0.047
ephemeris [JD] 2456199.7002 0.0097
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5386285449443478
u1 -2.615096953288934
u2 3.2576192880528887
u3 -1.1811508311659926
duration 0.0814 0.0079
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO JAHB (collaborate/publish) MOBS
Light curve chart for 0006737
Parameter Value Uncertainty
Am1 1.17 0.1
Am2 -0.13 0.4
a/Rs 8.66 0.34
Rp/Rs 0.216 0.072
ephemeris [JD] 2456212.588 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5406974513287892
u1 -2.61898801345083
u2 3.260935744887982
u3 -1.1826451341742121
duration 0.037 0.013
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SMAMA (collaborate/publish) MOBS
Light curve chart for 0006844
Parameter Value Uncertainty
Am1 1.215 0.017
Am2 -0.123 0.014
a/Rs 8.49 0.35
Rp/Rs 0.118 0.054
ephemeris [JD] 2456227.675 0.011
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5409345613972667
u1 -2.6196401484971696
u2 3.2616628803348537
u3 -1.182957244632386
duration 0.0656 0.0083
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LNID (collaborate/publish) MOBS
Light curve chart for 0007512
Parameter Value Uncertainty
Am1 1.4156 0.0023
Am2 -0.24 0.1
a/Rs 8.58 0.35
Rp/Rs 0.257 0.064
ephemeris [JD] 2456240.5988 0.007
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5413642920528114
u1 -2.6203817895028
u2 3.262408412195573
u3 -1.1833908661319108
duration 0.0375 0.0031
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WGAC (collaborate/publish) MOBS
Light curve chart for 0007225
Parameter Value Uncertainty
Am1 1.204 0.016
Am2 -0.132 0.015
a/Rs 7.57 0.35
Rp/Rs 0.078 0.06
ephemeris [JD] 2456255.65 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5404389144085515
u1 -2.6184806997835968
u2 3.260188437179959
u3 -1.1821466032243206
duration 0.0737 0.0095
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO TKVA (collaborate/publish) MOBS
Light curve chart for 0004139
Parameter Value Uncertainty
Am1 1.257 0.015
Am2 -0.181 0.019
a/Rs 8.46 0.34
Rp/Rs 0.163 0.069
ephemeris [JD] 2456455.811 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.8318512038628154
u1 -3.186809198019518
u2 3.654695354349935
u3 -1.2997373057340282
duration 0.072 0.0092
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO TKVA (collaborate/publish) MOBS
Light curve chart for 0011844
Parameter Value Uncertainty
Am1 1.373 0.024
Am2 -0.25 0.15
a/Rs 7.76 0.35
Rp/Rs 0.256 0.073
ephemeris [JD] 2456468.704 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5419382410970166
u1 -2.6215853904810578
u2 3.2641976016230925
u3 -1.1845504035987164
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CVII (collaborate/publish) MOBS
Light curve chart for 0007293
Parameter Value Uncertainty
Am1 0.84 0.011
Am2 0.155 0.034
a/Rs 8.68 0.33
Rp/Rs 0.126 0.03
ephemeris [JD] 2456470.8652 0.0074
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.540695824996674
u1 -2.6196700482196147
u2 3.2627573246017403
u3 -1.1837830527599267
duration 0.0642 0.0061
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SMAMA (collaborate/publish) MOBS
Light curve chart for 0009431
Parameter Value Uncertainty
Am1 1.025 0.033
Am2 -0.01 0.014
a/Rs 7.6 0.34
Rp/Rs 0.198 0.044
ephemeris [JD] 2456496.7037 0.0076
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5408783004922981
u1 -2.619240036227065
u2 3.261146408325668
u3 -1.182784623996033
duration 0.0888 0.0074
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SCMA (collaborate/publish) MOBS
Light curve chart for 0011434
Parameter Value Uncertainty
Am1 1.61 0.42
Am2 -0.43 0.55
a/Rs 8.65 0.35
Rp/Rs 0.254 0.074
ephemeris [JD] 2456498.85 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5397418218792653
u1 -2.617843015368563
u2 3.260764354154944
u3 -1.182663112076471
duration 0.0748 0.009
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GDAQ (collaborate/publish) MOBS
Light curve chart for 0002891
Parameter Value Uncertainty
Am1 1.456 0.037
Am2 -0.255 0.052
a/Rs 7.49 0.35
Rp/Rs 0.256 0.065
ephemeris [JD] 2456526.8177 0.0082
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5412045345932583
u1 -2.619969332689382
u2 3.2620270117964867
u3 -1.1832621650923727
duration 0.065 0.0096
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO YLUA (collaborate/publish) MOBS
Light curve chart for 0006241
Parameter Value Uncertainty
Am1 0.976 0.022
Am2 0.0141 0.004
a/Rs 8.03 0.33
Rp/Rs 0.14 0.037
ephemeris [JD] 2456554.7966 0.0052
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5412254812920085
u1 -2.6204273090985892
u2 3.2625417811595145
u3 -1.1833399047372724
duration 0.0754 0.007
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RFCA (collaborate/publish) MOBS

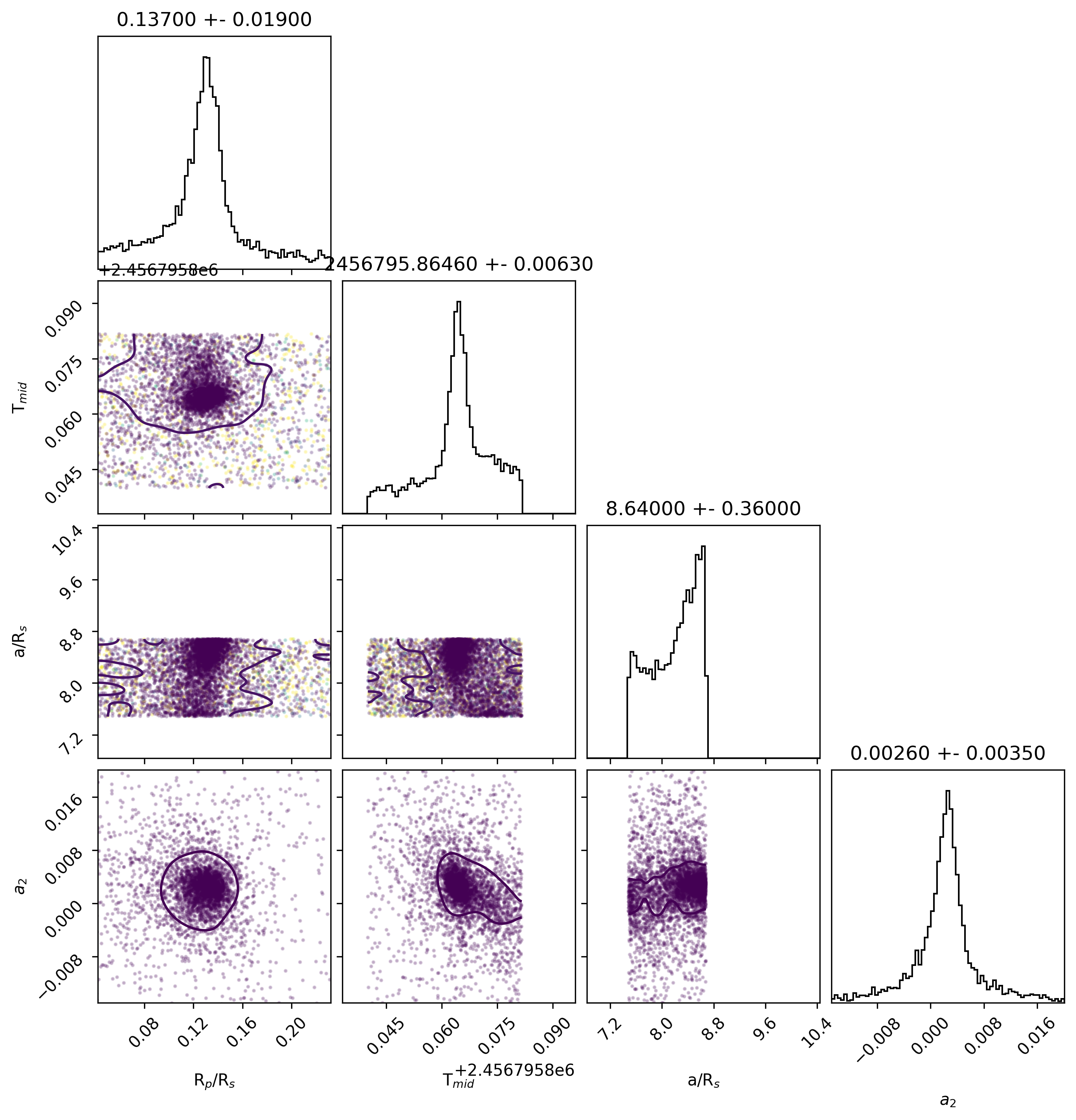

Light curve chart for 0006468
Parameter Value Uncertainty
Am1 0.996 0.013
Am2 0.0024 0.0035
a/Rs 8.67 0.36
Rp/Rs 0.139 0.019
ephemeris [JD] 2456795.8649 0.0061
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5409773099902964
u1 -2.6203735769096133
u2 3.2634146879565886
u3 -1.1840183724086035
duration 0.0658 0.0056
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DDMC (collaborate/publish) MOBS

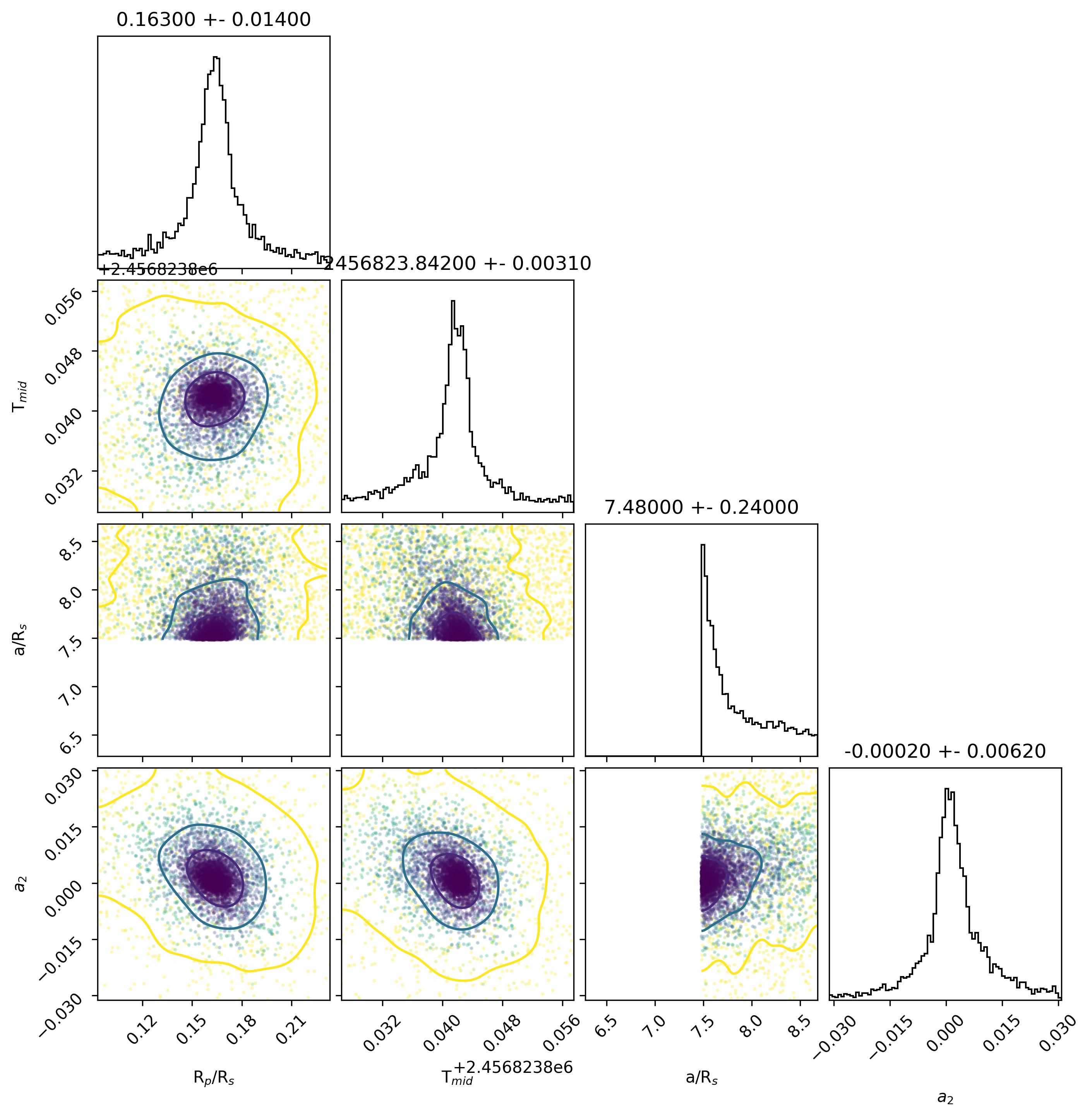

Light curve chart for 0005658
Parameter Value Uncertainty
Am1 0.999 0.015
Am2 -0.0003 0.0062
a/Rs 7.49 0.24
Rp/Rs 0.164 0.014
ephemeris [JD] 2456823.8422 0.0032
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5428919211460328
u1 -2.6233739321746117
u2 3.2650560978221455
u3 -1.1845740381404393
duration 0.0879 0.0047
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DCMA (collaborate/publish) MOBS
Light curve chart for 0009621
Parameter Value Uncertainty
Am1 0.99273 0.0009
Am2 0.0058 0.0096
a/Rs 7.79 0.35
Rp/Rs 0.04 0.058
ephemeris [JD] 2456836.771 0.013
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.540071538967793
u1 -2.617407992902721
u2 3.2593553962947883
u3 -1.1820188937916805
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WTOG (collaborate/publish) MOBS
Light curve chart for 0009391
Parameter Value Uncertainty
Am1 0.964 0.016
Am2 0.0194 0.0029
a/Rs 7.48 0.32
Rp/Rs 0.14 0.021
ephemeris [JD] 2456894.8669 0.0064
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5419560155481542
u1 -2.6216246140244177
u2 3.2632685026588617
u3 -1.1835998555561082
duration 0.0853 0.0061
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WTOG (collaborate/publish) MOBS
Light curve chart for 0001533
Parameter Value Uncertainty
Am1 1.0342 0.0042
Am2 -0.021 0.013
a/Rs 8.14 0.12
Rp/Rs 0.1414 0.0043
ephemeris [JD] 2456905.62331 0.00069
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.8606849042990161
u1 -3.101970015437592
u2 3.4864485206193416
u3 -1.245163357528634
duration 0.0742 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
R Cousins R 561.7 nm 719.7 nm
Organization Observer Code Secondary Observers
AAVSO AKV (collaborate/publish)
Light curve chart for 0009337
Parameter Value Uncertainty
Am1 0.913 0.024
Am2 0.077 0.065
a/Rs 8.59 0.34
Rp/Rs 0.023 0.037
ephemeris [JD] 2456920.71 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5418858817632453
u1 -2.6213422355043323
u2 3.263088959576455
u3 -1.1836325572115536
duration 0.0547 0.006
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RNEA (collaborate/publish) MOBS
Light curve chart for 0006394
Parameter Value Uncertainty
Am1 0.955 0.011
Am2 0.035 0.025
a/Rs 8.11 0.34
Rp/Rs 0.092 0.029
ephemeris [JD] 2456920.71 0.011
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5410618415283746
u1 -2.6195947286702554
u2 3.2613866575436066
u3 -1.1828537218032773
duration 0.0688 0.0065
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MJOU (collaborate/publish) MOBS
Light curve chart for 0004569
Parameter Value Uncertainty
Am1 0.979 0.016
Am2 0.0143 0.0035
a/Rs 7.83 0.35
Rp/Rs 0.089 0.034
ephemeris [JD] 2456935.758 0.011
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5413587865023644
u1 -2.620555955063524
u2 3.262582351772398
u3 -1.1833851345949733
duration 0.0733 0.0068
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CMAP (collaborate/publish) MOBS

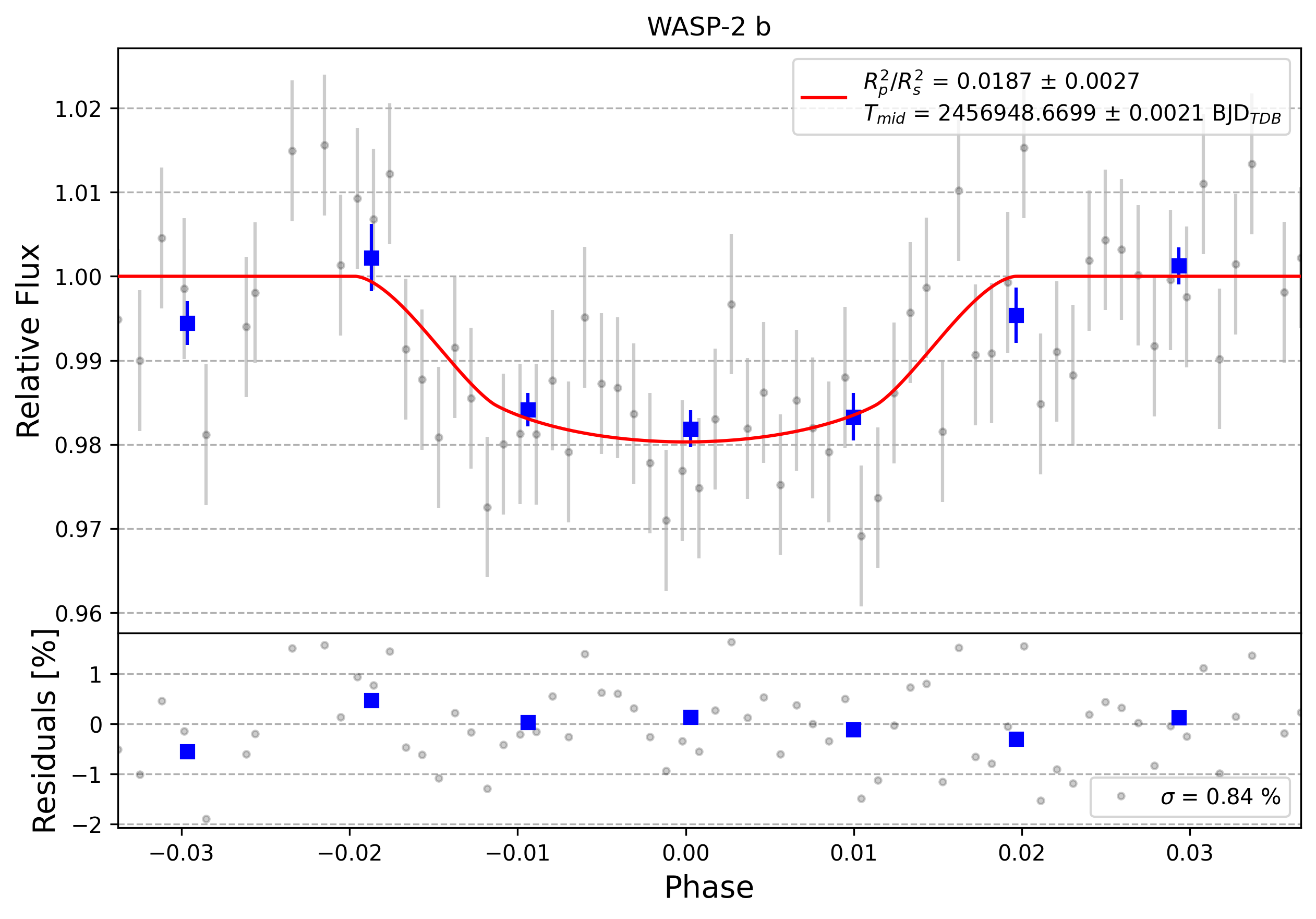

Light curve chart for 0006388
Parameter Value Uncertainty
Am1 0.9894 0.0083
Am2 0.0062 0.0052
a/Rs 7.49 0.16
Rp/Rs 0.1356 0.0098
ephemeris [JD] 2456948.6698 0.0021
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.540927615178204
u1 -2.619370032051225
u2 3.2613482537946146
u3 -1.1829057883237173
duration 0.0844 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MANE (collaborate/publish) MOBS
Light curve chart for 0003974
Parameter Value Uncertainty
Am1 1.125216 9.8e-05
Am2 -0.07 0.12
a/Rs 8.29 0.34
Rp/Rs 0.001 0.073
ephemeris [JD] 2457202.629 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5402054182969285
u1 -2.6188100656774465
u2 3.261885963993494
u3 -1.1832812680070872
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO BJOR (collaborate/publish) MOBS
Light curve chart for 0003795
Parameter Value Uncertainty
Am1 0.978 0.011
Am2 0.016 0.039
a/Rs 7.65 0.34
Rp/Rs 0.111 0.036
ephemeris [JD] 2457301.6414 0.0079
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.540594931851341
u1 -2.6195444291968943
u2 3.262513875973845
u3 -1.1835643300130463
duration 0.0785 0.0073
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO INIB (collaborate/publish) MOBS
Light curve chart for 0008560
Parameter Value Uncertainty
Am1 0.991 0.02
Am2 0.0085 0.0074
a/Rs 7.56 0.33
Rp/Rs 0.178 0.024
ephemeris [JD] 2457316.7193 0.0029
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.54156425948393
u1 -2.6211987714645275
u2 3.2639563475108364
u3 -1.184321786893499
duration 0.088 0.0065
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GNOC (collaborate/publish) MOBS
Light curve chart for 0010199
Parameter Value Uncertainty
Am1 0.9664 0.0076
Am2 0.0262 0.008
a/Rs 7.73 0.32
Rp/Rs 0.098 0.016
ephemeris [JD] 2457329.609 0.0049
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5423678364460087
u1 -2.6223075513018483
u2 3.264566403894973
u3 -1.1846266403933026
duration 0.0759 0.0058
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DJSA (collaborate/publish) MOBS
Light curve chart for 0004014
Parameter Value Uncertainty
Am1 1.003 0.013
Am2 -0.0024 0.0072
a/Rs 7.49 0.25
Rp/Rs 0.225 0.017
ephemeris [JD] 2457357.5908 0.0018
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5423988619593068
u1 -2.6225733596065854
u2 3.264745323545133
u3 -1.184570777249358
duration 0.083 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO VKOA (collaborate/publish) MOBS
Light curve chart for 0008343
Parameter Value Uncertainty
Am1 3.03 0.4
Am2 -0.98 0.55
a/Rs 7.55 0.35
Rp/Rs 0.176 0.073
ephemeris [JD] 2457600.785 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.541592628022842
u1 -2.620996138222138
u2 3.2636757445000883
u3 -1.1842721856682337
duration 0.0517 0.0082
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO NLIC (collaborate/publish) MOBS
Light curve chart for 0006970
Parameter Value Uncertainty
Am1 0.987 0.024
Am2 0.0077 0.0049
a/Rs 8.65 0.34
Rp/Rs 0.24 0.057
ephemeris [JD] 2457684.7282 0.0067
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5406109079389696
u1 -2.619289218014396
u2 3.2617121778439633
u3 -1.1830338191652374
duration 0.0768 0.008
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PVAD (collaborate/publish) MOBS
Light curve chart for 0009230
Parameter Value Uncertainty
Am1 0.998 0.016
Am2 0.0015 0.0025
a/Rs 8.68 0.25
Rp/Rs 0.177 0.016
ephemeris [JD] 2457697.6408 0.0033
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5414572374547095
u1 -2.620451393115954
u2 3.262498441083504
u3 -1.1835042368072441
duration 0.0696 0.0041
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DJSA (collaborate/publish) MOBS

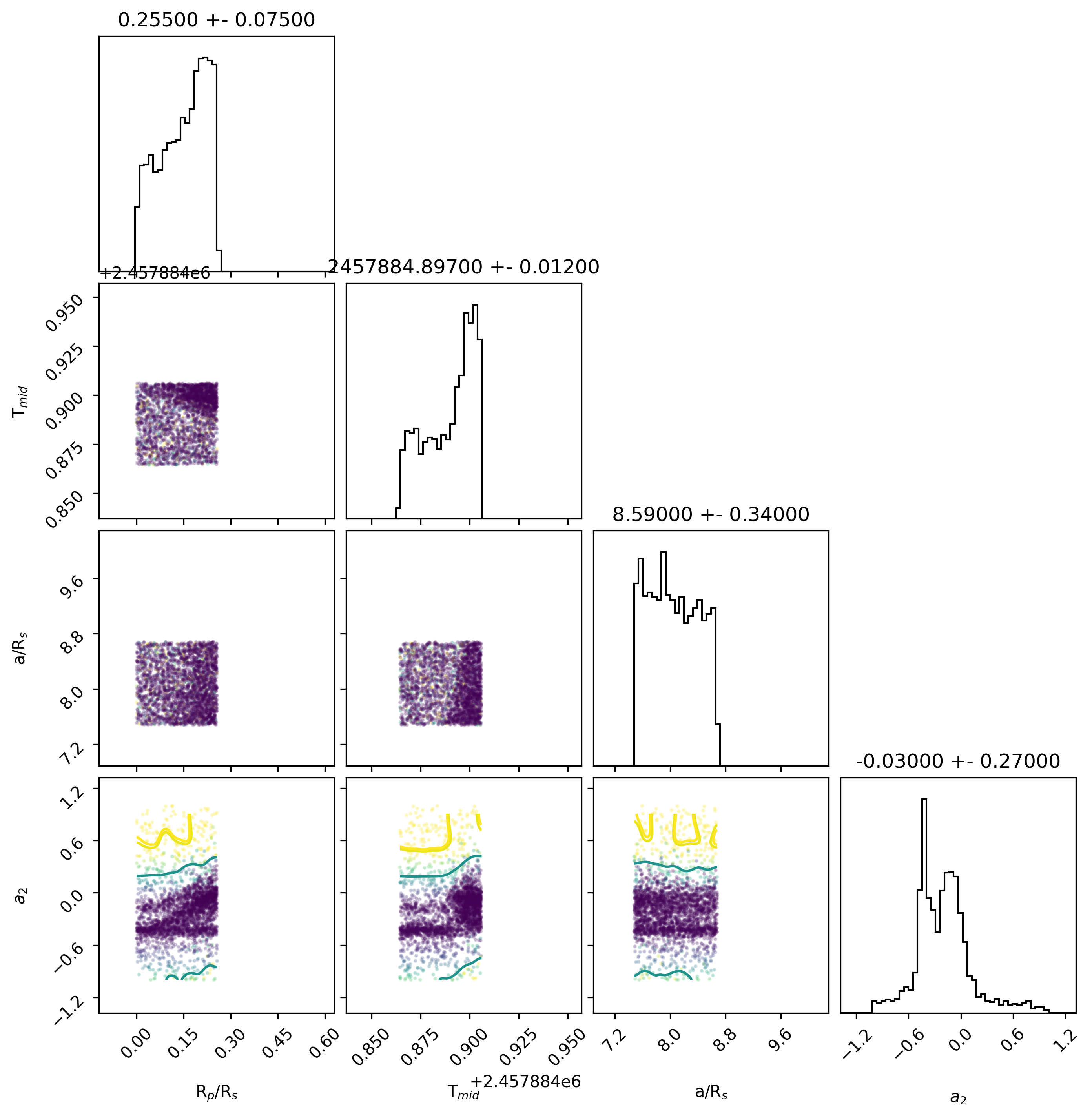

Light curve chart for 0010688
Parameter Value Uncertainty
Am1 1.0387 0.0068
Am2 -0.03 0.26
a/Rs 8.44 0.35
Rp/Rs 0.251 0.072
ephemeris [JD] 2457884.896 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5407306128128184
u1 -2.6192804622206802
u2 3.261570480904824
u3 -1.1830205828957743
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SCMA (collaborate/publish) MOBS
Light curve chart for 0005980
Parameter Value Uncertainty
Am1 0.95 0.025
Am2 0.038 0.011
a/Rs 8.38 0.34
Rp/Rs 0.136 0.041
ephemeris [JD] 2457912.876 0.01
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5376758276299667
u1 -2.6133152461300013
u2 3.2563998334945503
u3 -1.180760366470377
duration 0.0698 0.007
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DCMA (collaborate/publish) MOBS
Light curve chart for 0011370
Parameter Value Uncertainty
Am1 1.142 0.031
Am2 -0.07 0.46
a/Rs 8.21 0.35
Rp/Rs 0.254 0.074
ephemeris [JD] 2457925.765 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5404243196323264
u1 -2.618762962597707
u2 3.260605955958119
u3 -1.182267264405923
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DTEC (collaborate/publish) MOBS
Light curve chart for 0009439
Parameter Value Uncertainty
Am1 1.1635 0.0095
Am2 -0.111 0.014
a/Rs 8.62 0.34
Rp/Rs 0.138 0.044
ephemeris [JD] 2458037.6869 0.0098
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5395975438613279
u1 -2.617235318633277
u2 3.2601524467935707
u3 -1.1825146234415649
duration 0.0664 0.0071
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MKEE (collaborate/publish) MOBS
Light curve chart for 0008569
Parameter Value Uncertainty
Am1 1.1 0.011
Am2 -0.072 0.026
a/Rs 7.64 0.33
Rp/Rs 0.134 0.022
ephemeris [JD] 2458050.6108 0.0035
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5404393528306966
u1 -2.6185099553268327
u2 3.260513616043268
u3 -1.1824429649616928
duration 0.0801 0.0051
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GJOL (collaborate/publish) MOBS
Light curve chart for 0002554

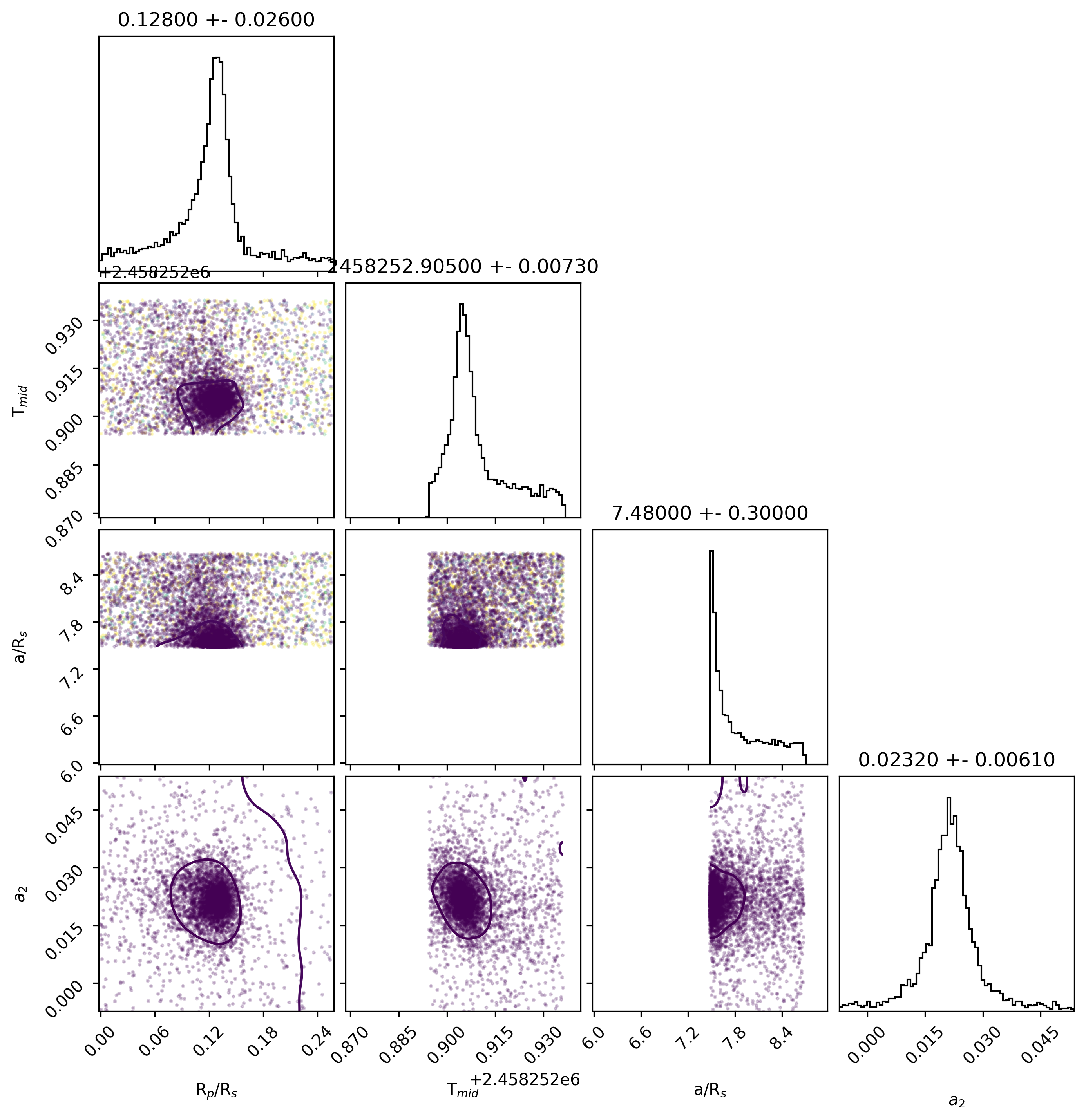

Parameter Value Uncertainty
Am1 0.97 0.015
Am2 0.0219 0.0063
a/Rs 7.48 0.32
Rp/Rs 0.128 0.028
ephemeris [JD] 2458252.9052 0.0077
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.542503412425087
u1 -2.6227994172039972
u2 3.264865656383422
u3 -1.1845696029542228
duration 0.0833 0.0067
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GSTF (collaborate/publish) MOBS
Light curve chart for 0011016
Parameter Value Uncertainty
Am1 0.996 0.016
Am2 0.0023 0.0052
a/Rs 7.91 0.33
Rp/Rs 0.123 0.029
ephemeris [JD] 2458265.8237 0.0083
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5409726040340803
u1 -2.6194423586876696
u2 3.261488155807791
u3 -1.183018352554241
duration 0.0739 0.0066
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WMAI (collaborate/publish) MOBS

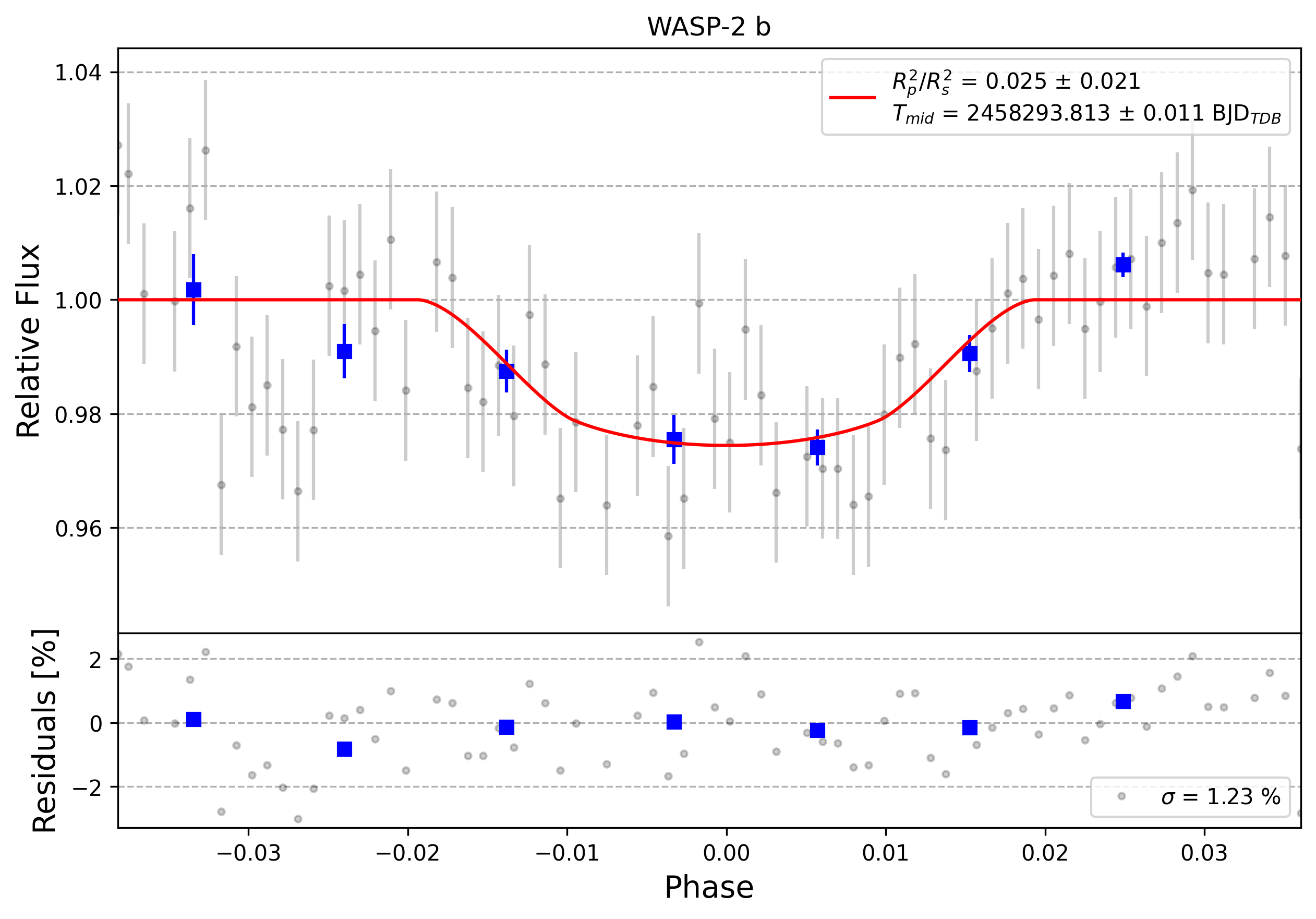

Light curve chart for 0008226
Parameter Value Uncertainty
Am1 1.528 0.02
Am2 -0.242 0.027
a/Rs 7.57 0.35
Rp/Rs 0.153 0.068
ephemeris [JD] 2458293.815 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5402247564468856
u1 -2.6183605246538324
u2 3.2608370491131926
u3 -1.1827012323159876
duration 0.0851 0.0097
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MGIF (collaborate/publish) MOBS
Light curve chart for 0011449
Parameter Value Uncertainty
Am1 1.347 0.018
Am2 -0.24 0.027
a/Rs 7.51 0.35
Rp/Rs 0.161 0.067
ephemeris [JD] 2458293.815 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5413455777115617
u1 -2.6204688908744123
u2 3.2631047986171997
u3 -1.1839814368302988
duration 0.0864 0.0093
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KPRB (collaborate/publish) MOBS
Light curve chart for 0004866
Parameter Value Uncertainty
Am1 0.961 0.011
Am2 0.036 0.026
a/Rs 8.67 0.3
Rp/Rs 0.143 0.019
ephemeris [JD] 2458321.778 0.0044
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5407672454869026
u1 -2.6193517289328083
u2 3.2616187868416406
u3 -1.1830342547938275
duration 0.0661 0.0048
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO BBOD (collaborate/publish) MOBS
Light curve chart for 0007209
Parameter Value Uncertainty
Am1 1.262 0.014
Am2 -0.193 0.023
a/Rs 7.63 0.35
Rp/Rs 0.091 0.049
ephemeris [JD] 2458334.679 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.540249398285594
u1 -2.618341931454107
u2 3.2613786661203177
u3 -1.1832860843534756
duration 0.0722 0.0093
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PARD (collaborate/publish) MOBS

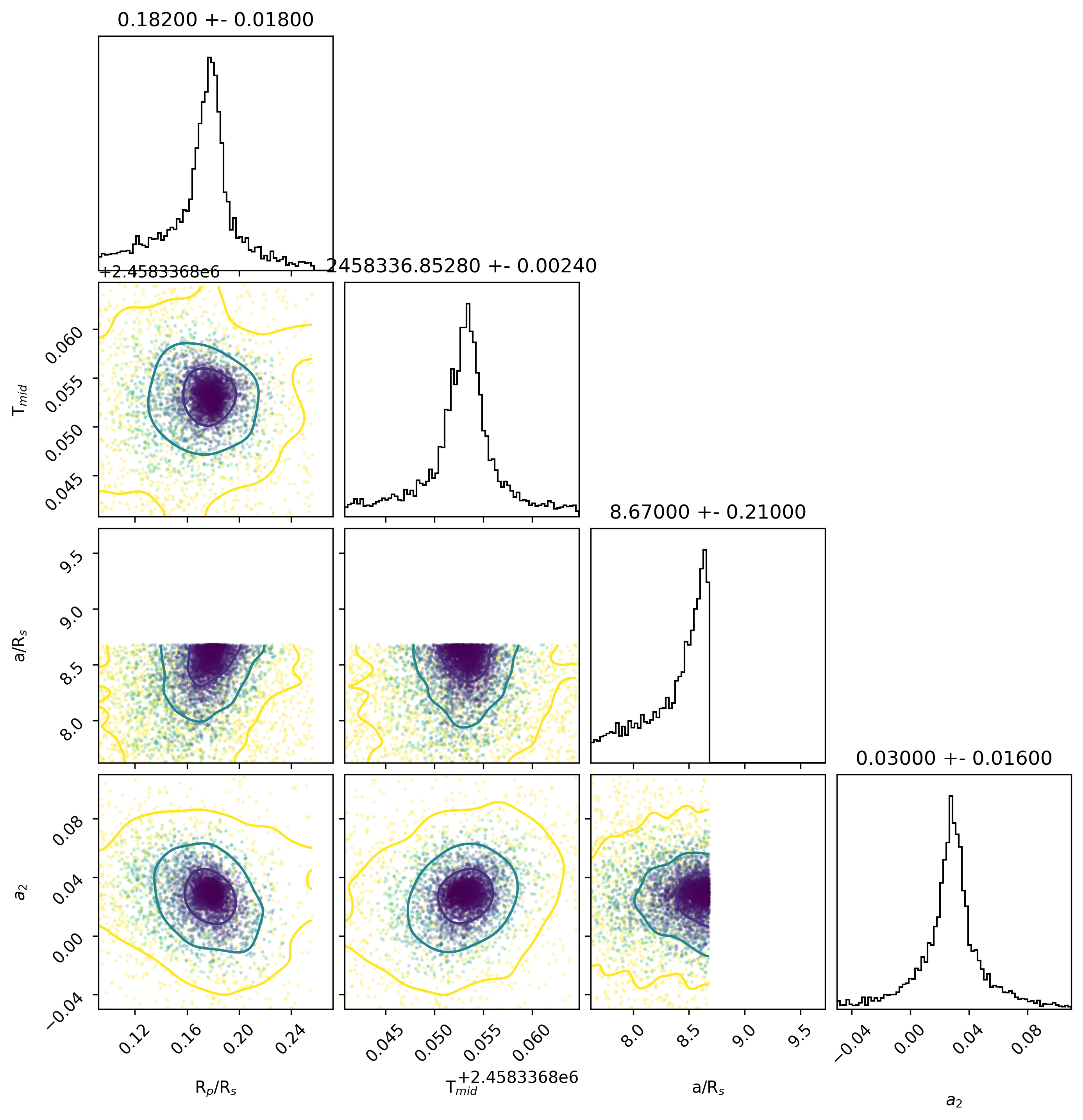

Light curve chart for 0009830
Parameter Value Uncertainty
Am1 0.971 0.014
Am2 0.027 0.016
a/Rs 8.67 0.21
Rp/Rs 0.181 0.019
ephemeris [JD] 2458336.8525 0.0025
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5397548544905448
u1 -2.6171663633027813
u2 3.2596796124740566
u3 -1.1822680550888087
duration 0.0702 0.0037
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SSTP (collaborate/publish) MOBS
Light curve chart for 0004377
Parameter Value Uncertainty
Am1 1.121 0.031
Am2 -0.09 0.11
a/Rs 7.48 0.32
Rp/Rs 0.194 0.046
ephemeris [JD] 2458349.7637 0.0055
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5404243482592523
u1 -2.618533589689403
u2 3.2603437523892644
u3 -1.1822344623762064
duration 0.0916 0.0081
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO ASJB (collaborate/publish) MOBS

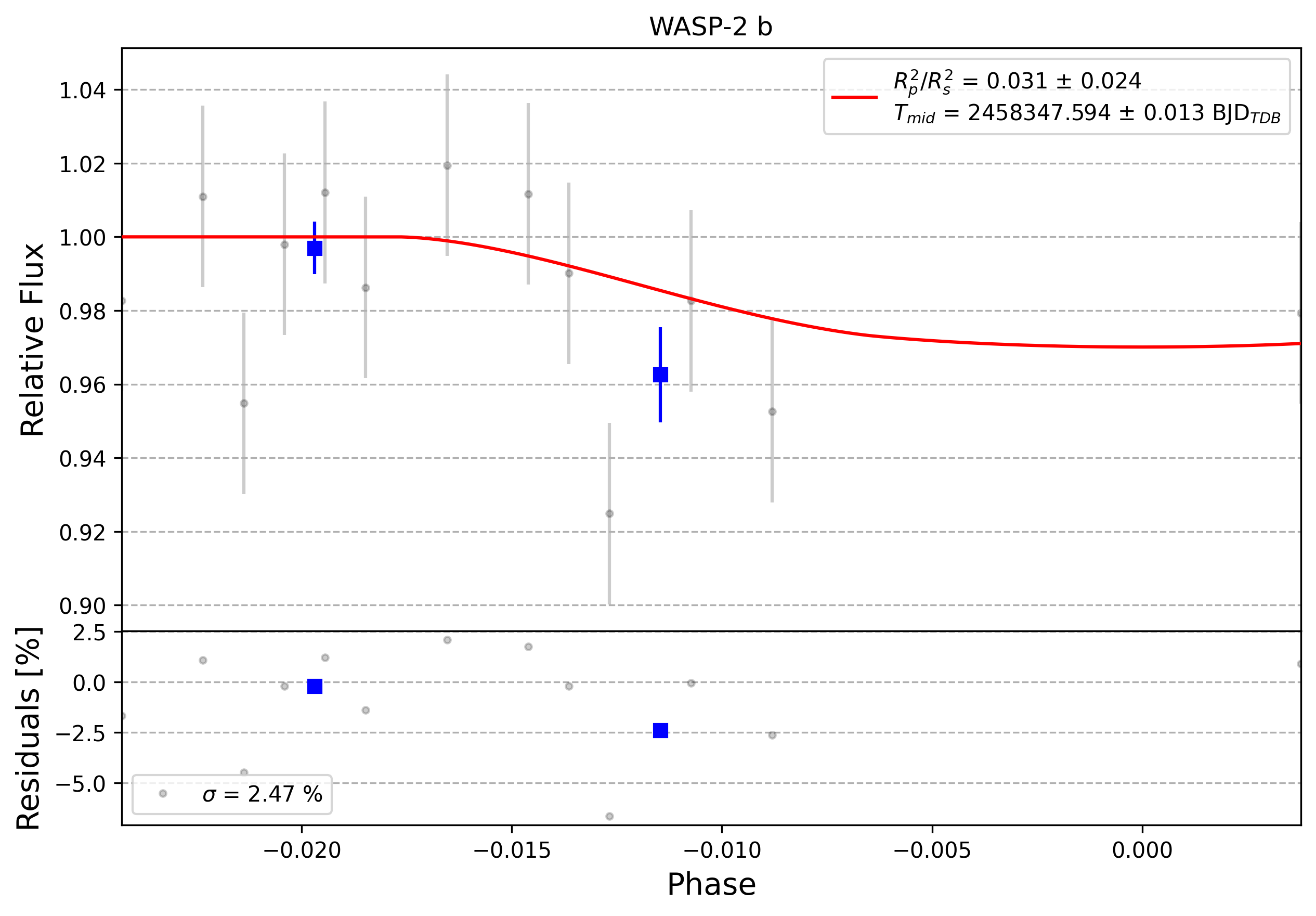

Light curve chart for 0010026
Parameter Value Uncertainty
Am1 2.73 0.12
Am2 -0.85 0.43
a/Rs 7.57 0.35
Rp/Rs 0.211 0.069
ephemeris [JD] 2458347.593 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5413598533849768
u1 -2.620526606487028
u2 3.2625758905205893
u3 -1.1834090888023687
duration 0.0551 0.0094
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KMUA (collaborate/publish) MOBS

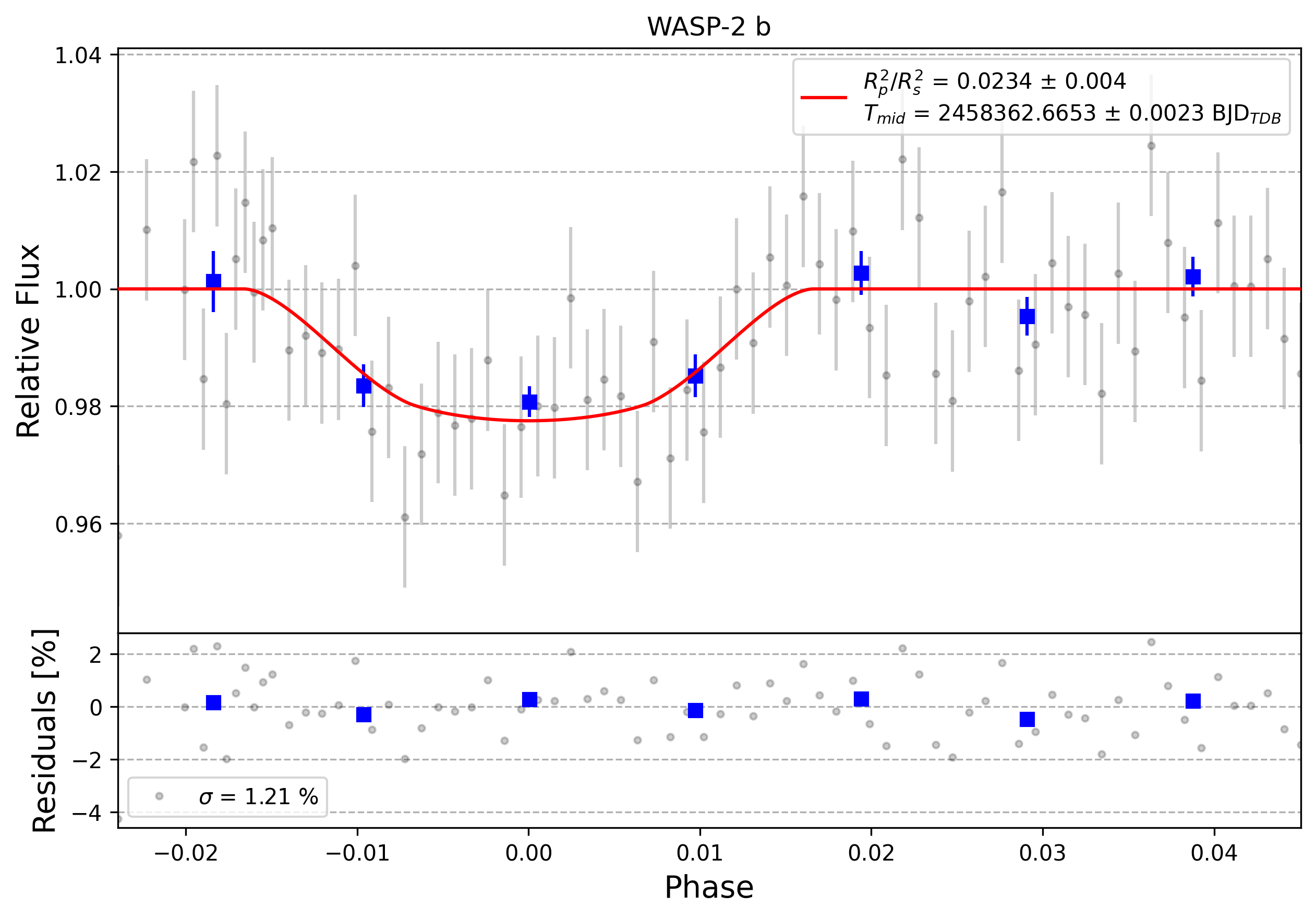

Light curve chart for 0007404
Parameter Value Uncertainty
Am1 0.972 0.012
Am2 0.023 0.018
a/Rs 8.44 0.26
Rp/Rs 0.152 0.013
ephemeris [JD] 2458362.6654 0.0024
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5411841928507308
u1 -2.620156305871384
u2 3.2616823556870735
u3 -1.1827101940635658
duration 0.0706 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO NLIC (collaborate/publish) MOBS
Light curve chart for 0009123
Parameter Value Uncertainty
Am1 0.975 0.014
Am2 0.021 0.011
a/Rs 8.66 0.14
Rp/Rs 0.227 0.014
ephemeris [JD] 2458377.742 0.0017
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5408753999265867
u1 -2.6196411537813082
u2 3.2620404296165084
u3 -1.1832746271535965
duration 0.0756 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SPIC (collaborate/publish) MOBS
Light curve chart for 0004359
Parameter Value Uncertainty
Am1 0.926 0.02
Am2 0.032 0.014
a/Rs 8.23 0.34
Rp/Rs 0.136 0.062
ephemeris [JD] 2458405.713 0.011
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.541371944509157
u1 -2.6206223210535433
u2 3.2630007632498272
u3 -1.1837503380829406
duration 0.0718 0.0086
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SPUA (collaborate/publish) MOBS
Light curve chart for 0011608
Parameter Value Uncertainty
Am1 1.168 0.013
Am2 -0.108 0.015
a/Rs 7.48 0.34
Rp/Rs 0.169 0.024
ephemeris [JD] 2458418.6314 0.0059
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5406365252365004
u1 -2.6193551242370527
u2 3.262389564243136
u3 -1.1836709166291906
duration 0.0884 0.0067
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KPRB (collaborate/publish) MOBS
Light curve chart for 0009953
Parameter Value Uncertainty
Am1 0.9755 0.0093
Am2 0.0188 0.0042
a/Rs 8.12 0.27
Rp/Rs 0.1591 0.0098
ephemeris [JD] 2458418.6389 0.0019
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.8308875982021435
u1 -3.1844075924723363
u2 3.6524310519435286
u3 -1.2989110032478717
duration 0.0765 0.0044
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO GMAU (collaborate/publish)
Light curve chart for 0004383
Parameter Value Uncertainty
Am1 1.1873 0.0099
Am2 -0.132 0.015
a/Rs 7.58 0.35
Rp/Rs 0.107 0.06
ephemeris [JD] 2458633.849 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5404938087801516
u1 -2.619079858813075
u2 3.261534153425873
u3 -1.1829480547923037
duration 0.0789 0.0087
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SGDA (collaborate/publish) MOBS
Light curve chart for 0010801
Parameter Value Uncertainty
Am1 1.21 0.013
Am2 -0.163 0.039
a/Rs 7.81 0.3
Rp/Rs 0.162 0.019
ephemeris [JD] 2458648.925 0.0026
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5414924288553276
u1 -2.62070349334287
u2 3.262971883210203
u3 -1.1837607701005908
duration 0.0816 0.0055
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GHAB (collaborate/publish) MOBS
Light curve chart for 0010294
Parameter Value Uncertainty
Am1 1.17 0.013
Am2 -0.124 0.017
a/Rs 7.98 0.34
Rp/Rs 0.104 0.041
ephemeris [JD] 2458661.838 0.011
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5414535003917924
u1 -2.6209981007631615
u2 3.26391884781847
u3 -1.1843741988109202
duration 0.0726 0.0074
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MANE (collaborate/publish) MOBS
Light curve chart for 0010161
Parameter Value Uncertainty
Am1 1.277 0.01
Am2 -0.217 0.048
a/Rs 8.64 0.35
Rp/Rs 0.129 0.054
ephemeris [JD] 2458717.808 0.011
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5403270715028299
u1 -2.6179037993557044
u2 3.2595935275558565
u3 -1.1820167511312532
duration 0.0647 0.0082
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SANAA (collaborate/publish) MOBS
Light curve chart for 0000282
Parameter Value Uncertainty
Am1 1.094 0.01
Am2 -0.002 0.018
a/Rs 7.72 0.28
Rp/Rs 0.118 0.012
ephemeris [JD] 2458717.7987 0.0032
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.8313217081973432
u1 -3.185866867939773
u2 3.6537431520891874
u3 -1.299197937901742
duration 0.0785 0.005
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0006562
Parameter Value Uncertainty
Am1 1.0311 0.0086
Am2 -0.026 0.034
a/Rs 8.68 0.19
Rp/Rs 0.161 0.015
ephemeris [JD] 2458730.7097 0.0021
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5412957730212609
u1 -2.6203588750202353
u2 3.2625954418910443
u3 -1.1835322912756094
duration 0.0682 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CJOB (collaborate/publish) MOBS
Light curve chart for 0009184
Parameter Value Uncertainty
Am1 0.874 0.019
Am2 0.12 0.14
a/Rs 7.49 0.35
Rp/Rs 0.248 0.075
ephemeris [JD] 2458730.691 0.013
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5420511593769934
u1 -2.6217410148705373
u2 3.2639277865115197
u3 -1.184237882381662
duration 0.0268 0.0034
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO VIVA (collaborate/publish) MOBS
Light curve chart for 0004150
Parameter Value Uncertainty
Am1 1.009 0.032
Am2 -0.014 0.017
a/Rs 7.48 0.35
Rp/Rs 0.151 0.051
ephemeris [JD] 2458745.7591 0.0093
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.541103095324485
u1 -2.6194887276022585
u2 3.2613324476004526
u3 -1.1829467667250388
duration 0.0865 0.0087
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LANF (collaborate/publish) MOBS
Light curve chart for 0000327
Parameter Value Uncertainty
Am1 1.313 0.01
Am2 0.0075 0.0016
a/Rs 8.44 0.33
Rp/Rs 0.124 0.01
ephemeris [JD] 2459014.8038 0.0035
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.833136104855849
u1 -3.189792101695399
u2 3.6578570038412734
u3 -1.3012009524954067
duration 0.0677 0.0051
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0000352
Parameter Value Uncertainty
Am1 1.4 0.01
Am2 -0.038 0.017
a/Rs 7.91 0.26
Rp/Rs 0.1532 0.0086
ephemeris [JD] 2459029.8654 0.0018
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.8314345697051142
u1 -3.1855049507293414
u2 3.653095388765314
u3 -1.2990249533057234
duration 0.0793 0.0046
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0008697
Parameter Value Uncertainty
Am1 1.224 0.037
Am2 -0.18 0.13
a/Rs 7.75 0.34
Rp/Rs 0.201 0.07
ephemeris [JD] 2459042.769 0.01
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.539417257728557
u1 -2.6167947239597744
u2 3.2591815209835846
u3 -1.1818040061867783
duration 0.045 0.011
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO VIVA (collaborate/publish) MOBS
Light curve chart for 0009164
Parameter Value Uncertainty
Am1 0.971 0.0095
Am2 0.023 0.014
a/Rs 7.9 0.28
Rp/Rs 0.155 0.013
ephemeris [JD] 2459057.8503 0.0023
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5412896319926266
u1 -2.619947335421604
u2 3.261232188824544
u3 -1.1825744367994204
duration 0.0796 0.0047
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CPIB (collaborate/publish) MOBS
Light curve chart for 0006294
Parameter Value Uncertainty
Am1 1.296 0.013
Am2 -0.223 0.037
a/Rs 7.77 0.33
Rp/Rs 0.148 0.032
ephemeris [JD] 2459070.7588 0.005
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5407674746985138
u1 -2.619482005281966
u2 3.2619504318330494
u3 -1.1832358526427478
duration 0.0807 0.0066
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LIGA (collaborate/publish) MOBS
Light curve chart for 0000419
Parameter Value Uncertainty
Am1 1132053.16 49989.26
Am2 -0.123 0.044
a/Rs 8.64 0.35
Rp/Rs 0.214 0.062
ephemeris [JD] 2459070.7388 0.0075
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.8110631706179017
u1 -3.0145225549471766
u2 3.4357013806363086
u3 -1.2322419451110935
duration 0.0745 0.0081
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
SR Sloan r 553.1 nm 693.1 nm
Organization Observer Code Secondary Observers
AAVSO RDMA (collaborate/publish)
Light curve chart for 0000454
Parameter Value Uncertainty
Am1 795719.58 28107.63
Am2 -0.008 0.025
a/Rs 7.96 0.35
Rp/Rs 0.0 0.025
ephemeris [JD] 2459085.819 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.83295565090964
u1 -3.1898425800020864
u2 3.658210676324263
u3 -1.3013236927202296
duration 0.0624 0.0061
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO RDMA (collaborate/publish)
Light curve chart for 0007164
Parameter Value Uncertainty
Am1 0.953 0.012
Am2 0.0383 0.0064
a/Rs 8.5 0.34
Rp/Rs 0.168 0.026
ephemeris [JD] 2459113.8006 0.0062
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5413731016841423
u1 -2.6204208471333765
u2 3.2627352067054862
u3 -1.1836874126377093
duration 0.0715 0.0056
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MTAD (collaborate/publish) MOBS
Light curve chart for 0009478
Parameter Value Uncertainty
Am1 1.057 0.022
Am2 -0.043 0.06
a/Rs 8.64 0.33
Rp/Rs 0.247 0.079
ephemeris [JD] 2459126.7382 0.0098
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5402006015439549
u1 -2.618223816535609
u2 3.260959406694359
u3 -1.1829361431106236
duration 0.059 0.011
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PMAFA (collaborate/publish) MOBS
Light curve chart for 0003697
Parameter Value Uncertainty
Am1 0.939 0.016
Am2 0.044 0.012
a/Rs 7.54 0.35
Rp/Rs 0.09 0.037
ephemeris [JD] 2459126.716 0.011
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5409802387006446
u1 -2.619815855367651
u2 3.2620900551991276
u3 -1.1832543899231918
duration 0.0784 0.0077
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WJEC (collaborate/publish) MOBS
Light curve chart for 0005813
Parameter Value Uncertainty
Am1 1.0047 0.0097
Am2 -0.003 0.013
a/Rs 8.67 0.26
Rp/Rs 0.149 0.017
ephemeris [JD] 2459369.9142 0.004
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5404378814363517
u1 -2.6187312768452555
u2 3.260736762342478
u3 -1.1824433183448102
duration 0.0668 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FBIA (collaborate/publish) MOBS
Light curve chart for 0007884
Parameter Value Uncertainty
Am1 1.086 0.031
Am2 -0.061 0.079
a/Rs 8.65 0.34
Rp/Rs 0.175 0.073
ephemeris [JD] 2459395.752 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5409897843165488
u1 -2.6198708426706836
u2 3.262545507347432
u3 -1.1836644003775803
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CJOB (collaborate/publish) MOBS
Light curve chart for 0006450
Parameter Value Uncertainty
Am1 0.302 0.026
Am2 1.0 0.18
a/Rs 8.09 0.35
Rp/Rs 0.257 0.054
ephemeris [JD] 2459397.9024 0.0095
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5408972798450176
u1 -2.6198558467468276
u2 3.2626780455438755
u3 -1.1837194300243743
duration 0.07 0.01
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SMAMA (collaborate/publish) MOBS
Light curve chart for 0000760
Parameter Value Uncertainty
Am1 1.0374 0.0084
Am2 -0.024 0.01
a/Rs 7.57 0.16
Rp/Rs 0.1485 0.0073
ephemeris [JD] 2459410.8101 0.0013
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 2.1931992936286053
u1 -3.8164871256104864
u2 4.043279538456821
u3 -1.4199916462253803
duration 0.0845 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Astrodon ExoPlanet-BB 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO LPAC (collaborate/publish)
Light curve chart for 0000759
Parameter Value Uncertainty
Am1 1.0051 0.0059
Am2 -0.0033 0.0033
a/Rs 7.73 0.15
Rp/Rs 0.1212 0.0049
ephemeris [JD] 2459410.8039 0.0012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.6436098922532552
u1 -2.7900325928770586
u2 3.36350042236446
u3 -1.2170776716205944
duration 0.0783 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 450.0 nm 700.0 nm
Organization Observer Code Secondary Observers
AAVSO CMIA (collaborate/publish)
Light curve chart for 0008780
Parameter Value Uncertainty
Am1 1.409 0.069
Am2 -0.24 0.19
a/Rs 7.57 0.34
Rp/Rs 0.103 0.073
ephemeris [JD] 2459408.638 0.012
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5416927697778233
u1 -2.6216310949874586
u2 3.2642515186031784
u3 -1.1843131447524051
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KPRB (collaborate/publish) MOBS
Light curve chart for 0007408
Parameter Value Uncertainty
Am1 0.859 0.066
Am2 0.11 0.53
a/Rs 8.61 0.35
Rp/Rs 0.257 0.066
ephemeris [JD] 2459438.794 0.01
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5416826971459148
u1 -2.6207083237146365
u2 3.2625754185305067
u3 -1.1835497433456226
duration 0.063 0.01
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO ZAIB (collaborate/publish) MOBS
Light curve chart for 0005004
Parameter Value Uncertainty
Am1 1.17 0.025
Am2 -0.138 0.097
a/Rs 8.31 0.34
Rp/Rs 0.249 0.026
ephemeris [JD] 2459438.803 0.0039
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5410606717568844
u1 -2.6200461411553446
u2 3.2631242006920433
u3 -1.1841386826692437
duration 0.0834 0.006
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WJEC (collaborate/publish) MOBS
Light curve chart for 0009591
Parameter Value Uncertainty
Am1 1.291 0.063
Am2 -0.19 0.15
a/Rs 8.64 0.35
Rp/Rs 0.238 0.074
ephemeris [JD] 2459449.548 0.011
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5416570532510014
u1 -2.621026391924692
u2 3.263619984992295
u3 -1.184250597686877
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WSTB (collaborate/publish) MOBS
Light curve chart for 0009937
Parameter Value Uncertainty
Am1 0.6756 0.0073
Am2 0.35 0.23
a/Rs 8.36 0.34
Rp/Rs 0.256 0.062
ephemeris [JD] 2459464.6177 0.0055
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5394126091888356
u1 -2.61684078634451
u2 3.259455549957927
u3 -1.1820273242325805
duration 0.0398 0.0069
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CMAP (collaborate/publish) MOBS
Light curve chart for 0010251
Parameter Value Uncertainty
Am1 0.9355 0.0086
Am2 0.057 0.022
a/Rs 8.61 0.2
Rp/Rs 0.173 0.011
ephemeris [JD] 2459479.6784 0.0017
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.8326011313395536
u1 -3.188513690539339
u2 3.6563756525288755
u3 -1.3004630388448475
duration 0.0702 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO GMAU (collaborate/publish)
Light curve chart for 0009649
Parameter Value Uncertainty
Am1 1.015 0.014
Am2 -0.0075 0.0032
a/Rs 8.43 0.29
Rp/Rs 0.174 0.015
ephemeris [JD] 2459494.7466 0.0028
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.541029371131381
u1 -2.619411285690598
u2 3.2609624405409283
u3 -1.182580477389584
duration 0.0735 0.0047
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CPIB (collaborate/publish) MOBS
Light curve chart for 0011734
Parameter Value Uncertainty
Am1 1.017 0.014
Am2 -0.0135 0.0076
a/Rs 8.67 0.24
Rp/Rs 0.154 0.017
ephemeris [JD] 2459507.6632 0.0031
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5395466384037064
u1 -2.61689396765086
u2 3.2592585580093054
u3 -1.181911180195415
duration 0.0676 0.0038
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DJSA (collaborate/publish) MOBS
Light curve chart for 0001592
Parameter Value Uncertainty
Am1 1.018 0.011
Am2 -0.0152 0.0088
a/Rs 7.98 0.32
Rp/Rs 0.139 0.014
ephemeris [JD] 2459750.8574 0.0039
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.832402379566016
u1 -3.1885536283919595
u2 3.6568454580115937
u3 -1.3006941546944062
duration 0.076 0.0058
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0001736
Parameter Value Uncertainty
Am1 0.908 0.018
Am2 0.085 0.091
a/Rs 7.49 0.35
Rp/Rs 0.148 0.035
ephemeris [JD] 2459778.8203 0.0062
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.8319558823910482
u1 -3.1869931447684614
u2 3.654922583357814
u3 -1.2998852665178098
duration 0.0859 0.0077
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0001751
Parameter Value Uncertainty
Am1 1.0553 0.0074
Am2 -0.032 0.014
a/Rs 7.49 0.21
Rp/Rs 0.157 0.016
ephemeris [JD] 2459791.7557 0.002
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 2.195946385756972
u1 -3.8220621954115677
u2 4.047585237571979
u3 -1.4214693676036627
duration 0.0642 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Astrodon ExoPlanet-BB 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 0011787
Parameter Value Uncertainty
Am1 1.322 0.012
Am2 -0.172 0.02
a/Rs 7.86 0.34
Rp/Rs 0.146 0.06
ephemeris [JD] 2459793.9 0.011
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5405365269762954
u1 -2.619047246550742
u2 3.2621242269550974
u3 -1.183613458771212
duration 0.0794 0.0091
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO HDOD (collaborate/publish) MOBS
Light curve chart for 0001836
Parameter Value Uncertainty
Am1 0.876 0.0092
Am2 0.098 0.025
a/Rs 7.55 0.27
Rp/Rs 0.14 0.013
ephemeris [JD] 2459806.8272 0.0034
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 2.1965637350860496
u1 -3.8233623066197935
u2 4.048854183306348
u3 -1.4220555514399758
duration 0.0818 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Astrodon ExoPlanet-BB 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 0001873
Parameter Value Uncertainty
Am1 2.82 0.89
Am2 -1.0 0.25
a/Rs 8.51 0.34
Rp/Rs 0.008 0.066
ephemeris [JD] 2459819.753 0.013
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5400066745590177
u1 -2.61736124812548
u2 3.259180124492478
u3 -1.181825502360447
duration 0.0578 0.0068
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GSAD (collaborate/publish) MOBS
Light curve chart for 0006624
Parameter Value Uncertainty
Am1 1.202 0.025
Am2 -0.16 0.13
a/Rs 7.49 0.32
Rp/Rs 0.213 0.037
ephemeris [JD] 2459819.7332 0.004
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5393371771483149
u1 -2.616951946439056
u2 3.2594657110017455
u3 -1.1818508931411809
duration 0.0937 0.0074
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LALF (collaborate/publish) MOBS
Light curve chart for 0001923
Parameter Value Uncertainty
Am1 1.021 0.023
Am2 -0.011 0.011
a/Rs 8.4 0.33
Rp/Rs 0.193 0.042
ephemeris [JD] 2459834.8002 0.006
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.8313414388436509
u1 -3.1857205986798363
u2 3.65376011022857
u3 -1.2993808959471163
duration 0.0754 0.0065
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0001962
Parameter Value Uncertainty
Am1 1.092 0.011
Am2 -0.064 0.013
a/Rs 8.07 0.32
Rp/Rs 0.128 0.017
ephemeris [JD] 2459847.7032 0.0039
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 2.079070448219226
u1 -3.529199790602072
u2 3.7843365333697183
u3 -1.3342071345958635
duration 0.0741 0.0056
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
RJ Johnson R 590.0 nm 810.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 0002021
Parameter Value Uncertainty
Am1 0.9977 0.0043
Am2 0.0014 0.001
a/Rs 7.91 0.13
Rp/Rs 0.1243 0.0035
ephemeris [JD] 2459847.7107 0.00084
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.831972122011882
u1 -3.1868027799511918
u2 3.6543676826038016
u3 -1.2995369702101698
duration 0.076 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO MCFB (collaborate/publish)
Light curve chart for 0006588
Parameter Value Uncertainty
Am1 0.9864 0.0064
Am2 0.01 0.0024
a/Rs 8.05 0.27
Rp/Rs 0.1211 0.0057
ephemeris [JD] 2460103.8263 0.0019
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.8623456852269746
u1 -3.105347269201641
u2 3.4892280118728025
u3 -1.246226375904587
duration 0.073 0.0045
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
R Cousins R 561.7 nm 719.7 nm
Organization Observer Code Secondary Observers
AAVSO LALF (collaborate/publish)
Light curve chart for 0003890
Parameter Value Uncertainty
Am1 1.0361 0.0079
Am2 -0.032 0.02
a/Rs 7.48 0.12
Rp/Rs 0.1262 0.0089
ephemeris [JD] 2460118.8749 0.0024
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.542780415786586
u1 -2.623198162898678
u2 3.265303468467349
u3 -1.184885672698444
duration 0.0834 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RDUA (collaborate/publish) MOBS
Light curve chart for 0004109
Parameter Value Uncertainty
Am1 1.0136 0.0043
Am2 -0.0104 0.0068
a/Rs 7.89 0.12
Rp/Rs 0.1449 0.0037
ephemeris [JD] 2460146.86975 0.00079
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 2.077772870907626
u1 -3.5259028429771733
u2 3.7808669818950533
u3 -1.3327369534861977
duration 0.0786 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
RJ Johnson R 590.0 nm 810.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 0004105
Parameter Value Uncertainty
Am1 1.01 0.014
Am2 -0.006 0.039
a/Rs 7.48 0.33
Rp/Rs 0.152 0.031
ephemeris [JD] 2460146.8669 0.0063
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5403197063322522
u1 -2.6183495949990525
u2 3.2607185292155068
u3 -1.182688591960214
duration 0.086 0.0072
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CPHB (collaborate/publish) MOBS
Light curve chart for 0004310
Parameter Value Uncertainty
Am1 1.0922 0.0071
Am2 -0.076 0.028
a/Rs 7.67 0.32
Rp/Rs 0.139 0.018
ephemeris [JD] 2460146.8912 0.0024
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5392522601859115
u1 -2.6168636885909105
u2 3.259251450305073
u3 -1.1816399733334433
duration 0.0815 0.0059
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RKAC (collaborate/publish) MOBS
Light curve chart for 0004251
Parameter Value Uncertainty
Am1 1.223 0.018
Am2 -0.179 0.046
a/Rs 7.67 0.35
Rp/Rs 0.08 0.036
ephemeris [JD] 2460159.778 0.01
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.8308203632355282
u1 -3.1845947400644623
u2 3.652917640571533
u3 -1.299143209309885
duration 0.0742 0.0073
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0004199
Parameter Value Uncertainty
Am1 0.9498 0.0077
Am2 0.0437 0.0083
a/Rs 7.97 0.2
Rp/Rs 0.1847 0.0085
ephemeris [JD] 2460161.9368 0.0015
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.8833523674522175
u1 -3.0903618252412155
u2 3.4240618099316777
u3 -1.2170523011201828
duration 0.078 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 610.0 nm 690.0 nm
Organization Observer Code Secondary Observers
AAVSO VVIA (collaborate/publish)
Light curve chart for 0004314
Parameter Value Uncertainty
Am1 1.0322 0.0063
Am2 -0.028 0.012
a/Rs 7.87 0.19
Rp/Rs 0.163 0.0046
ephemeris [JD] 2460161.93705 0.00095
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.8090265370084895
u1 -3.009925394043578
u2 3.431553523476345
u3 -1.2306546153071238
duration 0.0808 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
SR Sloan r 553.1 nm 693.1 nm
Organization Observer Code Secondary Observers
AAVSO AJAI (collaborate/publish) GLKA
Light curve chart for 0004778
Parameter Value Uncertainty
Am1 1.0081 0.0077
Am2 -0.004 0.0011
a/Rs 7.92 0.15
Rp/Rs 0.1392 0.0036
ephemeris [JD] 2460170.5439 0.001
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 2.0788262881642257
u1 -3.5285365933699087
u2 3.783650939975356
u3 -1.3339405783888805
duration 0.0775 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
RJ Johnson R 590.0 nm 810.0 nm
Organization Observer Code Secondary Observers
AAVSO LEDD (collaborate/publish)
Light curve chart for 0004294
Parameter Value Uncertainty
Am1 0.996 0.039
Am2 0.007 0.061
a/Rs 8.63 0.35
Rp/Rs 0.093 0.054
ephemeris [JD] 2460172.718 0.013
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.831991295754141
u1 -3.1867849778385033
u2 3.654177463268547
u3 -1.2993837267326973
duration 0.0562 0.0095
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0004392
Parameter Value Uncertainty
Am1 1.115 0.035
Am2 -0.085 0.041
a/Rs 7.48 0.31
Rp/Rs 0.169 0.026
ephemeris [JD] 2460187.7726 0.0052
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 2.0800295859975635
u1 -3.5313481253030545
u2 3.78633685633579
u3 -1.3350182606094836
duration 0.0886 0.0064
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
RJ Johnson R 590.0 nm 810.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 0005167
Parameter Value Uncertainty
Am1 0.976 0.012
Am2 0.0205 0.0062
a/Rs 7.48 0.17
Rp/Rs 0.1545 0.0083
ephemeris [JD] 2460202.8312 0.0019
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.5775665240026904
u1 -2.721350738324342
u2 3.350623602137315
u3 -1.206839337887481
duration 0.0842 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Clear with blue-blocking 385.0 nm 695.0 nm
Organization Observer Code Secondary Observers
AAVSO BPAO (collaborate/publish)
Light curve chart for 0004624
Parameter Value Uncertainty
Am1 0.994 0.016
Am2 0.0033 0.0064
a/Rs 7.48 0.21
Rp/Rs 0.18 0.014
ephemeris [JD] 2460215.7392 0.0035
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 1.8317683100870772
u1 -3.186240005353171
u2 3.6540103070599237
u3 -1.299538557344833
duration 0.0898 0.0042
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for bf7ee3dba785636f22197579f96720ba
Parameter Value Uncertainty
Am1 0.9998 0.0018
Am2 0
a/Rs 8.101 0.099
Rp/Rs 0.1296 0.0026
ephemeris [JD] 2459787.44865 0.00067
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 2.412651753771754
u1 -4.195244252835342
u2 4.257055460775069
u3 -1.4744628982764114
duration 0.0733 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3ba4605ed3c5e20f4ea523ce5586ab09
Parameter Value Uncertainty
Am1 0.9989 0.0018
Am2 0
a/Rs 8.037 0.096
Rp/Rs 0.1268 0.0026
ephemeris [JD] 2459770.23073 0.00063
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 2.4131394345646218
u1 -4.1967170467772945
u2 4.258731903485839
u3 -1.4751542278131158
duration 0.074 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a801564efcbcbd57845155c7ed92d97b
Parameter Value Uncertainty
Am1 1.0006 0.0017
Am2 0
a/Rs 7.88 0.12
Rp/Rs 0.1293 0.0032
ephemeris [JD] 2459796.05748 0.00083
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 2.4109584193140052
u1 -4.191986020088826
u2 4.25487625487139
u3 -1.4738485906939727
duration 0.0768 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ca2f5222b7e963ae1e2c0c9ae081734a
Parameter Value Uncertainty
Am1 1.0003 0.0018
Am2 0
a/Rs 8.053 0.1
Rp/Rs 0.132 0.0025
ephemeris [JD] 2459772.38282 0.00066
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 2.412440867714326
u1 -4.194681416013364
u2 4.25652060622315
u3 -1.4742799944970124
duration 0.0744 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c254c35b8ffc383e76907b10646472d2
Parameter Value Uncertainty
Am1 1.0 0.0017
Am2 0
a/Rs 8.073 0.095
Rp/Rs 0.131 0.0026
ephemeris [JD] 2459785.29655 0.00066
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 2.41272446393173
u1 -4.195519784614322
u2 4.257368984046825
u3 -1.4745735999244913
duration 0.074 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a1adae6a547583adbcd93f45e4cf9b90
Parameter Value Uncertainty
Am1 1.0 0.0018
Am2 0
a/Rs 7.97 0.13
Rp/Rs 0.1291 0.0035
ephemeris [JD] 2459789.60074 0.00089
eccentricity 0.013
inclination [degrees] 84.81
omega [degrees] 267.0
orbital period [days] 2.15222216
u0 2.413843765201764
u1 -4.198151483466644
u2 4.2598804294619335
u3 -1.475572647719889
duration 0.0753 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
