Timing Plot

Total Reductions to Date: 1

Date Processed: 06/09/2024 at 00:07:26 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 1.7771376730038344 3.152601766655793e-07
Ephemeris (BJD_TDB) 2459869.5604065233 0.00035161175374996055
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 344.8735878 decimal
DEC -60.4478194 decimal
Host Star Metallicity -0.01 0.19 Kokori et al. 2023
Host Star log(g) 4.46 0.08 Log10(cgs) ExoFOP-TESS TOI
Host Star Radius [R_Sun] 0.93 0.03 Sol Kokori et al. 2023
Host Star Effective Temperature [K] 5806.0 190.0 K Kokori et al. 2023
a/Rs 6.5 0.13 Kokori et al. 2023
eccentricity 0.0 Lendl et al. 2019
inclination [degrees] 82.73 0.22 deg Kokori et al. 2023
omega [degrees] 0.0 deg Kokori et al. 2023
orbital period [days] 1.77713687 2.9e-07 day Kokori et al. 2023
Rp 12.64 0.46 R_Earth Lendl et al. 2019
Rp/Rs 0.1242 0 Lendl et al. 2019
ephemeris [JD] 2458424.74756 0.00017 BJD-TDB Kokori et al. 2023

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2457203.85378 0.0002 BJD Lendl et al. 2019
2457747.6583 0.0003 BJD-TDB Kokori et al. 2022
2458424.74756 0.00017 BJD-TDB Kokori et al. 2023
2459062.7394245 0.0003725 BJD, BJD-TDB Ivshina & Winn 2022, ExoFOP-TESS TOI

Observations

Light curve chart for 0003529

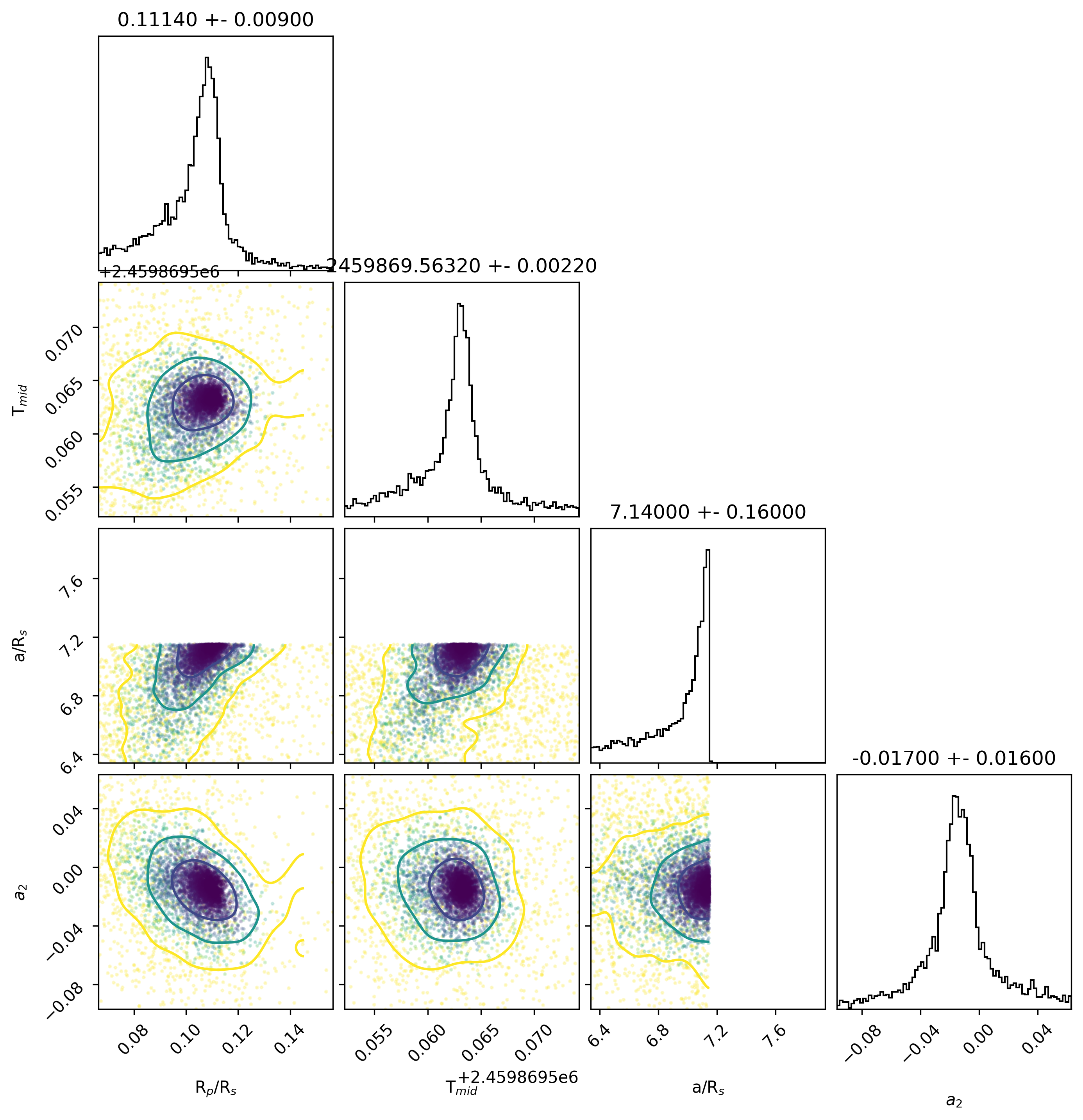

Parameter Value Uncertainty
Am1 1.0176 0.0045
Am2 -0.015 0.017
a/Rs 7.15 0.17
Rp/Rs 0.1113 0.0092
ephemeris [JD] 2459869.563 0.0023
eccentricity 0.0
inclination [degrees] 82.73
omega [degrees] 0.0
orbital period [days] 1.77713687
u0 2.354676078121854
u1 -4.1485971598171005
u2 4.349792465293812
u3 -1.5558713187816076
duration 0.0516 0.0038
