Timing Plot

Total Reductions to Date: 1

Date Processed: 12/03/2023 at 00:07:36 (PST)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 5.644215092027199 1.333671248758933e-06
Ephemeris (BJD_TDB) 2460095.8111026958 0.0005146020556947102
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 264.2630197 decimal
DEC 53.0212751 decimal
Host Star Metallicity 0.156 0.1 Patel & Espinoza 2022
Host Star log(g) 4.15 0.03 Log10(cgs) Patel & Espinoza 2022
Host Star Radius [R_Sun] 1.65 0.02 Sol Patel & Espinoza 2022
Host Star Effective Temperature [K] 6218.0 49.0 K Patel & Espinoza 2022
a/Rs 11.25 3.4 Patel & Espinoza 2022
eccentricity 0.3775 0.0038 Cooke et al. 2020
inclination [degrees] 84.01 0.25 deg Cooke et al. 2020
omega [degrees] 0.0 deg Patel & Espinoza 2022
orbital period [days] 5.6442072 2.9e-06 day Patel & Espinoza 2022
Rp 11.99 0.27 R_Earth Cooke et al. 2020
Rp/Rs 0.0663 0 Cooke et al. 2020
ephemeris [JD] 2459034.6987 0.00065 BJD Patel & Espinoza 2022

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2459034.6987 0.00065 BJD Patel & Espinoza 2022
2457217.2614 0.0004 HJD Cooke et al. 2020
2459768.446771 0.000758 BJD ExoFOP-TESS TOI

Observations

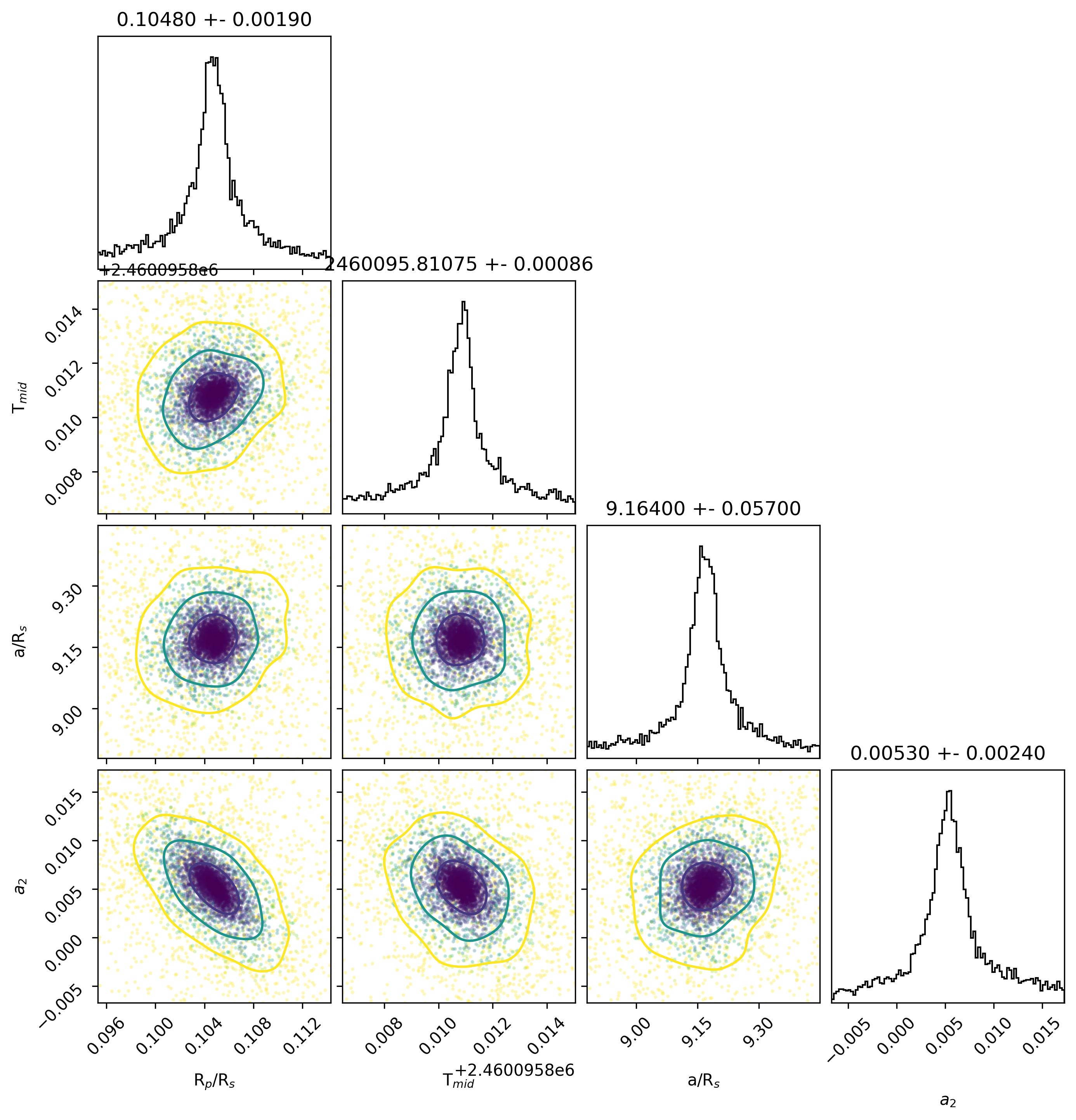

Light curve chart for 0003651
Parameter Value Uncertainty
Am1 0.995 0.0016
Am2 0.0051 0.0025
a/Rs 9.159 0.057
Rp/Rs 0.1049 0.0019
ephemeris [JD] 2460095.81092 0.00085
eccentricity 0.3775
inclination [degrees] 84.01
omega [degrees] 0.0
orbital period [days] 5.6442072
u0 2.1395081031396046
u1 -3.930589545911227
u2 4.426889383308518
u3 -1.6358078745711033
duration 0.1356 0.0019
