WASP-12 b

View target in exoplanet catalog
Timing Plot
Global Light Curve
Lomb-Scargle Periodogram

Total Reductions to Date: 132

Date Processed: 09/24/2023 at 00:07:22 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 1.091418842310688 2.8373843764931168e-08
Ephemeris (BJD_TDB) 2460009.7309848834 8.512621616804346e-05
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 97.636645 decimal
DEC 29.6722662 decimal
Host Star Metallicity 0.3 0.05 Öztürk & Erdem 2019
Host Star log(g) 4.17 0.03 Log10(cgs) Öztürk & Erdem 2019
Host Star Radius [R_Sun] 1.57 0.07 Sol Kokori et al. 2022
Host Star Effective Temperature [K] 6300.0 200.0 K Kokori et al. 2022
a/Rs 3.0 0.016 Chakrabarty & Sengupta 2019
eccentricity 0.0 0.01 Öztürk & Erdem 2019
inclination [degrees] 83.52 0.03 deg Chakrabarty & Sengupta 2019
omega [degrees] 272.7 2.4 deg Knutson et al. 2014
orbital period [days] 1.09141911 6e-08 day Ivshina & Winn 2022
Rp 21.71 0.63 R_Earth Chakrabarty & Sengupta 2019
Rp/Rs 0.1307 0 ExoFOP-TESS TOI
ephemeris [JD] 2457010.512173 7e-05 BJD-TDB Ivshina & Winn 2022

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2454508.976906 0.000462 BJD, BJD-TDB Öztürk & Erdem 2019, Bonomo et al. 2017, Maciejewski et al. 2016, Albrecht et al. 2012, Hebb et al. 2009
2455147.4582 0.00013 BJD Turner et al. 2016
2456176.668258 7.8e-05 BJD-TDB Collins et al. 2017
2456594.6816 4e-05 BJD-TDB Kokori et al. 2022
2457010.512173 7e-05 BJD-TDB Ivshina & Winn 2022
2459550.243082 0.00012 BJD ExoFOP-TESS TOI

Observations

Light curve chart for 0003531
Parameter Value Uncertainty
Am1 1.263 0.025
Am2 -0.122 0.013
a/Rs 2.955 0.046
Rp/Rs 0.086 0.048
ephemeris [JD] 2456726.722 0.012
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9050510042390254
u1 -3.354324832836159
u2 3.913239727154323
u3 -1.4639658402453732
duration 0.1243 0.0066
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MJAT (collaborate/publish) MOBS
Light curve chart for 0002337
Parameter Value Uncertainty
Am1 0.89 0.32
Am2 0.051 0.08
a/Rs 3.049 0.046
Rp/Rs 0.0 0.072
ephemeris [JD] 2457012.714 0.012
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9054189598015725
u1 -3.3554210283338075
u2 3.914529777623869
u3 -1.4645276507605947
duration 0.1163 0.0058
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO AHIA (collaborate/publish) MOBS
Light curve chart for 0002718
Parameter Value Uncertainty
Am1 0.9682 0.0075
Am2 0.028 0.028
a/Rs 2.96 0.046
Rp/Rs 0.122 0.012
ephemeris [JD] 2457025.7867 0.0039
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.905470044122211
u1 -3.3553189758102073
u2 3.9143334977263984
u3 -1.4644845077102877
duration 0.1295 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DKEB (collaborate/publish) MOBS
Light curve chart for 0004220
Parameter Value Uncertainty
Am1 1.012 0.013
Am2 -0.008 0.0059
a/Rs 3.077 0.047
Rp/Rs 0.09 0.019
ephemeris [JD] 2457026.8819 0.0064
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9046376766166353
u1 -3.352710685612632
u2 3.911218328553555
u3 -1.463145261275863
duration 0.1198 0.0032
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GERE (collaborate/publish) MOBS
Light curve chart for 0002615
Parameter Value Uncertainty
Am1 1.009 0.017
Am2 -0.008 0.011
a/Rs 3.069 0.046
Rp/Rs 0.107 0.039
ephemeris [JD] 2457035.595 0.012
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9061422113782052
u1 -3.356883711944569
u2 3.91569897748134
u3 -1.4649574185665148
duration 0.088 0.013
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KMIG (collaborate/publish) MOBS
Light curve chart for 0003483
Parameter Value Uncertainty
Am1 0.66 0.41
Am2 0.45 0.5
a/Rs 2.954 0.047
Rp/Rs 0.252 0.073
ephemeris [JD] 2457048.733 0.012
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9046075156346096
u1 -3.3540868940503694
u2 3.9135728126735034
u3 -1.4640933759409642
duration 0.1452 0.0099
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RDHB (collaborate/publish) MOBS
Light curve chart for 0004345
Parameter Value Uncertainty
Am1 3.04 0.8
Am2 -0.84 0.11
a/Rs 2.949 0.048
Rp/Rs 0.226 0.068
ephemeris [JD] 2457049.824 0.012
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9049189276687255
u1 -3.3540452341740603
u2 3.9130337154930577
u3 -1.4639073506789773
duration 0.1436 0.0095
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FELB (collaborate/publish) MOBS
Light curve chart for 0004474
Parameter Value Uncertainty
Am1 1.082 0.019
Am2 -0.051 0.016
a/Rs 3.077 0.046
Rp/Rs 0.13 0.037
ephemeris [JD] 2457049.8096 0.0085
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9065605042384037
u1 -3.3573481509364775
u2 3.9159677004619757
u3 -1.465179995411436
duration 0.124 0.0052
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FELB (collaborate/publish) MOBS
Light curve chart for 0002501
Parameter Value Uncertainty
Am1 1.032 0.011
Am2 -0.022 0.0029
a/Rs 3.079 0.046
Rp/Rs 0.116 0.019
ephemeris [JD] 2457347.766 0.006
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9050761679089132
u1 -3.354627929602483
u2 3.9138673906249717
u3 -1.4643155706102333
duration 0.1229 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RFCA (collaborate/publish) MOBS
Light curve chart for 0004117
Parameter Value Uncertainty
Am1 1.015 0.014
Am2 -0.01 0.01
a/Rs 3.08 0.043
Rp/Rs 0.133 0.011
ephemeris [JD] 2457384.871 0.0031
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9047405158646735
u1 -3.3539035236066796
u2 3.9131277380284217
u3 -1.4639646719762687
duration 0.1251 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PAIB (collaborate/publish) MOBS
Light curve chart for 0002483
Parameter Value Uncertainty
Am1 1.427 0.023
Am2 -0.131 0.011
a/Rs 2.937 0.045
Rp/Rs 0.167 0.064
ephemeris [JD] 2457443.806 0.011
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9049269574646541
u1 -3.3539736341686273
u2 3.9128791683764064
u3 -1.4638324333659902
duration 0.1364 0.0089
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO INIB (collaborate/publish) MOBS
Light curve chart for 0003421
Parameter Value Uncertainty
Am1 1.035 0.01
Am2 -0.029 0.012
a/Rs 2.993 0.046
Rp/Rs 0.127 0.019
ephemeris [JD] 2457694.8274 0.0056
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.905190498996486
u1 -3.354607551446878
u2 3.9135394285271965
u3 -1.464122317760523
duration 0.1044 0.0057
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DPRA (collaborate/publish) MOBS
Light curve chart for 0000303
Parameter Value Uncertainty
Am1 0.8763 0.0058
Am2 0.0229 0.008
a/Rs 2.922 0.043
Rp/Rs 0.1179 0.0067
ephemeris [JD] 2458112.8495 0.0022
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.123767766733172
u1 -3.8299305839271045
u2 4.2769710368009894
u3 -1.570808155875222
duration 0.1308 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0004037
Parameter Value Uncertainty
Am1 2.12 1.34
Am2 -0.09 0.39
a/Rs 3.063 0.045
Rp/Rs 0.259 0.075
ephemeris [JD] 2458134.695 0.012
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.904719279413826
u1 -3.354242847322997
u2 3.91362928278688
u3 -1.4641056565600885
duration 0.1409 0.0098
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SLUF (collaborate/publish) MOBS
Light curve chart for 0004328
Parameter Value Uncertainty
Am1 1.205 0.011
Am2 -0.125 0.013
a/Rs 3.06 0.047
Rp/Rs 0.108 0.039
ephemeris [JD] 2458411.897 0.011
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.124652761879336
u1 -3.831904770762698
u2 4.279004918380594
u3 -1.57175284573509
duration 0.1225 0.0054
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO SGGB (collaborate/publish) MOBS
Light curve chart for 0002706
Parameter Value Uncertainty
Am1 1.103 0.071
Am2 -0.082 0.046
a/Rs 2.939 0.046
Rp/Rs 0.189 0.048
ephemeris [JD] 2458446.826 0.01
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9054318301647266
u1 -3.3549244759090096
u2 3.913662456503629
u3 -1.4641697524412307
duration 0.1397 0.0065
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO YLUA (collaborate/publish) MOBS
Light curve chart for 0003705
Parameter Value Uncertainty
Am1 0.976 0.01
Am2 0.0159 0.0046
a/Rs 3.079 0.046
Rp/Rs 0.1264 0.0085
ephemeris [JD] 2458492.6463 0.0067
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.904199556433676
u1 -3.3528223137801434
u2 3.9120772022604293
u3 -1.4634543866194685
duration 0.1243 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FGIC (collaborate/publish) MOBS
Light curve chart for 0003968
Parameter Value Uncertainty
Am1 1.017 0.014
Am2 -0.014 0.034
a/Rs 3.066 0.046
Rp/Rs 0.125 0.019
ephemeris [JD] 2458493.7531 0.0064
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9054054365069857
u1 -3.3549860607997823
u2 3.913771166949698
u3 -1.4641904843371663
duration 0.1247 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO BPIA (collaborate/publish) MOBS
Light curve chart for 0004413
Parameter Value Uncertainty
Am1 1.008 0.011
Am2 -0.006 0.014
a/Rs 3.08 0.045
Rp/Rs 0.148 0.013
ephemeris [JD] 2458517.7687 0.0037
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9049261986628834
u1 -3.3536506124871677
u2 3.9123899385784617
u3 -1.4636654664550242
duration 0.1268 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SGGB (collaborate/publish) MOBS
Light curve chart for 0004453
Parameter Value Uncertainty
Am1 1.0019 0.0079
Am2 -0.0016 0.0019
a/Rs 3.016 0.047
Rp/Rs 0.1165 0.0081
ephemeris [JD] 2458769.8816 0.0036
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9056436203264406
u1 -3.3554082353291794
u2 3.9142352875236126
u3 -1.464470614194223
duration 0.1261 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SGGB (collaborate/publish) MOBS
Light curve chart for 0003905
Parameter Value Uncertainty
Am1 1.034 0.015
Am2 -0.03 0.06
a/Rs 2.921 0.044
Rp/Rs 0.13 0.03
ephemeris [JD] 2458898.671 0.0065
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9048838745852383
u1 -3.3543211830559634
u2 3.9135255007988983
u3 -1.4640881340120986
duration 0.1324 0.0046
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SGDA (collaborate/publish) MOBS
Light curve chart for 0003272
Parameter Value Uncertainty
Am1 1.32 0.17
Am2 -0.189 0.037
a/Rs 3.074 0.045
Rp/Rs 0.258 0.071
ephemeris [JD] 2458911.764 0.011
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9046715423355254
u1 -3.3537552604019845
u2 3.912815863277568
u3 -1.4637320869056087
duration 0.1408 0.0091
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LELA (collaborate/publish) MOBS
Light curve chart for 0001014
Parameter Value Uncertainty
Am1 1.005 0.011
Am2 -0.0046 0.0019
a/Rs 3.046 0.043
Rp/Rs 0.1128 0.0073
ephemeris [JD] 2459532.7838 0.0023
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.362797437264615
u1 -4.120450601111372
u2 4.277288931674406
u3 -1.5196357040910762
duration 0.1243 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 615.0 nm 690.0 nm
Organization Observer Code Secondary Observers
AAVSO LDJC (collaborate/publish)
Light curve chart for 0001096
Parameter Value Uncertainty
Am1 1.0014 0.0051
Am2 -0.0019 0.0037
a/Rs 2.921 0.022
Rp/Rs 0.1528 0.003
ephemeris [JD] 2459545.8738 0.0011
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.0080404538485213
u1 -3.5429898688137595
u2 4.02657598230303
u3 -1.4916265073371342
duration 0.1357 0.0013
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 450.0 nm 700.0 nm
Organization Observer Code Secondary Observers
AAVSO CMIA (collaborate/publish)
Light curve chart for 0004414
Parameter Value Uncertainty
Am1 1.154 0.029
Am2 -0.127 0.039
a/Rs 3.079 0.044
Rp/Rs 0.193 0.016
ephemeris [JD] 2459591.7203 0.0044
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9054243752184383
u1 -3.355199318960448
u2 3.914115514320052
u3 -1.4643405122531763
duration 0.133 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SGGB (collaborate/publish) MOBS
Light curve chart for 0004231
Parameter Value Uncertainty
Am1 1.015 0.024
Am2 -0.009 0.022
a/Rs 3.077 0.047
Rp/Rs 0.073 0.029
ephemeris [JD] 2459592.826 0.012
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9050228619328298
u1 -3.3537352024906233
u2 3.912337447914617
u3 -1.4636250490584524
duration 0.1173 0.0041
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO TLRA (collaborate/publish) MOBS
Light curve chart for 0001529
Parameter Value Uncertainty
Am1 2.61 0.58
Am2 -0.72 0.19
a/Rs 2.957 0.046
Rp/Rs 0.261 0.078
ephemeris [JD] 2459592.831 0.012
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.904208540792781
u1 -3.3525453199446087
u2 3.9117148091835565
u3 -1.463377971742636
duration 0.107 0.013
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GSAD (collaborate/publish) MOBS
Light curve chart for 0001188
Parameter Value Uncertainty
Am1 1.0013 0.0035
Am2 -0.0011 0.0011
a/Rs 3.001 0.04
Rp/Rs 0.1319 0.0026
ephemeris [JD] 2459604.8103 0.00091
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.0090841387751506
u1 -3.5452080616280597
u2 4.028732931178501
u3 -1.4926089482927938
duration 0.1288 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 450.0 nm 700.0 nm
Organization Observer Code Secondary Observers
AAVSO CMIA (collaborate/publish)
Light curve chart for 0001184
Parameter Value Uncertainty
Am1 1.0024 0.0022
Am2 -0.0017 0.0011
a/Rs 3.078 0.032
Rp/Rs 0.1171 0.0029
ephemeris [JD] 2459604.81379 0.00095
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.5410450109833147
u1 -4.556529608105209
u2 4.663887303613524
u3 -1.6484026369942941
duration 0.1233 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Astrodon ExoPlanet-BB 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO LDJC (collaborate/publish) HHJA
Light curve chart for 0001197
Parameter Value Uncertainty
Am1 0.9991 0.0027
Am2 0.0017 0.0088
a/Rs 2.923 0.043
Rp/Rs 0.1265 0.0057
ephemeris [JD] 2459614.6366 0.0024
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.124414647018673
u1 -3.8309852336705683
u2 4.277815977797347
u3 -1.5712453274010265
duration 0.132 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)

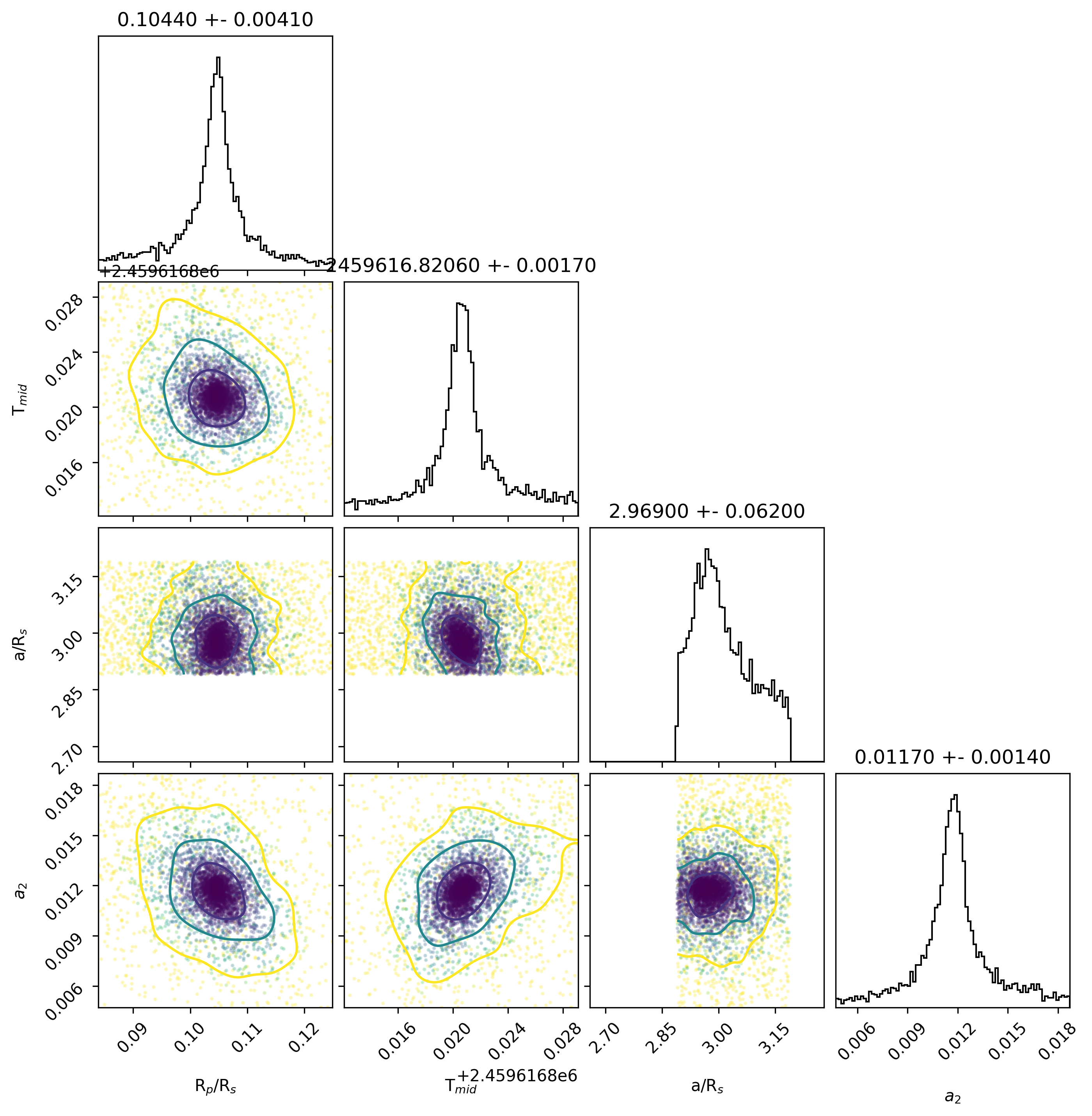

Light curve chart for 0001329
Parameter Value Uncertainty
Am1 0.9858 0.0071
Am2 0.0117 0.0014
a/Rs 3.061 0.042
Rp/Rs 0.1036 0.004
ephemeris [JD] 2459616.8209 0.0016
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.693686404846099
u1 -4.798263380813384
u2 4.753157765479178
u3 -1.648580718684323
duration 0.1223 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 690.0 nm 819.0 nm
Organization Observer Code Secondary Observers
AAVSO DSCC (collaborate/publish) BPAG
Light curve chart for 0001275
Parameter Value Uncertainty
Am1 0.9956 0.0056
Am2 0.0015 0.0024
a/Rs 3.01 0.045
Rp/Rs 0.118 0.011
ephemeris [JD] 2459651.7469 0.002
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8328844209029875
u1 -5.075803302197844
u2 4.943934729593165
u3 -1.70101577462794
duration 0.1245 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
AAVSO LPAC (collaborate/publish)
Light curve chart for 0002059
Parameter Value Uncertainty
Am1 1.2076 0.0087
Am2 -0.135 0.017
a/Rs 3.064 0.045
Rp/Rs 0.001 0.049
ephemeris [JD] 2459844.945 0.012
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.5420230761710156
u1 -4.558898796700178
u2 4.666061717058301
u3 -1.6491859269994
duration 0.1133 0.0044
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Astrodon ExoPlanet-BB 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO LPAC (collaborate/publish)
Light curve chart for 0002137
Parameter Value Uncertainty
Am1 1.051 0.015
Am2 -0.043 0.018
a/Rs 3.05 0.045
Rp/Rs 0.1081 0.0093
ephemeris [JD] 2459903.8587 0.002
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.12397264330021
u1 -3.829648855655411
u2 4.276150398448823
u3 -1.5704741223740153
duration 0.1236 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO NANF (collaborate/publish)
Light curve chart for 0002221
Parameter Value Uncertainty
Am1 1.026 0.011
Am2 -0.018 0.0044
a/Rs 3.079 0.046
Rp/Rs 0.106 0.013
ephemeris [JD] 2459914.7789 0.0064
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.905539712005706
u1 -3.3554129750818293
u2 3.9143053517822763
u3 -1.464432030378458
duration 0.1218 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KMUA (collaborate/publish) MOBS
Light curve chart for 0002528
Parameter Value Uncertainty
Am1 1.055 0.013
Am2 -0.049 0.027
a/Rs 3.022 0.046
Rp/Rs 0.137 0.013
ephemeris [JD] 2459915.8681 0.0038
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9053557141323907
u1 -3.354578098148204
u2 3.913196278732584
u3 -1.4639738364056019
duration 0.1285 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KNAC (collaborate/publish) MOBS
Light curve chart for 0002545
Parameter Value Uncertainty
Am1 1.0178 0.0052
Am2 -0.016 0.0054
a/Rs 2.93 0.046
Rp/Rs 0.111 0.015
ephemeris [JD] 2459925.6914 0.0069
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.1240022309034368
u1 -3.8307331197058816
u2 4.277828885763701
u3 -1.5710979332166386
duration 0.1101 0.0072
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0002220
Parameter Value Uncertainty
Am1 0.9935 0.0092
Am2 0.0069 0.0082
a/Rs 3.066 0.046
Rp/Rs 0.115 0.019
ephemeris [JD] 2459925.6921 0.0068
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.1249038803289833
u1 -3.831598229872556
u2 4.27809736583979
u3 -1.5714029525475994
duration 0.0953 0.0068
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0002231
Parameter Value Uncertainty
Am1 1.0632 0.0078
Am2 -0.055 0.029
a/Rs 3.077 0.044
Rp/Rs 0.106 0.016
ephemeris [JD] 2459927.8815 0.0052
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8321167817345363
u1 -5.073778523972661
u2 4.941940891009992
u3 -1.7002790751312093
duration 0.1218 0.003
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
AAVSO LPAC (collaborate/publish)
Light curve chart for 0002254
Parameter Value Uncertainty
Am1 1.0208 0.0061
Am2 -0.0167 0.0047
a/Rs 3.072 0.045
Rp/Rs 0.1137 0.0075
ephemeris [JD] 2459939.8819 0.0032
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.124525664546701
u1 -3.831104987239825
u2 4.277840304551125
u3 -1.5712609181132131
duration 0.1229 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0002286
Parameter Value Uncertainty
Am1 0.982 0.012
Am2 0.0134 0.0052
a/Rs 2.957 0.046
Rp/Rs 0.127 0.011
ephemeris [JD] 2459949.7041 0.0041
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.1245621803648986
u1 -3.830700904219461
u2 4.277099586497391
u3 -1.5709607989090788
duration 0.1304 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0002844
Parameter Value Uncertainty
Am1 0.9914 0.0017
Am2 0.0072 0.0042
a/Rs 3.011 0.045
Rp/Rs 0.1128 0.0044
ephemeris [JD] 2459959.5249 0.0021
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.1993685895931385
u1 -3.7928102930032663
u2 4.05376653156292
u3 -1.4603247677469646
duration 0.126 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
SR Sloan r 553.1 nm 693.1 nm
Organization Observer Code Secondary Observers
AAVSO SAJB (collaborate/publish)

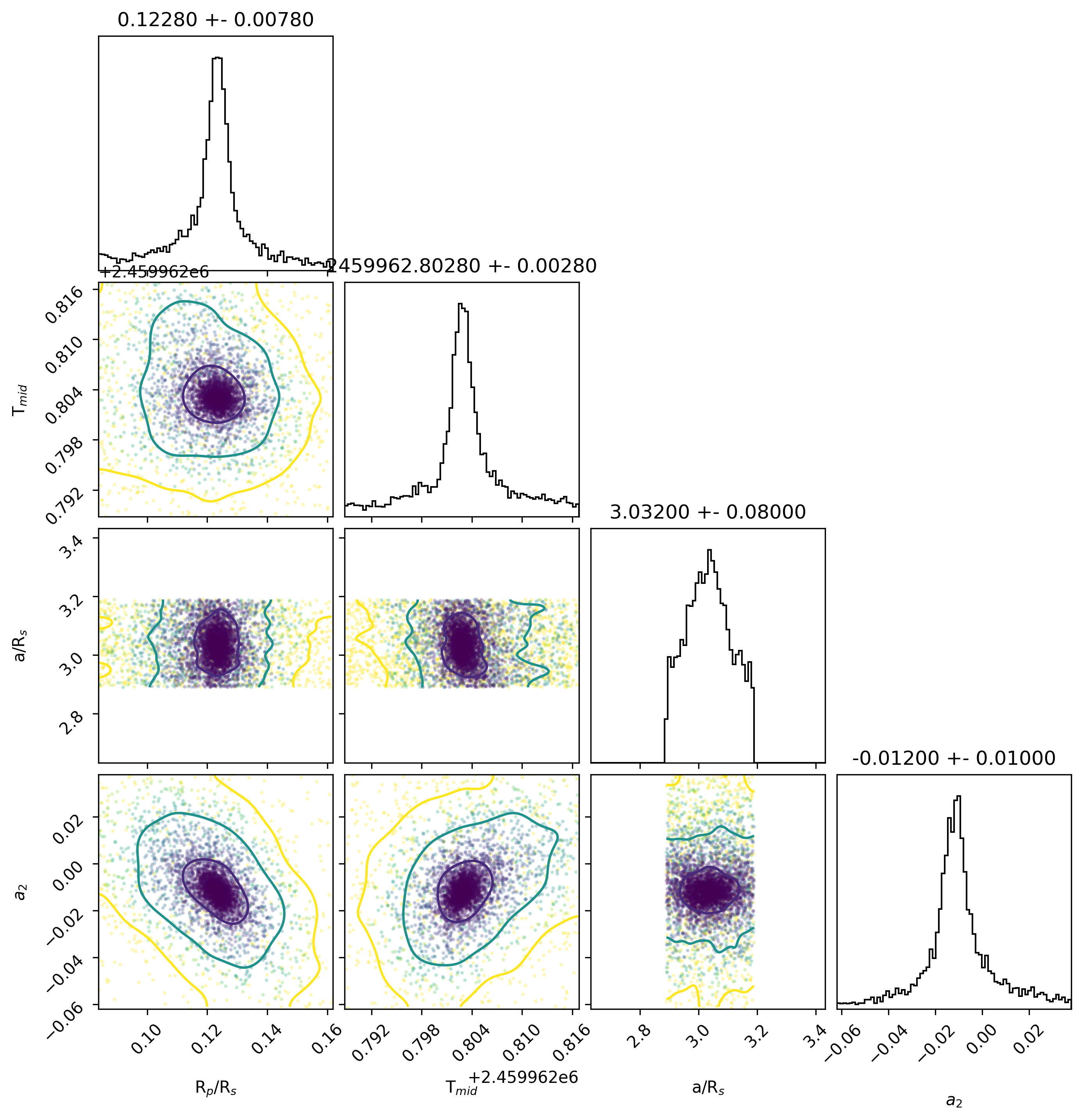

Light curve chart for 0002406
Parameter Value Uncertainty
Am1 1.0157 0.0089
Am2 -0.013 0.011
a/Rs 3.071 0.044
Rp/Rs 0.1231 0.008
ephemeris [JD] 2459962.8038 0.0027
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.1244025736755194
u1 -3.830698491011568
u2 4.277247405270875
u3 -1.5709514241988738
duration 0.1244 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0002572
Parameter Value Uncertainty
Am1 0.9789 0.0065
Am2 0.018 0.018
a/Rs 2.922 0.042
Rp/Rs 0.118 0.0093
ephemeris [JD] 2459973.713 0.0024
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.1247151940252347
u1 -3.8316682343299315
u2 4.278586837972071
u3 -1.5716337339114625
duration 0.1308 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0002574
Parameter Value Uncertainty
Am1 0.9942 0.0086
Am2 0.0055 0.0047
a/Rs 2.924 0.045
Rp/Rs 0.1118 0.0088
ephemeris [JD] 2459974.798 0.0039
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.1246472223746338
u1 -3.831511730230374
u2 4.278370973358846
u3 -1.5715064017504101
duration 0.1298 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0002726
Parameter Value Uncertainty
Am1 0.985 0.016
Am2 0.0144 0.0068
a/Rs 2.923 0.047
Rp/Rs 0.123 0.019
ephemeris [JD] 2459986.8059 0.0069
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.1243156719830925
u1 -3.8308310528345704
u2 4.277601228984033
u3 -1.5710857843913297
duration 0.1317 0.0035
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0002840
Parameter Value Uncertainty
Am1 0.9954 0.0027
Am2 0.0041 0.003
a/Rs 3.022 0.042
Rp/Rs 0.1169 0.0039
ephemeris [JD] 2459994.4483 0.0015
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.2290216933256284
u1 -3.8899840669669548
u2 4.1609659789070985
u3 -1.5000035432625474
duration 0.1259 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
SR Sloan r 553.1 nm 693.1 nm
Organization Observer Code Secondary Observers
AAVSO SAJB (collaborate/publish)
Light curve chart for 0002831
Parameter Value Uncertainty
Am1 0.987 0.026
Am2 0.041 0.071
a/Rs 2.922 0.046
Rp/Rs 0.206 0.05
ephemeris [JD] 2459997.7376 0.0071
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 1.9052483862933
u1 -3.3547370797222276
u2 3.9136614699737713
u3 -1.4641727182267439
duration 0.1251 0.0027
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RDUA (collaborate/publish) MOBS
Light curve chart for 0003001
Parameter Value Uncertainty
Am1 0.996 0.06
Am2 0.002 0.005
a/Rs 3.062 0.046
Rp/Rs 0.105 0.011
ephemeris [JD] 2460009.731 0.006
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.1252483894728043
u1 -3.8322395223052537
u2 4.278639044419467
u3 -1.5716478478303273
duration 0.1224 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO PMIF (collaborate/publish) UNIS
Light curve chart for 0002946
Parameter Value Uncertainty
Am1 1.01 0.021
Am2 -0.0079 0.0069
a/Rs 3.079 0.046
Rp/Rs 0.131 0.023
ephemeris [JD] 2460009.7343 0.0075
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.1243452633440736
u1 -3.8306804269042765
u2 4.277379831882603
u3 -1.5710446045844728
duration 0.1248 0.0036
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for e382eb63c87b0e6b7dd61c13c9d70708
Parameter Value Uncertainty
Am1 0.9998 0.0021
Am2 0
a/Rs 3.017 0.039
Rp/Rs 0.1162 0.0021
ephemeris [JD] 2458851.7359 0.001
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.83274468997868
u1 -5.074880774646682
u2 4.9424737402099
u3 -1.7003375818933004
duration 0.1258 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 020e306eef288338ee35fbb62fe12485
Parameter Value Uncertainty
Am1 0.9999 0.0021
Am2 0
a/Rs 3.05 0.033
Rp/Rs 0.1178 0.002
ephemeris [JD] 2458867.01587 0.00093
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8330011720487915
u1 -5.07532997474783
u2 4.9428757092326085
u3 -1.700546832878982
duration 0.1245 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 7e415a8b3793152a80182ac972124d68
Parameter Value Uncertainty
Am1 0.9996 0.0019
Am2 0
a/Rs 3.046 0.036
Rp/Rs 0.1138 0.0022
ephemeris [JD] 2459548.0611 0.001
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.834020288152567
u1 -5.077460451397176
u2 4.944504174155263
u3 -1.7010639372318006
duration 0.1241 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c275dd37b2dedc05bd822d070e0b7980
Parameter Value Uncertainty
Am1 1.0001 0.0019
Am2 0
a/Rs 3.072 0.035
Rp/Rs 0.1184 0.0024
ephemeris [JD] 2459484.7583 0.0011
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8322325278919966
u1 -5.074415242871477
u2 4.942832212847444
u3 -1.7006494242140247
duration 0.1236 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 28e34f5f76f44d232932ad5d82d5d7bf
Parameter Value Uncertainty
Am1 0.9997 0.0021
Am2 0
a/Rs 3.079 0.027
Rp/Rs 0.1168 0.002
ephemeris [JD] 2459474.93431 0.00093
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8329213705800207
u1 -5.075207261380682
u2 4.942818855002542
u3 -1.70053289054814
duration 0.1232 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 394f500b42e17241ab89db164120e35e
Parameter Value Uncertainty
Am1 0.9999 0.002
Am2 0
a/Rs 3.07 0.029
Rp/Rs 0.1162 0.002
ephemeris [JD] 2459536.05487 0.00092
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8325704060197374
u1 -5.075019894673638
u2 4.943229624991754
u3 -1.7007800626779925
duration 0.1236 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d6b78681e9bf4440d757827104638c1d
Parameter Value Uncertainty
Am1 0.9998 0.0019
Am2 0
a/Rs 3.029 0.036
Rp/Rs 0.1147 0.002
ephemeris [JD] 2459508.77 0.00092
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8323798752945066
u1 -5.074510596264559
u2 4.9427015872801325
u3 -1.7005707926580875
duration 0.125 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for bdce74daff9e781cab4768a7bea1ffc3
Parameter Value Uncertainty
Am1 0.9998 0.0019
Am2 0
a/Rs 3.057 0.029
Rp/Rs 0.1168 0.0019
ephemeris [JD] 2458852.82822 0.00085
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.833585886552455
u1 -5.076679742052855
u2 4.944042715828728
u3 -1.700948786656351
duration 0.1241 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 1b08e189d316dcdffc8e9ddeec5692ef
Parameter Value Uncertainty
Am1 0.9999 0.0018
Am2 0
a/Rs 3.06 0.033
Rp/Rs 0.1163 0.002
ephemeris [JD] 2459483.66708 0.00097
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8315656464712196
u1 -5.072376938452459
u2 4.940662745516882
u3 -1.6998513799140302
duration 0.1237 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 072eb9bb3f21621128b1dc0298f41f11
Parameter Value Uncertainty
Am1 0.9999 0.0018
Am2 0
a/Rs 3.039 0.036
Rp/Rs 0.1153 0.002
ephemeris [JD] 2459476.02733 0.00096
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8332845741144523
u1 -5.076326439755711
u2 4.944045155031257
u3 -1.7010032157179844
duration 0.1246 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for de5e45ea7d9ecedb3b4d93fd11f1ea5a
Parameter Value Uncertainty
Am1 0.9999 0.0021
Am2 0
a/Rs 2.97 0.039
Rp/Rs 0.1147 0.0022
ephemeris [JD] 2458863.7413 0.001
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.833452672314996
u1 -5.076090665437612
u2 4.943209920340736
u3 -1.700571853558552
duration 0.1281 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 792abf282a3f735a1d550455b37fdabf
Parameter Value Uncertainty
Am1 0.9998 0.0019
Am2 0
a/Rs 3.079 0.029
Rp/Rs 0.1161 0.002
ephemeris [JD] 2459492.39842 0.00091
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8308893847015395
u1 -5.071151912753645
u2 4.9397842002676855
u3 -1.6995215986070602
duration 0.1228 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 98d15658a9de36957fbcc16b3ec10106
Parameter Value Uncertainty
Am1 0.9997 0.002
Am2 0
a/Rs 3.066 0.031
Rp/Rs 0.1172 0.0019
ephemeris [JD] 2458865.92405 0.0009
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8321301799214162
u1 -5.074102693444147
u2 4.942534281484055
u3 -1.700561694311824
duration 0.1236 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9870f3a3d5784844fa1bab99e4731616
Parameter Value Uncertainty
Am1 1.0 0.0019
Am2 0
a/Rs 3.023 0.036
Rp/Rs 0.1151 0.002
ephemeris [JD] 2459503.31262 0.00088
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8332811219733047
u1 -5.075881219084919
u2 4.943196466212749
u3 -1.700596295441767
duration 0.1254 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fb01babb4a1e74ee350b39a26002f7f2
Parameter Value Uncertainty
Am1 0.9997 0.0018
Am2 0
a/Rs 3.072 0.03
Rp/Rs 0.1142 0.0021
ephemeris [JD] 2459507.67791 0.00095
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8318503051039774
u1 -5.073606822997404
u2 4.942190694607917
u3 -1.7004341030701098
duration 0.1232 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0db4b6db0ead6b5eeeba50ee00a1a1ce
Parameter Value Uncertainty
Am1 0.9999 0.0018
Am2 0
a/Rs 3.023 0.038
Rp/Rs 0.1156 0.002
ephemeris [JD] 2459533.8719 0.00094
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8322457550808893
u1 -5.0736129812544
u2 4.9413736109361786
u3 -1.7000063111304624
duration 0.1254 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 862bf96fbf5b35ebee704362b97e7bc5
Parameter Value Uncertainty
Am1 0.9998 0.002
Am2 0
a/Rs 3.067 0.03
Rp/Rs 0.1151 0.002
ephemeris [JD] 2459537.14649 0.00089
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8328594756210608
u1 -5.075294719073596
u2 4.943121378732663
u3 -1.7006860616218793
duration 0.1232 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6d5f7da817360e39b600a325e3eb7465
Parameter Value Uncertainty
Am1 0.9998 0.0017
Am2 0
a/Rs 3.08 0.029
Rp/Rs 0.1167 0.0019
ephemeris [JD] 2459546.96856 0.00094
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8329799355648744
u1 -5.075737927249311
u2 4.943563198488866
u3 -1.700805133139598
duration 0.1228 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 71f058e0283dd4924017dccde8105905
Parameter Value Uncertainty
Am1 0.9999 0.0017
Am2 0
a/Rs 3.015 0.038
Rp/Rs 0.1148 0.002
ephemeris [JD] 2459528.41481 0.00099
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8323917196339967
u1 -5.074387376116489
u2 4.942463684304696
u3 -1.7004679541737553
duration 0.1259 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4595b6fb942b02b4a5c6ec150a954c74
Parameter Value Uncertainty
Am1 0.9999 0.0018
Am2 0
a/Rs 3.034 0.037
Rp/Rs 0.1161 0.002
ephemeris [JD] 2459489.12327 0.00098
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8325571306688273
u1 -5.074577006899068
u2 4.942446168890627
u3 -1.7004262190121997
duration 0.125 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fd764a7e058881d8eecf0848e1b22a55
Parameter Value Uncertainty
Am1 0.9999 0.0018
Am2 0
a/Rs 3.08 0.028
Rp/Rs 0.1145 0.0019
ephemeris [JD] 2459496.7635 0.001
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8328451591068817
u1 -5.074970379239915
u2 4.942522234448596
u3 -1.7003969406662427
duration 0.1228 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 15dbfa32431099f7e08f133257c1fd78
Parameter Value Uncertainty
Am1 0.9999 0.0016
Am2 0
a/Rs 2.996 0.038
Rp/Rs 0.1154 0.002
ephemeris [JD] 2459532.78048 0.00094
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.83203823558016
u1 -5.073256674174355
u2 4.941187364389241
u3 -1.6999688521656169
duration 0.1268 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 5652db2437f1ba56ec0d8190f53ff5e8
Parameter Value Uncertainty
Am1 1.0001 0.0022
Am2 0
a/Rs 2.981 0.038
Rp/Rs 0.1169 0.0021
ephemeris [JD] 2458861.55698 0.00095
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.833245047338875
u1 -5.075861885588314
u2 4.943357759581404
u3 -1.7007408476701933
duration 0.1277 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for bfbf578969723d1c460f368eaa3d18bd
Parameter Value Uncertainty
Am1 0.9998 0.0017
Am2 0
a/Rs 3.023 0.034
Rp/Rs 0.1153 0.0019
ephemeris [JD] 2459520.77498 0.00078
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.833432963205399
u1 -5.076391213321011
u2 4.943786629320647
u3 -1.7008283055368745
duration 0.1254 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b214d034f859e702d7b2a5577d265b71
Parameter Value Uncertainty
Am1 1.0 0.0018
Am2 0
a/Rs 3.08 0.021
Rp/Rs 0.1157 0.002
ephemeris [JD] 2459504.40327 0.00086
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8325664756032283
u1 -5.074721768501049
u2 4.942684334985023
u3 -1.7005289684354667
duration 0.1227 0.001
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 98ad544bc5bcedbdbde8b3622dd7b5f7
Parameter Value Uncertainty
Am1 0.9999 0.0017
Am2 0
a/Rs 3.08 0.023
Rp/Rs 0.1125 0.0019
ephemeris [JD] 2459534.9644 0.00083
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.833579191934761
u1 -5.076855673775462
u2 4.944308974754997
u3 -1.7010324192383512
duration 0.1227 0.0011
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a105d462f8f706c824c703279335a8a8
Parameter Value Uncertainty
Am1 0.9999 0.0019
Am2 0
a/Rs 3.055 0.032
Rp/Rs 0.1133 0.0019
ephemeris [JD] 2459530.59834 0.00094
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8323078074314725
u1 -5.074710483578148
u2 4.943198909880706
u3 -1.7007961600746264
duration 0.1236 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 7ed6de70725effc4f0bf6a4650154ea0
Parameter Value Uncertainty
Am1 0.9999 0.0018
Am2 0
a/Rs 3.055 0.032
Rp/Rs 0.1159 0.002
ephemeris [JD] 2459481.48338 0.0009
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8332119170532755
u1 -5.075913098530918
u2 4.943414274677454
u3 -1.700713019537198
duration 0.1241 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6bc14dceb0a3f775fafe4d0f1dd6e7c5
Parameter Value Uncertainty
Am1 0.9999 0.0018
Am2 0
a/Rs 3.08 0.027
Rp/Rs 0.114 0.0019
ephemeris [JD] 2459529.50654 0.00091
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8327195117104695
u1 -5.075264047575739
u2 4.943281155599683
u3 -1.7007365460737853
duration 0.1227 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4271379d334a18b20cc1cfa4da4dcd98
Parameter Value Uncertainty
Am1 0.9999 0.0019
Am2 0
a/Rs 3.025 0.038
Rp/Rs 0.1169 0.002
ephemeris [JD] 2458846.27945 0.00098
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8336068737797286
u1 -5.077243600226695
u2 4.945000945407475
u3 -1.7013641452742525
duration 0.1259 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 64414a14b6d31723a6a9e834afc2cd7c
Parameter Value Uncertainty
Am1 0.9999 0.0021
Am2 0
a/Rs 3.059 0.034
Rp/Rs 0.1183 0.0021
ephemeris [JD] 2458853.9189 0.001
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.832164610037048
u1 -5.073848127104965
u2 4.941936965781599
u3 -1.7002533750730828
duration 0.1241 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 1b93f351fc8a13600f89b68ef01718a2
Parameter Value Uncertainty
Am1 1.0 0.0018
Am2 0
a/Rs 3.048 0.034
Rp/Rs 0.1154 0.0021
ephemeris [JD] 2459516.40887 0.00092
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8329332121716533
u1 -5.075121050411827
u2 4.94263619831856
u3 -1.7004482864273678
duration 0.1245 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8141330a1e975d61a8d233bcad785303
Parameter Value Uncertainty
Am1 0.9999 0.0019
Am2 0
a/Rs 3.025 0.036
Rp/Rs 0.1172 0.002
ephemeris [JD] 2458860.4678 0.00086
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.833728462300571
u1 -5.076813236176146
u2 4.943902768506533
u3 -1.7008179209610663
duration 0.1259 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 47c2a715d11cf78319ca5e6377bc3e25
Parameter Value Uncertainty
Am1 0.9997 0.0019
Am2 0
a/Rs 3.067 0.029
Rp/Rs 0.1126 0.002
ephemeris [JD] 2459519.6825 0.00093
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8341054724249855
u1 -5.077656943868345
u2 4.944666563739822
u3 -1.7011150186151882
duration 0.1232 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 69af4b490a902e4420cd0a051f08c46f
Parameter Value Uncertainty
Am1 0.9999 0.0017
Am2 0
a/Rs 3.077 0.031
Rp/Rs 0.1151 0.0019
ephemeris [JD] 2459545.87693 0.00089
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8328365069201675
u1 -5.074678762977217
u2 4.942013747119888
u3 -1.7001714174210951
duration 0.1232 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for e589fafd17f8570d0b6ad24edfb624c4
Parameter Value Uncertainty
Am1 0.9999 0.0019
Am2 0
a/Rs 3.067 0.032
Rp/Rs 0.1139 0.002
ephemeris [JD] 2459505.49459 0.00095
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8328745505863826
u1 -5.074934968407611
u2 4.942467333930259
u3 -1.7004068424605285
duration 0.1232 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fda589db9de76295b3990c017735b415
Parameter Value Uncertainty
Am1 0.9998 0.0019
Am2 0
a/Rs 3.007 0.038
Rp/Rs 0.1169 0.0019
ephemeris [JD] 2459514.22585 0.00098
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8329525449682875
u1 -5.0757894296726285
u2 4.9438543522615905
u3 -1.7010173938880784
duration 0.1264 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0ba9e0d1b5c0976c9ae950306a556e0c
Parameter Value Uncertainty
Am1 0.9999 0.0017
Am2 0
a/Rs 3.0 0.039
Rp/Rs 0.1164 0.0022
ephemeris [JD] 2459478.2094 0.001
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8337511451056554
u1 -5.077067633447249
u2 4.944346561343969
u3 -1.7010299993258706
duration 0.1268 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a51eb784b55ba011fef40625197af59f
Parameter Value Uncertainty
Am1 1.0001 0.0021
Am2 0
a/Rs 3.079 0.031
Rp/Rs 0.1178 0.002
ephemeris [JD] 2458847.3705 0.001
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8326140703682827
u1 -5.074541469583132
u2 4.942294985807023
u3 -1.7003675129462397
duration 0.1232 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4f2e2e607d44eb3e62559f0c57358cfd
Parameter Value Uncertainty
Am1 0.9999 0.0018
Am2 0
a/Rs 3.035 0.037
Rp/Rs 0.1144 0.0019
ephemeris [JD] 2459515.31731 0.00097
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8329634438291738
u1 -5.075486777639917
u2 4.943197618296294
u3 -1.7006742108261665
duration 0.125 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 7e65df841f24ad976ad99dadf2840a1e
Parameter Value Uncertainty
Am1 0.9997 0.0017
Am2 0
a/Rs 3.077 0.029
Rp/Rs 0.116 0.002
ephemeris [JD] 2459521.86561 0.00098
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.833814661014747
u1 -5.077392116864569
u2 4.944840741670878
u3 -1.701263212137187
duration 0.1232 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fed19dfcd489ec3e397964a074079aef
Parameter Value Uncertainty
Am1 0.9998 0.0019
Am2 0
a/Rs 3.063 0.035
Rp/Rs 0.1147 0.002
ephemeris [JD] 2459550.24381 0.00096
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.832476462263786
u1 -5.074417886485173
u2 4.942352194514179
u3 -1.7004106966460046
duration 0.1236 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for cd5b417881dd4053057a9c839d1c6e59
Parameter Value Uncertainty
Am1 0.9999 0.0018
Am2 0
a/Rs 3.033 0.034
Rp/Rs 0.1167 0.0019
ephemeris [JD] 2459518.59244 0.0009
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.832408493625299
u1 -5.074284307776652
u2 4.942285766049646
u3 -1.7004098782524961
duration 0.125 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 34309eec3fa76c10e56b2c7e0df05225
Parameter Value Uncertainty
Am1 0.9999 0.002
Am2 0
a/Rs 3.053 0.032
Rp/Rs 0.1164 0.0021
ephemeris [JD] 2458849.55334 0.0009
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8342836780130085
u1 -5.0773857367296
u2 4.943721175440564
u3 -1.7006190430567871
duration 0.1241 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 30615bf7b2f8c0156d66510b84d8d36f
Parameter Value Uncertainty
Am1 0.9998 0.0018
Am2 0
a/Rs 3.08 0.029
Rp/Rs 0.1154 0.0019
ephemeris [JD] 2459495.67261 0.00089
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8321261571802925
u1 -5.073478079779041
u2 4.941372387929555
u3 -1.7000203916986196
duration 0.1227 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a65dffb7925849cb40ba34e563645a6c
Parameter Value Uncertainty
Am1 0.9998 0.0018
Am2 0
a/Rs 3.016 0.037
Rp/Rs 0.1172 0.0019
ephemeris [JD] 2459493.48939 0.00092
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8325177879740977
u1 -5.074726992546732
u2 4.942803428486445
u3 -1.7005941502603
duration 0.1259 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4d89ee8a995821a3789da58aa219f52b
Parameter Value Uncertainty
Am1 1.0001 0.0019
Am2 0
a/Rs 3.071 0.031
Rp/Rs 0.1175 0.002
ephemeris [JD] 2458859.37688 0.00097
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.833476070147245
u1 -5.0761656745528665
u2 4.943265053523439
u3 -1.7005753754574289
duration 0.1236 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 09d84f3d1fc2cff4e44f75866c8d2da3
Parameter Value Uncertainty
Am1 0.9999 0.0017
Am2 0
a/Rs 3.028 0.034
Rp/Rs 0.1143 0.0019
ephemeris [JD] 2459490.2152 0.00083
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.833199334324779
u1 -5.075897208052147
u2 4.943470790714468
u3 -1.7007728433236444
duration 0.125 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4cc2e965a4deab15b8a18ddabf94fc75
Parameter Value Uncertainty
Am1 1.0 0.0018
Am2 0
a/Rs 3.018 0.037
Rp/Rs 0.1157 0.002
ephemeris [JD] 2459542.6047 0.00089
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.832772430080429
u1 -5.07495343857695
u2 4.942632747539315
u3 -1.7004516653918267
duration 0.1259 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a00a2438378f5da702b77048d8ce5154
Parameter Value Uncertainty
Am1 0.9992 0.0025
Am2 0
a/Rs 3.078 0.035
Rp/Rs 0.1181 0.0023
ephemeris [JD] 2458848.4638 0.0011
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8331110144640617
u1 -5.075387515052374
u2 4.942693273248529
u3 -1.7004166990083478
duration 0.1232 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d81dcdc55c6e28c4d6730a095d2a1965
Parameter Value Uncertainty
Am1 0.9998 0.0017
Am2 0
a/Rs 3.057 0.033
Rp/Rs 0.1165 0.002
ephemeris [JD] 2459477.11833 0.00092
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.83211205920777
u1 -5.0737480211884085
u2 4.94182437985226
u3 -1.7001883442327004
duration 0.1241 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ca41ad6296c3065408a6f48c67e9c4fa
Parameter Value Uncertainty
Am1 1.0 0.0018
Am2 0
a/Rs 3.008 0.038
Rp/Rs 0.1154 0.002
ephemeris [JD] 2459491.30623 0.00091
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.831726390822656
u1 -5.07330846962113
u2 4.9418394031612145
u3 -1.700257250723595
duration 0.1263 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f972e019f7c6740771d6d2799703bc9c
Parameter Value Uncertainty
Am1 0.9998 0.0021
Am2 0
a/Rs 3.071 0.031
Rp/Rs 0.1152 0.0021
ephemeris [JD] 2458850.64471 0.00096
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.832482483043658
u1 -5.073942647890482
u2 4.94139095016265
u3 -1.6999307116833622
duration 0.1232 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 74f3f4f7636c9c98581cfd91c24227a7
Parameter Value Uncertainty
Am1 0.9998 0.0018
Am2 0
a/Rs 3.043 0.035
Rp/Rs 0.1162 0.002
ephemeris [JD] 2459479.30103 0.0009
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.832298513953781
u1 -5.074428965552753
u2 4.942680797649517
u3 -1.700550272398862
duration 0.125 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3ed0779c74b48ad9205614ce6195890e
Parameter Value Uncertainty
Am1 0.9998 0.0023
Am2 0
a/Rs 2.965 0.039
Rp/Rs 0.1129 0.0026
ephemeris [JD] 2458858.2839 0.0012
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8335926702904204
u1 -5.076906248042374
u2 4.944376078808857
u3 -1.701062427379958
duration 0.1281 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for da708b27e8e96127fbe661347a746094
Parameter Value Uncertainty
Am1 0.9998 0.0023
Am2 0
a/Rs 3.029 0.038
Rp/Rs 0.1128 0.0021
ephemeris [JD] 2458862.6506 0.0011
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8344196646594457
u1 -5.078321683472606
u2 4.9452208600471135
u3 -1.7013187675444201
duration 0.125 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 918be8abef2d9434dd0ab559da61487c
Parameter Value Uncertainty
Am1 1.0 0.002
Am2 0
a/Rs 3.058 0.033
Rp/Rs 0.1154 0.002
ephemeris [JD] 2459510.95212 0.00095
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.83178056033459
u1 -5.0735077537432725
u2 4.942194001669742
u3 -1.7004667346166298
duration 0.1241 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9cfcf62af7713bc733e5d4ed3d7a9c2b
Parameter Value Uncertainty
Am1 1.0 0.0019
Am2 0
a/Rs 3.046 0.033
Rp/Rs 0.1164 0.0021
ephemeris [JD] 2459544.78511 0.00087
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8334471159820662
u1 -5.076578194306706
u2 4.94414106743445
u3 -1.7010099154363676
duration 0.1245 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for df9900f23b4d1af6dc1098e2684903fc
Parameter Value Uncertainty
Am1 1.0001 0.0022
Am2 0
a/Rs 3.08 0.023
Rp/Rs 0.1169 0.002
ephemeris [JD] 2458844.0966 0.00096
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8331207437032035
u1 -5.075706769392922
u2 4.943265591522795
u3 -1.70067949217268
duration 0.1232 0.0011
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ab6779eadd5c116425f28c27f9a792bd
Parameter Value Uncertainty
Am1 0.9997 0.0019
Am2 0
a/Rs 3.079 0.025
Rp/Rs 0.1142 0.0019
ephemeris [JD] 2459494.58097 0.00087
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.833421395777709
u1 -5.076426620430393
u2 4.9438641447831415
u3 -1.7008588464611414
duration 0.1227 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d32adc8e58b02a26cf3ccb0a6aa584c5
Parameter Value Uncertainty
Am1 0.9999 0.0017
Am2 0
a/Rs 3.038 0.035
Rp/Rs 0.1155 0.002
ephemeris [JD] 2459502.22127 0.00093
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.832737116722582
u1 -5.075008585109378
u2 4.942812731674241
u3 -1.7005411896337956
duration 0.125 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for cef91941a79711f7a85ac0f2c68fd068
Parameter Value Uncertainty
Am1 1.0 0.002
Am2 0
a/Rs 3.08 0.03
Rp/Rs 0.1175 0.0021
ephemeris [JD] 2459482.57508 0.00094
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8330138836888263
u1 -5.075379478270769
u2 4.942914609407367
u3 -1.7005489411702577
duration 0.1232 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d8fa0edfdb9314e0d073f46851f9efb9
Parameter Value Uncertainty
Am1 0.9999 0.0018
Am2 0
a/Rs 3.078 0.027
Rp/Rs 0.1156 0.0019
ephemeris [JD] 2459524.04934 0.00085
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.833222270582009
u1 -5.075701232341176
u2 4.943055871684387
u3 -1.7005768362679476
duration 0.1232 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b7fd35552aba0c5e0d75c5c3586acb14
Parameter Value Uncertainty
Am1 0.9999 0.002
Am2 0
a/Rs 3.067 0.033
Rp/Rs 0.1163 0.002
ephemeris [JD] 2459488.03346 0.00096
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8323959959814
u1 -5.0744417811048725
u2 4.942462071304119
u3 -1.700416212532223
duration 0.1237 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3f9f097197566e7bcbd48d43e8efd6c3
Parameter Value Uncertainty
Am1 0.9998 0.0018
Am2 0
a/Rs 3.066 0.031
Rp/Rs 0.1151 0.0019
ephemeris [JD] 2459549.15215 0.0009
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.833340699470041
u1 -5.0762442232533225
u2 4.94372817087508
u3 -1.7008245734245082
duration 0.1236 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 70d0318196c7f2775fd23a9371f9794b
Parameter Value Uncertainty
Am1 1.0001 0.0019
Am2 0
a/Rs 3.031 0.037
Rp/Rs 0.1157 0.0019
ephemeris [JD] 2459517.50088 0.00096
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.83232934235651
u1 -5.0739147837417695
u2 4.941665315755745
u3 -1.700079800733933
duration 0.1254 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8e0075253b7d18c3e065b267d13e0e44
Parameter Value Uncertainty
Am1 0.9999 0.0018
Am2 0
a/Rs 3.057 0.033
Rp/Rs 0.1148 0.0019
ephemeris [JD] 2459497.85535 0.00097
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8332898238295745
u1 -5.0758967953213965
u2 4.943257249268982
u3 -1.7006502041168878
duration 0.1236 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 02d20435f902168b9f442ba5fd1e53ee
Parameter Value Uncertainty
Am1 1.0 0.0018
Am2 0
a/Rs 3.029 0.037
Rp/Rs 0.114 0.0021
ephemeris [JD] 2459501.12955 0.00098
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.833303705488197
u1 -5.0765204001076905
u2 4.9443337349583665
u3 -1.7011169666625592
duration 0.125 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for be8b79c861b55d8aaa07baafbbad74b3
Parameter Value Uncertainty
Am1 0.9998 0.0021
Am2 0
a/Rs 3.042 0.034
Rp/Rs 0.1152 0.0021
ephemeris [JD] 2458868.10783 0.00098
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.832930803680124
u1 -5.075441035563757
u2 4.943189471045538
u3 -1.7006791655026414
duration 0.1245 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ccb13d59d076e2c89caf0c65683c1a09
Parameter Value Uncertainty
Am1 1.0001 0.0018
Am2 0
a/Rs 3.051 0.032
Rp/Rs 0.116 0.002
ephemeris [JD] 2459509.86061 0.00093
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.83266911211726
u1 -5.074979961027628
u2 4.942970486708087
u3 -1.7006595641417195
duration 0.1241 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for cfc353d4c7534ebfe1bddec246d82965
Parameter Value Uncertainty
Am1 0.9997 0.0019
Am2 0
a/Rs 3.067 0.031
Rp/Rs 0.1182 0.002
ephemeris [JD] 2458843.00482 0.00096
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.832514913080352
u1 -5.074749666763563
u2 4.942889063858675
u3 -1.7006542365206765
duration 0.1241 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 508f25d721e14eb808edab9f269b169c
Parameter Value Uncertainty
Am1 1.0 0.002
Am2 0
a/Rs 3.044 0.036
Rp/Rs 0.1139 0.0025
ephemeris [JD] 2459526.232 0.001
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8328692886283835
u1 -5.074869618763651
u2 4.942259596549094
u3 -1.7002591927684194
duration 0.1245 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 2c0dd08e6c1996b0c1fe61636708fca4
Parameter Value Uncertainty
Am1 1.0 0.0022
Am2 0
a/Rs 3.034 0.037
Rp/Rs 0.1174 0.002
ephemeris [JD] 2458845.1873 0.001
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.833679330829911
u1 -5.076988415749933
u2 4.944365092906651
u3 -1.7010559343098475
duration 0.1254 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c9550665df26e28d8138742820317f9e
Parameter Value Uncertainty
Am1 1.0 0.0019
Am2 0
a/Rs 3.044 0.033
Rp/Rs 0.1152 0.002
ephemeris [JD] 2459480.39303 0.00089
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8321044240096738
u1 -5.074017440998968
u2 4.942434774607907
u3 -1.7005216839705959
duration 0.1245 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b86c0fd839ba5b8ea332f280994dfda9
Parameter Value Uncertainty
Am1 0.9994 0.0019
Am2 0
a/Rs 3.06 0.031
Rp/Rs 0.1144 0.002
ephemeris [JD] 2458864.83383 0.00093
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8338807703641633
u1 -5.077829334614674
u2 4.94553703623488
u3 -1.7015883982901245
duration 0.1236 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fe58459d32f8c3916469993721ce4b2e
Parameter Value Uncertainty
Am1 0.9997 0.0018
Am2 0
a/Rs 3.017 0.04
Rp/Rs 0.1148 0.0022
ephemeris [JD] 2459527.3236 0.0011
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.832944426870707
u1 -5.0754284215113294
u2 4.943117398028221
u3 -1.700633329729409
duration 0.1259 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a8b5562d2452bc6141a5b285fbe4a174
Parameter Value Uncertainty
Am1 1.0 0.0019
Am2 0
a/Rs 3.047 0.032
Rp/Rs 0.1152 0.002
ephemeris [JD] 2459540.42036 0.00089
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.833404630951889
u1 -5.076235908180367
u2 4.94361987816834
u3 -1.7007885272741858
duration 0.1245 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for e0229da7e23c409cde7316abbec822d3
Parameter Value Uncertainty
Am1 0.9998 0.0019
Am2 0
a/Rs 3.079 0.03
Rp/Rs 0.1152 0.002
ephemeris [JD] 2459531.68987 0.00096
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8328802627640024
u1 -5.0754389649163265
u2 4.94333237552591
u3 -1.700773599712193
duration 0.1227 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for aa476394db37338d94ef4308f7756593
Parameter Value Uncertainty
Am1 1.0001 0.0017
Am2 0
a/Rs 3.023 0.036
Rp/Rs 0.1165 0.002
ephemeris [JD] 2459543.69495 0.00088
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8321114763034503
u1 -5.074426312714566
u2 4.9430756618578044
u3 -1.7007607517891214
duration 0.1254 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 718c3fb630f011c41b1fdcf1c0e7ec6c
Parameter Value Uncertainty
Am1 0.9999 0.0019
Am2 0
a/Rs 3.056 0.033
Rp/Rs 0.1148 0.0019
ephemeris [JD] 2459506.58636 0.00092
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.832691332558355
u1 -5.075238611598274
u2 4.943392213803621
u3 -1.7008448611014182
duration 0.1241 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 768f59e488ea683380b9ae52df79399d
Parameter Value Uncertainty
Am1 1.0 0.0019
Am2 0
a/Rs 3.046 0.036
Rp/Rs 0.116 0.0019
ephemeris [JD] 2459522.9571 0.00097
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8336590930952563
u1 -5.076574996586488
u2 4.94364316490464
u3 -1.7007271877473848
duration 0.1246 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for bdc19d18c9e3d7cd45bcfd547d272db9
Parameter Value Uncertainty
Am1 0.9998 0.0018
Am2 0
a/Rs 3.058 0.029
Rp/Rs 0.1163 0.0019
ephemeris [JD] 2459541.51154 0.00083
eccentricity 0.0
inclination [degrees] 83.52
omega [degrees] 272.7
orbital period [days] 1.09141911
u0 2.8328008674316534
u1 -5.0752021045933775
u2 4.943051623577861
u3 -1.7006503127589276
duration 0.1241 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
