WASP-11 b

View target in exoplanet catalog
Timing Plot
Global Light Curve
Lomb-Scargle Periodogram

Total Reductions to Date: 49

Date Processed: 09/24/2023 at 00:07:22 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 3.722479625778442 1.4667199450192468e-07
Ephemeris (BJD_TDB) 2460201.9523432413 0.00017444495856382405
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 47.3689472 decimal
DEC 30.6733817 decimal
Host Star Metallicity 0.0 0.2 Kokori et al. 2022
Host Star log(g) 4.45 0.2 Log10(cgs) Kokori et al. 2022
Host Star Radius [R_Sun] 0.74 0.04 Sol Kokori et al. 2022
Host Star Effective Temperature [K] 4800.0 100.0 K Kokori et al. 2022
a/Rs 12.71 0.64 Stassun et al. 2017
eccentricity 0.03 0.029 Bonomo et al. 2017
inclination [degrees] 89.03 0.34 deg Bonomo et al. 2017
omega [degrees] 146.0 95.0 deg Knutson et al. 2014
orbital period [days] 3.72247896 3.1e-07 day Ivshina & Winn 2022
Rp 11.47 0.98 R_Earth ExoFOP-TESS TOI
Rp/Rs 0.1413 0 ExoFOP-TESS TOI
ephemeris [JD] 2456263.56891 0.00015 BJD-TDB Ivshina & Winn 2022

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2454473.05588 0.0002 BJD West et al. 2009
2454729.90716 0.0002 BJD-TDB Mancini et al. 2015
2454759.6871800004 0.000135 BJD, BJD-TDB Bonomo et al. 2017, Bakos et al. 2009
2456200.28683 9e-05 BJD-TDB Kokori et al. 2022
2456263.56891 0.00015 BJD-TDB Ivshina & Winn 2022
2459885.541633 0.000254 BJD ExoFOP-TESS TOI

Observations

Light curve chart for 0002070
Parameter Value Uncertainty
Am1 1.1521 0.006
Am2 -0.125 0.016
a/Rs 11.56 1.24
Rp/Rs 0.131 0.011
ephemeris [JD] 2455481.8482 0.0045
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3516814971742628
u1 -2.3535616093793545
u2 3.1133794568321087
u3 -1.1114992982340475
duration 0.113 0.013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO AAIA (collaborate/publish) MOBS
Light curve chart for 0002111
Parameter Value Uncertainty
Am1 1.015 0.014
Am2 -0.0089 0.0062
a/Rs 15.7 1.11
Rp/Rs 0.128 0.012
ephemeris [JD] 2455496.7365 0.0041
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3525430116490256
u1 -2.355278153346928
u2 3.1157674469012435
u3 -1.1130322587747883
duration 0.0815 0.0066
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO ALEB (collaborate/publish) MOBS
Light curve chart for 0002082
Parameter Value Uncertainty
Am1 1.265 0.041
Am2 -0.2 0.12
a/Rs 9.52 1.84
Rp/Rs 0.207 0.056
ephemeris [JD] 2455522.775 0.01
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3522616363202258
u1 -2.3547854538055506
u2 3.1152237434102963
u3 -1.11269987950452
duration 0.142 0.022
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO BRAM (collaborate/publish) MOBS
Light curve chart for 0002064
Parameter Value Uncertainty
Am1 1.122 0.012
Am2 -0.105 0.013
a/Rs 13.87 1.78
Rp/Rs 0.13 0.024
ephemeris [JD] 2455604.6914 0.0091
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3518628409660822
u1 -2.353185363758377
u2 3.112925080239573
u3 -1.1116025110610797
duration 0.092 0.013
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

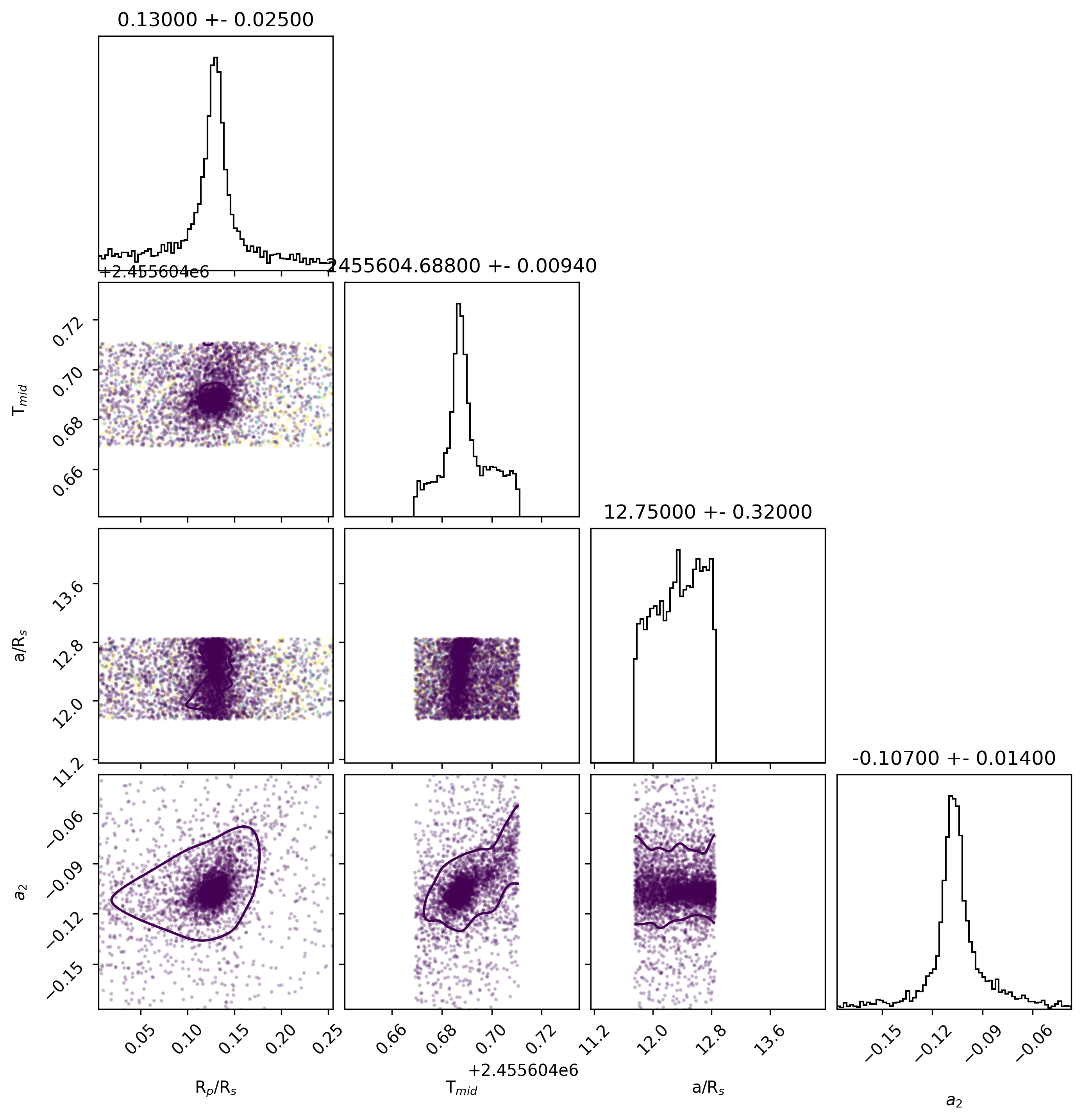

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MSOA (collaborate/publish) MOBS
Light curve chart for 0002078
Parameter Value Uncertainty
Am1 1.061 0.012
Am2 -0.05 0.021
a/Rs 10.13 0.5
Rp/Rs 0.153 0.01
ephemeris [JD] 2455857.8304 0.0027
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.35245944847848
u1 -2.355070724408685
u2 3.1152645483963792
u3 -1.112653226045115
duration 0.132 0.0071
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO EKCA (collaborate/publish) MOBS
Light curve chart for 0002071
Parameter Value Uncertainty
Am1 0.975 0.015
Am2 0.0156 0.0064
a/Rs 10.25 1.69
Rp/Rs 0.098 0.028
ephemeris [JD] 2456248.6967 0.0098
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3518245509622353
u1 -2.351837073699819
u2 3.1097549707622765
u3 -1.109742401685733
duration 0.123 0.021
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO BJCB (collaborate/publish) MOBS
Light curve chart for 0002075
Parameter Value Uncertainty
Am1 1.0819 0.0083
Am2 -0.072 0.021
a/Rs 11.92 1.25
Rp/Rs 0.1201 0.0095
ephemeris [JD] 2456274.7325 0.0036
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3527144583430186
u1 -2.355208176572829
u2 3.115760141503986
u3 -1.1132663768457318
duration 0.107 0.013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FHOA (collaborate/publish) MOBS
Light curve chart for 0002067
Parameter Value Uncertainty
Am1 0.987 0.014
Am2 0.0116 0.0086
a/Rs 12.03 0.84
Rp/Rs 0.1503 0.0094
ephemeris [JD] 2456315.6799 0.0028
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3526305631516962
u1 -2.356465906063104
u2 3.117676899262159
u3 -1.1138415098937449
duration 0.1098 0.0077
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WZOB (collaborate/publish) MOBS
Light curve chart for 0002093
Parameter Value Uncertainty
Am1 0.829 0.02
Am2 0.156 0.055
a/Rs 9.57 1.93
Rp/Rs 0.14 0.039
ephemeris [JD] 2456553.9041 0.0098
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.352246375153239
u1 -2.3558054104867745
u2 3.117167592969193
u3 -1.113608511186241
duration 0.136 0.022
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MELD (collaborate/publish) MOBS
Light curve chart for 0002069
Parameter Value Uncertainty
Am1 1.1452 0.0069
Am2 -0.102 0.012
a/Rs 10.42 1.73
Rp/Rs 0.128 0.024
ephemeris [JD] 2456568.8115 0.0091
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3531024469942083
u1 -2.357208136582179
u2 3.1189710171551206
u3 -1.11486528109086
duration 0.124 0.023
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

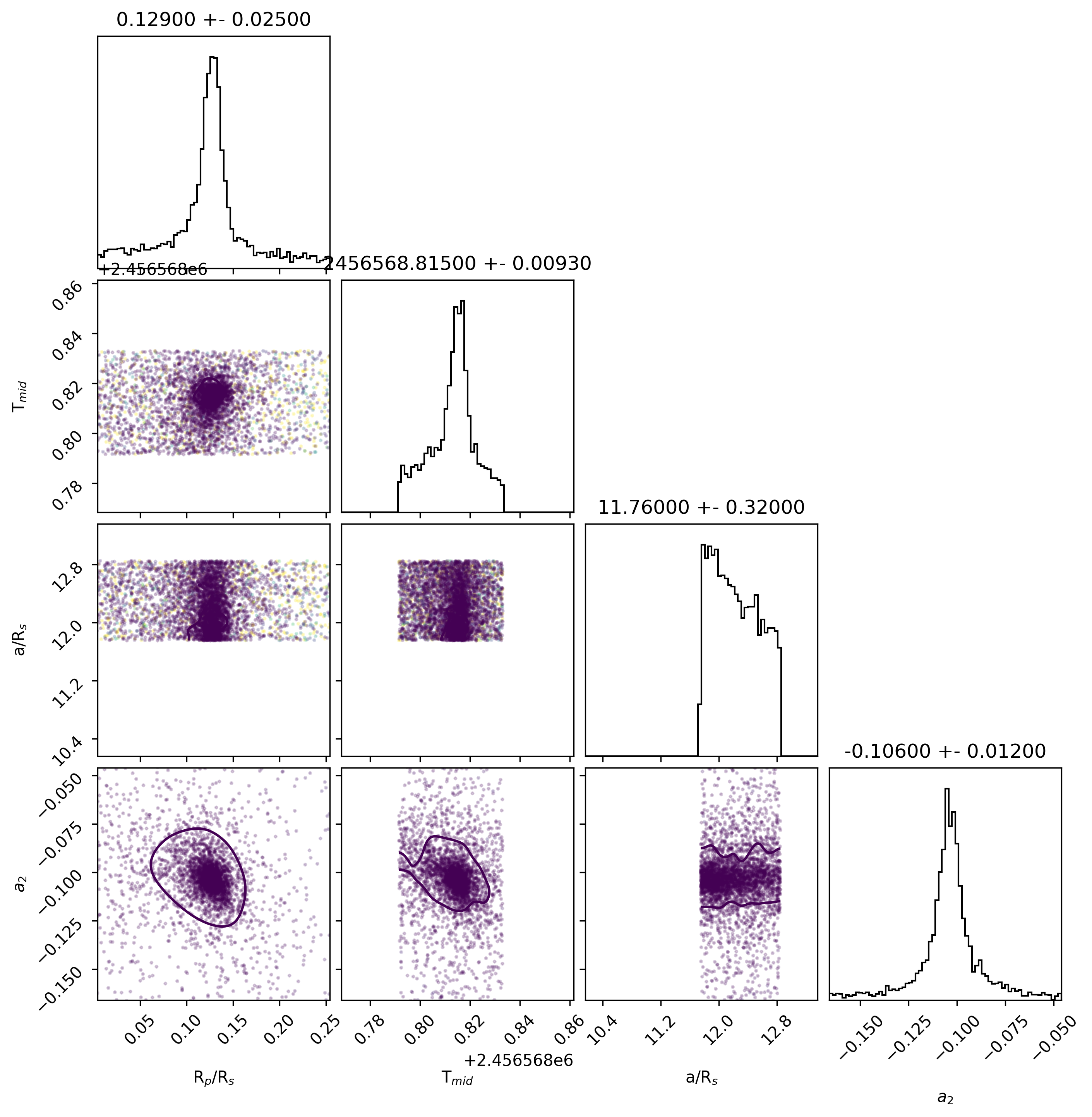

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WJUB (collaborate/publish) MOBS
Light curve chart for 0002072
Parameter Value Uncertainty
Am1 1.2129 0.0083
Am2 -0.122 0.012
a/Rs 10.13 1.77
Rp/Rs 0.136 0.029
ephemeris [JD] 2456944.7852 0.01
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.352034950860609
u1 -2.3547046322828957
u2 3.1153742669920215
u3 -1.1127045391470407
duration 0.128 0.023
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MSRB (collaborate/publish) MOBS
Light curve chart for 0002066
Parameter Value Uncertainty
Am1 1.0171 0.0093
Am2 -0.017 0.018
a/Rs 9.54 0.34
Rp/Rs 0.1257 0.0082
ephemeris [JD] 2456970.8469 0.0028
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.352514329789719
u1 -2.3551618338249445
u2 3.1156051763340016
u3 -1.112957625872641
duration 0.1365 0.0054
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CALM (collaborate/publish) MOBS
Light curve chart for 0002065
Parameter Value Uncertainty
Am1 1.3772 0.008
Am2 -0.276 0.032
a/Rs 11.95 1.58
Rp/Rs 0.145 0.021
ephemeris [JD] 2456985.7324 0.0066
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3523553600347105
u1 -2.3552020081160694
u2 3.116160108548538
u3 -1.1133134140327745
duration 0.11 0.015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PJEG (collaborate/publish) MOBS
Light curve chart for 0002077
Parameter Value Uncertainty
Am1 0.9416 0.0084
Am2 0.056 0.019
a/Rs 15.88 0.95
Rp/Rs 0.1111 0.0089
ephemeris [JD] 2457026.6848 0.0036
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3526841156639062
u1 -2.3561782904616853
u2 3.1172532356668397
u3 -1.1137590144183682
duration 0.0794 0.0052
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

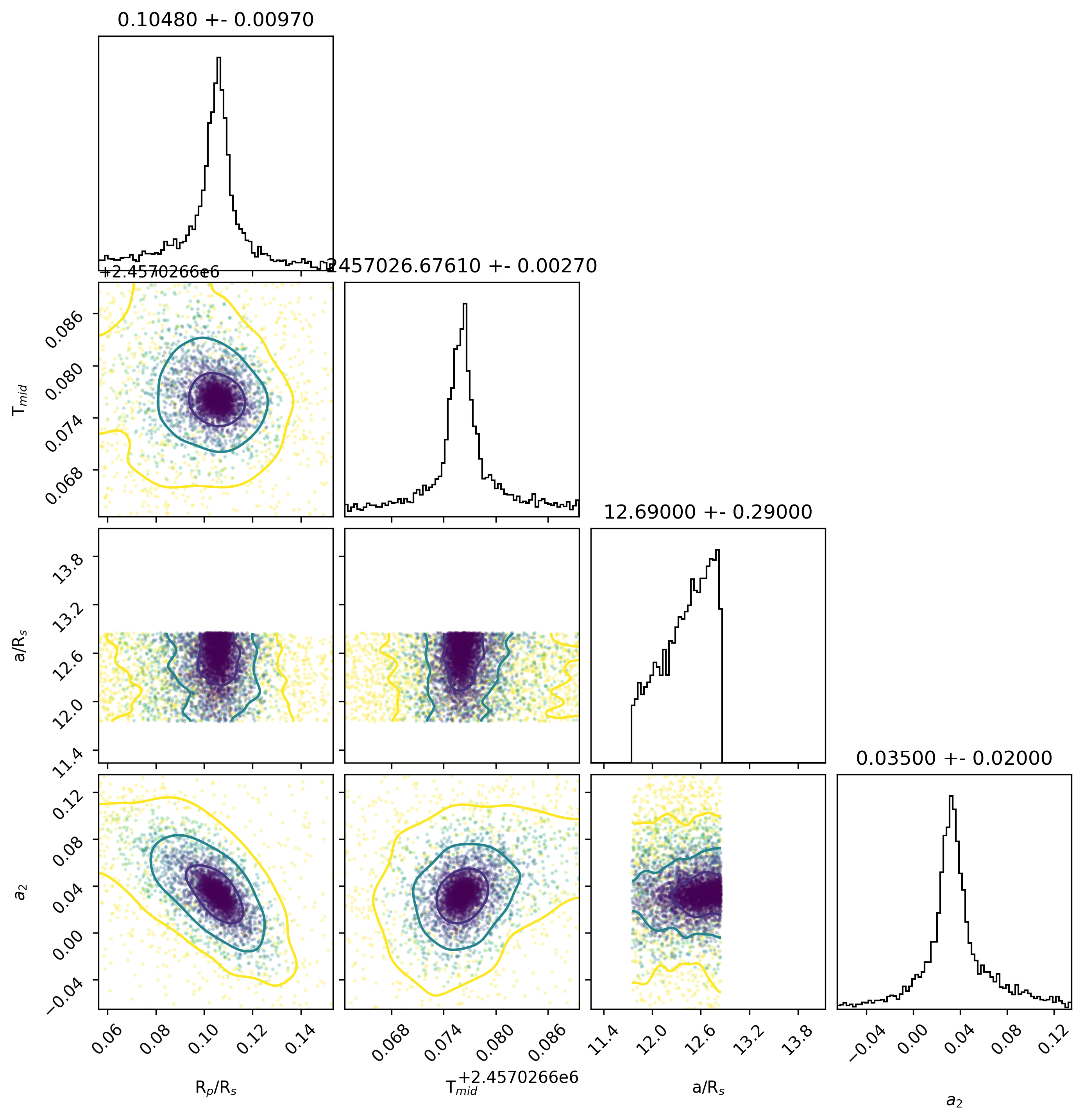

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KCYA (collaborate/publish) MOBS
Light curve chart for 0002076
Parameter Value Uncertainty
Am1 0.972 0.022
Am2 0.026 0.042
a/Rs 13.11 1.62
Rp/Rs 0.156 0.018
ephemeris [JD] 2457305.862 0.0069
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3528447215522519
u1 -2.3552680497480734
u2 3.1150002072611915
u3 -1.1125768326482501
duration 0.101 0.014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO STGA (collaborate/publish) MOBS
Light curve chart for 0002094
Parameter Value Uncertainty
Am1 0.993 0.015
Am2 0.005 0.019
a/Rs 14.1 1.47
Rp/Rs 0.115 0.018
ephemeris [JD] 2457361.7053 0.0057
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.352342462628236
u1 -2.354436645531485
u2 3.114072281442011
u3 -1.1119780521354699
duration 0.09 0.011
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO AOGA (collaborate/publish) MOBS
Light curve chart for 0002262
Parameter Value Uncertainty
Am1 1.253 0.016
Am2 -0.138 0.028
a/Rs 9.52 1.82
Rp/Rs 0.09 0.067
ephemeris [JD] 2457413.795 0.012
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.6556944883213258
u1 -2.872713763996405
u2 3.4221342785600086
u3 -1.2051149518911553
duration 0.094 0.014
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO VJCA (collaborate/publish) MOBS
Light curve chart for 0002250
Parameter Value Uncertainty
Am1 1.14 0.013
Am2 -0.112 0.014
a/Rs 12.08 1.16
Rp/Rs 0.15 0.012
ephemeris [JD] 2457681.8358 0.0039
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.6555198213485267
u1 -2.871813372799504
u2 3.4207029917565
u3 -1.2044093893330756
duration 0.109 0.011
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO YNEA (collaborate/publish) MOBS
Light curve chart for 0002260
Parameter Value Uncertainty
Am1 1.037 0.019
Am2 -0.019 0.013
a/Rs 9.63 0.93
Rp/Rs 0.183 0.016
ephemeris [JD] 2458016.8712 0.0039
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3523957347446696
u1 -2.3554541262388633
u2 3.1161221764119613
u3 -1.113063738483929
duration 0.143 0.013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO INIB (collaborate/publish) MOBS
Light curve chart for 0000424
Parameter Value Uncertainty
Am1 1.107 0.011
Am2 0.026 0.016
a/Rs 10.8 1.28
Rp/Rs 0.107 0.012
ephemeris [JD] 2458433.7757 0.005
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.6564933805780842
u1 -2.8745942711667882
u2 3.4241159359180173
u3 -1.2060149943060097
duration 0.118 0.015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0000462
Parameter Value Uncertainty
Am1 4824.28 37.36
Am2 -0.0745 0.0095
a/Rs 12.35 1.73
Rp/Rs 0.099 0.025
ephemeris [JD] 2458835.8014 0.0094
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.656993046734192
u1 -2.8761868868771705
u2 3.4262104103644813
u3 -1.2070165191669893
duration 0.102 0.016
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO SJMG (collaborate/publish)
Light curve chart for 0002256
Parameter Value Uncertainty
Am1 1.1334 0.0085
Am2 -0.113 0.011
a/Rs 11.0 1.88
Rp/Rs 0.131 0.05
ephemeris [JD] 2458876.753 0.012
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.6563415861468378
u1 -2.873256821095542
u2 3.421873667590841
u3 -1.2049583816522453
duration 0.119 0.023
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO NANF (collaborate/publish) VJCA , MOBS
Light curve chart for 0000544
Parameter Value Uncertainty
Am1 0.4413 0.003
Am2 -0.0033 0.0036
a/Rs 12.02 0.44
Rp/Rs 0.1348 0.0051
ephemeris [JD] 2459144.7669 0.0016
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.6559805519277755
u1 -2.8722966056620605
u2 3.4209460293570593
u3 -1.204629924646706
duration 0.1085 0.0042
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0000553
Parameter Value Uncertainty
Am1 0.858 0.01
Am2 0.078 0.022
a/Rs 15.84 1.53
Rp/Rs 0.097 0.019
ephemeris [JD] 2459170.808 0.0061
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.6561843198591575
u1 -2.874000306512524
u2 3.4237051763176485
u3 -1.2058891386470996
duration 0.078 0.0083
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0002259
Parameter Value Uncertainty
Am1 1.263 0.02
Am2 -0.179 0.022
a/Rs 15.18 1.76
Rp/Rs 0.153 0.041
ephemeris [JD] 2459464.9063 0.0095
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3522588377608313
u1 -2.355660032893134
u2 3.116513093159958
u3 -1.1131118515879916
duration 0.086 0.012
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MANE (collaborate/publish) MOBS
Light curve chart for 0000851
Parameter Value Uncertainty
Am1 0.989 0.016
Am2 0.009 0.024
a/Rs 11.2 0.84
Rp/Rs 0.168 0.019
ephemeris [JD] 2459464.9091 0.0033
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.6287488920627078
u1 -2.7036954251319836
u2 3.235758582090722
u3 -1.160812000804886
duration 0.1184 0.0071
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
R Cousins R 561.7 nm 719.7 nm
Organization Observer Code Secondary Observers
AAVSO VJEB (collaborate/publish)
Light curve chart for 0002626
Parameter Value Uncertainty
Am1 0.9983 0.0055
Am2 0.0016 0.0026
a/Rs 14.26 0.48
Rp/Rs 0.1352 0.0037
ephemeris [JD] 2459531.9021 0.0013
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.6565776246622805
u1 -2.875402856220616
u2 3.425845812703092
u3 -1.2070205300956758
duration 0.0909 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0001042
Parameter Value Uncertainty
Am1 1.182 0.011
Am2 -0.165 0.019
a/Rs 10.89 1.71
Rp/Rs 0.154 0.037
ephemeris [JD] 2459531.9127 0.009
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.6565039406212168
u1 -2.8743323020541696
u2 3.423738130431155
u3 -1.205909717980528
duration 0.122 0.02
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0001067
Parameter Value Uncertainty
Am1 1.001 0.01
Am2 -0.0009 0.0045
a/Rs 11.98 0.77
Rp/Rs 0.1199 0.0066
ephemeris [JD] 2459546.7915 0.0026
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.6800296450118863
u1 -2.779307576088482
u2 3.2673612837995587
u3 -1.1680833040354859
duration 0.1071 0.0073
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 615.0 nm 690.0 nm
Organization Observer Code Secondary Observers
AAVSO LDJC (collaborate/publish)
Light curve chart for 0001097
Parameter Value Uncertainty
Am1 0.9865 0.0071
Am2 0.012 0.011
a/Rs 12.0 0.47
Rp/Rs 0.1318 0.0056
ephemeris [JD] 2459546.7944 0.0017
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.656434869752478
u1 -2.874417446346545
u2 3.423776153841091
u3 -1.205793526228784
duration 0.1081 0.0044
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0002721
Parameter Value Uncertainty
Am1 0.981 0.02
Am2 0.021 0.03
a/Rs 14.29 1.06
Rp/Rs 0.151 0.015
ephemeris [JD] 2459561.6672 0.0028
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3531901012360246
u1 -2.356149609745452
u2 3.116593811544399
u3 -1.1136342565941049
duration 0.0917 0.0071
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO HTAB (collaborate/publish) MOBS
Light curve chart for 0001243
Parameter Value Uncertainty
Am1 0.9881 0.0058
Am2 0.0093 0.0018
a/Rs 12.78 0.49
Rp/Rs 0.1283 0.0036
ephemeris [JD] 2459602.6337 0.0016
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3526211084585626
u1 -2.3556381320762125
u2 3.1158721606705995
u3 -1.1128550906228365
duration 0.1011 0.0041
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SGCA (collaborate/publish)
Light curve chart for 0001200
Parameter Value Uncertainty
Am1 0.9993 0.0026
Am2 0.0005 0.0053
a/Rs 11.76 0.14
Rp/Rs 0.1286 0.0018
ephemeris [JD] 2459602.6326 0.00058
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3521917864763011
u1 -2.354310069906845
u2 3.1147921653631747
u3 -1.1126738355186103
duration 0.1103 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO HHJA (collaborate/publish) LDJC
Light curve chart for 0001927
Parameter Value Uncertainty
Am1 0.941 0.018
Am2 0.042 0.01
a/Rs 14.27 0.71
Rp/Rs 0.193 0.01
ephemeris [JD] 2459840.8816 0.0019
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.9833611122926003
u1 -3.411266303171509
u2 3.744416806007667
u3 -1.3165115593325996
duration 0.0955 0.0049
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Astrodon ExoPlanet-BB 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 0002061
Parameter Value Uncertainty
Am1 0.99 0.005
Am2 0.009 0.012
a/Rs 11.58 0.3
Rp/Rs 0.1327 0.0048
ephemeris [JD] 2459881.8172 0.0012
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.655417412416436
u1 -2.8715126171027086
u2 3.420668419068919
u3 -1.204573163410715
duration 0.1125 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0002063
Parameter Value Uncertainty
Am1 1.259 0.018
Am2 -0.209 0.039
a/Rs 14.69 1.8
Rp/Rs 0.102 0.037
ephemeris [JD] 2459881.798 0.011
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 2.1618633951176727
u1 -3.6780830040582515
u2 3.8602216733243697
u3 -1.3440020068620058
duration 0.085 0.011
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
AAVSO LPAC (collaborate/publish)
Light curve chart for 0002139
Parameter Value Uncertainty
Am1 1.0085 0.0089
Am2 -0.0065 0.0047
a/Rs 11.22 0.58
Rp/Rs 0.1316 0.0071
ephemeris [JD] 2459896.7127 0.0023
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.6567783395812432
u1 -2.875546917669128
u2 3.4255541854283926
u3 -1.2067855562957726
duration 0.1161 0.0061
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0002166
Parameter Value Uncertainty
Am1 1.2114 0.0087
Am2 -0.12 0.013
a/Rs 11.87 1.79
Rp/Rs 0.107 0.037
ephemeris [JD] 2459907.859 0.012
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3521315807767615
u1 -2.354513937180776
u2 3.1147043302274735
u3 -1.1123219274107479
duration 0.107 0.019
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GSAD (collaborate/publish) MOBS
Light curve chart for 0002630
Parameter Value Uncertainty
Am1 0.9875 0.0065
Am2 0.0096 0.003
a/Rs 11.0 0.7
Rp/Rs 0.1145 0.0056
ephemeris [JD] 2459907.8801 0.0032
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.6568821933811904
u1 -2.876591139560814
u2 3.4274742207573854
u3 -1.2077652235044165
duration 0.1166 0.0078
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0002162
Parameter Value Uncertainty
Am1 1.2114 0.0091
Am2 -0.121 0.013
a/Rs 12.14 1.82
Rp/Rs 0.113 0.038
ephemeris [JD] 2459907.857 0.012
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3518887707833231
u1 -2.353966612866786
u2 3.1146304537546032
u3 -1.1125525652595298
duration 0.105 0.017
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PNAA (collaborate/publish)
Light curve chart for 0002209
Parameter Value Uncertainty
Am1 0.86 0.016
Am2 0.15 0.048
a/Rs 10.76 1.84
Rp/Rs 0.183 0.046
ephemeris [JD] 2459922.7853 0.0098
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.656613990638145
u1 -2.8739869492157606
u2 3.422932262443947
u3 -1.2055592528606658
duration 0.124 0.019
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0002351
Parameter Value Uncertainty
Am1 0.9854 0.0058
Am2 0.013 0.011
a/Rs 12.47 0.59
Rp/Rs 0.1218 0.0055
ephemeris [JD] 2459937.6584 0.0019
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.6562639574500777
u1 -2.875519846121189
u2 3.4263738667084964
u3 -1.2071179269804357
duration 0.1029 0.005
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0002252
Parameter Value Uncertainty
Am1 1.1154 0.0072
Am2 -0.1 0.016
a/Rs 12.79 1.09
Rp/Rs 0.121 0.009
ephemeris [JD] 2459937.6575 0.0034
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.6558473611002253
u1 -2.872724807543126
u2 3.421725596104773
u3 -1.2048480986741876
duration 0.1003 0.0089
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0002353
Parameter Value Uncertainty
Am1 0.9973 0.0072
Am2 0.0022 0.0033
a/Rs 12.19 0.56
Rp/Rs 0.1275 0.0058
ephemeris [JD] 2459963.7142 0.002
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3527131628959297
u1 -2.3557394409690526
u2 3.1166410735313304
u3 -1.1136147490166364
duration 0.106 0.0051
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CGIA (collaborate/publish) MOBS
Light curve chart for 0004475
Parameter Value Uncertainty
Am1 2.815 0.022
Am2 -0.99 0.33
a/Rs 13.07 1.23
Rp/Rs 0.216 0.025
ephemeris [JD] 2460201.9585 0.0053
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 1.3518563011125
u1 -2.3536176990450195
u2 3.1132623540260216
u3 -1.1115009097022779
duration 0.0815 0.005
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CPHB (collaborate/publish) MOBS
Light curve chart for 52a15472665b1cee0337ea6e5171a65c
Parameter Value Uncertainty
Am1 0.9999 0.0018
Am2 0
a/Rs 11.89 0.17
Rp/Rs 0.1291 0.0017
ephemeris [JD] 2459453.73361 0.00067
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 2.1607868160193666
u1 -3.675667593500071
u2 3.8579666804622295
u3 -1.3430858454933419
duration 0.1093 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 011970039e6eb7a7a5e0e185f81eecd3
Parameter Value Uncertainty
Am1 1.0001 0.0017
Am2 0
a/Rs 11.83 0.16
Rp/Rs 0.1271 0.0016
ephemeris [JD] 2459468.62406 0.00064
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 2.161716178792157
u1 -3.6770442927258262
u2 3.858467723085153
u3 -1.3431395516558342
duration 0.1093 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 925a92cfdca24bf6f16178006d4fc6f3
Parameter Value Uncertainty
Am1 0.9999 0.0019
Am2 0
a/Rs 11.9 0.21
Rp/Rs 0.1273 0.0018
ephemeris [JD] 2459450.00963 0.00077
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 2.1620729637650724
u1 -3.678667925205423
u2 3.860891800567719
u3 -1.344296781595597
duration 0.1087 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fdfc8cdd093aac86440b10c906058e11
Parameter Value Uncertainty
Am1 0.9999 0.0015
Am2 0
a/Rs 11.88 0.17
Rp/Rs 0.1258 0.0016
ephemeris [JD] 2459464.90141 0.00064
eccentricity 0.03
inclination [degrees] 89.03
omega [degrees] 146.0
orbital period [days] 3.72247896
u0 2.1607048924293166
u1 -3.676023132169592
u2 3.858757267622335
u3 -1.3434389703820955
duration 0.1087 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
