TrES-5 b

View target in exoplanet catalog
Timing Plot
Global Light Curve
Lomb-Scargle Periodogram

Total Reductions to Date: 144

Date Processed: 07/15/2025 at 07:00:04 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 1.4822471234520216 8.121184480380289e-08
Ephemeris (BJD_TDB) 2460254.62696233 0.00019448382314726803

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 305.2219454 decimal
DEC 59.4489033 decimal
Host Star Metallicity 0.2 0.08 Bonomo et al. 2017
Host Star log(g) 4.45 0.08 Log10(cgs) ExoFOP-TESS TOI
Host Star Radius [R_Sun] 0.866 0.013 Sol Kokori et al. 2023
Host Star Effective Temperature [K] 5171.0 36.0 K Kokori et al. 2023
a/Rs 6.19 0.09 Kokori et al. 2023
eccentricity 0.03 Bonomo et al. 2017
inclination [degrees] 84.65 0.24 deg Kokori et al. 2023
omega [degrees] 0.0 deg Kokori et al. 2023
orbital period [days] 1.482246865 9.3e-08 day Kokori et al. 2023
Rp 14.06 0.89 R_Earth ExoFOP-TESS TOI
Rp/Rs 0.1481 0 ExoFOP-TESS TOI
ephemeris [JD] 2457011.470352 7.7e-05 BJD-TDB Kokori et al. 2023

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2455443.2521866667 0.00010896666666666665 BJD-TDB, HJD Bonomo et al. 2017, Maciejewski et al. 2016, Mandushev et al. 2011
2456458.59219 9e-05 BJD-TDB Mislis et al. 2015
2456833.6008 6e-05 BJD-TDB Kokori et al. 2022
2457011.470352 7.7e-05 BJD-TDB Kokori et al. 2023
2457269.3811 0.00013 BJD-TDB Ivshina & Winn 2022
2459854.418388 0.00039701 BJD ExoFOP-TESS TOI

Observations

Light curve chart for 0003518
Parameter Value Uncertainty
Am1 1.087 0.028
Am2 -0.043 0.013
a/Rs 5.76 0.25
Rp/Rs 0.2 0.03
ephemeris [JD] 2456388.9434 0.0038
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5559764428166878
u1 -2.681448253232159
u2 3.31745449320612
u3 -1.1919826333567252
transit duration [days] 0.0879 0.0049
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PAIB (collaborate/publish) MOBS
Light curve chart for 0007077
Parameter Value Uncertainty
Am1 1.86 1.54
Am2 0.06 0.36
a/Rs 6.63 0.26
Rp/Rs 0.18 0.084
ephemeris [JD] 2456391.888 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.555434040701607
u1 -2.6793227181673154
u2 3.3145399525972925
u3 -1.1906512257410897
transit duration [days] 0.071 0.008
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO HSHA (collaborate/publish) MOBS
Light curve chart for 0012413
Parameter Value Uncertainty
Am1 0.917 0.034
Am2 0.028 0.012
a/Rs 5.79 0.26
Rp/Rs 0.124 0.057
ephemeris [JD] 2456394.855 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5586472799380546
u1 -2.689703266685691
u2 3.3258770729354734
u3 -1.1948210366284067
transit duration [days] 0.063 0.011
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO 9999 (collaborate/publish) MOBS
Light curve chart for 0007109
Parameter Value Uncertainty
Am1 1.258 0.038
Am2 -0.115 0.014
a/Rs 5.76 0.26
Rp/Rs 0.152 0.066
ephemeris [JD] 2456397.822 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5555138911170108
u1 -2.6800384603615326
u2 3.3158474805576654
u3 -1.1913228619031657
transit duration [days] 0.0845 0.0079
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WGAC (collaborate/publish) MOBS
Light curve chart for 0008170
Parameter Value Uncertainty
Am1 1.074 0.029
Am2 -0.053 0.034
a/Rs 6.26 0.25
Rp/Rs 0.181 0.024
ephemeris [JD] 2456431.9143 0.004
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5581975783625541
u1 -2.688319676593534
u2 3.3242473292137813
u3 -1.1941251814476561
transit duration [days] 0.0781 0.0046
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DTEC (collaborate/publish) MOBS
Light curve chart for 0003239
Parameter Value Uncertainty
Am1 1.095 0.032
Am2 -0.066 0.025
a/Rs 6.63 0.22
Rp/Rs 0.192 0.03
ephemeris [JD] 2456434.8719 0.0037
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.558864383094045
u1 -2.6906518995935698
u2 3.327229118026919
u3 -1.1954415519478165
transit duration [days] 0.0729 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LIGA (collaborate/publish) MOBS

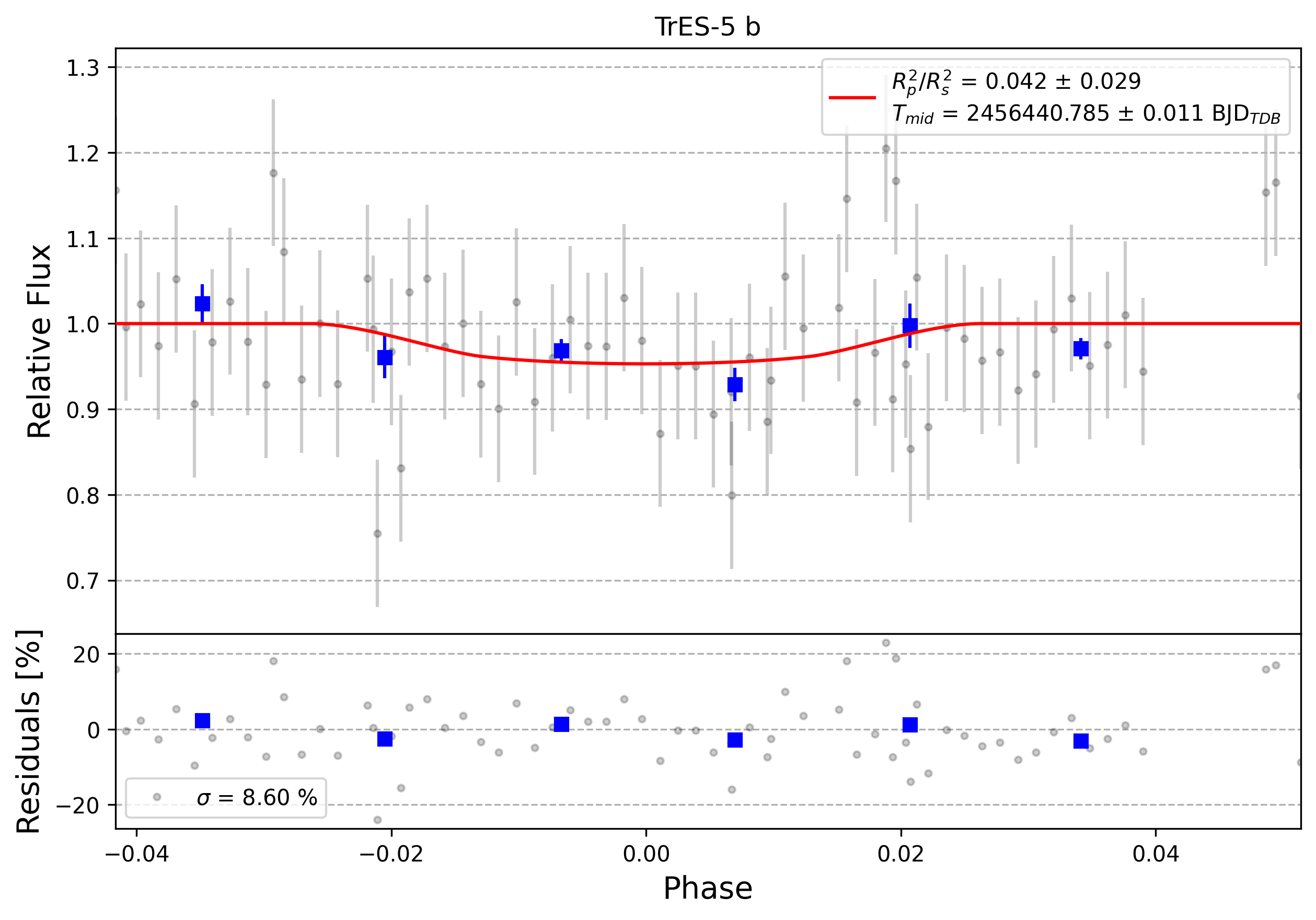

Light curve chart for 0008482
Parameter Value Uncertainty
Am1 1.046 0.089
Am2 -0.02 0.047
a/Rs 6.35 0.26
Rp/Rs 0.21 0.075
ephemeris [JD] 2456440.785 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5557446711764014
u1 -2.679720392109792
u2 3.3146310306221505
u3 -1.190655260296909
transit duration [days] 0.0791 0.0076
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WGAC (collaborate/publish) MOBS
Light curve chart for 0003294
Parameter Value Uncertainty
Am1 0.18 0.12
Am2 0.88 0.1
a/Rs 5.82 0.26
Rp/Rs 0.262 0.085
ephemeris [JD] 2456440.785 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5553916283772171
u1 -2.679077316729067
u2 3.314184322251188
u3 -1.1904985845141431
transit duration [days] 0.0925 0.0091
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SALP (collaborate/publish) MOBS
Light curve chart for 0004842
Parameter Value Uncertainty
Am1 1.041 0.066
Am2 -0.009 0.022
a/Rs 6.62 0.26
Rp/Rs 0.179 0.065
ephemeris [JD] 2456443.786 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5559500504832442
u1 -2.680925898990426
u2 3.316763406527179
u3 -1.191787508596371
transit duration [days] 0.072 0.0066
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CMAT (collaborate/publish) MOBS
Light curve chart for 0008529
Parameter Value Uncertainty
Am1 1.346 0.074
Am2 -0.157 0.023
a/Rs 5.75 0.26
Rp/Rs 0.234 0.07
ephemeris [JD] 2456449.693 0.01
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5591286334744918
u1 -2.6917980353611557
u2 3.3292722330241338
u3 -1.1966027815274476
transit duration [days] 0.0886 0.0081
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CCOD (collaborate/publish) MOBS
Light curve chart for 0005060
Parameter Value Uncertainty
Am1 2.266 0.057
Am2 -0.72 0.19
a/Rs 5.74 0.17
Rp/Rs 0.247 0.019
ephemeris [JD] 2456471.9157 0.0038
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5589268668054574
u1 -2.6901136768369334
u2 3.3260829737591355
u3 -1.1948961141651608
transit duration [days] 0.0934 0.0039
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PMLA (collaborate/publish) MOBS
Light curve chart for 0009955
Parameter Value Uncertainty
Am1 1.087 0.044
Am2 -0.08 0.33
a/Rs 6.62 0.26
Rp/Rs 0.104 0.049
ephemeris [JD] 2456477.862 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5549950112578645
u1 -2.6776932043165425
u2 3.312720403467819
u3 -1.1900221610457602
transit duration [days] 0.0656 0.0055
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DTEC (collaborate/publish) MOBS
Light curve chart for 0012296
Parameter Value Uncertainty
Am1 1.119 0.042
Am2 -0.074 0.033
a/Rs 6.62 0.24
Rp/Rs 0.196 0.053
ephemeris [JD] 2456517.8613 0.0069
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.555322859799826
u1 -2.678566276624439
u2 3.3138137629370736
u3 -1.1905702967327882
transit duration [days] 0.0735 0.0058
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WKAF (collaborate/publish) MOBS
Light curve chart for 0006393
Parameter Value Uncertainty
Am1 1.268 0.057
Am2 -0.147 0.024
a/Rs 6.07 0.26
Rp/Rs 0.186 0.059
ephemeris [JD] 2456563.8288 0.0099
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8406267989020297
u1 -3.208691674140438
u2 3.6553375861727537
u3 -1.2872726564655705
transit duration [days] 0.0817 0.0071
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO RBRE (collaborate/publish) MOBS
Light curve chart for 0007289
Parameter Value Uncertainty
Am1 0.925 0.032
Am2 0.059 0.029
a/Rs 5.93 0.25
Rp/Rs 0.109 0.04
ephemeris [JD] 2456572.7248 0.01
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5591840260192473
u1 -2.6921229181154724
u2 3.32938391894366
u3 -1.196444977235748
transit duration [days] 0.0771 0.0059
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO ASJB (collaborate/publish) MOBS
Light curve chart for 0004158
Parameter Value Uncertainty
Am1 1.003 0.037
Am2 0.002 0.01
a/Rs 5.76 0.26
Rp/Rs 0.196 0.029
ephemeris [JD] 2456769.8648 0.0052
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.555619567409001
u1 -2.680299629367594
u2 3.315883887349054
u3 -1.191203775979941
transit duration [days] 0.0884 0.0057
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LANF (collaborate/publish) MOBS
Light curve chart for 0012255
Parameter Value Uncertainty
Am1 0.922 0.016
Am2 0.065 0.021
a/Rs 5.94 0.22
Rp/Rs 0.16 0.014
ephemeris [JD] 2456809.8859 0.0025
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5584116073912775
u1 -2.689292329094845
u2 3.3257929160250703
u3 -1.1949121447633266
transit duration [days] 0.0817 0.0042
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GJOL (collaborate/publish) MOBS
Light curve chart for 0009778
Parameter Value Uncertainty
Am1 1.083 0.033
Am2 -0.045 0.02
a/Rs 5.8 0.26
Rp/Rs 0.205 0.031
ephemeris [JD] 2456815.8058 0.0072
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5579965083385094
u1 -2.687638906357527
u2 3.32351272912943
u3 -1.1938702815862139
transit duration [days] 0.0886 0.0059
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DCMA (collaborate/publish) MOBS
Light curve chart for 0009551
Parameter Value Uncertainty
Am1 0.913 0.034
Am2 0.058 0.023
a/Rs 5.75 0.26
Rp/Rs 0.182 0.042
ephemeris [JD] 2456818.7816 0.0079
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5592369577896845
u1 -2.692001661997614
u2 3.329213644174956
u3 -1.1964488903578774
transit duration [days] 0.0871 0.0065
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DTEC (collaborate/publish) MOBS
Light curve chart for 0011849
Parameter Value Uncertainty
Am1 0.95 0.018
Am2 0.0324 0.0079
a/Rs 6.36 0.25
Rp/Rs 0.149 0.019
ephemeris [JD] 2456889.9299 0.0043
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5584687787537916
u1 -2.6890992798467988
u2 3.325533566109807
u3 -1.1949030154624882
transit duration [days] 0.0738 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO HMAS (collaborate/publish) MOBS
Light curve chart for 0004118
Parameter Value Uncertainty
Am1 0.982 0.023
Am2 0.0152 0.0088
a/Rs 5.79 0.27
Rp/Rs 0.133 0.034
ephemeris [JD] 2456941.825 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.558887168875578
u1 -2.6911724841070144
u2 3.3280446783986464
u3 -1.19575931357548
transit duration [days] 0.0813 0.0059
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PMLA (collaborate/publish) MOBS
Light curve chart for 0009225
Parameter Value Uncertainty
Am1 0.941 0.026
Am2 0.036 0.03
a/Rs 6.17 0.26
Rp/Rs 0.163 0.041
ephemeris [JD] 2456950.7024 0.0078
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5559171266877632
u1 -2.6813827906006997
u2 3.3176489630353716
u3 -1.1921832496856135
transit duration [days] 0.0778 0.0058
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KSTG (collaborate/publish) MOBS
Light curve chart for 0007321
Parameter Value Uncertainty
Am1 1.138 0.038
Am2 -0.106 0.037
a/Rs 5.74 0.26
Rp/Rs 0.155 0.04
ephemeris [JD] 2456953.6552 0.0068
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8412714488236412
u1 -3.2112447773517068
u2 3.658716119001923
u3 -1.288742735954739
transit duration [days] 0.0847 0.0064
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO SAAI (collaborate/publish) MOBS
Light curve chart for 0004639
Parameter Value Uncertainty
Am1 1.076 0.024
Am2 -0.059 0.036
a/Rs 6.2 0.25
Rp/Rs 0.159 0.019
ephemeris [JD] 2456956.6323 0.0045
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5579483097170246
u1 -2.687440959176707
u2 3.323166140884435
u3 -1.1936734419057178
transit duration [days] 0.0769 0.0044
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CGIE (collaborate/publish) MOBS
Light curve chart for 0008102
Parameter Value Uncertainty
Am1 0.977 0.021
Am2 0.0088 0.0036
a/Rs 5.74 0.25
Rp/Rs 0.141 0.02
ephemeris [JD] 2456990.7223 0.0059
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5553807556062105
u1 -2.679364316033584
u2 3.3149687276931434
u3 -1.1909851178688866
transit duration [days] 0.0836 0.0052
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DTEC (collaborate/publish) MOBS
Light curve chart for 0003807
Parameter Value Uncertainty
Am1 0.917 0.051
Am2 0.062 0.048
a/Rs 6.62 0.25
Rp/Rs 0.271 0.076
ephemeris [JD] 2457147.8163 0.0094
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.558668844017947
u1 -2.690038660472114
u2 3.3265458390920517
u3 -1.1951759730684892
transit duration [days] 0.0678 0.0098
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PAIB (collaborate/publish) MOBS
Light curve chart for 0007669
Parameter Value Uncertainty
Am1 0.985 0.024
Am2 0.0082 0.0057
a/Rs 6.63 0.26
Rp/Rs 0.145 0.033
ephemeris [JD] 2457150.8139 0.0089
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.55858566013396
u1 -2.689595209557356
u2 3.32581050642482
u3 -1.194800907442985
transit duration [days] 0.069 0.0047
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GDAP (collaborate/publish) MOBS
Light curve chart for 0006644
Parameter Value Uncertainty
Am1 1.071 0.019
Am2 -0.053 0.025
a/Rs 6.09 0.25
Rp/Rs 0.158 0.016
ephemeris [JD] 2457187.8588 0.0034
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5551559270437492
u1 -2.6779845400480213
u2 3.312905974315675
u3 -1.1900773119452568
transit duration [days] 0.0786 0.0045
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DMIF (collaborate/publish) MOBS
Light curve chart for 0008024
Parameter Value Uncertainty
Am1 0.976 0.016
Am2 0.019 0.016
a/Rs 6.57 0.25
Rp/Rs 0.113 0.029
ephemeris [JD] 2457190.8328 0.0083
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5585922334042273
u1 -2.6886821952887994
u2 3.324269064018045
u3 -1.1941790525980034
transit duration [days] 0.067 0.0045
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DJSA (collaborate/publish) MOBS
Light curve chart for 0009200
Parameter Value Uncertainty
Am1 0.343 0.012
Am2 0.98 0.59
a/Rs 5.86 0.26
Rp/Rs 0.295 0.087
ephemeris [JD] 2457236.792 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.841316569739653
u1 -3.2123741560032455
u2 3.6607303202517287
u3 -1.2896726794390037
transit duration [days] 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO SAAI (collaborate/publish) MOBS
Light curve chart for 0008762
Parameter Value Uncertainty
Am1 2.19 0.22
Am2 -0.58 0.24
a/Rs 5.76 0.26
Rp/Rs 0.294 0.054
ephemeris [JD] 2457242.7016 0.0086
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5583222019220686
u1 -2.689215355489483
u2 3.326185099842755
u3 -1.1952918967113204
transit duration [days] 0.0952 0.0068
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SSTP (collaborate/publish) MOBS
Light curve chart for 0006426
Parameter Value Uncertainty
Am1 0.44 0.17
Am2 0.42 0.33
a/Rs 6.5 0.26
Rp/Rs 0.293 0.085
ephemeris [JD] 2457270.845 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.558847788311458
u1 -2.6905497064776576
u2 3.3270361855081023
u3 -1.1953342177652
transit duration [days] 0.0794 0.0096
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WDUA (collaborate/publish) MOBS
Light curve chart for 0007634
Parameter Value Uncertainty
Am1 0.212 0.012
Am2 1.0 0.58
a/Rs 6.56 0.26
Rp/Rs 0.193 0.086
ephemeris [JD] 2457276.808 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5590192798334042
u1 -2.6911036186711454
u2 3.3280030585568765
u3 -1.1959186701280249
transit duration [days] 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO ZAIB (collaborate/publish) MOBS
Light curve chart for 0009664
Parameter Value Uncertainty
Am1 0.965 0.037
Am2 0.03 0.16
a/Rs 6.52 0.25
Rp/Rs 0.092 0.047
ephemeris [JD] 2457285.686 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5587334758109264
u1 -2.690497055577969
u2 3.3272207929361373
u3 -1.1954571635896412
transit duration [days] 0.0662 0.0054
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CREB (collaborate/publish) MOBS

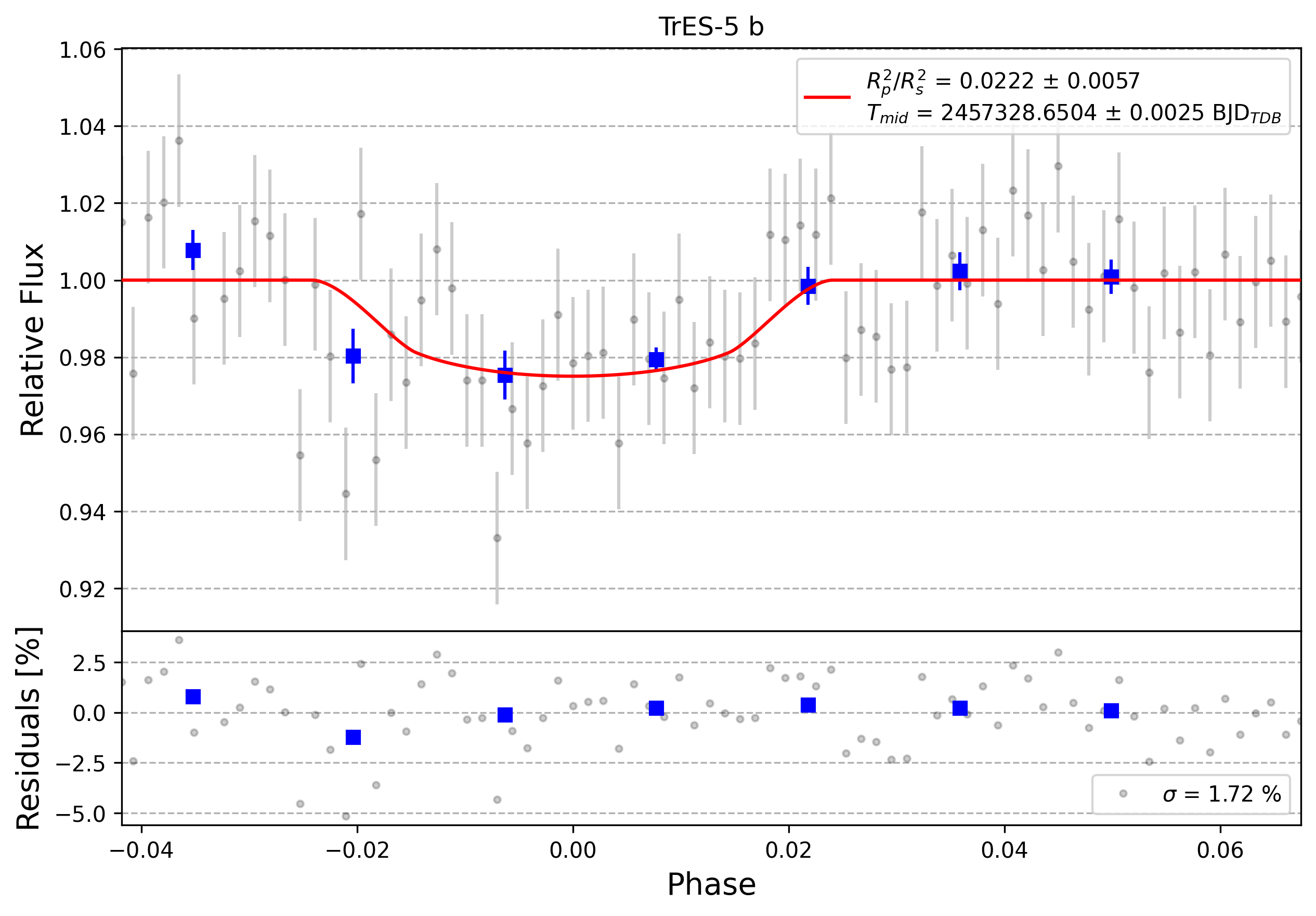

Light curve chart for 0008374
Parameter Value Uncertainty
Am1 0.954 0.016
Am2 0.03 0.013
a/Rs 6.47 0.26
Rp/Rs 0.148 0.019
ephemeris [JD] 2457328.6504 0.0025
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5589918442121693
u1 -2.6912360332021663
u2 3.3279764359023867
u3 -1.1957321973216763
transit duration [days] 0.0715 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SMAMA (collaborate/publish) MOBS
Light curve chart for 0007791
Parameter Value Uncertainty
Am1 1.039 0.027
Am2 -0.0215 0.0091
a/Rs 6.62 0.26
Rp/Rs 0.218 0.042
ephemeris [JD] 2457476.9001 0.0056
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.555739740537786
u1 -2.6807170414161345
u2 3.316600210036705
u3 -1.1916228597371625
transit duration [days] 0.0758 0.0055
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO ZAIB (collaborate/publish) MOBS
Light curve chart for 0004047
Parameter Value Uncertainty
Am1 1.025 0.02
Am2 -0.0123 0.0032
a/Rs 6.29 0.25
Rp/Rs 0.153 0.018
ephemeris [JD] 2457479.8665 0.0045
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5551160915036297
u1 -2.6777787310221774
u2 3.312756252749935
u3 -1.1900935638674723
transit duration [days] 0.0752 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CPHB (collaborate/publish) MOBS
Light curve chart for 0010362
Parameter Value Uncertainty
Am1 0.978 0.025
Am2 0.019 0.012
a/Rs 6.31 0.25
Rp/Rs 0.158 0.03
ephemeris [JD] 2457516.9199 0.0052
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5555488735659033
u1 -2.6797166594423163
u2 3.3154534573487506
u3 -1.1912856220682317
transit duration [days] 0.0753 0.0049
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KKIA (collaborate/publish) MOBS

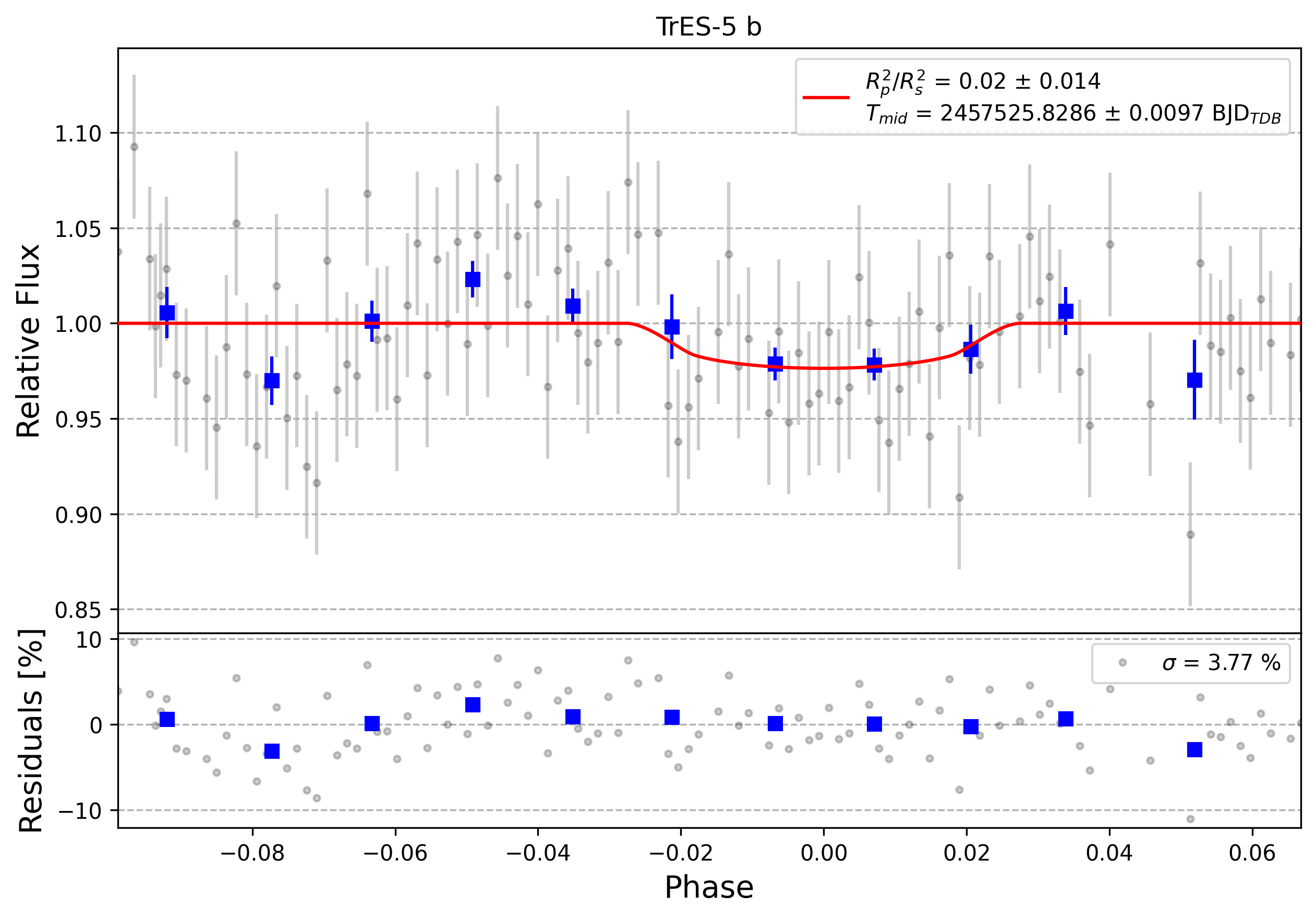

Light curve chart for 0011294
Parameter Value Uncertainty
Am1 0.974 0.036
Am2 0.0174 0.0059
a/Rs 5.84 0.26
Rp/Rs 0.144 0.05
ephemeris [JD] 2457525.8293 0.0091
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5589394041779885
u1 -2.6907597397154674
u2 3.3274005149710906
u3 -1.1955801298514799
transit duration [days] 0.0821 0.0068
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MKEE (collaborate/publish) MOBS
Light curve chart for 0006507
Parameter Value Uncertainty
Am1 1.04 0.16
Am2 -0.013 0.023
a/Rs 5.84 0.26
Rp/Rs 0.266 0.083
ephemeris [JD] 2457531.718 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5588098034169229
u1 -2.690387851924103
u2 3.3268141041104586
u3 -1.1952360060298854
transit duration [days] 0.0923 0.0091
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WGAC (collaborate/publish) MOBS
Light curve chart for 0008366
Parameter Value Uncertainty
Am1 0.76 0.064
Am2 0.2 0.15
a/Rs 5.82 0.26
Rp/Rs 0.295 0.079
ephemeris [JD] 2457562.8853 0.0091
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5580371076674695
u1 -2.6878311482047543
u2 3.323880884037177
u3 -1.1940867939702073
transit duration [days] 0.046 0.01
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO ZAIB (collaborate/publish) MOBS
Light curve chart for 0012233
Parameter Value Uncertainty
Am1 0.696 0.08
Am2 0.24 0.13
a/Rs 6.62 0.26
Rp/Rs 0.247 0.083
ephemeris [JD] 2457568.786 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5554301510928958
u1 -2.679065171516039
u2 3.314045494090608
u3 -1.1904104242843387
transit duration [days] 0.0774 0.0081
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KPRB (collaborate/publish) MOBS
Light curve chart for 0010240
Parameter Value Uncertainty
Am1 1.041 0.027
Am2 -0.024 0.021
a/Rs 5.75 0.25
Rp/Rs 0.137 0.034
ephemeris [JD] 2457577.7019 0.0068
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5594266831029557
u1 -2.69320044537619
u2 3.3307329253218865
u3 -1.1969591134168636
transit duration [days] 0.083 0.0057
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MKEE (collaborate/publish) MOBS

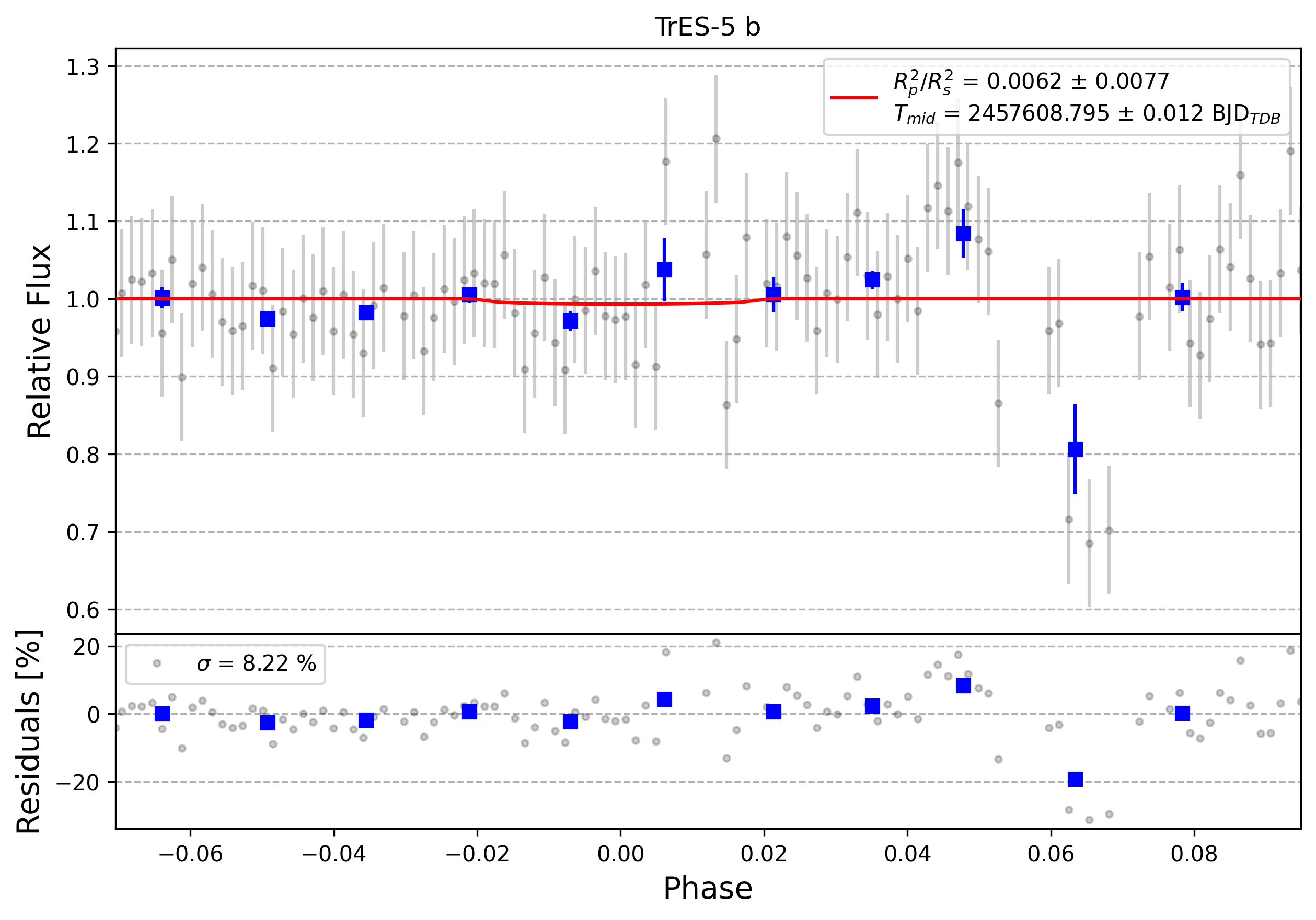

Light curve chart for 0009025
Parameter Value Uncertainty
Am1 1.021 0.084
Am2 -0.022 0.097
a/Rs 6.48 0.25
Rp/Rs 0.077 0.049
ephemeris [JD] 2457608.796 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5563524316803037
u1 -2.683260885654673
u2 3.3201140074086752
u3 -1.193205503960752
transit duration [days] 0.0655 0.0054
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WMAI (collaborate/publish) MOBS
Light curve chart for 0005940
Parameter Value Uncertainty
Am1 0.911 0.03
Am2 0.076 0.057
a/Rs 5.77 0.26
Rp/Rs 0.294 0.082
ephemeris [JD] 2457645.8865 0.0089
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5554807622333133
u1 -2.6793405258167255
u2 3.314857578307825
u3 -1.190997765329186
transit duration [days] 0.047 0.01
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RKAC (collaborate/publish) MOBS
Light curve chart for 0007108
Parameter Value Uncertainty
Am1 1.01 0.021
Am2 -0.007 0.029
a/Rs 5.75 0.24
Rp/Rs 0.16 0.017
ephemeris [JD] 2457663.6592 0.0034
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5552386131678915
u1 -2.6785505782417425
u2 3.3136692811410637
u3 -1.1903572666896927
transit duration [days] 0.085 0.0048
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DCMA (collaborate/publish) MOBS
Light curve chart for 0010137
Parameter Value Uncertainty
Am1 0.3225 0.0052
Am2 0.99 0.45
a/Rs 6.54 0.26
Rp/Rs 0.052 0.084
ephemeris [JD] 2457662.161 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.55855308517231
u1 -2.6891526039696174
u2 3.3254330665281002
u3 -1.194833498177979
transit duration [days] 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CVII (collaborate/publish) MOBS
Light curve chart for 0007046
Parameter Value Uncertainty
Am1 1.054 0.027
Am2 -0.038 0.033
a/Rs 6.09 0.25
Rp/Rs 0.184 0.028
ephemeris [JD] 2457891.9416 0.003
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.557859002085221
u1 -2.68648441586574
u2 3.3217409967016085
u3 -1.193115533423291
transit duration [days] 0.078 0.0039
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WGAC (collaborate/publish) MOBS
Light curve chart for 0007609
Parameter Value Uncertainty
Am1 1.234 0.025
Am2 -0.181 0.099
a/Rs 6.62 0.25
Rp/Rs 0.154 0.026
ephemeris [JD] 2457934.9124 0.0062
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5583855315219575
u1 -2.6886116559323954
u2 3.324610418320548
u3 -1.1943842443695543
transit duration [days] 0.07 0.0044
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DJSA (collaborate/publish) MOBS
Light curve chart for 0010480
Parameter Value Uncertainty
Am1 1.304 0.054
Am2 -0.115 0.017
a/Rs 5.75 0.26
Rp/Rs 0.173 0.06
ephemeris [JD] 2458020.881 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5590135414740942
u1 -2.691585312810424
u2 3.329105918615952
u3 -1.1965340976720782
transit duration [days] 0.086 0.0075
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KPRB (collaborate/publish) MOBS
Light curve chart for 0011963
Parameter Value Uncertainty
Am1 1.87 1.11
Am2 -0.54 0.57
a/Rs 5.75 0.26
Rp/Rs 0.283 0.086
ephemeris [JD] 2458035.694 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5549302876331268
u1 -2.67714983363657
u2 3.311952629574671
u3 -1.1897330342192873
transit duration [days] 0.076 0.012
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GJOL (collaborate/publish) MOBS
Light curve chart for 0012053
Parameter Value Uncertainty
Am1 0.97 0.04
Am2 0.0173 0.0092
a/Rs 6.61 0.26
Rp/Rs 0.139 0.052
ephemeris [JD] 2458075.739 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5590741805036386
u1 -2.691107629964992
u2 3.327998037315504
u3 -1.1959645382631154
transit duration [days] 0.0689 0.0061
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LMI (collaborate/publish) MOBS
Light curve chart for 0010838
Parameter Value Uncertainty
Am1 1.005 0.019
Am2 -0.0024 0.0092
a/Rs 6.57 0.26
Rp/Rs 0.126 0.018
ephemeris [JD] 2458084.6195 0.0047
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.840269638102549
u1 -3.207549372702275
u2 3.6539845622539597
u3 -1.2867047732056212
transit duration [days] 0.0685 0.004
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO GMAU (collaborate/publish)
Light curve chart for 0003976
Parameter Value Uncertainty
Am1 1.028 0.014
Am2 -0.0163 0.0085
a/Rs 6.63 0.23
Rp/Rs 0.151 0.015
ephemeris [JD] 2458223.9436 0.0032
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5557703252324249
u1 -2.6801474460580166
u2 3.315561030942467
u3 -1.191183860711166
transit duration [days] 0.0701 0.0037
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PAIB (collaborate/publish) MOBS
Light curve chart for 0010881
Parameter Value Uncertainty
Am1 0.957 0.015
Am2 0.0283 0.0061
a/Rs 5.75 0.26
Rp/Rs 0.095 0.03
ephemeris [JD] 2458226.8963 0.0098
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5556203372376556
u1 -2.6800520618497288
u2 3.3154835886681635
u3 -1.1910518146515354
transit duration [days] 0.0795 0.0056
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SSTP (collaborate/publish) MOBS
Light curve chart for 0011467
Parameter Value Uncertainty
Am1 1.059 0.024
Am2 -0.022 0.0072
a/Rs 6.46 0.26
Rp/Rs 0.116 0.052
ephemeris [JD] 2458232.847 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.557554774859611
u1 -2.6860939459408137
u2 3.321534852852837
u3 -1.192995632276908
transit duration [days] 0.0693 0.0059
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PMAFA (collaborate/publish) MOBS
Light curve chart for 0012131
Parameter Value Uncertainty
Am1 3.73 0.71
Am2 -1.0 0.58
a/Rs 6.37 0.26
Rp/Rs 0.006 0.086
ephemeris [JD] 2458312.885 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5587657311517449
u1 -2.690235758264236
u2 3.326745899424198
u3 -1.19527582273933
transit duration [days] 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO OPAA (collaborate/publish) MOBS
Light curve chart for 0007514
Parameter Value Uncertainty
Am1 4.47 2.18
Am2 -1.0 0.28
a/Rs 6.11 0.26
Rp/Rs 0.003 0.083
ephemeris [JD] 2458355.878 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.559282614778935
u1 -2.692729282615403
u2 3.330120832725071
u3 -1.1966741152659357
transit duration [days] 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MVOB (collaborate/publish) MOBS
Light curve chart for 0000572
Parameter Value Uncertainty
Am1 1.0005 0.0081
Am2 0.0004 0.0031
a/Rs 6.19 0.19
Rp/Rs 0.1428 0.0076
ephemeris [JD] 2458376.622 0.0013
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8419216968808128
u1 -3.2145390715752997
u2 3.6636484401387643
u3 -1.2910310108516612
transit duration [days] 0.0758 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO MWAA (collaborate/publish)
Light curve chart for 0005891
Parameter Value Uncertainty
Am1 0.87 0.04
Am2 0.089 0.04
a/Rs 6.32 0.26
Rp/Rs 0.157 0.072
ephemeris [JD] 2458459.637 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5553925554508796
u1 -2.6790124530043693
u2 3.3143658553727007
u3 -1.1907459084313112
transit duration [days] 0.0756 0.0074
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FLIA (collaborate/publish) MOBS
Light curve chart for 0002638
Parameter Value Uncertainty
Am1 1.016 0.02
Am2 -0.006 0.01
a/Rs 6.31 0.25
Rp/Rs 0.156 0.026
ephemeris [JD] 2458462.5762 0.0037
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5554164966906932
u1 -2.67990223491436
u2 3.3158699907690328
u3 -1.1913842031350526
transit duration [days] 0.066 0.0044
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MMOC (collaborate/publish) MOBS
Light curve chart for 0010256
Parameter Value Uncertainty
Am1 0.977 0.017
Am2 0.014 0.0098
a/Rs 6.48 0.22
Rp/Rs 0.18 0.013
ephemeris [JD] 2458601.9188 0.0022
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5590042791698173
u1 -2.6906312347195565
u2 3.3271559978555896
u3 -1.195528992727363
transit duration [days] 0.0743 0.0036
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DTEC (collaborate/publish) MOBS
Light curve chart for 0009812
Parameter Value Uncertainty
Am1 0.968 0.02
Am2 0.0193 0.0069
a/Rs 6.63 0.26
Rp/Rs 0.11 0.037
ephemeris [JD] 2458607.8563 0.0095
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5578967654343459
u1 -2.686340243922771
u2 3.3213631429349433
u3 -1.1929196149543513
transit duration [days] 0.0665 0.005
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FSAF (collaborate/publish) MOBS
Light curve chart for 0011576
Parameter Value Uncertainty
Am1 0.992 0.028
Am2 0.004 0.0063
a/Rs 5.78 0.26
Rp/Rs 0.111 0.039
ephemeris [JD] 2458610.81 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5582504724109996
u1 -2.6883077828051802
u2 3.3243129830866316
u3 -1.1942556231563275
transit duration [days] 0.0801 0.0059
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MANBA (collaborate/publish) MOBS
Light curve chart for 0007952
Parameter Value Uncertainty
Am1 2.07 0.43
Am2 -0.57 0.51
a/Rs 6.63 0.26
Rp/Rs 0.295 0.086
ephemeris [JD] 2458644.887 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5588507485993675
u1 -2.6915419838192847
u2 3.328968031469386
u3 -1.1962767466439792
transit duration [days] 0.0821 0.0083
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO OPAA (collaborate/publish) MOBS
Light curve chart for 0011230
Parameter Value Uncertainty
Am1 0.776 0.028
Am2 0.164 0.06
a/Rs 6.11 0.26
Rp/Rs 0.294 0.052
ephemeris [JD] 2458662.6795 0.0059
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5550544370128507
u1 -2.6773760718162722
u2 3.311913952362719
u3 -1.1895922682079338
transit duration [days] 0.0722 0.0067
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SSTP (collaborate/publish) MOBS
Light curve chart for 0007415
Parameter Value Uncertainty
Am1 2.96 0.14
Am2 -0.95 0.33
a/Rs 5.75 0.25
Rp/Rs 0.19 0.047
ephemeris [JD] 2458699.7425 0.0074
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.558375771031555
u1 -2.6896492636431675
u2 3.326395227404958
u3 -1.1951216852261939
transit duration [days] 0.0738 0.0076
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WDUA (collaborate/publish) MOBS
Light curve chart for 0012149
Parameter Value Uncertainty
Am1 1.37520868 9.6e-07
Am2 -0.28 0.24
a/Rs 6.18 0.26
Rp/Rs 0.085 0.084
ephemeris [JD] 2458705.658 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5557033772320805
u1 -2.6802310988507507
u2 3.31594637273836
u3 -1.1914186017082384
transit duration [days] 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO ASJB (collaborate/publish) MOBS
Light curve chart for 0000218
Parameter Value Uncertainty
Am1 0.17801 0.00094
Am2 -0.014 0.012
a/Rs 5.97 0.15
Rp/Rs 0.144 0.0054
ephemeris [JD] 2458723.4649 0.0012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.867958428103048
u1 -3.1286475533619713
u2 3.5037388764279522
u3 -1.243049698959251
transit duration [days] 0.0796 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
R Cousins R 561.7 nm 719.7 nm
Organization Observer Code Secondary Observers
AAVSO MNIC (collaborate/publish)
Light curve chart for 0011338
Parameter Value Uncertainty
Am1 0.62 0.49
Am2 0.3 0.36
a/Rs 6.06 0.26
Rp/Rs 0.001 0.074
ephemeris [JD] 2458733.842 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5584777951968702
u1 -2.6885516214904492
u2 3.3241116120754164
u3 -1.1940377362487147
transit duration [days] 0.0698 0.0059
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO HJEJ (collaborate/publish) MOBS
Light curve chart for 0008162
Parameter Value Uncertainty
Am1 0.48 0.39
Am2 0.47 0.36
a/Rs 5.86 0.26
Rp/Rs 0.001 0.076
ephemeris [JD] 2458733.846 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5559012401362347
u1 -2.6810827091055396
u2 3.316649432630952
u3 -1.1914679142397193
transit duration [days] 0.073 0.0063
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MHAD (collaborate/publish) MOBS
Light curve chart for 0012172
Parameter Value Uncertainty
Am1 0.642 0.018
Am2 0.36 0.17
a/Rs 6.62 0.26
Rp/Rs 0.292 0.038
ephemeris [JD] 2458733.8599 0.0082
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5584472107266085
u1 -2.689101054866701
u2 3.3254454565513063
u3 -1.1947915628582146
transit duration [days] 0.0616 0.0068
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SSTP (collaborate/publish) MOBS
Light curve chart for 0004802
Parameter Value Uncertainty
Am1 0.936 0.03
Am2 0.059 0.058
a/Rs 5.75 0.26
Rp/Rs 0.166 0.03
ephemeris [JD] 2458742.7312 0.007
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5554746481894224
u1 -2.6803002537188036
u2 3.316617883639397
u3 -1.1917922286885583
transit duration [days] 0.0854 0.0058
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO QMAA (collaborate/publish) MOBS
Light curve chart for 0000230
Parameter Value Uncertainty
Am1 0.08127 0.00044
Am2 0.017 0.013
a/Rs 6.1 0.18
Rp/Rs 0.1328 0.0057
ephemeris [JD] 2458778.3083 0.0013
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.868482187486363
u1 -3.130439913495336
u2 3.5059136159363034
u3 -1.2439558376851467
transit duration [days] 0.0765 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
R Cousins R 561.7 nm 719.7 nm
Organization Observer Code Secondary Observers
AAVSO MNIC (collaborate/publish)
Light curve chart for 0011030
Parameter Value Uncertainty
Am1 1.188 0.044
Am2 -0.099 0.014
a/Rs 5.76 0.26
Rp/Rs 0.114 0.051
ephemeris [JD] 2458779.806 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8412959302125729
u1 -3.2123604721626817
u2 3.6608802455752802
u3 -1.2898156490738044
transit duration [days] 0.0806 0.0069
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO ZKEA (collaborate/publish) MOBS
Light curve chart for 0010900
Parameter Value Uncertainty
Am1 1.031 0.021
Am2 -0.0144 0.006
a/Rs 6.42 0.25
Rp/Rs 0.167 0.016
ephemeris [JD] 2458834.6287 0.0033
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5556439259694486
u1 -2.680471721131049
u2 3.316326738352238
u3 -1.1914988937735185
transit duration [days] 0.0743 0.0042
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FSAF (collaborate/publish) MOBS
Light curve chart for 0005959
Parameter Value Uncertainty
Am1 0.997 0.025
Am2 0.0 0.11
a/Rs 5.95 0.26
Rp/Rs 0.128 0.058
ephemeris [JD] 2458979.886 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.558452992595206
u1 -2.6891100594654826
u2 3.3253622060798675
u3 -1.1947050896578326
transit duration [days] 0.054 0.011
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO STRA (collaborate/publish) MOBS
Light curve chart for 0000333
Parameter Value Uncertainty
Am1 0.754 0.011
Am2 -0.07 0.14
a/Rs 5.78 0.24
Rp/Rs 0.145 0.027
ephemeris [JD] 2459019.9146 0.0036
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.840959799864661
u1 -3.2108532450422236
u2 3.658631268248532
u3 -1.2887377685531152
transit duration [days] 0.0832 0.0054
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0006931
Parameter Value Uncertainty
Am1 1.057 0.013
Am2 -0.049 0.046
a/Rs 5.88 0.22
Rp/Rs 0.164 0.011
ephemeris [JD] 2459022.8817 0.0021
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5557001173105947
u1 -2.679795092488656
u2 3.315148438482818
u3 -1.1910534139051951
transit duration [days] 0.0832 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RAAC (collaborate/publish) MOBS
Light curve chart for 0012100
Parameter Value Uncertainty
Am1 0.996 0.021
Am2 0.009 0.027
a/Rs 6.63 0.26
Rp/Rs 0.11 0.036
ephemeris [JD] 2459059.933 0.0092
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.558041852152026
u1 -2.6871476809440136
u2 3.3224827902291447
u3 -1.1933769119283055
transit duration [days] 0.0658 0.005
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SMAMA (collaborate/publish) MOBS
Light curve chart for 0000430
Parameter Value Uncertainty
Am1 0.186 0.0014
Am2 0.051 0.078
a/Rs 6.45 0.19
Rp/Rs 0.1451 0.0084
ephemeris [JD] 2459067.3456 0.0018
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8678450288712931
u1 -3.1281516297991865
u2 3.503115668175645
u3 -1.2428090150472602
transit duration [days] 0.0718 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
R Cousins R 561.7 nm 719.7 nm
Organization Observer Code Secondary Observers
AAVSO MNIC (collaborate/publish)
Light curve chart for 0009635
Parameter Value Uncertainty
Am1 1.065 0.028
Am2 -0.06 0.12
a/Rs 6.32 0.25
Rp/Rs 0.16 0.037
ephemeris [JD] 2459071.787 0.0052
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5584597876708706
u1 -2.6889761957514002
u2 3.3249957049241687
u3 -1.194479247297342
transit duration [days] 0.0755 0.0051
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DJSA (collaborate/publish) MOBS
Light curve chart for 0006022
Parameter Value Uncertainty
Am1 0.781 0.032
Am2 0.21 0.33
a/Rs 6.61 0.27
Rp/Rs 0.238 0.038
ephemeris [JD] 2459074.7372 0.0048
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5586606508937264
u1 -2.6896670050340434
u2 3.3261297640409304
u3 -1.1951233603374174
transit duration [days] 0.0523 0.0055
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MANS (collaborate/publish) MOBS
Light curve chart for 0007858
Parameter Value Uncertainty
Am1 1.101 0.039
Am2 -0.083 0.095
a/Rs 5.76 0.25
Rp/Rs 0.145 0.045
ephemeris [JD] 2459080.671 0.013
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5583468773223528
u1 -2.6888306675322355
u2 3.325240570114968
u3 -1.1947567303551399
transit duration [days] 0.0802 0.0087
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RKAC (collaborate/publish) MOBS
Light curve chart for 0000486
Parameter Value Uncertainty
Am1 0.3159 0.0071
Am2 0.004 0.011
a/Rs 5.97 0.25
Rp/Rs 0.192 0.02
ephemeris [JD] 2459108.8374 0.0032
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8408136286729473
u1 -3.2100460639386017
u2 3.657575387636258
u3 -1.2883428978684832
transit duration [days] 0.0841 0.0048
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0003581
Parameter Value Uncertainty
Am1 0.907 0.025
Am2 0.08 0.027
a/Rs 5.75 0.26
Rp/Rs 0.142 0.034
ephemeris [JD] 2459117.7579 0.0096
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5584676563890476
u1 -2.688561490591031
u2 3.3241833644914225
u3 -1.1940894807552471
transit duration [days] 0.0834 0.006
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO BMABA (collaborate/publish) MOBS
Light curve chart for 0000772
Parameter Value Uncertainty
Am1 1.078 0.024
Am2 -0.042 0.019
a/Rs 5.75 0.23
Rp/Rs 0.179 0.014
ephemeris [JD] 2459313.3994 0.0044
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.9418977755314104
u1 -3.4015525818938794
u2 3.8000491871534
u3 -1.3403943241657856
transit duration [days] 0.0871 0.0048
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 400.0 nm 900.0 nm
Organization Observer Code Secondary Observers
AAVSO KPEB (collaborate/publish) UNIS
Light curve chart for 0004099
Parameter Value Uncertainty
Am1 0.961 0.02
Am2 0.03 0.015
a/Rs 6.64 0.17
Rp/Rs 0.227 0.013
ephemeris [JD] 2459357.8598 0.0023
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5585267687119468
u1 -2.6897207366466245
u2 3.3263897674235747
u3 -1.1951957499218264
transit duration [days] 0.0759 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PAIB (collaborate/publish) MOBS
Light curve chart for 0000761
Parameter Value Uncertainty
Am1 0.9002 0.0092
Am2 0.092 0.036
a/Rs 5.92 0.2
Rp/Rs 0.128 0.0083
ephemeris [JD] 2459406.7742 0.0021
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 2.2015381338010735
u1 -3.845112199103119
u2 4.063606943974847
u3 -1.4200328181203385
transit duration [days] 0.0791 0.0036
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Astrodon ExoPlanet-BB 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO LPAC (collaborate/publish)
Light curve chart for 0004064
Parameter Value Uncertainty
Am1 0.34 0.019
Am2 0.93 0.22
a/Rs 5.88 0.26
Rp/Rs 0.296 0.073
ephemeris [JD] 2459409.733 0.01
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.559111307561971
u1 -2.6916366069682325
u2 3.328859838716478
u3 -1.1963344897063393
transit duration [days] 0.068 0.011
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DKEB (collaborate/publish) MOBS
Light curve chart for 0008158
Parameter Value Uncertainty
Am1 1.317 0.052
Am2 -0.24 0.14
a/Rs 6.64 0.25
Rp/Rs 0.212 0.037
ephemeris [JD] 2459449.76 0.0047
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.558094775532692
u1 -2.6876991620318007
u2 3.3236126533034778
u3 -1.194008217278681
transit duration [days] 0.0749 0.005
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO BSHE (collaborate/publish) MOBS
Light curve chart for 0004547
Parameter Value Uncertainty
Am1 1.814 0.065
Am2 -0.5 0.3
a/Rs 5.75 0.25
Rp/Rs 0.237 0.039
ephemeris [JD] 2459452.7287 0.0045
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5552728701349088
u1 -2.678321669267187
u2 3.3132376639085592
u3 -1.1901888154051923
transit duration [days] 0.0925 0.0063
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO TMSB (collaborate/publish) MOBS
Light curve chart for 0007906
Parameter Value Uncertainty
Am1 0.3346 0.0065
Am2 1.0 0.56
a/Rs 5.76 0.26
Rp/Rs 0.296 0.027
ephemeris [JD] 2459455.696 0.01
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5586261285526368
u1 -2.6899659862347987
u2 3.3266384620251754
u3 -1.1952985547722377
transit duration [days] 0.0502 0.0099
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SMAMA (collaborate/publish) MOBS
Light curve chart for 0000893
Parameter Value Uncertainty
Am1 0.559 0.028
Am2 0.52 0.25
a/Rs 6.08 0.25
Rp/Rs 0.192 0.046
ephemeris [JD] 2459461.6229 0.0059
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.9404658722173564
u1 -3.3964947954909466
u2 3.793900207206126
u3 -1.3378712273990176
transit duration [days] 0.0791 0.0059
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 400.0 nm 900.0 nm
Organization Observer Code Secondary Observers
AAVSO WNTA (collaborate/publish) UNIS
Light curve chart for 0003500
Parameter Value Uncertainty
Am1 0.201 0.016
Am2 0.99 0.24
a/Rs 6.54 0.26
Rp/Rs 0.144 0.08
ephemeris [JD] 2459479.432 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5586742971088585
u1 -2.6898099281272683
u2 3.3260816724018327
u3 -1.1949459918209437
transit duration [days] 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CLEC (collaborate/publish) MOBS
Light curve chart for 0006221
Parameter Value Uncertainty
Am1 0.468 0.08
Am2 0.55 0.2
a/Rs 6.08 0.26
Rp/Rs 0.295 0.085
ephemeris [JD] 2459495.736 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5583181530439356
u1 -2.6884379405184577
u2 3.3247566399514445
u3 -1.194636802934188
transit duration [days] 0.0907 0.0085
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO IJAA (collaborate/publish) MOBS
Light curve chart for 0002459
Parameter Value Uncertainty
Am1 1.834 0.044
Am2 -0.48 0.078
a/Rs 5.76 0.26
Rp/Rs 0.191 0.035
ephemeris [JD] 2459501.6304 0.0058
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5557347544221147
u1 -2.680692123675905
u2 3.316738570993356
u3 -1.1917811523163095
transit duration [days] 0.0876 0.0057
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MDMC (collaborate/publish) MOBS
Light curve chart for 0001169
Parameter Value Uncertainty
Am1 1.009 0.023
Am2 -0.005 0.016
a/Rs 6.64 0.25
Rp/Rs 0.136 0.022
ephemeris [JD] 2459504.6026 0.0045
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.9417102867793126
u1 -3.4012538094080655
u2 3.799736117182476
u3 -1.3401925379332429
transit duration [days] 0.0681 0.0042
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 400.0 nm 900.0 nm
Organization Observer Code Secondary Observers
AAVSO RJUB (collaborate/publish) UNIS
Light curve chart for 0010601
Parameter Value Uncertainty
Am1 1.149 0.036
Am2 -0.083 0.025
a/Rs 5.74 0.18
Rp/Rs 0.263 0.024
ephemeris [JD] 2459544.628 0.0044
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5580314679061664
u1 -2.6876757302774896
u2 3.323686078022299
u3 -1.1940417661241938
transit duration [days] 0.0949 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KKIA (collaborate/publish) MOBS
Light curve chart for 0001383
Parameter Value Uncertainty
Am1 1.161 0.071
Am2 -0.087 0.034
a/Rs 6.01 0.26
Rp/Rs 0.208 0.063
ephemeris [JD] 2459686.9467 0.0093
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8403407384373387
u1 -3.2079602681478603
u2 3.654622657592465
u3 -1.287003073423822
transit duration [days] 0.0843 0.0073
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0005892
Parameter Value Uncertainty
Am1 1.006 0.021
Am2 -0.005 0.041
a/Rs 6.38 0.25
Rp/Rs 0.166 0.017
ephemeris [JD] 2459729.9074 0.0035
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.555226684843944
u1 -2.67887074188324
u2 3.314508952522824
u3 -1.1908648460934956
transit duration [days] 0.0745 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO TANF (collaborate/publish) MOBS
Light curve chart for 0002901
Parameter Value Uncertainty
Am1 1.027 0.022
Am2 -0.018 0.045
a/Rs 6.41 0.25
Rp/Rs 0.157 0.021
ephemeris [JD] 2459729.9074 0.0052
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5555485198950407
u1 -2.679904897723524
u2 3.3155414641350327
u3 -1.1911850369011319
transit duration [days] 0.0737 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO HSUA (collaborate/publish) MOBS
Light curve chart for 0004193
Parameter Value Uncertainty
Am1 0.9684 0.0076
Am2 0.0199 0.0029
a/Rs 6.48 0.18
Rp/Rs 0.129 0.0077
ephemeris [JD] 2459738.8056 0.0017
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8918086762493467
u1 -3.160998837370432
u2 3.513940957459505
u3 -1.2447507439766188
transit duration [days] 0.0699 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 597.0 nm 697.0 nm
Organization Observer Code Secondary Observers
AAVSO VVIA (collaborate/publish)
Light curve chart for 0003983
Parameter Value Uncertainty
Am1 0.78 0.49
Am2 -0.0 0.27
a/Rs 5.82 0.26
Rp/Rs 0.293 0.084
ephemeris [JD] 2459747.684 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.555678143824047
u1 -2.6801785589290943
u2 3.3155010614764735
u3 -1.1910005969666102
transit duration [days] 0.084 0.012
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GHUA (collaborate/publish) MOBS
Light curve chart for 0009735
Parameter Value Uncertainty
Am1 1.169 0.07
Am2 -0.11 0.12
a/Rs 6.3 0.26
Rp/Rs 0.206 0.08
ephemeris [JD] 2459747.706 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.556234771667663
u1 -2.682513103409441
u2 3.3188717895317708
u3 -1.192593408334949
transit duration [days] 0.0682 0.0098
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SSTP (collaborate/publish) MOBS
Light curve chart for 0001715
Parameter Value Uncertainty
Am1 1.85 0.25
Am2 -0.5 0.52
a/Rs 6.32 0.26
Rp/Rs 0.292 0.081
ephemeris [JD] 2459775.876 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8409204581031582
u1 -3.209889181191008
u2 3.6568190887422767
u3 -1.287850311163576
transit duration [days] 0.0859 0.0083
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0001709
Parameter Value Uncertainty
Am1 0.9985 0.0067
Am2 0.001 0.03
a/Rs 6.08 0.15
Rp/Rs 0.1478 0.0055
ephemeris [JD] 2459778.8244 0.0011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5553320338652523
u1 -2.679051026931931
u2 3.314496216594961
u3 -1.1907771741384399
transit duration [days] 0.0781 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CCHD (collaborate/publish)
Light curve chart for 0005695
Parameter Value Uncertainty
Am1 0.584 0.019
Am2 0.5 0.4
a/Rs 5.85 0.25
Rp/Rs 0.255 0.045
ephemeris [JD] 2459781.783 0.0072
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5585429513790572
u1 -2.689498158020225
u2 3.326086191149737
u3 -1.195130934946023
transit duration [days] 0.0808 0.0074
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LCAC (collaborate/publish) MOBS
Light curve chart for 0001737
Parameter Value Uncertainty
Am1 1.0602 0.0053
Am2 -0.055 0.016
a/Rs 6.53 0.14
Rp/Rs 0.1279 0.0056
ephemeris [JD] 2459784.756 0.0013
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8408290762085886
u1 -3.209526735477335
u2 3.6565041043632864
u3 -1.2878063906083828
transit duration [days] 0.0692 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 0006930
Parameter Value Uncertainty
Am1 1.123 0.026
Am2 -0.063 0.027
a/Rs 5.75 0.22
Rp/Rs 0.234 0.025
ephemeris [JD] 2459815.8732 0.0027
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5552975020754198
u1 -2.6790250014900923
u2 3.3143005427747276
u3 -1.1905729939731287
transit duration [days] 0.0851 0.0038
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WGAC (collaborate/publish) MOBS
Light curve chart for 0001870
Parameter Value Uncertainty
Am1 0.909 0.028
Am2 0.078 0.013
a/Rs 6.639 0.068
Rp/Rs 0.223 0.011
ephemeris [JD] 2459818.8493 0.0022
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8414924678077291
u1 -3.2128143459824625
u2 3.6610864306922846
u3 -1.2897644979631124
transit duration [days] 0.0756 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO PJAE (collaborate/publish)
Light curve chart for 0001861
Parameter Value Uncertainty
Am1 1.0169 0.0049
Am2 -0.0135 0.0061
a/Rs 6.23 0.16
Rp/Rs 0.1434 0.0044
ephemeris [JD] 2459818.8464 0.001
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8411050076462316
u1 -3.211410373626903
u2 3.659667783774544
u3 -1.2893623632605729
transit duration [days] 0.0751 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 0001866
Parameter Value Uncertainty
Am1 1.041 0.061
Am2 -0.016 0.069
a/Rs 6.63 0.27
Rp/Rs 0.232 0.057
ephemeris [JD] 2459818.8487 0.0072
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8408502548790189
u1 -3.2099268733180617
u2 3.6570540472848307
u3 -1.2879773743514358
transit duration [days] 0.0762 0.0064
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0001881
Parameter Value Uncertainty
Am1 0.9603 0.0048
Am2 0.037 0.011
a/Rs 6.05 0.13
Rp/Rs 0.1472 0.0046
ephemeris [JD] 2459824.77372 0.00084
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8411178706798828
u1 -3.21123288889923
u2 3.659120466418863
u3 -1.2890053936743717
transit duration [days] 0.0786 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 0007138
Parameter Value Uncertainty
Am1 1.056 0.021
Am2 -0.049 0.064
a/Rs 5.75 0.21
Rp/Rs 0.174 0.018
ephemeris [JD] 2459827.7358 0.0039
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5590504677156087
u1 -2.691458876893936
u2 3.328464708707374
u3 -1.1960562499310576
transit duration [days] 0.0865 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WMAI (collaborate/publish) MOBS
Light curve chart for 0002049
Parameter Value Uncertainty
Am1 1.088 0.025
Am2 -0.07 0.076
a/Rs 6.23 0.25
Rp/Rs 0.199 0.021
ephemeris [JD] 2459876.6553 0.0048
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.84071253185254
u1 -3.2092943332299817
u2 3.6563980213888687
u3 -1.2878161655268507
transit duration [days] 0.079 0.0045
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0002087
Parameter Value Uncertainty
Am1 1.016 0.054
Am2 -0.0 0.11
a/Rs 6.05 0.26
Rp/Rs 0.205 0.046
ephemeris [JD] 2459879.6245 0.0065
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8415531697123992
u1 -3.212283509454495
u2 3.6599658304230847
u3 -1.2892354361432483
transit duration [days] 0.0837 0.006
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0008077
Parameter Value Uncertainty
Am1 1.007 0.03
Am2 0.002 0.074
a/Rs 5.78 0.26
Rp/Rs 0.099 0.073
ephemeris [JD] 2459916.654 0.012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5586691220829225
u1 -2.689166405065998
u2 3.325072212847832
u3 -1.1945748803173193
transit duration [days] 0.06 0.011
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PVAD (collaborate/publish) MOBS
Light curve chart for 0002201
Parameter Value Uncertainty
Am1 0.91 0.14
Am2 0.065 0.04
a/Rs 6.64 0.26
Rp/Rs 0.248 0.081
ephemeris [JD] 2459916.654 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8411217837014564
u1 -3.211084367586261
u2 3.6588309324329447
u3 -1.2888682940273108
transit duration [days] 0.0769 0.0077
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0003368
Parameter Value Uncertainty
Am1 1.01 0.018
Am2 -0.005 0.019
a/Rs 5.74 0.21
Rp/Rs 0.203 0.014
ephemeris [JD] 2460061.9425 0.0026
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5580501519249985
u1 -2.68808721339246
u2 3.324244733728735
u3 -1.1942076227261667
transit duration [days] 0.0898 0.0044
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DKEB (collaborate/publish) MOBS
Light curve chart for 0003484
Parameter Value Uncertainty
Am1 0.97 0.022
Am2 0.0174 0.0074
a/Rs 6.63 0.21
Rp/Rs 0.175 0.02
ephemeris [JD] 2460070.8306 0.0035
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5590546713660434
u1 -2.6913208802020585
u2 3.328224027062396
u3 -1.195957768631978
transit duration [days] 0.0715 0.0036
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO TKVA (collaborate/publish) MOBS
Light curve chart for 0003614
Parameter Value Uncertainty
Am1 0.916 0.046
Am2 0.034 0.013
a/Rs 6.62 0.26
Rp/Rs 0.188 0.062
ephemeris [JD] 2460079.742 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5561087447646844
u1 -2.680880457454906
u2 3.316451975542977
u3 -1.1916802134337696
transit duration [days] 0.0728 0.0064
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO AJAG (collaborate/publish) MOBS
Light curve chart for 0003536
Parameter Value Uncertainty
Am1 1.004 0.032
Am2 -0.0045 0.0085
a/Rs 5.78 0.26
Rp/Rs 0.109 0.046
ephemeris [JD] 2460079.742 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5590010718375753
u1 -2.691128212864792
u2 3.3280945293311444
u3 -1.1959673387114549
transit duration [days] 0.0794 0.0067
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DKEB (collaborate/publish) MOBS
Light curve chart for 0003771
Parameter Value Uncertainty
Am1 1.166 0.018
Am2 -0.125 0.038
a/Rs 6.22 0.23
Rp/Rs 0.186 0.013
ephemeris [JD] 2460107.8858 0.0022
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.558921202171803
u1 -2.6906702467381853
u2 3.327492807404879
u3 -1.19574371325499
transit duration [days] 0.0793 0.004
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PAIB (collaborate/publish) MOBS
Light curve chart for 0003991
Parameter Value Uncertainty
Am1 1.049 0.022
Am2 -0.036 0.021
a/Rs 6.06 0.25
Rp/Rs 0.182 0.015
ephemeris [JD] 2460113.8132 0.0031
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8400981114329718
u1 -3.2066103671246426
u2 3.6528665026337013
u3 -1.2863541925100783
transit duration [days] 0.0814 0.0045
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0003992
Parameter Value Uncertainty
Am1 0.947 0.02
Am2 0.036 0.016
a/Rs 6.61 0.25
Rp/Rs 0.186 0.016
ephemeris [JD] 2460116.783 0.0038
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8411956941902694
u1 -3.211349493613314
u2 3.659124891480935
u3 -1.2889710375326806
transit duration [days] 0.073 0.004
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0003845
Parameter Value Uncertainty
Am1 1.035 0.016
Am2 -0.022 0.0096
a/Rs 5.77 0.22
Rp/Rs 0.182 0.012
ephemeris [JD] 2460119.735 0.0027
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5581413782341167
u1 -2.6876676510180992
u2 3.323163789067331
u3 -1.1936374667643492
transit duration [days] 0.0869 0.0044
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CPHB (collaborate/publish) MOBS
Light curve chart for 0003883
Parameter Value Uncertainty
Am1 1.94 0.12
Am2 -0.457 0.062
a/Rs 6.64 0.27
Rp/Rs 0.23 0.078
ephemeris [JD] 2460122.688 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.557675549513514
u1 -2.6858072407772076
u2 3.320742051032545
u3 -1.1926103102859384
transit duration [days] 0.0732 0.0086
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CPHB (collaborate/publish) MOBS
Light curve chart for 0004311
Parameter Value Uncertainty
Am1 1.027 0.018
Am2 -0.021 0.038
a/Rs 5.74 0.17
Rp/Rs 0.185 0.012
ephemeris [JD] 2460150.8694 0.0024
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.841191563490946
u1 -3.210698476538802
u2 3.6582316128296695
u3 -1.2887246452699141
transit duration [days] 0.0876 0.0035
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KMUA (collaborate/publish) MOBS
Light curve chart for 0004502
Parameter Value Uncertainty
Am1 1.005 0.048
Am2 -0.003 0.05
a/Rs 5.75 0.24
Rp/Rs 0.181 0.029
ephemeris [JD] 2460153.8405 0.0051
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8412653901822134
u1 -3.2119825689559827
u2 3.6601565219839
u3 -1.2894392886695485
transit duration [days] 0.0873 0.0055
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO PMIF (collaborate/publish) UNIS
Light curve chart for 0008474
Parameter Value Uncertainty
Am1 0.9987 0.0064
Am2 0.002 0.05
a/Rs 6.33 0.16
Rp/Rs 0.1517 0.0072
ephemeris [JD] 2460158.28 0.0012
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.867655469854055
u1 -3.1274740079567476
u2 3.5021981383815
u3 -1.2423795480919884
transit duration [days] 0.0743 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
R Cousins R 561.7 nm 719.7 nm
Organization Observer Code Secondary Observers
AAVSO GALH (collaborate/publish)
Light curve chart for 0004198
Parameter Value Uncertainty
Am1 0.998 0.013
Am2 0.002 0.016
a/Rs 5.74 0.12
Rp/Rs 0.1539 0.0063
ephemeris [JD] 2460162.7255 0.0016
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.9164550988282694
u1 -3.204410253918025
u2 3.540474456381684
u3 -1.2525192485347478
transit duration [days] 0.085 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 610.0 nm 690.0 nm
Organization Observer Code Secondary Observers
AAVSO VVIA (collaborate/publish)
Light curve chart for 0004271
Parameter Value Uncertainty
Am1 1.236 0.032
Am2 -0.175 0.047
a/Rs 6.27 0.25
Rp/Rs 0.171 0.024
ephemeris [JD] 2460165.6938 0.0049
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8416336889111573
u1 -3.2129784337850067
u2 3.661202460153111
u3 -1.2898576607230936
transit duration [days] 0.0771 0.0047
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0004504
Parameter Value Uncertainty
Am1 1.033 0.019
Am2 -0.0252 0.0063
a/Rs 6.0 0.19
Rp/Rs 0.1423 0.0082
ephemeris [JD] 2460193.851 0.0017
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.592694598541676
u1 -2.7715829928578684
u2 3.385308317606159
u3 -1.206419872844942
transit duration [days] 0.0788 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 385.0 nm 695.0 nm
Organization Observer Code Secondary Observers
AAVSO BPAO (collaborate/publish)
Light curve chart for 0004439
Parameter Value Uncertainty
Am1 1.112 0.023
Am2 -0.068 0.059
a/Rs 5.76 0.25
Rp/Rs 0.194 0.052
ephemeris [JD] 2460196.8155 0.0052
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5549847932220826
u1 -2.677009273884569
u2 3.311244876092596
u3 -1.189220346088716
transit duration [days] 0.0583 0.0062
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CPHB (collaborate/publish) MOBS
Light curve chart for 0004496
Parameter Value Uncertainty
Am1 1.03 0.037
Am2 -0.02 0.023
a/Rs 6.63 0.26
Rp/Rs 0.207 0.018
ephemeris [JD] 2460205.7176 0.0052
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8407420434978572
u1 -3.209379053283059
u2 3.656531371187614
u3 -1.2878943069158488
transit duration [days] 0.074 0.0045
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO PMIF (collaborate/publish) UNIS
Light curve chart for 0004601
Parameter Value Uncertainty
Am1 0.928 0.037
Am2 0.064 0.08
a/Rs 5.78 0.26
Rp/Rs 0.116 0.043
ephemeris [JD] 2460208.656 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8407222696875956
u1 -3.209575786386589
u2 3.656718363010546
u3 -1.2878647918222033
transit duration [days] 0.0803 0.0063
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO PMIF (collaborate/publish) UNIS
Light curve chart for 0004808
Parameter Value Uncertainty
Am1 1.004 0.022
Am2 -0.0013 0.0037
a/Rs 6.62 0.24
Rp/Rs 0.169 0.019
ephemeris [JD] 2460236.8412 0.0035
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5588700354599134
u1 -2.690346160808468
u2 3.326574055511825
u3 -1.1950978805934542
transit duration [days] 0.0714 0.0039
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CPHB (collaborate/publish) MOBS
Light curve chart for 0004880
Parameter Value Uncertainty
Am1 1.022 0.023
Am2 -0.0082 0.0056
a/Rs 6.58 0.25
Rp/Rs 0.178 0.021
ephemeris [JD] 2460239.8035 0.0043
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8407160342254882
u1 -3.2095804526752802
u2 3.656972630761147
u3 -1.288108157818216
transit duration [days] 0.073 0.0041
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0004899
Parameter Value Uncertainty
Am1 0.993 0.019
Am2 0.005 0.011
a/Rs 5.75 0.26
Rp/Rs 0.115 0.025
ephemeris [JD] 2460248.6896 0.0073
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8413091081183595
u1 -3.2118905655195635
u2 3.6599874922291873
u3 -1.2894059802899194
transit duration [days] 0.0809 0.0055
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0004911
Parameter Value Uncertainty
Am1 0.945 0.022
Am2 0.045 0.021
a/Rs 6.59 0.27
Rp/Rs 0.161 0.025
ephemeris [JD] 2460251.6821 0.0059
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8407514124453752
u1 -3.2092908530837265
u2 3.6561665896151805
u3 -1.2876270944957016
transit duration [days] 0.0715 0.0047
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0004965
Parameter Value Uncertainty
Am1 1.039 0.026
Am2 -0.031 0.032
a/Rs 5.74 0.24
Rp/Rs 0.163 0.022
ephemeris [JD] 2460254.628 0.0042
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8405987527210186
u1 -3.2092293111992793
u2 3.656474433560344
u3 -1.2878438205963687
transit duration [days] 0.0859 0.0051
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0005285
Parameter Value Uncertainty
Am1 1.177 0.025
Am2 -0.087 0.01
a/Rs 5.77 0.26
Rp/Rs 0.173 0.058
ephemeris [JD] 2460291.694 0.011
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.8407283029948822
u1 -3.209502439002418
u2 3.6566666114413953
u3 -1.2878924209452807
transit duration [days] 0.0861 0.0074
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0005657
Parameter Value Uncertainty
Am1 0.805 0.014
Am2 0.122 0.074
a/Rs 5.98 0.26
Rp/Rs 0.196 0.084
ephemeris [JD] 2460290.206 0.01
eccentricity 0.03
inclination [degrees] 84.65
omega [degrees] 0.0
orbital period [days] 1.482246865
u0 1.5551863670901025
u1 -2.678007815351609
u2 3.3128993629857475
u3 -1.1900778653581936
transit duration [days] 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DRAC (collaborate/publish) MOBS

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
