TrES-1 b

View target in exoplanet catalog
Timing Plot

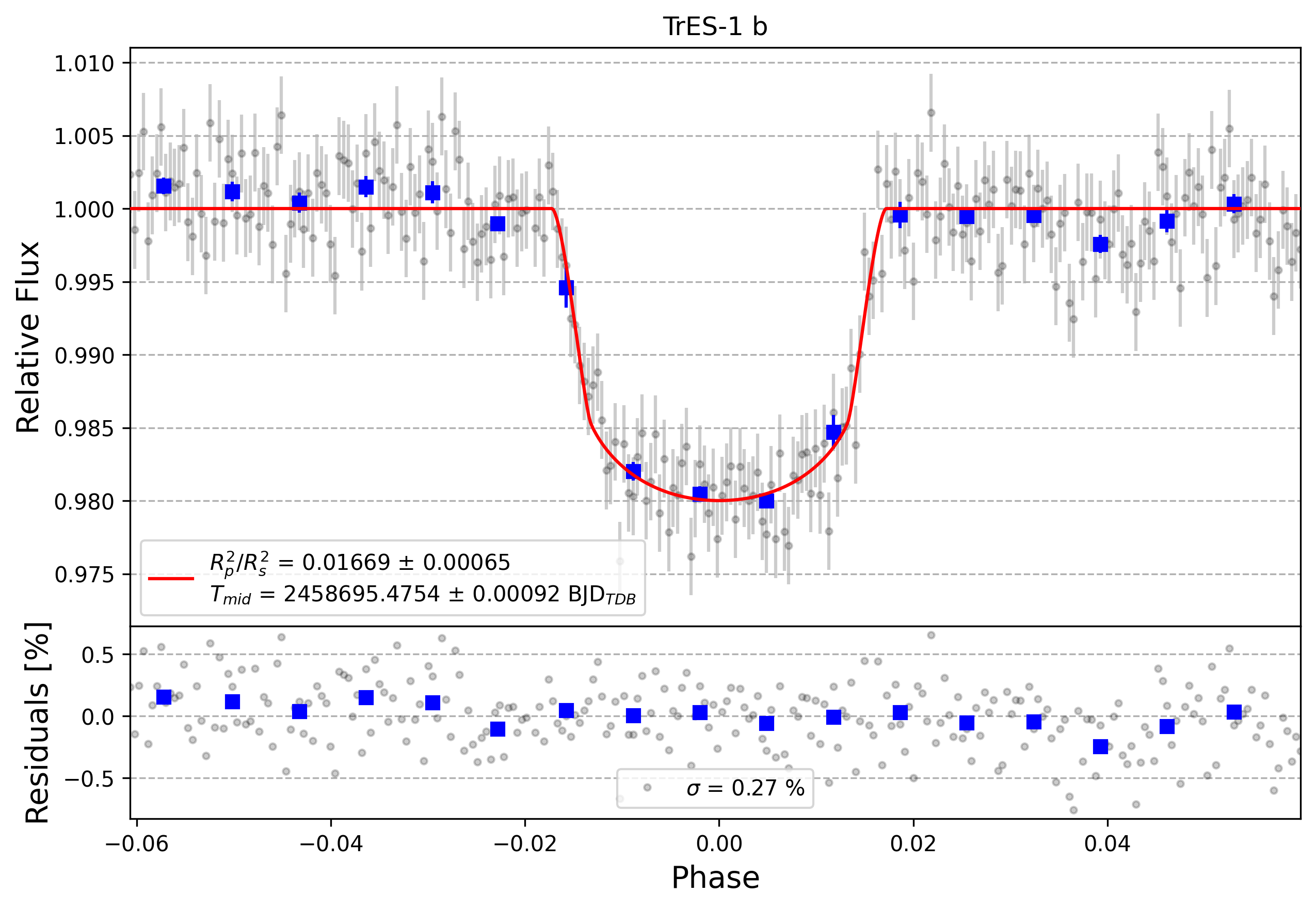

Global Light Curve
Lomb-Scargle Periodogram

Total Reductions to Date: 137

Date Processed: 04/27/2025 at 07:00:04 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 3.03006968798878 6.723871070660583e-08
Ephemeris (BJD_TDB) 2460228.6895006057 0.00010672043157933985

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 286.0408755 decimal
DEC 36.632536 decimal
Host Star Metallicity 0.02 0.05 Kokori et al. 2023
Host Star log(g) 4.567 0.012 Log10(cgs) Kokori et al. 2023
Host Star Radius [R_Sun] 0.807 0.017 Sol Kokori et al. 2023
Host Star Effective Temperature [K] 5230.0 50.0 K Kokori et al. 2023
a/Rs 10.52 0.02 Kokori et al. 2023
eccentricity 0.012 Bonomo et al. 2017
inclination [degrees] 90.0 0.0 deg Kokori et al. 2023
omega [degrees] 0.0 deg Kokori et al. 2023
orbital period [days] 3.030069476 7.2e-08 day Kokori et al. 2023
Rp 12.75 0.68 R_Earth ExoFOP-TESS TOI
Rp/Rs 0.1476 0 ExoFOP-TESS TOI
ephemeris [JD] 2456822.891157 6.3e-05 BJD-TDB Kokori et al. 2023

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2454110.97865 6e-05 BJD-TDB Kokori et al. 2022
2455016.969937 7e-05 BJD-TDB Bonomo et al. 2017, Baluev et al. 2015
2456168.3959 0.00012 BJD-TDB Ivshina & Winn 2022
2456822.891157 6.3e-05 BJD-TDB Kokori et al. 2023
2459422.690639 0.00024318 BJD ExoFOP-TESS TOI

Observations

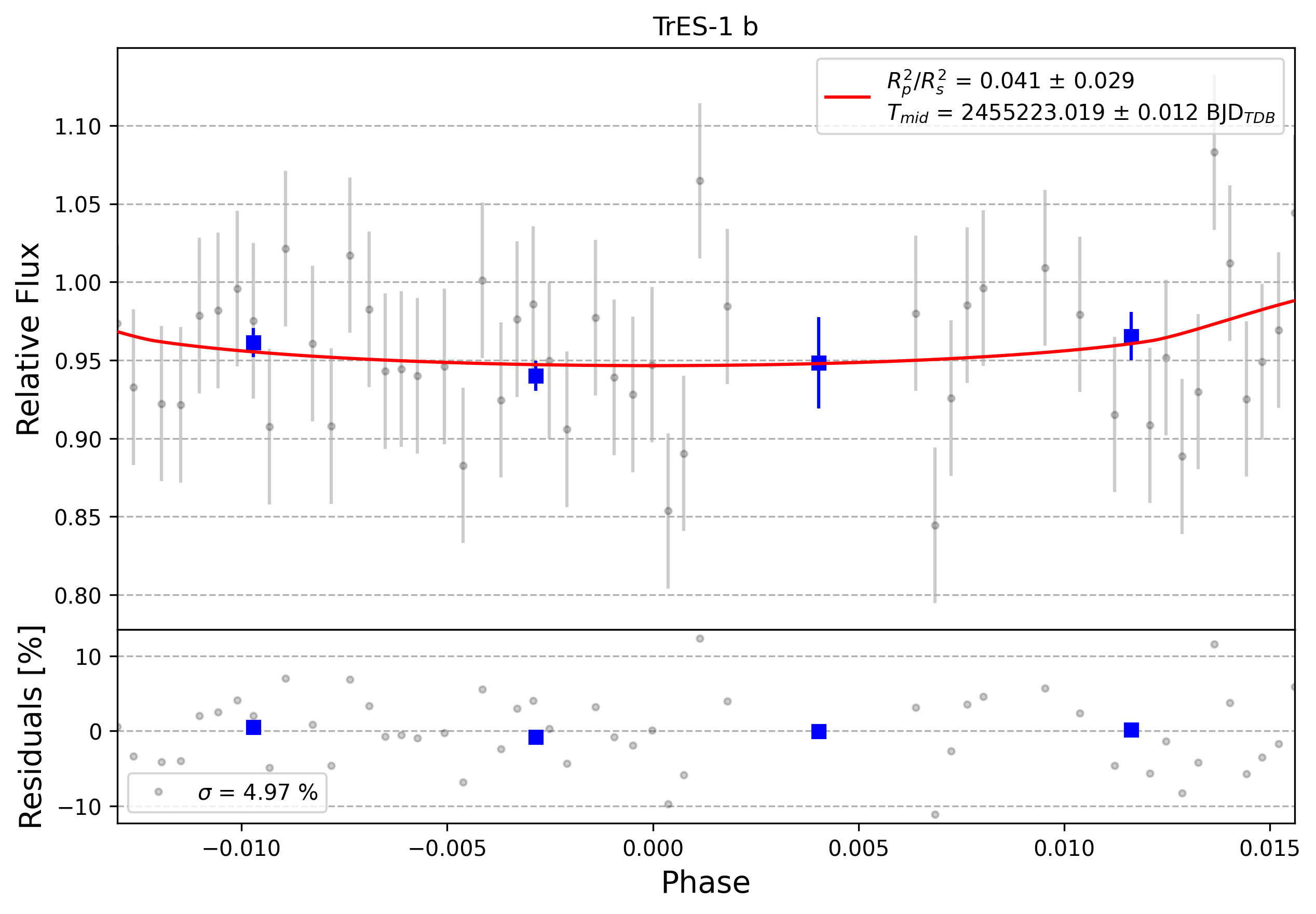

Light curve chart for 0008566
Parameter Value Uncertainty
Am1 1.064 0.053
Am2 -0.005 0.013
a/Rs 10.433 0.059
Rp/Rs 0.203 0.071
ephemeris [JD] 2455223.019 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6097525012821927
u1 -2.7657639425158975
u2 3.39836820217714
u3 -1.2423567103038025
duration 0.0868 0.0048
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GHUA (collaborate/publish) MOBS

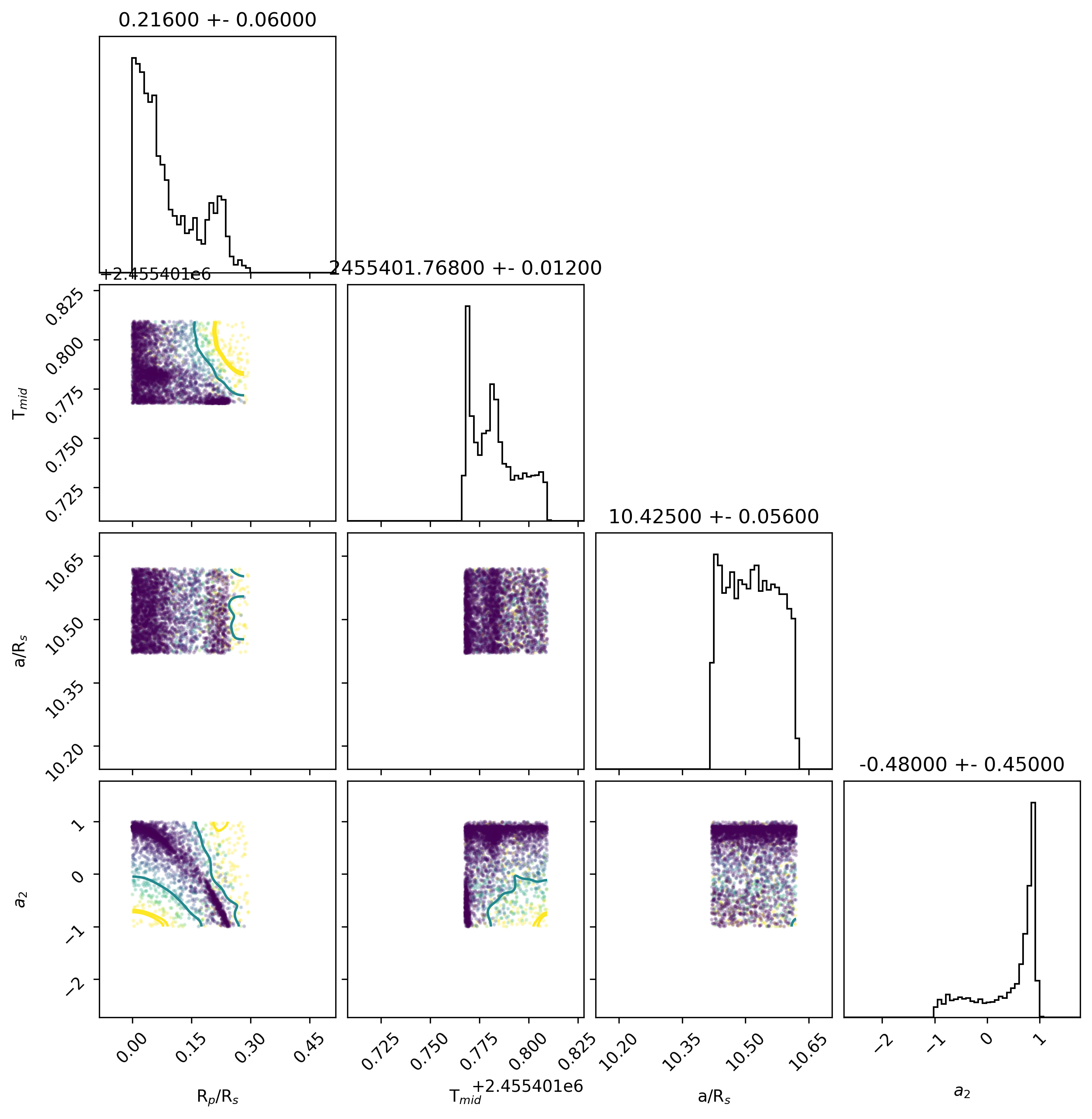

Light curve chart for 0003650
Parameter Value Uncertainty
Am1 2.124 0.038
Am2 -0.67 0.47
a/Rs 10.424 0.058
Rp/Rs 0.225 0.061
ephemeris [JD] 2455401.768 0.011
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6100817951272173
u1 -2.7661854217972
u2 3.3986280066668613
u3 -1.2425243293533748
duration 0.081 0.0061
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LANF (collaborate/publish) MOBS
Light curve chart for 0009043
Parameter Value Uncertainty
Am1 1.382 0.024
Am2 -0.31 0.24
a/Rs 10.479 0.057
Rp/Rs 0.015 0.031
ephemeris [JD] 2455401.768 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6096217222671207
u1 -2.7652742350678854
u2 3.3976626146582105
u3 -1.2420100512283279
duration 0.0733 0.0092
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MKEE (collaborate/publish) MOBS

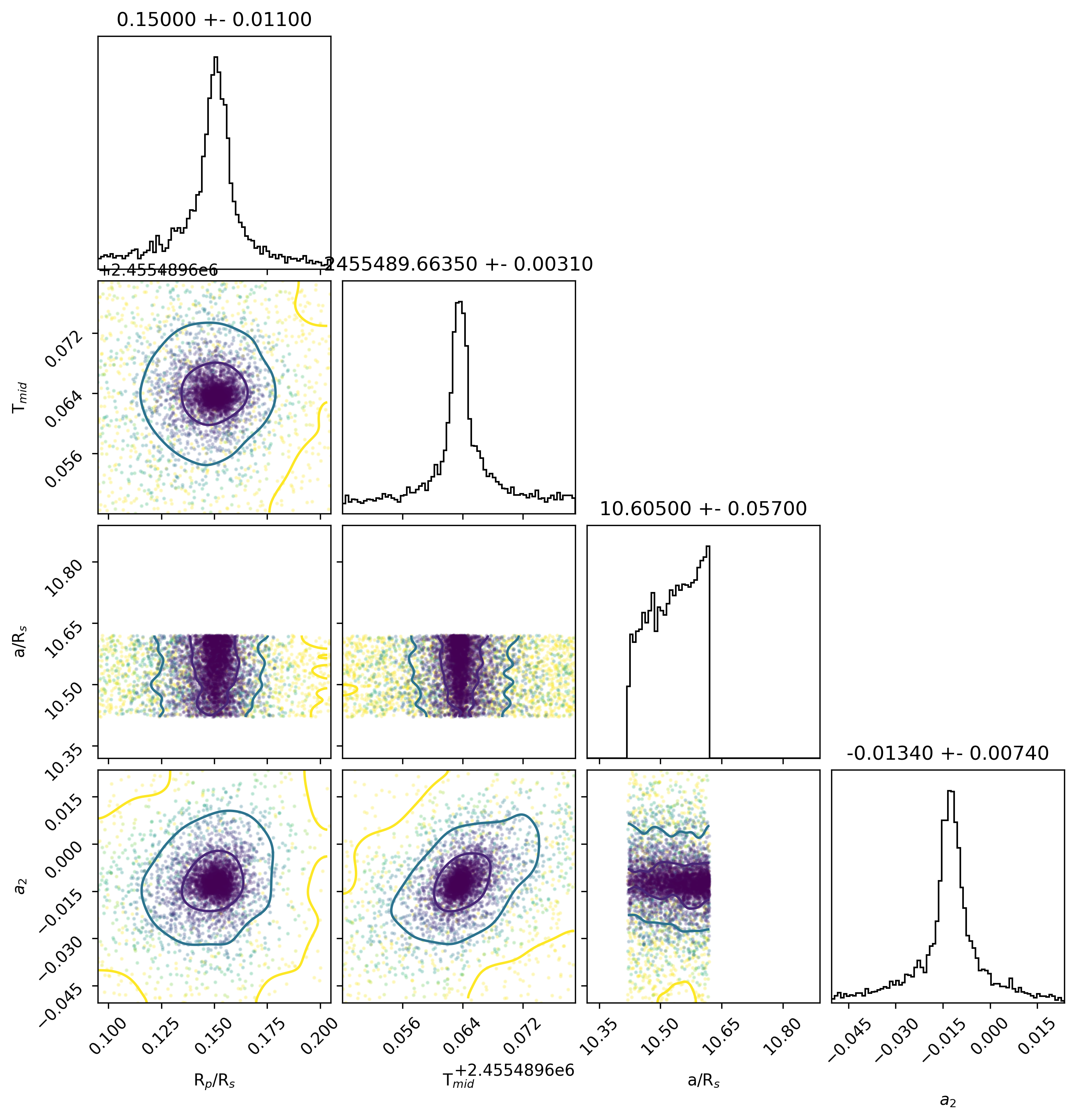

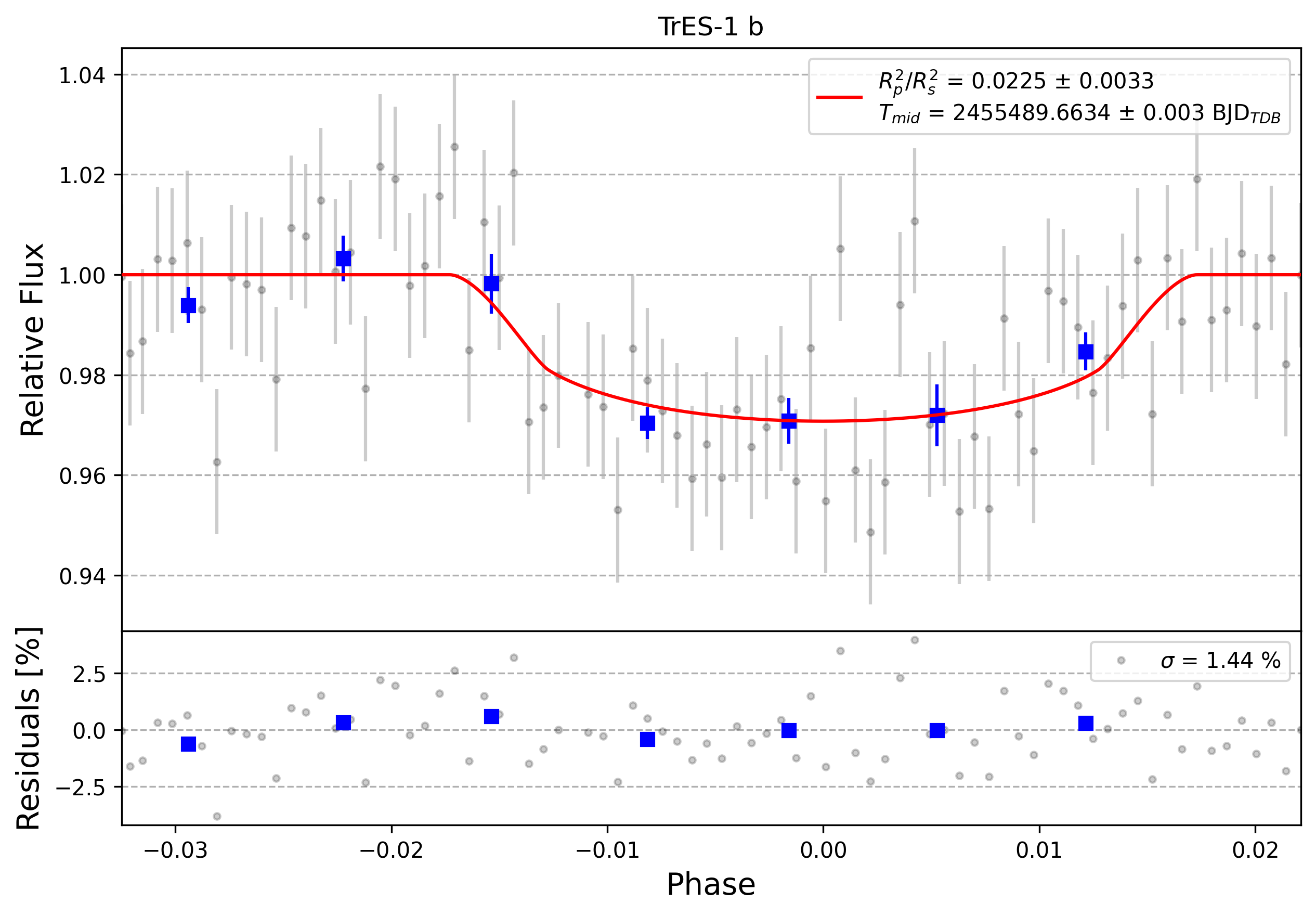

Light curve chart for 0006580
Parameter Value Uncertainty
Am1 1.017 0.015
Am2 -0.0132 0.0072
a/Rs 10.604 0.058
Rp/Rs 0.15 0.011
ephemeris [JD] 2455489.6634 0.003
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6094337425334795
u1 -2.7645291451121565
u2 3.396718558784475
u3 -1.241623105590747
duration 0.1047 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO BSRF (collaborate/publish) MOBS

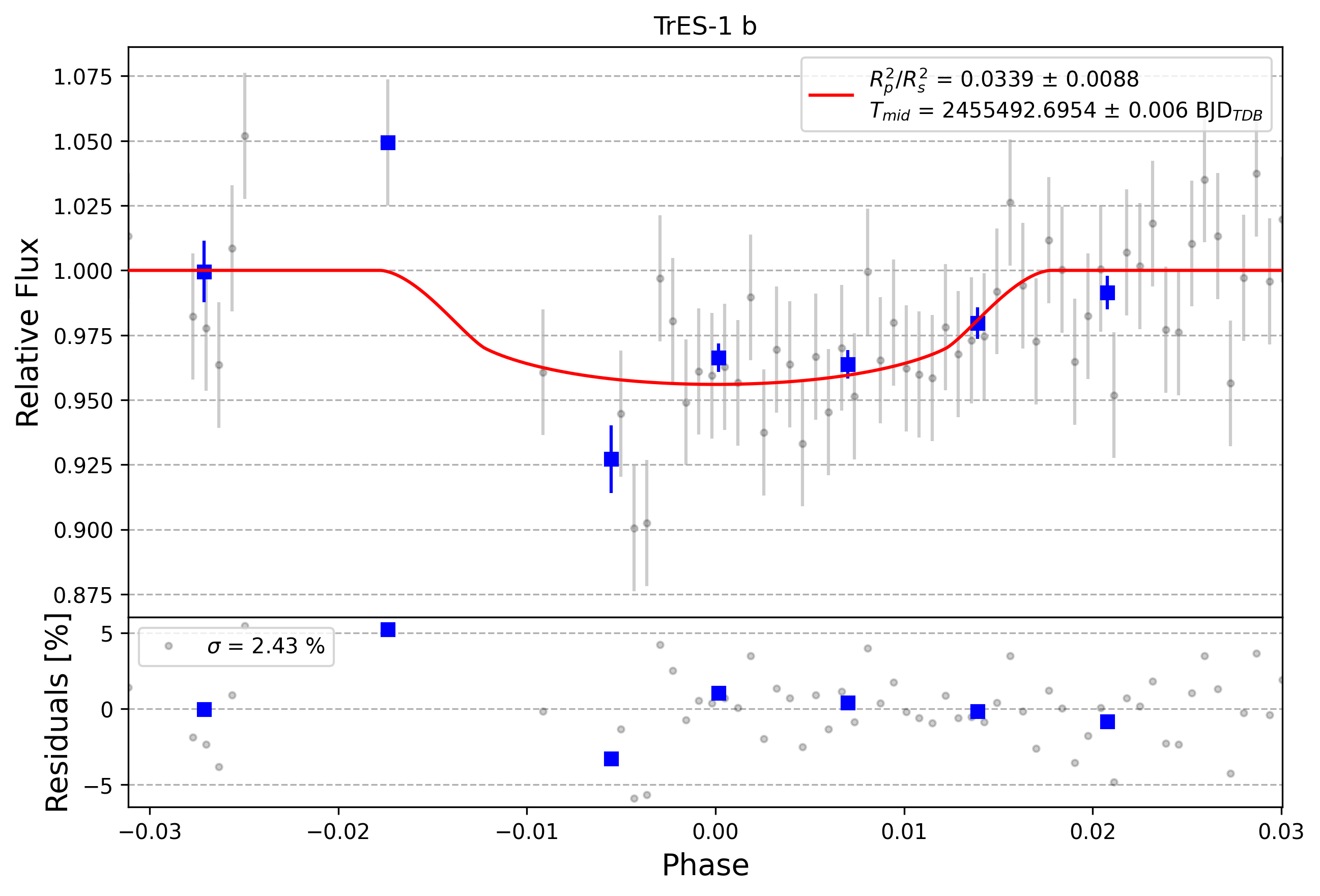

Light curve chart for 0007742
Parameter Value Uncertainty
Am1 1.074 0.026
Am2 -0.0261 0.0056
a/Rs 10.616 0.058
Rp/Rs 0.184 0.024
ephemeris [JD] 2455492.6954 0.006
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.609734123928691
u1 -2.765498501177307
u2 3.3978317860850704
u3 -1.2420673582048156
duration 0.1078 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO NLIC (collaborate/publish) MOBS
Light curve chart for 0003048
Parameter Value Uncertainty
Am1 1.493 0.013
Am2 -0.11 0.013
a/Rs 10.449 0.058
Rp/Rs 0.149 0.062
ephemeris [JD] 2455622.979 0.011
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6096872223303764
u1 -2.76485176553316
u2 3.396965185481334
u3 -1.2418005916598243
duration 0.1048 0.0062
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SMAMA (collaborate/publish) MOBS
Light curve chart for 0010218
Parameter Value Uncertainty
Am1 0.982 0.022
Am2 0.006 0.0033
a/Rs 10.611 0.057
Rp/Rs 0.087 0.032
ephemeris [JD] 2455701.761 0.01
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.609896604369316
u1 -2.7658606007788116
u2 3.3982086963006135
u3 -1.2422446492538626
duration 0.099 0.0029
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CCHI (collaborate/publish) MOBS

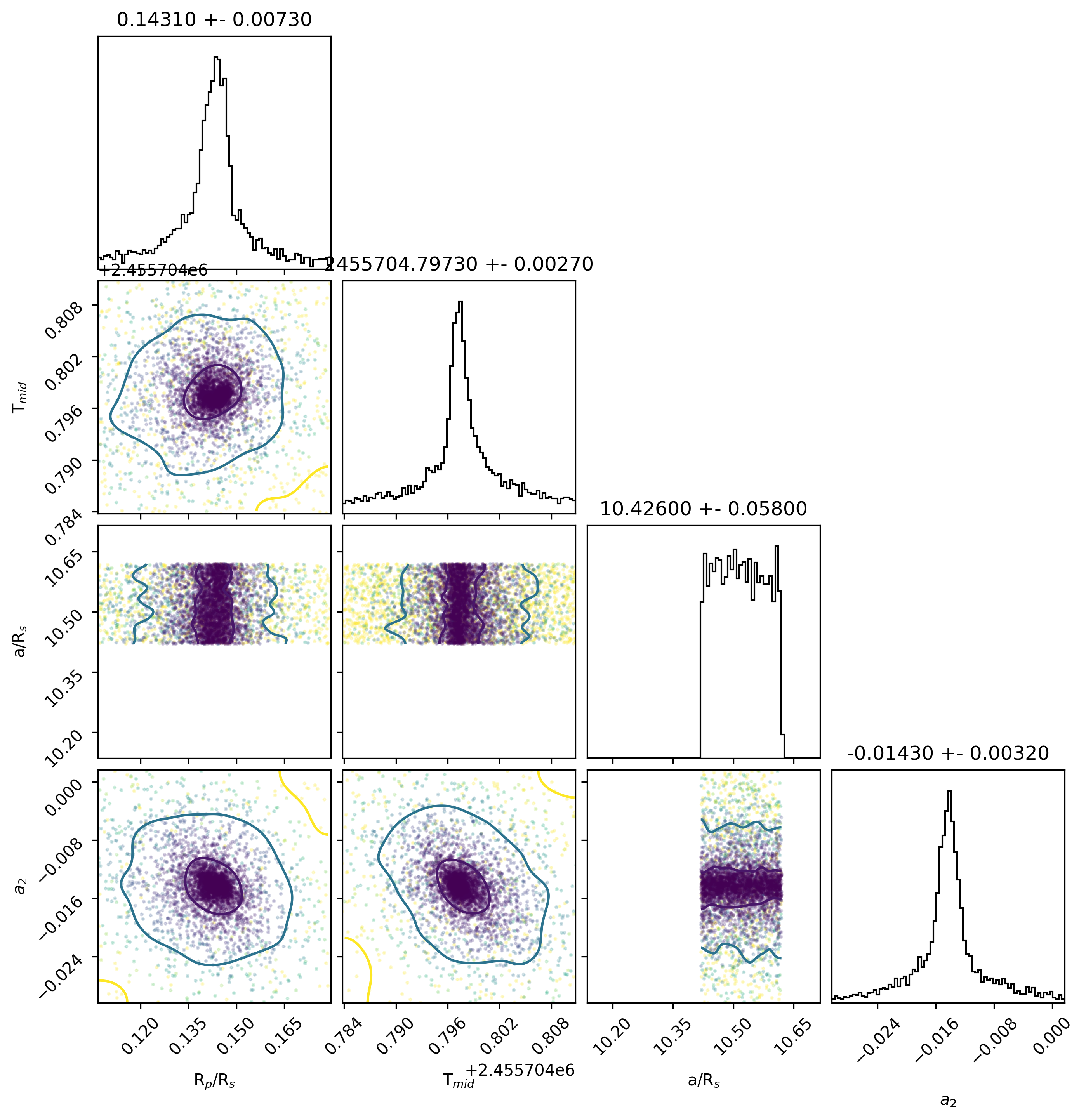

Light curve chart for 0000948
Parameter Value Uncertainty
Am1 1.0212 0.0077
Am2 -0.0144 0.0032
a/Rs 10.425 0.058
Rp/Rs 0.1421 0.0077
ephemeris [JD] 2455704.7973 0.0027
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6096757768618508
u1 -2.7651173752469513
u2 3.3973220925392056
u3 -1.2418804435300612
duration 0.10576 0.00091
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GELD (collaborate/publish) MOBS
Light curve chart for 0000946
Parameter Value Uncertainty
Am1 0.9874 0.0051
Am2 0.0102 0.0037
a/Rs 10.432 0.058
Rp/Rs 0.134 0.005
ephemeris [JD] 2455707.825 0.0017
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6095375794922169
u1 -2.7645018238028163
u2 3.3965058971647974
u3 -1.2415416022423162
duration 0.10506 0.00076
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO HTAA (collaborate/publish) MOBS

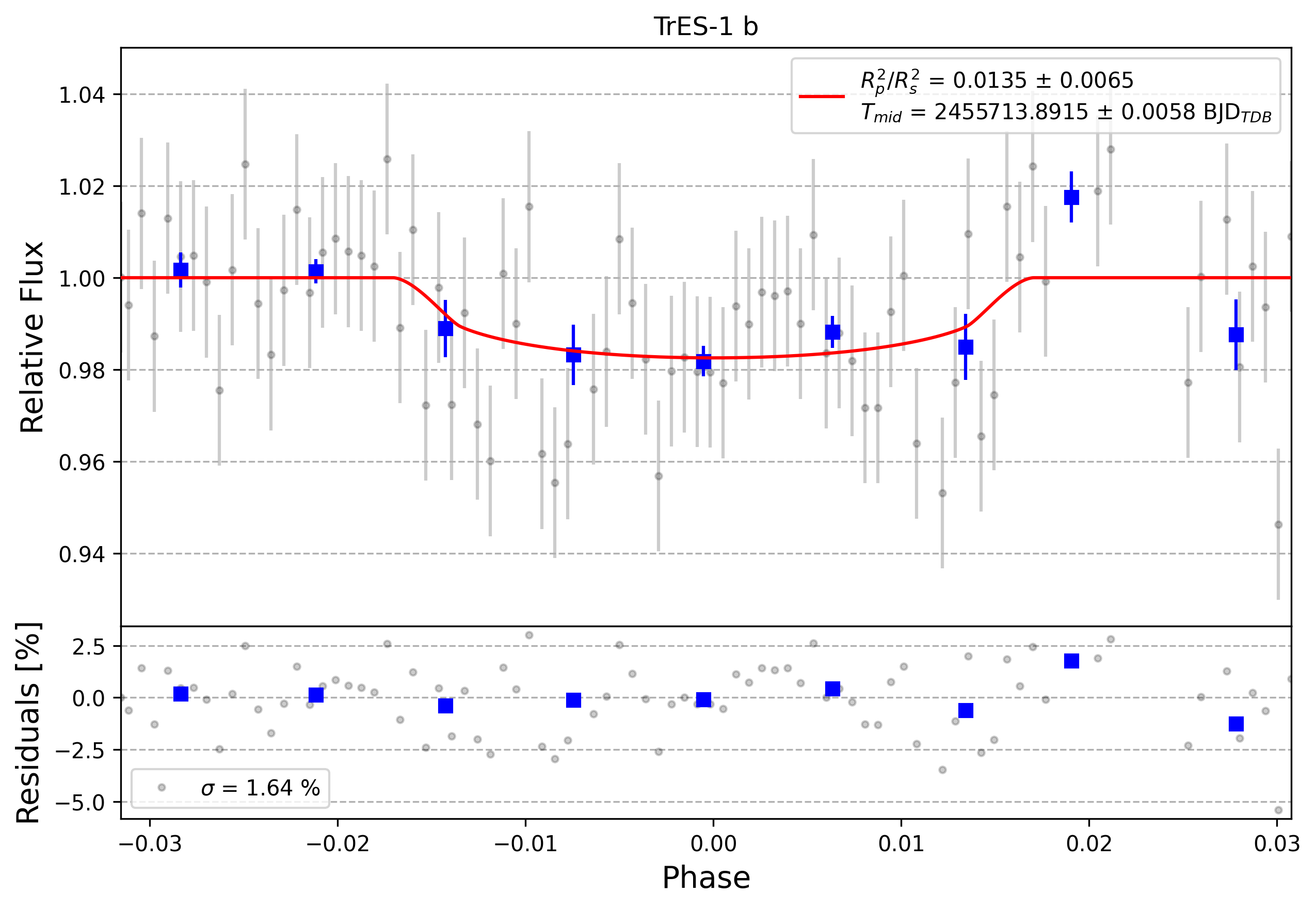

Light curve chart for 0009948
Parameter Value Uncertainty
Am1 0.955 0.016
Am2 0.039 0.049
a/Rs 10.433 0.058
Rp/Rs 0.116 0.028
ephemeris [JD] 2455713.8915 0.0058
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6102546065001042
u1 -2.766192511162513
u2 3.39842907959928
u3 -1.2424911242963317
duration 0.1034 0.0026
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SCMA (collaborate/publish) MOBS
Light curve chart for 0008038
Parameter Value Uncertainty
Am1 1.958 0.02
Am2 -0.63 0.15
a/Rs 10.62 0.057
Rp/Rs 0.177 0.022
ephemeris [JD] 2455716.9067 0.0022
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6095766861613092
u1 -2.7645848676701563
u2 3.396737906776596
u3 -1.2417296746524098
duration 0.1071 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DTEC (collaborate/publish) MOBS

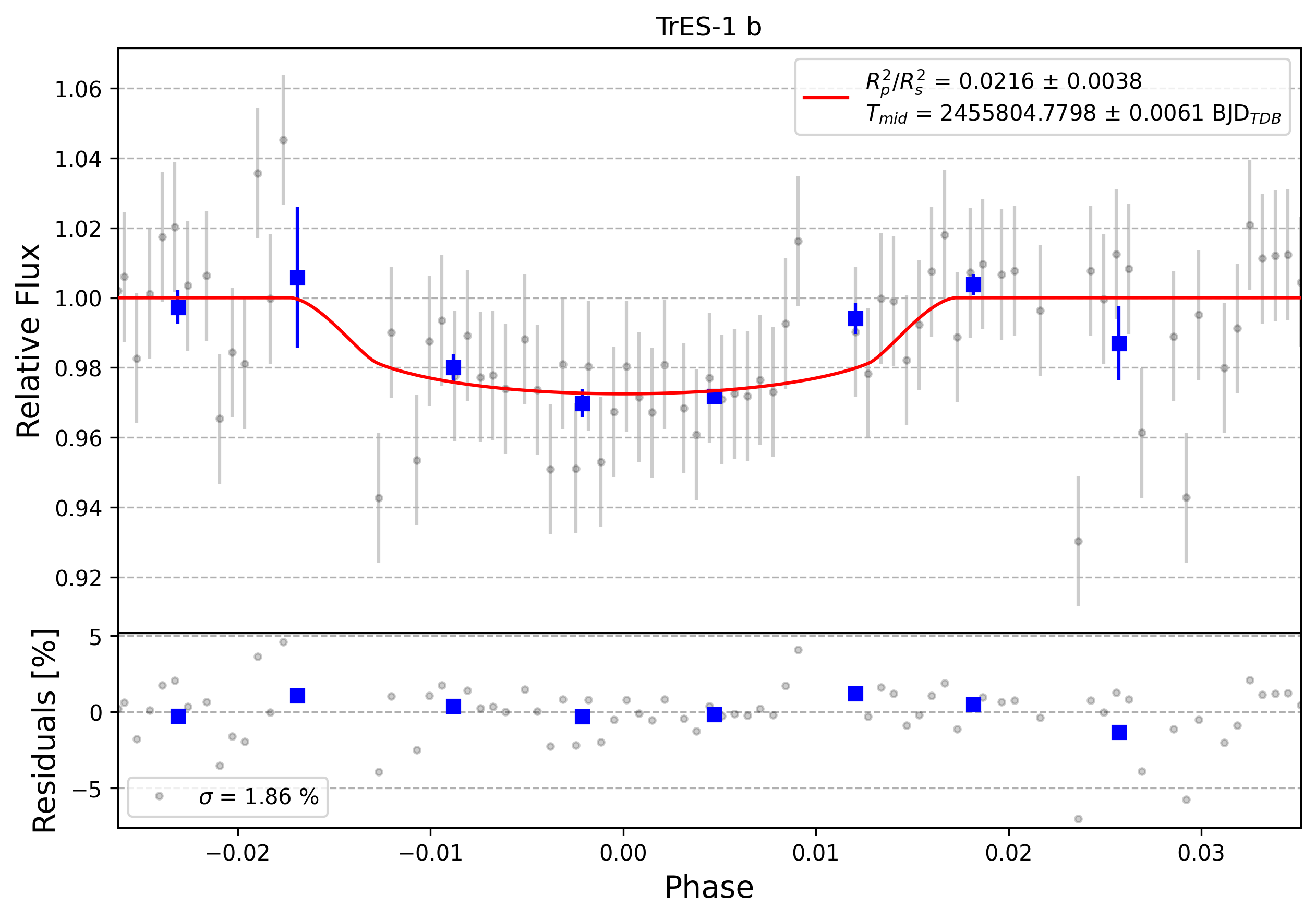

Light curve chart for 0010958
Parameter Value Uncertainty
Am1 1.027 0.019
Am2 -0.0169 0.0053
a/Rs 10.591 0.058
Rp/Rs 0.147 0.013
ephemeris [JD] 2455804.7798 0.0061
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9065602634685286
u1 -3.369106791650845
u2 3.834618029299582
u3 -1.3720714439770045
duration 0.1046 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO GMAU (collaborate/publish)

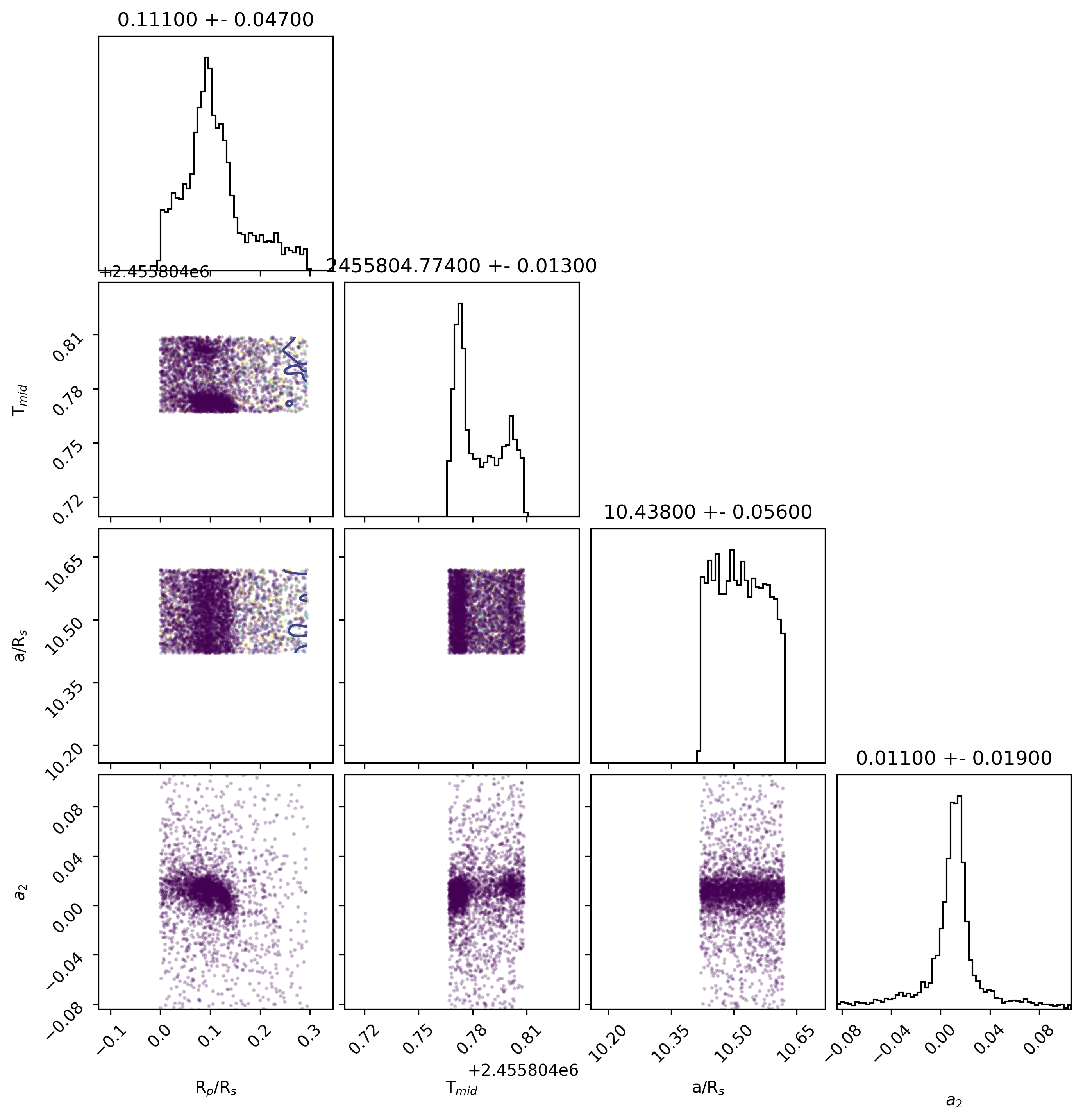

Light curve chart for 0007792
Parameter Value Uncertainty
Am1 0.988 0.053
Am2 0.011 0.018
a/Rs 10.474 0.059
Rp/Rs 0.113 0.048
ephemeris [JD] 2455804.774 0.013
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9064808930528785
u1 -3.369130291408233
u2 3.8348161881938396
u3 -1.3721667326952711
duration 0.1026 0.0046
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO SAAI (collaborate/publish) MOBS
Light curve chart for 0001013
Parameter Value Uncertainty
Am1 1.0134 0.0079
Am2 -0.0089 0.0032
a/Rs 10.568 0.058
Rp/Rs 0.14 0.015
ephemeris [JD] 2456013.8579 0.0043
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6100380250370283
u1 -2.7659640260117664
u2 3.39836834138595
u3 -1.242442289771577
duration 0.0948 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO HLAC (collaborate/publish) MOBS
Light curve chart for 0004976
Parameter Value Uncertainty
Am1 1.011 0.012
Am2 -0.005 0.0019
a/Rs 10.439 0.059
Rp/Rs 0.119 0.012
ephemeris [JD] 2456016.8909 0.0051
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6096948343847644
u1 -2.7654133519945727
u2 3.3978322471772344
u3 -1.2421136789357798
duration 0.1036 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PAIB (collaborate/publish) MOBS
Light curve chart for 0004868
Parameter Value Uncertainty
Am1 1.226 0.013
Am2 -0.155 0.021
a/Rs 10.519 0.059
Rp/Rs 0.157 0.047
ephemeris [JD] 2456019.924 0.01
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6095329055879428
u1 -2.765056081688717
u2 3.397532623356956
u3 -1.2420093966289998
duration 0.1063 0.0045
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SDAU (collaborate/publish) MOBS
Light curve chart for 0006436
Parameter Value Uncertainty
Am1 0.915 0.012
Am2 0.068 0.024
a/Rs 10.617 0.058
Rp/Rs 0.19 0.035
ephemeris [JD] 2456092.6568 0.0049
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6096970640829518
u1 -2.7645559620373934
u2 3.3963266609217384
u3 -1.241467712358086
duration 0.0399 0.0052
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LALF (collaborate/publish) MOBS
Light curve chart for 0005955
Parameter Value Uncertainty
Am1 1.094 0.013
Am2 -0.079 0.011
a/Rs 10.613 0.057
Rp/Rs 0.111 0.026
ephemeris [JD] 2456098.7021 0.0078
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6098951914968775
u1 -2.765699677873422
u2 3.3980568603669017
u3 -1.2422523233553644
duration 0.0982 0.0055
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO STRA (collaborate/publish) MOBS
Light curve chart for 0007509
Parameter Value Uncertainty
Am1 0.957 0.023
Am2 0.035 0.011
a/Rs 10.424 0.058
Rp/Rs 0.159 0.017
ephemeris [JD] 2456101.7445 0.005
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6100239544830395
u1 -2.766359073665392
u2 3.398875771266832
u3 -1.242540601437284
duration 0.1075 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GSAD (collaborate/publish) MOBS
Light curve chart for 0007658
Parameter Value Uncertainty
Am1 1.112 0.028
Am2 -0.092 0.038
a/Rs 10.525 0.057
Rp/Rs 0.089 0.035
ephemeris [JD] 2456113.834 0.011
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6096796472501893
u1 -2.7656047611471473
u2 3.398243666435437
u3 -1.2423185019007024
duration 0.0996 0.0035
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO VIVA (collaborate/publish) MOBS
Light curve chart for 0003757
Parameter Value Uncertainty
Am1 2.45 0.86
Am2 -0.91 0.22
a/Rs 10.529 0.058
Rp/Rs 0.295 0.087
ephemeris [JD] 2456119.907 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.610031870084656
u1 -2.7664215034356903
u2 3.398937253001092
u3 -1.242547569001946
duration 0.1178 0.0083
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CMAP (collaborate/publish) MOBS
Light curve chart for 0011288
Parameter Value Uncertainty
Am1 0.808 0.012
Am2 0.23 0.13
a/Rs 10.593 0.057
Rp/Rs 0.285 0.087
ephemeris [JD] 2456122.924 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6095306783436092
u1 -2.764637200341422
u2 3.3968093070831813
u3 -1.2417027344689653
duration 0.02085 0.00045
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CPIB (collaborate/publish) MOBS
Light curve chart for 0005640
Parameter Value Uncertainty
Am1 1.319 0.025
Am2 -0.138 0.014
a/Rs 10.431 0.057
Rp/Rs 0.176 0.054
ephemeris [JD] 2456201.729 0.01
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6095302231064554
u1 -2.764321226931433
u2 3.396173797452038
u3 -1.2413827430201274
duration 0.1088 0.0051
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RFCA (collaborate/publish) MOBS
Light curve chart for 0008664
Parameter Value Uncertainty
Am1 1.312 0.024
Am2 -0.134 0.014
a/Rs 10.42 0.058
Rp/Rs 0.168 0.053
ephemeris [JD] 2456201.729 0.01
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6096269020581284
u1 -2.7645409082208805
u2 3.396425887377743
u3 -1.2415118306043014
duration 0.1082 0.0049
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CCOD (collaborate/publish) MOBS

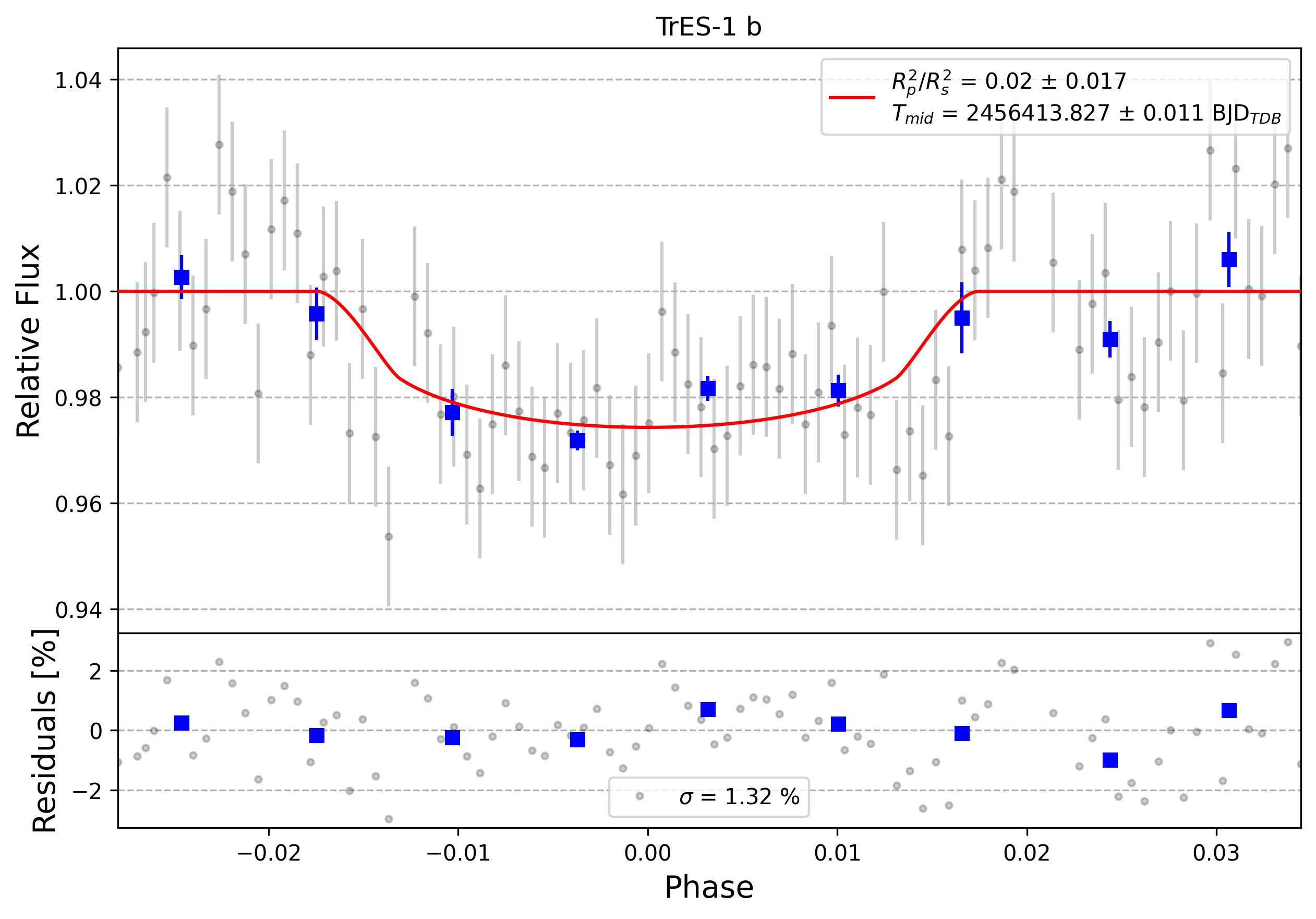

Light curve chart for 0008282
Parameter Value Uncertainty
Am1 1.238 0.017
Am2 -0.173 0.017
a/Rs 10.426 0.058
Rp/Rs 0.14 0.059
ephemeris [JD] 2456413.827 0.011
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.610190919408708
u1 -2.766661559712966
u2 3.399242312862241
u3 -1.2427716219053258
duration 0.1054 0.0057
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SJAZ (collaborate/publish) MOBS
Light curve chart for 0000950
Parameter Value Uncertainty
Am1 0.9629 0.0058
Am2 0.0302 0.0053
a/Rs 10.421 0.057
Rp/Rs 0.1505 0.0051
ephemeris [JD] 2456419.8943 0.0016
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6095604159908747
u1 -2.7649405485855656
u2 3.397254757713537
u3 -1.2418745744958053
duration 0.10681 0.00076
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MTRC (collaborate/publish) MOBS
Light curve chart for 0001217
Parameter Value Uncertainty
Am1 0.9981 0.0077
Am2 0.002 0.014
a/Rs 10.576 0.058
Rp/Rs 0.1286 0.0087
ephemeris [JD] 2456422.9219 0.002
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.610022782283197
u1 -2.7659954306236187
u2 3.3983682570142126
u3 -1.2423955580341581
duration 0.1031 0.001
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO NKED (collaborate/publish) MOBS

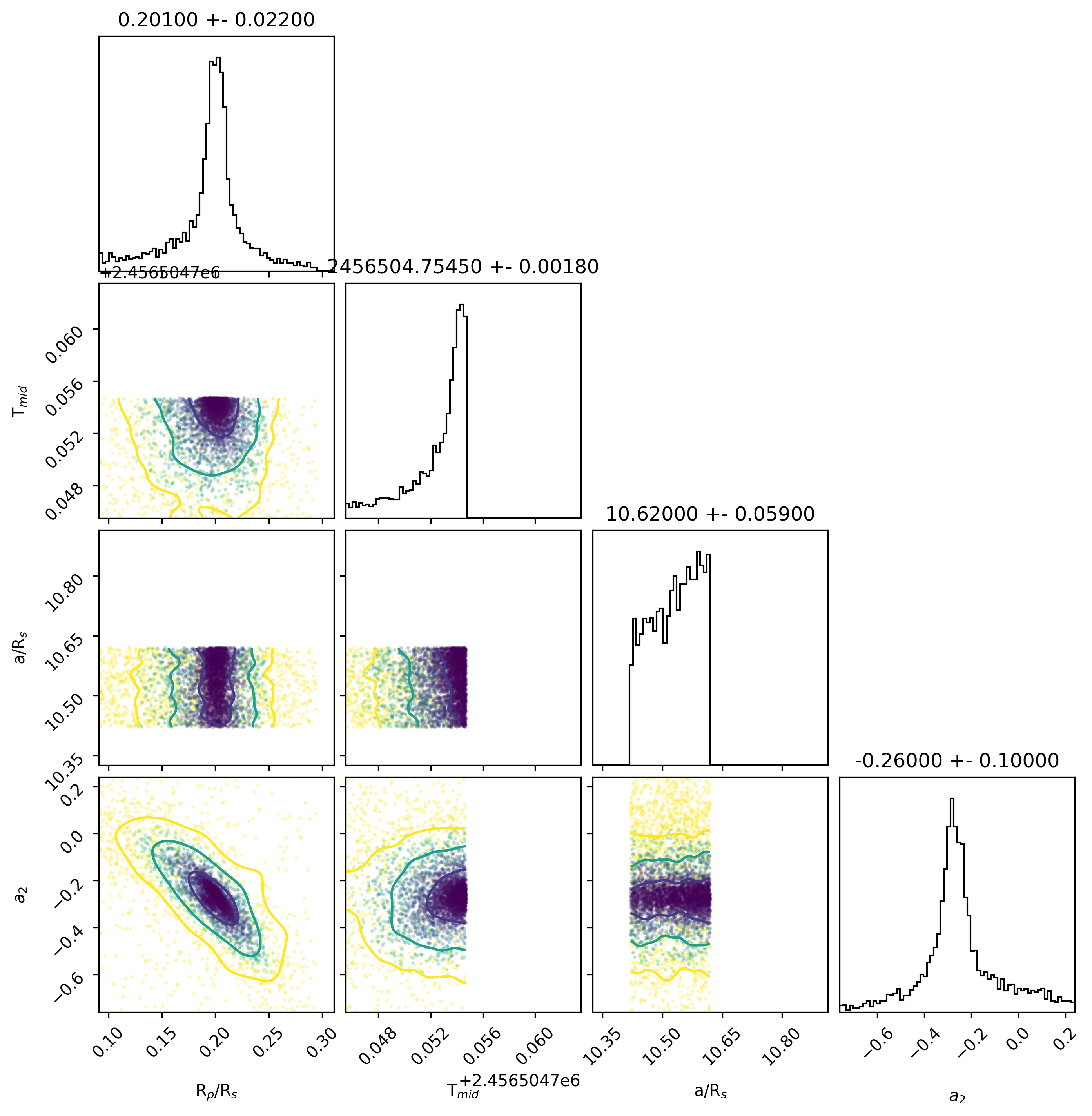

Light curve chart for 0006616
Parameter Value Uncertainty
Am1 1.337 0.027
Am2 -0.26 0.1
a/Rs 10.62 0.057
Rp/Rs 0.201 0.021
ephemeris [JD] 2456504.7544 0.0017
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6098430909263206
u1 -2.7653489411482113
u2 3.397603355014993
u3 -1.2420974541648673
duration 0.0734 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PANN (collaborate/publish) MOBS
Light curve chart for 0002489
Parameter Value Uncertainty
Am1 0.661 0.056
Am2 0.37 0.26
a/Rs 10.573 0.058
Rp/Rs 0.295 0.035
ephemeris [JD] 2456507.7582 0.0074
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6093938734923803
u1 -2.7642926348813033
u2 3.3964227327261045
u3 -1.2415239207265394
duration 0.1187 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DJOG (collaborate/publish) MOBS
Light curve chart for 0007234
Parameter Value Uncertainty
Am1 1.062 0.012
Am2 -0.05 0.11
a/Rs 10.443 0.057
Rp/Rs 0.181 0.069
ephemeris [JD] 2456510.7743 0.0091
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6096652769750686
u1 -2.7650339551365724
u2 3.3972896800287
u3 -1.2419209512436349
duration 0.0393 0.0098
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MTAD (collaborate/publish) MOBS
Light curve chart for 0000954
Parameter Value Uncertainty
Am1 1.0161 0.0071
Am2 -0.0099 0.0026
a/Rs 10.425 0.058
Rp/Rs 0.1324 0.0082
ephemeris [JD] 2456516.8535 0.0024
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6102852226619375
u1 -2.7670422377218955
u2 3.399799493306011
u3 -1.2430424275850926
duration 0.10502 0.00095
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO NCAA (collaborate/publish) MOBS
Light curve chart for 0006848
Parameter Value Uncertainty
Am1 1.281 0.028
Am2 -0.18 0.019
a/Rs 10.588 0.058
Rp/Rs 0.085 0.05
ephemeris [JD] 2456516.834 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6097343648913807
u1 -2.76556033368988
u2 3.3980894915474567
u3 -1.242263472113478
duration 0.0985 0.0051
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CVIH (collaborate/publish) MOBS
Light curve chart for 0011118
Parameter Value Uncertainty
Am1 0.281 0.021
Am2 0.69 0.41
a/Rs 10.429 0.058
Rp/Rs 0.004 0.087
ephemeris [JD] 2456519.897 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6099844564566181
u1 -2.7660624249010874
u2 3.398427743980076
u3 -1.2423497248950874
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LMI (collaborate/publish) MOBS
Light curve chart for 0000952
Parameter Value Uncertainty
Am1 0.9967 0.01
Am2 0.0007 0.0014
a/Rs 10.425 0.054
Rp/Rs 0.1379 0.0077
ephemeris [JD] 2456807.7336 0.0024
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6095376717183594
u1 -2.764659192908215
u2 3.396824222375526
u3 -1.2417026505690445
duration 0.10538 0.00092
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO OXEA (collaborate/publish) MOBS
Light curve chart for 0006455
Parameter Value Uncertainty
Am1 0.998 0.014
Am2 0.0001 0.0052
a/Rs 10.42 0.057
Rp/Rs 0.1487 0.0091
ephemeris [JD] 2456810.7776 0.0024
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6093796639681428
u1 -2.764323791620047
u2 3.396478658563987
u3 -1.241534480300607
duration 0.1066 0.001
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RFCA (collaborate/publish) MOBS
Light curve chart for 0000951
Parameter Value Uncertainty
Am1 1.0025 0.006
Am2 -0.0034 0.0041
a/Rs 10.43 0.057
Rp/Rs 0.1409 0.0053
ephemeris [JD] 2456813.7974 0.0017
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6096405012900172
u1 -2.765158222005635
u2 3.3974479667519994
u3 -1.2419301954104616
duration 0.10562 0.00076
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SHAF (collaborate/publish) MOBS
Light curve chart for 0000949
Parameter Value Uncertainty
Am1 0.969 0.0055
Am2 0.0269 0.0078
a/Rs 10.612 0.058
Rp/Rs 0.1361 0.0053
ephemeris [JD] 2456816.8334 0.0014
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6095140237714254
u1 -2.7646955987322266
u2 3.3967528680024763
u3 -1.241571242426113
duration 0.10346 0.00076
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SJOR (collaborate/publish) MOBS
Light curve chart for 0008884
Parameter Value Uncertainty
Am1 1.129 0.02
Am2 -0.12 0.24
a/Rs 10.452 0.057
Rp/Rs 0.112 0.049
ephemeris [JD] 2456822.879 0.01
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6098123789366132
u1 -2.7650257372482177
u2 3.3969960227367326
u3 -1.2417826138059431
duration 0.077 0.01
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO ETFA (collaborate/publish) MOBS
Light curve chart for 0002674
Parameter Value Uncertainty
Am1 1.154 0.019
Am2 -0.117 0.019
a/Rs 10.43 0.058
Rp/Rs 0.123 0.027
ephemeris [JD] 2456901.6743 0.0076
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.609886845373018
u1 -2.765927412339422
u2 3.3985011112687125
u3 -1.2424604936606949
duration 0.1038 0.0028
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MWAB (collaborate/publish) MOBS
Light curve chart for 0007665
Parameter Value Uncertainty
Am1 3.64 0.02
Am2 -1.0 0.46
a/Rs 10.453 0.057
Rp/Rs 0.099 0.086
ephemeris [JD] 2456904.686 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9067719079770082
u1 -3.3704399103160756
u2 3.8365537283551645
u3 -1.3728856688469917
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO SAAI (collaborate/publish) MOBS
Light curve chart for 0009242
Parameter Value Uncertainty
Am1 0.59 0.63
Am2 0.72 0.56
a/Rs 10.423 0.058
Rp/Rs 0.292 0.087
ephemeris [JD] 2457210.747 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.609228811936751
u1 -2.763527931216564
u2 3.3953993388061336
u3 -1.2411001689309278
duration 0.1195 0.0081
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SMAMA (collaborate/publish) MOBS
Light curve chart for 0005915
Parameter Value Uncertainty
Am1 1.0731 0.009
Am2 -0.05 0.23
a/Rs 10.612 0.058
Rp/Rs 0.142 0.044
ephemeris [JD] 2457216.7794 0.0055
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6095920407605997
u1 -2.765069447793287
u2 3.3974595453508867
u3 -1.241982087692107
duration 0.0649 0.0058
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PVAD (collaborate/publish) MOBS
Light curve chart for 0000933
Parameter Value Uncertainty
Am1 0.9829 0.0077
Am2 0.015 0.013
a/Rs 10.427 0.057
Rp/Rs 0.1154 0.0081
ephemeris [JD] 2457219.8325 0.0018
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6098474919853896
u1 -2.7657512784681346
u2 3.398171345646772
u3 -1.2422675085273278
duration 0.10332 0.00099
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO URMA (collaborate/publish) MOBS
Light curve chart for 0001446
Parameter Value Uncertainty
Am1 1.4 0.17
Am2 -0.239 0.083
a/Rs 10.569 0.058
Rp/Rs 0.254 0.057
ephemeris [JD] 2457222.8634 0.0077
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6097291135965022
u1 -2.7647863860477466
u2 3.396746625023402
u3 -1.241689301956689
duration 0.1149 0.0053
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GSAD (collaborate/publish) MOBS
Light curve chart for 0011138
Parameter Value Uncertainty
Am1 0.976 0.021
Am2 0.0153 0.0086
a/Rs 10.62 0.058
Rp/Rs 0.129 0.02
ephemeris [JD] 2457304.6689 0.009
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6097313779364355
u1 -2.7650661474309643
u2 3.3972645694655834
u3 -1.2419297493478676
duration 0.1027 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PJOO (collaborate/publish) MOBS
Light curve chart for 0010460
Parameter Value Uncertainty
Am1 1.072 0.053
Am2 -0.071 0.023
a/Rs 10.617 0.056
Rp/Rs 0.14 0.052
ephemeris [JD] 2457522.842 0.011
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6101370821164656
u1 -2.7661720522668674
u2 3.398522746354732
u3 -1.2424877255623947
duration 0.1036 0.0047
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SMAMA (collaborate/publish) MOBS
Light curve chart for 0004872
Parameter Value Uncertainty
Am1 0.25 0.14
Am2 1.0 0.58
a/Rs 10.601 0.058
Rp/Rs 0.101 0.084
ephemeris [JD] 2457522.858 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6097986228411165
u1 -2.7658123926850156
u2 3.398543675829648
u3 -1.242529855343502
duration 0.085 0.012
Not included in ephemeris calculations

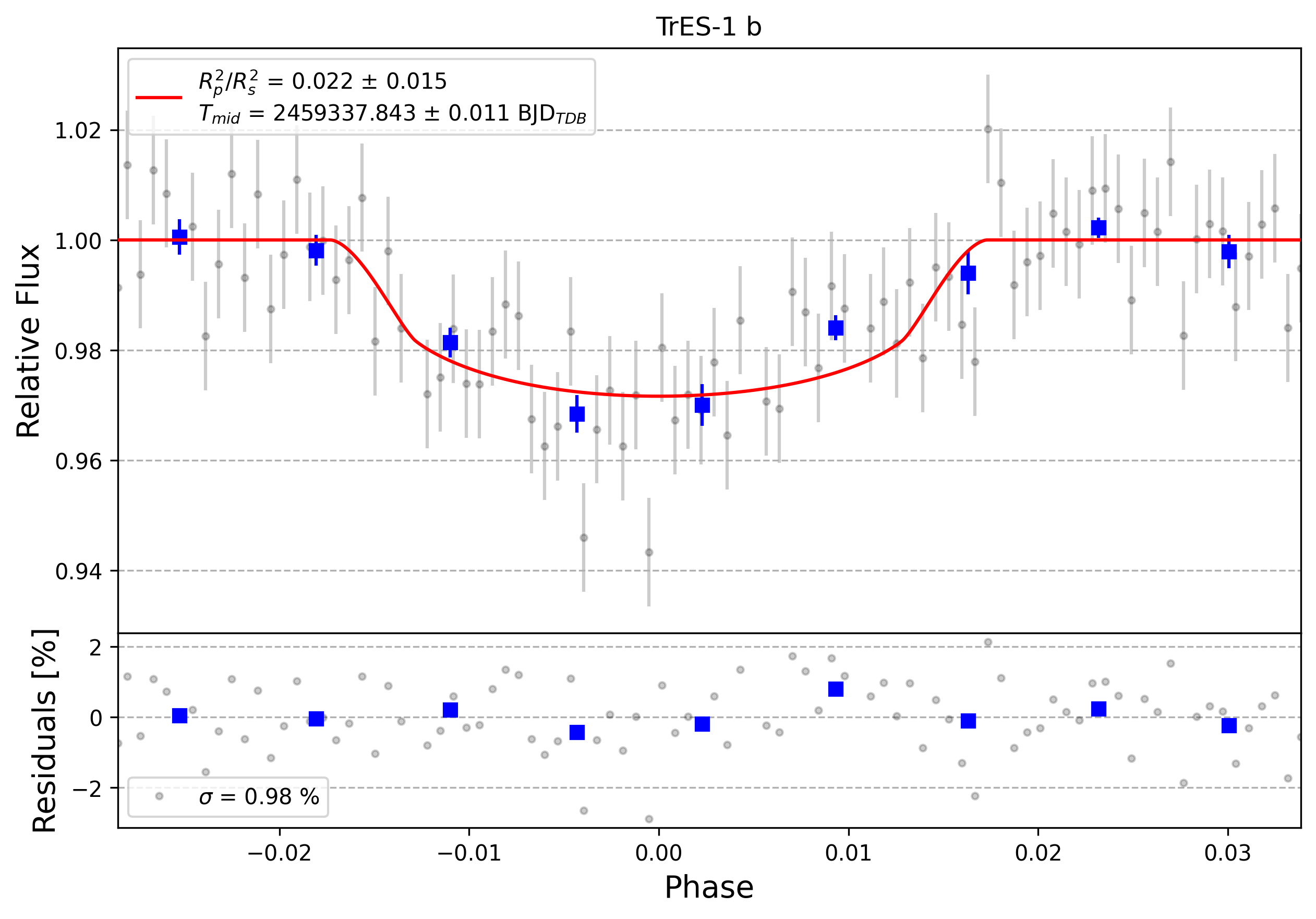

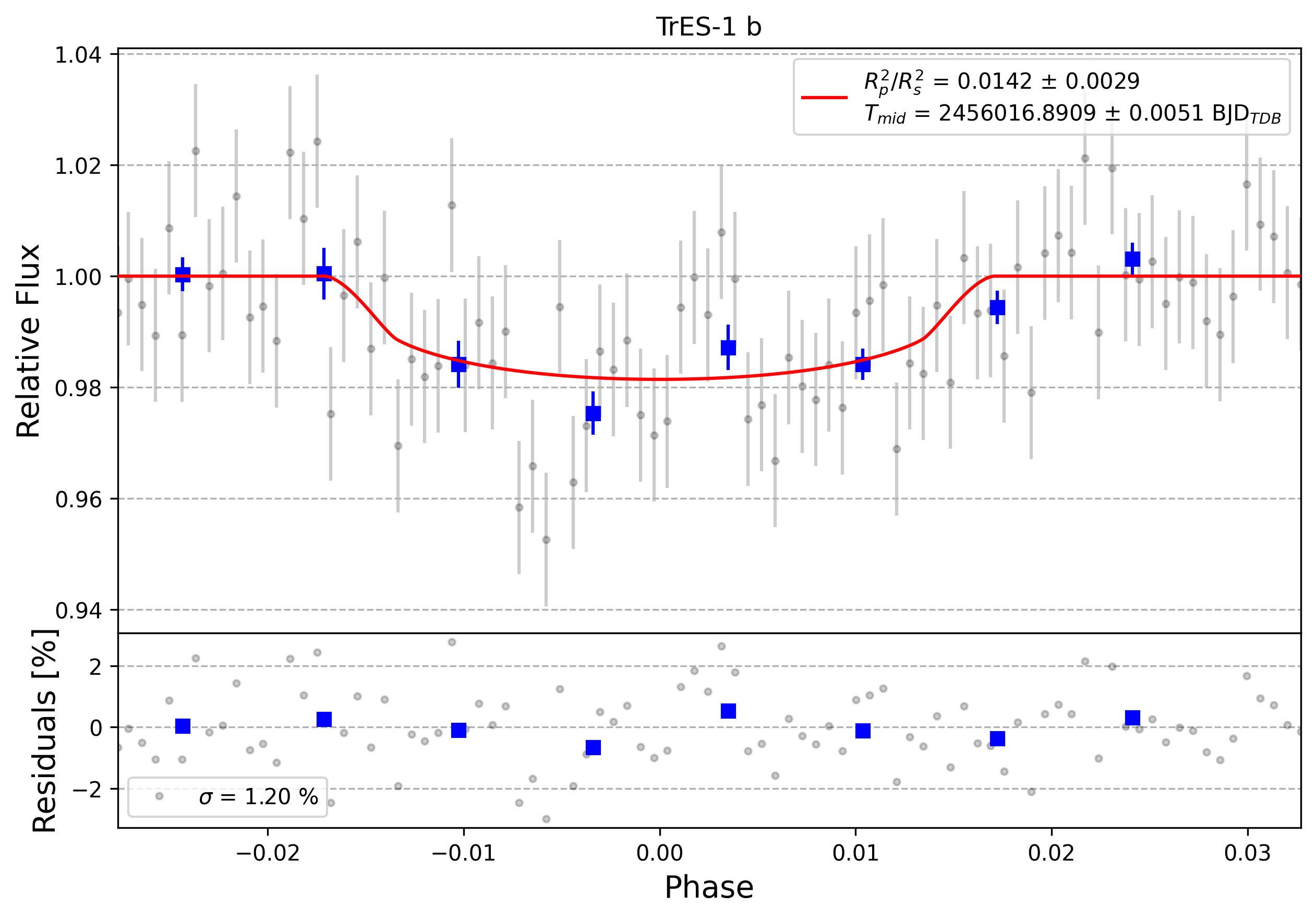

Light Curve ( PNG, PDF - high resolution )

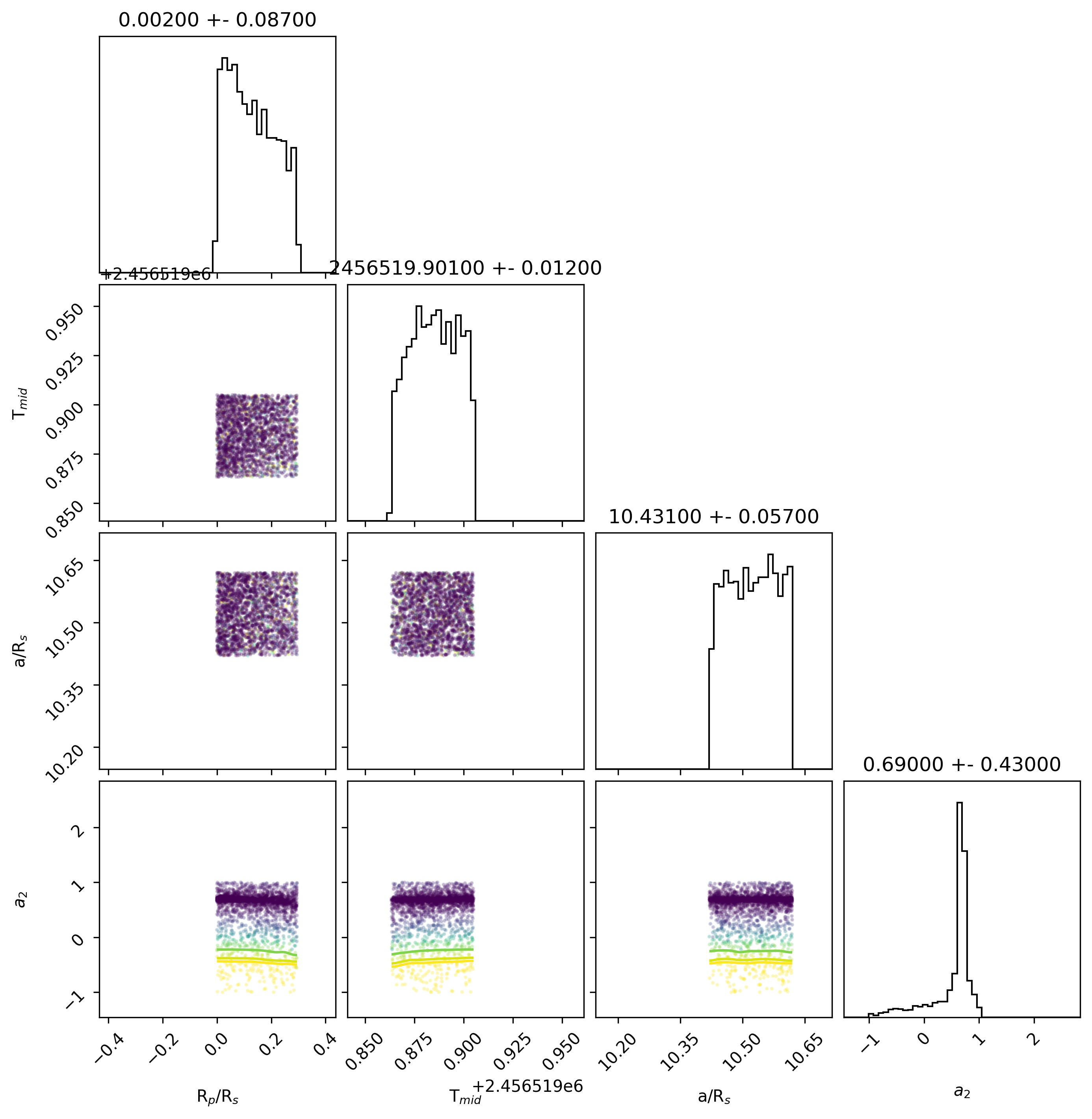

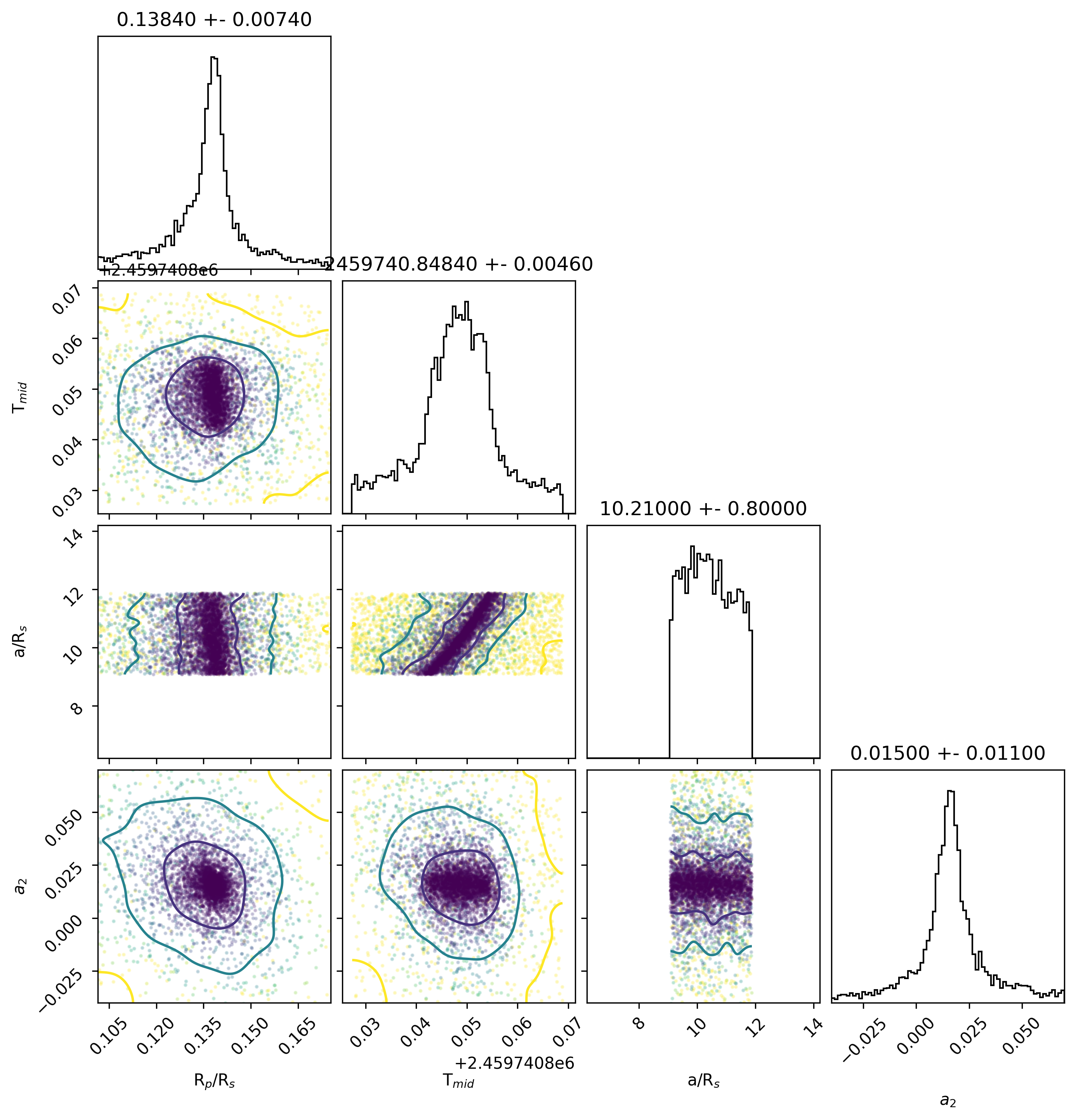

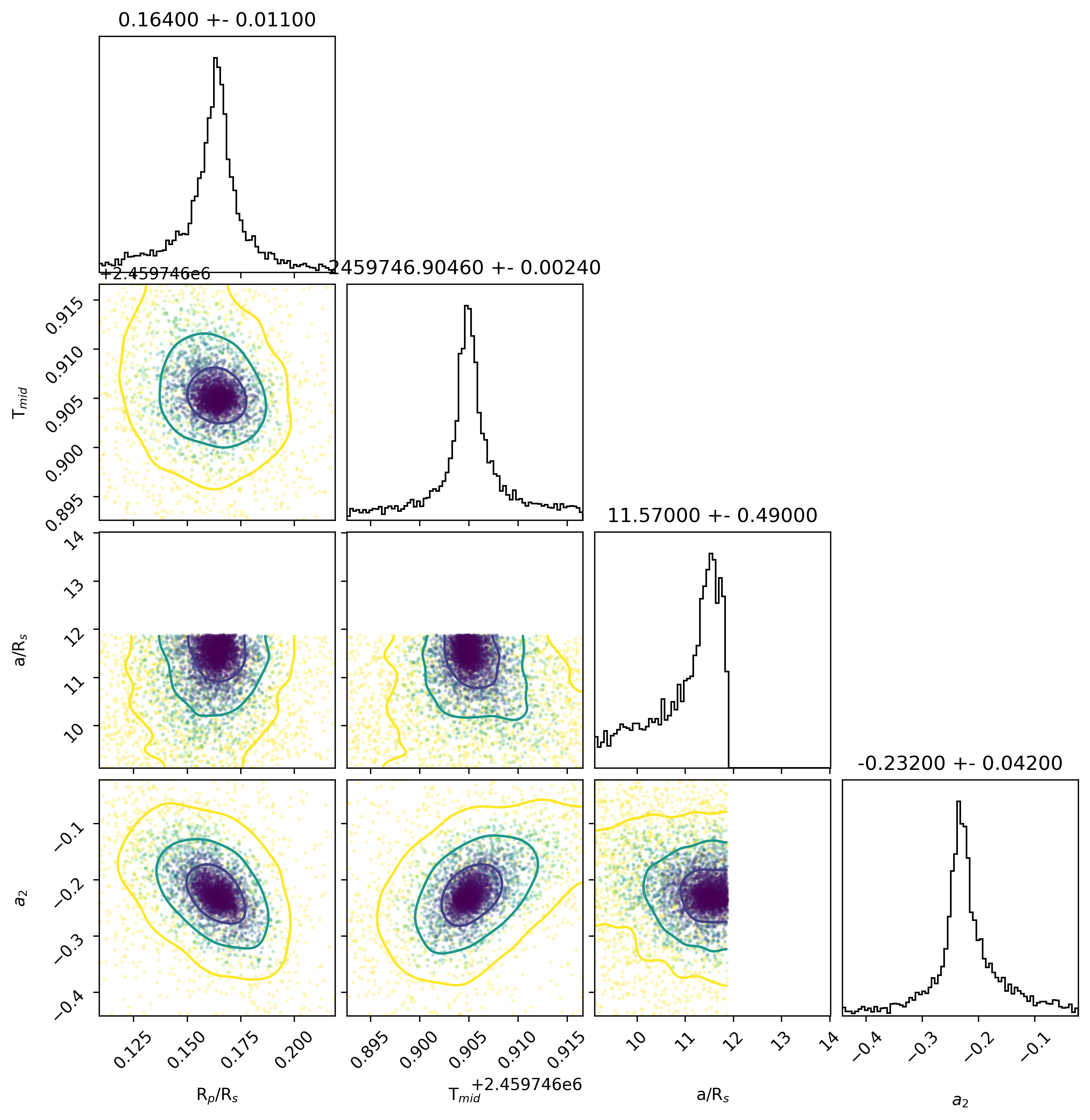

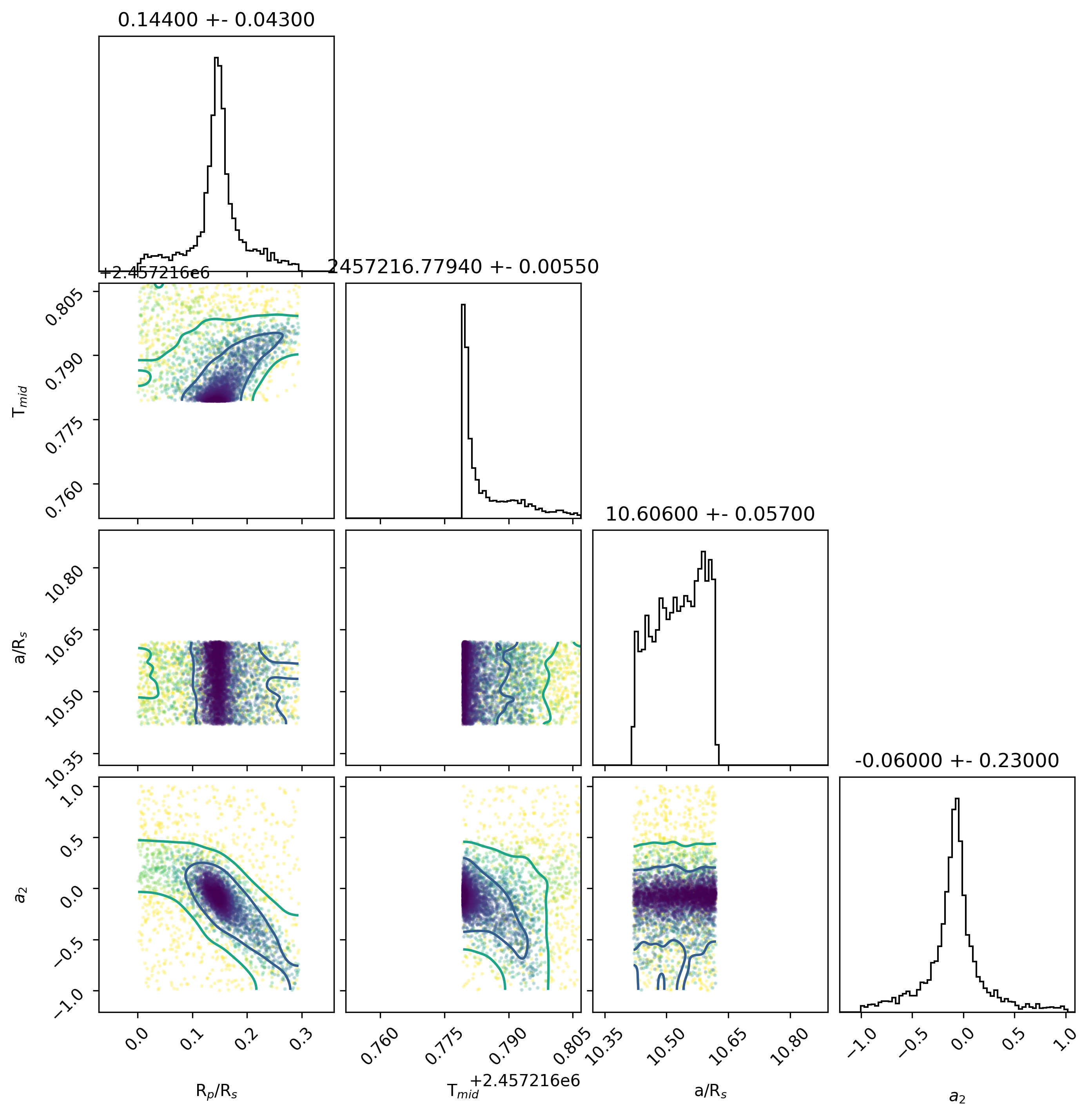

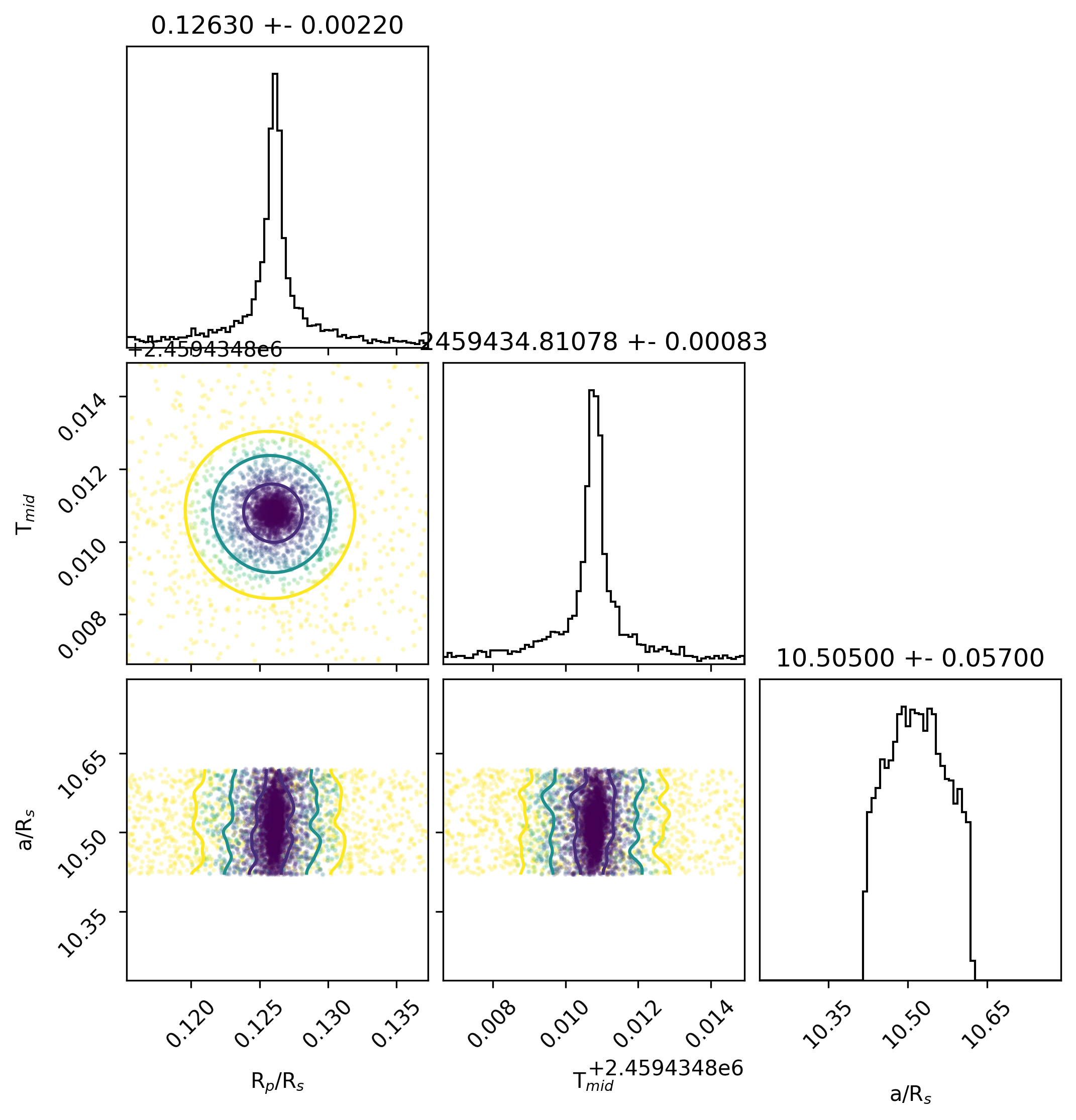

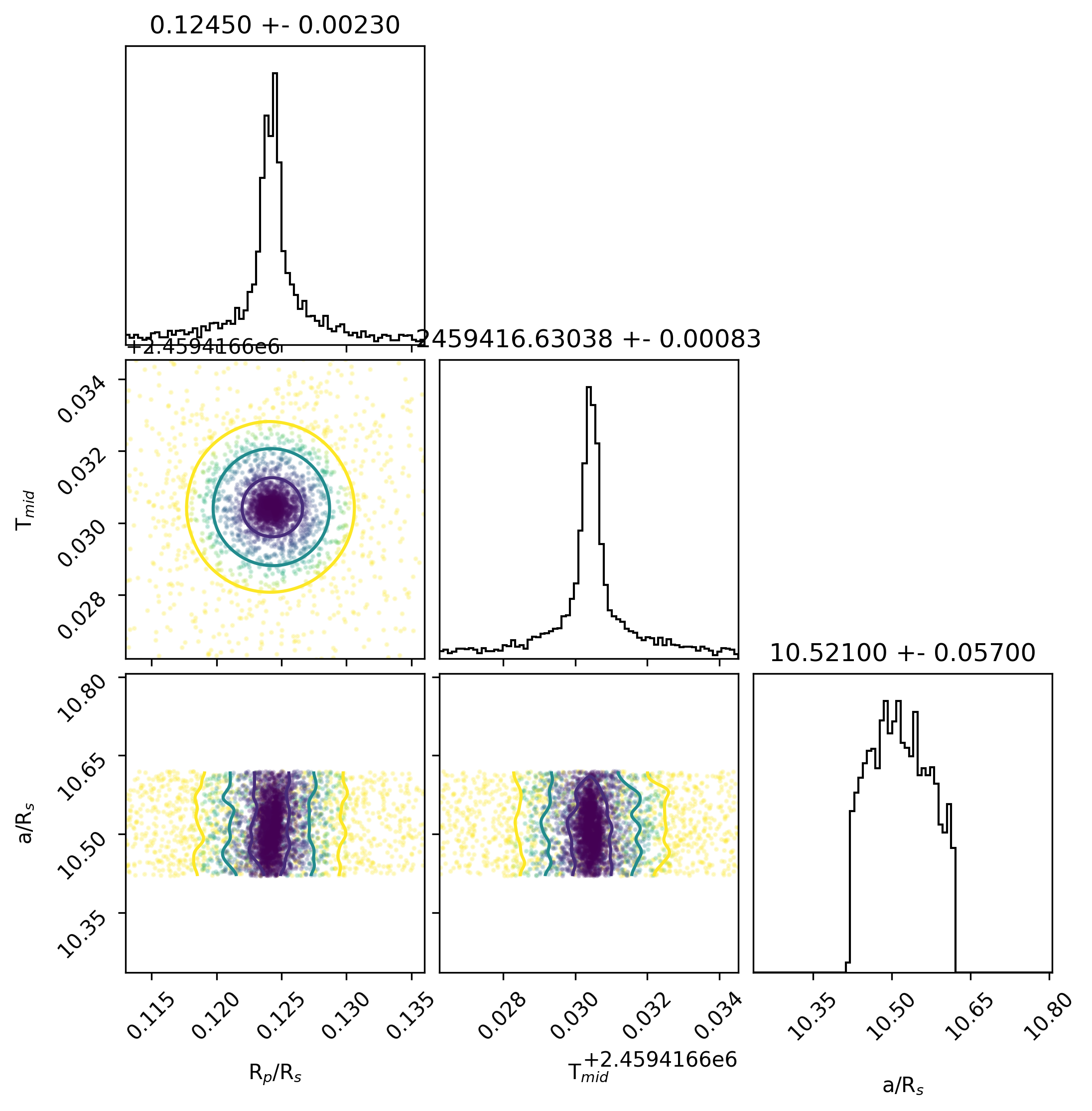

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RKAC (collaborate/publish) MOBS
Light curve chart for 0002372
Parameter Value Uncertainty
Am1 1.0137 0.0087
Am2 -0.013 0.083
a/Rs 10.436 0.057
Rp/Rs 0.118 0.046
ephemeris [JD] 2457522.858 0.0089
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9062720211939808
u1 -3.368033022580635
u2 3.8332458727217054
u3 -1.3714848142152363
duration 0.0565 0.009
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0009314
Parameter Value Uncertainty
Am1 1.006 0.041
Am2 -0.01 0.014
a/Rs 10.429 0.057
Rp/Rs 0.175 0.023
ephemeris [JD] 2457616.782 0.0037
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.609970673869462
u1 -2.7662638794421404
u2 3.398906948470768
u3 -1.242613692250429
duration 0.1089 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DCMA (collaborate/publish) MOBS
Light curve chart for 0002373
Parameter Value Uncertainty
Am1 1.007 0.017
Am2 0.0003 0.0071
a/Rs 10.602 0.058
Rp/Rs 0.157 0.019
ephemeris [JD] 2457619.7786 0.0023
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9065455033862426
u1 -3.3691679118247335
u2 3.8346450662335028
u3 -1.372022600654348
duration 0.1054 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0011252
Parameter Value Uncertainty
Am1 0.94 0.017
Am2 0.0325 0.008
a/Rs 10.534 0.058
Rp/Rs 0.143 0.045
ephemeris [JD] 2457619.779 0.011
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.60968619218814
u1 -2.765225204150868
u2 3.3975841654223418
u3 -1.2420451028316646
duration 0.1047 0.0042
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KPRB (collaborate/publish) MOBS
Light curve chart for 0003521
Parameter Value Uncertainty
Am1 1.372 0.02
Am2 -0.109 0.012
a/Rs 10.431 0.058
Rp/Rs 0.109 0.057
ephemeris [JD] 2457701.617 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6100653273067131
u1 -2.7664946462644266
u2 3.3990371312281775
u3 -1.2426077616208633
duration 0.1004 0.0071
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PAIB (collaborate/publish) MOBS
Light curve chart for 0001150
Parameter Value Uncertainty
Am1 1.003 0.018
Am2 -0.0003 0.0047
a/Rs 10.45 0.058
Rp/Rs 0.124 0.016
ephemeris [JD] 2457916.7454 0.0052
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9066923352840324
u1 -3.370003389932554
u2 3.836027658625453
u3 -1.3727165468156652
duration 0.104 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO LGEC (collaborate/publish) MOBS
Light curve chart for 0000928
Parameter Value Uncertainty
Am1 1.024 0.012
Am2 -0.0202 0.005
a/Rs 10.427 0.059
Rp/Rs 0.1481 0.0082
ephemeris [JD] 2457919.7736 0.0032
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9063990968148539
u1 -3.3686553578580107
u2 3.8341091269505108
u3 -1.3718528087746757
duration 0.10627 0.00096
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO VJCA (collaborate/publish) MOBS
Light curve chart for 0000932
Parameter Value Uncertainty
Am1 1.009 0.011
Am2 -0.0046 0.0016
a/Rs 10.426 0.058
Rp/Rs 0.141 0.0088
ephemeris [JD] 2458228.8476 0.0032
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6099353239674175
u1 -2.7656585957150193
u2 3.3979876290221087
u3 -1.2422643066405454
duration 0.1057 0.001
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SNIC (collaborate/publish) MOBS
Light curve chart for 0010933
Parameter Value Uncertainty
Am1 0.974 0.01
Am2 0.0165 0.0029
a/Rs 10.534 0.057
Rp/Rs 0.1332 0.008
ephemeris [JD] 2458231.8752 0.0021
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6104517210979594
u1 -2.766557448168663
u2 3.39873680983773
u3 -1.2426310321219018
duration 0.10381 0.00095
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PPEA (collaborate/publish) MOBS
Light curve chart for 0001272
Parameter Value Uncertainty
Am1 0.886 0.014
Am2 0.118 0.051
a/Rs 10.421 0.059
Rp/Rs 0.152 0.014
ephemeris [JD] 2458319.7399 0.0052
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9063306371143185
u1 -3.3682237624744005
u2 3.8333751493209314
u3 -1.371481966839108
duration 0.1067 0.0014
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO VJCA (collaborate/publish) MOBS
Light curve chart for 0000926
Parameter Value Uncertainty
Am1 1.0 0.012
Am2 0.0014 0.0023
a/Rs 10.421 0.058
Rp/Rs 0.1468 0.0091
ephemeris [JD] 2458334.9012 0.0027
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9065635156179466
u1 -3.3693436280645273
u2 3.8349317960507543
u3 -1.372151626459237
duration 0.1064 0.001
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO VJCA (collaborate/publish) MOBS
Light curve chart for 0006093
Parameter Value Uncertainty
Am1 0.961 0.014
Am2 0.0242 0.0059
a/Rs 10.421 0.057
Rp/Rs 0.164 0.01
ephemeris [JD] 2458410.6481 0.0023
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.610104483390671
u1 -2.7656536485056558
u2 3.397729164563061
u3 -1.2421799488179666
duration 0.1079 0.0011
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MANS (collaborate/publish) MOBS
Light curve chart for 0001248
Parameter Value Uncertainty
Am1 1.01 0.019
Am2 -0.0041 0.0039
a/Rs 10.421 0.057
Rp/Rs 0.138 0.015
ephemeris [JD] 2458413.6724 0.0033
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9066103304302293
u1 -3.369239646062213
u2 3.8348027758915504
u3 -1.3721734031165527
duration 0.1055 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO NANF (collaborate/publish) MOBS
Light curve chart for 0001244
Parameter Value Uncertainty
Am1 0.949 0.071
Am2 0.018 0.011
a/Rs 10.484 0.058
Rp/Rs 0.182 0.066
ephemeris [JD] 2458622.773 0.011
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9062546026600224
u1 -3.36824996283185
u2 3.8335866432914796
u3 -1.3715912259947594
duration 0.1087 0.006
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO LGEC (collaborate/publish) MOBS
Light curve chart for 0007013
Parameter Value Uncertainty
Am1 0.979 0.025
Am2 0.0079 0.0057
a/Rs 10.431 0.058
Rp/Rs 0.161 0.017
ephemeris [JD] 2458625.7861 0.0045
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6096988624239021
u1 -2.7655160365101525
u2 3.3980453882555817
u3 -1.2422281635345094
duration 0.1076 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SGDA (collaborate/publish) MOBS
Light curve chart for 0000927
Parameter Value Uncertainty
Am1 1.57 0.88
Am2 -0.41 0.32
a/Rs 10.471 0.058
Rp/Rs 0.133 0.083
ephemeris [JD] 2458631.834 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9066485676739087
u1 -3.3698094615259406
u2 3.835751140985922
u3 -1.3725901899767443
duration 0.1044 0.0074
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO LGEC (collaborate/publish) MOBS
Light curve chart for 0009569
Parameter Value Uncertainty
Am1 1.1819 0.0092
Am2 -0.155 0.067
a/Rs 10.445 0.058
Rp/Rs 0.085 0.032
ephemeris [JD] 2458637.9043 0.0092
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6092413551775389
u1 -2.7638205309744652
u2 3.3957920253690497
u3 -1.2412127989708792
duration 0.1002 0.0031
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO TMUA (collaborate/publish) MOBS
Light curve chart for 0007689
Parameter Value Uncertainty
Am1 1.43 0.015
Am2 -0.335 0.08
a/Rs 10.43 0.058
Rp/Rs 0.186 0.012
ephemeris [JD] 2458716.6811 0.0014
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6097084899716516
u1 -2.7646139698621006
u2 3.396513838841583
u3 -1.241608308339134
duration 0.108 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO ZAIB (collaborate/publish) MOBS
Light curve chart for 0000901
Parameter Value Uncertainty
Am1 0.9986 0.0087
Am2 0.0014 0.007
a/Rs 10.607 0.056
Rp/Rs 0.1311 0.0071
ephemeris [JD] 2458722.7476 0.0024
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9068077967485049
u1 -3.3700195827177564
u2 3.8358384632419757
u3 -1.3726266201142767
duration 0.103 0.00087
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0000902
Parameter Value Uncertainty
Am1 1.012 0.013
Am2 -0.0064 0.0033
a/Rs 10.616 0.058
Rp/Rs 0.1509 0.0086
ephemeris [JD] 2458728.8038 0.0033
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9064031957283267
u1 -3.3686016148002134
u2 3.834056935899314
u3 -1.3718584596955274
duration 0.10486 0.00095
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0008564
Parameter Value Uncertainty
Am1 1.0 0.11
Am2 0.033 0.073
a/Rs 10.452 0.058
Rp/Rs 0.262 0.058
ephemeris [JD] 2459025.7542 0.0093
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6096729610430878
u1 -2.7653094197510644
u2 3.397749552393233
u3 -1.2421130430548422
duration 0.1166 0.0054
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LIGA (collaborate/publish) MOBS
Light curve chart for 0011273
Parameter Value Uncertainty
Am1 0.9828 0.01
Am2 0.013 0.015
a/Rs 10.425 0.057
Rp/Rs 0.114 0.011
ephemeris [JD] 2459028.7805 0.0037
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.906659290977587
u1 -3.369854308863761
u2 3.835734341882549
u3 -1.3725392668394791
duration 0.1032 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO GMAU (collaborate/publish) MOBS
Light curve chart for 0008231
Parameter Value Uncertainty
Am1 1.041 0.014
Am2 -0.033 0.033
a/Rs 10.576 0.058
Rp/Rs 0.162 0.01
ephemeris [JD] 2459034.8366 0.0021
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6102908725176301
u1 -2.7672416056348577
u2 3.400091192458944
u3 -1.24314040867641
duration 0.1061 0.0011
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO NLIC (collaborate/publish) MOBS
Light curve chart for 0001313
Parameter Value Uncertainty
Am1 2.86 0.74
Am2 -0.98 0.25
a/Rs 10.616 0.058
Rp/Rs 0.266 0.086
ephemeris [JD] 2459040.923 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.906486166526539
u1 -3.3693818438897867
u2 3.835170072020993
u3 -1.3722743375092574
duration 0.065 0.013
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO NANF (collaborate/publish) MOBS
Light curve chart for 0001041
Parameter Value Uncertainty
Am1 0.984 0.011
Am2 0.0122 0.0057
a/Rs 10.43 0.058
Rp/Rs 0.1245 0.0091
ephemeris [JD] 2459119.6882 0.0026
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6096517488813507
u1 -2.764356155419033
u2 3.39608292618284
u3 -1.2413784690395788
duration 0.1042 0.001
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DJJB (collaborate/publish) MOBS
Light curve chart for 0010685
Parameter Value Uncertainty
Am1 0.989 0.017
Am2 0.0071 0.0047
a/Rs 10.439 0.059
Rp/Rs 0.151 0.011
ephemeris [JD] 2459122.7141 0.003
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6094621567955043
u1 -2.7644407062478416
u2 3.396511779016254
u3 -1.2415331789519475
duration 0.1066 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DRAD (collaborate/publish) MOBS
Light curve chart for 0007479
Parameter Value Uncertainty
Am1 1.2 0.019
Am2 -0.148 0.016
a/Rs 10.47 0.059
Rp/Rs 0.117 0.057
ephemeris [JD] 2459125.739 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.609716882419507
u1 -2.7650484011203167
u2 3.397207064447138
u3 -1.241875495123998
duration 0.1031 0.0054
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DEDC (collaborate/publish) MOBS
Light curve chart for 0007798
Parameter Value Uncertainty
Am1 1.199 0.012
Am2 -0.159 0.017
a/Rs 10.564 0.057
Rp/Rs 0.148 0.051
ephemeris [JD] 2459337.843 0.011
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6092513286486263
u1 -2.7641029628654485
u2 3.39624867831322
u3 -1.2413969934883489
duration 0.105 0.0046
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GHAB (collaborate/publish) MOBS
Light curve chart for 0010428
Parameter Value Uncertainty
Am1 0.983 0.015
Am2 0.0158 0.008
a/Rs 10.431 0.059
Rp/Rs 0.14 0.012
ephemeris [JD] 2459340.8767 0.0041
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6097625055387377
u1 -2.7656250456624263
u2 3.3980763378147065
u3 -1.2422137470557342
duration 0.1055 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KCRA (collaborate/publish) MOBS
Light curve chart for 0000941
Parameter Value Uncertainty
Am1 1.0079 0.0076
Am2 -0.007 0.01
a/Rs 10.423 0.058
Rp/Rs 0.1368 0.0074
ephemeris [JD] 2459343.9138 0.0031
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9069735769943028
u1 -3.371012035522226
u2 3.8372932030605345
u3 -1.3732546873524867
duration 0.10547 0.0009
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO VJCA (collaborate/publish) MOBS
Light curve chart for 0008661
Parameter Value Uncertainty
Am1 1.68 1.14
Am2 -0.05 0.5
a/Rs 10.492 0.056
Rp/Rs 0.008 0.077
ephemeris [JD] 2459422.698 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6098960552734967
u1 -2.7659582558763183
u2 3.398458435967064
u3 -1.242396184723265
duration 0.0914 0.009
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO NGIB (collaborate/publish) MOBS
Light curve chart for 0005665
Parameter Value Uncertainty
Am1 0.912 0.028
Am2 0.09 0.16
a/Rs 10.553 0.057
Rp/Rs 0.175 0.059
ephemeris [JD] 2459422.671 0.01
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6097422370111691
u1 -2.7653348043307977
u2 3.397629097689175
u3 -1.242036479740928
duration 0.0703 0.0099
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WGAC (collaborate/publish) MOBS
Light curve chart for 0004026
Parameter Value Uncertainty
Am1 1.176 0.03
Am2 -0.15 0.12
a/Rs 10.497 0.058
Rp/Rs 0.238 0.021
ephemeris [JD] 2459428.7503 0.003
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.609815734947737
u1 -2.7659269507520667
u2 3.3984601039349385
u3 -1.2423488374896068
duration 0.114 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SGDA (collaborate/publish) MOBS
Light curve chart for 0002402
Parameter Value Uncertainty
Am1 0.921 0.011
Am2 0.073 0.016
a/Rs 10.422 0.057
Rp/Rs 0.135 0.01
ephemeris [JD] 2459431.7829 0.0025
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6098320032645344
u1 -2.7655835196932337
u2 3.397877630847071
u3 -1.2421260637860492
duration 0.1052 0.0011
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SGDA (collaborate/publish) MOBS
Light curve chart for 0004638
Parameter Value Uncertainty
Am1 1.005 0.019
Am2 -0.004 0.012
a/Rs 10.598 0.058
Rp/Rs 0.177 0.017
ephemeris [JD] 2459437.8619 0.006
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6096308633255016
u1 -2.764619320644929
u2 3.3966532076291283
u3 -1.2416646996956242
duration 0.107 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FBIA (collaborate/publish) MOBS
Light curve chart for 0001161
Parameter Value Uncertainty
Am1 1.0 0.011
Am2 0.0002 0.0029
a/Rs 10.615 0.057
Rp/Rs 0.1244 0.0071
ephemeris [JD] 2459492.3835 0.002
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.0288863602389613
u1 -3.6200382407110494
u2 4.033115091047991
u3 -1.4419631504778048
duration 0.10241 0.00084
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 400.0 nm 900.0 nm
Organization Observer Code Secondary Observers
AAVSO GBRC (collaborate/publish) UNIS
Light curve chart for 0001317
Parameter Value Uncertainty
Am1 1.029 0.01
Am2 -0.0248 0.0045
a/Rs 10.423 0.048
Rp/Rs 0.1407 0.0022
ephemeris [JD] 2459510.56698 0.00067
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9065557494652507
u1 -3.3693237638337097
u2 3.834955723350365
u3 -1.3721876518366125
duration 0.10566 0.00052
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO CDEC (collaborate/publish)
Light curve chart for 0001690
Parameter Value Uncertainty
Am1 0.986 0.053
Am2 0.007 0.0015
a/Rs 10.422 0.057
Rp/Rs 0.1267 0.0055
ephemeris [JD] 2459513.5912 0.0027
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9063659696916002
u1 -3.368654561157154
u2 3.8341826249629003
u3 -1.3718939763635731
duration 0.10451 0.00079
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO RJUB (collaborate/publish) UNIS
Light curve chart for 0003449
Parameter Value Uncertainty
Am1 0.956 0.017
Am2 0.0246 0.0067
a/Rs 10.433 0.057
Rp/Rs 0.161 0.013
ephemeris [JD] 2459516.6251 0.0024
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6092096969049408
u1 -2.7633314353709784
u2 3.3950540946579792
u3 -1.2409323056016932
duration 0.1077 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO HZHA (collaborate/publish) MOBS
Light curve chart for 0011172
Parameter Value Uncertainty
Am1 1.034 0.021
Am2 -0.0159 0.0041
a/Rs 10.619 0.057
Rp/Rs 0.151 0.016
ephemeris [JD] 2459519.6546 0.0036
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6099376589117378
u1 -2.766104347552526
u2 3.398648612376709
u3 -1.2424818730921094
duration 0.1047 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WDUA (collaborate/publish) MOBS
Light curve chart for 0002377
Parameter Value Uncertainty
Am1 0.9919 0.0094
Am2 0.0047 0.0024
a/Rs 10.59 0.057
Rp/Rs 0.104 0.011
ephemeris [JD] 2459519.6738 0.009
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9059437022775052
u1 -3.3671677645199396
u2 3.832262072875662
u3 -1.3710379535280728
duration 0.1007 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0001775
Parameter Value Uncertainty
Am1 0.993 0.011
Am2 0.0043 0.0033
a/Rs 10.423 0.057
Rp/Rs 0.1651 0.0077
ephemeris [JD] 2459649.9426 0.002
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9066928000992784
u1 -3.3699964188622493
u2 3.8359309439495686
u3 -1.3726272680267724
duration 0.10803 0.00092
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0007491
Parameter Value Uncertainty
Am1 0.939 0.014
Am2 0.0429 0.006
a/Rs 10.439 0.057
Rp/Rs 0.109 0.032
ephemeris [JD] 2459649.9456 0.0096
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6101369552920126
u1 -2.7666431737279673
u2 3.399444464978679
u3 -1.2429381958870542
duration 0.1023 0.0038
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FBIA (collaborate/publish) MOBS
Light curve chart for 0005147
Parameter Value Uncertainty
Am1 1.075 0.017
Am2 -0.046 0.045
a/Rs 10.48 0.058
Rp/Rs 0.266 0.085
ephemeris [JD] 2459649.926 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.609658827744388
u1 -2.7652838248133174
u2 3.397673963204972
u3 -1.2420489155067553
duration 0.096 0.012
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LELA (collaborate/publish) MOBS
Light curve chart for 0001528
Parameter Value Uncertainty
Am1 1.007 0.0099
Am2 -0.0058 0.0025
a/Rs 10.492 0.056
Rp/Rs 0.1387 0.0029
ephemeris [JD] 2459731.75769 0.00089
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6556129586902697
u1 -2.890278355135092
u2 3.508661167290688
u3 -1.2739957185627402
duration 0.1048 0.00061
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 385.0 nm 700.0 nm
Organization Observer Code Secondary Observers
AAVSO NANF (collaborate/publish)
Light curve chart for 0001542
Parameter Value Uncertainty
Am1 1.0352 0.0093
Am2 -0.031 0.015
a/Rs 10.613 0.059
Rp/Rs 0.121 0.012
ephemeris [JD] 2459734.7947 0.003
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9065498438266109
u1 -3.369646333525024
u2 3.835507924996625
u3 -1.3724113781446898
duration 0.0983 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0007871
Parameter Value Uncertainty
Am1 1.0146 0.0097
Am2 -0.011 0.0071
a/Rs 10.617 0.057
Rp/Rs 0.1383 0.0072
ephemeris [JD] 2459737.8166 0.0024
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6097117152653848
u1 -2.7655346373738325
u2 3.39794274600075
u3 -1.2421197732590095
duration 0.10361 0.00086
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GDAP (collaborate/publish) MOBS
Light curve chart for 0005674
Parameter Value Uncertainty
Am1 1.0015 0.0079
Am2 0.0006 0.0099
a/Rs 10.617 0.058
Rp/Rs 0.122 0.0088
ephemeris [JD] 2459740.8507 0.0051
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6095300483464376
u1 -2.7647756944273407
u2 3.3970748115955876
u3 -1.2418291148943248
duration 0.1021 0.001
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RANH (collaborate/publish) MOBS
Light curve chart for 0010288
Parameter Value Uncertainty
Am1 1.067 0.013
Am2 -0.059 0.049
a/Rs 10.611 0.057
Rp/Rs 0.161 0.011
ephemeris [JD] 2459746.8998 0.0025
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6097408359980658
u1 -2.7649506097830545
u2 3.3970817966213636
u3 -1.2418719722159115
duration 0.1056 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MANE (collaborate/publish) MOBS
Light curve chart for 0003253
Parameter Value Uncertainty
Am1 1.026 0.01
Am2 -0.021 0.0081
a/Rs 10.423 0.058
Rp/Rs 0.1415 0.0085
ephemeris [JD] 2459828.7226 0.0023
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.9066487085052333
u1 -3.369444169466236
u2 3.8350865407555665
u3 -1.3722910226473215
duration 0.10577 0.00099
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KMUA (collaborate/publish) MOBS
Light curve chart for 0003219
Parameter Value Uncertainty
Am1 0.9941 0.0062
Am2 0.0047 0.0022
a/Rs 10.421 0.056
Rp/Rs 0.1407 0.0044
ephemeris [JD] 2460049.9124 0.0016
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6096603619284215
u1 -2.7649189636928293
u2 3.397000911269233
u3 -1.241742258885567
duration 0.10589 0.00069
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DKEB (collaborate/publish) MOBS
Light curve chart for 0003922
Parameter Value Uncertainty
Am1 0.9493 0.0097
Am2 0.046 0.019
a/Rs 10.564 0.058
Rp/Rs 0.178 0.015
ephemeris [JD] 2460125.6702 0.0042
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6097379135027037
u1 -2.7655280504125166
u2 3.39793926545117
u3 -1.2421490779081164
duration 0.0795 0.0042
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CPHB (collaborate/publish) MOBS
Light curve chart for 0004101
Parameter Value Uncertainty
Am1 1.034 0.014
Am2 -0.03 0.017
a/Rs 10.617 0.055
Rp/Rs 0.1797 0.0084
ephemeris [JD] 2460134.7629 0.0025
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6097482474778397
u1 -2.7648327660545666
u2 3.3967544041363134
u3 -1.2416698349440018
duration 0.10749 0.00093
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PAIB (collaborate/publish) MOBS
Light curve chart for 0004044
Parameter Value Uncertainty
Am1 0.932 0.018
Am2 0.068 0.089
a/Rs 10.526 0.058
Rp/Rs 0.137 0.044
ephemeris [JD] 2460137.771 0.011
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6094706263733018
u1 -2.764452132769776
u2 3.396556909470731
u3 -1.2415753524616147
duration 0.1043 0.004
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DKEB (collaborate/publish) MOBS
Light curve chart for 0004846
Parameter Value Uncertainty
Am1 0.915 0.024
Am2 0.084 0.025
a/Rs 10.619 0.057
Rp/Rs 0.181 0.017
ephemeris [JD] 2460143.8619 0.0049
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6099899683953074
u1 -2.765985789500544
u2 3.3984080869505906
u3 -1.242412215205127
duration 0.1074 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CPHB (collaborate/publish) MOBS
Light curve chart for 0004885
Parameter Value Uncertainty
Am1 0.996 0.013
Am2 -0.0003 0.0039
a/Rs 10.422 0.058
Rp/Rs 0.13 0.011
ephemeris [JD] 2460228.6885 0.0031
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6099976043348534
u1 -2.765912340986934
u2 3.3983757723856183
u3 -1.2424609850937922
duration 0.1048 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO AJAG (collaborate/publish) MOBS
Light curve chart for 0004922
Parameter Value Uncertainty
Am1 0.985 0.021
Am2 0.0087 0.0038
a/Rs 10.562 0.058
Rp/Rs 0.103 0.032
ephemeris [JD] 2460231.7039 0.009
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 1.6097264020698487
u1 -2.7653748799110898
u2 3.3977095158824056
u3 -1.2420609874113473
duration 0.1007 0.0031
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO AJAG (collaborate/publish) MOBS
Light curve chart for 15c082316499b133bd279f6ecf2c03cf
Parameter Value Uncertainty
Am1 0.9999 0.0023
Am2 0
a/Rs 10.422 0.057
Rp/Rs 0.1261 0.0023
ephemeris [JD] 2459422.6908 0.00088
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5020114729315046
u1 -4.408771401133685
u2 4.446887178247001
u3 -1.5401271837810389
duration 0.10457 0.00063
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d41edccac6a75f8fdcf61ad37bc205b1
Parameter Value Uncertainty
Am1 1.0 0.0025
Am2 0
a/Rs 10.473 0.056
Rp/Rs 0.1297 0.0025
ephemeris [JD] 2458689.41397 0.00085
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.501671672107825
u1 -4.4079403243881945
u2 4.446038124654774
u3 -1.5397694061232738
duration 0.10424 0.00063
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8fd3c906696320d93e5f05dd8f2a81f6
Parameter Value Uncertainty
Am1 1.0006 0.0019
Am2 0
a/Rs 10.493 0.057
Rp/Rs 0.1247 0.0022
ephemeris [JD] 2459392.39018 0.00085
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5021051827460083
u1 -4.409428813786136
u2 4.447871016434012
u3 -1.5405473191154404
duration 0.10348 0.00061
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 49a41a4036703b8478bb984d2236c89f
Parameter Value Uncertainty
Am1 1.0002 0.002
Am2 0
a/Rs 10.523 0.057
Rp/Rs 0.1267 0.0023
ephemeris [JD] 2459765.08893 0.00085
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5018541727998453
u1 -4.408394821484558
u2 4.446493283133374
u3 -1.5399525681907473
duration 0.10348 0.0006
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 84575ebfbc6285bf70474127a70c61b3
Parameter Value Uncertainty
Am1 1.0 0.0022
Am2 0
a/Rs 10.423 0.055
Rp/Rs 0.127 0.0022
ephemeris [JD] 2459786.29891 0.00085
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5015998629024834
u1 -4.407792579786986
u2 4.445962054404463
u3 -1.5397692712699635
duration 0.10457 0.00063
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 39c66039149d25ee374682a2f9d5e2ab
Parameter Value Uncertainty
Am1 0.9993 0.0022
Am2 0
a/Rs 10.422 0.056
Rp/Rs 0.1246 0.0024
ephemeris [JD] 2459759.02826 0.00088
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5015137494387214
u1 -4.407652496839499
u2 4.445829926086494
u3 -1.5396911124376884
duration 0.10424 0.00064
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 856dcc057088e671827f6cfb4f9d83f3
Parameter Value Uncertainty
Am1 0.9986 0.0028
Am2 0
a/Rs 10.518 0.056
Rp/Rs 0.1223 0.0025
ephemeris [JD] 2459395.4195 0.00093
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5012907549012127
u1 -4.406567049452038
u2 4.444328210233837
u3 -1.5390518494573602
duration 0.10311 0.00061
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 246888853cf00c0ab201142eb9787032
Parameter Value Uncertainty
Am1 1.0006 0.002
Am2 0
a/Rs 10.441 0.057
Rp/Rs 0.129 0.0022
ephemeris [JD] 2459777.20927 0.0008
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5016360493220033
u1 -4.408041013688025
u2 4.446307635459582
u3 -1.5399026048384141
duration 0.10457 0.00063
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for dae2263723c3fb68ce1dbe5183993fbe
Parameter Value Uncertainty
Am1 1.0002 0.0023
Am2 0
a/Rs 10.423 0.057
Rp/Rs 0.1243 0.0023
ephemeris [JD] 2459401.48029 0.0009
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5020874368429147
u1 -4.409130577255027
u2 4.447356841670293
u3 -1.5403136349873985
duration 0.10424 0.00065
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f5bf41f136d2c4161e2a81b4c923932c
Parameter Value Uncertainty
Am1 0.9999 0.0022
Am2 0
a/Rs 10.42 0.057
Rp/Rs 0.1262 0.0023
ephemeris [JD] 2459774.17885 0.00085
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.501730663555127
u1 -4.407977524191736
u2 4.445986449782935
u3 -1.5397395228959652
duration 0.10457 0.00064
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8aff7c0c938f053b4b97526151f9d79b
Parameter Value Uncertainty
Am1 1.0002 0.0021
Am2 0
a/Rs 10.543 0.057
Rp/Rs 0.1255 0.0022
ephemeris [JD] 2459407.54083 0.00079
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.501859654911869
u1 -4.4080672541983095
u2 4.44587801275937
u3 -1.539670347224185
duration 0.10311 0.0006
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 95bc1d1996fbae17eeda3d0a73674b0b
Parameter Value Uncertainty
Am1 1.0001 0.0024
Am2 0
a/Rs 10.436 0.058
Rp/Rs 0.1289 0.0024
ephemeris [JD] 2459752.96805 0.00093
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5018416010741706
u1 -4.408022037777377
u2 4.4458067199957485
u3 -1.5396262170448605
duration 0.10458 0.00065
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 52a379983401c797f127eb42d0ec8a7f
Parameter Value Uncertainty
Am1 1.0023 0.0024
Am2 0
a/Rs 10.609 0.056
Rp/Rs 0.232 0.086
ephemeris [JD] 2459401.473 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5020325673799158
u1 -4.40843974628729
u2 4.446171783893252
u3 -1.5397645387327548
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for aa93886e528b0e0e339d01c835382fad
Parameter Value Uncertainty
Am1 1.0003 0.0029
Am2 0
a/Rs 10.619 0.056
Rp/Rs 0.1277 0.0025
ephemeris [JD] 2458698.50364 0.00092
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5013976785889693
u1 -4.407077507168609
u2 4.4450453753236125
u3 -1.539365480507635
duration 0.10277 0.00064
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for dfc4d956694041f101d6c5b535c9d026
Parameter Value Uncertainty
Am1 1.0002 0.0019
Am2 0
a/Rs 10.566 0.057
Rp/Rs 0.1293 0.0022
ephemeris [JD] 2459795.38915 0.00082
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.501868593038642
u1 -4.408532782369065
u2 4.446753033285399
u3 -1.5400887776931924
duration 0.10329 0.00063
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b3ccf2a5d04d61667f59809d8310539b
Parameter Value Uncertainty
Am1 1.0 0.0025
Am2 0
a/Rs 10.615 0.058
Rp/Rs 0.1282 0.0025
ephemeris [JD] 2458701.53406 0.0009
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5013906027697566
u1 -4.406959216206371
u2 4.444782679991835
u3 -1.539214000322798
duration 0.10274 0.00065
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 78c40f6557adefbd1584f59fbe54f3f5
Parameter Value Uncertainty
Am1 1.0012 0.0028
Am2 0
a/Rs 10.44 0.059
Rp/Rs 0.117 0.089
ephemeris [JD] 2459743.884 0.012
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.501821103364822
u1 -4.408224204486555
u2 4.446280811587791
u3 -1.5398776442113116
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 10fcc6756647975eb7820d9cf951fde9
Parameter Value Uncertainty
Am1 0.9995 0.0026
Am2 0
a/Rs 10.618 0.057
Rp/Rs 0.1261 0.0025
ephemeris [JD] 2459425.7213 0.00093
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5017991551752563
u1 -4.408430161633881
u2 4.446711337443591
u3 -1.5400802647238048
duration 0.10238 0.00062
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9433feb43ed2e5648a3c0f3382825f4d
Parameter Value Uncertainty
Am1 0.9996 0.0019
Am2 0
a/Rs 10.535 0.057
Rp/Rs 0.1245 0.0022
ephemeris [JD] 2459416.63041 0.00082
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.501680620770076
u1 -4.408330875595004
u2 4.446741342902506
u3 -1.5400910218159685
duration 0.10311 0.00064
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for de5787a62ff9edd26375a4764ae8b909
Parameter Value Uncertainty
Am1 0.9998 0.0023
Am2 0
a/Rs 10.619 0.057
Rp/Rs 0.1284 0.0024
ephemeris [JD] 2459780.23915 0.00082
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.501896751103127
u1 -4.408527520963521
u2 4.446659591811581
u3 -1.5400287556907961
duration 0.10275 0.0006
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for aadf06b8b2a8b0938cbb4d94799bfcf0
Parameter Value Uncertainty
Am1 1.0003 0.002
Am2 0
a/Rs 10.429 0.057
Rp/Rs 0.1248 0.0022
ephemeris [JD] 2459443.90159 0.00084
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5013301593910255
u1 -4.406680242290886
u2 4.44441916464622
u3 -1.539069015519353
duration 0.10421 0.00064
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for db00e13422d533492fd693bda38e3aee
Parameter Value Uncertainty
Am1 1.0 0.002
Am2 0
a/Rs 10.62 0.055
Rp/Rs 0.1275 0.0023
ephemeris [JD] 2459413.60047 0.00081
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5016995664143153
u1 -4.408171873559888
u2 4.446416075944105
u3 -1.5399437025417702
duration 0.10275 0.00059
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4133cc962d6d0bb0d0a71c6548e64627
Parameter Value Uncertainty
Am1 1.0001 0.0019
Am2 0
a/Rs 10.496 0.056
Rp/Rs 0.1262 0.0023
ephemeris [JD] 2459434.81078 0.00082
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.501296480289039
u1 -4.407061552491331
u2 4.4452161314527245
u3 -1.5394509930115512
duration 0.10384 0.00059
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4cb76866c3deb13743d710f33f4b9ad4
Parameter Value Uncertainty
Am1 0.9998 0.0021
Am2 0
a/Rs 10.444 0.057
Rp/Rs 0.126 0.0023
ephemeris [JD] 2459768.119 0.00083
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.501679385115946
u1 -4.40745909636288
u2 4.445142717967492
u3 -1.539362940482771
duration 0.10424 0.00061
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 94da5d019140305f989a807128c8ce1e
Parameter Value Uncertainty
Am1 0.9999 0.0022
Am2 0
a/Rs 10.482 0.057
Rp/Rs 0.1229 0.0023
ephemeris [JD] 2459398.44988 0.00086
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.501456332824854
u1 -4.4072579937035625
u2 4.445215076958012
u3 -1.5394133498404372
duration 0.10348 0.00062
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 48869758da07e99c373d2c96f37d617c
Parameter Value Uncertainty
Am1 1.0001 0.0024
Am2 0
a/Rs 10.558 0.057
Rp/Rs 0.1282 0.0024
ephemeris [JD] 2458686.38365 0.00087
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.50213068135805
u1 -4.408895612491272
u2 4.446820030532615
u3 -1.5400550331366114
duration 0.10311 0.0006
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b52a422c3e108e9a3ee2a9e17d104815
Parameter Value Uncertainty
Am1 1.0 0.0022
Am2 0
a/Rs 10.619 0.057
Rp/Rs 0.1267 0.0023
ephemeris [JD] 2459437.84149 0.00097
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.501743067841725
u1 -4.408054581888925
u2 4.446100250295021
u3 -1.539788669995763
duration 0.1024 0.00063
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fcbcde3193c3a6de19ff709f3f072286
Parameter Value Uncertainty
Am1 1.0002 0.0019
Am2 0
a/Rs 10.459 0.058
Rp/Rs 0.1273 0.0022
ephemeris [JD] 2459440.87079 0.00085
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5020860876447166
u1 -4.408473546507598
u2 4.446136387962694
u3 -1.539748862847218
duration 0.10421 0.00064
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 498e226bec1a821cff1a775302f3295a
Parameter Value Uncertainty
Am1 1.003 0.0027
Am2 0
a/Rs 10.465 0.057
Rp/Rs 0.1292 0.0025
ephemeris [JD] 2458695.4754 0.00092
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5018934565258957
u1 -4.408663810497371
u2 4.446881069558171
u3 -1.5401106493230041
duration 0.10421 0.00064
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 2604305c641ae72580f5e9c0307affc1
Parameter Value Uncertainty
Am1 0.9999 0.0025
Am2 0
a/Rs 10.574 0.058
Rp/Rs 0.1254 0.0026
ephemeris [JD] 2458704.56389 0.00094
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5014976997413263
u1 -4.4070609126462355
u2 4.444781602477999
u3 -1.5392183233406826
duration 0.10294 0.00064
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ba1022d015c0caa343a86d0037192ba5
Parameter Value Uncertainty
Am1 0.9996 0.0022
Am2 0
a/Rs 10.598 0.056
Rp/Rs 0.1285 0.0023
ephemeris [JD] 2459789.32883 0.00086
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.501686889435782
u1 -4.4076599884014955
u2 4.445521574994332
u3 -1.5395484097851861
duration 0.10274 0.00062
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d18ba4643507a01025f9ade3b904693d
Parameter Value Uncertainty
Am1 1.0006 0.0021
Am2 0
a/Rs 10.466 0.058
Rp/Rs 0.1277 0.0024
ephemeris [JD] 2459771.14963 0.00086
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.501472158467024
u1 -4.407158024225054
u2 4.445020825032948
u3 -1.539334893038947
duration 0.10421 0.00062
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ed01c239954820b7c3589affde0883ea
Parameter Value Uncertainty
Am1 1.0005 0.0023
Am2 0
a/Rs 10.421 0.058
Rp/Rs 0.1284 0.0024
ephemeris [JD] 2459792.35964 0.00095
eccentricity 0.012
inclination [degrees] 90.0
omega [degrees] 0.0
orbital period [days] 3.030069476
u0 2.5014538637765877
u1 -4.4073396456641705
u2 4.4453719293184575
u3 -1.5394860811896711
duration 0.10457 0.00063
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
