Timing Plot
Global Light Curve

Total Reductions to Date: 4

Date Processed: 05/27/2024 at 00:07:27 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 2.0845433911519633 2.854870241812345e-07
Ephemeris (BJD_TDB) 2460400.6666998537 0.00021946289092361694
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 73.7014398 decimal
DEC -76.6806061 decimal
Host Star Metallicity 0.24 0.09 Kokori et al. 2023
Host Star log(g) 4.28 0.01 Log10(cgs) Kokori et al. 2023
Host Star Radius [R_Sun] 1.17 0.02 Sol Kokori et al. 2023
Host Star Effective Temperature [K] 5404.0 70.0 K Kokori et al. 2023
a/Rs 5.785 0.066 Kokori et al. 2023
eccentricity 0.0 Nielsen et al. 2020
inclination [degrees] 82.01 0.15 deg Kokori et al. 2023
omega [degrees] 0.0 deg Kokori et al. 2023
orbital period [days] 2.08453882 5.3e-07 day Kokori et al. 2023
Rp 14.41 0.26 R_Earth Nielsen et al. 2020
Rp/Rs 0.1133 0 Nielsen et al. 2020
ephemeris [JD] 2459087.404531 6.9e-05 BJD-TDB Kokori et al. 2023

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2459087.404531 6.9e-05 BJD-TDB Kokori et al. 2023
2459252.08311 0.00012 BJD Patel & Espinoza 2022
2458326.54771 0.00022 BJD-TDB Nielsen et al. 2020
2458543.338324 6.2e-05 BJD ExoFOP-TESS TOI

Observations

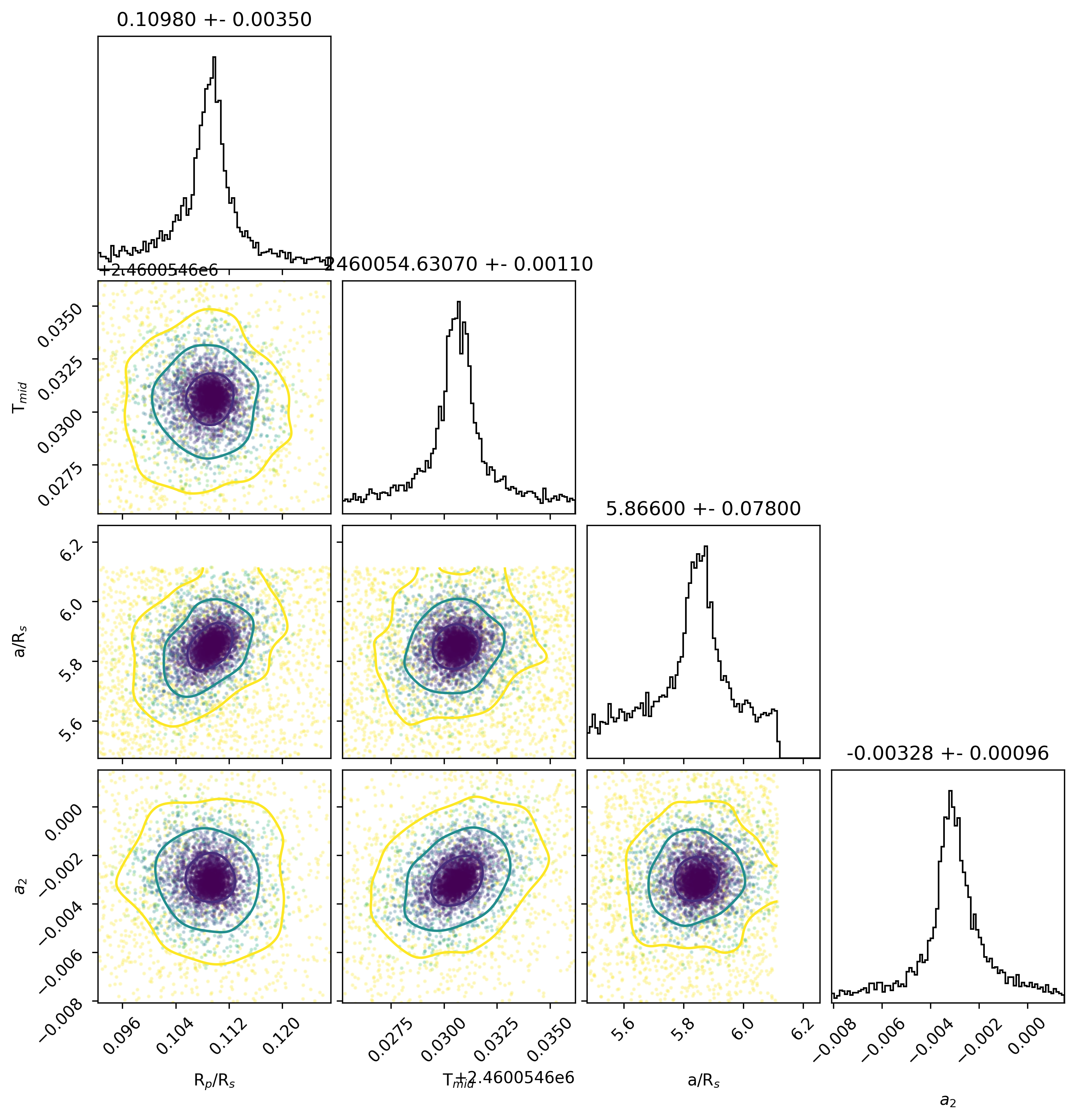

Light curve chart for 0003317
Parameter Value Uncertainty
Am1 1.0121 0.0041
Am2 -0.00331 0.00095
a/Rs 5.846 0.08
Rp/Rs 0.1096 0.0036
ephemeris [JD] 2460054.6306 0.0011
eccentricity 0.0
inclination [degrees] 82.01
omega [degrees] 0.0
orbital period [days] 2.08453882
u0 1.9827370845093935
u1 -3.3816875312655226
u2 3.71808749484797
u3 -1.3191369926880196
duration 0.0867 0.0028

Light curve chart for 0005994
Parameter Value Uncertainty
Am1 1.0726 0.0082
Am2 -0.049 0.049
a/Rs 5.66 0.15
Rp/Rs 0.159 0.011
ephemeris [JD] 2460277.6752 0.0022
eccentricity 0.0
inclination [degrees] 82.01
omega [degrees] 0.0
orbital period [days] 2.08453882
u0 1.9309531910089046
u1 -3.291059057026452
u2 3.665277980123834
u3 -1.3051720594893892
duration 0.1007 0.0051

Light curve chart for 0005990
Parameter Value Uncertainty
Am1 1.002 0.013
Am2 -0.001 0.036
a/Rs 5.59 0.11
Rp/Rs 0.1733 0.0096
ephemeris [JD] 2460300.5866 0.0017
eccentricity 0.0
inclination [degrees] 82.01
omega [degrees] 0.0
orbital period [days] 2.08453882
u0 2.1939885751251786
u1 -3.7927420106116356
u2 4.002405609513456
u3 -1.4036521143865075
duration 0.1058 0.0043
Not included in ephemeris calculations

Light curve chart for 0005976
Parameter Value Uncertainty
Am1 0.9819 0.007
Am2 0.0078 0.0027
a/Rs 6.11 0.1
Rp/Rs 0.116 0.0082
ephemeris [JD] 2460400.6714 0.003
eccentricity 0.0
inclination [degrees] 82.01
omega [degrees] 0.0
orbital period [days] 2.08453882
u0 2.195386830237442
u1 -3.796946562343575
u2 4.007207437211429
u3 -1.4056476453932527
duration 0.0797 0.0034
