chart

Total Reductions to Date: 2

Date Processed: 09/18/2023 at 00:07:19 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 2.626696228468183 6.952981007861697e-07
Ephemeris (BJD_TDB) 2459937.855653311 0.000552014775286594
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 76.8673317 decimal
DEC 16.8676948 decimal
Host Star Metallicity -0.14 0.15 Patel & Espinoza 2022
Host Star log(g) 4.15 0.09 Log10(cgs) Patel & Espinoza 2022
Host Star Radius [R_Sun] 1.69 0.03 Sol Patel & Espinoza 2022
Host Star Effective Temperature [K] 6367.0 250.0 K Patel & Espinoza 2022
a/Rs 5.11 0.11 Patel & Espinoza 2022
eccentricity 0.0 Johnson et al. 2018
inclination [degrees] 88.67 0.89 deg Johnson et al. 2018
omega [degrees] 90.0 deg Johnson et al. 2018
orbital period [days] 2.6266658 1.6e-06 day Patel & Espinoza 2022
Rp 17.4 0.54 R_Earth Johnson et al. 2018
Rp/Rs 0.0973 0 Johnson et al. 2018
ephemeris [JD] 2459186.61999 0.00056 BJD Patel & Espinoza 2022

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2459186.61999 0.00056 BJD Patel & Espinoza 2022
2457836.49912 0.0001 BJD-TDB Kokori et al. 2022
2457820.738135 9e-05 BJD Johnson et al. 2018
2459493.9445 0.000619 BJD ExoFOP-TESS TOI

Observations

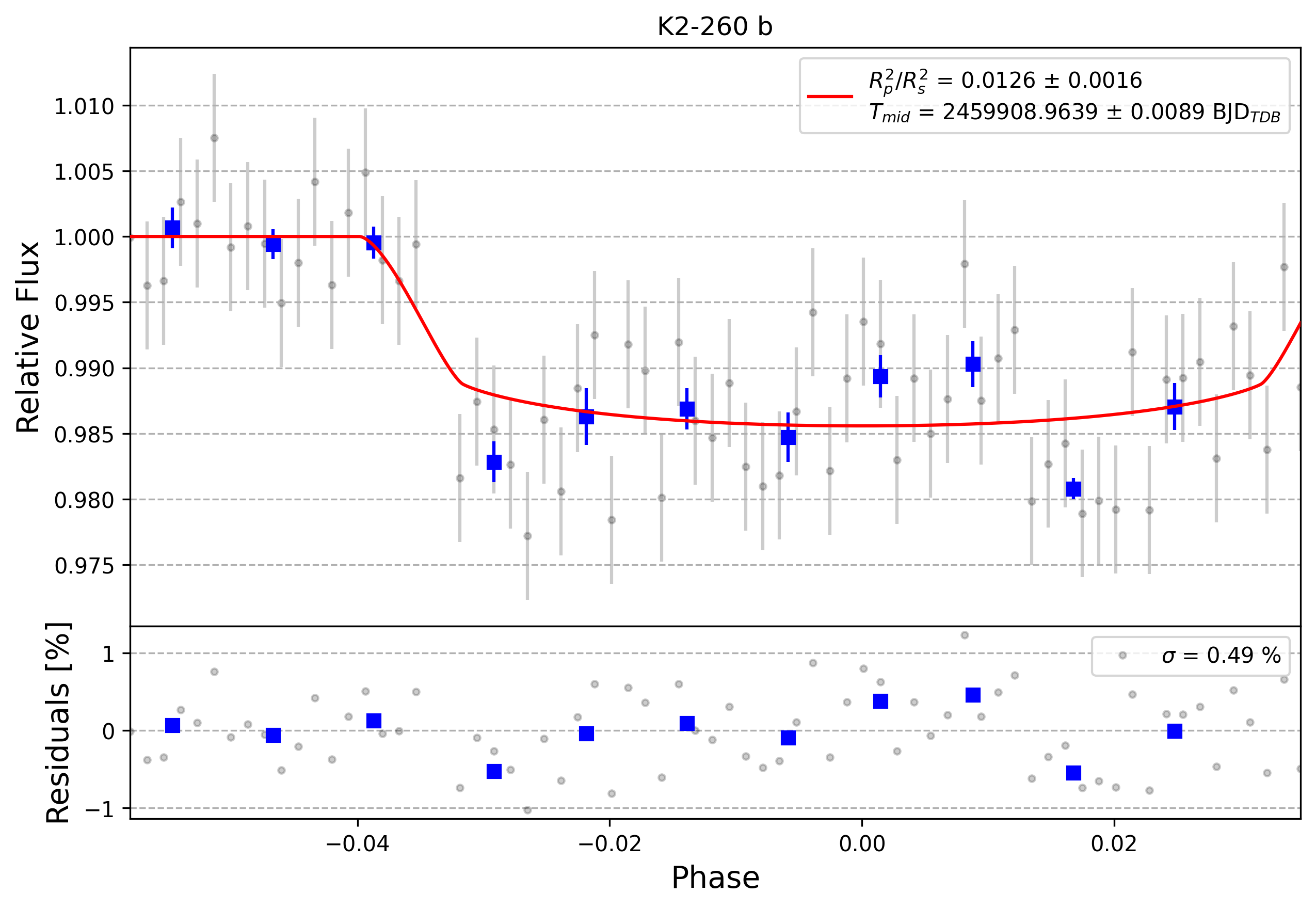

Light curve chart for 0002169
Parameter Value Uncertainty
Am1 1.0011 0.0049
Am2 -0.0008 0.0038
a/Rs 4.56 0.26
Rp/Rs 0.1089 0.0063
ephemeris [JD] 2459908.9619 0.0057
eccentricity 0.0
inclination [degrees] 88.67
omega [degrees] 90.0
orbital period [days] 2.6266658
u0 2.838268599356574
u1 -5.129914974310216
u2 5.029220058320348
u3 -1.7375736084254876
duration 0.1952 0.0082

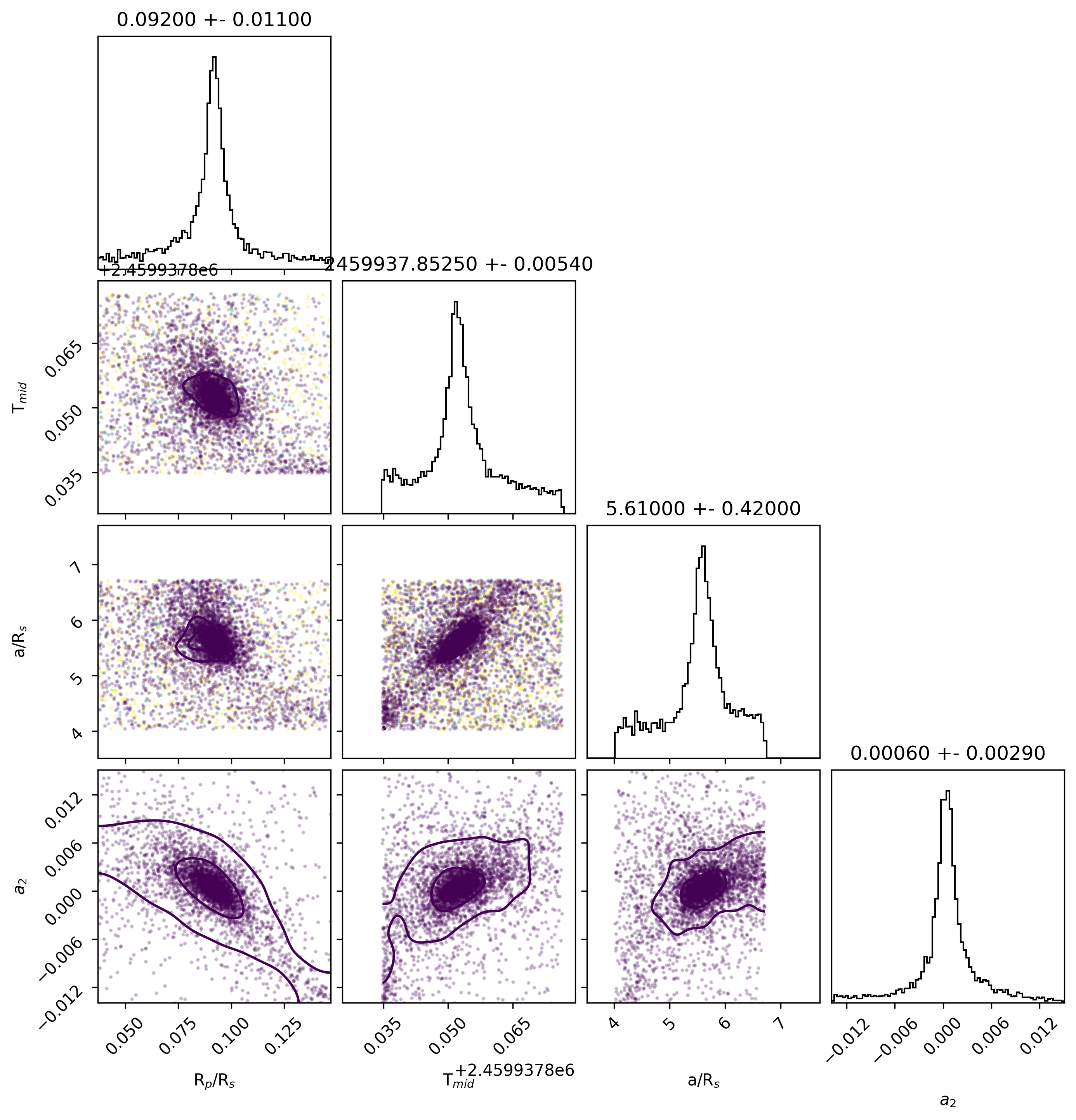

Light curve chart for 0002248
Parameter Value Uncertainty
Am1 0.9984 0.0055
Am2 0.0004 0.0016
a/Rs 5.27 0.21
Rp/Rs 0.0923 0.007
ephemeris [JD] 2459937.8524 0.0035
eccentricity 0.0
inclination [degrees] 88.67
omega [degrees] 90.0
orbital period [days] 2.6266658
u0 2.501744586835434
u1 -4.469753176987705
u2 4.596885294349453
u3 -1.6288766356982531
duration 0.1734 0.0074
