Timing Plot

Total Reductions to Date: 1

Date Processed: 12/03/2023 at 00:07:36 (PST)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 3.9228023549756186 1.194464858118922e-06
Ephemeris (BJD_TDB) 2460095.6284885406 0.0006870253796484044
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 287.4844021 decimal
DEC -49.6649424 decimal
Host Star Metallicity -0.113 0.035 Patel & Espinoza 2022
Host Star log(g) 4.63 0.01 Log10(cgs) Patel & Espinoza 2022
Host Star Radius [R_Sun] 0.66 0.01 Sol Patel & Espinoza 2022
Host Star Effective Temperature [K] 4512.0 19.0 K Patel & Espinoza 2022
a/Rs 15.53 1.99 Patel & Espinoza 2022
eccentricity 0.088 Hartman et al. 2020
inclination [degrees] 87.08 0.061 deg Hartman et al. 2020
omega [degrees] 0.0 deg Patel & Espinoza 2022
orbital period [days] 3.9228038 1.9e-06 day Patel & Espinoza 2022
Rp 12.52 0.16 R_Earth Hartman et al. 2020
Rp/Rs 0.1775 0 ExoFOP-TESS TOI
ephemeris [JD] 2459056.08592 0.0006 BJD Patel & Espinoza 2022

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2459056.08592 0.0006 BJD Patel & Espinoza 2022
2458659.88275 0.0005 BJD-TDB Ivshina & Winn 2022
2457365.35804 0.00029 BJD-TDB Hartman et al. 2020
2459036.472812 0.001293 BJD ExoFOP-TESS TOI

Observations

Light curve chart for 0003652

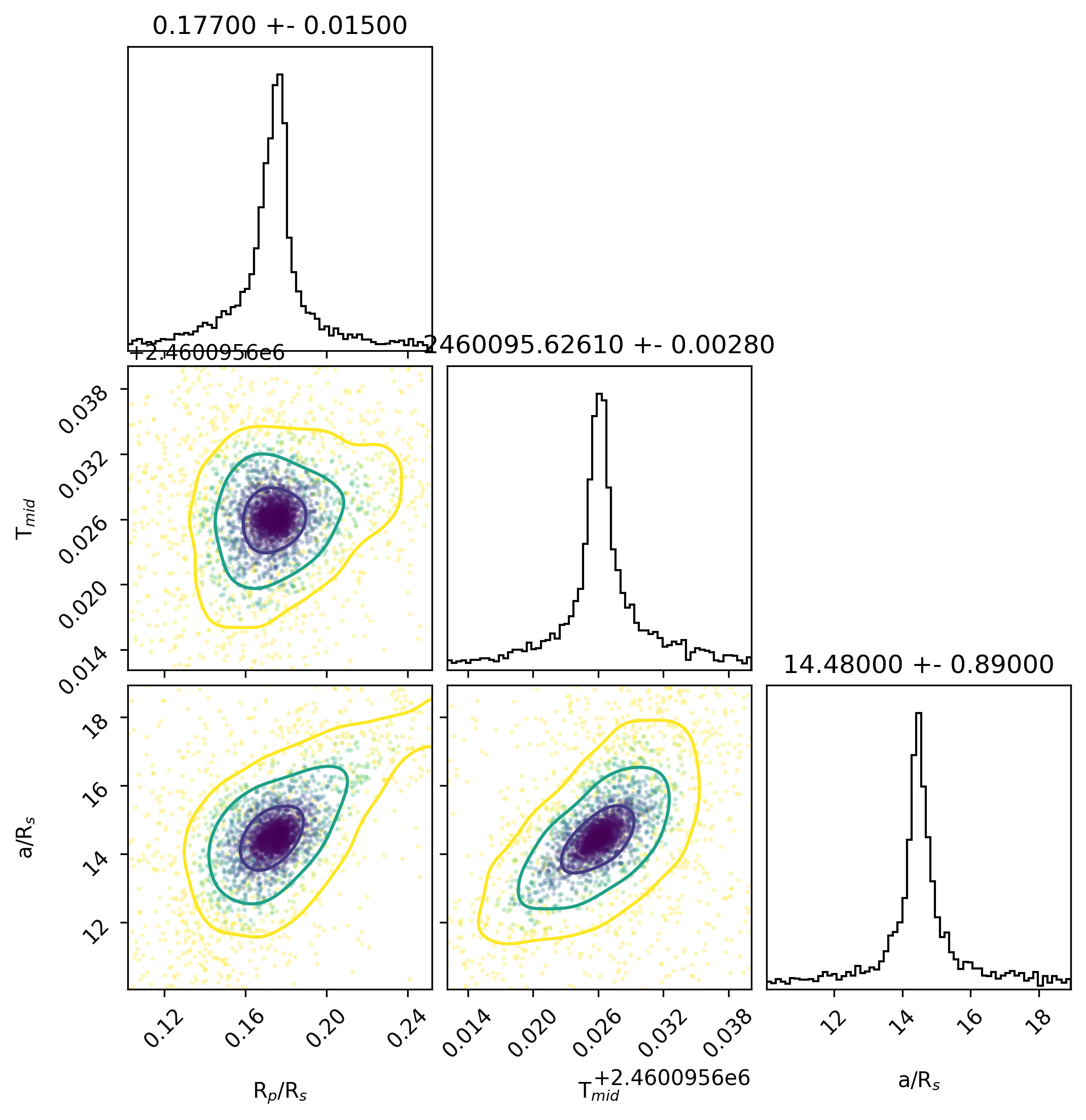

Parameter Value Uncertainty
Am1 1.012 0.016
Am2 0
a/Rs 14.47 0.88
Rp/Rs 0.177 0.015
ephemeris [JD] 2460095.6261 0.0028
eccentricity 0.088
inclination [degrees] 87.08
omega [degrees] 0.0
orbital period [days] 3.9228038
u0 1.6286961348045224
u1 -2.6374720931095155
u2 3.0918345130807317
u3 -1.083058508703814
duration 0.0794 0.0079
