HATS-18 b

View target in exoplanet catalog
chart

Total Reductions to Date: 57

Date Processed: 09/18/2023 at 00:07:19 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 0.837843776440998 1.2712122493672043e-07
Ephemeris (BJD_TDB) 2459978.79136772 0.0002700187578581767
Time saved (hours) 0.0001

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 173.9574203 decimal
DEC -29.1560639 decimal
Host Star Metallicity 0.28 0.08 Penev et al. 2016
Host Star log(g) 4.44 0.03 Log10(cgs) ExoFOP-TESS TOI
Host Star Radius [R_Sun] 1.02 0.06 Sol Patel & Espinoza 2022
Host Star Effective Temperature [K] 5600.0 120.0 K Patel & Espinoza 2022
a/Rs 3.78 0.09 Patel & Espinoza 2022
eccentricity 0.166 Penev et al. 2016
inclination [degrees] 85.29 0.013 deg Chakrabarty & Sengupta 2019
omega [degrees] 0.0 deg Patel & Espinoza 2022
orbital period [days] 0.83784 4e-07 day Patel & Espinoza 2022
Rp 14.9 0.84 R_Earth Chakrabarty & Sengupta 2019
Rp/Rs 0.143 0 ExoFOP-TESS TOI
ephemeris [JD] 2458582.94375 0.00031 BJD Patel & Espinoza 2022

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2458582.94375 0.00031 BJD Patel & Espinoza 2022
2458217.64374 0.00016 BJD-TDB Ivshina & Winn 2022
2459304.327073 0.000448 BJD ExoFOP-TESS TOI
2457089.90598 0.00026 BJD Penev et al. 2016

Observations

Light curve chart for 0003071
Parameter Value Uncertainty
Am1 0.616 0.098
Am2 0.19 0.19
a/Rs 3.95 0.26
Rp/Rs 0.283 0.084
ephemeris [JD] 2458227.679 0.011
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 1.6841572620063594
u1 -2.917853808179501
u2 3.531898972163269
u3 -1.2982023733607315
duration 0.0803 0.0094
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PMLA (collaborate/publish) MOBS
Light curve chart for 0004428
Parameter Value Uncertainty
Am1 1.307 0.075
Am2 -0.122 0.016
a/Rs 4.22 0.26
Rp/Rs 0.057 0.055
ephemeris [JD] 2458526.825 0.012
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 1.684849167705927
u1 -2.919585891575849
u2 3.5340118539747363
u3 -1.2992750774439337
duration 0.0638 0.0054
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

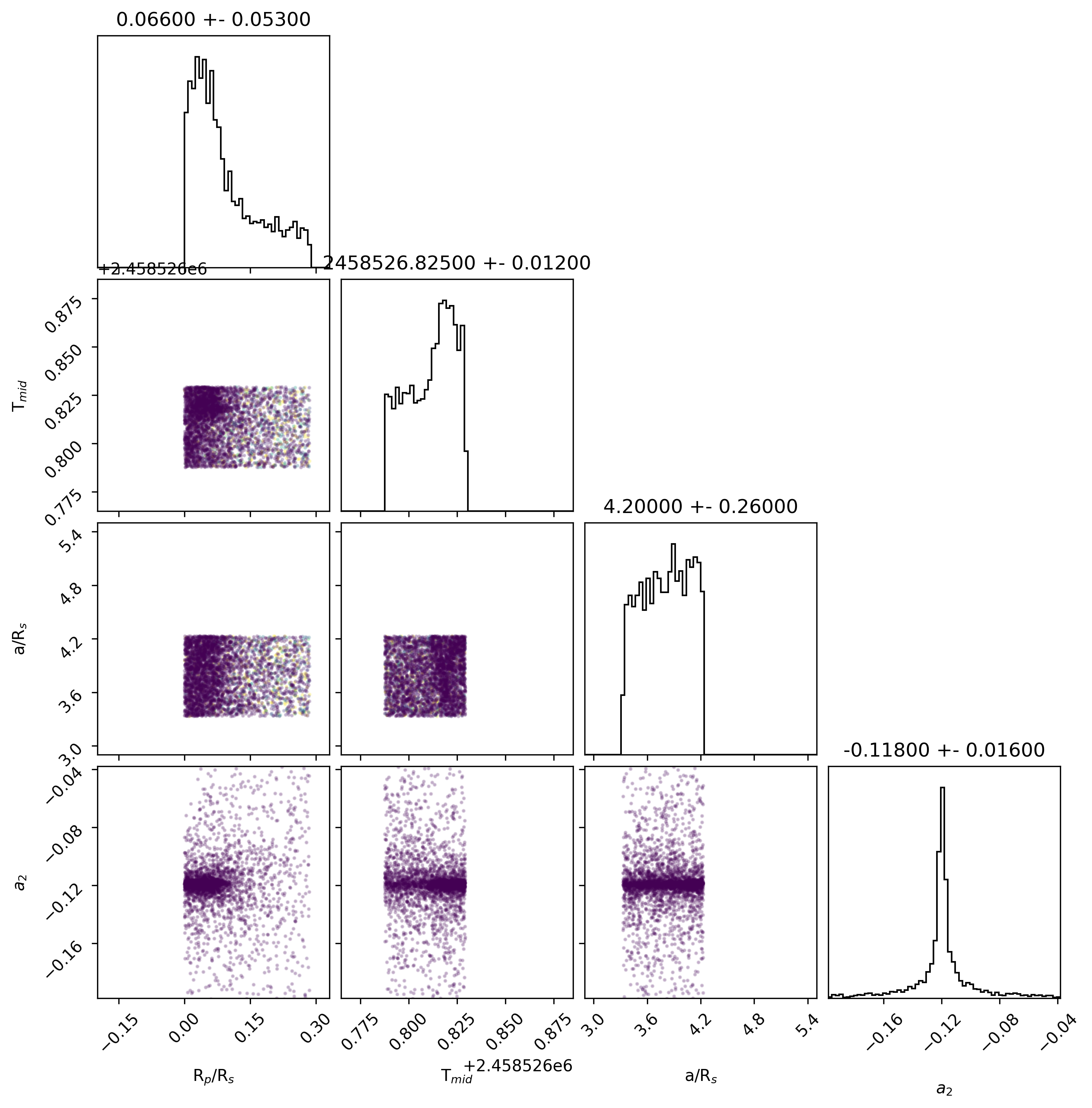

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CMAP (collaborate/publish) MOBS
Light curve chart for 0004466
Parameter Value Uncertainty
Am1 9.71 4.91
Am2 -1.0 0.17
a/Rs 3.65 0.26
Rp/Rs 0.148 0.078
ephemeris [JD] 2458536.87 0.012
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 1.6843667809717904
u1 -2.9185803931252003
u2 3.5326962158302733
u3 -1.2984825510355873
duration 0.0808 0.0094
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

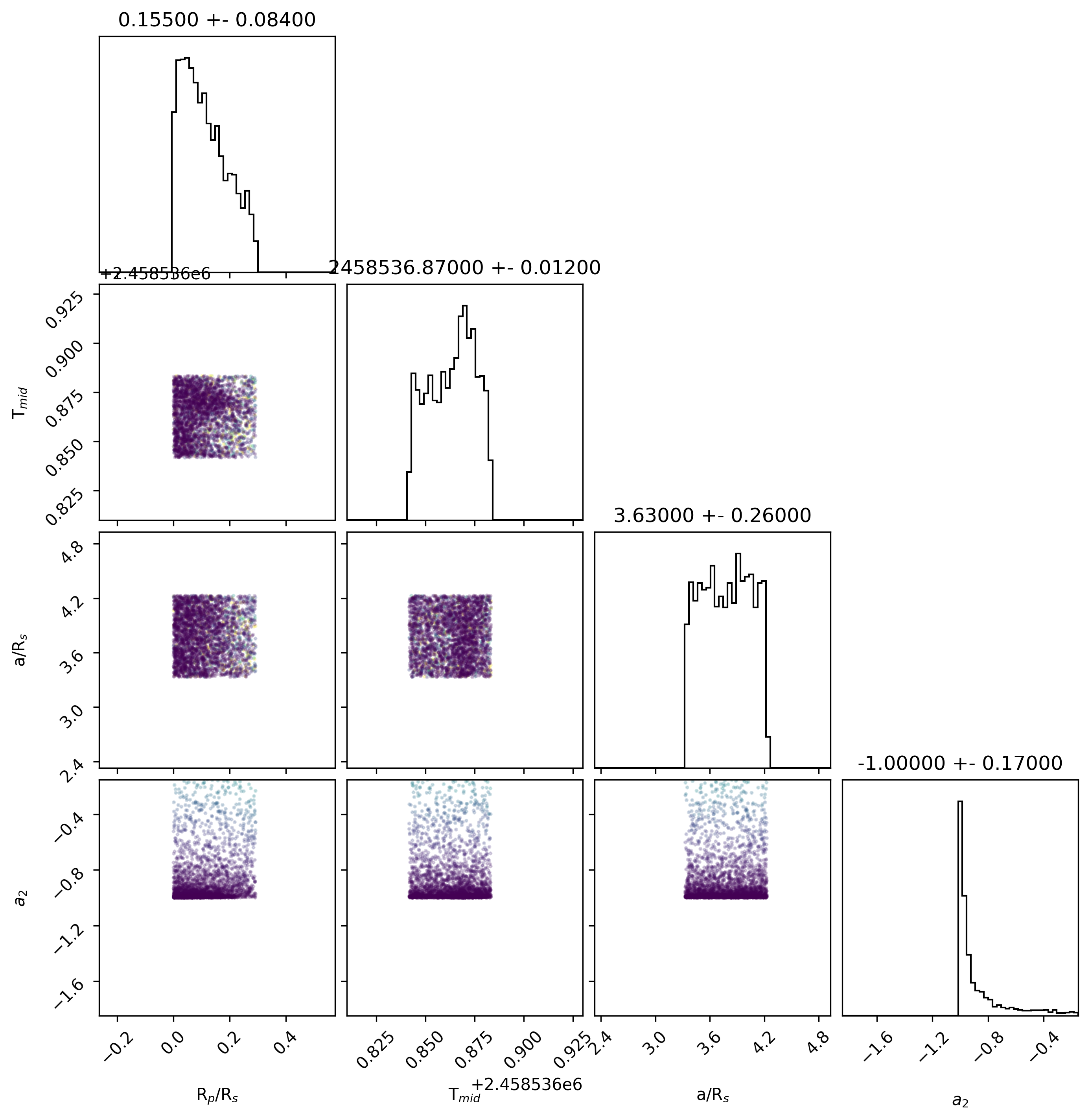

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RELA (collaborate/publish) MOBS
Light curve chart for 0004063
Parameter Value Uncertainty
Am1 0.887 0.031
Am2 0.054 0.035
a/Rs 4.21 0.25
Rp/Rs 0.142 0.049
ephemeris [JD] 2458557.801 0.0085
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 1.6846017938205196
u1 -2.918869314107272
u2 3.5330329872013984
u3 -1.298765414268352
duration 0.0691 0.0059
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

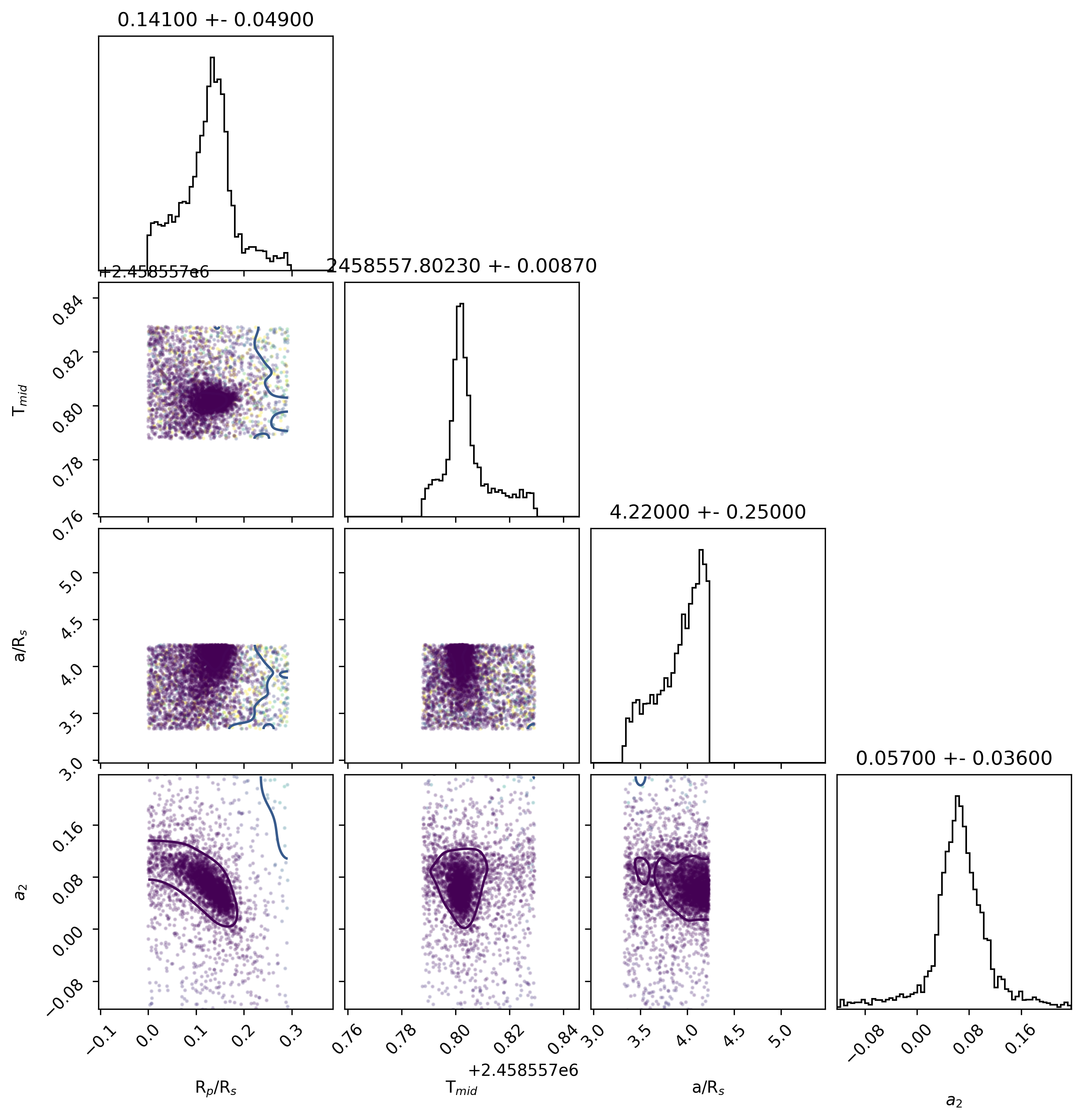

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RSED (collaborate/publish) MOBS
Light curve chart for 0003481
Parameter Value Uncertainty
Am1 1.227 0.043
Am2 -0.086 0.052
a/Rs 4.01 0.26
Rp/Rs 0.117 0.058
ephemeris [JD] 2458578.759 0.012
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 1.6850506006230068
u1 -2.9198041483493906
u2 3.533852381300378
u3 -1.29909878091549
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

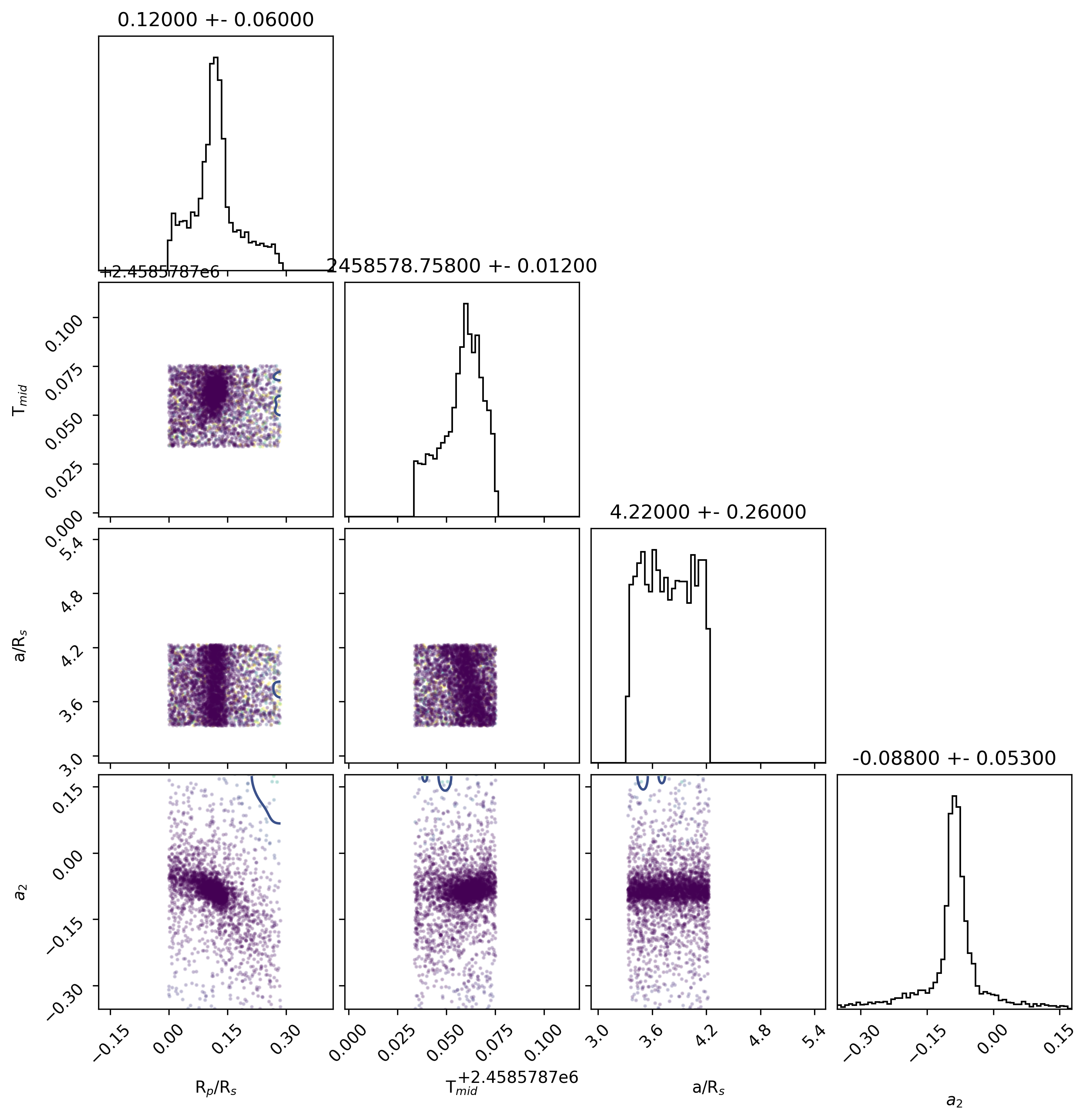

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SMAMA (collaborate/publish) MOBS
Light curve chart for 0004420
Parameter Value Uncertainty
Am1 1.479 0.04
Am2 -0.15 0.059
a/Rs 4.14 0.25
Rp/Rs 0.23 0.035
ephemeris [JD] 2458594.6622 0.0055
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 1.6849017337560677
u1 -2.91977977544994
u2 3.534023898103892
u3 -1.29914580374896
duration 0.0719 0.0044
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO VARD (collaborate/publish) MOBS
Light curve chart for 0002915
Parameter Value Uncertainty
Am1 0.824 0.025
Am2 0.093 0.027
a/Rs 3.62 0.25
Rp/Rs 0.225 0.031
ephemeris [JD] 2458630.6941 0.005
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 1.959807324164335
u1 -3.505923399748255
u2 3.9822212515498916
u3 -1.4361051166262508
duration 0.0797 0.0054
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO VJCA (collaborate/publish) MOBS
Light curve chart for 0003084
Parameter Value Uncertainty
Am1 0.218 0.07
Am2 0.61 0.3
a/Rs 3.7 0.26
Rp/Rs 0.162 0.08
ephemeris [JD] 2458945.749 0.012
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 1.683484694578226
u1 -2.9165102230660445
u2 3.5304204408925917
u3 -1.2973948597974094
duration 0.065 0.012
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CMAP (collaborate/publish) MOBS
Light curve chart for 0000388
Parameter Value Uncertainty
Am1 0.463 0.01
Am2 -0.069 0.047
a/Rs 4.05 0.23
Rp/Rs 0.152 0.036
ephemeris [JD] 2458966.683 0.0061
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 1.959713185609439
u1 -3.50545100920562
u2 3.98153745980021
u3 -1.4357995768744969
duration 0.0733 0.0055
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

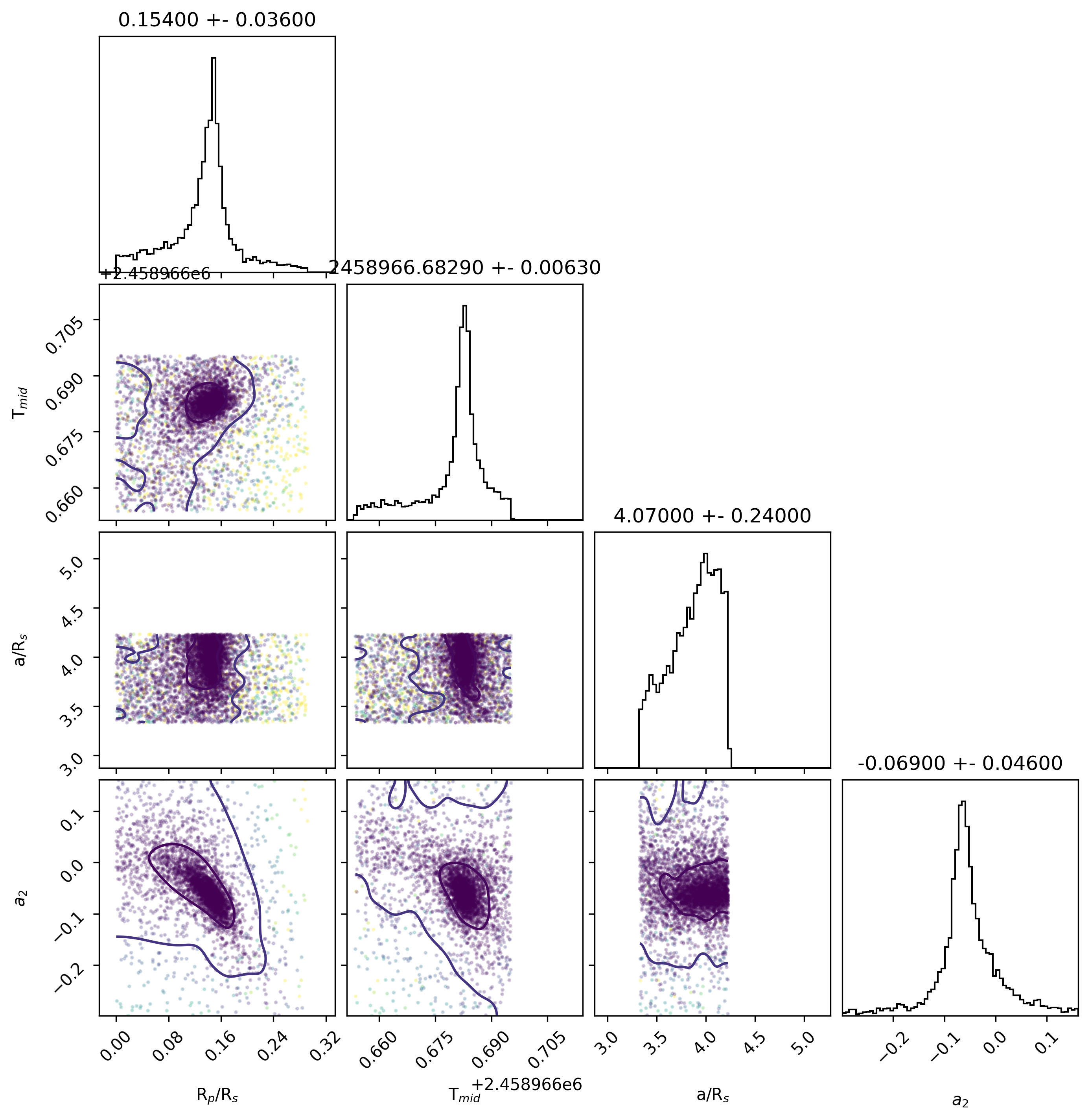

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0002568
Parameter Value Uncertainty
Am1 0.924 0.011
Am2 0.069 0.056
a/Rs 3.34 0.2
Rp/Rs 0.147 0.019
ephemeris [JD] 2459978.8005 0.0026
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 1.6844926298190208
u1 -2.9191400893644435
u2 3.5336145669969308
u3 -1.298967054796548
duration 0.0749 0.0042
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GEDB (collaborate/publish)
Light curve chart for 575b64ae7b7130dab59003e10832cef0
Parameter Value Uncertainty
Am1 0.999 0.016
Am2 0
a/Rs 4.2 0.1
Rp/Rs 0.1286 0.0045
ephemeris [JD] 2459301.8144 0.0012
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.569801643337602
u1 -4.547051858189021
u2 4.558825744502492
u3 -1.581575461719276
duration 0.0683 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

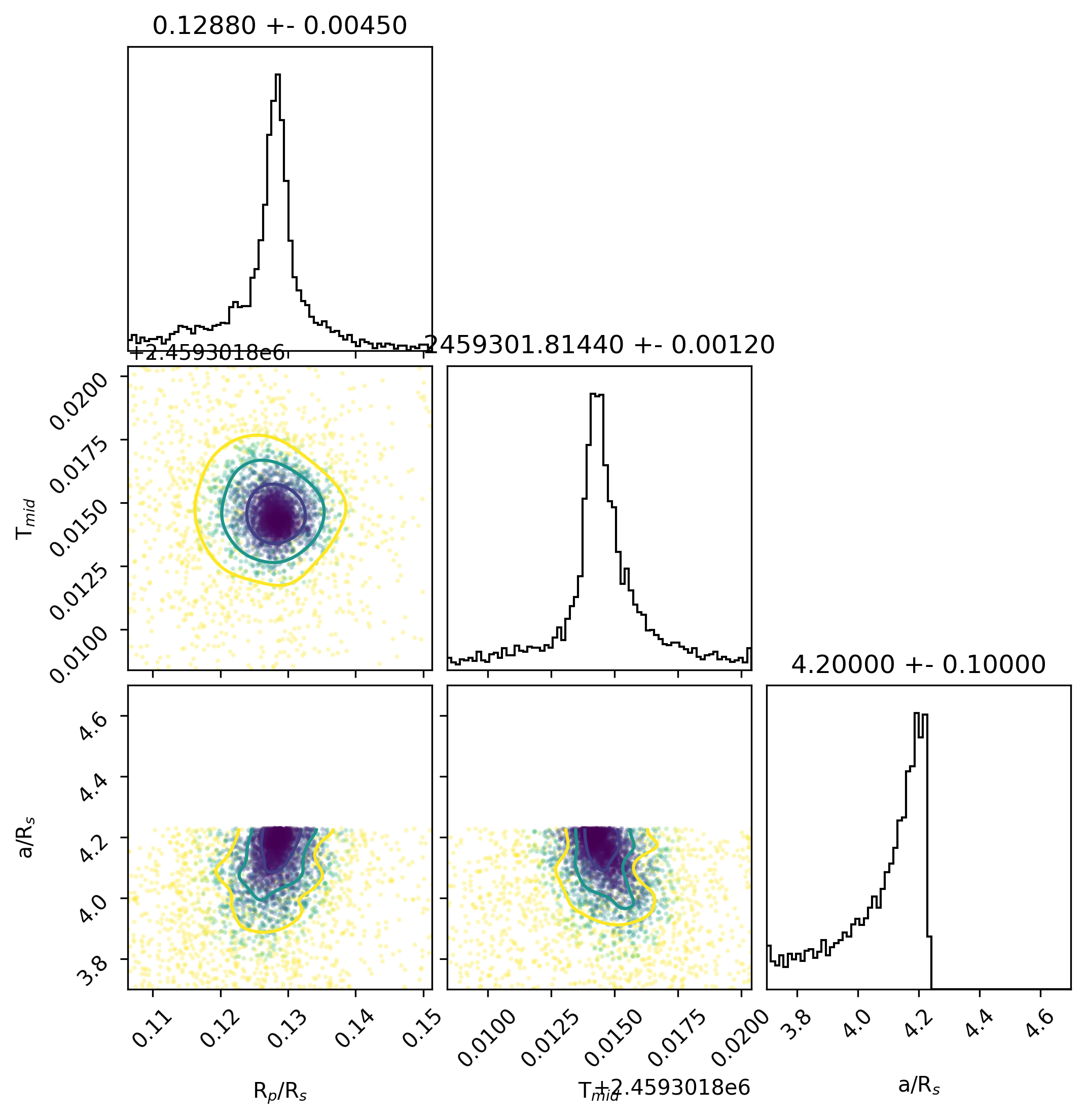

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 2dc8a2c8eb0f438d16aa233320003849
Parameter Value Uncertainty
Am1 1.0017 0.0078
Am2 0
a/Rs 3.44 0.1
Rp/Rs 0.1293 0.0052
ephemeris [JD] 2458573.7277 0.0017
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.569347329310694
u1 -4.546157429468346
u2 4.558140802020655
u3 -1.5813306339414117
duration 0.0857 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

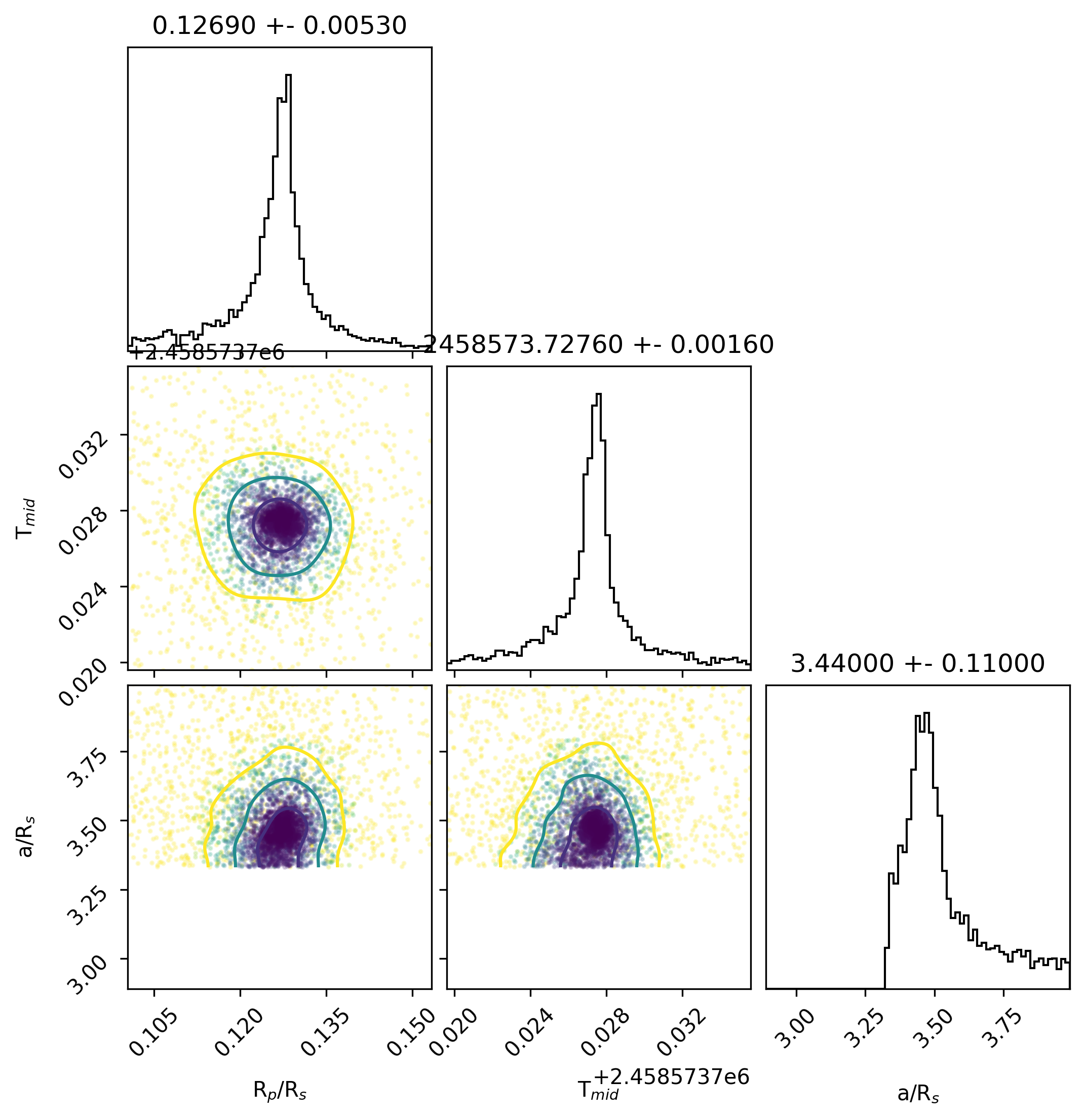

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c8cc057e8e54004d66ba322e1fcd33f3
Parameter Value Uncertainty
Am1 1.0 0.016
Am2 0
a/Rs 3.44 0.11
Rp/Rs 0.1248 0.0043
ephemeris [JD] 2459300.9743 0.0014
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.570108465032304
u1 -4.547873953957952
u2 4.559684029647349
u3 -1.5819184727771147
duration 0.0854 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c41d1d580d26e0bc0328554ef09030b4
Parameter Value Uncertainty
Am1 1.0008 0.0075
Am2 0
a/Rs 3.94 0.14
Rp/Rs 0.1303 0.0052
ephemeris [JD] 2458593.8356 0.0014
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5700510151902547
u1 -4.547879332590243
u2 4.559833336838294
u3 -1.582004951491494
duration 0.0737 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for faddcc366081f9e217152760445751ad
Parameter Value Uncertainty
Am1 1.0012 0.008
Am2 0
a/Rs 3.63 0.14
Rp/Rs 0.1315 0.0052
ephemeris [JD] 2458578.7546 0.0015
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.568833905676322
u1 -4.544783632917809
u2 4.5567621611332925
u3 -1.5808123659907585
duration 0.081 0.0035
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a0c7db471d73e5120d6207c701ec274c
Parameter Value Uncertainty
Am1 0.999 0.016
Am2 0
a/Rs 3.65 0.13
Rp/Rs 0.1236 0.0043
ephemeris [JD] 2459291.7599 0.0013
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5684145722189315
u1 -4.543450792469443
u2 4.555153249978444
u3 -1.5801169618508597
duration 0.0797 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 105449223b160bcb834569226a861f7c
Parameter Value Uncertainty
Am1 1.0022 0.0083
Am2 0
a/Rs 3.73 0.17
Rp/Rs 0.1368 0.0052
ephemeris [JD] 2458579.5917 0.0017
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.568150939497007
u1 -4.542943413013338
u2 4.55480235778887
u3 -1.5800098164006946
duration 0.0788 0.004
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fa5781511ca28b487520fae1fa6f89c7
Parameter Value Uncertainty
Am1 1.0002 0.0078
Am2 0
a/Rs 3.51 0.14
Rp/Rs 0.1252 0.0054
ephemeris [JD] 2458587.9697 0.0017
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.569567616848366
u1 -4.546965676730215
u2 4.559180383383192
u3 -1.5817822555642613
duration 0.0834 0.0035
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9a7a3d86d34ca0c3dd51628d76230aac
Parameter Value Uncertainty
Am1 1.0 0.015
Am2 0
a/Rs 3.71 0.15
Rp/Rs 0.1232 0.0043
ephemeris [JD] 2459290.0838 0.0014
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5692874324227737
u1 -4.545663632104462
u2 4.557349183880886
u3 -1.580972916289403
duration 0.0783 0.0037
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0d95e16ac299c7b871d856cc03038ad3
Parameter Value Uncertainty
Am1 1.0 0.015
Am2 0
a/Rs 3.58 0.12
Rp/Rs 0.117 0.0041
ephemeris [JD] 2459283.3795 0.0013
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.569978418148657
u1 -4.547534394113332
u2 4.559312430797601
u3 -1.5817563868938764
duration 0.0811 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 32b0489a912f89aa04f2518779bf7194
Parameter Value Uncertainty
Am1 1.0 0.016
Am2 0
a/Rs 3.72 0.11
Rp/Rs 0.1234 0.0046
ephemeris [JD] 2459286.7326 0.0011
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.569349602129723
u1 -4.546134933259055
u2 4.558090158007183
u3 -1.5813047589570148
duration 0.078 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 50ed0140643720d8044c21212fadbfac
Parameter Value Uncertainty
Am1 1.0013 0.008
Am2 0
a/Rs 3.5 0.14
Rp/Rs 0.1271 0.006
ephemeris [JD] 2458592.1597 0.0017
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.569437491779228
u1 -4.546471217001226
u2 4.558469177051275
u3 -1.5814353839027926
duration 0.0839 0.0038
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3bd1e5ec8d4bf8f49199ef994da0c60d
Parameter Value Uncertainty
Am1 1.0002 0.0083
Am2 0
a/Rs 3.68 0.15
Rp/Rs 0.1299 0.0057
ephemeris [JD] 2458580.4321 0.0015
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5684510715069395
u1 -4.544028763758014
u2 4.556181243721958
u3 -1.580603483578492
duration 0.0797 0.0036
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 74fecb3406a1dc8fef52231e360bdb20
Parameter Value Uncertainty
Am1 1.0 0.015
Am2 0
a/Rs 3.63 0.12
Rp/Rs 0.1283 0.0043
ephemeris [JD] 2459288.4088 0.0012
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5702656920043214
u1 -4.548486566929751
u2 4.560484392161501
u3 -1.5822634492795595
duration 0.0809 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c31c6b36e2bdfa4f9aca8b39db196936
Parameter Value Uncertainty
Am1 1.0003 0.0087
Am2 0
a/Rs 3.9 0.19
Rp/Rs 0.1291 0.0058
ephemeris [JD] 2458595.5112 0.0019
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5690577631775873
u1 -4.545394603562807
u2 4.557355913491723
u3 -1.5810190051966093
duration 0.0746 0.004
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 63cf8a2d77998dc5da27cdcf3e6859ff
Parameter Value Uncertainty
Am1 1.0004 0.0085
Am2 0
a/Rs 3.66 0.16
Rp/Rs 0.1298 0.0059
ephemeris [JD] 2458572.8912 0.0017
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5693851984751586
u1 -4.545992334771317
u2 4.5577919579175425
u3 -1.5811847537049912
duration 0.0803 0.004
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4acec850a90e3c7c50aa1035e0050295
Parameter Value Uncertainty
Am1 1.0025 0.0081
Am2 0
a/Rs 3.47 0.11
Rp/Rs 0.128 0.0054
ephemeris [JD] 2458581.2712 0.0015
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5708341059437454
u1 -4.550366685607293
u2 4.562669239272804
u3 -1.5831365916201858
duration 0.0848 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c6f3e0170b9cae99f99460f8ac8a842b
Parameter Value Uncertainty
Am1 0.999 0.016
Am2 0
a/Rs 3.65 0.13
Rp/Rs 0.1215 0.0042
ephemeris [JD] 2459284.2197 0.0014
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5696635225105013
u1 -4.5467463540690005
u2 4.558576442272374
u3 -1.5814935427857928
duration 0.0795 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 82e5349ee8f29e534c8eefebe1c0b855
Parameter Value Uncertainty
Am1 0.999 0.017
Am2 0
a/Rs 3.71 0.15
Rp/Rs 0.1216 0.0048
ephemeris [JD] 2459304.3277 0.0015
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5700286716839096
u1 -4.547663150617511
u2 4.559475279423397
u3 -1.58184073254832
duration 0.078 0.0035
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6d8270e774d6c54981eea0da9357bc79
Parameter Value Uncertainty
Am1 1.0 0.015
Am2 0
a/Rs 3.66 0.14
Rp/Rs 0.1175 0.0044
ephemeris [JD] 2459285.0561 0.0014
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.570041389868403
u1 -4.54792388360104
u2 4.559947433811881
u3 -1.582064872130732
duration 0.0792 0.0035
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 65eb278e9e7c0cc60a16f1461bbd52da
Parameter Value Uncertainty
Am1 0.999 0.017
Am2 0
a/Rs 3.72 0.14
Rp/Rs 0.1161 0.0052
ephemeris [JD] 2459299.2979 0.0014
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5694784070670145
u1 -4.546249824434894
u2 4.558047240186799
u3 -1.5812757548987224
duration 0.0775 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

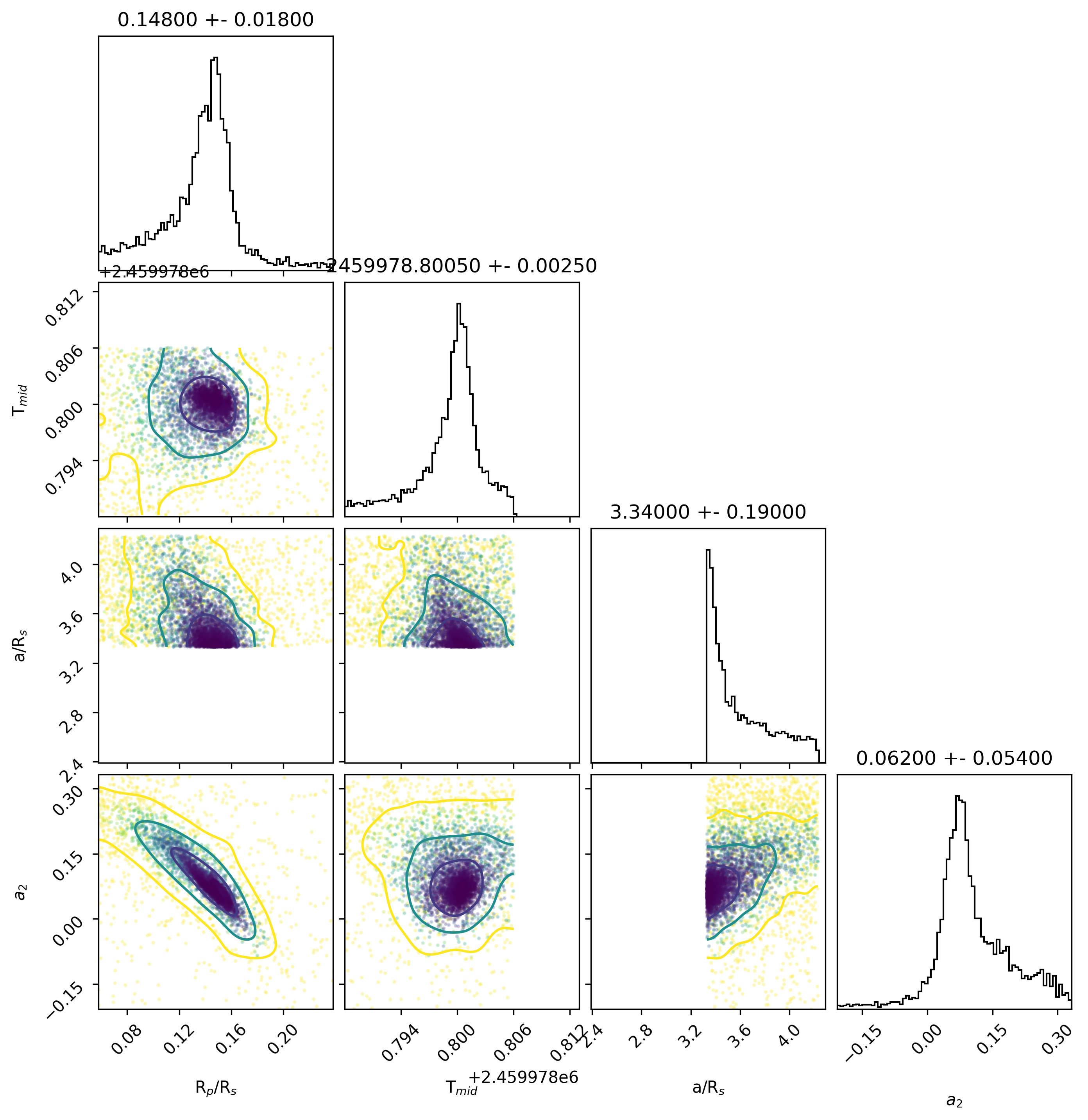

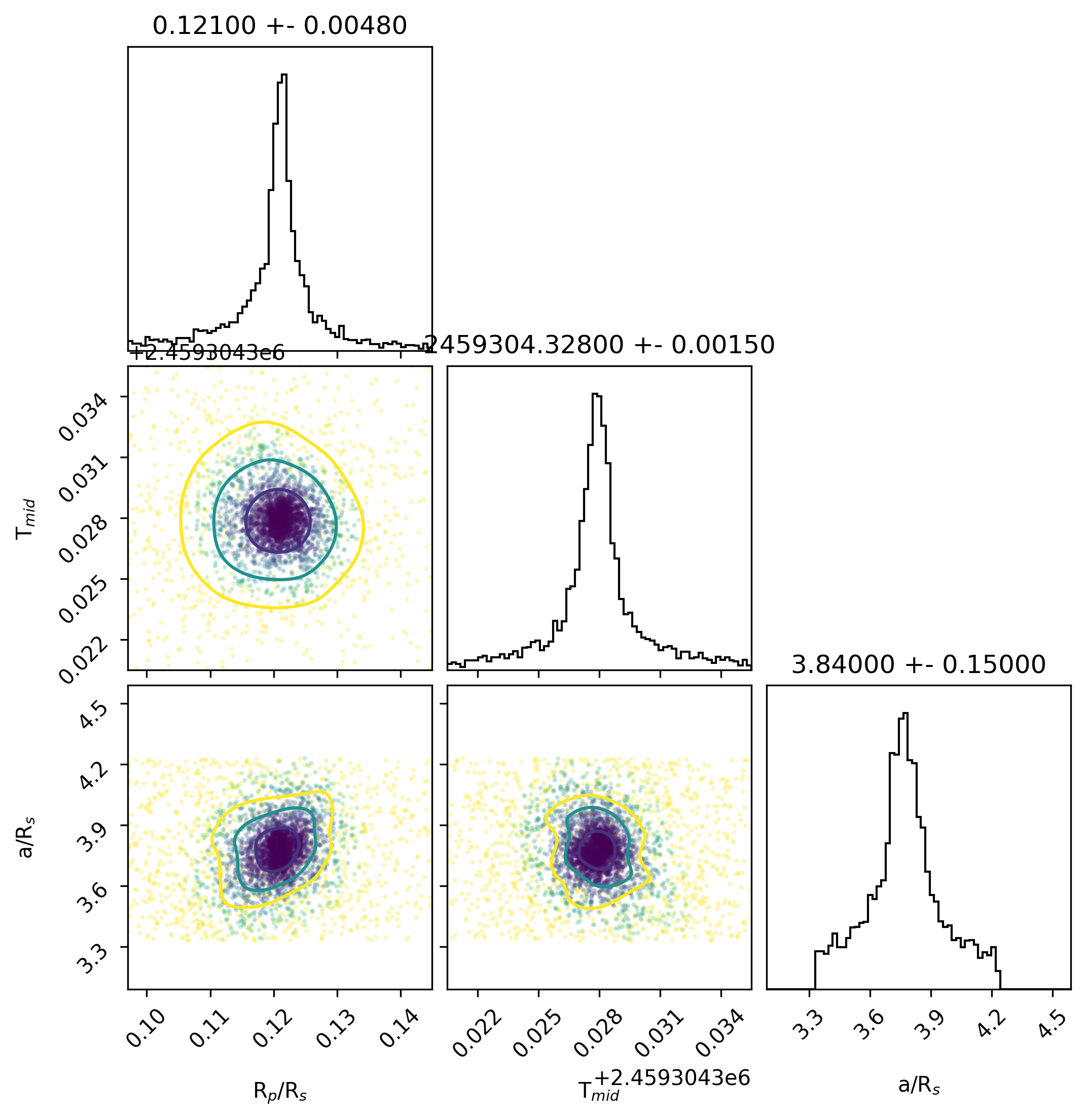

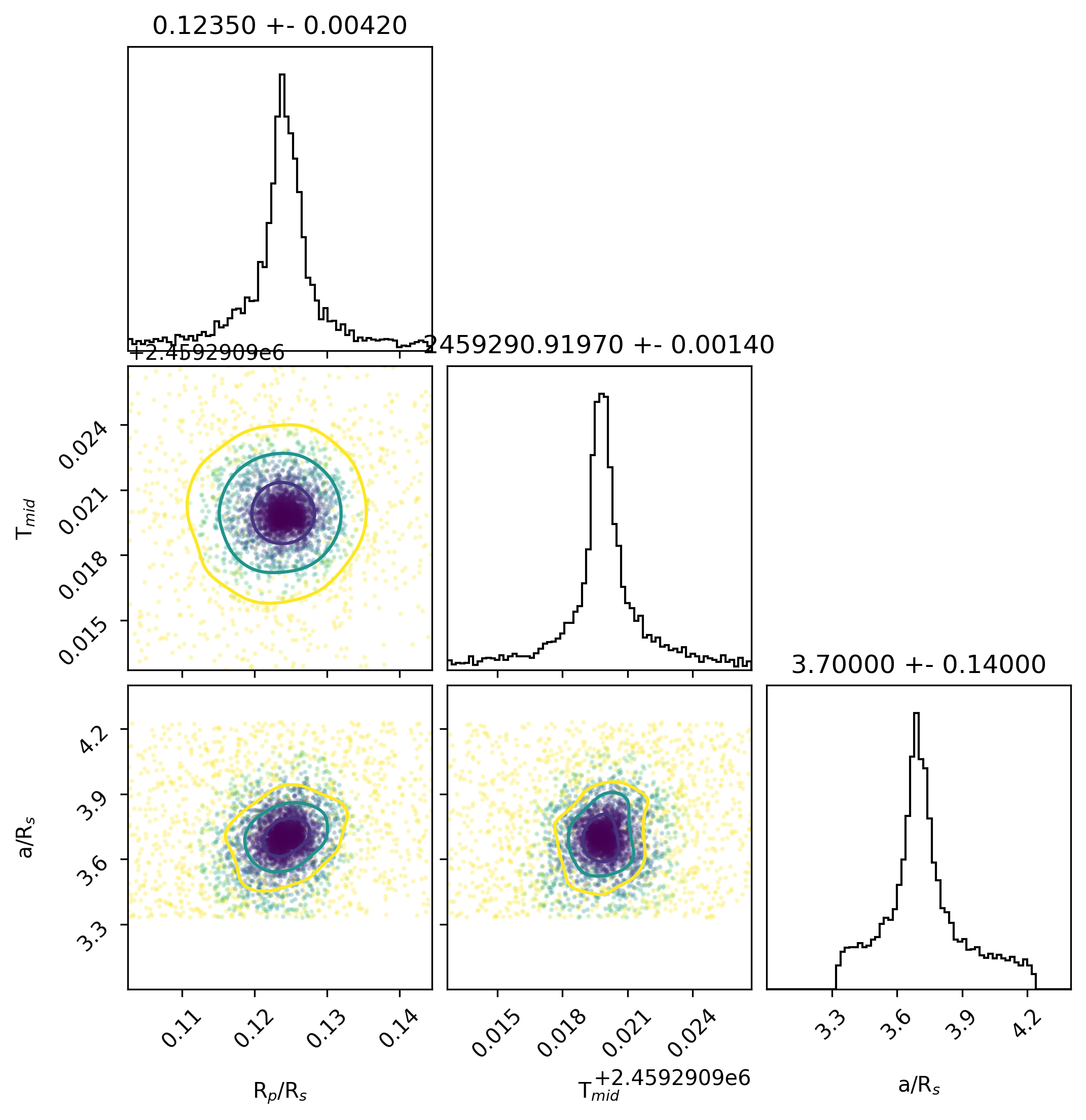

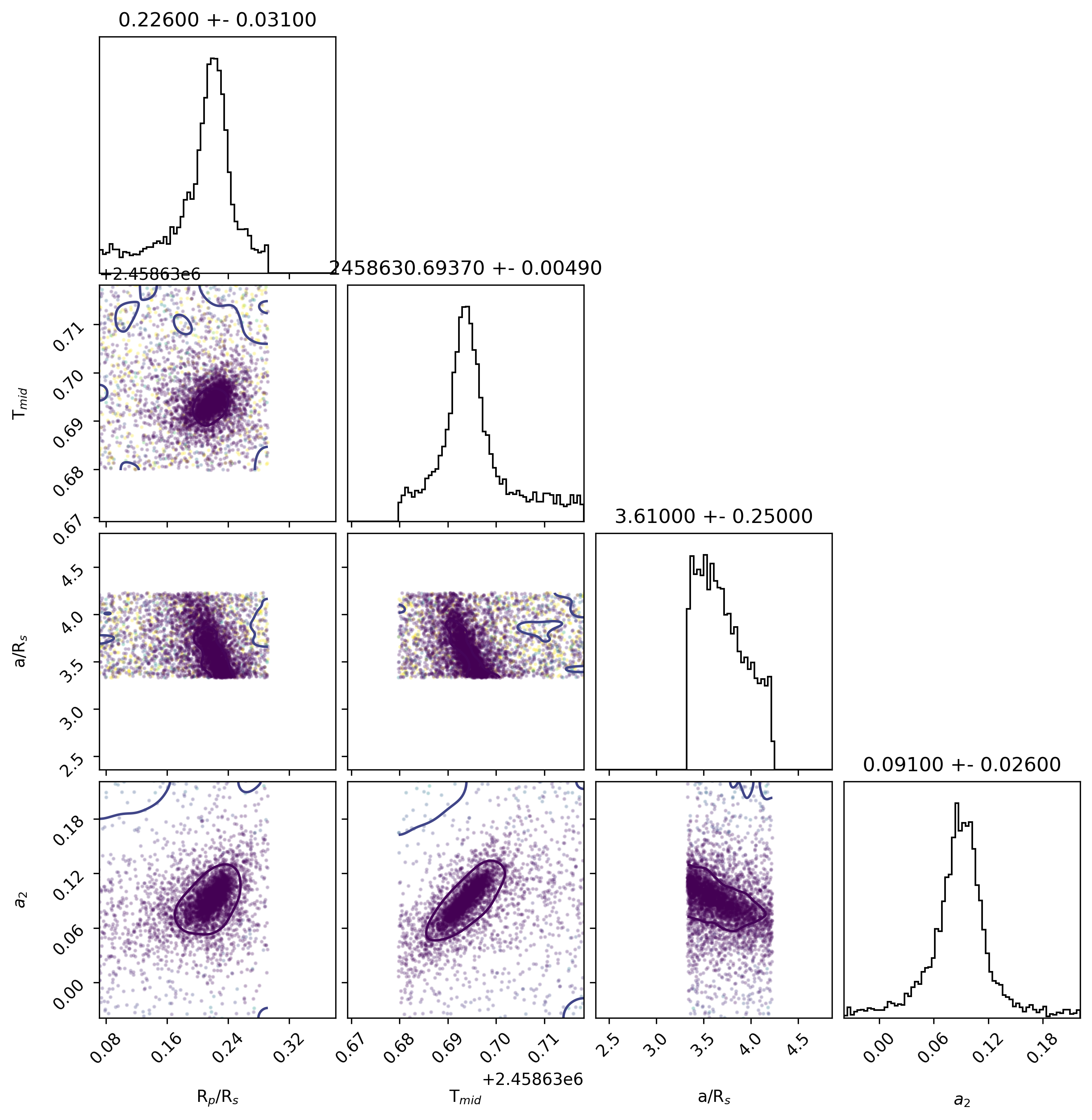

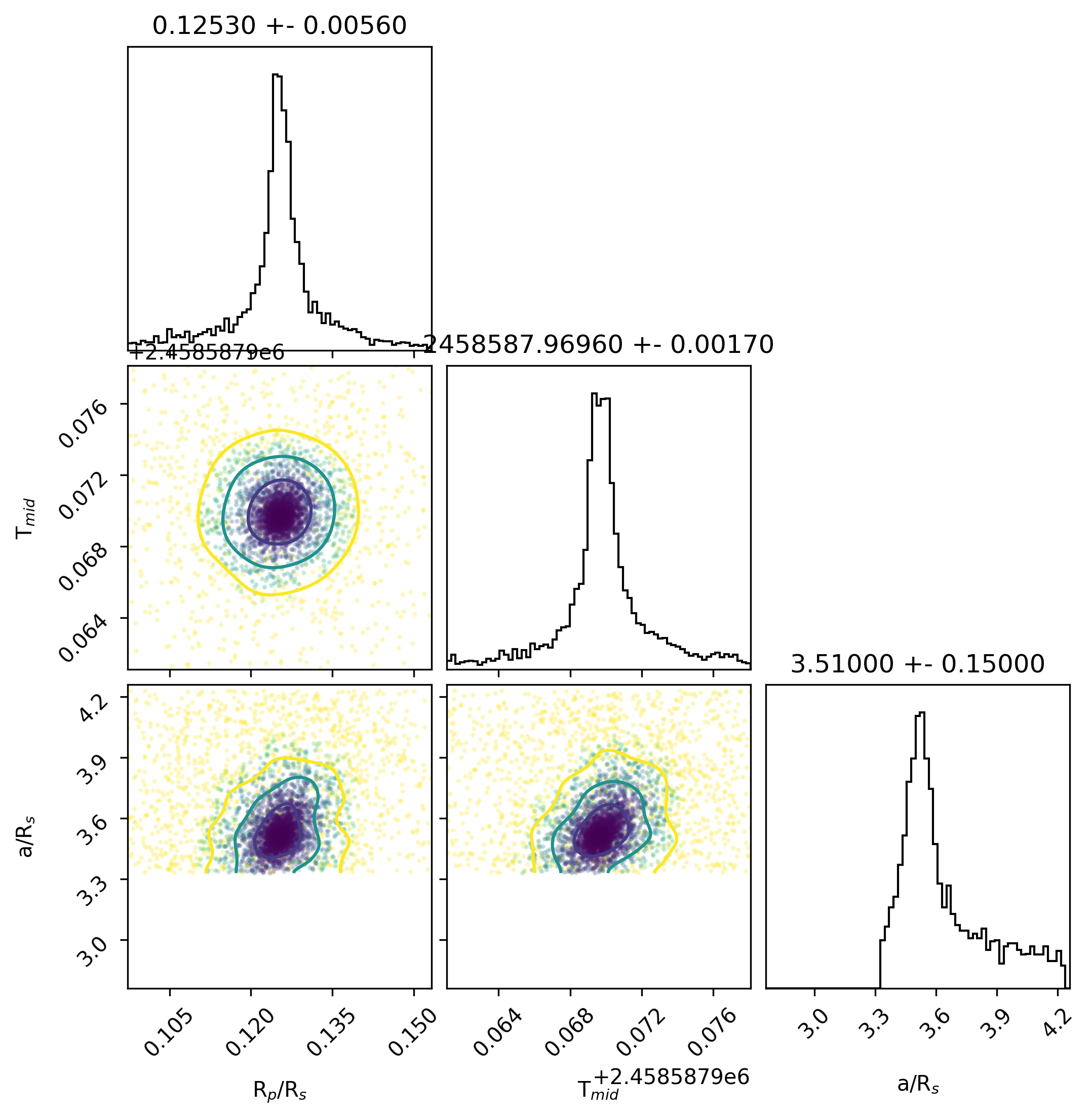

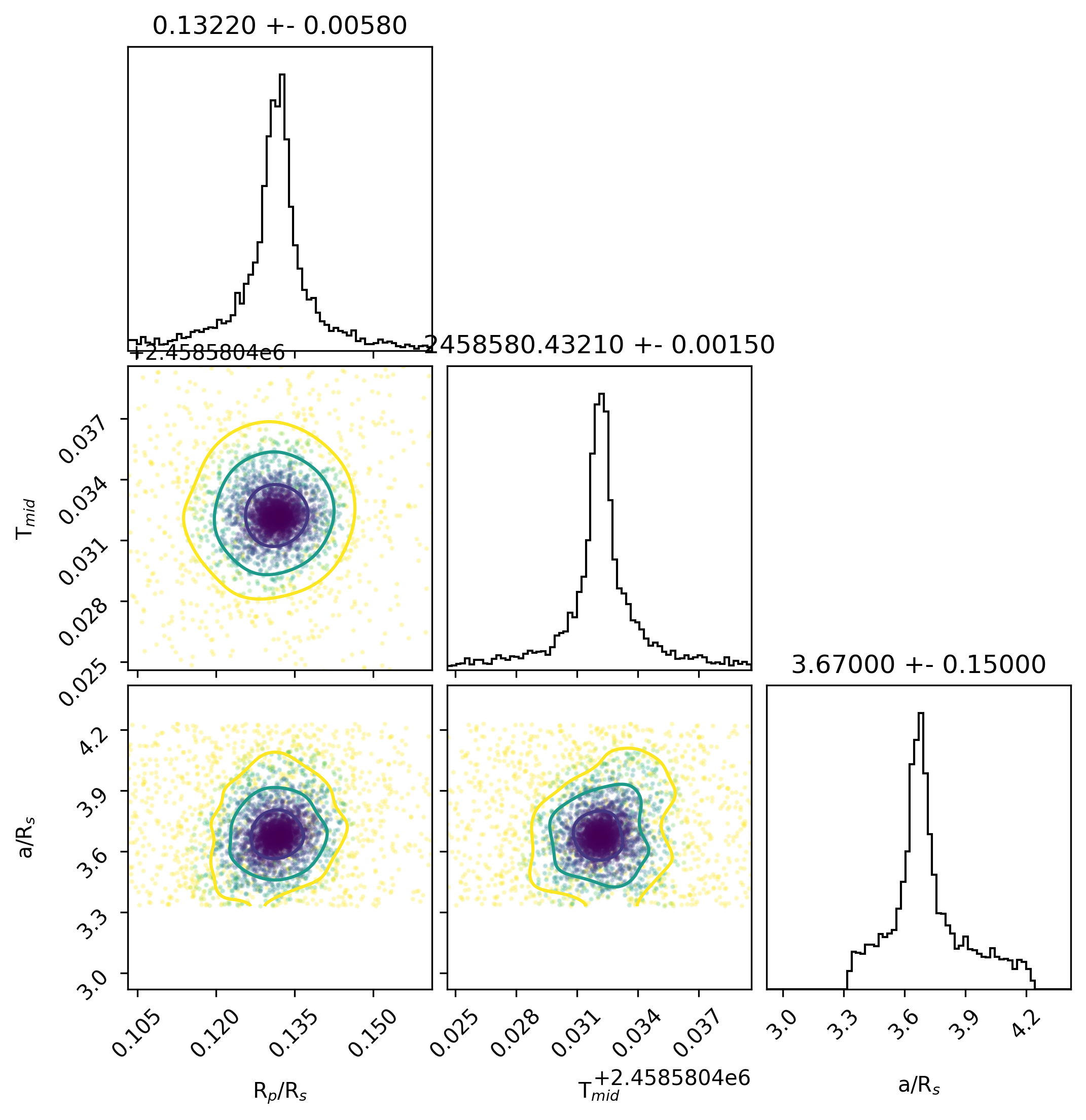

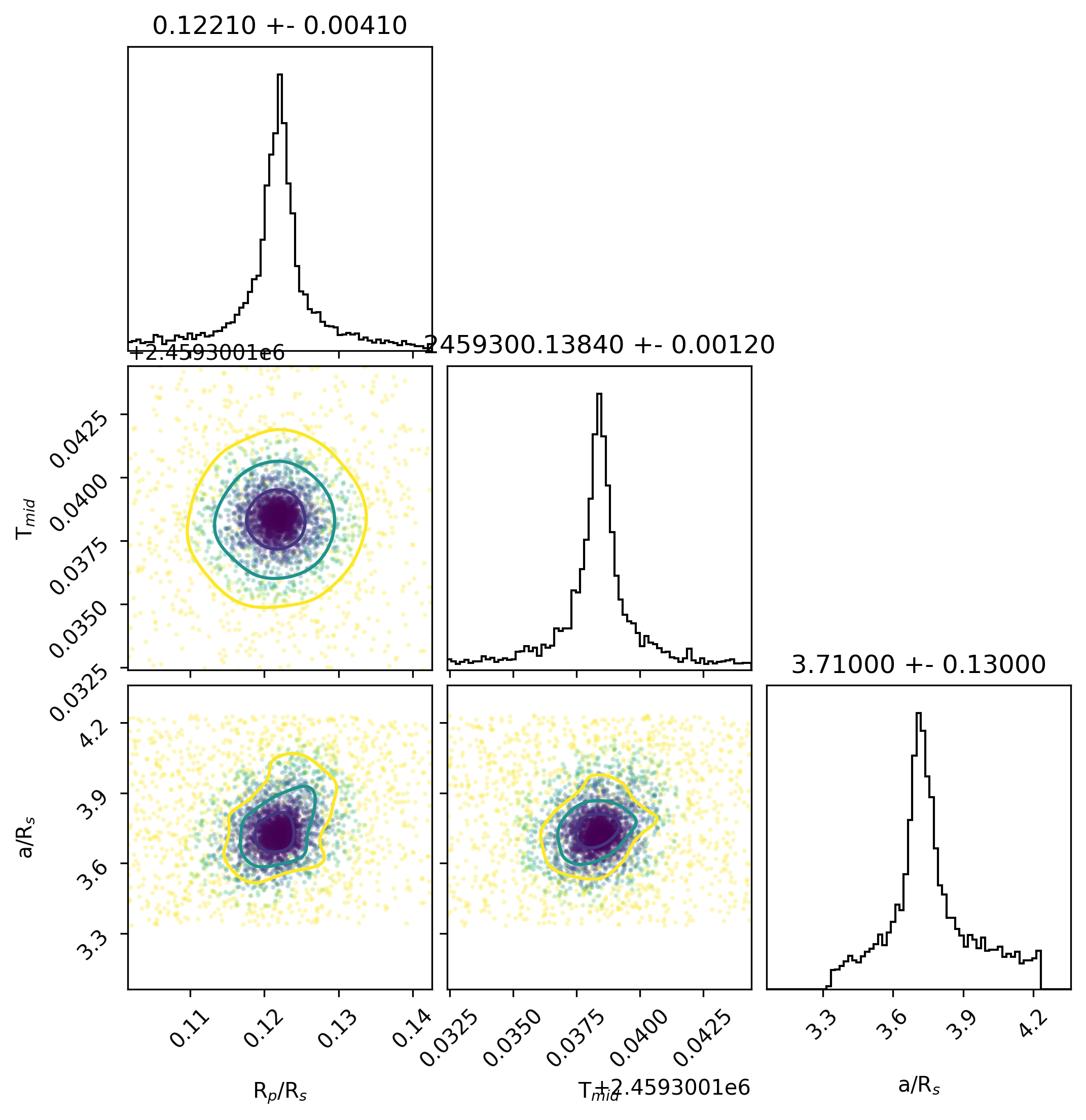

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

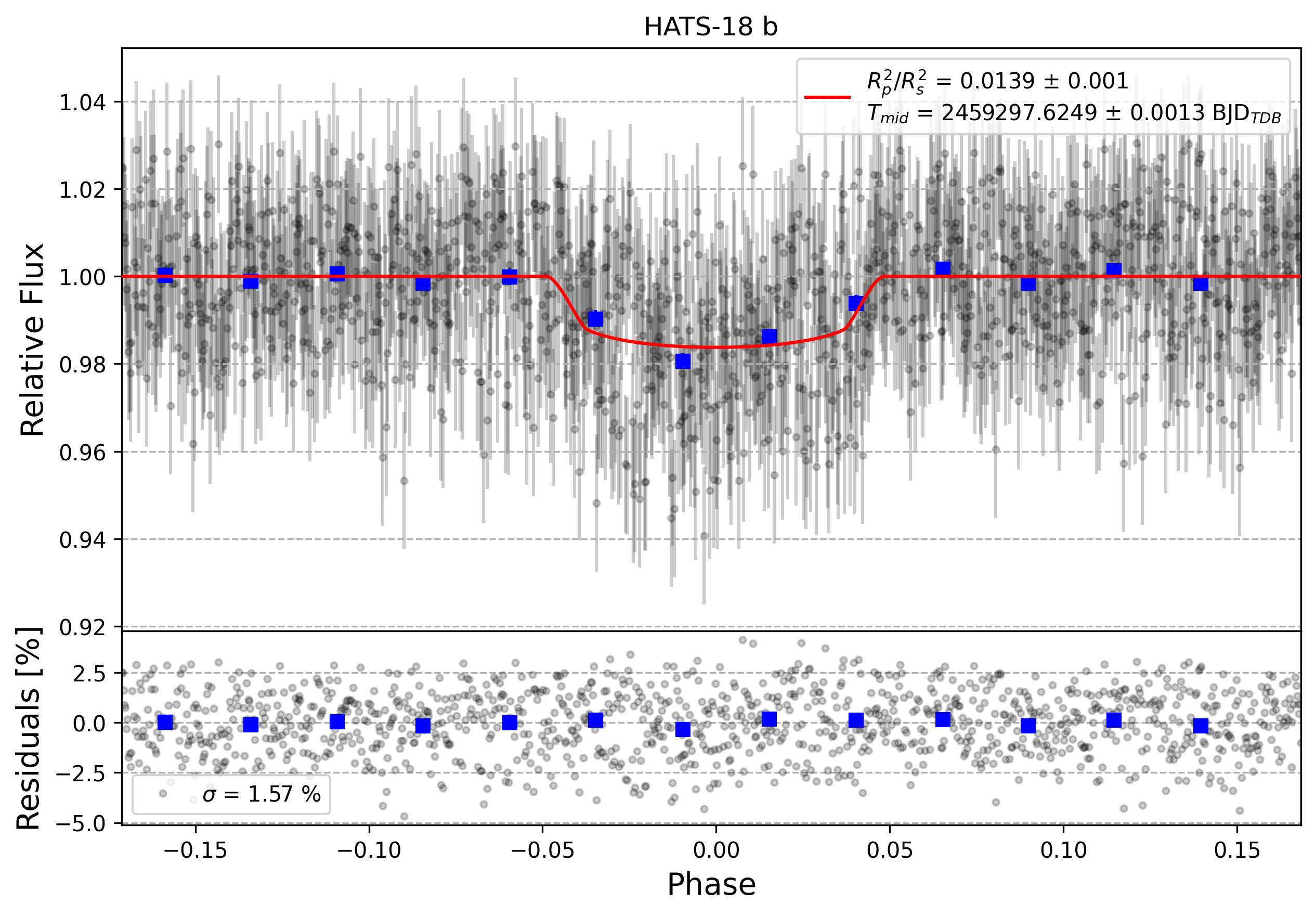

Light curve chart for e9910adce4cc96f4834f8a0a6134d201
Parameter Value Uncertainty
Am1 1.0006 0.0077
Am2 0
a/Rs 3.74 0.18
Rp/Rs 0.1218 0.0066
ephemeris [JD] 2458592.9988 0.0019
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5697815217432676
u1 -4.54726603701112
u2 4.5592647470555345
u3 -1.5817801638493427
duration 0.0774 0.0042
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c1ecf10ffca6d6ec53ef2f8b337564f1
Parameter Value Uncertainty
Am1 1.0 0.016
Am2 0
a/Rs 3.76 0.12
Rp/Rs 0.1297 0.0043
ephemeris [JD] 2459285.8921 0.0011
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.56879271013906
u1 -4.544894369057276
u2 4.556980846255589
u3 -1.5808791194330678
duration 0.0777 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 15409a4bd831346e410d5ebde17396ca
Parameter Value Uncertainty
Am1 1.001 0.016
Am2 0
a/Rs 3.66 0.16
Rp/Rs 0.1227 0.0041
ephemeris [JD] 2459298.4626 0.0016
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.569437079124678
u1 -4.546347257690087
u2 4.5582682629486175
u3 -1.5813580164597187
duration 0.0795 0.0038
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a78943cd8624c55f301268042b611c5f
Parameter Value Uncertainty
Am1 0.996 0.019
Am2 0
a/Rs 3.91 0.22
Rp/Rs 0.1158 0.0061
ephemeris [JD] 2459305.1646 0.0022
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5698631221733685
u1 -4.5473761091476685
u2 4.559304129262043
u3 -1.5817910743488173
duration 0.0731 0.0045
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fe7d19da9f34cbf6e1c3a2ccd25dea95
Parameter Value Uncertainty
Am1 1.0008 0.0079
Am2 0
a/Rs 3.76 0.14
Rp/Rs 0.1298 0.0059
ephemeris [JD] 2458577.0787 0.0013
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.568005963551776
u1 -4.542686661347854
u2 4.5546366993009615
u3 -1.579955933635509
duration 0.0777 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3d461ef20513f0bfc840dd3c4878ce1f
Parameter Value Uncertainty
Am1 0.998 0.017
Am2 0
a/Rs 3.43 0.14
Rp/Rs 0.1264 0.0047
ephemeris [JD] 2459292.5975 0.0017
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5695195732762173
u1 -4.546354145755367
u2 4.558161315651467
u3 -1.5813266752504207
duration 0.0854 0.0038
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

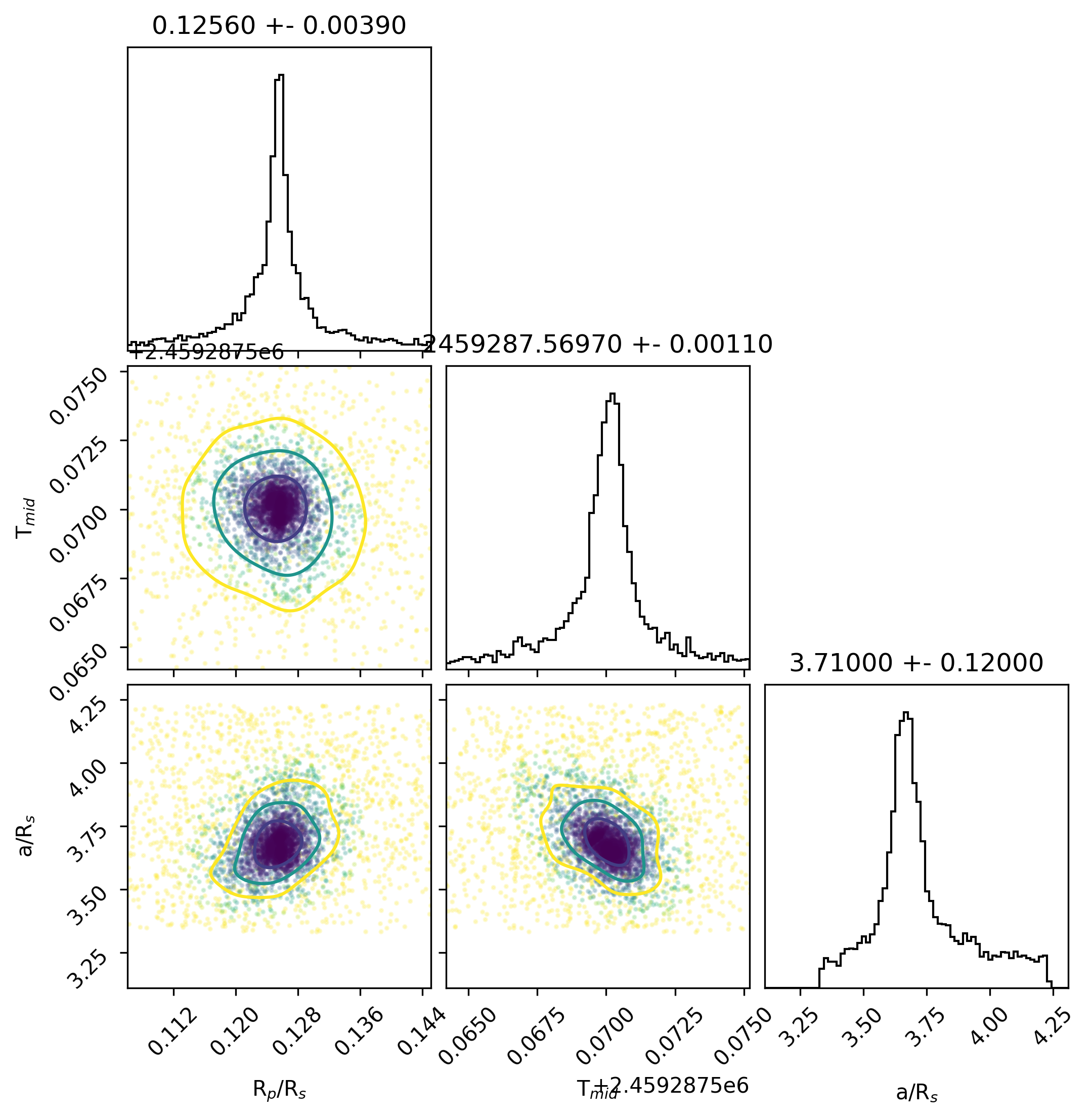

Light curve chart for 2179537edb0b333339c73bab5ac5d0d5
Parameter Value Uncertainty
Am1 1.001 0.015
Am2 0
a/Rs 3.7 0.12
Rp/Rs 0.1257 0.004
ephemeris [JD] 2459287.5696 0.0011
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5696704164146715
u1 -4.54693401308621
u2 4.558879839966503
u3 -1.581616175362361
duration 0.0789 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fce8c337651125e861caad83c7c9e841
Parameter Value Uncertainty
Am1 1.0 0.016
Am2 0
a/Rs 3.67 0.15
Rp/Rs 0.1297 0.0043
ephemeris [JD] 2459296.7861 0.0015
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.569047009356204
u1 -4.544981064920116
u2 4.556625278726059
u3 -1.580691155263139
duration 0.0797 0.0035
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

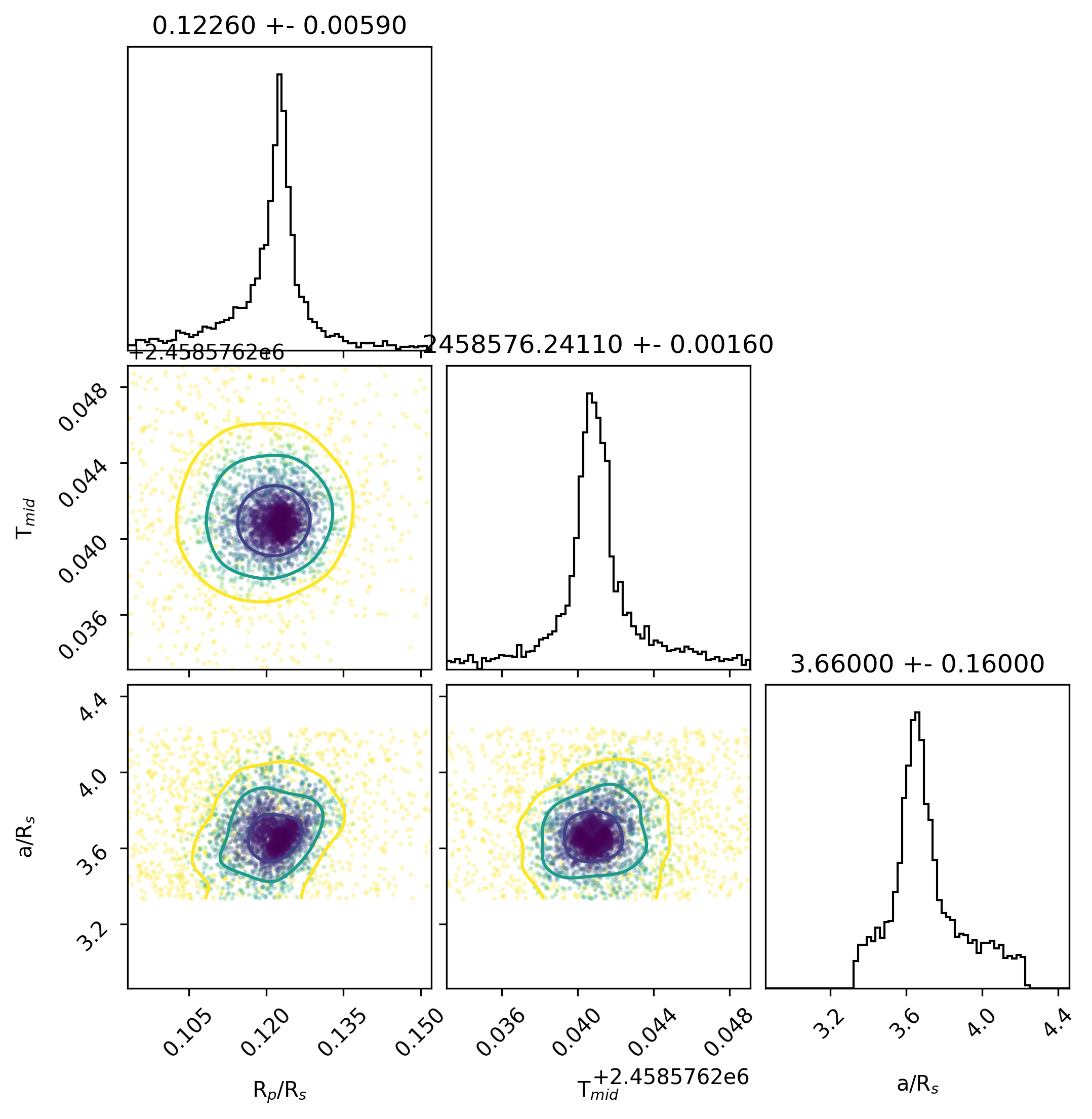

Light curve chart for 4cfd09f6381ef66f332e282b0f990305
Parameter Value Uncertainty
Am1 1.0003 0.0078
Am2 0
a/Rs 3.66 0.15
Rp/Rs 0.1228 0.0058
ephemeris [JD] 2458576.2411 0.0015
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.569979824136917
u1 -4.547918859664538
u2 4.559997714942966
u3 -1.5820586114660848
duration 0.0794 0.0036
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d097bf5e3ea287bf10e34f341a5f4088
Parameter Value Uncertainty
Am1 1.0 0.015
Am2 0
a/Rs 3.76 0.11
Rp/Rs 0.1226 0.0045
ephemeris [JD] 2459289.2465 0.001
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5692995871545907
u1 -4.545645590758101
u2 4.557349772699334
u3 -1.5810037011860212
duration 0.0771 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6a8b719eb8f19316b1cb9d798589c5ca
Parameter Value Uncertainty
Am1 1.0002 0.0083
Am2 0
a/Rs 3.54 0.12
Rp/Rs 0.1238 0.0057
ephemeris [JD] 2458575.4047 0.0015
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5687168740693602
u1 -4.544802613964435
u2 4.556994798379305
u3 -1.580908990579717
duration 0.0822 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 631fbc6e607a633036f85e6a71827df0
Parameter Value Uncertainty
Am1 1.0 0.016
Am2 0
a/Rs 3.83 0.16
Rp/Rs 0.1232 0.0045
ephemeris [JD] 2459302.6524 0.0015
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.56945850870354
u1 -4.546242369689794
u2 4.558101319516729
u3 -1.5813173906094726
duration 0.0757 0.0036
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for de673261a8a302b5fb516123c82ebe1b
Parameter Value Uncertainty
Am1 1.001 0.0084
Am2 0
a/Rs 3.53 0.14
Rp/Rs 0.1229 0.0063
ephemeris [JD] 2458587.1341 0.0016
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5699532764959288
u1 -4.547956805812949
u2 4.560186756688718
u3 -1.5821831594196198
duration 0.0825 0.0035
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c7284a3a9a8f38617d6937668f235eb4
Parameter Value Uncertainty
Am1 0.999 0.015
Am2 0
a/Rs 3.6 0.11
Rp/Rs 0.1177 0.0046
ephemeris [JD] 2459295.95 0.0012
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5695582884919834
u1 -4.546448853791276
u2 4.558217094449098
u3 -1.581326461227078
duration 0.0806 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 22d12292cd16b1606f2a38528c154ae2
Parameter Value Uncertainty
Am1 1.0006 0.0085
Am2 0
a/Rs 3.69 0.21
Rp/Rs 0.1293 0.0058
ephemeris [JD] 2458574.5644 0.0022
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5699128077345144
u1 -4.547717560591894
u2 4.5598144256123145
u3 -1.5820096048084054
duration 0.0791 0.005
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 7d9c5eb3c2b2acf658352ab8a5613fd2
Parameter Value Uncertainty
Am1 0.9999 0.0083
Am2 0
a/Rs 3.56 0.16
Rp/Rs 0.1259 0.0059
ephemeris [JD] 2458589.6465 0.0018
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5694007490768023
u1 -4.546310721411726
u2 4.558288652288051
u3 -1.581378612029333
duration 0.0822 0.0043
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

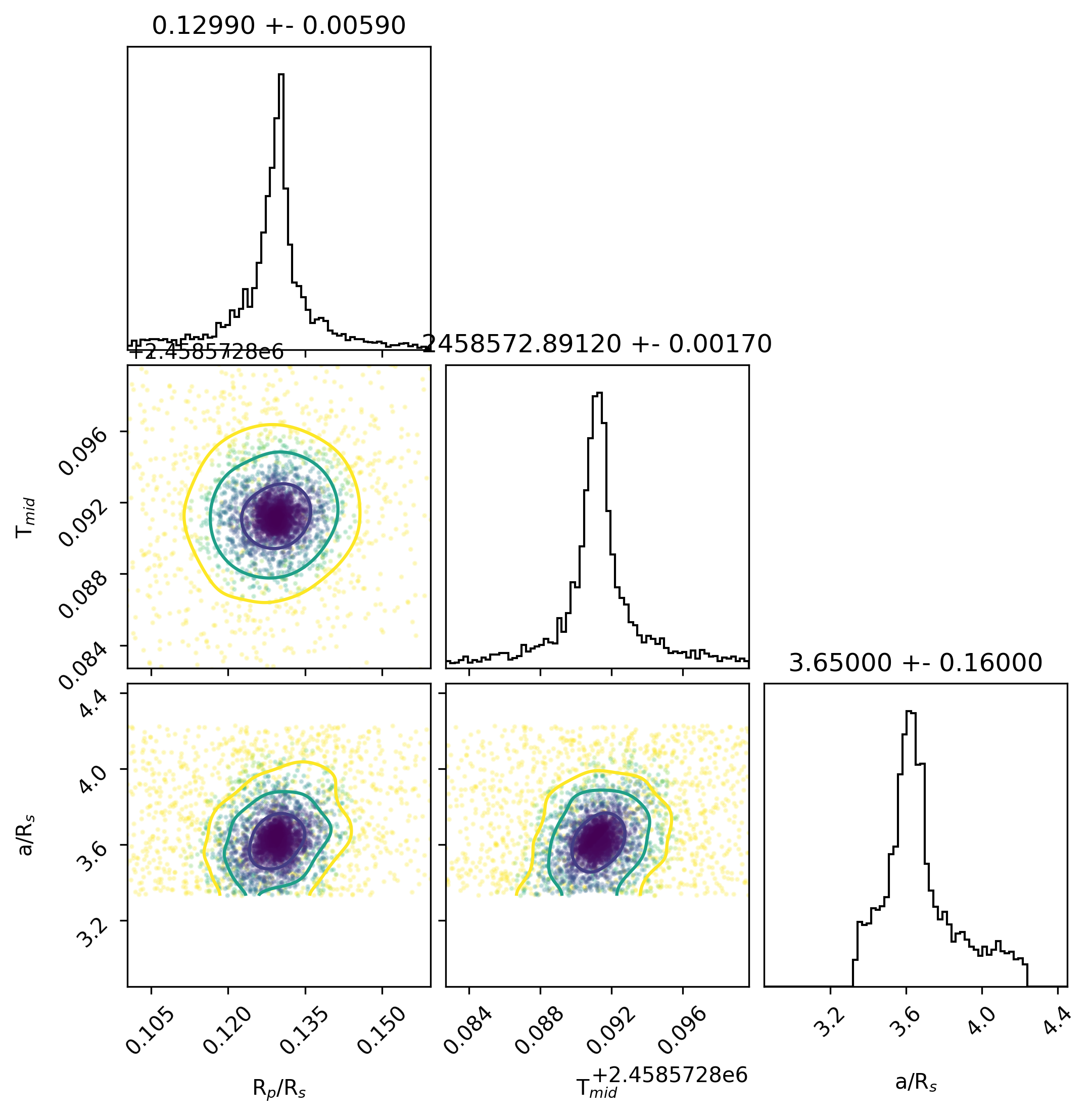

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9a8cf5fc24b5373486c6a773bfcfc494
Parameter Value Uncertainty
Am1 0.999 0.016
Am2 0
a/Rs 3.57 0.12
Rp/Rs 0.1184 0.0044
ephemeris [JD] 2459297.6249 0.0013
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.569715369054994
u1 -4.547083899086007
u2 4.559056220854165
u3 -1.5816876228879204
duration 0.0814 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

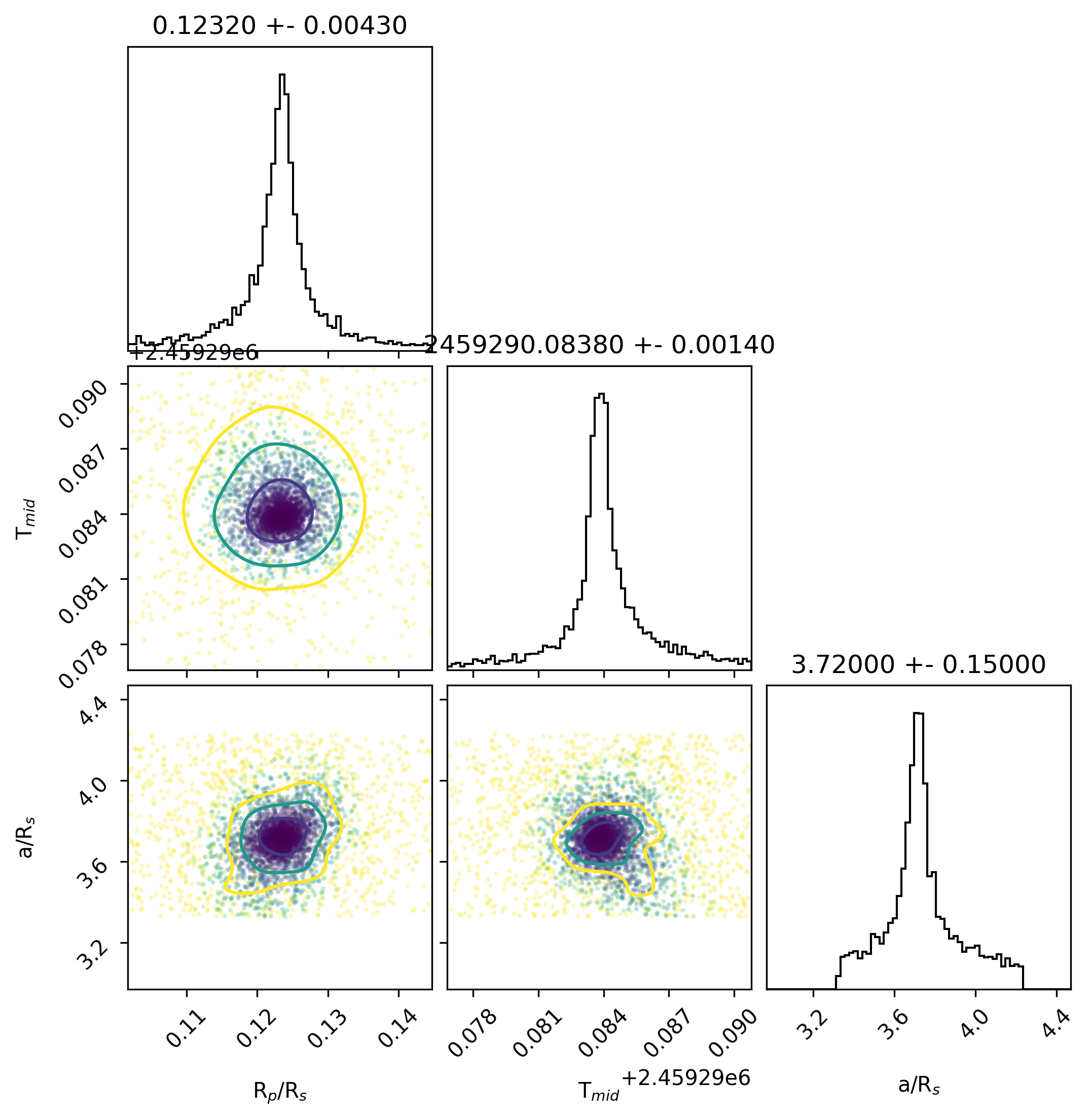

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

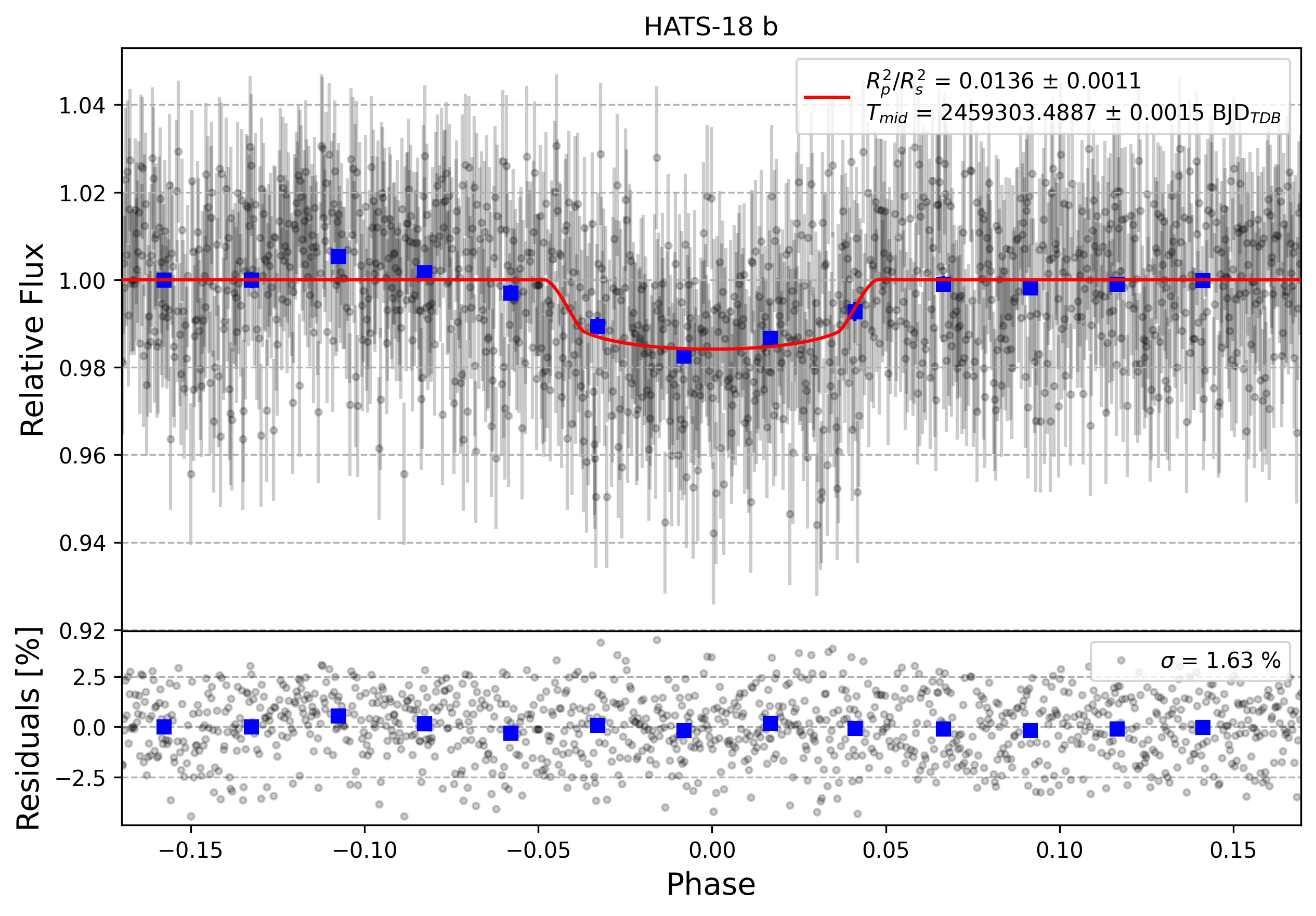

Light curve chart for 5a931e82bb512a04948f7010fed263a8
Parameter Value Uncertainty
Am1 0.999 0.016
Am2 0
a/Rs 3.64 0.14
Rp/Rs 0.1165 0.0048
ephemeris [JD] 2459303.4884 0.0015
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5695545401494106
u1 -4.546542418328449
u2 4.558428581594123
u3 -1.5814406354892059
duration 0.0794 0.0035
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for aa31dbd16fc8e8216734b140167e5c8a
Parameter Value Uncertainty
Am1 0.999 0.015
Am2 0
a/Rs 4.02 0.2
Rp/Rs 0.1216 0.0047
ephemeris [JD] 2459282.5383 0.0017
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.569397703880925
u1 -4.546701176276552
u2 4.5590150358281205
u3 -1.5817114954978755
duration 0.0714 0.004
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4545393f1923133dacd0edc461f784d0
Parameter Value Uncertainty
Am1 1.0019 0.0082
Am2 0
a/Rs 3.44 0.14
Rp/Rs 0.1206 0.0056
ephemeris [JD] 2458577.918 0.0019
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5693924751659902
u1 -4.546542699900437
u2 4.558728929825178
u3 -1.5815786371603768
duration 0.0851 0.0039
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ad17e4f2b6a041b9691ce33c2bf7202e
Parameter Value Uncertainty
Am1 1.0005 0.0074
Am2 0
a/Rs 3.66 0.16
Rp/Rs 0.1219 0.0053
ephemeris [JD] 2458594.6716 0.0017
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5688482337051894
u1 -4.544715552940773
u2 4.556556062171407
u3 -1.5806886750378464
duration 0.0791 0.0039
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for e22ed0686dab14b0d5ffe44f02fc3c15
Parameter Value Uncertainty
Am1 1.0021 0.0076
Am2 0
a/Rs 3.48 0.12
Rp/Rs 0.1339 0.0053
ephemeris [JD] 2458591.3221 0.0014
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.569417073524263
u1 -4.546450246463235
u2 4.558513848925913
u3 -1.5814806080597914
duration 0.0848 0.0034
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 89d2c62b2258e1690608c95afc04943b
Parameter Value Uncertainty
Am1 1.0 0.015
Am2 0
a/Rs 3.74 0.13
Rp/Rs 0.122 0.0042
ephemeris [JD] 2459300.1385 0.0012
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.569275018080436
u1 -4.545961863326047
u2 4.557954593269284
u3 -1.5812676801048573
duration 0.0777 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 416570af0db50145277160aa5c128916
Parameter Value Uncertainty
Am1 1.0019 0.0075
Am2 0
a/Rs 3.56 0.12
Rp/Rs 0.1376 0.0049
ephemeris [JD] 2458588.8071 0.0013
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.5690038787455194
u1 -4.545215482366536
u2 4.557150493040942
u3 -1.580938821513092
duration 0.0831 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6ed83fedff1c5f472314e229aee3fdbb
Parameter Value Uncertainty
Am1 1.001 0.016
Am2 0
a/Rs 3.7 0.14
Rp/Rs 0.1236 0.0038
ephemeris [JD] 2459290.9198 0.0014
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.569492164981237
u1 -4.546613793666119
u2 4.558693066943317
u3 -1.5815713703286143
duration 0.0785 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for af9ee1704091c6089109ebf47192cf96
Parameter Value Uncertainty
Am1 1.0017 0.0084
Am2 0
a/Rs 3.52 0.14
Rp/Rs 0.133 0.0055
ephemeris [JD] 2458590.4856 0.0016
eccentricity 0.166
inclination [degrees] 85.29
omega [degrees] 0.0
orbital period [days] 0.83784
u0 2.570659140279771
u1 -4.54944108472199
u2 4.5614185944323085
u3 -1.5826365820196555
duration 0.0837 0.0036
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

Explore Alien Worlds

Exoplanet Travel Bureau

This set of travel posters envision a day when the creativity of scientists and engineers will allow us to do things we can only dream of now.
More

Strange New Worlds

Explore an interactive gallery of some of the most intriguing and exotic planets discovered so far.
More
A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.

Historic Timeline

A planetary tour through time. The ancients debated the existence of planets beyond our own; now we know of thousands.
More
